Lattice Tower Manual
US Tower Corporation US Tower Corporation
1099 W. Ropes Ave. 702 E. North St.
Woodlake, CA 93286 Lincoln, KS 67455
Phone [phone] Phone [phone]
Fax [phone] Fax [phone]

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
2
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
Table of Contents 2
General Information 3
1. Equipment Description/Specifications 5
1.1 Tower Models 5
1.1.1 TMM433SS 5
1.1.2 TMM433HD 5
1.1.3 TMM541SS 5
1.1.4 TX438 5
1.1.5 TX455 6
1.1.6 TX472 6
1.1.7 TX489 6
1.1.8 HDX538 6
1.1.9 HDX555 6
1.1.10 HDX572 7
1.1.11 HDX589 7
1.1.12 HDX689 7
1.1.13 HDX5106 7
1.2 Tower Accessory Options 8
1.2.1 UST Accessories 8
1.2.2 Compatible Rotators 9
2. Safety Precautions 9
2.1 General Safety 9
2.2 Site Safety 9
3. Installation 10
3.1 Building the Foundation 10
3.2 Installing the Tower 11
3.3 Set Grouting 11
3.4 Grounding 12
3.5Accessories Installation 12
3.5.1 Raising Fixtures 12
3.5.2 Rotators 16
3.5.3 Mast Raising Fixtures 16
3.5.4 Coax Arms 18
3.5.5 RMC-1000 18
4. Maintenance 22
4.1 Inspection 22
4.2 Hand Winch 22
4.3Motor Drive 22
5. UST Warranty 23

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
3
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
Important General Information & General Notes
Notice: The entire contents of this manual must be read and understood before attempting installation or
maintenance of the equipment described herein. The buyer is responsible for confirming all local zoning restrictions
and code requirements. US Tower Corporation recommends that you, the buyer, obtain all necessary permits prior to
installation. To assist you in applying for the necessary construction permits, structural calculations conforming to
the building code requirements are available. The installation and maintenance of the equipment described in this
manual can be dangerous and should never be attempted by anyone who does not possess the proper specialized
skills, training, and experience to perform the work required. US Tower Corporation can only design safe equipment
and recommend procedures for its proper installation and maintenance. US Tower Corporation assumes no
responsibility for the safe handling, installation, maintenance, and use of this equipment.
General Notes
US Tower Corporation products are designed to meet specific design loads. To obtain optimal performance from the
products and achieve maximum allowable design loads, the products must be properly installed and used in
accordance with the installation and maintenance instructions and design limits provided by US Tower Corporation.
Proper product installation and maintenance requires careful attention to all notes, requirements, and instructions.
Failure to fully follow all of the notes, requirements, and instructions provided by US Tower Corporation may result in
improper installation of products. Improperly installed products may not perform to the specifications set forth and
may reduce a towers ability to resist the movement, stress, and loading that occurs from gravity loads as well as
environmental events such as earthquakes and high velocity winds.
US Tower Corporation does not guarantee the performance or safety of products that are modified, improperly
installed, improperly maintained, or not used in accordance with the specified design load limits.
All construction, installation, and maintenance activities shall be conducted in accordance with all Federal, State,
Local, OSHA, and other applicable laws, requirements, and ordinances.
The owner shall assume full responsibility and liability for the periodic inspection of the tower and accessory items
including the lift cables. Any cable (or other element) with any sign of distress or excessive stretch shall be
immediately inspected by qualified personnel and if necessary, replaced or repaired by qualified personnel.
US Tower Corporation reserves the right to change specifications, designs, and models without notice or liability for
such changes.
Do not modify a tower, any connection, or element of the tower. Modifications can result in an unsafe condition and
loss of the tower.
Do not overload a tower. Overloaded towers can result in an unsafe condition and loss of the tower. Refer to the
tower structural calculations for the design parameters and allowable design loading.

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
4
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
Unless specifically stated otherwise, the towers in this manual have not been designed for snow or ice accumulation.
All towers shall be fully retracted prior to any snow, ice, or other significant environmental event.
Coax and other cables running up the height of the tower shall be bundled together. The quantity, diameter, and
weight of the cables shall not exceed the values shown in the tower structural calculations. (Typically this is the
equivalent of one 7/8” diameter cable weighing 0.3 lbs per ft.
Contact US Tower Corporation for loadings that exceed those shown in the tower structural calculations.
The towers in this manual have not been designed to meet any twist, sway, or deflection requirements.
The towers in this manual have been designed for a Structure Class 1; Structures that due to height, use, or location
represent a low hazard to human life and damage to property in the event of failure and/or used for services that are
optional and/or where a delay in returning the services would be acceptable. Contact US Tower Corporation for other
Structure Classifications.
The towers in this manual have been designed for a Topographic Category 1; No abrupt changes in general
topography, e.g. flat or rolling terrain, no wind speed-up considerations required. Contact US Tower Corporation for
other Topographic Categories.

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
5
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
1. Equipment Description/Specifications
US Tower’s line of quality telescoping towers offer multiple models and options providing maximum flexibility
for meeting your individual requirements. The TMM product line offers compact towers with a low retracted height.
The standard TX tower series provide strong economical towers wile the HDX heavy-duty series towers have up to 2
½ times more wind loading capacity than other commonly advertised units. A full line of accessories including our
commercial bases, anchor bolts, and raising fixtures are available to provide turnkey capability.
1.1 Tower Models (Information shown is approximate.)
1.1.1 TMM-433SS
Max Height 33’
Min. Nested Height 14’
Inside diam. 5 3/4”
Weight 315 lbs.
Number of Sections 4
Top Section Width 10”
Bottom Section Width 18”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate, 2” O.D. 8’ mast.
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.2TMM-433HD
Max Height 33’
Min. Nested Height 14’
Inside diam. 6 1/2”
Weight 400 lbs.
Number of Sections 4
Top Section Width 12 ½”
Bottom Section Width 21 5/8”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate, 2” O.D. 8’ mast.
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.3 TMM-541SS
Max Height 41’
Min. Nested Height 15’
Inside diam. 5 3/4”
Weight 430 lbs.
Number of Sections 5
Top Section Width 10”
Bottom Section Width 21 5/8”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate, 2” O.D. 8’ mast.
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.4 TX-438
Max Height 38’
Min. Nested Height 22’
Inside diam. 6 1/2”
Weight 355 lbs.
Number of Sections 2
Top Section Width 12 1/2”
Bottom Section Width 15”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
6
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
1.1.5 TX-455
Max Height 55’
Min. Nested Height 23’
Inside diam. 6 1/2”
Weight 670 lbs.
Number of Sections 3
Top Section Width 12 1/2”
Bottom Section Width 18”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.6 TX-472
Max Height 72’
Min. Nested Height 24’
Inside diam. 6 1/2”
Weight 1040 lbs.
Number of Sections 4
Top Section Width 12 1/2”
Bottom Section Width 21 5/8”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.7 TX-489
Max Height 89’
Min. Nested Height 25’
Inside diam. 6 1/2”
Weight 1500 lbs.
Number of Sections 5
Top Section Width 12 1/2”
Bottom Section Width 25 5/8”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.8HDX-538
Max Height 38’
Min. Nested Height 21’6”
Inside diam. 8 ¼”
Weight 600 lbs.
Number of Sections 2
Top Section Width 15”
Bottom Section Width 18”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.9HDX-555
Max. Height 55’
Min. Nested Height 22’6”
Inside diam. 8 ¼”
Weight 870 lbs.
Number of Sections 3
Top Section Width 15”
Bottom Section Width 21 5/8”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
7
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
1.1.10 HDX-572
Max. Height 72’
Min. Nested Height 23’6”
Inside Diam. 8 ¼”
Weight 1420 lbs.
Number of Sections 4
Top Section Width 15”
Bottom Section Width 25 5/8”
Standard accessories: Hand winch, Hinged Base, Anchor Bolts, Rotor Plate
Suggested accessories: MDPL -1000 Motor Drive with either MCL-100 Limit Switch, Control or RMC-1000
Remote Control
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.11 HDX-589MDPL
Max. Height 89’
Min. Nested Height 24’6”
Inside Diam. 8 ¼”
Weight 2440 lbs.
Number of Sections 5
Top Section Width 15”
Bottom Section Width 30 5/8”
Standard accessories: MDPL-1000 Motor Drive, MCL-100 Limit Switch Control, Hinged Base, Anchor Bolts,
Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.12 HDX-689MDPL
Max. Height 89’
Min. Nested Height 24’6”
Inside Diam. 8 5/8”
Weight 3400 lbs.
Number of Sections 5
Top Section Width 18”
Bottom Section Width 37 1/8”
Standard accessories: MDPL-1000 Motor Drive, MCL-100 Limit Switch Control, Hinged, Base, Anchor Bolts,
Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
1.1.13 HDX-5106MDPL
Max. Height 106’
Min. Nested Height 25’6”
Inside Diam. 8 ¼”
Weight 3805 lbs.
Number of Sections 6
Top Section Width 15”
Bottom Section Width 37 1/8”
Standard accessories: MDPL-1000 Motor Drive, MCL-100 Limit Switch Control, Hinged, Base, Anchor Bolts,
Rotor Plate
* See Table 1 for optional accessories - See Table 2 for Compatible Rotors.
**See Tower Structural Calculations for all Design Parameters & Wind Load Ratings.**

US TOWER CORPORATION
FIXED LATTICE TOWER MANUAL
UNCONTROLLED
8
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
1.2 Tower Accessory Options
1.2.1 UST Accessories
O –Optional
S –Standard
R –Required
Accessory
TX438
TX455
TX472
TX472MDP
TX489
TX489MDPL
HDX538
HDX555
HDX572
HDX572MDPL
HDX589MDPL
TM433SS
TMM433HD
TMM541SS
Masts
M5
O
O
O
O
O
O
O
O
O
O
O
O
O
O
M8
S
S
S
M10
O
O
O
O
O
O
O
O
O
O
O
O
O
O
M15
O
O
O
O
O
O
O
O
O
O
O
O
O
O
M20
O
O
O
O
O
O
O
O
O
O
O
M15R
O
O
O
O
O
O
O
O
O
O
O
M20R
O
O
O
O
O
O
O
O
O
O
O
CM20
O
O
O
O
O
O
O
O
O
O
O
Tower Raising Fixture
TRX80
O
O
O
O
O
O
O
TRX80HD
O
O
O
O
O
O
O
Service Platform
HDP
O
O
O
O
O
O
O
Coax Standoff Arms
CX2
O
O
CX3
O
O
CX4
O
O
O
O
O
O
CX5
O
O
O
O
Motor Drives
MD75
O
O
O
O
O
O
O
MDP750
O
O
S
O
O
O
MDPL1000
O
O
S
O
S
S
RMC1000
O
O
O
O
O
O
O
O
O
O
O
MCL100
O
O
R
O
S
O
O
S
S
O
O
O
Anchor Bolts
¾”x27”
S
1”x27”
S
S
S
S
S
S
S
1 1/8”x27”
S
S
S
S
S
S
Rotor Plate
RP3
S
S
RP4
S
S
S
S
S
S
S
RP5
S
S
S
S
S
Mast Raising Fixture
MRF
O
O
O
O
O
O
O
O
O
O
O
O
Thrust Bearing
TB2US
O
O
O
O
O
O
O
O
O
O
O
O
Inverted V Arm
IV16
O
O
O
O
O
O
O
O
O
O
O
O
O
O

US TOWER CORPORATION
FIXED LATTICE TOWER MANUAL
UNCONTROLLED
9
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
1.2.2 Compatible Rotators
Rotor Manufacturer
Rotor Model
Allowable
Sq. Ft.
Compatible UST Tower Model
Hy-Gain
HDR 300
25
None
Hy-Gain
T2X
20
HDX, MA
Hy-Gain
HAM IV
15
HDX, TX, MA, TMM (HD only)
Hy-Gain
CD-45
8.5
HDX, TX, MA, TMM (HD only)
Hy-Gain
AR-45
3.0
HDX, TX, MA, TMM (HD only)
Hy-Gain
Diawa 750 9”
15-30
HDX
Kenpro
KR-400
10
HDX, TX, MA, TMM (HD only)
Kenpro
KR-600
12
HDX, TX, MA, TMM (HD only)
Kenpro
KR-2000
20
HDX, TX, MA, TMM (HD only)
Yaesu
GS2700DX
HDX, TX, MA, TMM (HD only)
Yaesu
G800SDX
HDX, TX, TMM (HD only)
Yaesu
G2800
HDX, TX, TMM (HD only)
Yaesu
G800
HDX, TX, MA, TMM (HD & SS)
Table 2
2. Safety Precautions
2.1 General Safety Precautions and Procedures
2.1.1 Never take short cuts
2.1.2 Never install a tower near power lines
2.1.3 Never work alone, always have at least one other person present
2.1.4 Never install a tower on a windy day, during a rain storm, or any time there is a likelihood of
lightening
2.1.5 Never climb the tower
2.1.6 Never raise or lower the tower when surfaces are iced
2.1.7 Never overload the tower by exceeding the antenna sail area or weight limit
2.1.8 Never reach into the center of the tower
2.1.9 Never try to catch the tower should it start to fall
2.1.10 Never use the raising fixture unless the tower is fully retracted
2.1.11 Never modify any parts of the tower or its accessories
2.1.12 Never get oil or grease on the manual winch brake disc fibers
2.1.13 Never rotate the antenna while raising or lowering your tower
2.1.14 Always check for underground gas lines, telephone lines, or other buried utilities
2.1.15 Always lower the tower to the fully retracted position if the wind is expected to exceed 50 MPH
2.1.16 Always use the proper tools and safety equipment
2.1.17 Always contact the power company if the tower, metal ladder, or any other objects come in
contact with power lines. Do not remove them yourself.
2.1.18 Always keep the tower and all components well maintained and inspected for wear or damage
that might lead to equipment failure or injury
2.2 Site Safety
2.2.1 The proximity of electrical lines to the installation site is extremely important. The nearest
electrical line should be at least two times the tower height from the tower center line.
2.2.2 Soil conditions that will allow for a good foundation and access to the tower under all weather
conditions. In many cases the information on soil types or best configuration is available from the
agency that will issue the building permit. Follow all OSHA, Local, and other safety requirements.
2.2.3 The tower should be located as close as is practical and safe to the related equipment.

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
10
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
3. Installation Instructions
3.1 Building the Foundation
The method of construction and safety is the responsibility of the Contractor / Installer. All work shall
be performed in accordance with all Building Code and Design Standard Requirements.
3.1.1 Refer to standard Foundation Notes and information in the Tower Calculations for foundation
requirements and design specifications.
3.1.2 Dig a hole to specifications of the Tower Calculations.
3.1.3 Build the rebar structure to the specifications of the Tower Calculations. See figure 1 for a
general reference diagram.

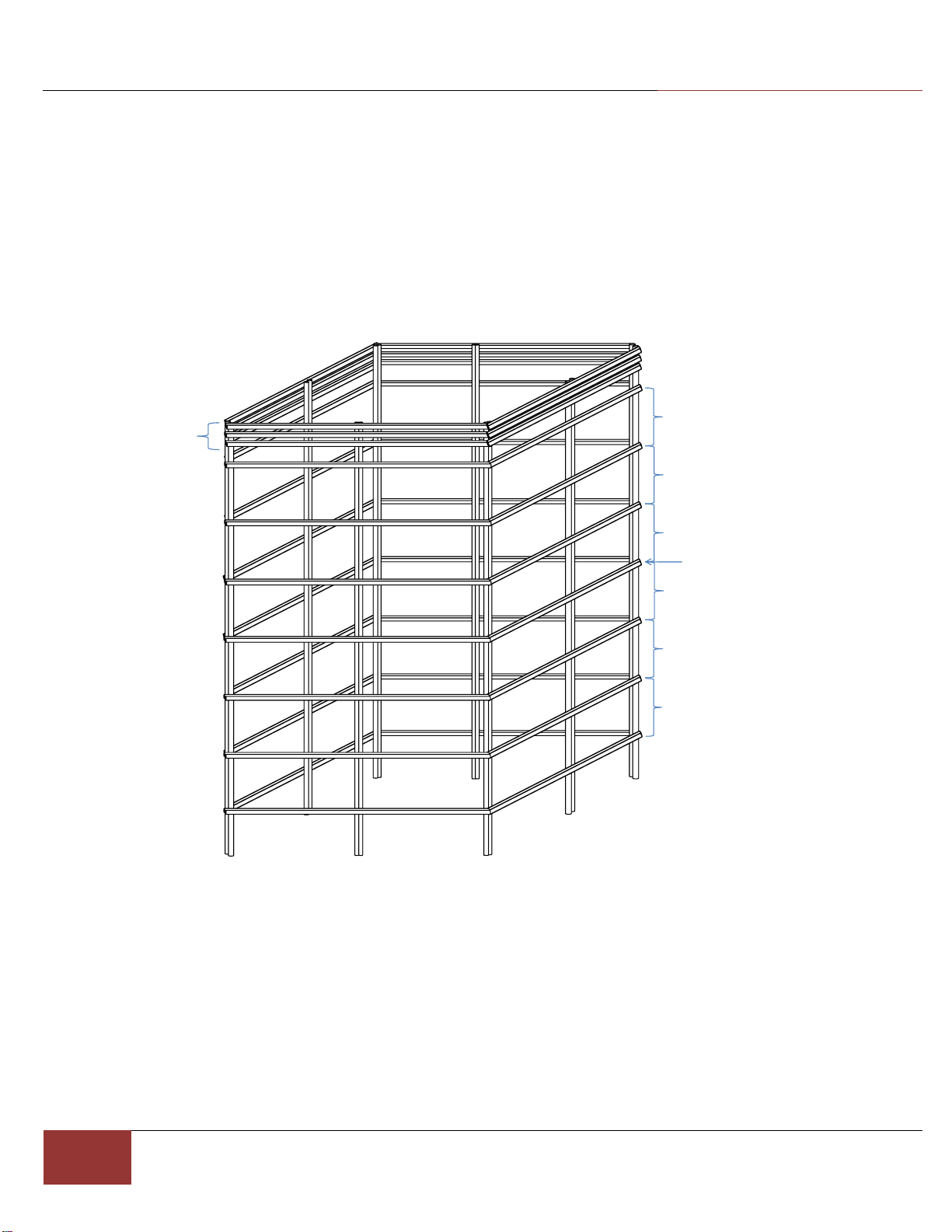

12"
3"
12"
12"
Center of Vertical Bars
12"
12"
12"
Figure 1
3.1.4 Build a wooden form for the concrete base as specified by the Tower Calculations. Place the
form over the hole and stabilize.
3.1.5 Install the Anchor Bolts in the T-Base as they will sit in the foundation. Tape the exposed
threads of the Anchor Bolts on the top side of the T-Base to protect them from concrete.
3.1.6 Suspend the T-Base with Anchor Bolts over the hole with stabilized 2x4’s assuring the hinged
side of the T-Base is perpendicular to the direction that the tower will be raised. Stabilize the bottom
of the anchor bolts to ensure they will remain vertically plumb during concrete placement. See figure 2.

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
11
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
Figure 2
3.1.7 Pour the concrete into the form (must be a continuous pour).
3.1.8 Assure that the Anchor Bolts are still aligned and no shifting has occurred. If realignment is
necessary, tap the bolt with a wooden block (metal objects will damage the threads).
3.1.9 Allow the concrete to cure for 28 days. Remove form.
3.2 Installation of Tower
3.2.1 If not still on foundation, install T-Base using double hex nut to level the base.
3.2.2 Inspect the mounting tabs on the T-Base assuring they are still straight and undamaged.
3.2.3 Set the tower on the hinged (bottom) side of the T-Base. Align the bottom holes of the tower
mounting tabs with the bottom holes of the T-Base and install hardware. Hand tighten the nuts.
3.2.4 Install Raising Fixture. See Accessories Installation; 3.4.1 Raising Fixture.
3.2.5 Lift the tower to a convenient height and place on saw horse or other support of adequate
strength to install the rotor and antenna.
3.2.6 Install Rotor, Mast Raising Fixture, and Antennas. See Accessories Installation; 3.4.2 Rotor and
3.4.3 Mast Raising Fixture.
3.2.7 Lift the tower into place using the Raising Fixture or alternative (crane, fork lift, etc.)
3.2.8 Install the remaining base bolts.
3.3Set Grouting
3.3.1 Check to assure the tower is plumb.
3.3.2 Use Quickcrete (or equivalent) grout, mixed per directions of bag, to pack the area between the
foundation and the T-Base. Slope the edges away from the T-Base to allow water to drain.
Grout Specifications:
Compressive Strength, ASTM C109 modified per ASTM C1107
Plastic Consistency:
1 day 3,000 psi (20.7 MPa)
3 days 9,500 psi (65.5 MPa)
7 days 10,000 psi (68.9 MPa)
28 days 14,000 psi (96.5 MPa)
Height change per ASTM C1090 ~ Days 1, 3, 7, 28 0-0.2%

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
12
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
Flowable Consistency
1 day 3,000 psi (20.7 MPa)
3 days 9,500 psi (65.5 MPa)
7 days 10,000 psi (68.9 MPa)
28 days 14,000 psi (96.5 MPa)
Height change per ASTM C1090 ~ Days 1, 3, 7, 28 0-0.2%
Fluid Consistency
1 day 2,500 psi (17.2 MPa)
3 days 5,000 psi (34.5 MPa)
7 days 6,000 psi (41.4 MPa)
28 days 8,000 psi (55.2 MPa)
Height change per ASTM C1090 ~ Days 1, 3, 7, 28 0-0.2%
Pull out strength: 35,000 psi (241 MPa)
3.4 Grounding
To protect your equipment, the tower must be properly grounded. Drive a four to eight foot steel rod into the
ground as close to the tower as possible (some locations require more than one ground rod. The installer is responsible to
meet all local requirements.) Connect a #8 or larger copper or aluminum wire between the base of the tower and the
grounding rod. Where applicable, the installation and all components must conform to the requirements of the latest
edition of the National Electric Code (NEC) article 800 –Communications Circuits, and article 810 –Radio and Television
Equipment.
3.5Accessories Installation
3.5.1 Tower Raising Fixtures
3.5.1.1 Install rectangular tube of Raising Fixture to the top of the T-Base with the hardware
provided. See figure 3.
Figure 3
3.5.1.2 Install short tab side of the two arms of the Raising Fixture to the rectangular tube as
per your tower model with the hardware provided. See Figure 4 or 5; depending on the model of raising
fixture you ordered.
3.5.1.3 Mount the long tab side of the Raising Fixture arms to the short tabs on the T-Base.

FIXED LATTICE TOWER MANUAL
UNCONTROLLED
13
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D

14
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
Figure 4 - TRX80 Diagram
TX438 Mounts in Top Hole.
TMM 433SS, TX455, and HDX538 mount
in middle hole.
TMM514SS, TMM433HD, and HDX555
mount in bottom hole.
TMM433SS, TMM433HD, and
TMM541SS anchor at this point.
2. Around pulley on tower
1. From winch over pulley
3. Anchor to raising fixture
Note: Though shown
vertical, this piece may
lean 12” in direction
shown. This is normal.
Caution! Tower
must be fully
retracted before
using the raising
fixture.
Tower pivots on two bottom mounting ¾”x2”
bolts (Not Shown)
For Tower Models:
TMM433SS
TMM433HD
TMM541SS
TX438
TX455
HDX538
HDX555

FIXED LATTICE TOWER MANUAL
Lattice Ter Manual
15
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D

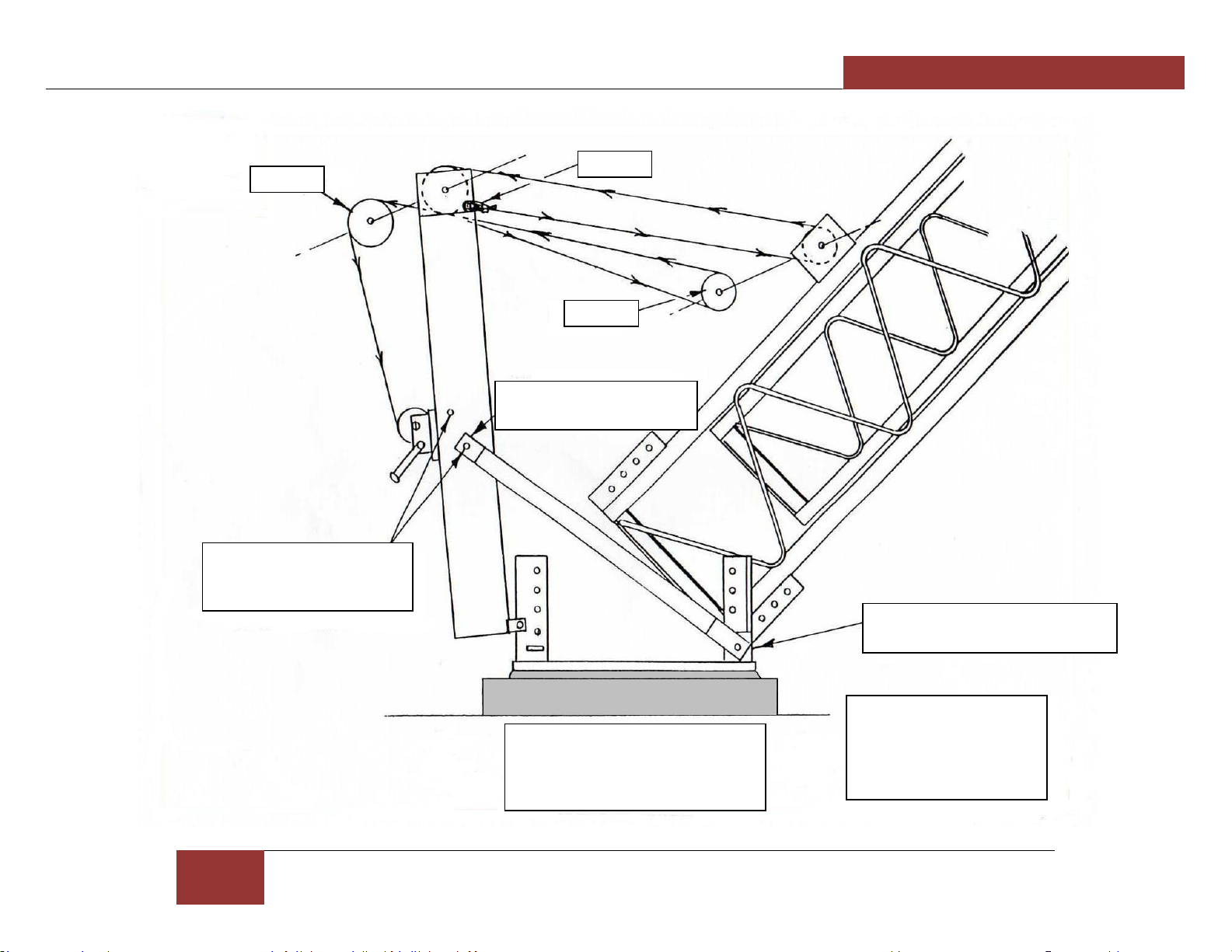

Figure 5 - TRX80HD Diagram
Anchor
Far Pulley
Far Pulley
Caution! Tower must be fully
retracted before using the raising
fixture.
Short ears on support arms bolt to
raising fixture
Top Hole: TX472, HDX555
Bottom Hole: TX3106, HDX572,
TX472MDPL, HDX555MDPL
Tower pivots on two bottom mounting ¾”x2”
bolts (Not Shown)
For Tower Models:
TX472
TX3106
HDX555
HDX572

FIXED LATTICE TOWER MANUAL
Lattice Ter Manual
16
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
3.5.1.4 Install the winch handle to the winch and with pressure on the cable, turn the handle counter clockwise to bring the loop
in the cable to the bracket on the tower. See Figure 6 for cable routing.
Figure 6 - TRX80HD Cabling Diagram
Caution! Tower must be fully
retracted before using the raising
fixture.
1. Cable goes from winch over top of
the left 5” pulley
2. Over top of left 3 ½” pulley on tower
3. Back around the bottom of the right
5” pulley
4. Over top of right 3 ½” pulley on
tower
5. Anchors on the raising fixture

US TOWER CORPORATION
Lattice Ter Manual
17
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
3.5.2 Rotators
3.5.2.1 With the tower in a horizontal position and resting on a saw horse or other support.
Unlock the thrust bearing so pull the top section out far enough for the rotor stops to clear the
top of the second section of the tower.
3.5.2.2 Place the rotor in the tower with the shaft bearing pointing up.
3.5.2.3 Install the rotor mounting plate and bolt the rotor to the mounting plate with the
hardware that came with the rotor.
3.5.2.4 Assemble the rotor mast, mast platform, and mast.
3.5.3 Mast Raising Fixtures
3.5.3.1 Mast raising fixture holes are predrilled on the top plate of the tower (This is only the
case if the MRF was ordered with a tower. If installing a MRF on an older tower, a template
will be needed to drill the holes.) If you are installing a MRF on a tower with a thrust bearing,
you might be required to remove the thrust bearing to install the MRF. See Figure 7 for Thrust
Bearing Diagram.
3.5.3.2 Mount the MRF to the tower. Release the entire length of cable and remove it from the
winch drum. (The small compression brackets that hold the cable to the drum will have to be
removed.)
3.5.3.3 Insert the cable into the guide hole from the bottom and re-attach to the drum.
3.5.3.4 Bolt the eye of the cable through the mast in the predrilled hole, installing a washer on
the both sides of the mast.

US TOWER CORPORATION
Lattice Ter Manual
18
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
Figure 7 ~ TB2US

US TOWER CORPORATION
Lattice Ter Manual
19
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
3.5.4 Coax Arms
3.5.4.1 Bolt the longest coax arm to the top section as shown in Figure 8. Make sure the
mounting bolt is inserted from the inside of the tower so they cannot catch on the next inner
section during extension and retraction of the tower.
3.5.4.2 Bolt the remaining coax arms in descending lengths at the top of each section, bolted
from the inside out. See Figure 8.
Figure 8
3.5.5 RMC-1000
3.5.5.1 Wire Requirements (not supplied by UST)
3.5.5.1.1 Remote “C” terminal connections use #20 or larger, seven conductors.
3.5.5.1.2 Outdoor relay cabinet “B” terminals to the motor use #14/4 or larger.
3.5.5.1.3 Outdoor relay cabinet “D” terminals to the limit switches, use #18/3 or larger.
3.5.5.2 Remote Control Unit (See Figures 9 and 10 for wiring references)
3.5.5.2.1 Remove power from both remote and relay units.
3.5.5.2.2 Remove cover plates. The remote cover is easily removed by loosening the screws on
each end and removing the two top center screws.
1. Coax cable guides and mounting hardware are an
option that can be supplied with a new tower. Due to
potential shipping damage, the guide arms are removed
prior to shipping and packaged with the tower. Install
the guide arms with the tower in the horizontal position.
2. Install the longest arm on the top (smallest) tower
section. Holes corresponding to those on the arm can be
found at the side of the top of each tower section.
3. Install each successively smaller arm onto the next
lower (larger) tower section. The cable holding loops of
the end of each arm should appear in a nearly vertical
line following installation.
Note: The coax cable guides are standard components
that fit all towers. The appearance of guide ring
misalignment is normal and does not affect function.

FIXED LATTICE TOWER MANUAL
Lattice Ter Manual
20
US Tower Corporation considers this manual and all of its contents to be Proprietary Information. Do not distribute or disclose it
or its contents to anyone without US Tower Corporation’s prior written approval.
ML 7.5.1-06 Rev D
3.5.5.2.3 Connect terminals C1, C2, C3, C4, C6, C7, and C8 from the remote to the same
numbered terminal on the outdoor relay unit.
3.5.5.2.4 Replace the cover and screws.
3.5.5.2.5 When all connections have been made and the remote cover replaced, make sure the
remote is off before plugging in. To use the unit, put the center switch to either raising or
lowering position, the right hand switch in the remote position and turn the power switch on. It
may be several seconds before the motor will start to run. This time is set by the delay relays in
the outdoor relay cabinet. If the delay is bypassed, the motor could continue to run in the same
direction when attempting to reverse sections. The tower can be operated at the tower site with
the use of the switch located on the right side of the outdoor relay cabinet. To use this feature,
the remote unit local/remote switch must be in the local position. ALWAYS TURN OFF THE
POWER IN THE REMOTE UNIT TO PREVENT UNAUTHOIZED USE. The center raising/lowering
switch should be in the center position when not in use. Replace the outdoor relay weather
proof cover by pulling out the tab on the inside bottom of the box. A padlock can be installed
and is recommended. ALL ELECTRICAL WIRING AND CONNECTIONS SHOULD BE PERFORMED
BY A LICENSED ELECTRICAL CONTRACTOR. These units are for use with 110 voltages only.
Figure 9 –RMC 1000 Remote Wiring Reference
