Asus VivoMini VC66-C2 User manual

VivoMini
VC66-C2
User Manual

COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to
the owners’benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR
LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE
PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2020 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled
to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or any other actual and direct
damages resulted from omission or failure of performing legal duties under this Warranty Statement,
up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort
or infringement under this Warranty Statement.
This limit also applies to ASUS’suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3)
SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES
(INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS
INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at https://www.asus.com/support/
First Edition
August 2020
CA16820

VC66-C2 3
Contents
About this manual.................................................................................................................5
Conventions used in this manual....................................................................................6
Typography .............................................................................................................................6
Package contents ..................................................................................................................7
Getting to know your VivoMini
Features.....................................................................................................................................10
Front view................................................................................................................................10
Left view...................................................................................................................................12
Right view................................................................................................................................13
Rear view..................................................................................................................................14
Using your VivoMini
Getting started .......................................................................................................................18
Connect the AC power adapter to your VivoMini .....................................................18
Connect a display panel to your device........................................................................20
Connect the USB cable from keyboard or mouse.....................................................22
Turn on your VivoMini .........................................................................................................23
Turning your VivoMini o ...................................................................................................24
Putting your VivoMini to sleep..........................................................................................24
Entering the BIOS Setup......................................................................................................24
Load default BIOS settings.................................................................................................25
Upgrading your VivoMini
Removing the top cover......................................................................................................28
Removing the HDD layer ...................................................................................................30
Replacing the top cover and HDD layer ........................................................................31
Installing memory modules...............................................................................................33
Installing the M.2 SSD ..........................................................................................................35
Installing the wireless card.................................................................................................37
Installing 2.5” storage device.............................................................................................38

4 VC66-C2
Appendix
Safety information.................................................................................................................42
Setting up your system.......................................................................................................42
Care during use......................................................................................................................42
Regulatory notices ................................................................................................................44

VC66-C2 5
About this manual
This manual provides information about the hardware and software features
of your VivoMini, organized through the following chapters:
Chapter 1: Getting to know your VivoMini
This chapter details the hardware components of your VivoMini.
Chapter 2: Using your VivoMini
This chapter provides you with information on using your VivoMini.
Chapter 3: Upgrading your VivoMini
This chapter provides you with information on how to upgrade the
memory modules, wireless modules, and hard disk drive / solid state
drive of your VivoMini.
Appendix
This section includes notices and safety statements your VivoMini.

6 VC66-C2
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
WARNING! This message contains important information that must
be followed to keep you safe while performing certain tasks and
prevent damage to your VivoMini's data and components.
Typography
Bold text Indicates a menu or an item to select.
Italic This indicates sections that you can refer to in this manual.

VC66-C2 7
Package contents
Your VivoMini package contains the following items:
VivoMini
AC power adapter* Power cord*
Technical documents

8 VC66-C2
NOTE:
• *The bundled power adapter may vary by model and territories.
• Some bundled accessories may vary with dierent models.
For details on these accessories, refer to their respective user
manuals.
• The device illustration is for reference only. Actual product
specications may vary with models.
• If the device or its components fail or malfunction during
normal and proper use within the warranty period, bring the
warranty card to the ASUS Service Center for replacement of
the defective components.

1
Getting to know your
VivoMini

10 VC66-C2
Features
Front view
Top cover
The removable top cover allows you access to the hard
disk drive and the memory modules.
IMPORTANT! Before removing the top cover, turn
o your VivoMini and unplug the power cable.
Optical Drive (on selected models)
Your VivoMini’s optical drive may support several disc
formats such as CDs, DVDs, recordable discs, or rewritable
discs.
Headphone/Headset/Microphone jack
This port allows you to connect amplied speakers or
headphones. You can also use this port to connect your
headset or an external microphone.

VC66-C2 11
USB 3.2 Gen 1 port
The USB 3.2 Gen 1 (Universal Serial Bus) port provides a
transfer rate up to 5 Gbit/s.
USB 3.2 Gen 1 Type-C®port
This USB Type-C® (Universal Serial Bus) port provides a
transfer rate of up to 5 Gbit/s.
NOTE: This port provides a maximum of 5V / 3A
output.
Power button
The power button allows you to turn the VivoMini on or
o. You can also press the power button once to put your
VivoMini to sleep mode.

12 VC66-C2
Left view
Air vents (exhaust vent)
The air vents allow your VivoMini chassis to expel hot air out.
IMPORTANT: For an optimum heat dissipation and
air ventilation, ensure that the air vents are free from
obstructions.

VC66-C2 13
Right view
Air vents (intake vent)
The air vents allow cooler air to enter your VivoMini chassis.
IMPORTANT: For an optimum heat dissipation and
air ventilation, ensure that the air vents are free from
obstructions.

14 VC66-C2

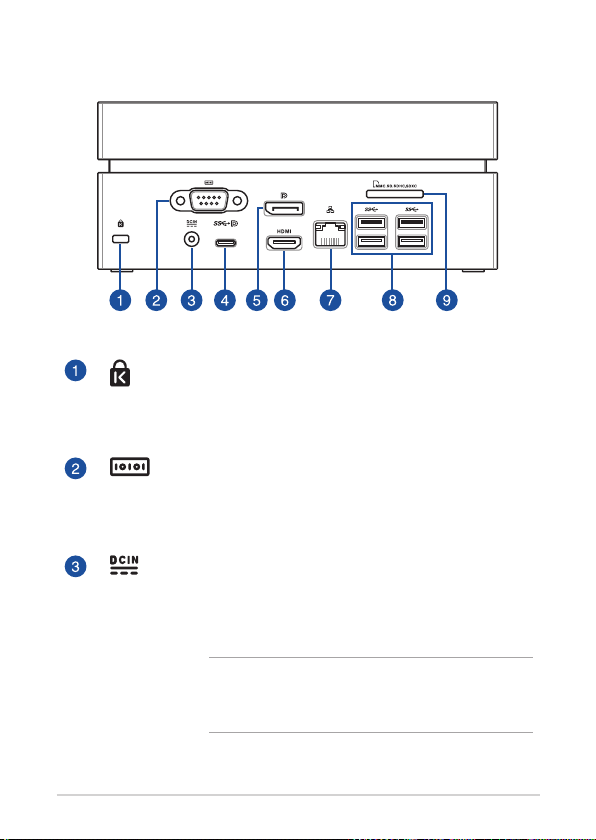

Rear view
Kensington®security slot
The Kensington® security slot allows you to secure your
VivoMini using Kensington® compatible VivoMini security
products.
Serial (COM) connector
The 9-pin serial (COM) connector allows you to connect
devices that have serial ports such as mouse, modem, or
printers.
Power input
The bundled power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the VivoMini. To prevent damage to
the VivoMini, always use the bundled power adapter.
WARNING! The power adapter may become warm
to hot when in use. Do not cover the adapter and
keep it away from your body.

VC66-C2 15
USB 3.2 Gen 1 Type-C®/DisplayPort combo port
This USB Type-C® (Universal Serial Bus) port provides a
transfer rate of up to 5 Gbit/s, and supports Display port
1.4. Use a USB Type-C® adapter to connect your VivoMini
to an external display.
NOTE:
• When using only this port as a display output
source, this port will support a resolution
of up to 7680 x 4320 @30Hz, or 5120 x 2280
@120Hz. The resolution may also be aected
by the cabling and output device.
• This port provides a maximum of 5V / 3A
output.
DisplayPort
This port allows you to connect your VivoMini to an
external display.
HDMI™ port
The HDMI™ (High Denition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to
allow viewing on a larger external display.
LAN port
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network.
USB 3.2 Gen 1 port
The USB 3.2 Gen 1 (Universal Serial Bus) port provides a
transfer rate up to 5 Gbit/s.
Memory card slot
This built-in memory card reader slot supports MMC, SD,
SDHC, and SDXC card formats.

16 VC66-C2

2
Using your VivoMini

18 VC66-C2
Getting started
Connect the AC power adapter to your VivoMini
To connect the AC power adapter to your VivoMini:
A. Connect the power cord to the AC power adapter.
B. Connect the DC power connector into your VivoMini’s power (DC)
input.
C. Plug the AC power adapter into a 100V~240V power source.
NOTE: The power adapter may vary in appearance, depending on
models and your region.

VC66-C2 19
NOTE:
The power adapter may vary between models and territories, please
refer to the following for more information on the dierent adapters:
120W Power adapter
• Input voltage: 100-240 Vac
• Input frequency: 50-60 Hz
• Rating output current: 6.32A / 6.0A (120.0 W)
• Rating output voltage: 19.0V / 20.0V
150W Power adapter
• Input voltage: 100-240 Vac
• Input frequency: 50-60 Hz
• Rating output current: 7.5A (150.0 W)
• Rating output voltage: 20V
IMPORTANT!
• We strongly recommend that you use only the AC power
adapter and cable that came with your VivoMini.
• We strongly recommend that you use a grounded wall socket
while using your VivoMini.
• The socket outlet must be easily accessible and near your
VivoMini.
• To disconnect your VivoMini from its main power supply,
unplug your VivoMini from the power socket.

20 VC66-C2
Connect a display panel to your device
You can connect a display panel or projector to your device that has the
following connectors:
• DisplayPort
• HDMI™ connector
• USB Type-C®/DisplayPort connector
NOTE: These ports may vary per model.
To connect a display panel to your VivoMini:
Connect one end of a DisplayPort, HDMI™ or USB Type-C® cable to
an external display, and the other end of the cable to your VivoMini’s
DisplayPort, HDMI™ port, or USB 3.2 Gen 1 Type-C®/DisplayPort combo port.
Connect display via DisplayPort
