Usl JSD-80 User manual

USL, Inc.
JSD-80 Instruction Manual
Page 1
3rd Edition. February, 2006
1. Introduction
....................................
3
1.1 Safety notice
1.2 Unpacking
1.3 The JSD-80 Overview
1.4 Technical Specifi cations
1.5 Certifi cations
2. Installation
......................................
9
2.1 System Hardware Mounting
and Grounding
2.2 System Cooling and Ventila-
tion
3. Block Diagrams
............................
10

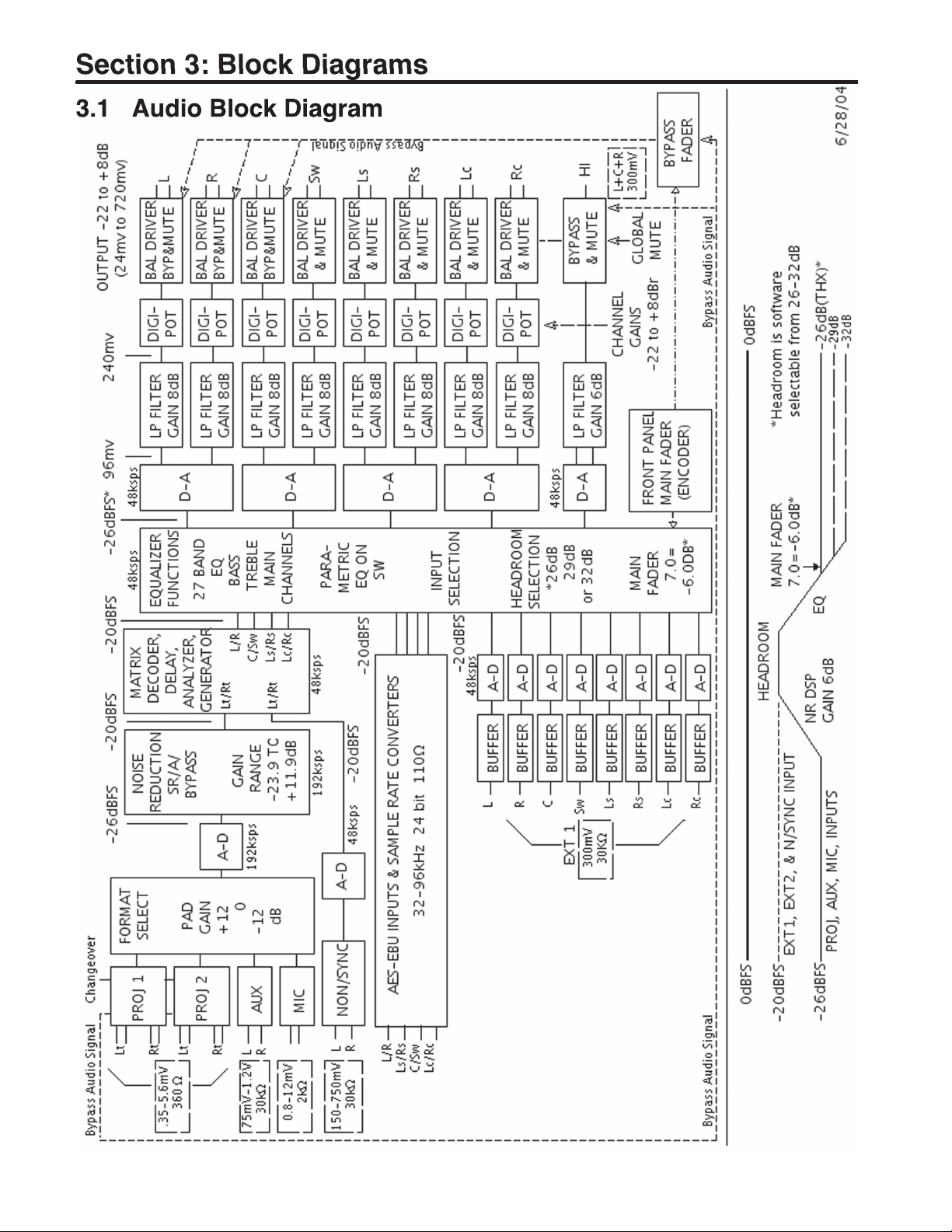

3.1 Audio Block Diagram
3.2 Two-Channel Analog Inputs
Block Diagram
3.3 Eight-Channel Input Block
Diagram
3. Control Block Diagram
4. System Modules
...........................
14
4.1 Input Module
4.2 Output Module
4.3 Control Module
5. Front Panel
....................................
15
5.1 Overview
5.2 Adjusting Format Levels
5.3 Adjusting Projector Gains
6. Back Panel
....................................
16
6.1 Rear Wiring Diagram
6.2 Back Panel Input Connec-
tions
6.3 Back Panel Signal Output
Connections
6.4 Other Back Panel Connec-
tions
7. JSD-80 Interface Software
............
19
7.1 Installation Procedure
7.2 Opening screen
7.3 Profi le Screen
7.4 Formats Screen
7.5 Inputs Screen
7.6 Equalizer Screen
7.7 Outputs Screen
7.8 Slit Eq Analyzer
7.9 Creating, Saving and Loading
Confi guration Files
8. “A” Chain Alignment
....................
23
8.1 Preparing the Soundhead
8.2 Alignment of Solar Cell and
Preamplifi er
8.3 Sum and Difference Mode
8.4 Mono EQ and Bypass Level
8.5 Optical Surround Gain and
Delay
8.6 Optical Subwoofer
8.7 Analog Non-Sync, Aux and
Mic levels
8.8 Digital Non-Sync, Digital Aux,
and Digital eight-channel
inputs
8.9 Digital Time Delays
9. “B” Chain Alignment
....................
29
9.1 Channel confi guration
9.2 Headroom settings
9.3 Main channels
9.4 Subwoofer channel
9.5 Saving Settings After Align-
ment
10. Other Options
..............................
33
10.1 Pre-set Format Levels
10.2 Startup Mode
10.3 Remote Fader
10.4 System Restore from Person-
ality Module
11. Trouble Shooting
.........................
35
12. Connector Pinouts
.......................
38
13. Installation Check List
.................
39
Table Of Contents
JSD-80
Cinema Sound Processor

USL, Inc.
JSD-80 Instruction Manual
Page 2
3rd Edition. February, 2006
One Year Limited Warranty
★★★★★
USL, Inc. warrants that each product manufactured by it will be free
from defects in material and workmanship under normal usage for
a period of one (1) year after its purchase new from an authorized
dealer. Our obligation under this warranty is limited to repairing or
replacing any product or component which we are satisfi ed does not
conform with the foregoing warranty and which is returned to our fac-
tory, freight paid, or serviced by one of our authorized contractors.
The foregoing warranty is exclusive and in lieu of all other warranties,
whether expressed or implied. Such warranty shall not apply to any
product or component (A) repaired or altered by anyone other than
USL, Inc. or an authorized service contractor; (B) tampered with or
altered in any way or subjected to misuse, negligence or accident
or (C) which has been improperly connected, installed or adjusted
other than in accordance with USL, Inc. instruction.

USL, Inc.
JSD-80 Instruction Manual
Page 3
3rd Edition. February, 2006
Please read the entire manual before begin-
ning your installation.
1.1 Safety Notices
General Safety Summary European
Review the following safety precautions
to avoid injury and prevent damage to
this product. To avoid potential risk, use
this product only as specifi ed and only for
the purpose described in the instruction
manual.
To Avoid Fire and Personal Injury:
• Use Correct Power Cable. Use only
the power cable provided. Ensure
that the AC power outlet is located
near the product and is easily acces-
sible.
• Use a Correctly Grounded Power
Source. The Power Supply earth
ground is established through the
ground conductor in the power cable.
To avoid the potential of electric
shock, the ground conductor must be
correct.
• Observe Source Ratings. To avoid risk
of fi re or electric shock, the power
source must be 100 - 240 V AC 50-60
Hz. (European Models)
• Do Not Operate with Suspected Fail-
ures. If you suspect there is damage
or malfunction with this product, call
the factory.
• Do Not Attempt Repair. Only a trained
factory service person is authorized
to repair this product.
• Do Not Operate this Product Near
Heat Sources. This product should
not be located near heat sources such
as radiators, heat registers, or stoves.
• Provide Proper Ventilation. The oper-
ating temperature range is between
0° C and 40° C. The humidity range is
between 20% and 80%, non-condens-
ing. The cooling method is by convec-
tion.
• Keep Product Surfaces Clean and Dry.
Disconnect the power cable from the
power source before cleaning. Do not
use liquid cleaners or aerosol clean-
ers. Use a damp cloth for cleaning.
• Do Not Push Objects Into Opening
of this Product. Never insert objects
into the product through openings.
• Do Not Operate In Wet or Damp Con-
ditions.
• Do Not Operate in an Explosive Atmo-
sphere.
• Prevent the Spilling of Liquids onto
the System Components.
• Inspect the Power Cable and all
Cables prior to Use. Confi rm that the
power cable and other interconnect-
ing cables are free from damage.
Safety Standard
The EN 60950 standard specifies safety
design requirements that reduce or elimi-
nate the risk of personal injury to both the
product user and service personnel. This
product is designed and tested to meet the
standards of the International Electrotech-
nical Commission (IEC) European Norm EN
60950, IEC 60950 (The Standard for Infor-
mation Technology Equipment Including
Electrical Business Equipment).
Section 1. Introduction

USL, Inc.
JSD-80 Instruction Manual
Page 4
3rd Edition. February, 2006
Le Résumé de la Sécurité général
Européen
Examinez les précautions de la sécurité
suivantes éviter la blessure et prévenir le
dégât à ce produit. Éviter le risque poten-
suivantes éviter la blessure et prévenir le
dégât à ce produit. Éviter le risque poten-
suivantes éviter la blessure et prévenir le
tiel, utilisez ce produit seulement comme
a spécifi é et seulement car le but a décrit
dans le manuel d’instructions.
Éviter Feu et Blessure Personnelle:
• Utilisez le Câble du Pouvoir Correct.
Utilisez seulement le câble du pouvoir
fourni. Assurez que les AC font fonc-
tionner le débouché est localisé près
le produit et est accessible facile-
ment.
• Utilisez une Source du Pouvoir Cor-
rectement Fondée.
La terre du monde de la Provision du
Pouvoir est établie à travers le con-
ducteur moulu dans le câble du
pouvoir. Éviter le potentiel de choc
électrique, le conducteur moulu doit
être correct.
• Observez des Estimations de la
Source. Pour éviter risque de feu ou
choc électrique, la source du pouvoir
doit être 100-240 V AC 50-60 Hz..
• N’opérez as ce Produit avec Toutes
Clôtures Ouvertes ou Enlevez.
• Évitez l’Ensemble de circuits Exposé.
N’entreprenez pas ouvrir la Provision
du Pouvoir parce que sa certi-fi ca-
tion de la sécurité serait invalidée. La
Provision du Pouvoir est un appareil
scellé non-réparable.
• N’opérez pas avec les Échecs Sus-
pects. Si vous suspectez il y a le dégât
ou mal fonctionner avec ce produit,
appelez l’usine.
• N’entreprenez pas Réparation. Seule-
ment une personne du service de
l’usine compétente est autorisée pour
réparer ce produit.
• N’opérez pas ce Produit Sources de
la Chaleur Proches. Ce produit ne
devrait pas être localisé de sources
de la chaleur proches tel que radia-
teurs, registres de la chaleur, poêles,
ou amplifi cateurs.
• Fournissez Ventilation Adéquate.
La température du fonctionnement
devrait être entre 0° C et 40° C.
• L’humidité devrait être 20% et 80%. La
méthode refroidissante est par con-
vection et un ventilateur interne.
• Gardez les Surfaces du Produit Nettoi-
ent et Sec.
• Déconnectez le câble du pouvoir de la
source du pouvoir avant de nettoyer.
N’utilisez pas de nettoyeurs liquides
ou de nettoyeurs de l’aérosol. Utilisez
un tissu humide pour nettoyer.
• Ne poussez pas d’Objets Dans Ouvrir
de ce Produit.
• Jamais objets de l’encart dans le
produit à travers ouvertures.
• N’opérez pas Dans les Conditions
Mouillées ou humides.
• N’opérez pas Dans une Atmosphère
Explosive.
• Prévenez le Répandre des Liquides
sur les Composants du Système.
• Inspectez le Câble du Couvoir et tous
les Câbles antérieur à Usage. Confi r-
mez que le câble du pouvoir et autres
interconnectant câbles sont libres de
dégât.
Le Niveau de la sécurité
L’EN 60950 niveau spécifi e exigences du
dessin de la sécurité qui réduisent ou élimi-
nent le risque de blessure personnelle à
l’utilisateur du produit et personnel du ser-
vice. Ce produit est conçu et est testé pour
satisfaire aux niveaux de l’Electrotechnical
Commission Interna-tional (IEC) Norm Eu-
ropéen EN 60950, IEC 60950 (Le Niveau pour
Matériel de la Technologie de l’Information
qui Inclut le Matériel de l’Affaire Élec-
Matériel de la Technologie de l’Information
qui Inclut le Matériel de l’Affaire Élec-
Matériel de la Technologie de l’Information
trique).

USL, Inc.
JSD-80 Instruction Manual
Page 5
3rd Edition. February, 2006
Allgemeine Sicherheit-Zusammenfassung
Europäisch
Überprüfen Sie die folgend Sicherheit-
Europäisch
Überprüfen Sie die folgend Sicherheit-
Europäisch
Vorkehrungen, Verletzung zu vermeiden
und Schaden zu diesem Produkt zu ver-
hindern. Um potentielles Risiko zu vermei-
den, benutzen Sie dieses Produkt nur als
vorgeschrieben hat und nur denn der Zweck
beschrieb in der Bedienungsanleitung.
Um Feuer und Persönliche Verletzung zu
vermeiden:
• Benutzen Sie Korrektes Macht-Kabel.
Benutzen Sie nur das Macht-Kabel,
das bereitgestellt wurde. Stellen Sie
sicher, daß der WECHSELSTROM-
Macht-Abfl uß in der Nähe vom
Produkt gefunden wird und leicht
zugänglich ist.
• Benutzen Sie eine Korrekt geerdet
Macht-Quelle. Der Macht Versorgung
Erde Boden wird durch den Boden-
Schaffner im Macht-Kabel gegründet.
Das Po-tential elektrischen Schocks
zu vermeiden muß der Boden-Schaff-
ner korrekt sein.
• Beobachten Sie Quelle-Klassen. Risiko
von Feuer oder elektrischem Schock
zu vermeiden muß die Macht-Quelle
100 sein-240 V AC 50-60 Hz.
• Operieren Sie dieses Produkt mit
Irgendwelchen Gehegen nicht, die
geöffnet wurden, oder entfernen Sie.
• Vermeiden Sie Ungeschützten Schalt-
kreise. Versuchen Sie, die Macht-Ver-
sorgung zu öffnen nicht, weil seine Si-
cherheit-Zulassung ungültig gemacht
werden würde. Die Macht-Versorgung
ist ein nicht-reparierbares luftdicht
verschlossene Gerät.
• Operieren Sie mit verdächtigt Mißer-
folgen nicht. Wenn Sie verdächtigen,
gibt es Schaden oder Funktions-
störung mit diesem Produkt, rufen Sie
die Fabrik.
• Versuchen Sie keine Reparatur. Nur
eine erzogen Fabrik-Dienst-Person
wird ermächtigt, dieses Produkt zu
reparieren.
• Operieren Sie dieses Produkt Nahe
Hitze-Quellen nicht. Dieses Produkt
sollte keine nahe Hitze-Quellen wie
Heizkörper, Hitze-Register, Herde,
oder Verstärker gefunden werden.
• Stellen Sie Richtige Belüftung bereit.
Die operierend Temperatur sollte
zwischen 0° C und 40° C. Die Luft-
feuchtigkeit sollte sein 20% und 80%.
Die erfrischend Methode ist durch
Konvektion und einen innereren
Fächer.
• Bleiben Sie, Produkt-Oberfl ächen rei-
nigen und Trocken. Trennen Sie das
Macht-Kabel von der Macht-Quelle
vor dem Reinigen. Benutzen Sie keine
fl üssige Reiniger oder Aerosol-Reini-
ger. Benutzen Sie einen klammen Stoff
für das Reinigen.
• Schieben Sie keine Gegenstände Ins
Öffnen von diesem Produkt. Nie Beifü-
gung-Gegenstände ins Produkt durch
Öffnungen.
• Operieren Sie In Nassen oder Klam-
men Zuständen nicht.
• Operieren Sie In einer Explosiven
Atmosphäre nicht.
• Verhindern Sie das Verschütten von
Flüssigkeiten auf die System-Bestand-
teile.
• Inspizieren Sie das Macht-Kabel und
alle Kabel vorausgehend zu Verwend-
ung. Bestätigen Sie, daß das Macht-
Kabel und andere verbindend Kabel
frei von Schaden sind.
Sicherheit-Standard
Der EN 60950 Standard schreibt Sicherheit-
Entwurf-Anforderungen vor, der reduzieren
oder das Risiko persönlicher Verletzung zu
sowohl dem Produkt-Benutzer als auch Di-
enst-Personal ausschließen. Dieses Produkt
wird entworfen und wird geprüft, um den
Standards vom Internationalen Electrotech-
nical Commission zu entsprechen (IEC) eu-
ropäischer Norm EN 60950, IEC 60950 (Der
Standard für Informationen-Technologie-
Ausrüstung, die Elektrische Unternehmen-
Ausrüstung einschließt,).

USL, Inc.
JSD-80 Instruction Manual
Page 6
3rd Edition. February, 2006
1.2 Unpacking
Unpack the unit carefully. If the container
has been damaged, thoroughly inspect the
equipment to make certain there is no hid-
den damage. File a claim immediately with
the carrier if any damage is found. Also
advise your dealer or the factory.
The box should include the following items.
If anything is missing, notify your dealer or
the factory:
• JSD-80 Chassis
• Power Supply cable
• Backup Power Supply
• Screw-terminal plugs (4)
• DB-9 connectors (2)
• CD with PC Host program
• Instruction Manual
1.3 The JSD-80 Overview
Ultra Stereo has combined its vast expe-
rience with conventional analog theater
sound systems with state of the art digital
signal processing technology. The result:
The JSD-80, which we believe to be the fi nest
surround decoder available today. Some of
the standard features include:
• Dual stereo projector inputs with low-
noise preamplifi ers, individual gain
and high-frequency boost controls,
and emergency backup circuitry.
• Stereo line-level inputs for Non-Sync
(with fade-in), plus an Auxiliary input.
• The Microphone input is for public
address use.
• 100 % digital “A” and “SR” type noise
reduction that emulates the analog
standards.
• Eight-channel discrete analog input
for interfacing to existing digital for-
mat 35mm fi lm decoders.
• 1/3 octave equalization on ALL chan-
nels except subwoofer.
• Advanced automation features includ-
ing level settings for each format.
• Built-in Personality Module contains a
backup copy of all settings which can
be used to restore the system.
The JSD-80 unit includes all of the above
features in every unit. All units come with
an international power supply and a backup
power supply.
• Optional eight-channel AES-EBU
digital inputs for interfacing to digital
sources.
• Optional AC3 decoder with two
S/PDIF inputs.
This manual contains information on the
installation, set-up, and operation of the
JSD-80 Cinema Processor. Also included is
fundamental information on alignment of
projector soundheads.
IMPORTANT NOTICE
The AC3 license from Dolby Laboratories
is for ALTERNATIVE CONTENT ONLY!

USL, Inc.
JSD-80 Instruction Manual
Page 7
3rd Edition. February, 2006
Voltage adjustment: None
f. Digital Input:
Eight channels AES-EBU @ 32-96 kHz,
24-bit sample rate.
Line Outputs:
Voltage: 24 mV to 750 mV (nominal:
300 mV)
Impedance: < 500 Ohms
Gain Adjustment: -22 to +8 dB
Hearing Impaired Outputs: 500 Ohms im-
pedance
Nominal level: 300 mV rms: sum of L,C & R
with left and right channels lowered 3 dB.
Audio Signal Paths
Headroom: 26 dB (with EQ fl at), 20 dB typi-
cal with 6 dB EQ boost)
S/N Ratio: 80 dB A weighted 22-22 kHz
EQ (subwoofer): one parametric adjustable
from 20 to 100 Hz
EQ bands (all other): 27 1/3 octave bands
from 40 Hz to 16 kHz
EQ level adjustment: +/-6 dB
Bass and Treble adjustable +/-6 dB
Automation Inputs:
Active low, momentary dry contact clo-
sures. Automation common is connected
to signal ground inside the JSD-80 through
a 10 Ohm resistor (to minimize ground loop
problems).
Automation Outputs (DB25):
Active low. Recommended indicator circuit
is a standard LED with a 1k series resistor
connected between 5 V and the automation
status line. (See Section 12.)
Power Input:
100-240 V AC 50-60 Hz @ 360 mA
JSD-80, Cinema Sound Processor
1.4 Technical Specifi cations:
Rack-mount chassis frame construction
with plug-in modules accessible behind
removable front panel.
Signal Connections
a. Standard 9-pin D-type female connec-
tors for Projector 1, Projector 2, Mic,
and RS-232 communications port.
b. Standard 25-pin D-type female con-
nectors for Analog eight-channel In-
put (Ext 1), Digital eight-channel (Ext
2) and automation I/O.
c. Standard 25-pin D-type Male for Moni-
tor output.
d. Detachable screw terminal connec-
tors are used for Automation inputs,
Hearing Impaired output, Line out-
puts, Changeover pulse, Remote fader
and Mute.
e. RCA jacks are used for Non/Sync and
Aux input.
Signal Inputs
a. Projector Inputs:
Voltage: 0.35 mV nominal
Impedance: 360 Ohms
Voltage adjustment: -23.9 to +11.9 dB
(.35 to 20 mV)
High Frequency Slit EQ: 10 to 32 kHz
b. Non-Sync Input:
Voltage: 300 mV rms
Impedance: 30 kOhms
Voltage adjustment: -24 to +6 dB (150-
750 mv)
c. Auxiliary Input:
Voltage: 300 mV rms
Impedance: >20 kOhms
Voltage adjustment: -23.9 to +11.9 dB
(75 mV-1.2 V)
d. Microphone Input:
Impedance (mic): 2 kOhms
Voltage adjustment: -23.9 to +11.9 dB
(1.1-17.6 mV)
e. Analog eight-channel Input:
Voltage: 300 mV rms
Impedance: >20 kOhms

USL, Inc.
JSD-80 Instruction Manual
Page 8
3rd Edition. February, 2006
EC Declaration of Conformity
Meets intent of Directive 89/336/EEC for
Electromagnetic Compatibility and Low-
Voltage Directive 73/23/EEC for Product
Safety. Compliance was demonstrated to
the following specifi cations as listed in
the Offi cial Journal of the European Com-
munities:
EN 55022 Conducted Emissions, EN 55022
Radiated Emissions: Class A Limits
EN 55024 Immunity:
EN61000-4-2 Electrostatic Discharge Im-
munity
EN61000-4-3 RF Electromagnetic Field Im-
munity
EN61000-4-4 Electrical Fast Transient/
Burst Immunity
EN61000-4-5 Power Line Surge Immunity
IEN61000-4-6 Conducted RF Immunity
EN61000-4-7 Voltage Dips, Short Interrup-
tions and Variations
Certifi cations
Low Voltage Directive 73/23/EEC:
EN
EN60950
Information Technology,
Video and similar Electronic Apparatus
Safety Requirements
IEC 60950
CE, UL, cUL Safety and Overall Compli-
ance
VDE Certifi ed Power Cords
Pollution
Not intended for environments where con-
ductive pollutants may be present.
Equipment Class
Class III Equipment: Equipment in which
protection against electrical shock relies
upon supply from SELV circuits (Safety
Transformer) and in which hazardous
voltages are not generated. Insulation and
protective fusing are used in addition to
these criteria.
Equipment Type A: Equipment that is
intended for connection to the building
power supply wiring via non-industrial
plugs and sockets or via appliance cou-
plers or both.
1.5 Declaration of
Conformance, CE

USL, Inc.
JSD-80 Instruction Manual
Page 9
3rd Edition. February, 2006
Section 2: Installation
2.1 System Hardware Mounting
and Grounding
The JSD-80 is designed to mount in a stan-
dard 19" rack, and is two standard rack
spaces (3-1/2") high. We recommend vented
panels above and below whenever space
permits. Mounting the unit immediately
above a major heat-producing component
(such as a power amplifi er) is not recom-
mended. The JSD-80 includes a three-prong
grounding plug and a three-wire power
cord to accommodate a safe ground path
from the chassis to the electrical system
ground. Defeating this ground by removing
the ground prong is not recommended.
2.2 System Cooling and
Ventilation
Important
Care should be taken to insure the JSD-80
has adequate ventilation for cooling during
operation. It is recommended that one rack
space below the JSD-80 is left open to allow
outside air circulation through the unit. A
ventilation panel, USL, Inc. part number
VP-1, is recommended for projection booths
where the normal ambient temperature
exceeds specified equipment operating
temperatures listed in the safety section
of this manual. Also, it is recommended
that equipment with no more than a nine-
inch depth be mounted directly above the
JSD-80 to insure adequate airfl ow through
the unit’s rear ventillation slots.

USL, Inc.
JSD-80 Instruction Manual
Page 10
3rd Edition. February, 2006
Section 3: Block Diagrams
Section 3: Block Diagrams
3.1 Audio Block Diagram

USL, Inc.
JSD-80 Instruction Manual
Page 11
3rd Edition. February, 2006
3.2
3.2
Two-Channel
Analog
Input Block
Diagram

USL, Inc.
JSD-80 Instruction Manual
Page 12
3rd Edition. February, 2006
3.3
Eight-Channel
Eight-Channel
Input Block
Diagram
Ext 1
Ext 2

USL, Inc.
JSD-80 Instruction Manual
Page 13
3rd Edition. February, 2006
3.4
Control Block
Diagram
Diagram

USL, Inc.
JSD-80 Instruction Manual
Page 14
3rd Edition. February, 2006

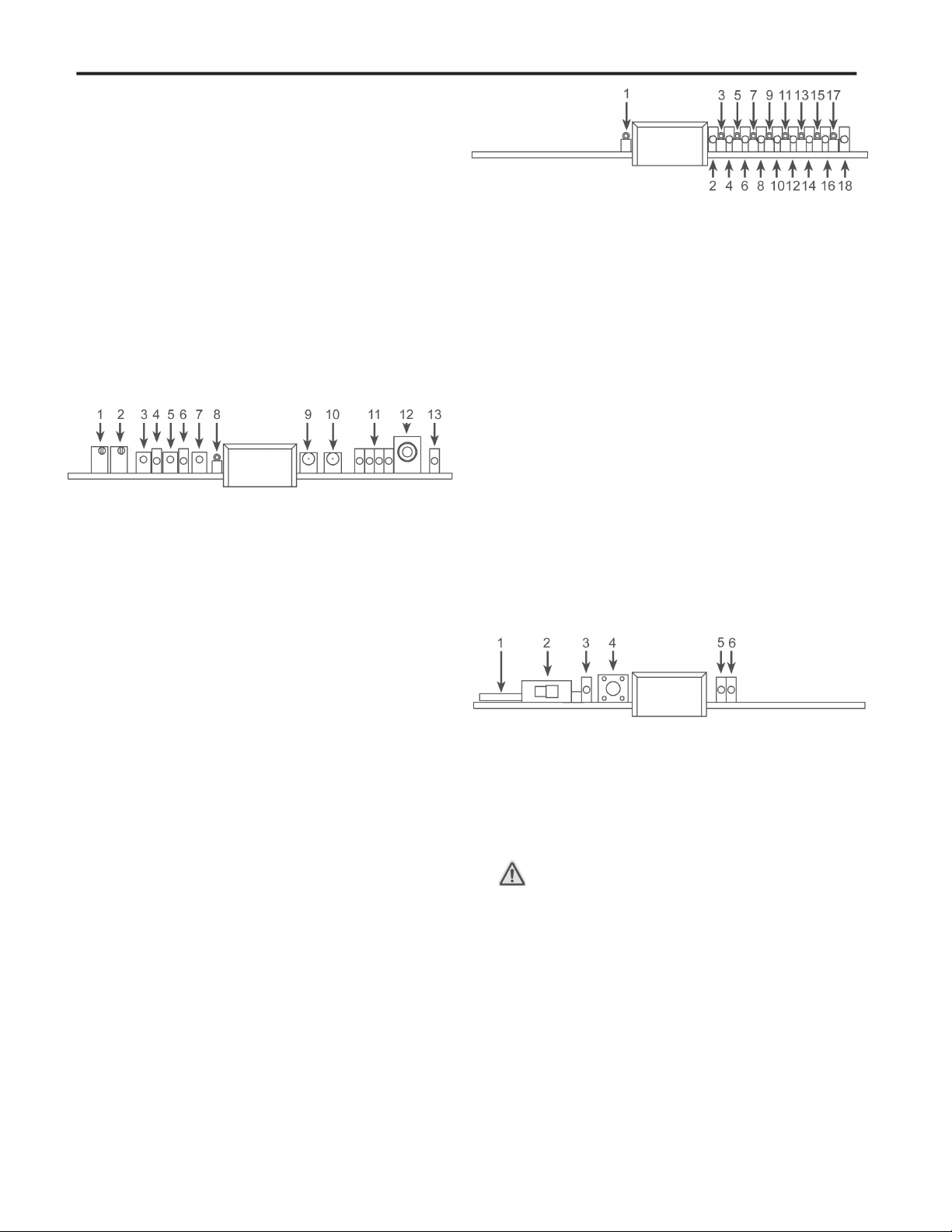

4.1 Input Module
The Input Module contains the projector
preamps plus Non-Sync, Auxiliary and Mic
inputs. It also contains the bypass circuitry.
Two high-power DSPs implement “A” type
and “SR” noise reduction. A third DSP is
used for the matrix decoder, slit eq analyzer
and pink noise generator. Test points permit
connection of an oscilloscope to align the
fi lm projector’s analog reader. LEDs indicate
the presence of left, center, right and sur-
round signals. Bicolor LEDs indicate the
correct level for LT and RT preamp inputs.
A status LED indicates the module is in a
“fault” condition.
1. Projector 1 Bypass Level Adjust
2. Projector 2 Bypass Level Adjust
3. Left Channel Test Point
4. Projector 1 Indicator green LED
5. Right Channel Test Point
6. Projector 2 Indicator red LED
7. Ground Test Point
8. Bypass level test point
9. *Left channel level indication.
10. *Right channel level indication.
11. Signal presence LEDs left to right: L,
C, R, Surround
12. THX pink noise enable jack
13. Status: Fault red LED
*A red color indicates signal is “low,”
a green color means OK, fl ashing red
indicates “high.”
4.2 Output Module
The Output Module contains the eight-chan-
nel analog and AES-EBU input circuitry. It
also contains the balanced output circuitry.
Two high-power DSPs implement seven
channels of 1/3 octave equalization, plus a
parametric subwoofer equalizer. Test points
on each channel permit connection of diag-
nostic instruments. Level LEDs indicate the
presence of signals. A status LED indicates
the module is in a “fault” condition.
1. Test Point. Gnd.
2-16. Signal presence LEDs left to right:
L, C, R, Sw, Ls, Rs, Bsl, Bsr, (or Lc,
Rc)
3-17. Test point left to right: L, C, R, Sw,
Ls, Rs, Bsl, Bsr (or Lc, Rc)
18. Status Light
4.3 Control Module
The Control Module manages all the com-
munication in the unit. It also contains the
automation interface, bypass volume and
remote volume circuitry.
On the Control Module is a “Non-Volatile
Flash” memory card known as the “Person-
ality Module.” This module contains a copy
of all the installation alignment settings
made to the unit. If there is a failure of any of
the three internal modules, a technician will
be able to re-install the original alignment
settings without requiring a laptop.
settings without requiring a laptop.
1. Personality Module
2. Write Protect Switch
3. Write Protect Indicator LED
4. Restore Switch
5. Restore
6. Fault
Note: When using the laptop inter-
face, prior to saving the confi guration
and parameters to the Personality Mod-
ule (1), you must slide the Write Protect
Switch (2) to the left (OFF) to allow writ-
ing to that module. Please remember to
turn the Write Protect Switch (2) to “ON”
after the data is saved to the Personality
Module (1).
Section 4: System Modules

USL, Inc.
JSD-80 Instruction Manual
Page 15
3rd Edition. February, 2006
5.1 Overview
The front panel allows the operator to manually
select formats and adjust the main fader. An LED
numerical readout indicates fader level. Status
LEDs indicate presence of power supplies. The
unit is placed into the bypass mode by turning
off the main power switch. A removable panel
allows access to service or replace modules.
5.2 Adjusting Format Levels
Each format has a preset level. These presets
can be set with a laptop or directly on the front
panel. Pressing and holding the appropriate
format button and rotating the main fader will
change the preset level for that format. The LED
display will indicate the preset level number.
5.3 Adjusting Projector Gains
1. Turn off the processor.
2. Hold down the “Mute” button and turn
the power on.
3. Continue to hold the “Mute” button
until the LED display indicates 1.1 which
means Projector 1, Left channel.
4. Run a Cat 69T tone loop on the projector.
5. Watch the LED level indication on the
Input Module: (9 & 10).
Input Module: (9 & 10).
6. If the left indicator (9) is red, the signal
is too low. Rotate the main fader control
clockwise to raise the level. When the
level is correct, the indicator (9) will
turn green. A fl ashing red means that the
signal is too high.
7. When the left indicator is green, press
the “Mute” button to signal OK. The dis-
play will change to 1.2 (Projector 1, Right
Channel). Adjust the main fader until the
right (10) indicator turns green. Press
“Mute.” The optimum setting is fi rst click
from solid red to solid green.
8. The LED display will show 2.1 (Projec-
tor 2, Left Channel). Press “Mute” when
adjustment is complete. If there is no
Projector 2, press “Mute” twice to return
to normal operation. If there is a Projec-
tor 2, press “Mute” once and proceed to
step 9.
9. The LED display will show 2.2 (Projector
2, Right Channel). Press “Mute” when the
adjustment is fi nished.
10. The last “Mute” button press will return
the system to its normal operating mode.
Operation will resume after six seconds.
1. Mono signal from 35mm analog sound track
2. Stereo signal with “A” type noise reduction from 35mm
soundtrack
3. Stereo signal with “SR” type noise reduction from 35mm
soundtrack
4. Ext. 1: Eight-channel analog input
5. Ext. 2: Eight-channel AES/EBU digital input
6. Non/Sync: Two-channel input with fade in, fade out
7. Aux: Two-channel input
8. Mic: for paging purposes
9. Mute: globally mutes all outputs
10. Level Indicator: also used for setting projector gains
11. Power Switch: when off, unit goes into bypass mode.
12. Bypass LED: indicates Bypass is active.
13. Power LEDs: indicates status of all internal supplies.
14. Main Fader Control: also used for setting projector gains.
Section 5: Front Panel

USL, Inc.
JSD-80 Instruction Manual
Page 16
3rd Edition. February, 2006
Section 6: Back Panel
6.1 Rear Wiring Diagram

USL, Inc.
JSD-80 Instruction Manual
Page 17
3rd Edition. February, 2006
6.2 Back Panel Input
Connections
Projector Inputs
The projector inputs are connected through
standard 9-pin D-type connectors. (These
connectors are included with the JSD-80).
The pinout is:
1. In L+
2. In L-
3. Shield
4. In R+
5. In R-
6. Gnd
7. Reserved
8. Reserved
9. Gnd
(An adapter board with setscrew terminals
is available for solderless connections.)
Non-Sync Inputs - Analog
Two RCA connectors facilitate easy con-
nection to standard CD players. A software
fade in/fade out algorithm allows smooth
transition between intermission music and
the main program.
Auxiliary Input - Analog
Two RCA connectors are used to connect
to external two-channel sources such as a
sound card in a computer supplying video
advertising content.
Microphone Input
The public address balanced microphone
input is available on a standard 9-pin D-type
connector.
The pinout is:
1. Mic in +
2. Mic in -
3. Reserved
4. Reserved
5. Chassis Gnd.
6. N/C
7. 9 V DC
8. Gnd
9. N/C
The “Mic in +” and “Mic in -” terminals are
for the balanced medium-low impedance
microphone inputs. The shield of the micro-
phone cable should be connected to chassis
ground on pin 5. A 9 V DC power pin allows
easy connection of electret (powered) mi-
crophones.
EXT 1 (Analog)
The Analog input is an eight-channel un-
balanced analog audio input from a digital
soundtrack player. The 25-pin D connector
is compatible with most decoders. Input
level should be 300 mV for all channels. See
Section 12.
EXT 2 (Digital)
The Digital input is a digital domain input
confi gured for eight channels (Four AES-
EBU pairs with sample rate from 32 to 96
kHz). Requires optional AES-EBU Module
(DI85). See Section 12
Non/Sync Inputs - Digital
Requires optional Module (DI83). An RCA
jack accepts S/PDIF inputs from CD, DVD,
or computer sound cards. Sample rates
from 32-96 kHz PCM are supported, AC3
bitstreams are also supported.
The DI83 module in this processor, which
decodes Dolby® Digital bitstreams, is not
intended for 35mm fi lm. The DI83 is intended
for alternative content only.
Auxiliary Inputs - Digital
Requires optional Module (DI83). An RCA
jack accepts S/PDIF inputs from CD, DVD,
or computer sound cards. Sample rates
from 32-96 kHz PCM are supported. AC3
bitstreams also are supported.

USL, Inc.
JSD-80 Instruction Manual
Page 18
3rd Edition. February, 2006
6.3 Back Panel Signal Output
Connections
Main Outputs
These are the main processor outputs
to connect to the power amplifi ers. The
outputs are balanced, and all have a cor-
responding ground terminal. Use two-con-
ductor shielded cable for each channel.
The shield should usually be connected to
ground at the power amplifi er end only.
Monitor Outputs
This is a 25-pin D-type connector containing
the line output signals for all eight channels.
It can be connected directly to any Ultra
Stereo “CM” series monitors. The pinout for
this connector is in Section 12.
Hearing Impaired Output
This line-level output is the sum of the
left, center, and right channels. It can be
connected to an “Ultra Phonic” or other
hearing impaired system. Output level is
approximately 300 mV.
Back Panel Automation Connections
Automation Inputs (Phoenix Connector)
These are active low-contact closure inputs
to remotely trigger the JSD-80. There are
nine automation inputs; one for each of the
eight JSD-80 operating formats, and a “Mute”
input. These are intended to be momentary
contact closures. The “Mute” function is
released by selecting (or re-selecting) one
of the main input formats.
The Automation common terminal is iso-
lated from the system ground through an
internal 10 Ohm resistor to minimize ground
loop problems.
Note: When wiring the automation in-
puts, use the Com terminal, not a ground
terminal.
Automation (DB-25)
This 25-pin D-type connector contains most
(not all!) of the automation input and output
signals. The pinout for this connector is in
Section 12.
Note: An adapter is available to convert
to the DTS automation pinout (DTS-6D).
LEDs for monitoring the status of the JSD-80
can be connected in series with a 1k resistor
from +5 V at pin 13, to any of these outputs.
See Section 12.
Bypass Power Input
The JSD-80 uses an external 16 V AC @
500 mA power supply to power the bypass
circuit.
Remote Fader Input
Two normally open switches can be used
to implement a remote fader. One button
increases level, the other decreases level.
The range is limited to 4.0 - 9.0 on the main
fader. See Section 10.3.
Changeover
The JSD-80 includes dual preamplifi ers for
use in two-projector changeover systems.
Connecting the “XO” terminal to “Common”
mutes the Projector 1 input and selects
Projector 2. This must be a maintained
closure.
RS232 Port
A standard 9-pin D-type connector connects
to a host PC computer. The cable should
be a standard male to female “straight
through” type. The port also can be used
for remote fader and automation functions.
See Section 12.

USL, Inc.
JSD-80 Instruction Manual
Page 19
3rd Edition. February, 2006
7.1 Installation Procedure
Begin by placing the JSD-80 Laptop Interface
Software CD into your CD-ROM drive. The
software is compatible with Windows only.
The installation program should start au-
tomatically within a few seconds. If it does
not, you will need to run “Setup.exe” from
the root directory of your CD-ROM drive.
Either double click the “Setup.exe” icon or
click the Windows “Start” button and select
“Run....” Now enter “X:\setup.exe” (where
“X:” is your CD-ROM drive), then click the
“OK” button. Follow the instructions in the
installation software.
7.2 The Opening Screen
7.2 The Opening Screen
Double click on the JSD icon on the desk-
top.
The opening screen appears.
The opening screen is comprised of the
Menu Bar, the Tool Bar, tabs for accessing
software functions and, on the Profi le tab,
a system information entry area.
At the top of the opening screen is the
Menu Bar. The menu bar gives access to
various functions. These functions are du-
plicated on the Toolbar (with the exception
of “Language”), and through keyboard key
combinations.
The toolbar consists of graphic icons al-
lowing you access to various functions.
Holding the mouse pointer over any of the
icons will give you a “tool tip” describing the
function of the icon. The horizontal slider
at the far right is the main level control (or
Main Fader). The level may be changed from
the main screen by placing the cursor over
the slider, holding down the left button and
moving the mouse.
Below the toolbar are tabs for accessing
various operational modes. These tabs will
be described in order from left to right.
7.3 Profi le Screen.
On the fi rst tab, there are several windows
for entering information about your system
and peripheral equipment. This informa-
tion is stored in the JSD-80 and also can
be stored on the computer or the device
used to set up the unit. This information
is not used by the unit functions but can
be extremely valuable to technicians for
the purposes of repair and re-alignment or
in case of the necessity of a factory repair.
You can enter this information at any time,
whether connected to the JSD or not and
save it to disk for eventual loading onto the
JSD. The “Component Information” boxes
are fi lled in at the factory and are not edit-
able by the end user. At the bottom right of
the tab are the connection status bar and
the format status bar. No matter which tab
you are working in, the format status bar
will always indicate in which format the
processor is currently operating.
Note: When the computer is connected
to and controlling the JSD-80, the front
panel controls
will not
function, with the
will not function, with the will not
exception of the Mute button.
Section 7: JSD-80 Interface Software

USL, Inc.
JSD-80 Instruction Manual
Page 20
3rd Edition. February, 2006
7.4 Formats Screen.
This is where you set the processor’s mode
of operation. Anyone familiar with the op-
eration of a motion picture venue should
also be familiar with the above formats.
Any of the formats may be designated the
“Power On” format which means that when
the power is turned on, the processor will
“wake up” in that mode. The Non/Sync and
Aux inputs have the option of being either
an analog or S/PDIF input. The Mic input
can be routed to either the center or the
surround channels. The fader at the left of
the window allows you to pre-set the level
of a particular mode. The master level will
follow that setting. When you go to another
mode and set its level to whatever you
desire, upon your return to the original
mode, the level will be the same as you
left it. Along with the standard “Power On”
choices, which are visible in all format selec-
tions, a “Digital Fallback” selection appears
whenever you select Ext 2 (Digital). This al-
lows you to select a mode to automatically
default to, should the digital track become
interrupted for any reason. A Digital Delay
button (which brings up a separate screen
on which you can set input and surround
delay) also becomes visible in Ext 2 mode as
well as when S/PDIF is selected in either the
Non/Sync or Aux formats. See Section 8.8.
7.5 Inputs Screen.
There are two sections.
The fi rst section is the Preamp Controls sec-
tion and contains buttons to select either
Projector 1 or 2 level settings for the Left
and Right preamps (with accompanying
level indicators), Slit EQ & Mono EQ and the
Slit EQ Analyzer screen which is dealt with
in detail in Section 7.8. This tab is where the
alignment is accomplished for the optical
preamp (A Chain), and is vital for accurate
optical performance.
The second section is a matrix controls
section for setting the delay & gain of the
surround channel, and the gain & frequency
of the subwoofer. The level functions are
accessed by placing the pointer over the
desired slider’s button, holding down the
left mouse button and moving the mouse.
Note that when a slider is selected, it is high-
lighted and will stay that way until another
slider is selected. The sliders (once they are
selected) also may be manipulated by using
the up or down arrow keys; the left/right
arrow keys will select the sliders on the left
or right of the one initially chosen. At the
bottom of the slider is a box that states nu-
merically the position in dB of the slider.
7.6 Equalizer Screen.
This is used for all equalization of the au-
ditorium. With the radio buttons, you may
select the channel to be equalized. The
channels consist of Left, Center, Right, Left
Surround, Right Surround, Subwoofer and
two additional channels.
(Note: When you
select Subwoofer, a separate screen ap-
pears containing a Sub Bass Parametric
EQ.)
The sliders also will respond to the push of
