Parker 8903/SP User manual

Cont.1
8903/SP
Peer-to-Peer
Communications Interface
Technical Manual
HA500806U001 Issue 1
Compatible with firmware Version 1.11 and Version 3.3 onwards
©Copyright 2009 Parker SSD Drives, a division of Parker Hannifin Ltd.
All rights strictly reserved. No part of this document may be stored in a retrieval system, or transmitted in any
form or by any means to persons not employed by a Parker SSD Drives company without written permission
from Parker SSD Drives, a division of Parker Hannifin Ltd . Although every effort has been taken to ensure the
accuracy of this document it may be necessary, without notice, to make amendments or correct omissions.
Parker SSD Drives cannot accept responsibility for damage, injury, or expenses resulting there from.
WARRANTY
Parker SSD Drives warrants the goods against defects in design, materials and workmanship for the period of
24 months from the date of manufacture, or 12 months from the date of delivery (whichever is the longer
period), on the terms detailed in Parker SSD Drives Standard Conditions of Sale IA500504.
Parker SSD Drives reserves the right to change the content and product specification without notice.

Cont.2
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS
DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL
INJURY AND PROPERTY DAMAGE.
This document and other information from Parker-Hannifin
Corporation, its subsidiaries and authorized distributors
provide product or system options for further investigation by
users having technical expertise.
The user, through its own analysis and testing, is solely
responsible for making the final selection of the system and
components and assuring that all performance, endurance,
maintenance, safety and warning requirements of the
application are met. The user must analyze all aspects of the
application, follow applicable industry standards, and follow
the information concerning the product in the current product
catalogue and in any other materials provided from Parker or
its subsidiaries or authorized distributors.
To the extent that Parker or its subsidiaries or authorized
distributors provide component or system options based upon
data or specifications provided by the user, the user is
responsible for determining that such data and specifications
are suitable and sufficient for all applications and reasonably
foreseeable uses of the components or systems.

Cont.3
WARNING!
During commissioning, remove the fuses (or trip the circuit breaker) on your 3-
phase supply.
Make sure the power is OFF, and that it cannot be switched on accidentally whilst you
are working.
REFER TO YOUR MAIN PRODUCT MANUAL FOR SPECIFIC SAFETY
INFORMATION ABOUT THE DEVICE YOU ARE CONTROLLING
IMPORTANT: Please read this information BEFORE installing the equipment.
Intended Users
This manual is to be made available to all persons who are required to install, configure or
service equipment described herein, or any other associated operation.
The information given is intended to highlight safety issues, EMC considerations, and to enable
the user to obtain maximum benefit from the equipment.
Application Area
The equipment described is intended for industrial motor speed control.
Personnel
Installation, operation and maintenance of the equipment should be carried out by qualified
personnel. A qualified person is someone who is technically competent and familiar with all
safety information and established safety practices; with the installation process, operation and
maintenance of this equipment; and with all the hazards involved.
Safety
All control and signal terminals are SELV, i.e. protected by double insulation.
EMC
In a domestic environment this product may cause radio interference in which case the user may
be required to take adequate counter-measures.
This equipment contains electrostatic discharge (ESD) sensitive parts. Observe static control
precautions when handling, installing and servicing this product.
Safety Information
!

Cont.4
CAUTION!
At any time, there may be a loss of motor control and separate/independent application
measures should be taken to ensure that such loss of motor control cannot present a safety
hazard.
RISK ASSESSMENT
Under fault conditions, power loss or unintended operating conditions, the drive may not
operate as intended. In particular:
•Stored energy might not discharge to safe
levels as quickly as suggested, and can still
be present even though the drive appears to
be switched off
•The motor's direction of rotation might not
be controlled
•The motor speed might not be controlled
•The motor might be energised
A drive is a component within a drive system that may influence its operation or effects under
a fault condition. Consideration must be given to:
•Stored energy •Supply disconnects •Sequencing logic •Unintended
operation
Safety Information
!

Contents
Contents Page
Cont.5
PEER-TO-PEER COMMUNICATIONS INTERFACE 1
Introduction ..................................................................................................... 1
•Part Number ........................................................................................... 1
•Used On ................................................................................................. 1
Recommended Spare Parts ......................................................................................... 1
Installation....................................................................................................... 2
Wiring the System............................................................................................ 5
Terminal X53 ............................................................................................................. 5
Cable Specification .................................................................................................... 5
Terminators ............................................................................................................... 5
Wiring Diagram......................................................................................................... 5
Maximum Cable Lengths ............................................................................................ 5
Configuring Peer-to-Peer ................................................................................ 6
Switch Setup .............................................................................................................. 6
Physical Address Selection .......................................................................................... 6
Baud Rate Selection.................................................................................................... 7
LED Status ................................................................................................................. 7
MMI View .................................................................................................................. 8
Troubleshooting............................................................................................... 9

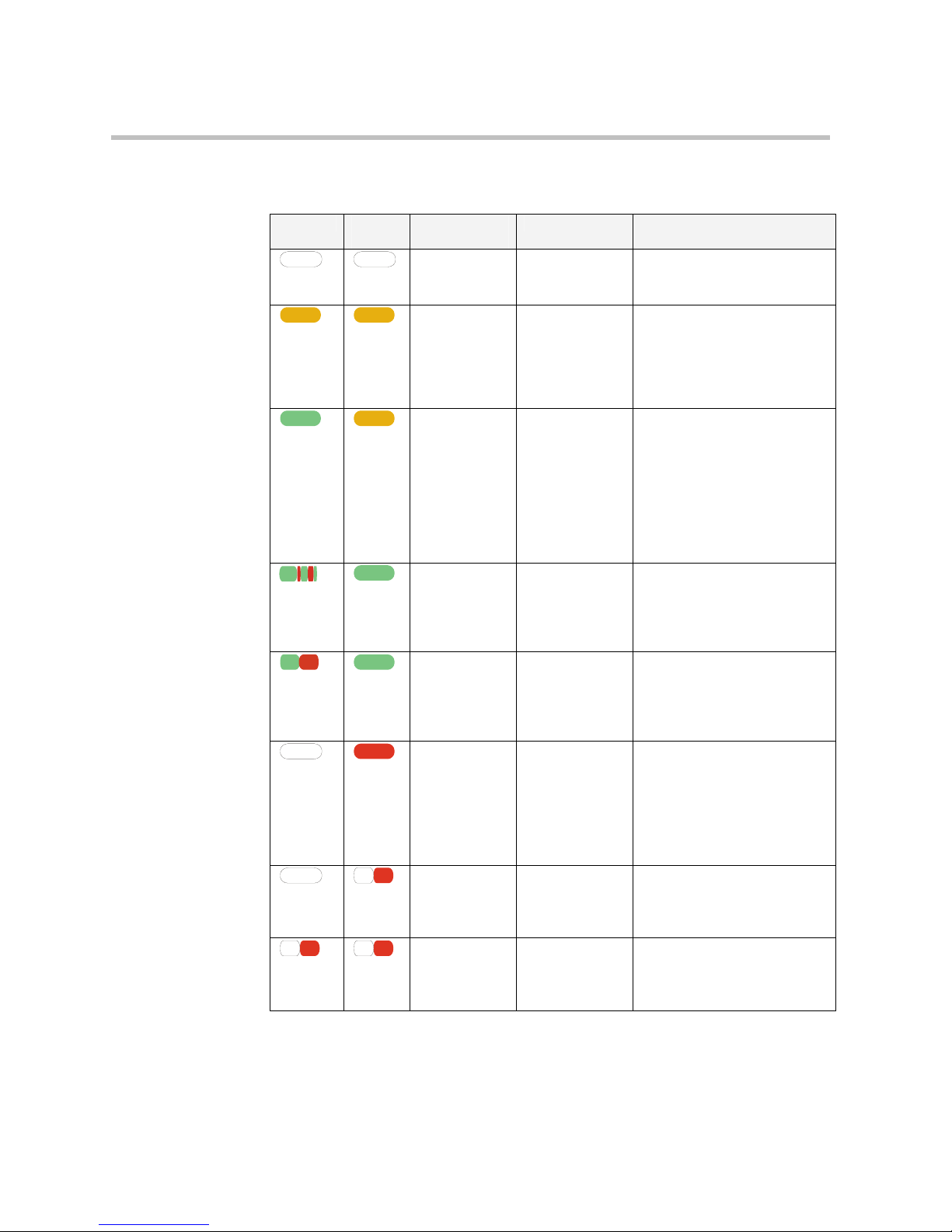

LED Diagnostics ......................................................................................................... 9

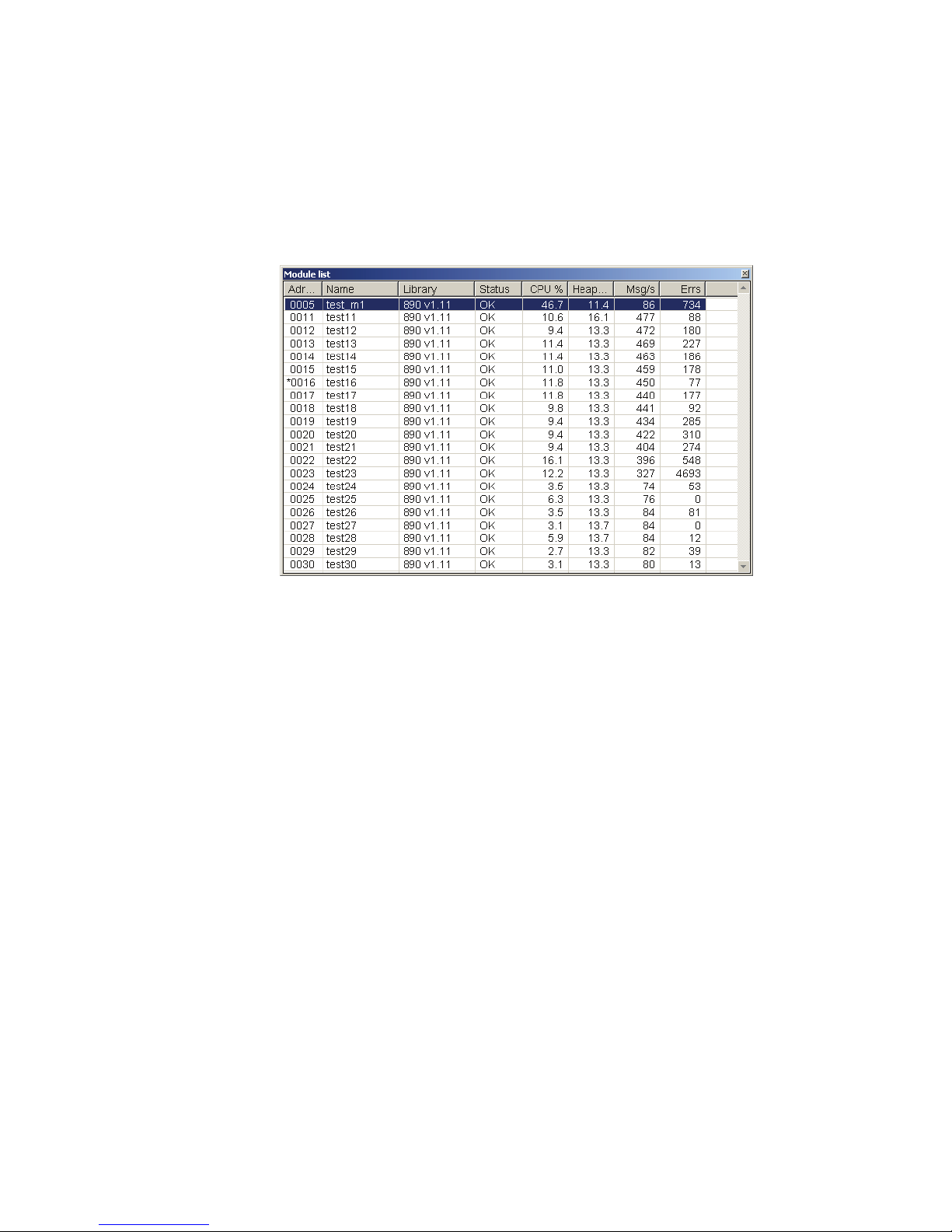

DSE Module List ....................................................................................................... 10
Appendix........................................................................................................ 11

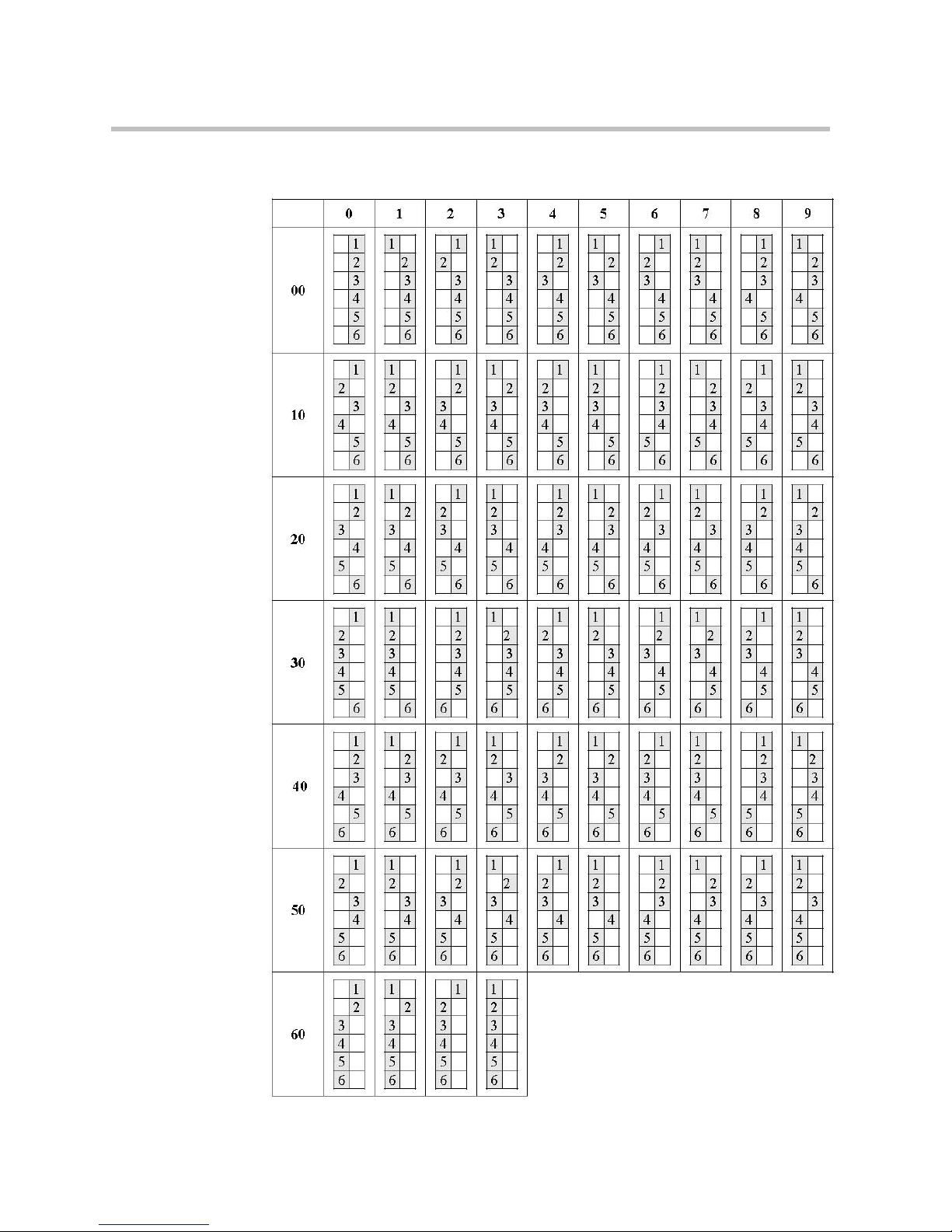

Physical Address Switch Positions............................................................................... 11
Disposal ......................................................................................................... 12

1
8903/SP Peer-to-Peer Communications Interface
PEER-TO-PEER COMMUNICATIONS INTERFACE
Introduction
This manual describes the Parker SSD Drives’ Peer-to-Peer Communications Interface Option
(TechCard).
The 8903/SP Peer-to-Peer TechCard uses a proprietary protocol. It may be used in the
following ways:
•Connect DSE 890 to all drives in the system
•Peer-to-peer data exchange with other drives
Part Number
The part number for the Peer-to-Peer Communications Interface Option is :
8903/SP
8903/SP/FF (indicates a factory-fitted option)
Used On
The TechCard can be used on 890 drives with the following Product Codes:
890SD/.. 890SD Standalone Drive
890CD/.. 890CD Common Bus Drive
Refer to the 890 Engineering Reference Manual, Appendix E for Product Code details.
Restrictions
When the 8903/SP is fitted, the options 8903/CB and 8903/DN cannot be used.
Figure 1. Front of the 8903/SP Peer-to-Peer Communications Interface Option
Module Status LED
Bus Status LED
Physical Address and
Baud Rate Switches
X53 Bus Connector

2
8903/SP Peer-to-Peer Communications Interface
Installation
WARNING!
Disconnect all sources of power before attempting installation.
Caution
This TechCard contains ESD (Electrostatic
Discharge) sensitive parts. Observe static
control precautions when handling,
installing and servicing this option.
To Remove the Control Board
1. Remove the blank covers, each secured by
a single screw (1) that fit over the
TechCard slots.
2. Undo the top and bottom captive screws
in the handles (2) of the Control Board.
3. Pull gently on the handles (2) and slide
the Control Board out of the drive.
Note:
Save the blank cover and screw for future
use. The drive should not be operated
without a TechCard or blank cover. When
fitted, these maintain the drive's IP20
rating.
2
1
1
2
Figure 3. Front of 890 drive showing
Control Board fitted
Figure 2. 890 showing Control Board
withdrawn, with Options fitted

3
8903/SP Peer-to-Peer Communications Interface
Fitting the TechCard
The TechCard fits on to the Control Board.
1. Insert the connector into the TechCard as shown. The pins of the connector will protrude
through into the connector on the other side of the TechCard.
2. Press the assembly into the OPTION B connector (adjacent to terminals X13, X14 and
X15) on the Control Board. Ensure that the front panel of the TechCard overlaps the front
of the Control Board.
Figure 4. Fitting the connector to the TechCard

4
8903/SP Peer-to-Peer Communications Interface
Re-fitting the Control Board
1. Slide the board into the drive, engaging the edges of the boards into the slots. Push until
the back edge of the Control Board PCB locates with the connectors in the drive.
2. Tighten in position using the top and bottom screws in the handles of the Control Board.
3. Screw the TechCard in position using the captive screw on the front of the option.
Figure 5. 890 Control Board with Peer-to-Peer Communications Option fitted

5
8903/SP Peer-to-Peer Communications Interface

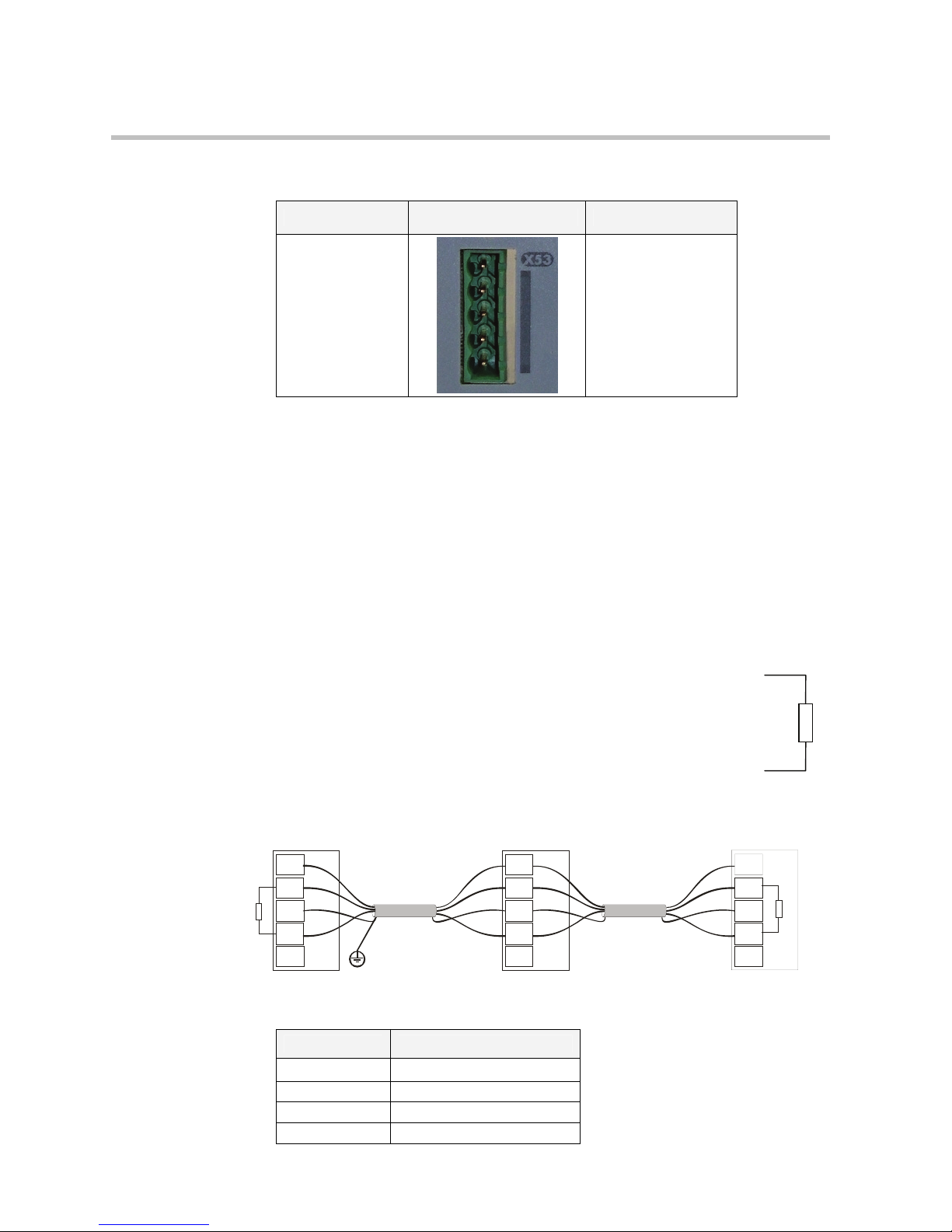

Wiring the System
Terminal X53
Cable Specification
The media for the Peer-to-Peer TechCard is a shielded copper cable consisting of one twisted
pair and two cores for power. The recommended bus cable is specified in ISO/DIS 11898.
The twisted pair of the cable must be connected to the terminals SIG_L and SIG_H. It is
recommended to connect one of the cores for power to the terminal GND (do not connect to
safety earth). The cable shield must be connected to the terminal SCREEN on the connector
X53 at each node. Nodes should be connected in a daisy chain configuration. The cable
shield should be connected to safety earth at one point only.
Keep electrically noisy and sensitive cables apart. Pay particular attention to screening and
earthing of motor cables. Where necessary, sensitive cables should cross noisy cables at 90°
to minimise capacitive coupling.
Terminators
Both nodes at the end of the trunk must have a terminating resistor. A
resistor of 124Ω(±1%, minimum ¼ watt) is recommended, but it
should be chosen to equal as closely as possible the characteristic
impedance of the cable. The terminating resistor must be connected
between the pins SIG_L and SIG_H.
All other nodes in the system should not have a terminating resistor.
Wiring Diagram
1
2
3
4
5
124Ω
X53
1
2
3
4
5
X53
1
2
3
4
5
X53
124Ω
Maximum Cable Lengths
X53 Pin Number 8903/SP Connection
1 GND
2 SIG_L
3 SCREEN
4 SIG_H
5 N/C
Data Rate Maximum Cable Length
1000 kbits/s 35 metres
800 kbits/s 50 metres
500 kbits/s 100 metres
250 kbits/s 250 metres
SIG_H
SIG_L
124Ω

6
8903/SP Peer-to-Peer Communications Interface
Configuring Peer-to-Peer
Switch Setup
The option requires the setup of the physical address and
baud rate using the switches (1 – 8) on the front of the
TechCard.
Note that the state of the switches is continually monitored
so that the physical address and baud rate may be changed
at any time. A change in the switch state will cause the
module to go back to the initialisation state. It is
recommended to set up the switches before power-up to
avoid bus disturbances.
Physical Address Selection
The physical address of a node must be selected using the switches (1-6) on the front of the
TechCard. Each address must be unique.
One node must have address zero, which then becomes the master node. It is recommended
that consecutive addresses are used from address zero upwards.
Switch Number Address Value
1 1
2 2
3 4
4 8
5 16
6 32
Examples
Address 5 Address 19
1 1
2 2
3 3
4 4
5 5
ON
(1)
6
OFF
(0) ON
(1)
6
OFF
(0)
The complete range of physical address switches positions can be found in the Appendix.
Physical Address
Baud Rate

7
8903/SP Peer-to-Peer Communications Interface
Baud Rate Selection
Each Peer-to-Peer TechCard connected to the bus must be set to the same baud rate. This is
done using the switches (7-8) on the front of the TechCard.
The baud rate selection depends on the cable length of the bus.
1000kbits/s 800kbits/s
500kbits/s 250kbits/s
LED Status
The two status LEDs MS (Module Status) and BS (Bus Status) display the current state of the
Peer-to-Peer option.
Normal operation:
MS BS State
Off Off No power
Amber Off Initialising
Green Green Operating (slave node)
Green Green-Off 95% Operating (master node)
Warning and fault conditions:
MS BS State
Green Amber Operating (bus warning)
Green
Flickering Red Green Operating (excessive data)
Green-Red 50% Green No master detected
Off Red No bus detected /
Incorrect baud rate
Off Red-Off 50% Duplicate physical address detected
Red-Off 50% Red-Off 50% Fault
7
ON
8
OFF
7
ON
8
OFF
7
ON
8
OFF 7
ON
8
OFF

8
8903/SP Peer-to-Peer Communications Interface
MMI View
Diagnostic information is available through the MMI.
PHYSICAL ADDR Read only Range: 0 – 63
Physical address of the node selected using the switches on the option card. The master node
has a physical address of 0.
NET ADDR Read only Range: 0 – 255
Net address of the node set by DSE.
STATUS Read only Range: Enumerated – see below
Status of the Peer-to-Peer bus connection.
Enumerated Value: STATUS
0: UNKNOWN - wrong option / option not fitted
1: ERROR - module error
2: DUP PHY ADDR - duplicate physical address detected on the bus
3: INITIALISING - option initialising after power-up or change of switches
4: NO BUS - bus not detected (cable disconnected or alone)
5: NO MASTER - master node not detected on the bus
6: OPERATING - operating mode
BAUDRATE Read only Range: Enumerated – see below
Baud rate of the node selected using the switches on the option card. All nodes must be set to
the same baud rate.
Enumerated Value: BAUDRATE
0: INVALID
1: 250K
2: 500K
3: 800K
4: 1000k
LAST PHY ADDR Read only Range: 0 - 63
Last physical ID detected on the bus.
DIAGNOSTIC Read only Range: 0x0000 to 0xFFFF
Diagnostic value “0000” = No Error
MMI Menu Map
1
SETUP
2
COMMUNICATIONS
3
PEER TO PEER
PHYSICAL ADDR
NET ADDR
STATUS
BAUDRATE
LAST PHY ADDR
DIAGNOSTIC

9
8903/SP Peer-to-Peer Communications Interface
Troubleshooting
LED Diagnostics
LED MS LED
BS
MMI
STATUS
Description Solution
Off Off
- No Power Check power.
Amber Amber
UNKNOWN Incorrect
firmware
TechCard
hardware failure
Install correct drive firmware.
Change TechCard.
Green Amber
OPERATING Node just
connected onto
an active bus
Excessive noise
Incorrect baud
rate on other
nodes
BS LED will change to green
after a few seconds.
Check cabling and screening.
Make sure all nodes are set to
the same baud rate.
Green-
Flickerin
g Red
Green
OPERATING Excessive data Reduce the amount and/or rate
of peer-to-peer data transfer in
the drive configurations.
Green-
Red
50%
Green
NO MASTER Master not
detected
One node on the bus must be
selected as master (physical
address 0).
Off
Red
NO BUS Bus not detected
Node alone
Incorrect baud
rate
Check cable and termination.
Connect other nodes.
Select correct baud rate.
Off
Red-Off
50%
DUP PHY
ADDR
Duplicate
physical address
Change the physical address to
a unique value.
Red-Off
50%
Red-Off
50%
ERROR Module error Power cycle the node.

10
8903/SP Peer-to-Peer Communications Interface
DSE Module List
If excessive peer-to-peer data is being transmitted across the bus then the Errs (errors) column
in the Module List in DSE will show non-zero values. The Module Status (MS) LED will also
flicker red.
To resolve this problem reduce the amount / rate of peer-to-peer data until Errs is zero.
Increasing the baud rate, if possible, will also help.
Figure 6. Example of Module List in DSE

11
8903/SP Peer-to-Peer Communications Interface
Appendix
Physical Address Switch Positions
Note: Left is ON, Right is OFF

12
8903/SP Peer-to-Peer Communications Interface
Disposal
This product contains materials which are consignable waste under the Special Waste
Regulations 1996 which complies with the EC Hazardous Waste Directive - Directive
91/689/EEC.
We recommend you dispose of the appropriate materials in accordance with the valid
environmental control laws. The following table shows which materials can be recycled and
which have to be disposed of in a special way.
Material Recycle Disposal
metal yes no
plastics material yes no
printed circuit board no yes
The printed circuit board should be disposed of in one of two ways:
1. High temperature incineration (minimum temperature 1200°C) by an incinerator
authorised under parts A or B of the Environmental Protection Act
2. Disposal in an engineered land fill site that is licensed to take aluminium electrolytic
capacitors. Do not dispose of in a land fill site set aside for domestic waste.
Packaging
During transport our products are protected by suitable packaging. This is entirely
environmentally compatible and should be taken for central disposal as secondary raw
material.

13
8903/SP Peer-to-Peer Communications Interface
ISS. MODIFICATION ECN No. DATE DRAWN CHK'D
1 Initial Issue (HA500806U001) 20718 01 Jul 09 FEP MEF
FIRST USED ON
MODIFICATION RECORD
8903/SP Peer-to-Peer
Communications Interface
DRAWING NUMBER
ZZ469265C001
SHT. 1
OF 1
