1. Introduction
1.1 Brief Introduction to 4K 2x5 HDBaseT Splitter Set HD22-4X
The HD22-4X is a 4K 2x5 HDBaseT Splitter Kit designed to provide HDMI video
switching, video distribution and extension, system control and audio de-embedding in
a convenient kit. It includes 1 HDBaseT Splitter, 4 HDBaseT Receivers and 1 Wallplate
Control Keypad.
One of two HDMI sources can be selected and distributed to 4 HDBaseT and one
mirrored HDMI outputs. The video extension distance from HDBaseT Splitter to
HDBaseT Receivers can up to 70m at 1080p or 40m at 4K@60Hz 4:2:0.
The kit also supports IR control, the IR signals can be sent to far-end IR output on
HDBaseT Receivers to control far-end displays. Additionally, it support audio de-
embedding via COAX and balanced analog audio outputs.
1.2 Features
⚫Features 2 HDMI inputs, 4 HDBaseT outputs, 1 mirrored HDMI output, 1 COAX
output and 1 balanced analog audio output.
⚫The highest video resolution supports 4Kx2K@60Hz 4:2:0.
⚫HDMI1.4&HDCP2.2 compliant, and is backwards compatible with previous version
of HDCP and HDMI.
⚫Transmits 4Kx2K up to 131ft (40m) or 1080p up to 230ft (70m) via HDBaseT port.
⚫Supports PoC, the HDBaseT Receivers can be powered by HDBaseT Splitter via
HDBaseT ports.
⚫Supports IR passthough to control far-end displays from local.
⚫Supports external Wallplate Control Keypad to switch HDMI input and turn on/off
displays.
⚫Real-time display of working status via LED indicators.
⚫Support advanced EDID management.

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 2 www.ute.de
1.3 Package List
⚫1 x 4K 2x5 HDBaseT Splitter
⚫4 x HDBaseT Receivers
⚫1 x Wallplate Control Keypad
⚫1 x Power Adapter (24VDC 2.5A)
⚫2 x Mounting ears with 4 Screws
(for 4K 2x5 HDBaseT Splitter )
⚫8 x Mounting ears with 8 Screws
(for HDBaseT Receivers)
⚫4 x Plastic cushions
(for 4K 2x5 HDBaseT Splitter)
⚫16 x Plastic cushions
(for HDBaseT Receivers )
⚫2 x mounting Screws
(for Wallplate Control Keypad)
⚫1 x connection cable
(for Wallplate Control Keypad)
⚫5 x IR Receiver (5V)
⚫1 x User Manual
Note: Please confirm if the product and the accessories are all included, if not,
please contact with the dealers.

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 3 www.ute.de
2. Panel Description of HD22-4X

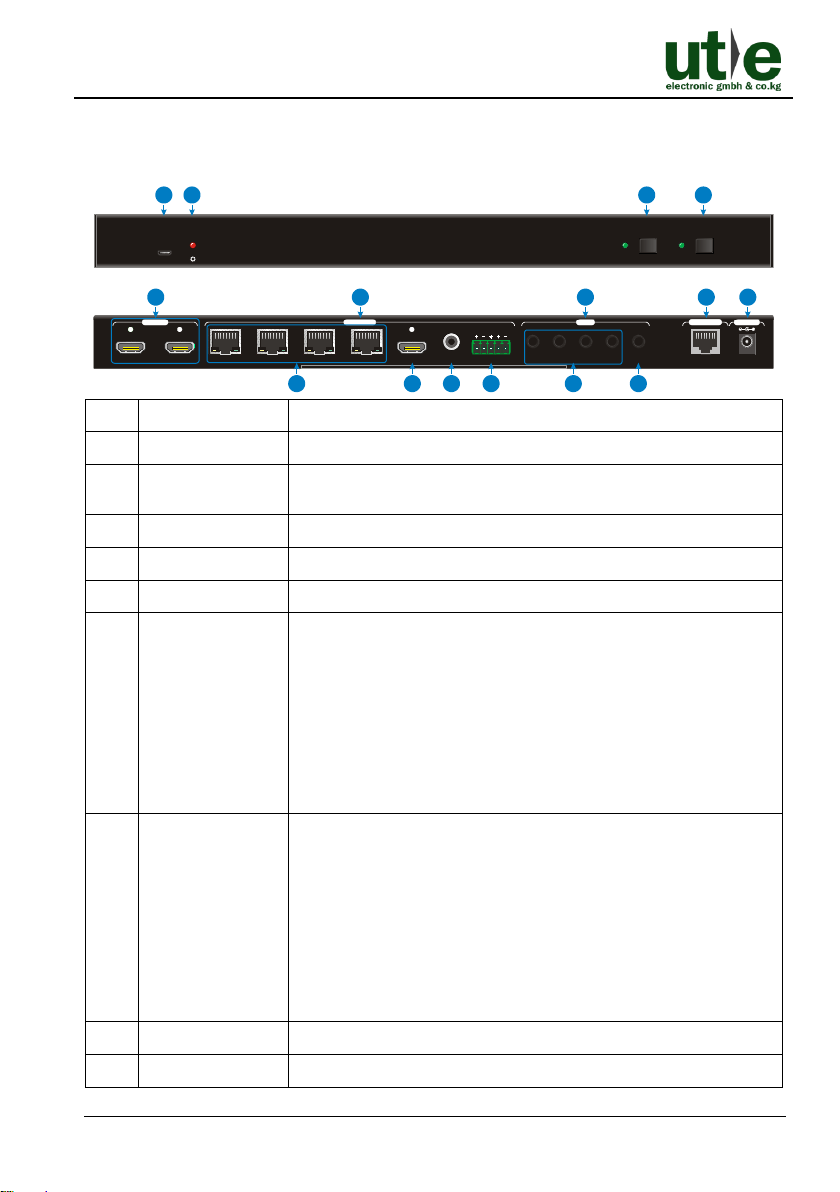

2.1 4K 2x5 HDBaseT Splitter HD22-4X
No.
Name
Description
①
FIRMWARE
USB port, used for firmware update.
②
Power indicator
Red once powered on.
③
HDMI 1
1-HDMI input selector and activity LED.
④
HDMI 2
2-HDMI input selector and activity LED.
⑤
INPUTS
2 HDMI input ports, connect with HDMI source device.
⑥
OUTPUTS
A. 4 HDBaseT outputs, connect with HDBaseT Receivers
HD22-4X-R via Cat5e/6/7 cable.
B. HDMI output, connects with display.
C. COAX digital audio output, connects with audio
broadcast device.
D. Balanced analog audio output, connects with audio
broadcast device.
⑦
IR IN
a. 4 IR input ports, used together with the IR output on
the corresponding HDBaseT Receiver to build one-to-
one mode. The IR signal can be transmitted to the
corresponding IR output to control the display.
b. 1 IR ALL IN port, used together with all IR outputs on
far-end HDBaseT Receivers to build one-to-all mode.
The IR signals can be transmitted to IR outputs to
control all displays.
⑧
TO WP
RJ 45 connector, connects with Wallplate Control Keypad.
⑨
POWER
PoC technology. Connects with 24V DC power adaptor.
FIRMWARE HDMI 1 HDMI 2
1234
IR OUT
AUDIOCOAX5-HDMI DC 24V1-HDMI 2-HDMI
INPUTS OUTPUTS IR IN POWER
1-HDBT 2-HDBT 3-HDBT 4-HDBT 1 2 4 IR ALLIN3
L R
TO WP
ABCDab
5678 9

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 4 www.ute.de

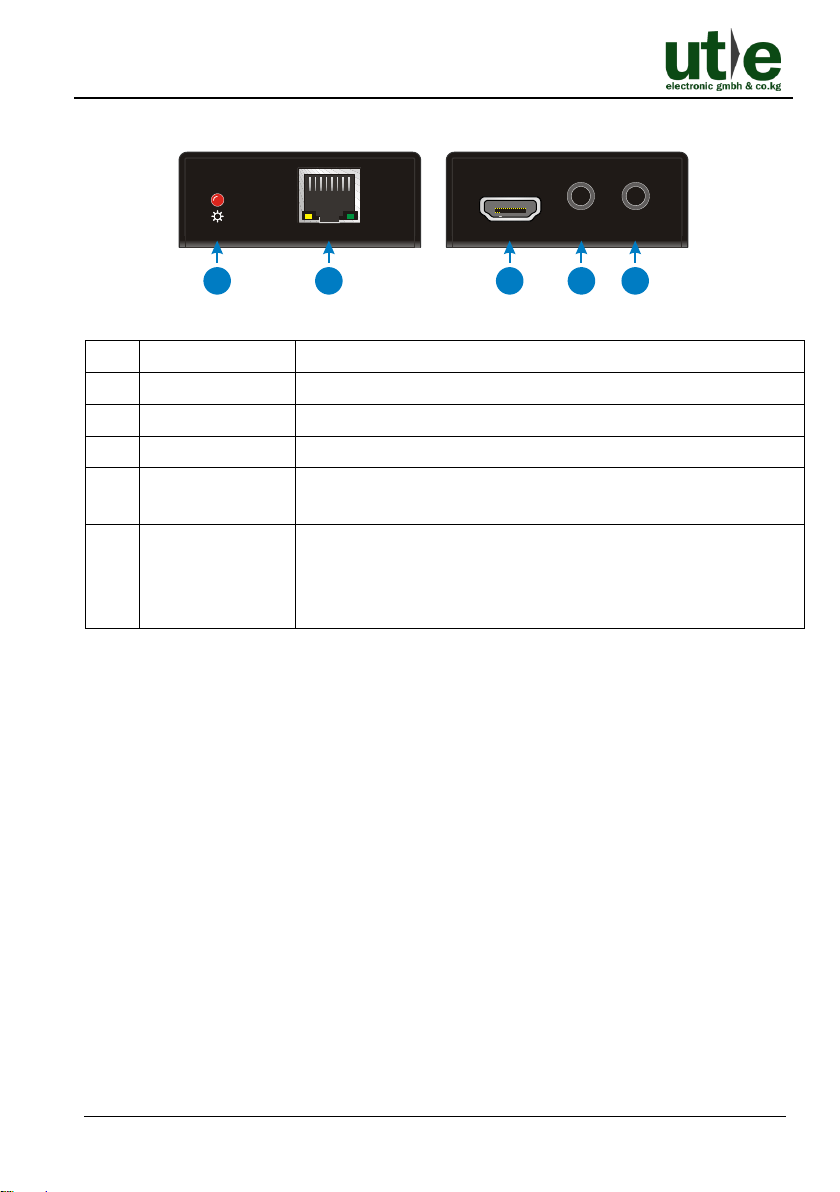

2.2 4K HDBaseT Receiver HD22-4X-R
No.
Name
Description
①
Power indicator
Red once powered on.
②
TP IN
Connects with 4K 2x5 HDBaseT Splitter via Cat5e/6/7 cable.
③
HDMI OUT
Connects with HDMI display.
④
IR IN
Connects with the IR Receiver. This port is not used in this
system.
⑤
IR OUT
Connects with the IR Emitter to send the IR signal from the
4K 2x5 HDBaseT Splitter HD22-4X to control the display
which is connected to the HDMI output on HDBaseT
Receiver.
IR IN IR OUTHDMI OUT
TP IN
LINK HDCP
12345

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 5 www.ute.de

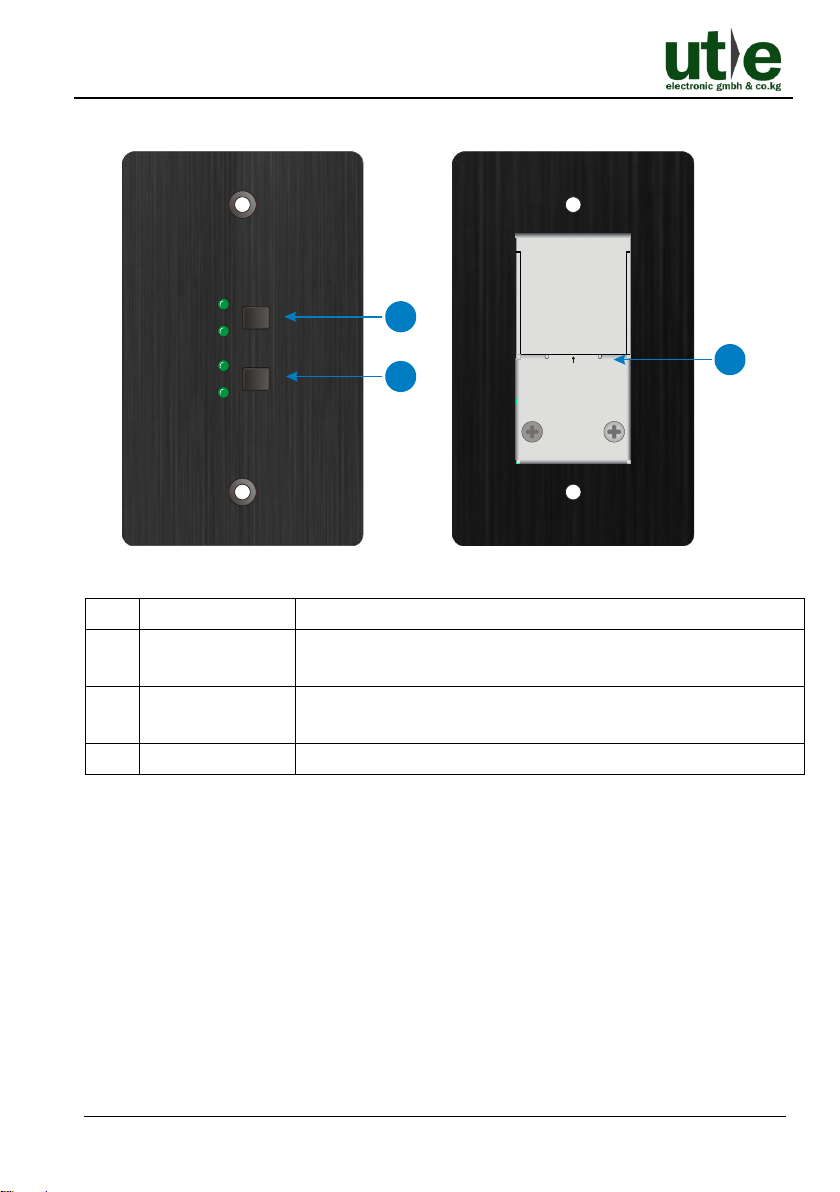

2.3 Wallplate Control Keypad
No.
Name
Description
①
Source Selector
Press it to select video input between 1-HDMI and 2-HDMI,
and the corresponding activity LED will turn green.
②
Display Control
Press it to turn on/off display, and the corresponding activity
LED will turn green (only with CEC support).
③
CATx
RJ45 connector, connect with the 4K 2x5 HDBaseT Splitter.
CATx
HDMI 2
HDMI 1
OFF
ON
13
2

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 6 www.ute.de
3. System Connection
3.1 Usage Precautions
⚫System should be installed in a clean environment and has a prop temperature
and humidity.
⚫All of the power switches, plugs, sockets and power cords should be insulated and
safe.
⚫All devices should be connected before power on.
3.2 System Diagram HD22-4X

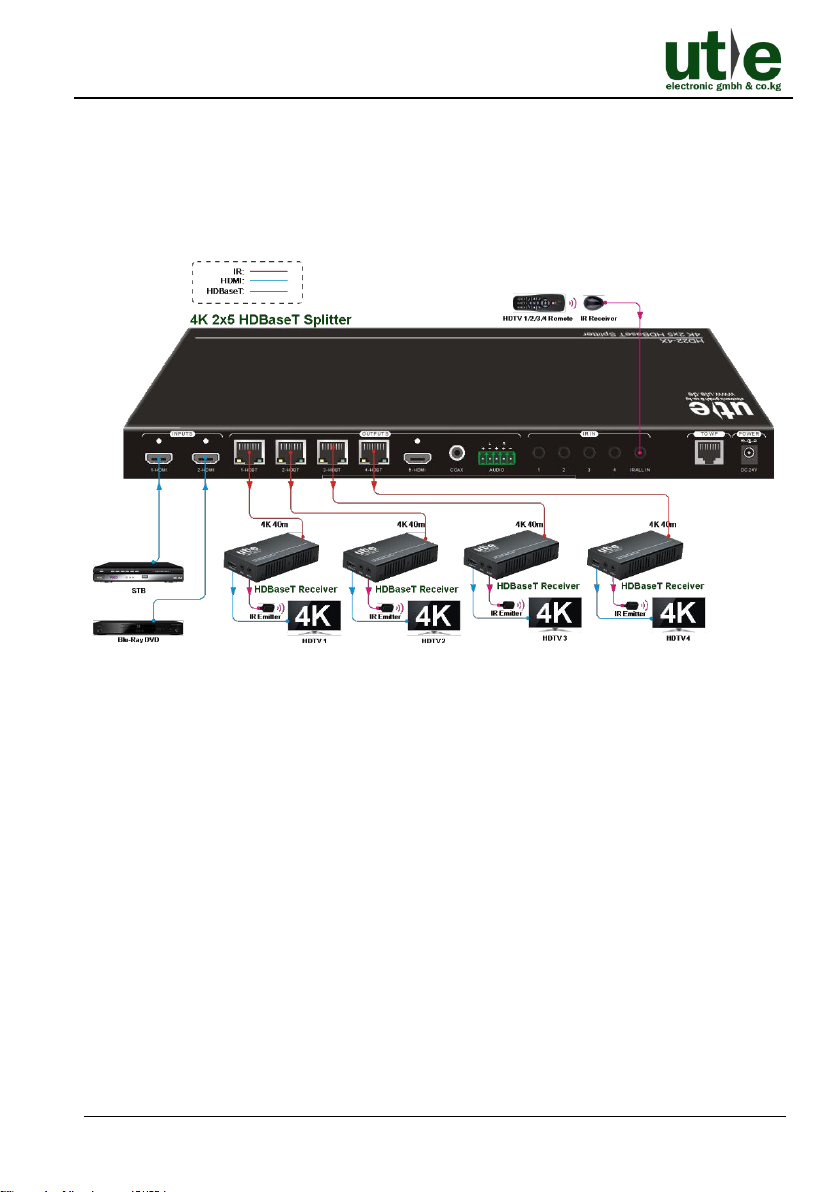

Figure 3- 1 Connection and System Diagram
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 7 www.ute.de
3.3 Connection Procedure
Step1.Connect HDMI source devices (e.g. Blue-ray DVDs) to HDMI input ports of
4K 2x5 HDBaseT Splitter HD22-4X with HDMI cables.
Step2.Connect HDBaseT Receivers HD22-4X-R to HDBaseT output ports of
4K 2x5 HDBaseT Splitter HD22-4X with Cat5e/6/7 cables.
Step3.Connect HDMI displays (HDTVs) to HDMI output ports of HDBaseT Receivers
HD22-4X-R with HDMI cables.
Step4.Connect HDMI display (HDTV) to HDMI output port of 4K 2x5 HDBaseT Splitter
HD22-4X with HDMI cable.
Step5.Connect audio broadcast device (Amplifier) to the COAX or balanced analog
audio output port with audio cable.
Step6.Connect Wallplate Control Keypad to the TO WP port of 4K 2x5 HDBaseT
Splitter HD22-4X with the included connect cable.
Step7.IR Connection:
⚫One-to-one: Connect 4 IR Receivers to 4 IR input ports of 4K 2x5
HDBaseT Splitter, and then connect 4 IR Emitters to IR OUT ports of
HDBaseT Receives. The IR signal can be transmitted from IR Receiver to
the corresponding IR Emitter to control the display connected with
corresponding HDBaseT Receiver.
⚫One-to-all: Connect one IR Receiver to IR ALL IN port of 4K 2x5 HDBaseT
Splitter, and then connect 4 IR Emitters to IR OUT ports of HDBaseT
Receives. The IR signal can be transmitted from the IR Receiver to all IR
Emitters to control the displays connected with HDBaseT Receivers.
For more details, please refer to the 4.2 Control far-end display.
Step8.Connect the 24VDC power adapter to the power port of 4K 2x5 HDBaseT
Splitter HD22-4X.

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 8 www.ute.de

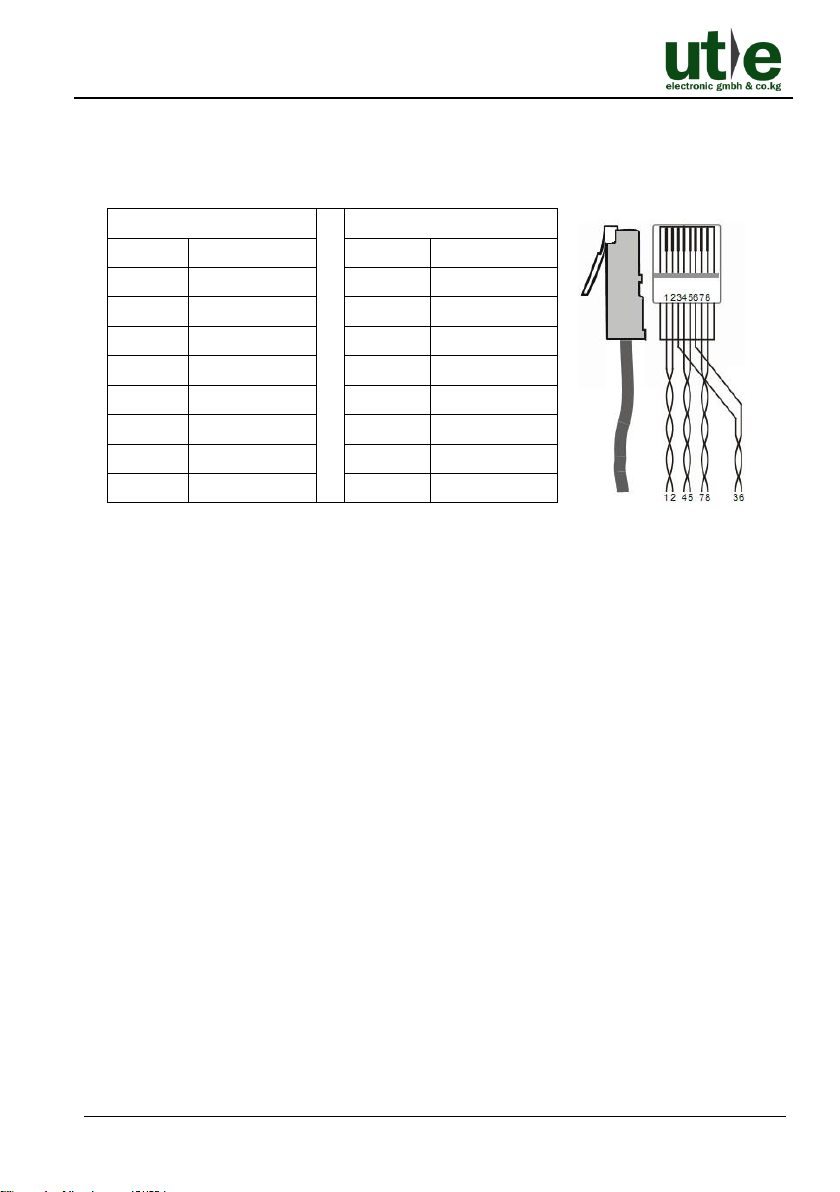

3.4 Twisted Pair Cable Connection
The twisted pair MUST be a straight-through cable.
The connectors can be T568A or T568B, but both sides must be the same.
Note: Every pin in pure color groups with its half white pin.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 9 www.ute.de
4. System Operation
4.1 Video Switching
There are two ways can be chosen to switch one HDMI video input between 1-HDMI
and 2-HDMI.
⚫Press HDMI 1 or HDMI 2 on front panel of 4K 2x5 HDBaseT Splitter HD2-4X to
select HDMI video input, and then the corresponding activity LED will turn green.
⚫Press the source selector on Wallplate Control Keypad to select HDMI video input,
and then the corresponding activity LED will turn green.
4.2 Control far-end display
4.2.1 IR passthough control: One-to-one mode
Connect 4 IR Receivers to 4 IR input ports of 4K 2x5 HDBaseT Splitter HD22-4X, and
then connect 4 IR Emitters to IR OUT ports of HDBaseT Receives HD22-4X-R. The IR
signal can be transmitted from IR Receiver to the corresponding IR Emitter to control
the display connected with corresponding HDBaseT Receiver.

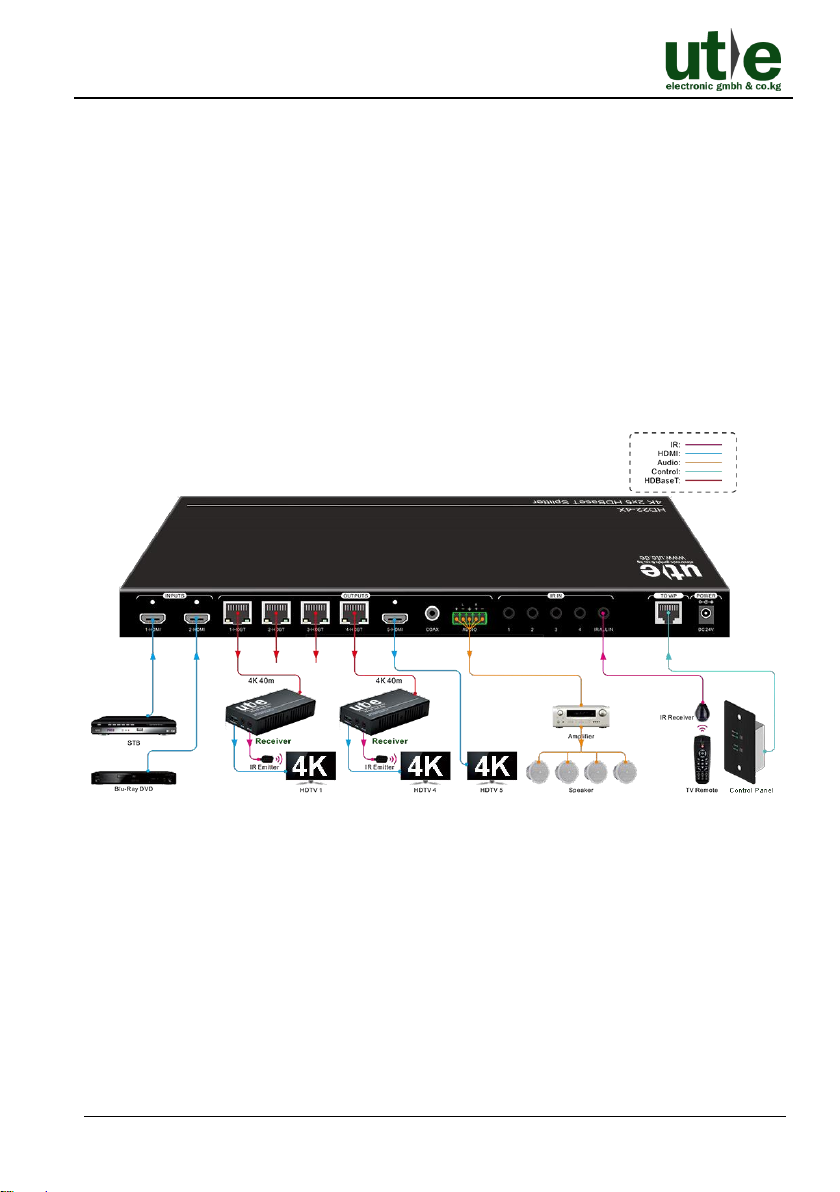

Figure 4- 1 Connection and System Diagram: IR One-to-one mode

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 10 www.ute.de
4.2.2 IR passthough control: One-to-all mode
Connect one IR Receiver to IR ALL IN port of 4K 2x5 HDBaseT Splitter, and then
connect 4 IR Emitters to IR OUT ports of HDBaseT Receives. The IR signal can be
transmitted from the IR Receiver to all IR Emitters to control the displays connected
with HDBaseT Receivers.

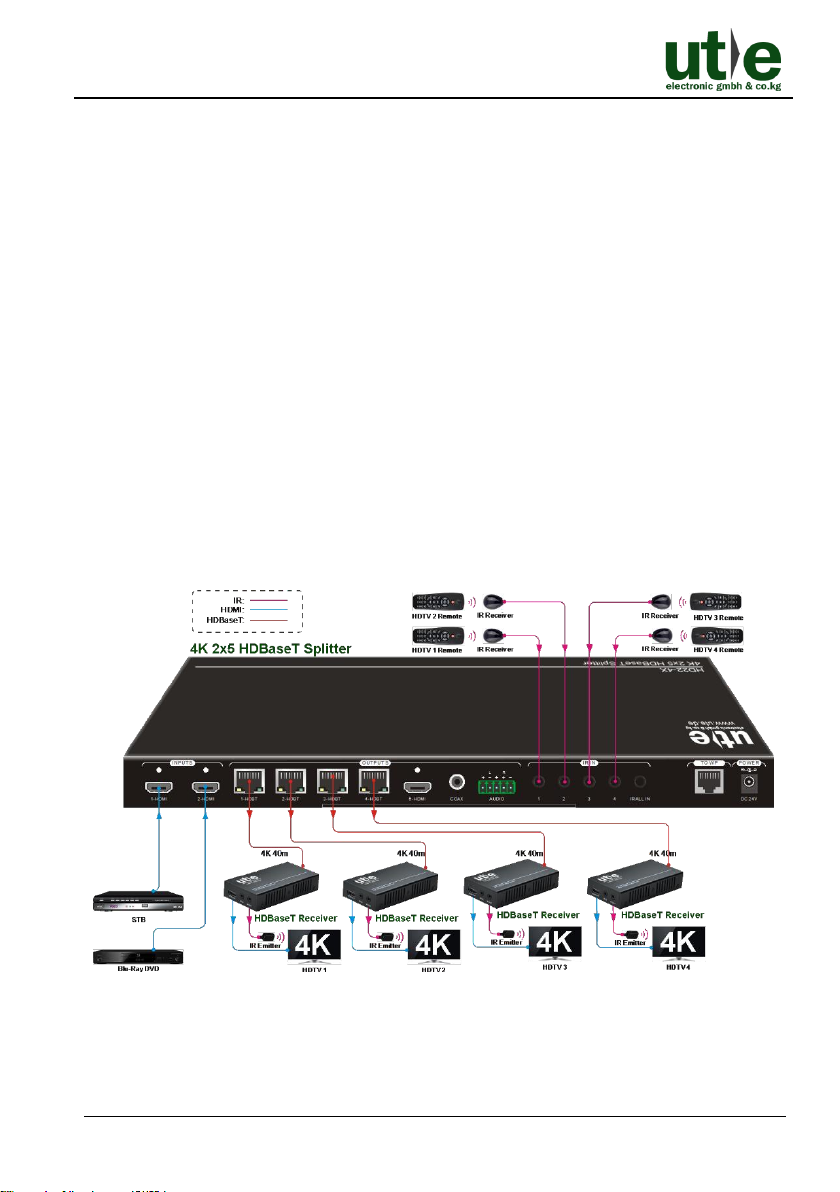

Figure 4- 2 Connection and System Diagram: IR One-to-all mode
4.2.3 Turn on/off displays via Wallplate Control Keypad
Press the display control button on Wallplate Control Keypad to turn on/off HDMI
display device, and then the corresponding activity LED ON/OFF will turn green (only
CEC support).
4.3 EDID Management
The EDID setting for the 4K 2x5 HDBaseT Splitter is defined by the first detected
display (detecting from 1-HDBT~5-HDMI).
For example: when output 1-HDBT connects with a 4K display, 4K 2x5 HDBaseT
Splitter will select 4K as output resolution and distribute 4K video signal to all displays.
If a display does not support the 4K video content, there are will no video output on the
display.

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 11 www.ute.de
5. Specification
5.1 4K 2x5 HDBaseT Splitter HD22-4X
Input & Output
Input
(2) HDMI
Input Connector
(2) Type A Female HDMI
Output
(4) HDBaseT; (1) HDMI; (1) COAX; (1) AUDIO
Output Connector
(4) Female RJ45(with LED indicators); (1) Type A Female
HDMI; (1) SPDIF; (1) 5-Pin phoenix connector
Control
(4) IR IN; (1) IR ALL IN; (1) TO WP
Control Connector
(5) 3.5mm mini jacks; (1) RJ45
General
Maximum Resolution
4Kx2K@60Hz 4:2:0
Bandwidth
10.2Gbps
HDCP
Compliant with HDCP2.2,and is backward compatible to
HDCP1.4
EDID
In-built EDID management
Power Supply
Input:100V~240V AC; Output: 24VDC 2.5A
Power Consumption
35 (max)
Temperature
-10℃~ 55℃
Humidity
10% ~ 90%
Dimension (W*H*D)
360mm x 28mm x 150mm
Net Weight (g)
470g

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 12 www.ute.de
5.2 4K HDBaseT Receiver HD22-4X-R
Input & Output
Input
(1) HDBaseT;
Input Connector
(1) Female RJ45(with LED indicators);
Output
(1) HDMI
Output Connector
(1) Type A Female HDMI
Control
(1) IR IN; (1) IR OUT
Control Connector
(2) 3.5mm mini jacks
General
Resolution Range
Up to 4K×2K@60Hz
Transmission Mode
HDBaseT
Transmission
Distance
1080P@60Hz ≤70m; 4Kx2K@60Hz ≤40m
Bandwidth
10.2Gbps
HDMI Standard
Support HDMI1.4 & HDCP1.4
Temperature
0 ~ +50℃
Humidity
10% ~ 90%
Power Supply
Powered by 4K 2x5 HDBaseT Splitter
Dimension (W*H*D)
61mm x 24mm x 120mm
Net Weight (g)
280g
5.1 Wallplate Control Keypad
Connection Port
(1) CATx (RJ45)
Control Button
(1) HDMI input Selector (9mmx7.8mm);
(1) Displays control button (9mmx7.8mm)
General
Temperature
0 ~ +50℃
Humidity
10% ~ 90%
Power Supply
Powered by 4K 2x5 HDBaseT Splitter
Dimension (W*H*D)
70mm x 114mm x 38mm
Net Weight (g)
116g

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 13 www.ute.de

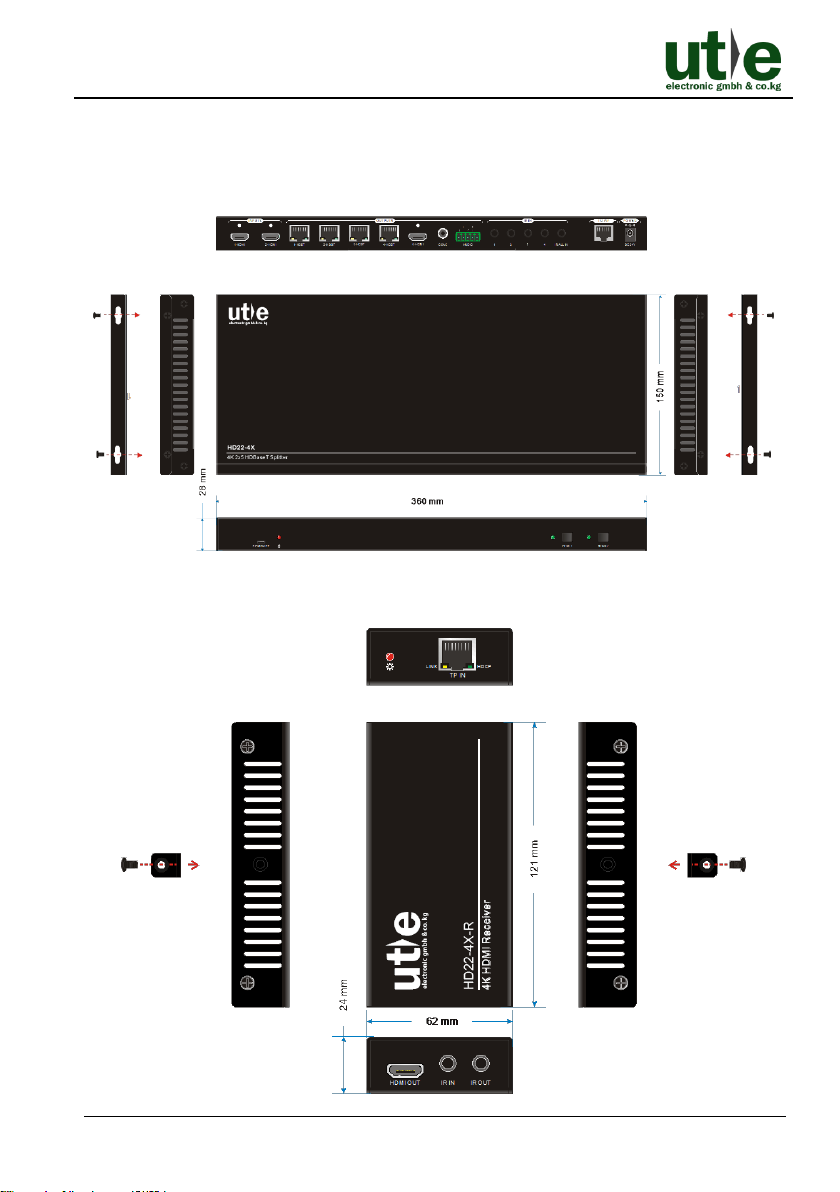

6. Panel Drawing
6.1 4K 2x5 HDBaseT Splitter HD22-4X
6.2 4K HDBaseT Receiver HD22-4X-R

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 14 www.ute.de
6.3 Wallplate Control Keypad
HDMI 2
HDMI 1
OFF
ON
CATx
38 mm

HD22-4X: 4K 2x5 HDBaseT Splitter
U.T.E. electronic GmbH & Co. KG 15 www.ute.de
7. Troubleshooting & Maintenance
Problems
Causes
Solutions
Color losing or no video
signal output in HDMI
display
The connecting cables
may not be connected
correctly or it may be
broken.
Check whether the cables
are connected correctly
and in working condition.
No HDMI signal output
while local HDMI input is
in normal working state
Static becomes stronger
when connecting the
video connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support ([email protected]).
