UTE UH-2VE-8K User manual

www.ute.de
UH-2VE-8K
8K 1x2 HDMI 2.1 Splitter
All Rights Reserved
Version: UH-2VE-8K_2021V1.0
User Manual

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG www.ute.de
Statement
Thanks for purchasing this product, please read this user manual carefully before using
this product. Pictures are shown in this manual for reference only. Different models and
specifications are subject to real product.
This manual is only for operation instruction, please contact the local dealer for
maintenance assistance. The functions described in this version are updated till Mar,
2021. In the constant effort to improve our product, we reserve the right to make
functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
All product function is valid till 2021-03-03.
Trademarks
Product model and logo are trademarks of U.T.E. electronic GmbH & Co. KG.
Any other trademarks mentioned in this manual are acknowledged as the properties of
the trademark owner. No part of this publication may be copied or reproduced without
the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG www.ute.de
Safety Precaution
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
⚫Do not dismantle the housing or modify the module to avoid electrical shock or
burn.
⚫Using supplies not meeting the products' specifications may cause damage,
deterioration or malfunction.
⚫Do not expose the unit to rain, moisture or install this product near water.
⚫Install the device in a place with fine ventilation.
⚫Do not twist or pull by force ends of the optical cable. It can cause malfunction.
⚫Do not use liquid or aerosol cleaners to clean this unit.
⚫Always unplug the power to the device before cleaning.
⚫Unplug the power when not used for a long period of time.
⚫Refer all servicing to qualified service personnel.

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG www.ute.de
Contents
1Introduction ...............................................................................................................1
1.1 Product Introduction.......................................................................................1
1.2 Features.........................................................................................................1
1.3 Packing List ...................................................................................................1
2Panel Description ......................................................................................................2
2.1 Front Panel ....................................................................................................2
2.2 Rear Panel.....................................................................................................3
3System Connection ...................................................................................................4
3.1 Usage Precautions ........................................................................................4
3.2 System Diagram UH-2VE-8K.........................................................................4
4DIP Switch Operation................................................................................................5
4.1 EDID Management ........................................................................................5
4.2 User Defined EDID Setting ............................................................................6
5Firmware Upgrade ....................................................................................................7
6Technical Specification..............................................................................................8
7After-sales / Customer Service................................................................................10

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 1 www.ute.de
1 Introduction
1.1 Product Introduction
Thanks for choosing the 1x2 8K HDMI 2.1 Splitter UH-2VE-8K, which can distribute
one HDMI input to two outputs. The splitter supports HDMI video resolution up to
8K@60Hz 4:2:0 10bit, HDR 10, HDR 10+, Dolby Vision, and multichannel audio
formats.
Besides passing EDID information from the display, there are multiple built-in EDID
settings can be selected by the 4-pin DIP switch on the front panel. Moreover, the
UH-2VE-8K supports convenient firmware upgrade through Micro-USB port.
1.2 Features
⚫HDMI V2.1, HDCP 2.3 compliant and 40Gbps.
⚫Supports up to 8K60Hz 4:2:0 10bit, 8K30Hz 4:4:4 10bit and 4K120Hz 10bit.
⚫ALLM (Auto Low-Latency Mode) which automatically adjust the television's settings
to ensure fast-moving content isn’t slowed down.
⚫VRR technology eliminates lag and tearing, deliver video frames at the fastest
speed.
⚫Advanced EDID management: multiple preset and user defined allowed.
⚫Supports CEC pass-through.
⚫Provides LEDs to indicate the current operating status.
⚫Firmware upgrade by Micro-USB port.
1.3 Packing List
⚫1x UH-2VE-8K: HDMI V2.1 1x2 Splitter
⚫4x Plastic Cushions
⚫1x Power Adapter (12V DC 1A)
⚫1x User Manual
Note: Please contact your dealer immediately if any damage or defect in the
components is found.

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 2 www.ute.de
2 Panel Description
2.1 Front Panel
Figure 2-1 UH-2VE-8K Front Panel
①POWER LED: The LED illuminates green when the unit is powered on.
②INPUT LED: The LED illuminates blue when there is HDMI input.
③OUTPUT LEDs: The LED illuminates blue when there is HDMI output on the
corresponding channel.
④EDID: 4-pin DIP switch for EDID setting.
Please refer to 4.1 EDID Management for more details.
⑤FW: Micro-USB port for firmware upgrade.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 3 www.ute.de

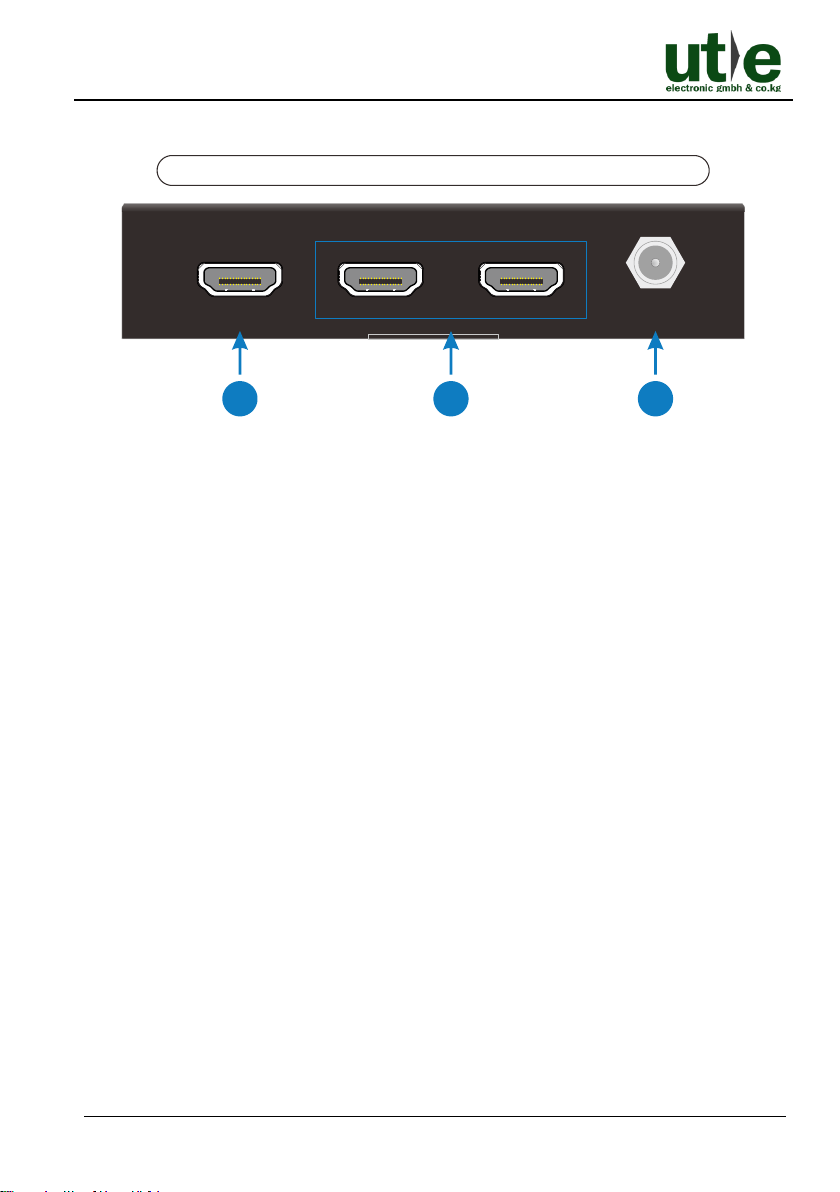

2.2 Rear Panel
Figure 2-2 UH-2VE-8K Rear Panel
①INPUT: Type-A female HDMI input port to connect a HDMI source.
②OUTPUTS: Two type-A female HDMI output ports to connect HDMI displays.
Supports up to 5V 200mA power for AOC cable.
③DC 12V: DC barrel port to connect an AC power adapter.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
DC 12V
OUT 1 OUT 2IN
1 2 3

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 4 www.ute.de
3 System Connection
3.1 Usage Precautions
1) Make sure all components and accessories included before installation.
2) System should be installed in a clean environment and has a prop temperature and
humidity.
3) All of the power switches, plugs, sockets and power cords should be insulated and
safe.

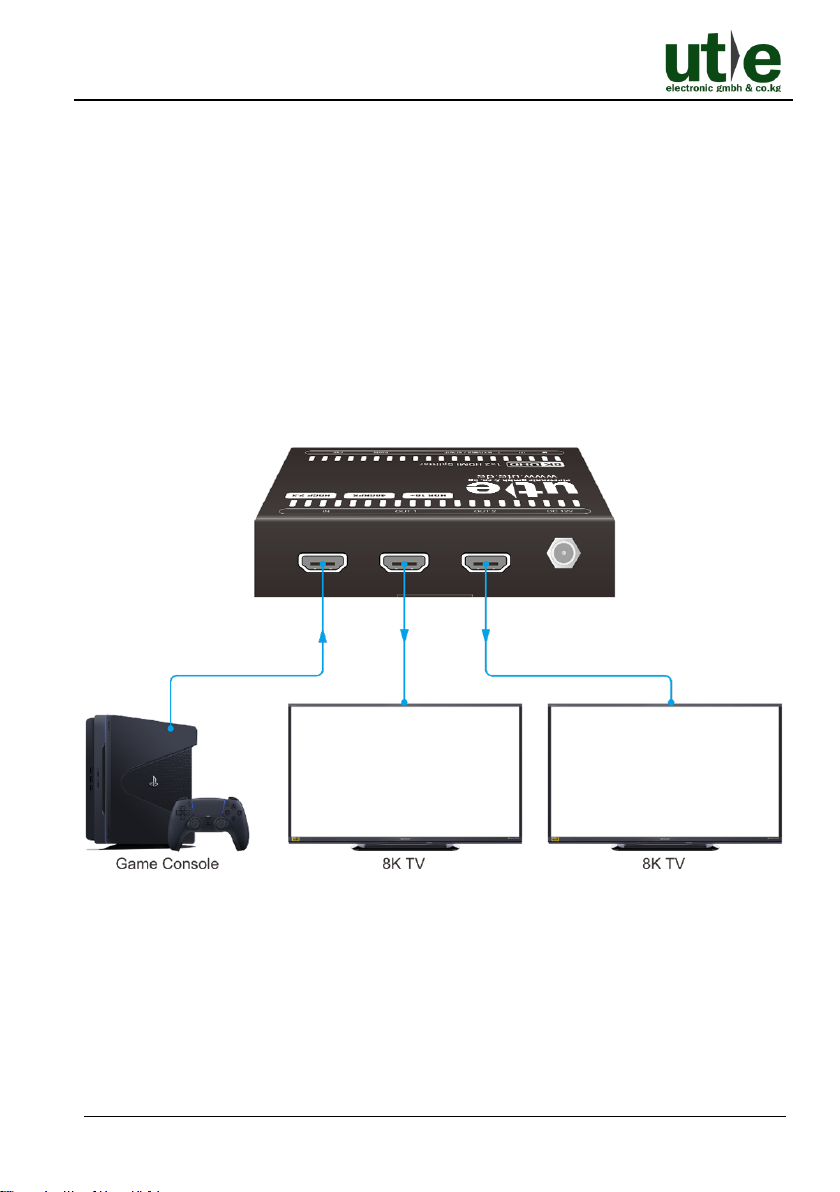

3.2 System Diagram UH-2VE-8K
The following diagram illustrates the typical input and output connection that can be
utilized with 8K 1x2 HDMI2.1 Splitter UH-2VE-8K:
Figure 3-1 Connection and System Diagram

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 5 www.ute.de
4 DIP Switch Operation
4.1 EDID Management
The Extended Display Identification Data (EDID) is used by the source device to match
its video resolution with the connected display. By default, the source device obtains its
EDID from the first connected display. Meanwhile, since the displays with different
capabilities are connected to the splitter, the DIP switch on the front panel can be used
to set the EDID to a fixed value to ensure the compatibility in video resolution.
The switch represents “0” when in the lower (OFF) position, and it represents “1” while
putting the switch in the upper (ON) position.
Switch Status
Video Resolution
Audio Format
0000
Obtains EDID from the first detected display starting at HDMI
output 1>2.
0001
1920x1080@60 8bit
Stereo
0010
1920x1080@60 8bit
High Definition Audio
0011
3840x2160@30Hz 8bit
Stereo
0100
3840x2160@30Hz Deep Color
High Definition Audio
0101
3840x2160@60Hz Deep Color
Stereo
0110
3840x2160@60Hz Deep Color
High Definition Audio
0111
3840x2160@60Hz Deep Color HDR
LPCM 6CH
1000
3840x2160@120Hz Deep Color
Stereo
1001
3840x2160@120Hz Deep Color
High Definition Audio
1010
8K@30Hz Deep Color
Stereo
1011
8K@30Hz Deep Color
High Definition Audio
1110
8K@60Hz 4:2:0 Deep Color
High Definition Audio
1111
User Defined EDID

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 6 www.ute.de
4.2 User Defined EDID Setting
Except directly invoking the embedded EDID, the specific EDID can be customized.
There are five EDID can be customized following the below operations.
1) Rename the user defined EDID according the following format.
EC_xx_xxxx_xxx.bin
⚫EC: Represents EDID.
⚫xx: Represents EDID ID. It is 11~15.
⚫xxxx: Represents the video parameter.
⚫xxx: Represents the audio format.
Example: EC_11_720P_LPCM.bin
2) Power on the splitter UH-2VE-8K, and then connect the splitter to the PC with USB
cable (not included). The PC will automatically detect a U-disk named of
“BOOTDISK”.
3) Double-click the U-disk, a file named of “READY.TXT” would be showed.
4) Copy the user defined EDID (such as EC_11_1080P_LPCM.bin) to the
“BOOTDISK” U-disk.
5) Reopen the U-disk to check the filename “READY.TXT” whether automatically
becomes “SUCCESS.TXT”, if yes, the user defined EDID was imported into the
splitter and saved as its corresponding EDID ID successfully.
6) Repeat the above third to fifth step to copy other user defined EDIDs to the
“BOOTDISK” U-disk.
7) Remove the USB cable, connect the adaptor to power on the splitter.
The new EDID also can be invoked via the 4-pin DIP switch directly.

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 7 www.ute.de
5 Firmware Upgrade
Please follow the below steps to upgrade firmware by the Micro-USB port:
Step1.Connect the splitter to the PC with USB cable (not included).
Step2.Power on the splitter, and then the PC will automatically detect a U-disk named
of “BOOTDISK”.
Step3.Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
Step4.Copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk directly.
Step5.If the filename “READY.TXT” automatically turns to “SUCCESS.TXT”, the
firmware was upgraded successfully. If the firmware upgrade failed, please
check the file (.bin) and then follow the above procedure to operate again.
Step6.Remove the USB cable after firmware upgrade.

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 8 www.ute.de
6 Technical Specification
Video Input
Input
(1) HDMI
Input Connector
(1) Type-A female HDMI
HDMI Input Resolution
Up to 8K@60Hz 4:2:0 10bit
HDMI Standard
2.1
HDR and HDR10+
Supported
Dolby Vision
Supported
HDCP Version
2.3, 2.2, 1.4 compliant
CEC
Supported
Video Output
Output
(2) HDMI
Output Connector
(2) Type-A female HDMI
HDMI Output Resolution
Up to 8K@60Hz 4:2:0 10bit
HDMI Output
Supports up to 5V 200mA power for AOC cable.
HDMI Standard
2.1
HDR and HDR10+
Supported
Dolby Vision
Supported
HDCP Version
2.3, 2.2, 1.4 compliant
CEC
Supported
Control
Control Part
(1) EDID 4-pin DIP switch,
(1) Micro-USB port

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 9 www.ute.de
General
Bandwidth
40Gbps
HDMI V2.1 Cable Length
8K@60Hz 4:2:0 ≤ 3m,
4K@60Hz 4:4:4 ≤ 5m,
4K@60Hz 4:2:0 ≤ 10m,
1080p ≤ 15m
Operation Temperature
-5 to +55℃ (+23° to +131°F)
Storage Temperature
-25 to +70℃ (-13° to +158°F)
Relative Humidity
10% to 90%, Non-condensing
Power Supply
Input:100V~240V AC; Output: 12V DC 1A
Power Consumption
TBC
Dimension (W*H*D)
115mm x 25mm x 95mm
Net Weight
275g
Note: Please adopt high-qualified HDMI cable fully compliant with HDMI 2.1 for
reliable transmission and connection.

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 10 www.ute.de
7 After-sales / Customer Service
Any transport costs are borne by the users during the warranty.
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Product Limited Warranty: We warrants that its products will be free from defects
in materials and workmanship for two years, which starts from the first day you buy
this product (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence
that the unit is within the Warranty period must be presented to obtain warranty
service.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized dealer only.
3) What the warranty does not cover (Warranty Exclusion)
⚫Warranty expiration.
⚫Factory applied serial number has been altered or removed from the product.
⚫Damage, deterioration or malfunction caused by:
•Normal wear and tear.
•Use of supplies or parts not meeting our specifications.
•No certificate or invoice as the proof of warranty.
•The product model showed on the warranty card does not match with the model
of the product for repairing or had been altered.
•Damage caused by force majeure.
•Servicing not authorized by distributor.
•Any other causes which does not relate to a product defect.
⚫Shipping fees, installation or labor charges for installation or setup of the
product.
4) Documentation: Customer Service will accept defective product(s) in the scope of
warranty coverage at the sole condition that the defeat has been clearly defined,
and upon reception of the documents or copy of invoice, indicating the date of
purchase, the type of product, the serial number, and the name of dealer.

UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter
U.T.E. electronic GmbH & Co. KG 11 www.ute.de
5) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
⚫Product version and name.
⚫Detailed failure situations.
⚫The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local dealer
or our customer support ([email protected]).

U.T.E. electronic GmbH & Co. KG
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.ute.de
