utmark X500 User manual

Smart Vacuum Cleaner
Model: X500
User Manual

Table of Contents
Safety Instructions .................................................................... 1
Product Features ....................................................................... 2
Product Parts ............................................................................ 3
Main body and accessories ............................................................... 3
Robot anatomy ............................................................................... 4
Name of each part (1)Charging home base & Virtual wall ......................... 5
Name of each part (2) Remote control ................................................. 6
Name of each part (3) Display panel .................................................. 7
Product Operating .................................................................... 8
How to get started .......................................................................... 8
Starting up/Pause/Sleeping .............................................................. 9
Scheduling ..................................................................................... 9
Cleaning mode .............................................................................. 10
Virtual wall use .............................................................................. 10
Product Maintaining ................................................................ 11
Cleaning side brushes .................................................................... 11
Cleaning dust bin and filters ............................................................. 11
Cleaning sensors and wheels ......................................................... 12
Troubleshooting ..................................................................... 13
Error code sheet ........................................................................... 13
Product Specifications ........................................................... 14

Safety Instructions
Before using this product, please read the following safety instructions
and follow all normal safety precautions.
Read this user manual thoroughly and carefully before using this product.
Save this user manual.
Any operations that oppose to descriptions in this user manual may lead to harm to human
or this product.
WARNING
1. Only the certified technician may disassemble the product. Users are not allowed to disassemble
or repair the product.
2. Only use the adapter provided by the factory. Using other un-matched adapter may cause
electric shock, fire or product damage.
3. Do not touch the power cord, plug or adapter when your hands are wet.
4. Do not make clothes or part of a body drawn into the product’s wheels.
5. Do not make this product close to cigarette, lighter, match or any flammables.
6. If the product is needed to clean, clean it after charging is stopped.
7. Do not over-bend the power cord or pressure the power cord with heavy or sharp objects.
8. This product is used only indoors, do not use it outdoors.
9. Do not sit on top of this product or attach an object on the top of it.
10. Do not use this product in wet or moist environment (any environment with liquid).
11. Before use, collect the floor environment(remove all the fragile objects and cords, clothings
papers and drapes, etc that may get caught in the product).
12. Do no place this product where it is easy to drop off (tables, chairs, etc).
13. Turn off the power switch when you don’t need to use this product for a long time.
14. Before use, check whether adapter and outlet are properly connected.
15. To avoid tripping, inform all the people in the house when this product is working.
16. The product may not be able to pass through steps over 10mm.
17. Use this product in temperature from 0°to 40°(centigrade degree) and do not place this
product in high-temperature environment.
18. The battery must be removed from the product before it is scrapped.
19. The product must be disconnected from the supply mains when removing the battery.
20. The battery is to be disposed of safety.
NOTE: This product could not be used by children or people with a
lack of related experience and knowledge regarding this item
(Unless there’s people to instruct or supervise them).
1

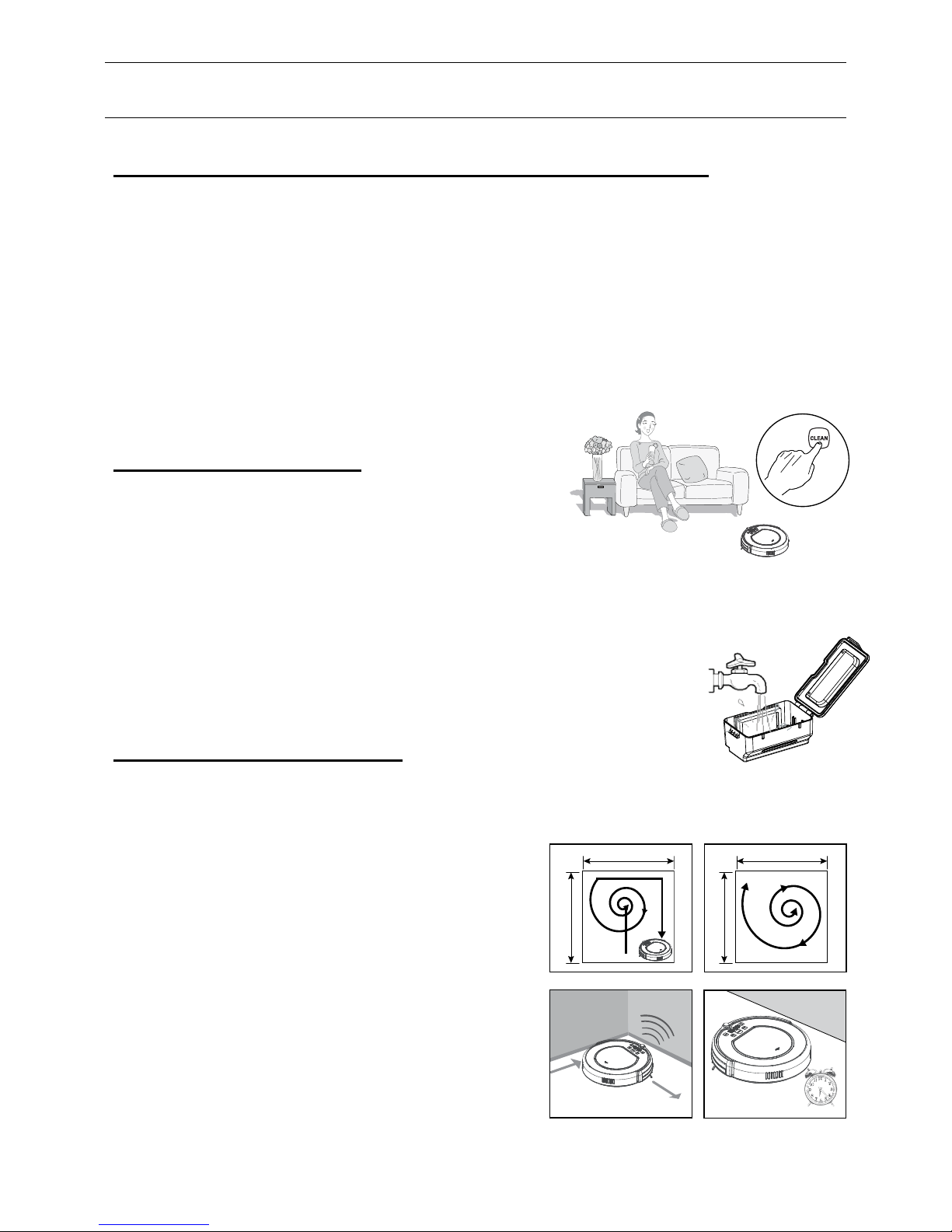

Product Features
Powerful Suction & Intelligent Suction Adjustment
Powerful suction
Suction power of this product reaches 25 W, ensuring that even tiny dust on the floor will
be cleaned thoroughly.
Intelligent Suction Adjustment
This product is able to automatically adjust its suction power when meeting different floor
environments. Not only could it make cleaning more efficiently, but also it helps save power
for more than 30%!
Considerate Designs
Easy step-by-step operation
By pressing only ONE button, you could easily direct the robot! Besides,
operations you take on the robot will be double confirmed by tone.
Press “CLEAN”, and follow tone demonstration, let your robot start working for you.
Dust bin wash
Dust bin could be washed by water. Simply wash dust bin under water per use
to avoid dust blowing in the air to cause a second polluting!

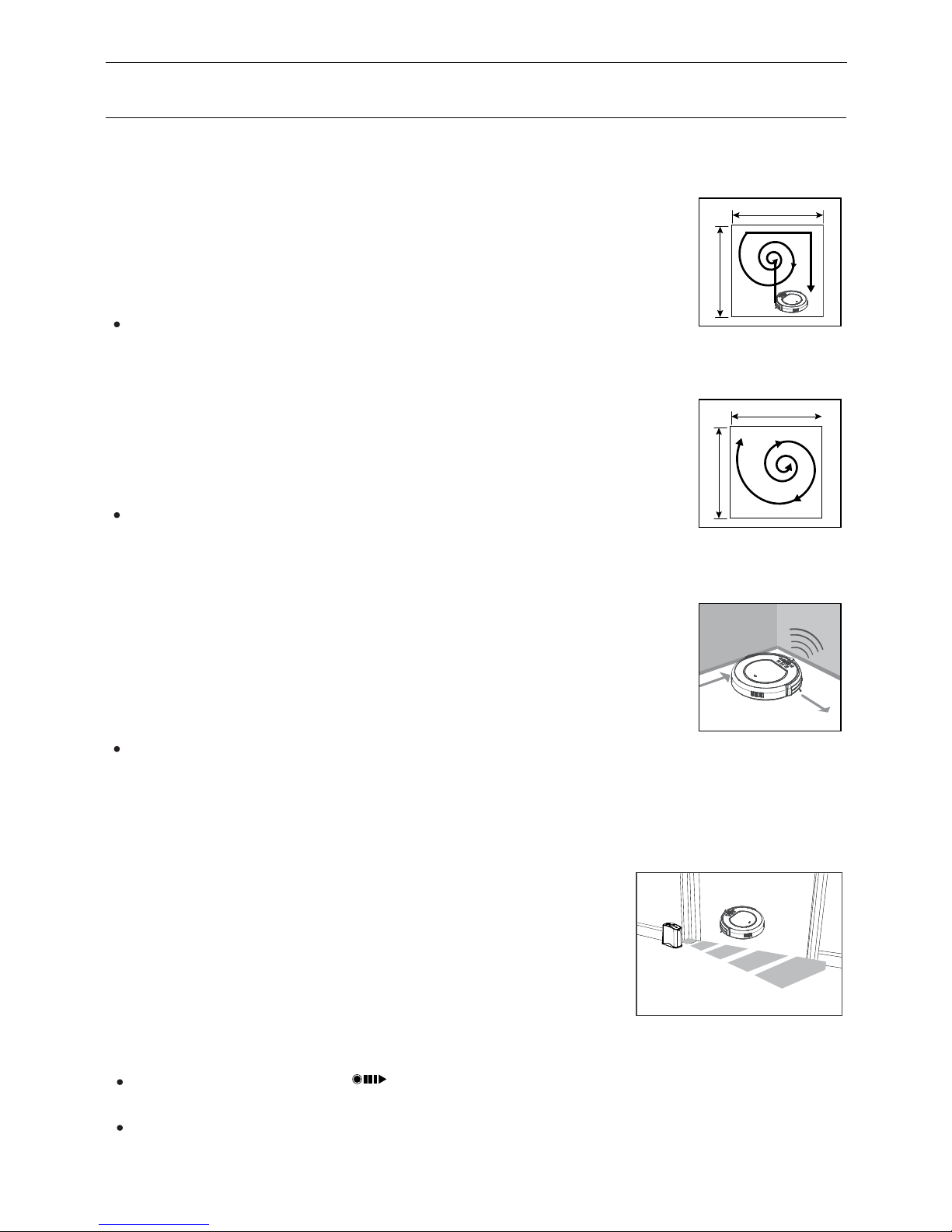

Various Cleaning Modes
Four cleaning modes are provided to meet your needs.
1. Auto cleaning mode
The robot will clean a room automatically and adjust
its cleaning according to the situation.
2. Spot cleaning mode
The robot will spiral intensely when it detects a dirtier area.
3. Edge cleaning mode
When the robot detects obstacles (wall for example),
it will start cleaning the corner with its two side brushes.
4. Scheduling mode
When certain time is scheduled, the robot will leave
the home base and start working in the scheduled time.
2
34
1
2

Product Parts

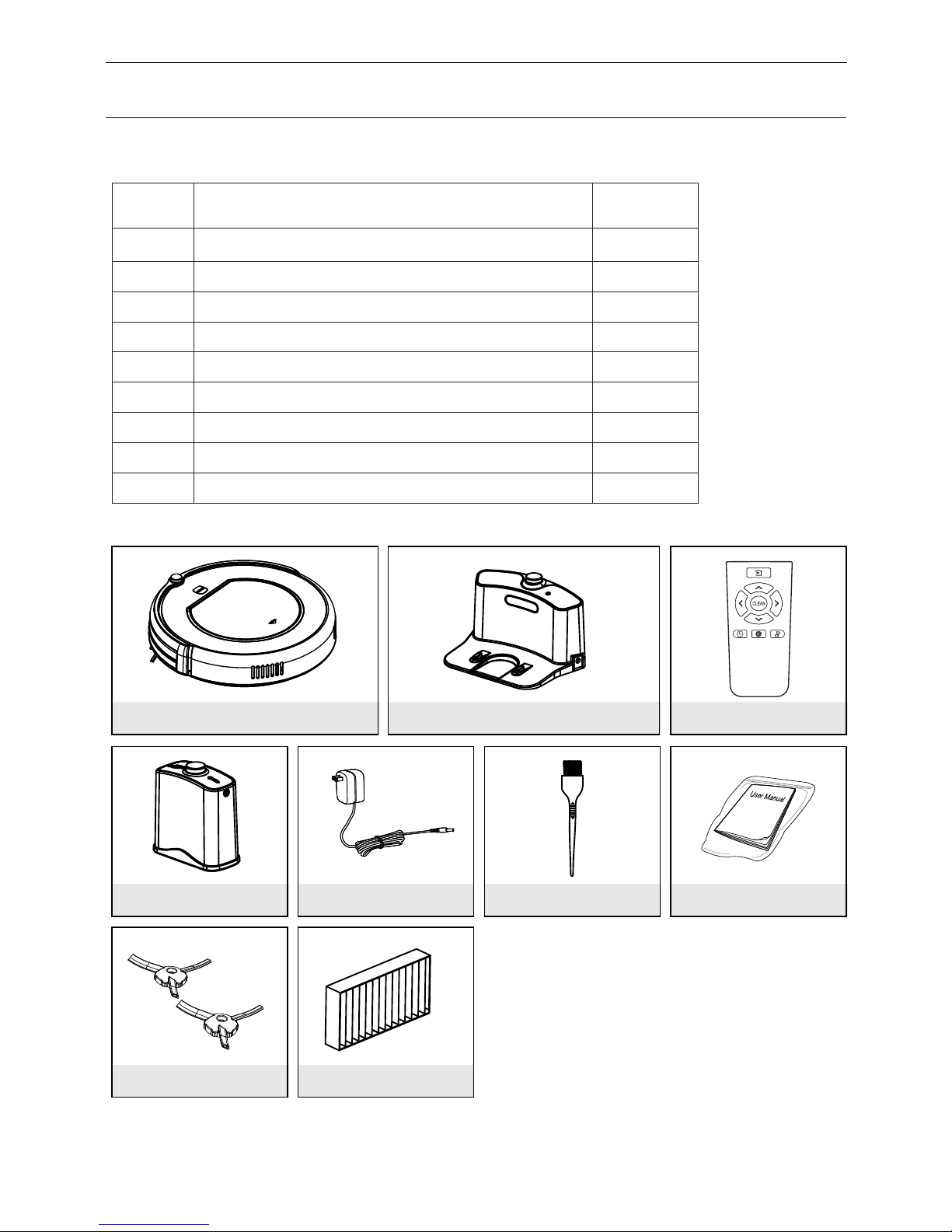

Main body and accessories
NO. Description Q'ty
1 Main Body
2 Charging Home Base
3 Remote Control(battery not included)
4 Virtual Wall(battery not included)
5 Adapter
6 Cleaning Tool
7 User Manual
8 Extra Side Brushes 2
9 Extra HEPA Filter
1 2 3
4 5 6 7
8 9
1
1
1
1
1
1
1
1
3

Suck Passage
Right Side Brush
Nose Wheel
Right Wheel Module
Bottom Cover
Auto Charging Pins
Power Switch
Left Side Brush
Infrared Signal Receiving Window
Bumper
Main Pad
Cover
Cover
Product Parts
Robot anatomy
Left Wheel Module
Battery Cover
Power Supply Socket
Dust Bin
HEPA Filter
HEPA Filter Frame
Primary Filter
Dust Bin
4

Power Supply Socket
Charge Connecting Point
Top Cover
Signal Light
Infrared Signal Transmitting Window
Bottom Cover
Side Cover
Signal Window
Signal Light
Infrared Signal Transmitting Window
Power Switch

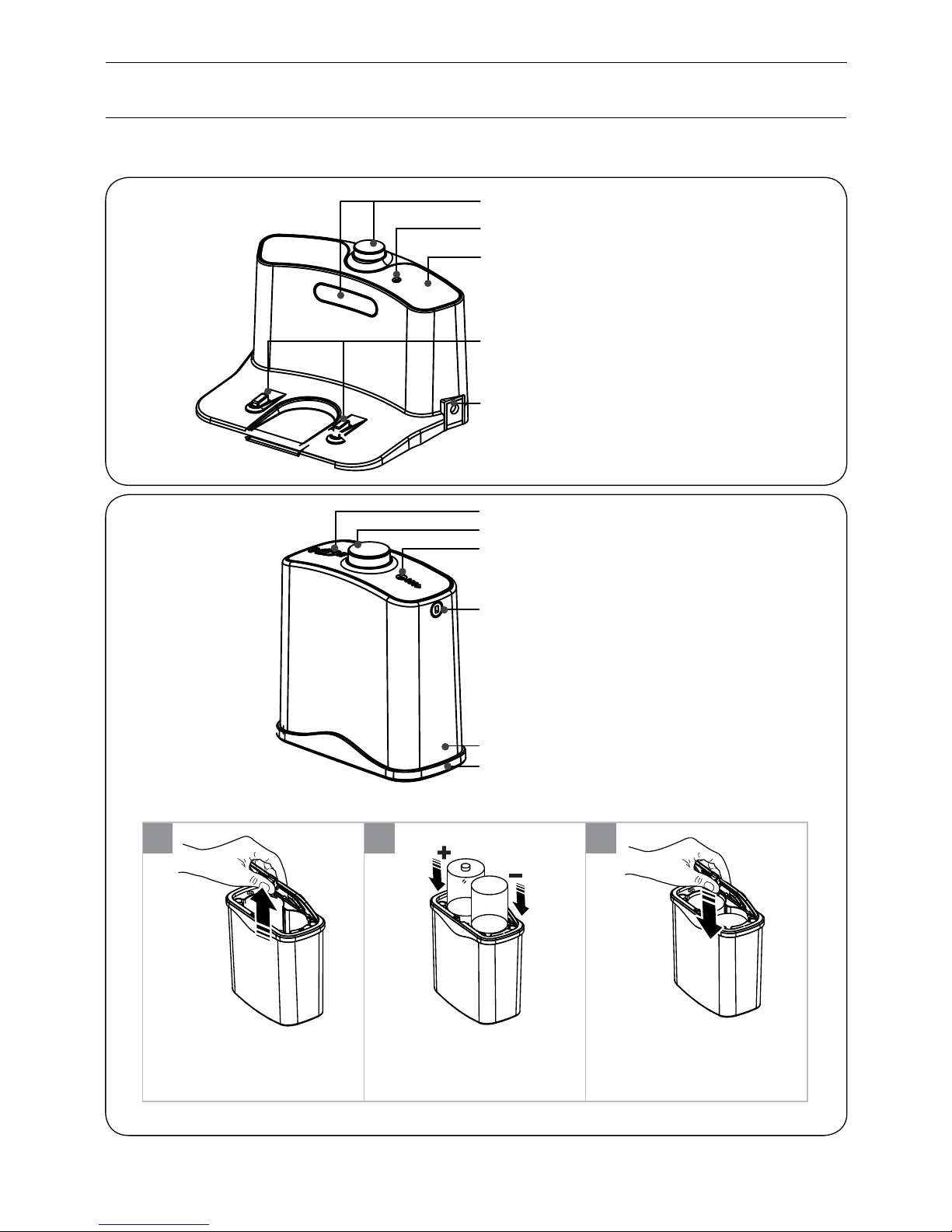

Installing virtual wall battery
Lift the cover of the virtual wall;
Install two R20/D type batteries
into the virtual wall as shown by
the figure.
After inserting the tip of the
cover into the slot, push the
other end to close it until it clicks
into place.
■
1 2 3
Note: If not used for long time, please pull the batteries out.
Product Parts
Charging home base & Virtual wall
5

6
1. “ ” Home button
2. “ ” Clean/Power button
3. “ ” Directional Buttons
4. “ ” Scheduling button
5. “ ” Spot button
6. “ ” Edge button
You could use the remote like your TV remote.
First make sure the power switch at the bottom side of the robot is on,
then pointing it towards the robot and using it to control the robot.
*Install two AAA type batteries into the remote.
*If you use the remote near charging home base, it may not recognize
command from the robot and may not work.
Product Parts
Remote control
3
1
2
5
6
4

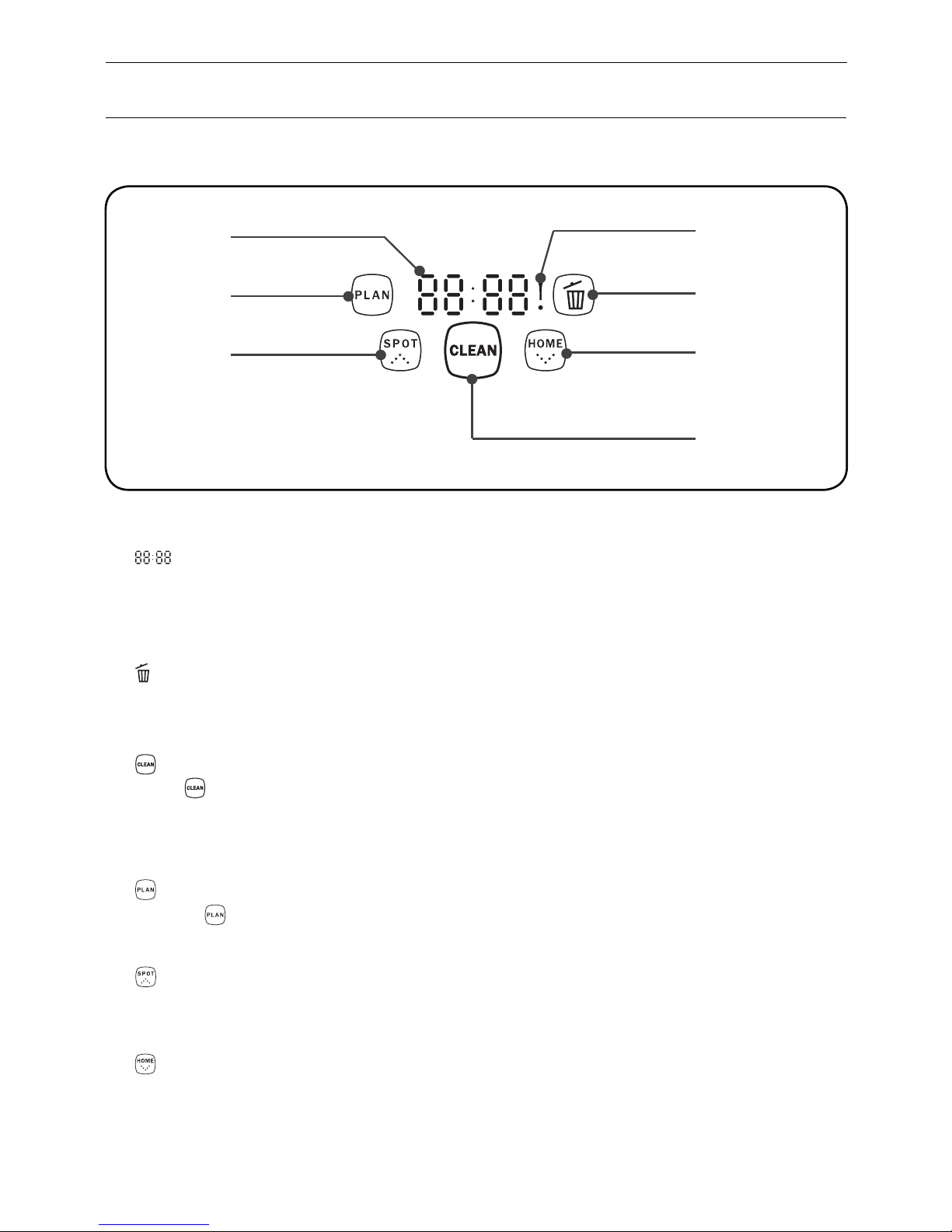

1. “ ” Number display
Shows the timer display, progress status, charging status, and error codes by using numbers,
letters and graphies.
2. “ ! ” display
Shows the error that occurs.
3. “ ” display
It flashes contantly when dust bin is full or suck passage is blocked.
4. “ ” Clean
Press “ ” to finish below operations:
A. To change from sleeping mode to selected mode;or keep press this button to change from
selected mode to sleeping mode.
B. To confirm scheduling in scheduling mode.
C. To start cleaning in selected mode.
5. “ ” Scheduling
A. Press “ ” to enter scheduling mode.
B. Press this button to exchange between hour to minute in scheduling mode.
C. Keep pressing this button for 5 seconds to cancel scheduling in scheduling mode.
6. “ ” Spot/ Increase
A. Press this button to increase number in scheduling mode.
B. Press this button to start spot cleaning.
7. “ ” Home/ Decrease
A. Press this button to decrease number in scheduling mode.
B. Press this button to return the robot to charging home base.
1
5
6
4
7
3
2
Product Parts
Display panel
7
Display part
Button part

Product Operating

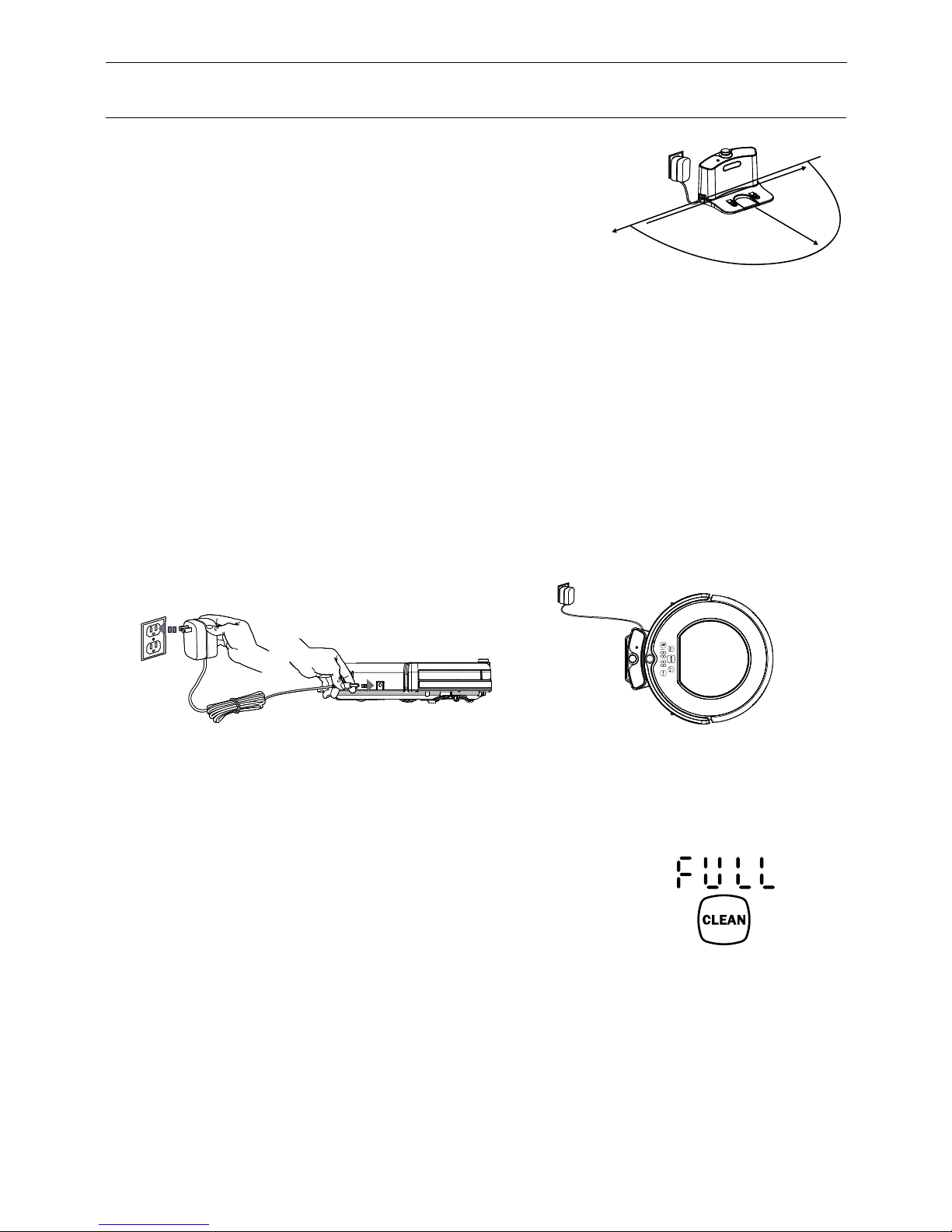

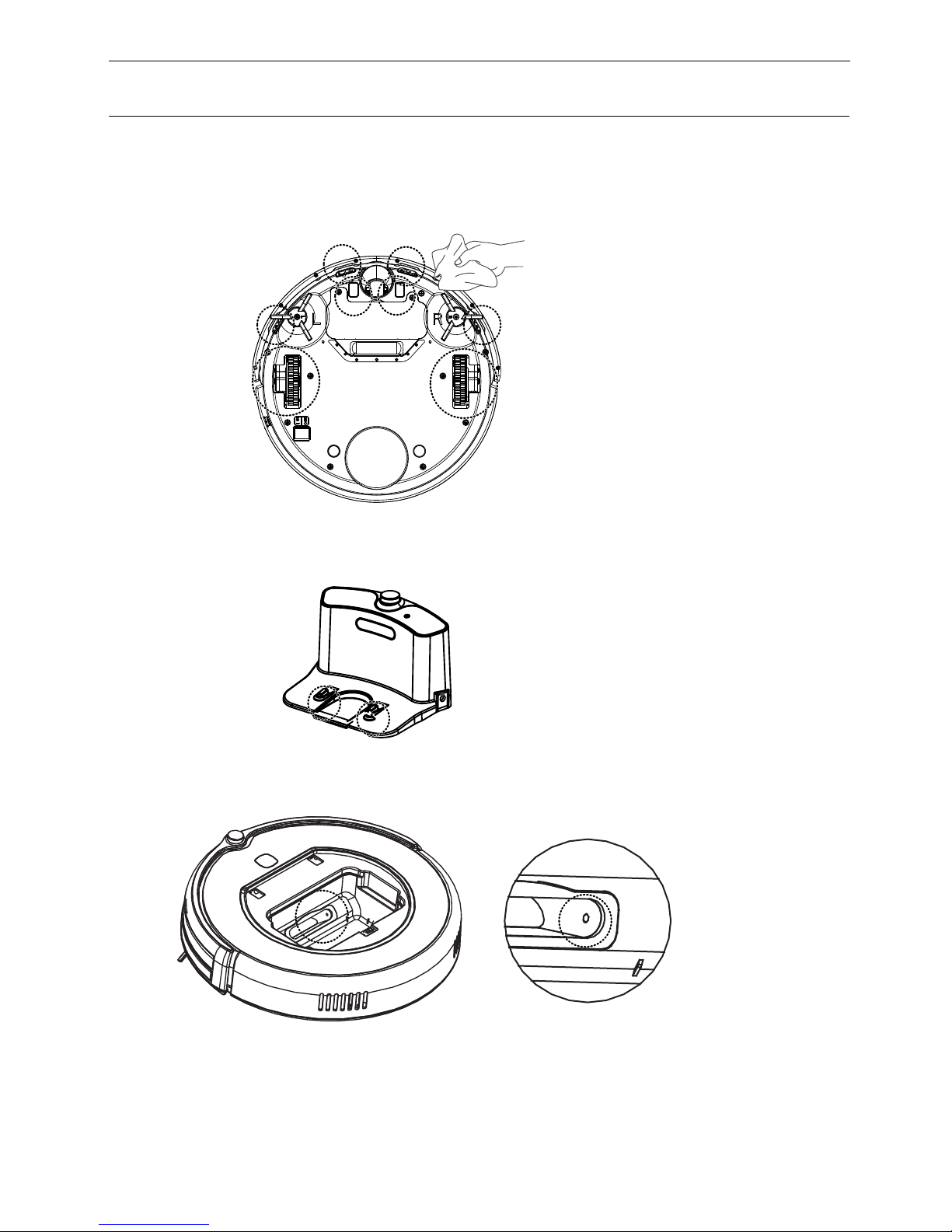

1. How to get started
1>. Place charging home base, plug in adapter,
then signal light on charging home base will flash.
Note: Put charging home base against the wall and remove
obstacles about 1 meter at two sides and about 2 meters forward.
2>. Turn on the Power Switch on the bottom side of the robot,
then display will flash.
(If no command received, the robot will turn to SLEEPING mode after 20 seconds.)
Note: A. Please always keep the power switch turning on. If not, it is unable to make the robot work.
B. If power switch is turned off, all the scheduling will be lost.
Caution: Before charging the robot, please make sure the power switch is turned on, or else
the robot can not be charged and display panel will show E10.
3>. Charge the robot in either way as shown below:
A. Plug the adapter into the robot and outlet;
B. Press HOME on main body or on remote control to make robot return to charging home base
for charging itself.
Note:
�A. When robot is charging, display panel will show 1111, and repeat from right to left.
B. When battery is low, display panel will show “Lo”.
For better extending battery life:
�A. Before first use, charge the robot overnight. When charging is
finished, display panel will show FULL.
B. In normal use, always store the robot on charging home base with base plugged in.
C. If the robot is not used for long time, turn the power switch off, fully charge the battery,
remove and store it in a cool, dry place.
4>. Auto charging
The robot will automatically return to charging home base when battery is low.
8
A B
1M
1M
2M
1>
