UTP BALUN AAS-VHP-110RJK User manual

AH-3
UTP = Unshielded Twisted Pair R201302-V26
Wrongfully mixing the
colors may result in
burning the camera.
1 2 3 4 5 6 7 8
Passive HD Video/Power Lead Balun – RJ45
Model:
Features:
•Uses an Unshielded Twisted Pair cable (UTP), to transmit
full motion camera video signal in color up to 300 m / 1000
ft and in B/W up to 600 m / 2000 ft.
•No power required for video balun.
•Surge / Lightning Protection
10/700 μs Pulses: 2kV
Standard: IEC61000-4-5
•ESD : Electrostatic Discharge Protection
Contact Discharge: 6kV / Air Discharge: 8kV
Standard: IEC61000-4-2
•Wave / Interference Rejection & Noise Filter
Built-in Filter: 0~6HMz with Extra Interference
Rejection <60db
•DC Power Lead: 12V~24V DC

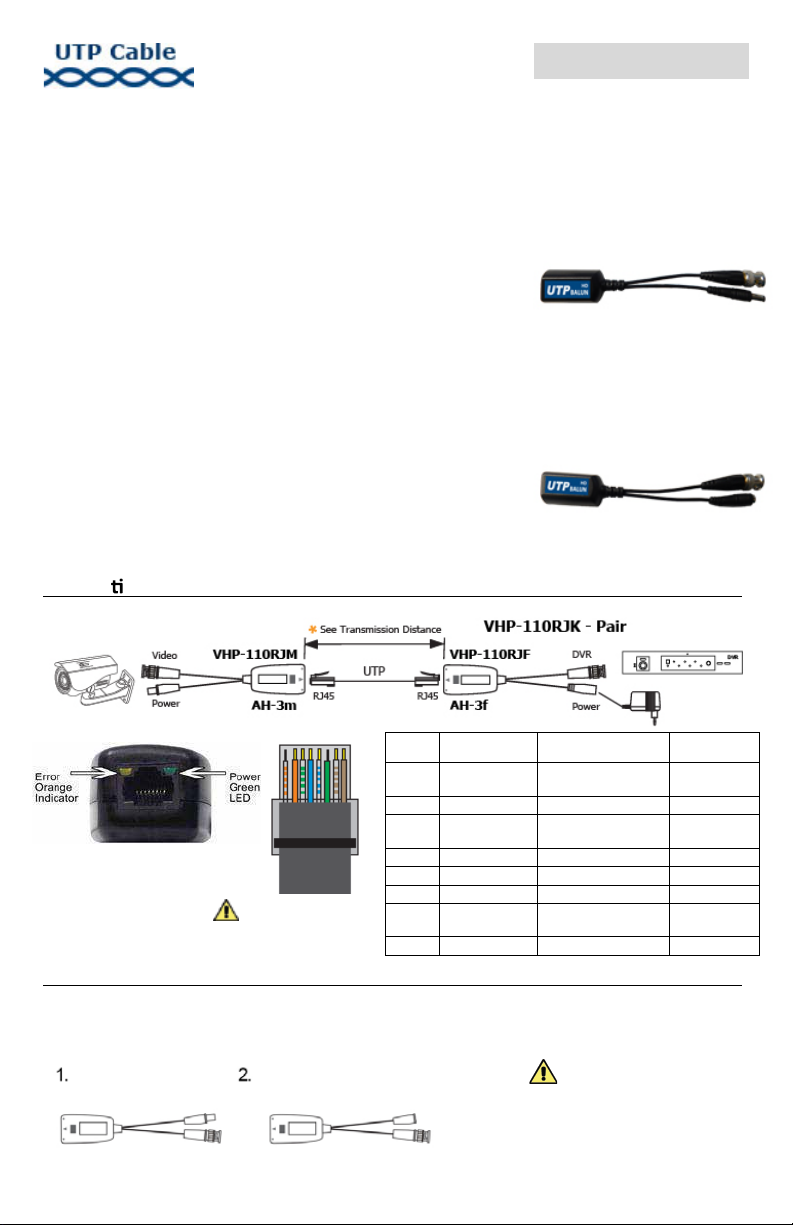

Applica on Diagram ..
The distance shown is for video signal only. Refer to back page for Voltage Drop List.
Package Contents ..
1. One (1) RJ45 Passive Video/Power Lead Balun – Male Power Connector
2. One (1) RJ45 Passive Video/Power Lead Balun – Female Power Connector
Pin T568B Pair T568B Character
1 2
White/Orange
Stripe
Video +
2
2
Orange Solid
Video -
3 3
White/Green
Stripe
Power -
4
1
Blue Solid
Power -
5
1
White/Blue Stripe
Power -
6
3
Green Solid
Power +
7 4
White/Brown
Stripe
Power +
8
4
Brown Solid
Power +
VHP-110RJF
For DVR, Power Adaptor Side
AH-3f
VHP-110RJM
For Camera Side
AH-3m
USER MANUAL
AAS-VH
P-110RJK
VHP-110RJM
VHP-110RJF
= VHP-110RJM + VHP-110RJF
as a Kit
= Male Only
= Female Only
Caution:
•Do not handle the unit with
wet hands.
•The unit is not waterproof and
should not be used outdoors.
1

2
UTP = Unshielded Twisted Pair R201302-V26
Specifica on ..
Model
AAS-VH P-110RJK - Kit
VHP-110RJM - Male
VHP-110RJF - Female
Video Input / Output
BNC male cable & DC
male to RJ45 modular jack
BNC male cable & female to
RJ45 modular jack
Surge /
Lightning
Protections
Video Output
Protection
2kV (common mode), 10/700µs
Standard: IEC61000-4-2
Video Input
Protection
2kV (different mode), 2kV (common mode)
Standard: IEC61000-4-2
Video Input
Protection for
Over Current
100mA
Electrostatic Discharge
Protection (ESD)
Contact Discharge: 6KV / Air Discharge: 8KV
Standard: IEC61000-4-2
Wave / Interference
Rejection & Noise Filter
Protection
Built-in Filter: 0~6HMz with
Extra Interference Rejection <60db
Video Signal 1V p-p, 75 Ohms
Transmission Distance
Cable UTP / Twisted Pair CAT5 (AWG24)
DC Power Lead 12V~24V DC
Physical
Properties
Dimension
L x W x H
225 x 32 x 21 mm / 8.86 x 1.26 x 0.83 inches
Weight 51g / 1.8 o 51g / 1.8 oz
Voltage Drop According to Cable Length (24AWG):
Limited Warranty ..
Transmission
Distance
Transmission
Voltage
(12V DC, 0.5A)
Transmission
Voltage
(12V DC, 1A)
Transmission
Voltage
(12V DC, 1.5A)
50 m / 160 ft
13.5V
15.5V
17.0V
100 m / 320 ft
15.5V
18.5V
22.0V
150 m / 500 ft
17.0V
22.0V
27.0V
200 m / 650 ft
18.5V
25.5V
32.0V
LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS
Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that this product at
the time of its sale by Manufacturer is free of defects in materials and workmanship under normal and proper use for
one (1) year from the purchase date. Manufacturer's only obligation is to correct such defects by repair or
replacement, at its option, if within such one (1) year period the product is returned prepaid, with proof of purchase
date, and a description of the problem. This warrant excludes and there is disclaimed liability for labor for removal of
this product or reinstallation. This warranty is voided if this product is installed improperly or in an improper
environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal
operating conditions or not in accordance with any labels or instructions. There are no other implied
warranties of any kind, including merchantability and fitness or a particular purpose, but if any implied warranty
is required by the applicable jurisdiction, the duration of any such implied warrant, including merchantability and
fitness of or a particular purpose, is limited to one (1) year. Manufacturer is not liable for incidental, indirect,
special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment,
loss sales or profits or delay or failure to perform this warranty obligation. The remedies, provided therein are
the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
C
-TICK AH-3
*Specifications are subject to change without notice
CVI: 720P: 250m / 820ft, 1080P: 120m / 400ft
TVI: 720P: 250m / 820ft, 1080P: 120m / 400ft
AHD: 720P: 250m / 820ft, 1080P: 120m / 400ft
Analog: 300m / 1,000ft

3
UTP = Unshielded Twisted Pair R201302-V26
Most of our competitors do not have all multiple
protections with Lifetime Warranty
We build all our CCTV video baluns through
technologies to protect them with:
Surge/Lightning Protection
10/700 us Pulses: 2KV
Standard E06100-4-5
ESD: Electrostatic Discharge Protection
Contact Discharge: Up to 6KV
Air Discharge: Up to 8KV Standard: IE061000-4-2
Wave/Interference Rejection & Noise Filter
Built-in Filter: 0~6MHz with Extra Interference
Rejection <60db
CAUTION!!!
Failure to read this notice may result in damaging the camera or
device in which the warranty will be voided due to installation error.
When using any type of RJ45 jack powered balun, a Cable Tester must be used to
ensure proper connection. Many individuals can make RJ45 connections easily,
however mistakes can be made. When making connections for powered baluns, make
sure to test the connectivity and ensure proper alignment on both sides.
When using passive or active baluns, the alignment of the cable is imperative to the
success of the operation. Use a Cable Tester because it is a very simple, yet easy to
find tool that can save a huge headache. For example, if one of the video wires
accidentally gets crimped into the power side, and the powered balun is then hooked up
to the camera, both the camera and the balun have just burned out. This is an extremely costly mistake, not only
in dollars but time as well. How long does it take to test the RJ45 using a Cable Tester? Less than one minute.
The new terms and conditions state: When an RMA is requested and the product has been burned by bad
RJ45 connections, the product is NO LONGER covered under warranty.
Note: Whichever way the RJ45 is terminated on one end of the cable, IT MUST BE THE SAME ON THE OTHER SIDE
for either TIA/EIA 568A or TIA/EIA 568B. Below is an example of TIAEIA 568B.
Why Us? Quality ..
A. Passive Video Balun Comparison with Our Competitors
B. Even a Small Part Makes a Big Difference!
We care for every small part & we learn from the
mistakes we make!
Even a BNC connector can make a BIG difference.
All our BNC connectors have passed the Shaking Test
without video loss.
UTP Balun’s BNC Connector has a thicker center pin
& thicker surrounding. This will avoid video loss while
the balun is shaking.
12345678
123456
Pair 3
Pair 1
Pair 2
Pair 4
TIA/EIA 568B
Pin Pair Color Character
1 2
O
range / White Video +
2 2
O
range Video –
3 3
G
reen / White Power –
4 1
B
lu
e
Power –
5 1
B
lue / White Power –
6 3
Green
Power +
7 4 Brown / White Power +
8 4 Brown Power +
Cable Tester
AH-3

4
UTP = Unshielded Twisted Pair R201302-V26

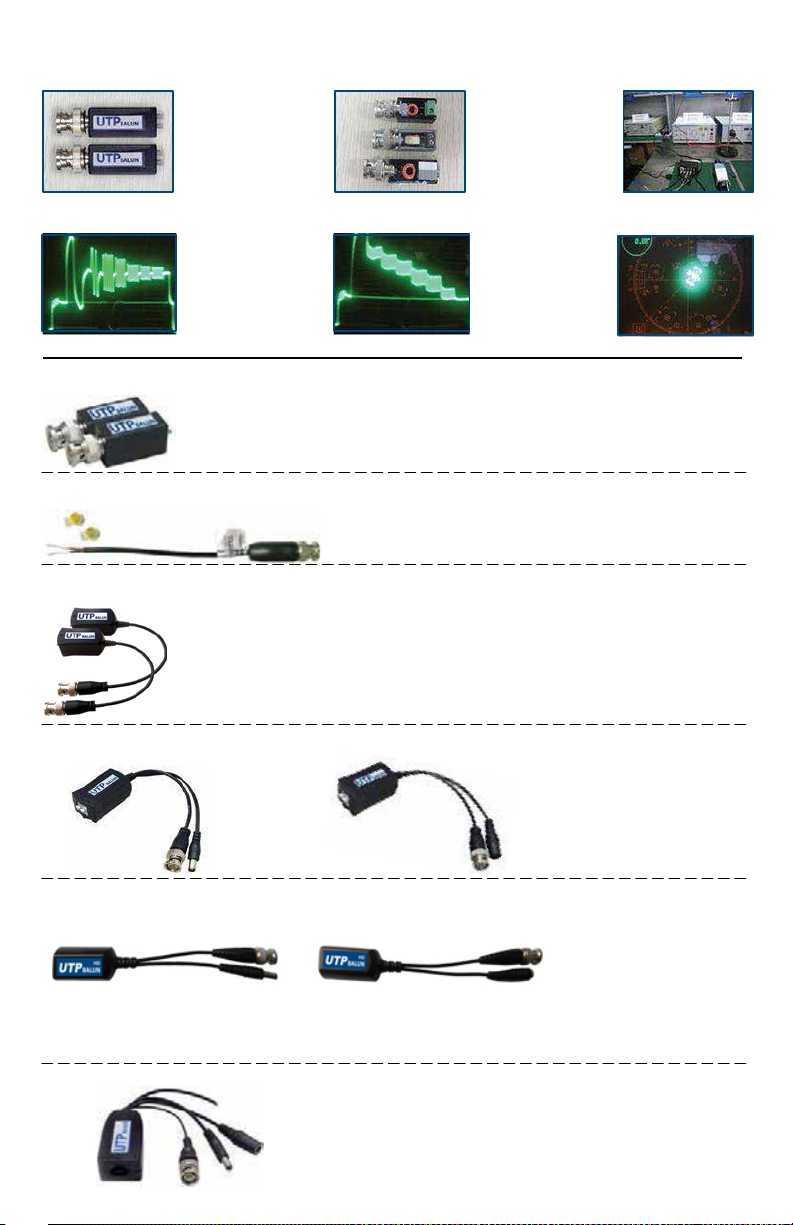

C. On-going Testing for Quality Control
