UVP 3UV Series User manual

3UV Series Ultraviolet Hand Lamps
Users Guide
Introduction
The 3UV Series of Ultraviolet Lamps offer a uni-
form and intense source of ultraviolet light (ra-
diation) with three UV tubes housed in one lamp.
The lamps emit one of three UV wavelengths
( 54nm, 30 nm or 365nm UV) in four watt, six
watt and eight watt configurations for exposure
or illumination of materials. All 3UV Series Lamps
are lightweight with a rugged housing. Each lamp
features a uniquely designed reflector surface
mounted behind each tube to provide maximum
UV fluorescence.
Important Safety Information
Caution: Shortwave and midrange UV
radiation will cause damage to unprotected eyes and skin. Before operating any unit, be sure all
personnel in the area are properly protected. UV Blocking Eyewear should be worn as well.
UVP has a complete line of UV Blocking Eyewear: Spectacles, Goggles and Faceshield designed
for this purpose.
Operation
Plug power cord into a properly grounded electrical outlet. The proper voltage of the lamp is found on the
product information label. A dial switch is conveniently located on top of the unit to select the appropriate
UV source. Each lamp comes with one UV tube of each UV wavelength: 54nm, 30 nm and 365nm UV.
Specifications
Physical dimensions for four, six and eight watt lamps:
Model Dimensions
3UV-34 (four watt) 9.5L x 3W x 4.5D
(241 x 76 x 114 mm)
3UV-36 (six watt) 12.5L x 3W x 4.5D
(318 x 76 x 114 mm)
3UV-38 ( ight watt) 15.5L x 3W x 4.5D
(394 x 76 x 114 mm)

Replacement Parts & Accessories
Maintenance, Repair and Technical Assistance
Replacement parts for the 3UV lamps and accessories are
shown here. For all other replacement parts, contact UVPs
offices or authorized distributor.
Replacing the Tubes
Always disconnect the lamp from the electrical power source
prior to replacin tubes. Remove the filter frame (fi . 1) sim-
ply by poppin the frame off of the lamp housin . This ex-
poses the rotatin lamp assembly. Each tube corresponds to
the UV wavelen th indicated on the dial switch. To replace a
tube, rotate the dial to the appropriate UV wavelen th. Care-
fully rotate the tube 90 de rees and slide the tube out of the
end receptacles. To install a tube, slide the tube into the end
receptacles and rotate the tube 90 de rees.
Caution! It is important to ensure that the appropriate UV
tube is placed in the correct tube assembly position so that it
matches the wavelen th selector dial notation (fi . 2).
Cleaning the Lamp
The painted surfaces and filter areas of the lamp should be
cleaned with a damp spon e or cloth towel and mild soap.
Never use abrasive cleaners, solvent based cleaners or scour-
in pads.
ALWAYS DISCONNECT THE LAMP FROM THE
ELECTRICAL POWER PRIOR TO CLEANING.
Repair and Technical Assistance
UVP offers technical support for all of its products. If you
have any questions about the products use, operation or re-
pair, contact UVPs Customer Service at the offices below.
A Returned Goods Authorization (RGA) number must
be obtained from UVP Customer Service prior to returnin
any products UVP for repair.
Replacement Part Part Number
Switch, On/Off 53-0165-02
Ballast, 115V 42-0003-01
Fuse, 3.5 amp -0030-01
Knob, Selector 2-0063-01
Tube, 4 watt, 365nm 34-0005-01
Tube, 4 watt, 302nm 34-00 1-01
Tube, 4 watt, 254nm 34-0003-01
Tube, 6 watt, 365nm 34-0034-01
Tube, 6 watt, 302nm 34-0044-01
Tube, 6 watt, 254nm 34-0013-01
Tube, 8 watt, 365nm 34-0006-01
Tube, 8 watt, 302nm 34-0042-01
Tube, 8 watt, 254nm 34-000 -01
UV Blocking Spectacles 98-0002-01
UV Blocking Goggles 98-0002-02
UV Blocking Faceshield 98-0002-04

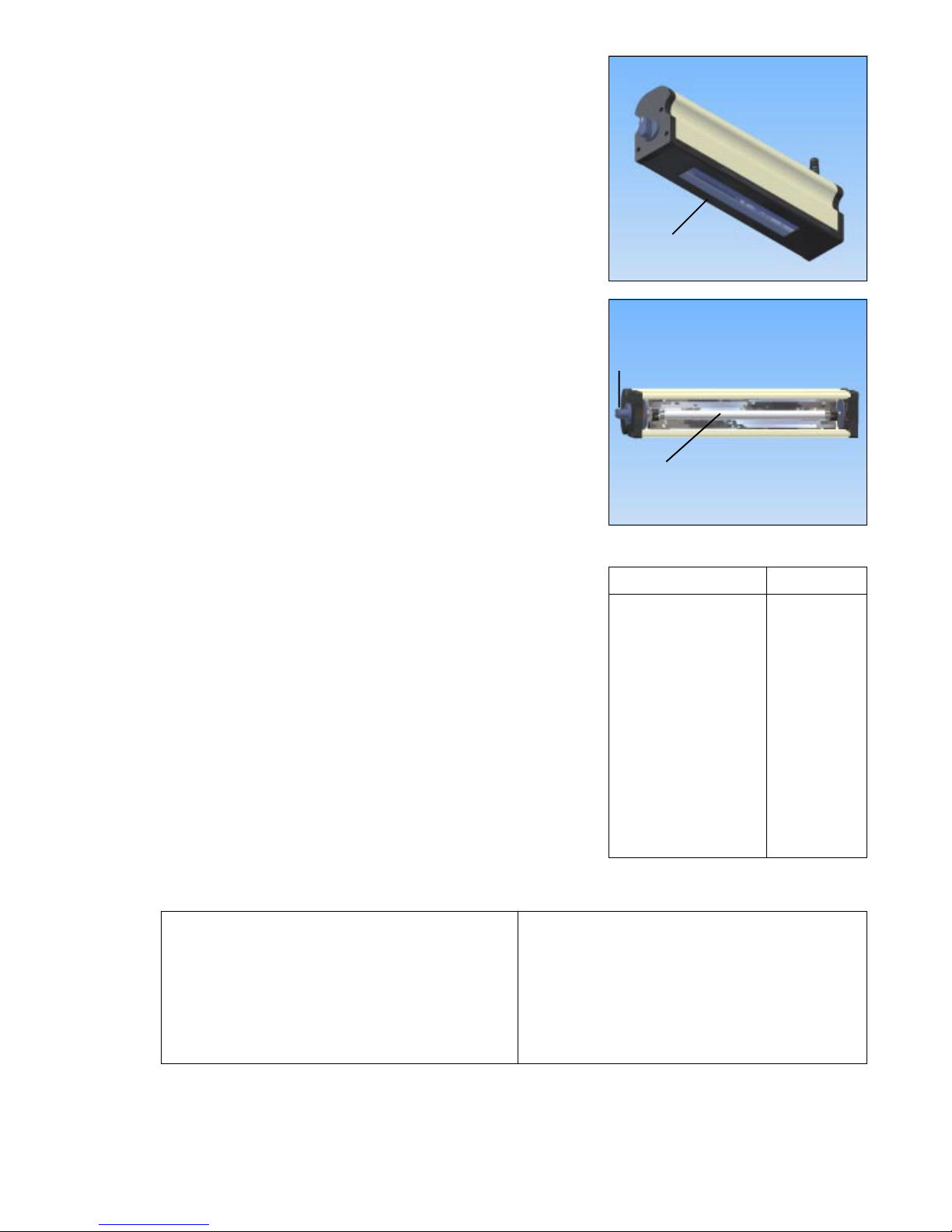

Fig. 1 Filter Frame
Fig. 2
Wavelength Selector Dial
Rotating Lamp Assembly
In the US In Europe
Call: [phone] or [phone] Call: [phone]
Fax: [phone] Fax: [phone]
Mail: UVP, Inc. Mail: Ultra-Violet Products Ltd., Unit 1,
2066 W. 11th Street, Upland, CA 91786 Nuffield Rd, Trinity Hall Farm Estate
Cambrid e CB4 1TG UK
E-Mail: [email protected] E-Mail: [email protected]

Product Warranty
UVP, Inc. warrants its 3UV Series Lamps to be free of defects in materials and workmanship for a period of one (1) year from the date of
purchase. Tubes and filters are warranted for a period of 90 days. If equipment failure or malfunction occurs during the warranty period, UVP
shall examine the inoperative equipment and have the option of repairing or replacing any part(s) which, in the judgement of UVP, we re
originally defective or became so under conditions of normal usage and service.
No warranty shall apply to this instrument, or part thereof, that has been subject to accident negligence, alteration, abuse or misuse by the end
user. Moreover, UVP makes no warranties whatsoever with respect to parts not supplied by UVP or that have been installed, used and/or
serviced other than in strict compliance with the instruments appearing in this manual.
In no event shall UVP be responsible to the end user for any incidental or consequential damages, whether foreseeable or not, including but not
limited to property damage, inability to use equipment, lost business, lost profits, or inconvenience arising out of or connected with the use of
instruments produced by UVP. Nor is UVP liable or responsible for any personal injuries occurring as a result of the use, installation and/or
servicing of equipment.
This warranty does not supersede any statutory rights that may be available in certain countries.
Corporate Headquarters: UVP, Inc.
2066 W. 11th Street, Upland, CA 91786 USA
Tel: [phone] r t ll free in US/Canada [phone]
Fax: [phone] / E-Mail: [email protected] m
European Sales Office: Ultra-Violet Products Ltd.
Unit 1, Trinity Hall Farm Estate, Nuffield R ad, Cambridge CB4 1TG UK
Tel: [phone] / Fax: [phone]
E-Mail: [email protected] .uk
81-0203-01 Rev. A
