v.LOGiC V5-NBT-PNP User manual

Version 26.11.2019 V5-NBT-PNP
v.LOGiC Intelligent Solution
Interface
V5-NBT-PNP
Compatible for the F-series BMW with navigation
system or radio and 6.5”, 7”, 8.8” or 10.25”
monitor with 4+2pin HSD2 LVDS connector

Version 26.11.2019 V5-NBT-PNP
Page1"
Product features
• Own on-screen display and setup
• Rear-view camera input
• Automatic switching to rear-view camera input on engagement of reverse gear from
all operation modes
• Front camera input / SMART-LINK input
• Control of SMART-LINK module over iDrive control panel
• Manual switching to rear-view camera (only for vehicles with PDC button)
• Manual return from rear-view and front camera (cancellation of automatic switching)
• 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC,
camera, reverse gear)
• Picture-in-picture mode combining after-market rear-view and front camera
picture(s) with factory parking sensor graphics
• Interactive lane lines
• Compatible with all factory video accessories (e.g. rear-view camera, Top-View,
nightvison, DVD-changer, TV-tuner)
• USB update-port for software-updates by consumer

Version 26.11.2019 V5-NBT-PNP
Page2"
Contents
1. Prior to Installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the interface-box V5C-M637
1.4. LED’s of the interface-box V5C-M637
2. Connection schema
3. Installation
3.1. Connecting interface-box and harnesses
3.1.1. Special case BMW i3
3.2. LVDS connection

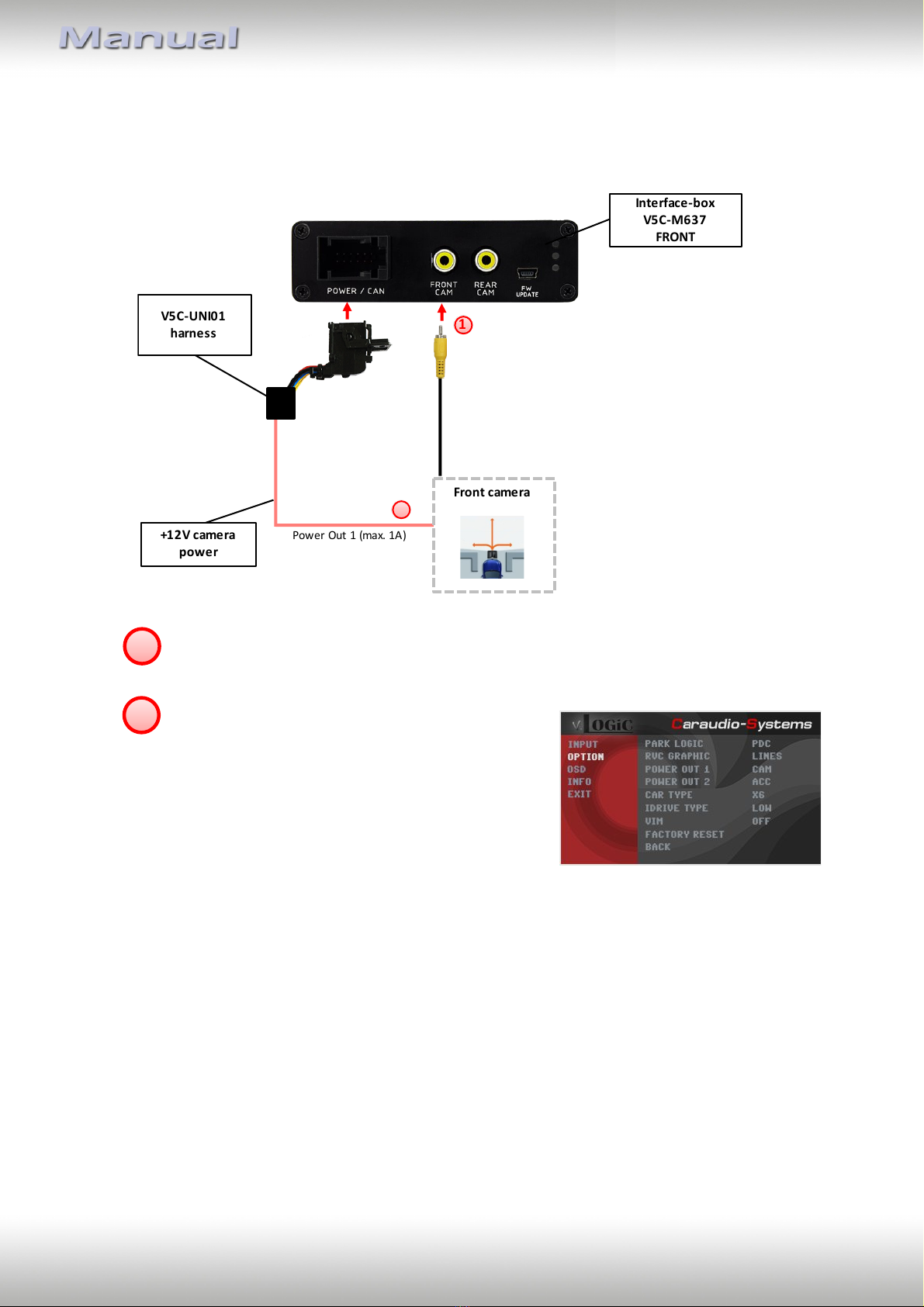

3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
3.2.1.2. Settings for connecting an after-market front camera

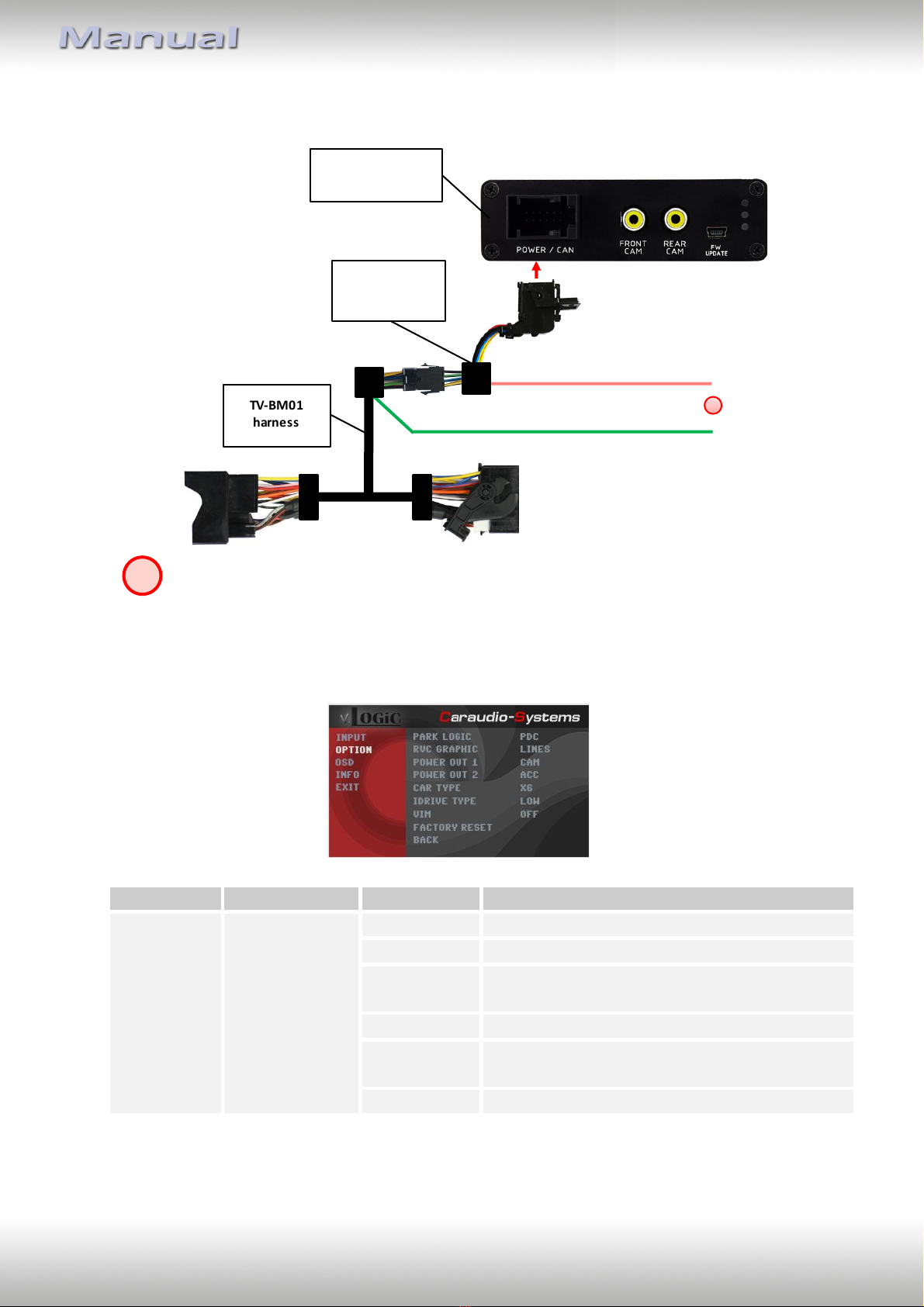

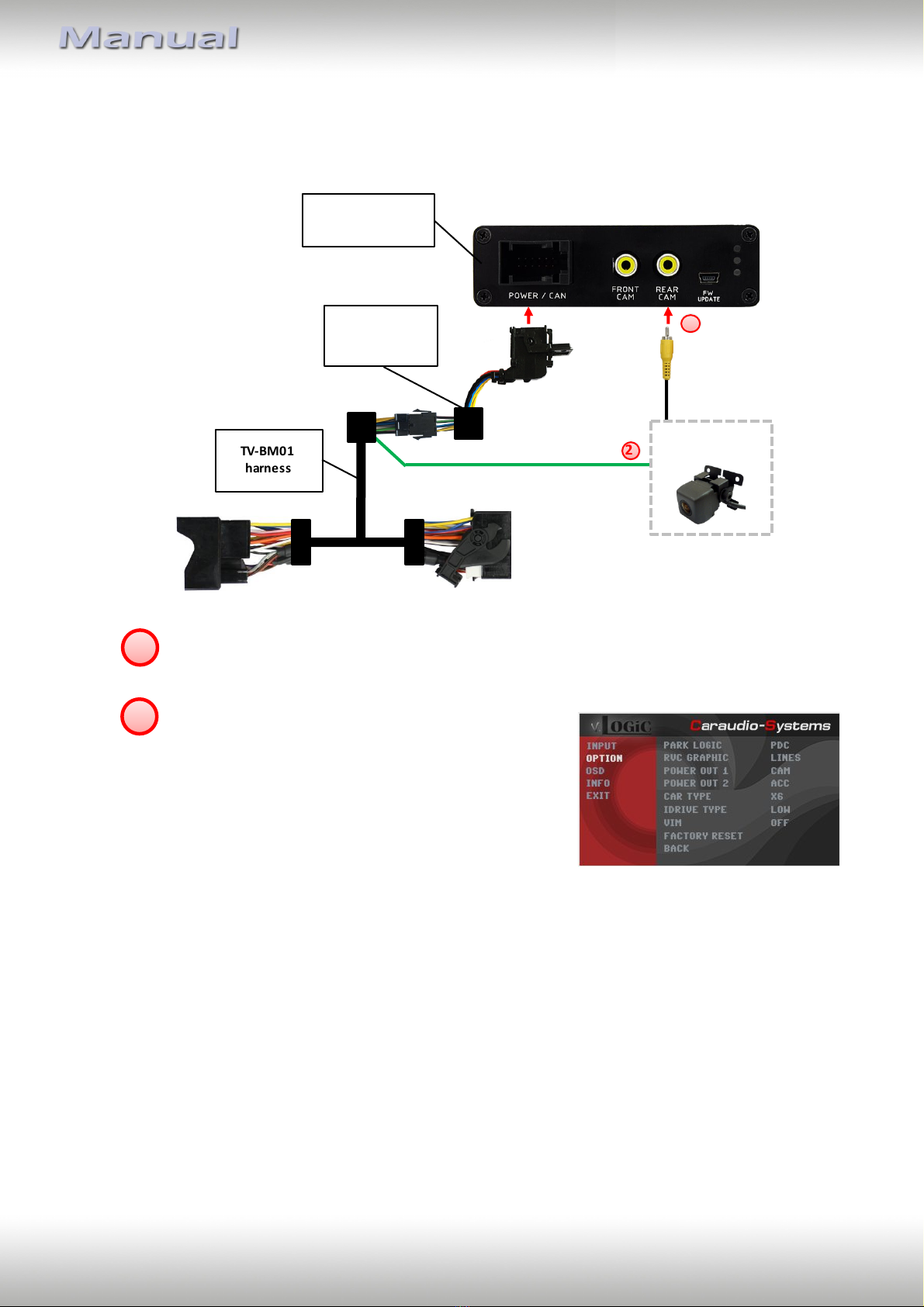

3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
3.2.2.2. Settings for connecting an after-market rear-view camera
3.2.2.3. Settings for OEM rear-view camera
3.2.3. SMART-LINK
3.2.3.1. SMART-LINK video and control connection
3.2.3.2. SMART-LINK audio connection
3.2.3.3. Settings for SMART-LINK connecting
3.2.4. Configurable trigger outputs
3.3. Interactive lane lines
3.4. Picture settings
4. Operation
4.1. OSD – On-screen display
4.1.1. OSD – Operation
4.1.1.1. iDrive High
4.1.1.2. iDrive Low
4.1.2. iDrive selection
4.1.3. OSD – Additional setting options
4.2. Video-in-motion function
4.3. Selecting the interface as current video source
4.4. Controlling of the connected SMART-LINK module
4.4.1. Controlling by iDrive High
4.4.2. Controlling by iDrive Low
5. Specifications
6. Connections (interface-box)
7. Technical support

Version 26.11.2019 V5-NBT-PNP
Page3"
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.

Version 26.11.2019 V5-NBT-PNP
Page4"
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Check compatibility of vehicle and accessories
1.2. Check compatibility of vehicle and accessories
Requirements
Navigation F-series with navigation system or radio with 6.5”, 7”, 8.8“ or
10.25“ monitor with 4+2pin HSD2 LVDS connector
Note ”PDC – picture in picture” and “interactive lane lines” function is
not simultaneously usable
Interface-box
V5C-M637
HW_____ SW_____
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
V5C-UNI01
harness
LVDS cable
CAB-HSD2-RR148
TV-BM01
harness

Version 26.11.2019 V5-NBT-PNP
Page5"
1.3. Setting the dip switches of the interface-box V5C-M637
Dip 1 and 2 on the back of the interface-box V5C-M637 are used to set the monitor type. The
default setting is:
Vehicle/ navigation
Dip 1
Dip 2
Dip 3
6.5“ monitor (ver.1)
OFF
OFF
OFF
6.5“ monitor (ver.2)
OFF
OFF
ON
7“ monitor (ver.1)
OFF
OFF
OFF
7“ monitor (ver.2)
OFF
ON
OFF
8.8“ monitor
ON
OFF
OFF
10.25“ monitor (ver.1)
ON
OFF
OFF
10.25“ monitor (ver.2)
ON
ON
OFF
After each change of the dip switch settings you have to execute a power reset of the
interface-box!
1.4. LED‘s of the interface-box V5C-M637
Valid%input source
CAN%ok
Power

Version 26.11.2019 V5-NBT-PNP
Page6"
2. Connection schema

Version 26.11.2019 V5-NBT-PNP
Page7"
Inte rface -box
V5C-M637
FRONT
4+2Pin>HSD2>
LVDS>female
vehicle harness
Back> of factory
monitor
LVDS>cable
CAB-HSD2-RR148

Version 26.11.2019 V5-NBT-PNP
Page8"
3. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show
success, disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
Prior to wire and device installation we suggest to connect and test correct function of all
after-market and factory infotainment equipment!
The interface is installed on the backside of the head unit.
3.1. Connecting interface-box and harnesses
Remove the female Quadlock connector of the vehicle harness from the rear of the
navigation computer.
Remove optical leads from the female Quadlock connector of the vehicle harness and
insert them into the female Quadlock connector of harness TV-BM01 at the same
position.
Connect female Quadlock connector of vehicle harness to the male Quadlock
connector of harness TV-BM01.
Connect female Quadlock connector of harness TV-BM01 to the male Quadlock
connector of the navigation computer
1
2
3
4
!"#$%&'
()*+,--
./)01234 5)1,6
2+6*,)* -70,
28 +)97:);72+
./)01234 8,5)1,
9,(731, ()*+,--
<
=
>
'
?+;, *8)3, #@2A
"BC#%D<E
FGHI!
B
D
"BC#JI?&'6
()*+,--

Version 26.11.2019 V5-NBT-PNP
Page9"
Connect female 8 pin molex connector of the harness TV-BM01 to the
male 8 pin molex connector of the harness TV-BM01.
Connect female 12pin AMP connector of the harness TV-BM01 to the
front site of the V5C-M637 interface box.
3.1.1. Special case BMW i3
Since the BMW i3 has the head unit under the rear seat, the extension cable V5C-CON300
must be purchased separately. This is inserted between the TV-BM01 and the V5C-UNI01
cable set.
3.2. LVDS connection
Connect the female 4+2pin HSD2 LVDS connector of the LVDS cable
CAB-HSD2-RR148 to the male 4+2pin HSD2 LVDS connector (LVDS-OUT) on the front
of the interface-box V5C-M637.
Remove the female 4+2pin HSD2 LVDS connector of the vehicle harness of the
factory monitor and connect it to the male 4+2pin HSD2 LVDS connector (LVDS-IN)
on the front of the interface-box V5C-M637.
Connect the second female 4+2pin HSD2 LVDS connector of the LVDS cable
CAB-HSD2-RR148 to the male 4+2pin HSD2 LVDS connector of the factory monitor.
1
2
3
Inte rface -box
V5C-M637
FRONT
4+2Pin>HSD2>
LVDS>female
vehicle harness
Back> of factory
monitor
LVDS>cable
CAB-HSD2-RR148
1
2
3
5
6

Version 26.11.2019 V5-NBT-PNP
Page10"
3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
Connect the video RCA of the after-market front camera to the female RCA connector
“FRONT CAM” of the interface box V5C-M637.
- The pink wire of harness V5C-UNI01 can be used
for +12V electric power supply (max. 1A) of the
after-market front camera. Configure in the OSD-
menu “OPTION”, menu item “POWER OUT 1” the
designated electric power supply (see chapter
“Configurable switching outputs”).
-
Inte rface-box
V5C-M637
FRONT
Front9camera
+12 V9camera
power
V5C-UNI019
harness
Power&Out&1&(max.&1A)
1
2
1
2

Version 26.11.2019 V5-NBT-PNP
Page11"

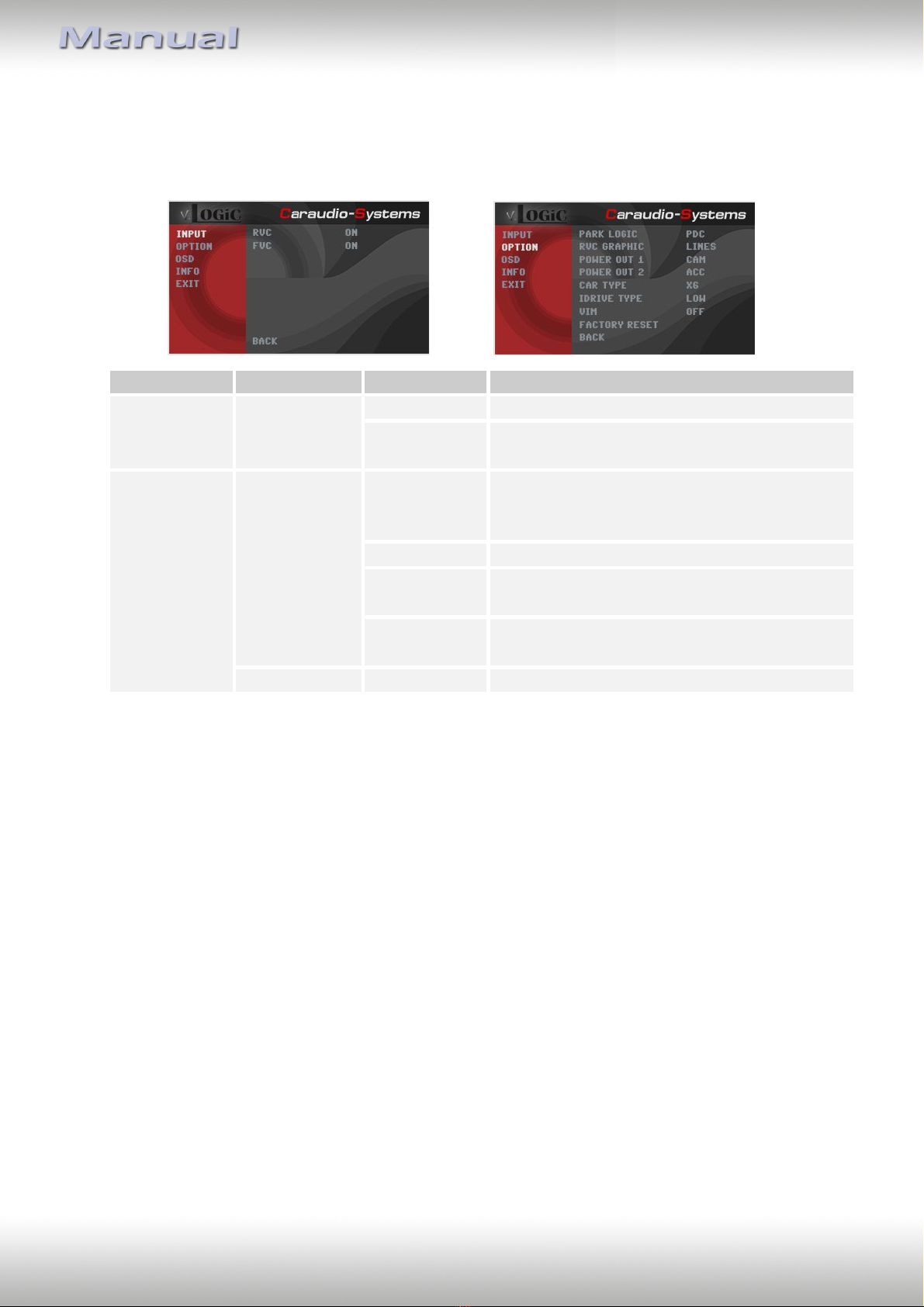

3.2.1.2. Settings for connecting an after-market front camera
You have to configure some settings in the OSD-menus INPUT and OPTION if you want to
connect an after-market front camera (Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
INPUT
FVC
OFF
No front camera connected
ON
Switches to front camera if parking process is
enabled and reverse gear is released
OPTION
PARK LOGIC
PDC
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing
RGearOnly
Enabled while parking process
RGearSpeep
Enabled while parking process and up to
20 km/h
RGearTime
Enabled while parking process and up to
20 second
RVC GRAPHIC
PIP1
OEM PDC display of the vehicle
Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling
other modes (e.g. radio). After deactivation you can’t enable the parking process again until
the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be
disabled and enabled again, if existing.

Version 26.11.2019 V5-NBT-PNP
Page12"
3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector “REAR CAM” of the interface box V5C-M637.
- The green wire of harness TV-BM01 can be used for
+12V electric power supply (max. 1A) of the after-
market rear-view camera. Configure in the OSD-
menu “OPTION”, menu item “POWER OUT 2” the
designated electric power supply (see chapter
“Configurable switching outputs”).
TV-BM01
harness
2
1
Inte rf ac e -box
V5C-M637
FRONT
V5C-UNI01@
harness
Rear -view
camera
Power&Out&2&(max.&1A)
1
2

Version 26.11.2019 V5-NBT-PNP
Page13"
3.2.2.2. Settings for connecting an after-market rear-view camera
You have to configure some settings in the OSD-menus INPUT and OPTION if you want to
connect an after-market rear-view camera (Operation of the OSD: see chapter “OSD-
Operation”).
OSD-menu
Menu item
Setting
Explication
INPUT
RVC
OFF
No rear-view camera connected
ON
Switches to rear-view camera if reverse gear
is engaged and/or PDC-display is displayed
OPTION
PARK LOGIC
PDC
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing
RGearOnly
Enabled while parking process
RGearSpeep
Enabled while parking process and up to
20 km/h
RGearTime
Enabled while parking process and up to
20 second
RVC GRAPHIC
PIP1
OEM PDC display of the vehicle
LINES
Interactive lane lines activated
Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling
other modes (e.g. radio). After deactivation you can’t enable the parking process again until
the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be
disabled and enabled again, if existing.
3.2.2.3. Settings for OEM rear-view camera
OSD-menu
Menu item
Setting
Explication
INPUT
RVC
OEM
If a factory rear-view camera is existing!
The interface turns off, if PDC or reverse gear
is enabled and it displays factory rear-view
camera and/or PDC-display
OPTION
PARK LOGIC
PDC
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing

Version 26.11.2019 V5-NBT-PNP
Page14"
3.2.3. SMART-LINK
The front camera input can alternatively be used for SMART-LINK set (CarPlay® & Android
Auto® module) connection. In addition, the interface has the option of controlling the
connected SMART-LINK module over the iDrive control panel.
3.2.3.1. SMART-LINK video and control connection
Connect the video RCA of the SMART-LINK module to the female RCA connector
“FRONT CAM” of the interface box V5C-M637.
Connect the pink cable (+12V Power OUT 1) of the
V5C-UNI01 harness to the +12V ACC power input
of the SMART-LINK module. Configure in the OSD-
menu “OPTION”, menu item “Power Out 1” the
setting “CAN” (see also chapter “Configurable
switching outputs”).
Connect the SMART-LINK interface control port “STA-UART” (available separately) to
the "SMART-LINK CarPlay® Android Auto®" socket of V5C-UNI01 harness..
1
2
3

Version 26.11.2019 V5-NBT-PNP
Page15"
3.2.3.2. SMART-LINK audio connection

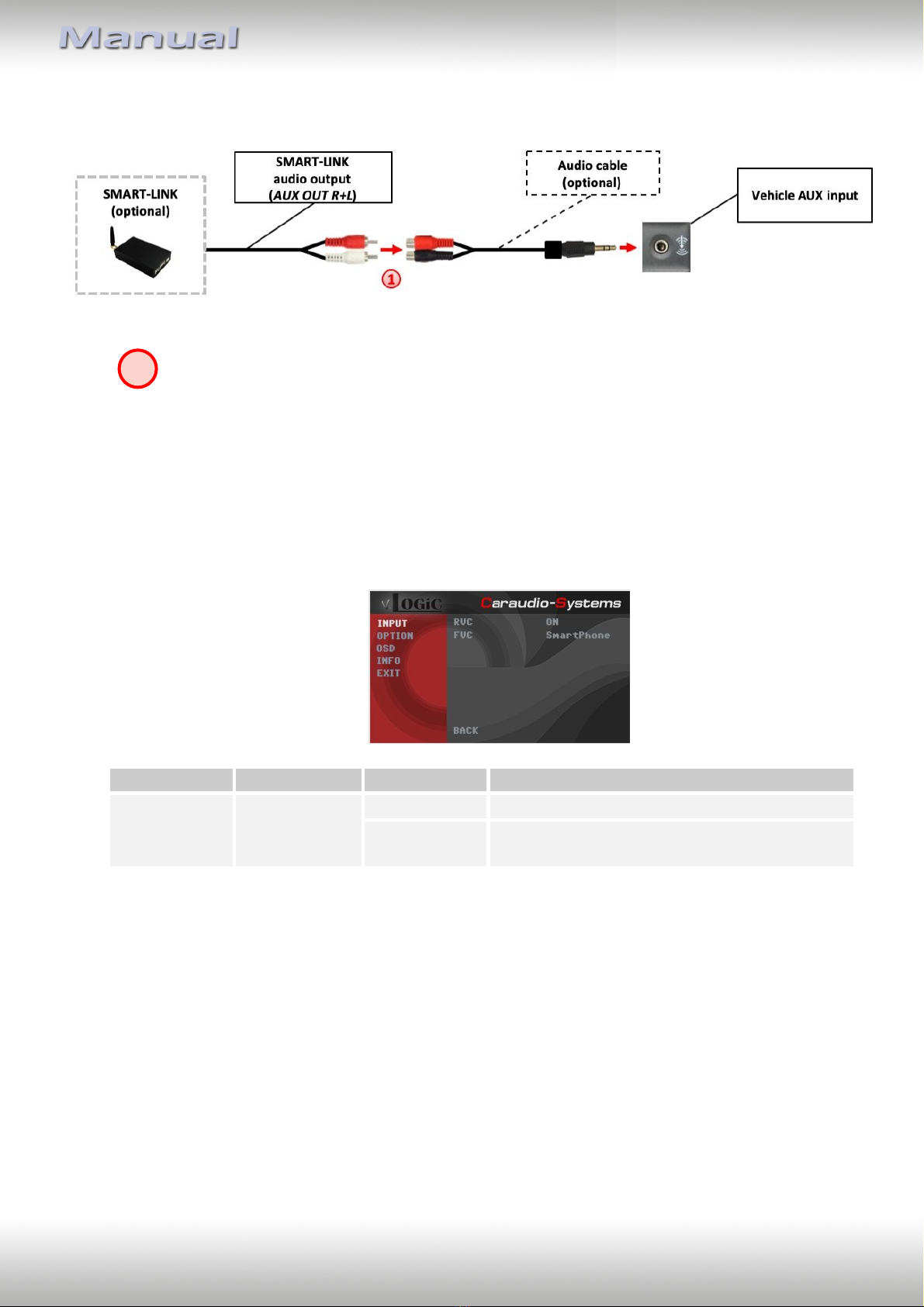

By using an audio cable (sold separately), connect the audio output of the SMART-
LINK module to the vehicle AUX input.
3.2.3.3. Settings for SMART-LINK connecting
You have to configure some settings in the OSD-menu INPUT if you want to connect the
SMART-LINK module (Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
INPUT
FVC
OFF
No front camera/SMART-LINK connected
SmartPhone
Enables the " FRONT CAM" input and control
for the SMART-LINK set
1

Version 26.11.2019 V5-NBT-PNP
Page16"
3.2.4. Configurable trigger outputs
You can configure the both +12V trigger outputs separately. The pink wire is POWER
OUT 1 and the green wire is POWER OUT 2.
Note: You can configure the both trigger outputs in the OSD-menu OPTION separately
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
OPTION
POWER OUT1
(pink)
POWER OUT2
(green)
CAN
+12V when the interface is on (red LED on)
ACC
+12V when ignition is on
CAM
+12V when the rear-view camera input is
activated
RGEAR
+12V when reverse gear is engaged
AVS
+12V when interface video-source is active
(for external audio switch)
OFF
Trigger putput deactivated
TV-BM01
harness
1
Inte rf ac e -box
V5C-M637
FRONT
V5C-UNI01?
harness
Power&Out&2&(max.&1A)
Power&Out&1&(max.&1A)
1

Version 26.11.2019 V5-NBT-PNP
Page17"
3.3. Interactive lane lines
You have to configure some settings in the OSD-menu
OPTION if you want to activate interactive lane lines
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
OPTION
RVC LINES
LINES
Interactive lane lines activated
CAR TYPE
1/2/3/4/5/6/7/
X1/X3/X4/X5/X6/
Z4/i3
Vehicle type selection
Note: ”PDC – picture in picture” and “interactive lane lines” function is not simultaneously
usable.

Version 26.11.2019 V5-NBT-PNP
Page18"
3.4. Picture settings

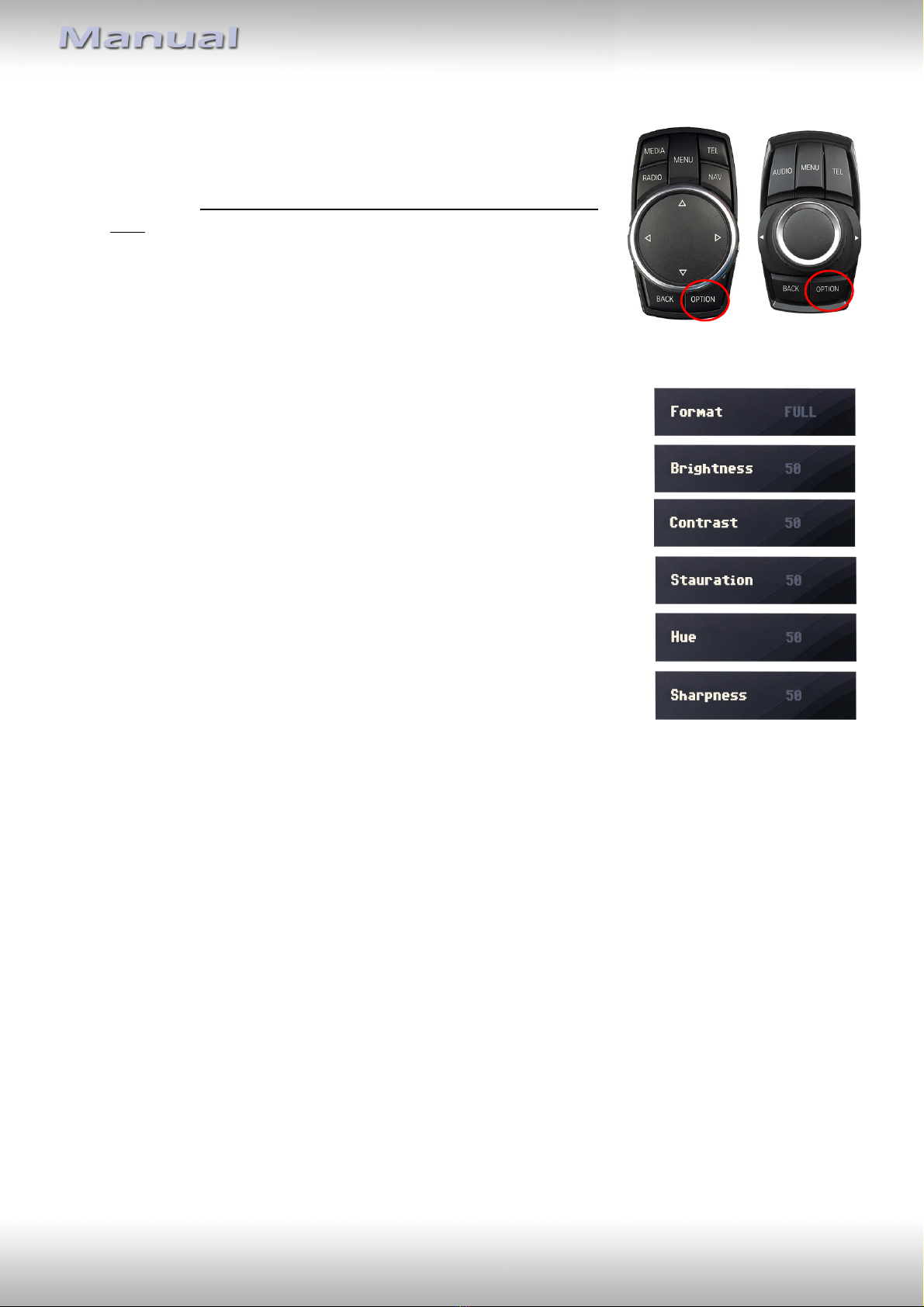

The picture settings and picture format can be changed in the
OSD menu (activation only possible from camera or SMART-LINK
level by long pressing the OPTION -button).
The following options are available:
◦ Brightness
◦ Contrast
◦ Saturation
◦ Hue
◦ Sharpness
◦ Format =
- 8.8” and 10.2” 24:10 ultrawide monitor:
-FULL = 24:10 video full screen mode
-ZOOM = 24:10 video full screen mode zoom
-AV+LVDS = 16:9 video on left side, factory picture on right side
- 6.5” and 7” 16:9 monitor:
-FULL = 16:9 video full screen mode
-ZOOM = 16:9 video full screen mode - zoom

Version 26.11.2019 V5-NBT-PNP
Page19"
4. Operation
4.1. OSD – On-screen display

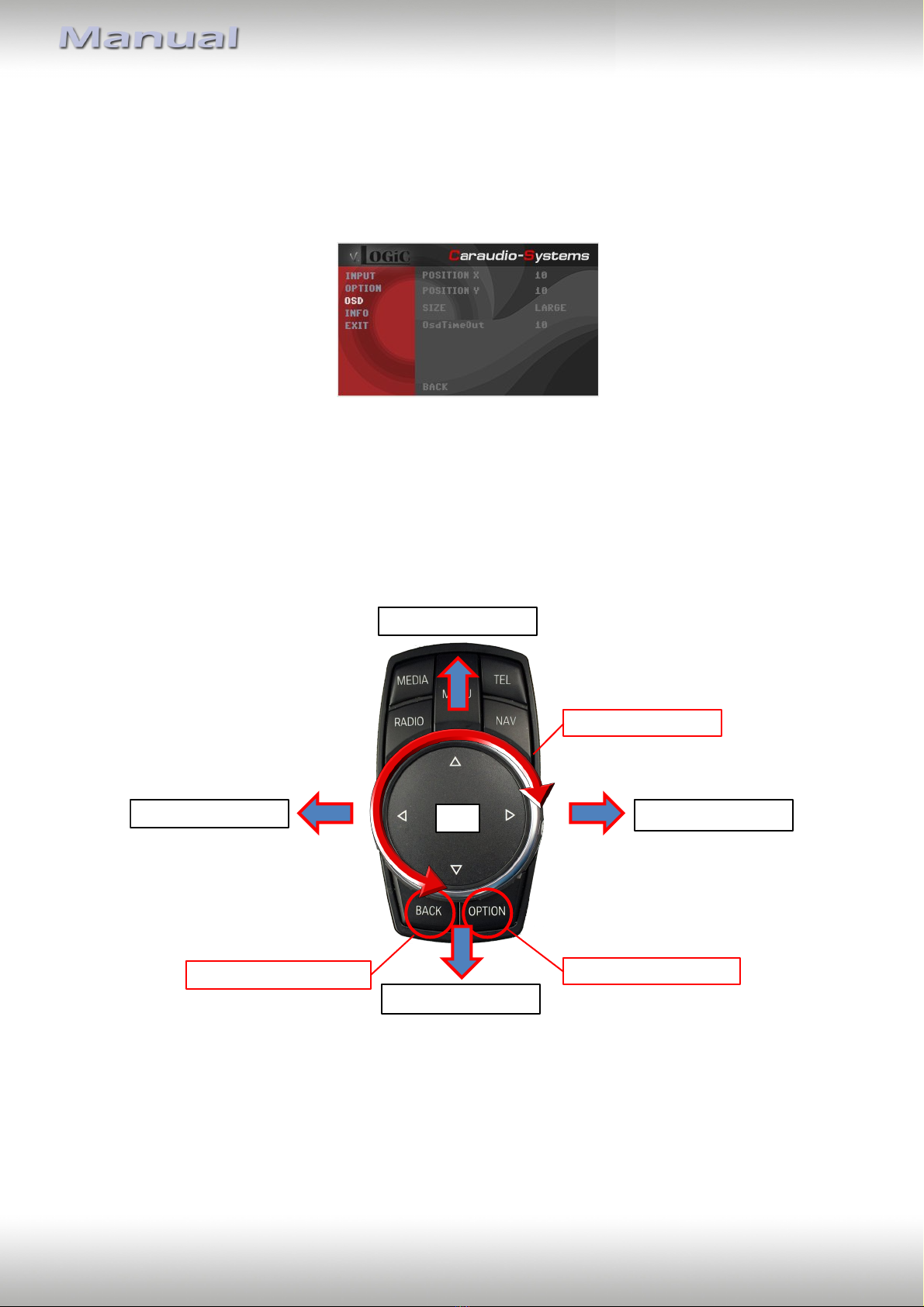

You can change the basic configurations of the interface in the OSD (on screen display).
4.1.1. OSD – Operation
You can control the OSD by iDrive.
4.1.1.1. iDrive High
Back
Short*press=* leave OSD* Long*press*=* enter OSD*
OK****************
OK********************
Options
Options
Options
