V-tech VT 1511 User manual

1
INTRODUCTION
Congratulations! Youhavepurchased
one of the most sophisticated and
unique cordless telephones on the
market. The VT 1511 has been
designed to offer a new standard in
cordless telephone technology.
Unlikemostothercordlessphones,the
VT 1511 is a completely wireless
headset telephone. The VT 1511
digitizes your voice using advanced
ADPCM digital voice encoding to
provide noise- and distortion-free
performance. In most conditions, you
will not be able to tell you are using a
cordless phone. Gone are the
annoyances of static, interference and
having to listen to other peoples
conversations on your cordless
telephone.
The VT 1511 scrambles your voice
beforeittransmits. Thisallows youthe
security of knowing that no one can
eavesdrop on your conversations.
The VT 1511 uses special memory
which is not susceptible to power
failures. This provides permanent
storage of all memory dial numbers
and security codes.
When an optional battery pack is
installed in the base unit, the VT 1511
usesthisbatterytoprovideoperational
backupincaseofpower failure. In this
way you have access to headset
functions during total power outage.
Calls can still be placed and received
ontheheadsetwithoutinterruption. Up
to 5 hours of backup will be possible
with a fully charged battery pack in the
base unit.
TheVT1511informsyouwhenanother
extension is currently in use on the
same phone line. The phone will also
alert you when you are Out of Range,
even when you’re not on the phone!
The VT 1511 has a very unique space
design. When using the headset, you
have complete freedom of movement.
There are no cords or cables to worry
about, so your hands will be free to
keep working. The VT 1511 Wireless
Headset is a revolution in cordless
telephones.

2
INTRODUCTION
Special Features:
•900 MHz Operation.
•Fully digital link between headset
and base.
•Corded handset on base unit.
•Remote headset charging stand.
•Infrared remote dial card for use
with wireless headset.
• Digitally scrambled voice
communication.
•21numberprogrammablememory
for up to 20-digit phone numbers.
•10-channel operation with auto
channel selection.
•Two-wayIntercombetweencorded
base unit and wireless headset.
•Out-of-Range indication while the
headset is in use or in standby
mode.
•Removable headset battery pack.
•Spare battery charger in base unit.
•Battery backup in case of power
failure (with optional spare battery
pack installed in base).
•Extension in use indicator.
•Message waiting indicator for use
with voice mail service.
•AutolinedropfromHOLD when an
extension phone is picked up.
•24-bit digital security code.
•Tone and Pulse dialing.
•Low battery detect and warning
indicator.
•Up to 7 hours continuous talk time,
or 7 days standby time.
•Volume adjustment on Base
Handset and Wireless Headset.
•HOLD,FLASH,MUTEandREDIAL
functions.
•Hearing-aid compatible receiver.
•Detachable power supplies.
•Non-volatile storage of security
code and memory dial records.
•Wall mountable base unit.
This manual is designed to make you
familiar with the VT 1511. We strongly
recommendyoureadtheentiremanual
before using your phone.

3
Parts Checklist
1. Wireless Headset
2. BaseUnitWithCordedHandset
3. Wall Mounting Bracket
4. Remote Charging Stand For
Headset
5. Remote Dial Card
6. AC Power Adapter
7. Battery Pack
8. Telephone Line Cord
9. OperationManual,Speeddiallabel,
Warranty Card.
INTRODUCTION
To purchase replacement battery packs, call VTech at 1-800-595-9511.
MEMORY DIALING
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
AC adaptor
Memory Dialing Card
Telephone Line
Operation Maunual Warranty Card
VTech
VTech
Base Unit
Handset Unit
Rechargeable battery
Wall MountIng bracket
Remote Charging Stand
Dial Card Remote Wireless Headset

4
FCC REGULATIONS
FCC Regulations
ThisequipmentcomplieswithParts15
and68oftheFederalCommunications
Commission(FCC)rulesfortheUnited
States. Italsocomplieswithregulations
RSS210 and CS-03 of Industry and
Science Canada. Operation is subject
to the following two conditions:
1. This device may not cause
interference, and
2. This device must accept any
interference,includinginterference
that may cause undesired
operation of the device.
A label is located on the underside of
thebaseunitcontainingeithertheFCC
registration number and Ringer
Equivalence Number (REN) or the
Industry Canada (IC) registrations
number and Load Number. You must,
upon request, provide this information
to your local telephone company.
Hearing Aid Compatibility
This equipment is compatible with
inductively coupled hearing aids.
Shouldyouexperiencetroublewiththis
telephone equipment, please contact
VTech at 1-800-595-9511 for warranty
and/or repair information. The
telephone company may ask you to
disconnectthisequipmentfromtheline
network until the problem has been
corrected.
FCC Part 15
Warning :
Changes or modifications to this unit
not expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
The equipment has been tested and
foundtocomplywithpart15oftheFCC
rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. Thisequipmentgenerates,
uses and can radiate radio frequency
energy. And, if not installed and used
inaccordancewiththeinstruction,may
cause harmful interference to radio or
television reception, which can be
determined by turning the equipment
off and on, the user is encouraged to
try and correct the interference by one
or more of the following measures:
•Reorient or relocate the receiving
antenna.
•Increase the separation between
the equipment and receiver.
•Connect the equipment into an
outlet or on a circuit different from
that to which the receiver is
connected.
•Consult the dealer or a qualified
technician for help.

5
FCC REGULATIONS
FCC Part 68
The FCC requires that you connect
your cordless telephone to nationwide
telephone network through a modular
telephonejack(USOCRJ11C,RJ11W
or RJ14).
Your local telephone company may
discontinue your service if your
equipment causes harm to the
telephonenetwork. Theywillnotifyyou
inadvanceofdisconnection,ifpossible.
Duringnotification,youwillbeinformed
of your right to file a complaint with the
FCC.
Occasionally, your local telephone
company may make changes in its
facilities, equipment, operation, or
procedures that could affect the
operationofyourequipment. Ifso,you
will be given advance notice of the
change to give you an opportunity to
maintain uninterrupted service.
The base unit contains no user
serviceable parts. The handset
contains a user replaceable battery
pack.
If it is determined that your telephone
equipment is malfunctioning, the FCC
requires that it not be used and that
it be unplugged from the modular jack
until the problem has been corrected.
Repairs to this telephone equipment
can only be made by the manufacturer
or its authorized agents or by others
who may be authorized by the FCC.
For repair procedures, follow the
instructions outlined under the
manufacturer’s Limited Warranty.
This equipment may not be used on
coin service provided by the phone
company or Party Lines.
The REN is useful in determining the
number of devices you may connect
to your telephone line and still enable
the devices to ring when you receive
acall. ThegeneralruleisthattheREN
value should not exceed 5.0A total;
however, contact your local telephone
company for the specific number in
your area.
Your VT 1511 is designed to operate
at the maximum power allowed by the
FCC. This means your handset can
communicate with the base unit only
over a certain distance – which will
dependonthelocationofthebaseunit
and handset, weather, and the
construction and layout of your home
or office.

6
IMPORTANT SAFETY INSTRUCTIONS
Whenusingyourtelephoneequipment,
basicsafetyprecautionsshouldalways
be followed to reduce the risk of fire,
electric shock and injury to persons,
including the following:
1. Read and understand all
instructions.
2. Followallwarningsandinstructions
marked on the product.
3. Unplug this product from the wall
outletbefore cleaning. Do not use
liquidcleanersoraerosolcleaners.
Use a damp cloth for cleaning.
4. Donotusethisproduct near water
(for example, near a bathtub,
kitchen sink, or swimming pool).
5. Do not place this product on an
unstable cart, stand, or table. The
product may fall, causing serious
damage to the product.
6. Slots and openings in the cabinet
andthebackorbottomareprovided
for ventilation. To protect it from
overheating,these openings must
not be blocked by placing the
product on a bed, sofa, rug, or
similar surface. This product
should never be placed near or
over a radiator or heat register.
This product should not be placed
in a built-in installation where
proper ventilation is not provided.
7. This product should be operated
onlyfromthetypeofpowersource
indicated on the marking label. If
you are not sure of the type of
powersupplytoyourhome,consult
your dealer or local Power
Company.
8. Do not allow anything to rest on
the power cord. Do not locate this
productwherepersonswalkingon
it will abuse the cord.
9. Neverpushobjectsofanykindinto
this product through cabinet slots
as they may touch dangerous
voltage points or short out parts
that could result in a risk of fire or
electric shock. Never spill liquid
of any kind on the product.
10. To reduce the risk of electric
shock, do not disassemble this
product. Opening or removing
cabinet parts other than specified
access doors may expose you to
dangerous voltages or other risks.
Incorrect reassembling can cause
electric shock when the appliance
is subsequently used.
11. Do not overload wall outlets and
extension cords as this can result
in the risk of fire or electric shock.
12. Unplug this product from the wall
outletandreferservicingtoVTech

7
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Communications at 1-800-595-
9511, under the following
conditions:
•When the power supply cord or
plug is damaged or frayed.
•If liquid has been spilled into the
product.
•If the product has been exposed
to rain or water.
•If the product does not operate
normallybyfollowingtheoperating
instructions. Adjust only those
controls that are covered by the
operating instructions, because
improper adjustments of other
controlsmayresultindamageand
will often require extensive work
by an authorized technician to
restore the product to normal
operation.
• If the product has been dropped
andthecabinethasbeendamaged.
• If the product exhibits a distinct
change in performance.
13. Avoid using a telephone (other
than a cordless type) during an
electrical storm. There may be a
remote risk of electric shock from
lightning.
14. Do not use the telephone to report
agasleakinthevicinityoftheleak.

8
THE BATTERY PACK
Charging the Headset Battery
Pack
Theheadset of yourVT 1511 cordless
telephone is powered by a
rechargeable battery pack. It charges
automaticallywhenevertheheadsetis
placed on the remote charging stand.
You'll know the battery pack needs
recharging when:
•The phone emits a warning tone
when you rotate the microphone
boom into the ON position.
•The phone emits a warning tone
when you press PHONE on the
remote dial card.
•The headset seems completely
dead and does not beep when you
press the keys.
• The red LOW BATTERY LED in
the wireless headset flashes.
To Charge the Battery Pack
To charge the battery pack, place the
headsetontheremotechargingstand.
ThetwoLEDsonthetopoftheheadset
willlight to show the headsetis seated
properly and the battery pack is
charging.
NOTE:
The VT 1511 uses an advanced
inductive charging system. This
technology allows the batteries to
be recharged without the need for
physical charge contacts.
It is recommended that the battery
pack be charged for at least 8 hours
initially,and6-8hoursformaintenance
charging. Youcanuseyourtelephone
before that with diminished capacity,
but it is the best to charge the battery
packfully. Itwilltake severalrecharge
cyclestomaximizethechargecapacity
of your battery pack. The maximum
batterylife between charges is 7hours
of continuous talk time or 7 days
standby time.
Alternatively, if you have purchased a
spare battery pack and it has been
charging in the base unit, simply
exchange the drained headset battery
packwiththefullychargedbatterypack
from the base charger. Place the
drained headset battery pack in the
base charger.
The base spare battery charger does
not charge a battery pack as quickly
as the remote charging stand. A full
charge requires 24 hours when using
the base unit spare battery charger.
To purchase replacement battery
packs,callVTechCommunications
at 1-800-595-9511.
It is impossible to overcharge
the battery
The battery pack can be recharged
manytimes,butifyou get alowbattery
warningevenafter16hoursofcharging
on the remote charging stand (or 24
hoursinthebasesparebatterycharger),
thebatterypack(s)shouldbereplaced.
A Word about Rechargeable
Batteries
Yourbatterypackrechargeswhenever
the headset is returned to the remote
charging stand. You may return the
headset to the remote charging stand
whenever it is not in use.

9
THE BATTERY PACK
To Replace the Headset Battery
Pack
1. Remove the battery case cover
(on the left ear module of the
headset).
4. Replace the battery case cover.
5. If the new battery pack is not
alreadycharged,placetheheadset
on the remote charging stand and
allow it to charge for 16 hours.
CAUTION:
To reduce the risk of fire or injury to
persons, read and follow the
instructions below.
1. Use only VTech rechargeable
battery pack.
2. Do not dispose of the battery in a
fire. The cell may explode.
IMPORTANT:
Do not dispose of this battery in
household garbage. For information
on recycling and proper disposal,
contactyourlocalsolidwastecollection
or disposal organization.
1. Do not open or mutilate the
battery. Released electrolyte is
corrosive and may cause damage
to the eyes or skin. It may be toxic
if swallowed.
2. Exercisecareinhandlingbatteries
in order not to short the batteries
with conducting materials such as
rings, bracelets, and keys. The
batteryorconductormayoverheat
and cause burns.
To purchase replacement battery
packs,callVTechCommunications
at 1-800-595-9511.
2. Remove the old battery pack.
Save it for recharging in the base
unit spare battery charger. Do not
disposeofthisbatteryinhousehold
garbage.
3. Place the new battery pack in
the headset. Insert the battery in
eitherway and only make surethe
metal contacts on the battery are
aligned with the contacts in the
headset battery compartment.

10
THE BATTERY PACK
Spare Battery Charger
The VT 1511 has a built-in spare
battery charger, which is located in the
base unit.
Note:
In order to benefit from this feature,
you must obtain an optional spare
battery from an authorized dealer,
or by contacting VTech Com-
munications at 1-800-595-9511.
Installation
1. Open the spare battery charger in
the base unit.
2. Place a battery pack in the spare
battery charger. Make sure the
metal contacts on the battery are
aligned with the contacts in the
spare battery charger.
Power Backup Function
When a spare battery pack is installed
in the base unit, the VT 1511 uses this
battery pack to provide operational
backup in case of a power failure. If
you have a fully charged battery pack
in the spare battery charger and there
is a power outage, you will still be able
to place and receive calls on the
headsetforupto5hours. Whenpower
backup mode is active, the POWER
LED will flash slowly.
Replacing a Drained Headset
Battery
The spare battery pack can also be
used to replace a drained headset
battery pack to ensure uninterrupted
use. Besuretoputthe drained battery
pack in the spare battery charger for
recharging.
Please note that the spare battery
compartment charges at a slower rate
than a battery pack charging in the
headset (via the remote charging
stand). Ittakes24hourstofullycharge
a battery pack in the spare battery
charger.

11
THE BATTERY PACK
IMPORTANT
Do not dispose of this battery in
household garbage. For information
on recycling and proper disposal,
contactyourlocalsolidwastecollection
or disposal organization.
1. Do not open or mutilate the
battery. Released electrolyte is
corrosive and may cause damage
to the eyes or skin. It may be toxic
if swallowed.
2. Exercisecareinhandlingbatteries
in order not to short the batteries
with conducting materials such as
rings, bracelets, and keys. The
batteryorconductormayoverheat
and cause burns.
Remote Dial card Battery
The remote dial card uses a standard
lithiumbattery(CR2025). Thisbattery
is not rechargeable, and may need to
bereplacedperiodically. Undernormal
use, the battery will provide up to 2
years of service.
If the dial card appears dead and you
are no longer able to dial numbers or
control the headset functions, the dial
card battery may need to be replaced.
1. Purchase a replacement CR 2025
lithiumbattery(availablefrommost
electronics and camera dealers).
2. Remove the dial card battery
cover and the old battery.
3. Place the new CR 2025 battery in
the dial card. Make sure the
positive (+) side is facing up.
4. Replace the battery cover.

12
GETTING STARTED
Setting up Your VT 1511
Choose an area near an electrical
outlet and a telephone wall jack.
AC Power Adapter
Plug the AC power adapter into an
electrical outlet and the DC connector
to the back of the base unit.
To AC socket
outlet
To telephone
line lead
To telephone
socket outlet
AC adaptor
CAUTION
Use only CLASS 2 9V DC POWER
SUPPLY included with your phone.
Plug the power cord of the Remote
ChargingStandintoanelectricaloutlet.
Charge the Battery
Charge the headset battery pack
beforeuse. Thebatterypackrecharges
automatically whenever the headset is
on the remote charging stand. The
batteriesmustbechargedfor16 hours
before using your phone for the first
time.
Headset and Base Ringer
The headset and base ringer are
programmedONasthefactorydefault.
Refer to PROGRAMMING THE
RINGER for more information.
Tone / Pulse Selection
Toselect the desired dialing mode,set
theswitchontheundersideofthebase
unit to TONE or PULSE.

13
MEMORY DIALING
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
GETTING STARTED
Connect Telephone Line Cord
Plugoneendofthetelephonecordinto
a wall jack and the other end into the
back of the base unit.
Check for a dial tone. After the battery
pack is charged, put on the headset
and flip the microphone down into the
ON position. You should hear dial
tone.
If not, see IN CASE OF DIFFICULTY.

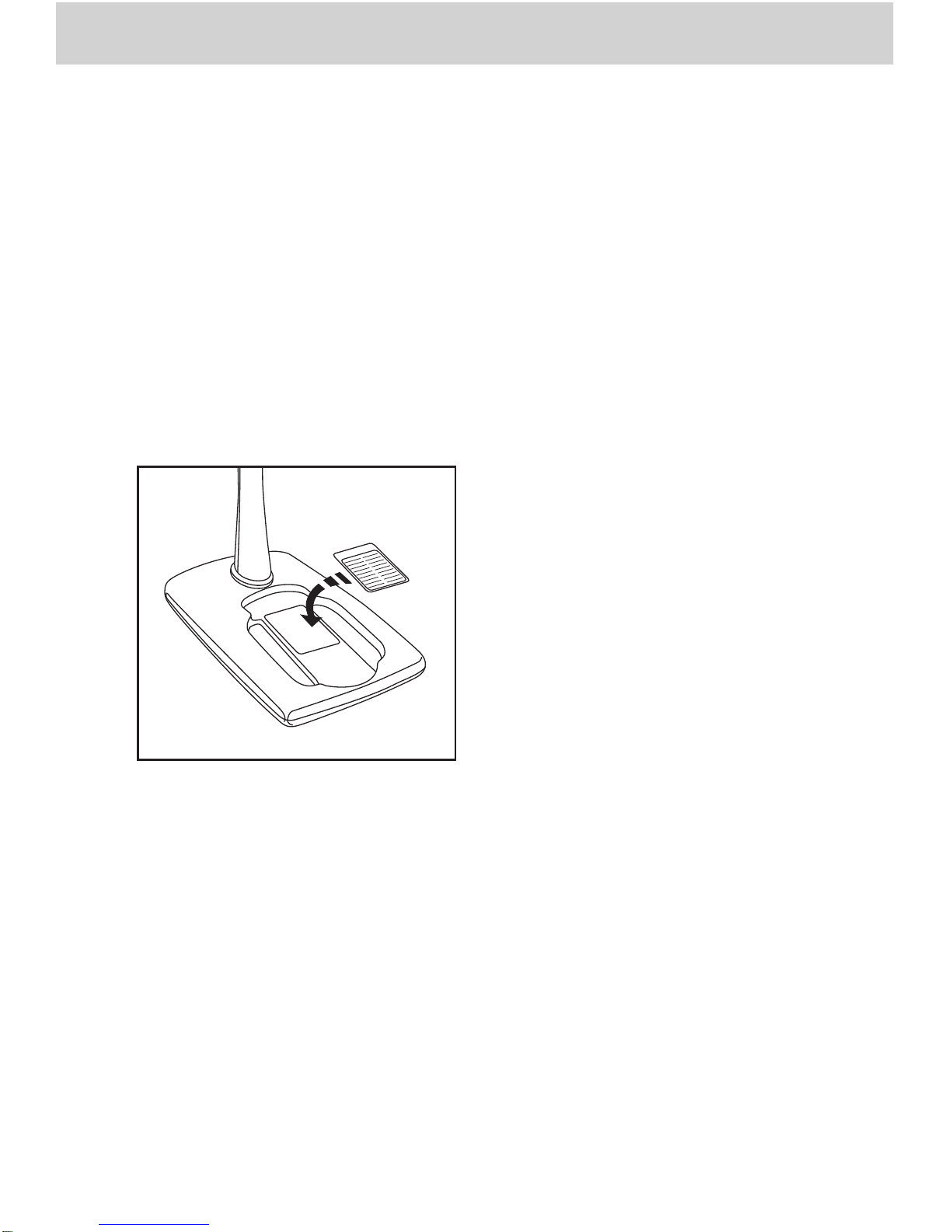

Fill in the telephone number card on
the remote charging stand.
CAUTION :
1. Never install telephone wiring
during a lightning storm.
2. Never install telephone jacks in
wet locations unless the jack is
specifically designed for wet
locations.
3. Nevertouchuninsulatedtelephone
wires or terminals unless the
telephone line has been
disconnected at the network
interface.
4. Use caution when installing or
modifying telephone lines.

14
WALL MOUNTING
The Wall Mounting bracket is
designed to fit on standard Wall
Mounting plates.
1. Chooseaspotnearanelectrical
outlet (120vAC)andatelephone
jack. Your phone requires a
modulartelephonejack.Thepower
cord is six feet long; make sure
there is an electrical outlet within
reach of the base. A wall switch
shouldnotcontroltheoutlet. Ifthe
switch is ever turned off, your
phone may not function (unless
you have a fully charged battery
in the spare battery charger).
2. Position the wall-mounting
bracket on the base. Line up the
tabs on the wall-mounting bracket
withthe holes onthe bottom of the
base. Snap the wall-mounting
bracket firmly in place.
3. Mount the base on the wall.
Position the base so the mounting
studs will fit into the holes on the
wall-mounting bracket. Slide the
base down on the mounting studs
until it locks into place
4. Connectthetelephonelinecord.
The telephone line cord has a
snap-in plug at each end. Insert
one end into the jack on the back
of the base, and insert the other
end of the plug into the wall jack.
5. Plug the AC adapter into an
electrical outlet and the DC
connector into the power jack
located on the back of the base
unit.

15

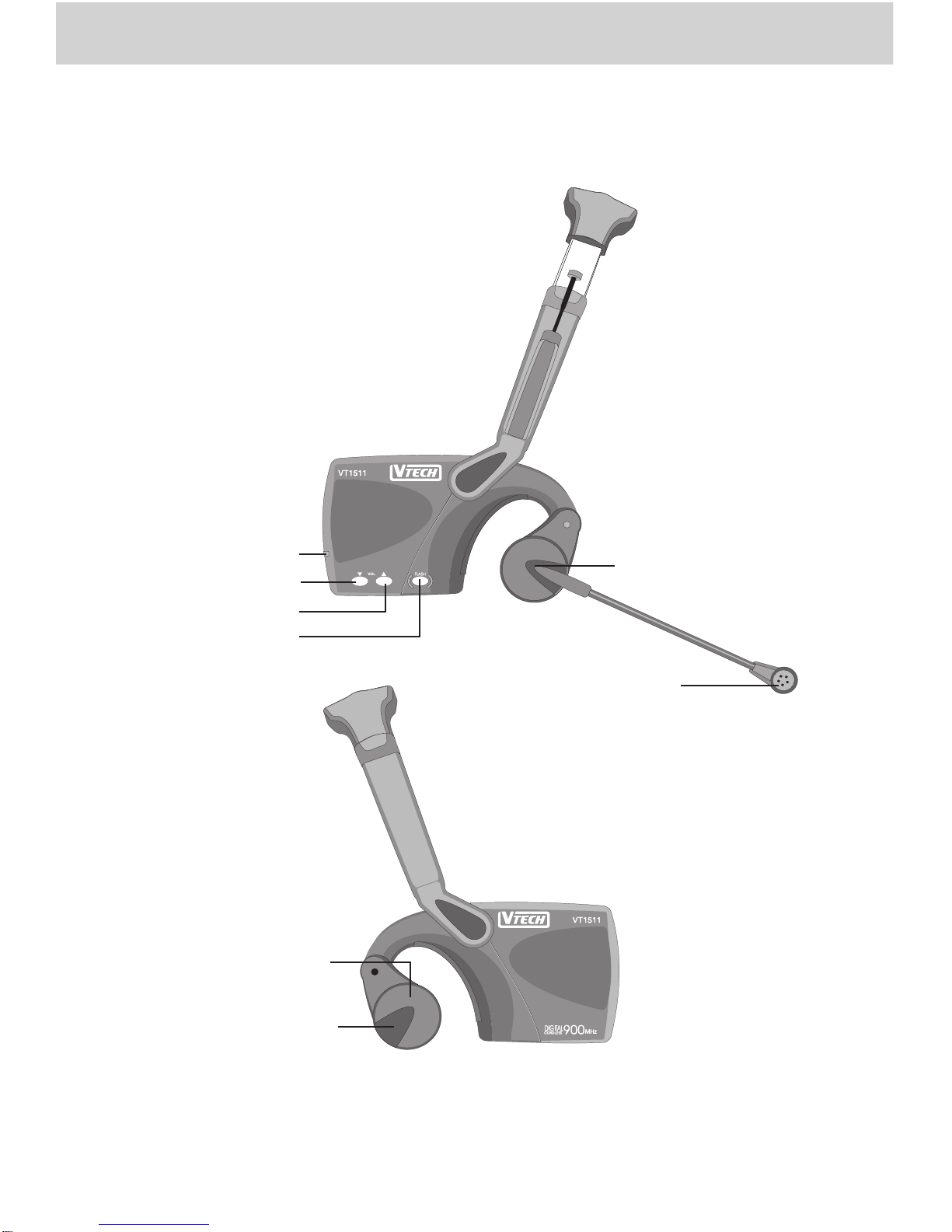

THE HEADSET LAYOUT
INFRARED
RECEIVER
EARPIECE
LOW BATT/
IN USE LED
FLASH
VOLUME DOWN EARPIECE
MOUTHPIECE
VOLUME UP

16
THE BASE LAYOUT
SPARE BATTERY
COMPARTMENT
IN-USE INDICATOR
POWER INDICATOR
SPARE BATTERY
INDICATOR
MESSAGE WAITING
INDICATOR
DIALING KEYS (0-9)
INTERCOM KEY
HOLD KEY
PROGRAM KEY
QUICK MEM KEY
MEMORY KEY
REDIAL KEY

17
THE REMOTE LAYOUT
INFRARED
VOLU ME DOWN KEY VOLU ME UP KEY
DIALING KEY (0-9)
MEMORY KEY REDIAL KEY
OFF KEY
HOLD KEY
PHONE KEY
MUTE KEY/INTECOMM

18
Status Type Description
POWER
•When the POWER LED is lit solid GREEN, it indicates
that there is power to the base unit.
IN USE(off hook)
•When the IN USE LED is lit solid GREEN it indicates that
the phone is currently IN USE.
•When the IN USE LED is flashing GREEN it indicates that
either an active telephone cord is not connected to the
base unit,or that an extension telephone is currently using
the line.
RINGING
•The IN USE LED flashes GREEN in cadence with an
incoming call.
CALL HOLD
•The HOLD LED flashes GREEN to indicate that the
telephone line has been placed on hold.
SPARE BATTERY
•When this LED is lit solid GREEN it indicates that a spare
battery is installed in the base unit.
INTERCOM
•When this LED is flashing GREEN, this indicates that the
headset is placing an INTERCOM call to the base unit.
•When this LED is lit solid GREEN, this indicates that the
base is currently on an INTERCOM call with the headset.
MESSAGE
•When this indicator is flashing RED, it indicates that
messages are waiting in your voicemail (service provided
by some local telephone companies).
POWER BACKUP
•When the POWER LED blinks GREEN, it indicates that
the base is running off of the spare battery and is in
POWER BACKUP mode.
Lost Link of headset •When the base lost link with the headset, both HOLD and
INTERCOM LEDS will keep flashing
BASE UNIT FEATURES

19
BASE UNIT FEATURES
The Base unit of the VT 1511 is a
normally functioning telephone. To
make or receive calls from the base
unit, simply lift the corded handset and
answer or dial normally.
DIALING Keys
Use these keys to:
•Dial numbers
•To program memory
•Toprogramringstylesforbaseand
headset
INTERCOM Key
•Liftthecordedhandsetonthebase
unit and press this key to place (or
answer) an intercom call.
PROGRAM Key
•UsethiskeytoprogramSpeedDial
Memory or Ringer Tones. See
Speed Dial Memory and
Programming Ringer Tones.
HOLD Key
•Press this key to place an active
call (on the corded handset) on
HOLD.
•Press again to release the HOLD
and return to normal conversation.
REDIAL Key
Pressthiskeytoredialthelastnumber
dialed from the base unit.
MEMORY Key
UsethiskeytoprogramanddialSpeed
dialMemorynumbers.SeeSpeedDial
Memory.
QUICK MEM Key
Press this key to automatically dial the
Speed Dial number stored in location
00.

20
The VT 1511 is a unique telephone.
Unlike most cordless phones, the
VT 1511 is a completely wireless
headset telephone.
In order to get the most use and
enjoyment from your VT 1511, please
carefullyreviewtheinstructionsbelow.
Right-side
modules
Headband
Adjust the
micboom for
the best
receiving of
your voice.
4.
Holding the left
and right-side
modules, tilt
the Headset
slightly forward.
This will reduce
the risk of it
falling off the
back of your
head.
3.
Adjusta the
headband
to ensure a
secure and
comfortable
fit.
1.
The left and right-side
modules should rest against
the back of your ear lobes.
The earpiece should be
directly in line with your ear,
but should not rest against or
touch your ear.
2.
HOW TO PUT ON THE WIRELESS HEADSET
