V-ZUG REFRESH-BUTLER User manual

Operating instructions
REFRESH-BUTLER
Textile care system

Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarize yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Model Type Product family
REFRESH-BUTLER TPSRBSLWP 14001
Variations depending on the model are noted in the text.
Colour operating instructions can be downloaded from the internet from
www.vzug.com
© V-ZUG Ltd, CH-6301 Zug, 2013
2

Contents
1 Safety precautions 5
1.1 Symbols used..............................................................................................5
1.2 General safety precautions.......................................................................6
1.3 Appliance-specific safety precautions ....................................................8
1.4 Instructions for use ..................................................................................12
2 Disposal 14
3 Using for the first time 15
3.1 Where is the identification plate? ..........................................................15
4 Your appliance 16
4.1 Appliance description..............................................................................16
4.2 Appliance construction ...........................................................................17
4.3 Accessories...............................................................................................17
4.4 Operating and display elements ...........................................................18
5 Programme overview 22
5.1 Main refreshing programme ..................................................................22
5.2 Extra programme drying.........................................................................25
5.3 Extra programme hygiene......................................................................27
6 User settings 29
6.1 Adjusting user settings............................................................................29
6.2 Language...................................................................................................32
6.3 Brightness..................................................................................................32
6.4 Button tone................................................................................................32
6.5 Water hardness ........................................................................................33
6.6 Childproof lock .........................................................................................33
6.7 Information.................................................................................................33
6.8 Descaling...................................................................................................34
6.9 Cleaning the air duct ...............................................................................36
6.10 V-ZUG Service ..........................................................................................36
6.11 Updating the software .............................................................................37
7 Operating the appliance 38
7.1 Preparing the appliance..........................................................................38
7.2 Arranging the washing ............................................................................38
7.3 Loading examples....................................................................................39
7.4 Refreshing and drying tips .....................................................................40
7.5 Filling the fresh water tank .....................................................................41
7.6 Emptying the condensate tank..............................................................42
3

7.7 Programme settings ................................................................................42
7.8 Programme selection ..............................................................................43
7.9 Changing selection..................................................................................45
7.10 Programme selection with childproof lock activated ........................46
7.11 Interrupting a programme.......................................................................46
7.12 Aborting a programme before time......................................................47
7.13 End of programme .................................................................................48
8 Care and maintenance 50
8.1 Cleaning intervals.....................................................................................50
8.2 Error message about cleaning the filter units.....................................51
8.3 Build-up of fluff..........................................................................................51
8.4 Cleaning the main filter ...........................................................................52
8.5 Cleaning the main filter mat...................................................................53
8.6 Cleaning the fresh air filter mat .............................................................54
8.7 Cleaning the water tank..........................................................................54
9 Trouble-shooting 56
9.1 What to do if ... .........................................................................................56
10 Accessories and spare parts 58
11 Technical data 60
11.1 Consumption data for factory setting...................................................61
11.2 Note for testing institutes........................................................................61
11.3 Automatic energy-saving stand-by........................................................62
12 Index 63
13 Notes 65
14 Service & Support 67
4

1 Safety precautions
1.1 Symbols used
Caution, risk of fire!
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage
to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
►Indicates step-by-step instructions.
–Describes how the appliance reacts to the steps taken.
•Indicates a list.
5

1 Safety precautions
1.2 General safety precautions
•Read the operating instructions before using
the appliance for the first time!
•This appliance can be used by children aged
8 and above and by persons with reduced
physical, sensory or mental capabilities, or
lack of experience and/or knowledge,
provided they are supervised or have been in-
structed on the safe use of the appliance and
have understood the hazards involved. Chil-
dren shall not play with the appliance. Clean-
ing and user maintenance shall not be under-
taken by children without supervision.
6

1 Safety precautions
•If an appliance is not equipped with a mains
cable and a plug or other means for discon-
necting from the mains with a contact opening
on each pole complying with the conditions of
overvoltage category III for full isolation, an
isolating device must be incorporated into the
permanently installed electrical installation in
accordance with the installation regulations.
•If the mains cable of this appliance is dam-
aged, it must be replaced by the manufacturer
or its Customer Services or a similarly quali-
fied person in order to avoid hazard.
7

1 Safety precautions
1.3 Appliance-specific safety precautions
•Children under 3 years of age must be kept
away unless constantly supervised.
•The appliance has a maximum dry load capa-
city of 5kg.
•The appliance is only to be used with the re-
commended vaporizing medium. The use of
other substances may give rise to a toxic or
fire risk.
•The appliance has hot surfaces to evaporate
active components. These surfaces should not
be touched during use.
•The appliance may not be used if industrial
chemicals were used for cleaning.
•Clean the fluff filters regularly.
•Do not allow fluff to build up around the appli-
ance.
8

1 Safety precautions
•Textiles that have been cleaned, treated or
soaked with flammable chemicals, detergents
or solvents (benzene, alcohol, stain remover,
oil, turpentine, acetone, paint, wax, etc.). Fire
or explosion hazard! Wash materials contain-
ing such substances first by hand with water
or allow the solvent to evaporate completely.
•Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows with
foam rubber pads are not suitable for the ap-
pliance.
•Use softener as per the manufacturer’s in-
structions.
•Remove objects such as lighters and matches
and the like.
•WARNING: Never stop the appliance before
the end of the drying cycle unless all items are
quickly removed and spread out so that the
heat is dissipated.
9

1 Safety precautions
•If the appliance is installed on a carpeted floor
ensure that any ventilation openings on the
base of the appliance are not obstructed.
•If the appliance is installed in a housing, the
ventilation openings are to be kept free of ob-
struction.
•Exhaust air must not be discharged into a flue
which is used for exhausting fumes from appli-
ances burning gas or other fuels.
•Do not install the appliance behind a door that
locks, a sliding door or a door with a hinge
that lies opposite the hinge of the appliance.
•This appliance is equipped with an ultra-violet
lamp. Do not look directly into the light source.
10

1 Safety precautions
To minimize the risk of fire in a tumble dryer, the following should be
observed:
•Oil-affected items can ignite spontaneously,
especially when exposed to heat sources
such as in a tumble dryer. The items become
warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot es-
cape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-af-
fected items can prevent heat from escaping
and so create a fire hazard. If it is unavoidable
that fabrics that contain vegetable or cooking
oil or have been contaminated by hair care
products be placed in a tumble dryer they
should first be washed in hot water with extra
detergent – this will reduce, but not eliminate,
the hazard.
11

1 Safety precautions
1.4 Instructions for use
Before using for the first time
•The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
•Ensure access to the place of disconnection (e.g. socket outlet, wall switch,
fuse).
Correct use
•The appliance is only suitable for refreshing and drying home textiles. It is
designed for use in the home and for the above-mentioned purpose only.
No liability is assumed for any damage caused by improper or incorrect
use.
•Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Cus-
tomer Services or a similarly qualified person. Repairs if carried out incor-
rectly could cause serious injury or damage to the appliance and fittings as
well as affect the functioning of the appliance. If the appliance is not work-
ing properly or in case of a repair order, follow the instructions given in the
'Repair service' section. If necessary, please contact our Customer Services.
•Use original spare parts only.
•Before closing the appliance door and starting a programme ensure that
there are no persons, foreign objects or pets in the appliance.
Note on use
•If the appliance is not operating properly, disconnect it from the power sup-
ply immediately.
•To protect your washing, follow the fabric care symbols and the hints and
advice in the 'Refreshing and drying tips' section.
•Do not operate the appliance without a fluff filter or with a damaged fluff fil-
ter. Fluff can destroy the appliance!
Caution: Risk of burns!
•Do not dry fabrics that contain traces of hair spray, hair gel, nail varnish re-
mover or other similar substances. Danger of gas build-up!
12

1 Safety precautions
Caution: Risk to life!
•It is forbidden to enter or remain in the appliance. Danger of suffocation!
•Packaging material, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from chil-
dren.
How to avoid damaging the appliance
•Close the appliance door carefully.
•When cleaning the appliance make sure no water gets inside it. Use a mod-
erately damp cloth. Do not spray the outside or the inside of the appliance
with water. If water gets inside the appliance, it will cause damage.
•Transport the appliance in an upright position only! Transporting it in any
other position will result in damage to the appliance! When carried carefully
without being shaken, the appliance may be tilted a maximum of 90° to the
left (viewed from the front).
Front
Front
Side
Front,
upside down
Back
Front
Use a stair
climber trolley to
avoid bumps to the
appliance!!
13

2 Disposal
Packaging
•All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
•Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
•Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
•Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
•The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
•The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
•The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recyc-
ling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
Note on heat pump
This appliance is CFC-free (the cold circuit contains R134a).
14

3 Using for the first time
The appliance can only be operated after standing in the normal oper-
ating position for around 2 hours.
3.1 Where is the identification plate?
►Open the appliance door.
–The identification plate is located
on the inside of the appliance
door at the top (see arrow).
Note down the serial number (FN) of your appliance on the back page of
these operating instructions.
15

4 Your appliance
4.1 Appliance description
The REFRESH-BUTLER uses steam and heat to refresh your clothes and re-
duce odours and creases. Additionally, the extra programme hygiene leaves
your washing germ free. The extra programme drying allows clothes that are
wet from the rain to be dried particularly gently.
The appliance operates with a closed air circuit. The air is heated up and hu-
midified by means of the heater and the boiler. The washing is refreshed by
hot steam and, depending on the setting, sanitized and creases removed. The
fresh water required for this is fed from a water tank. Odours are eliminated ef-
ficiently and lastingly through the use of a new technology called photocata-
lysis.
The appliance is also equipped with a heat pump. The washing is dried with
the help of the heat pump by extracting moisture from the air and then heating
up the air again. Recovering heat in this way sharply reduces energy con-
sumption. The resulting condensate is fed into the corresponding water tank.
•Capacity: 5 kg dry washing
•Main programme: Refresh
•2 extra programmes
– Dry – Hygiene
•Programme settings
– Refresh: Crease guard
– Timed refreshing and drying
– Easy care
– Delayed start
•TouchDisplay
•Language selection
•Childproof lock
•Automatic energy-saving stand-by
16

4 Your appliance

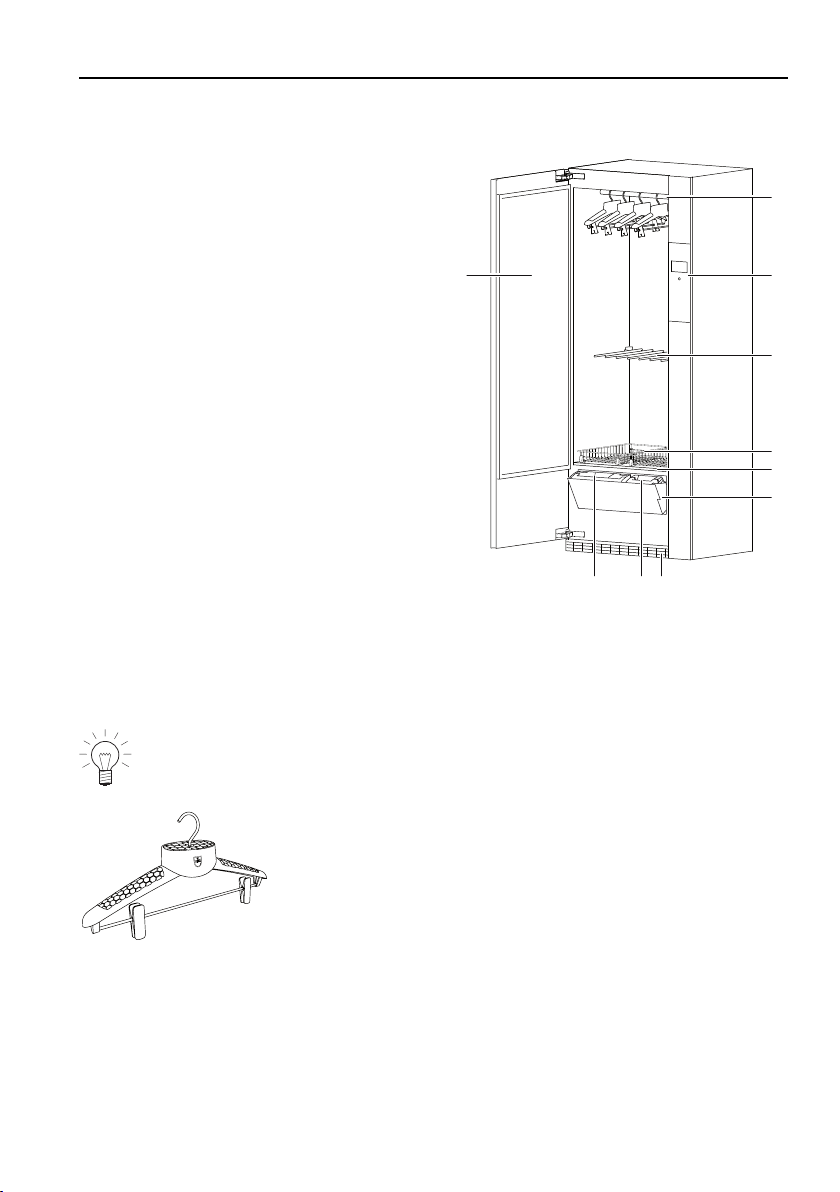

4.2 Appliance construction
1Clothes rail
1
2
3
4
5
6
7
8
9
10
2TouchDisplay
On/Off button
3Fold-down clothes rails
4Baskets
5Main filter with filter mat below
base grille
6Water tank cover
7Fresh air grille with filter mat
8Fresh water tank
9Condensate tank
10 Appliance door
4.3 Accessories
Clothes hangers
For heavier clothes, such as jackets and coats, use the clothes
hanger supplied for optimal results.
•For hanging up clothes
•Required for the main refresh programme
17

4 Your appliance
Basket
•Container for delicates, such as knitwear and wool-
lens, small textile items and shoes
4.4 Operating and display elements

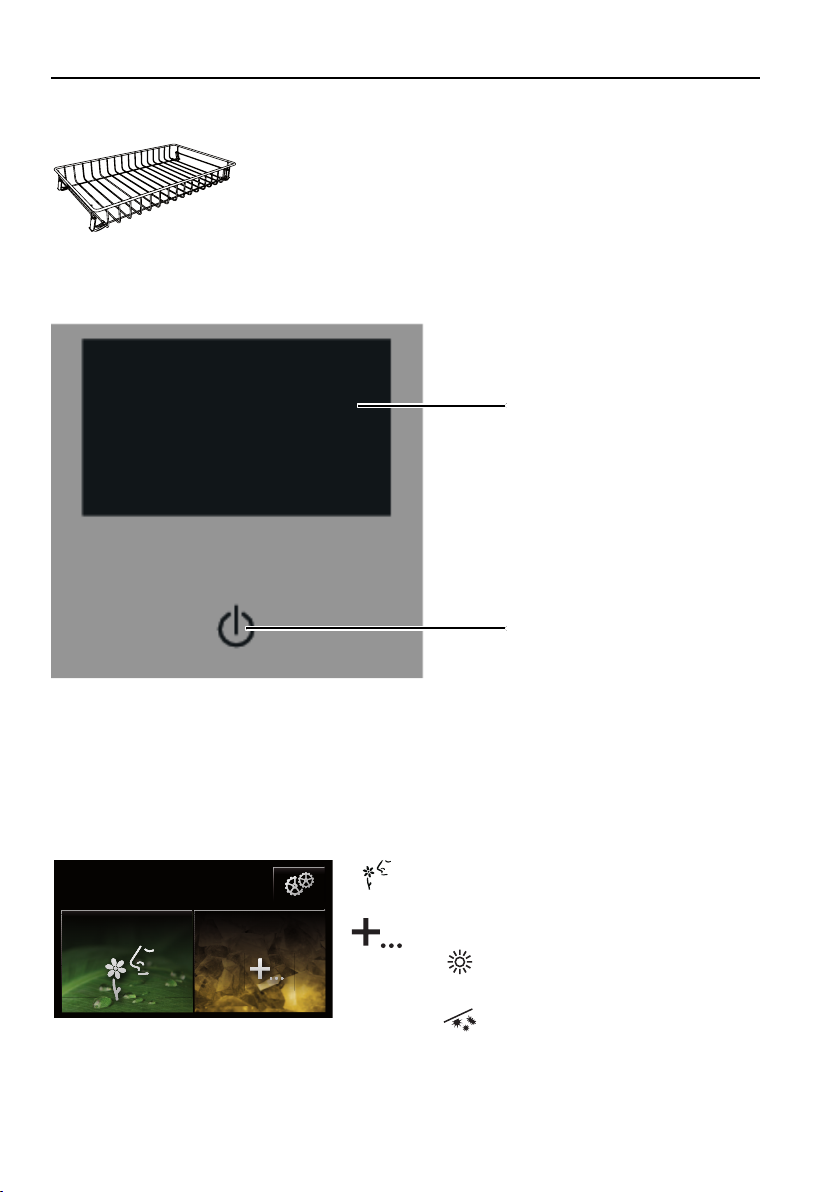

TouchDisplay
On/Off button
TouchDisplay
All available functions are displayed on the TouchDisplay and can be selected
directly by pressing the corresponding symbol or text.
Programme
Programme selection
Refresh Extra programmes
Refreshing
Extra programmes
Drying
Hygiene
18

4 Your appliance

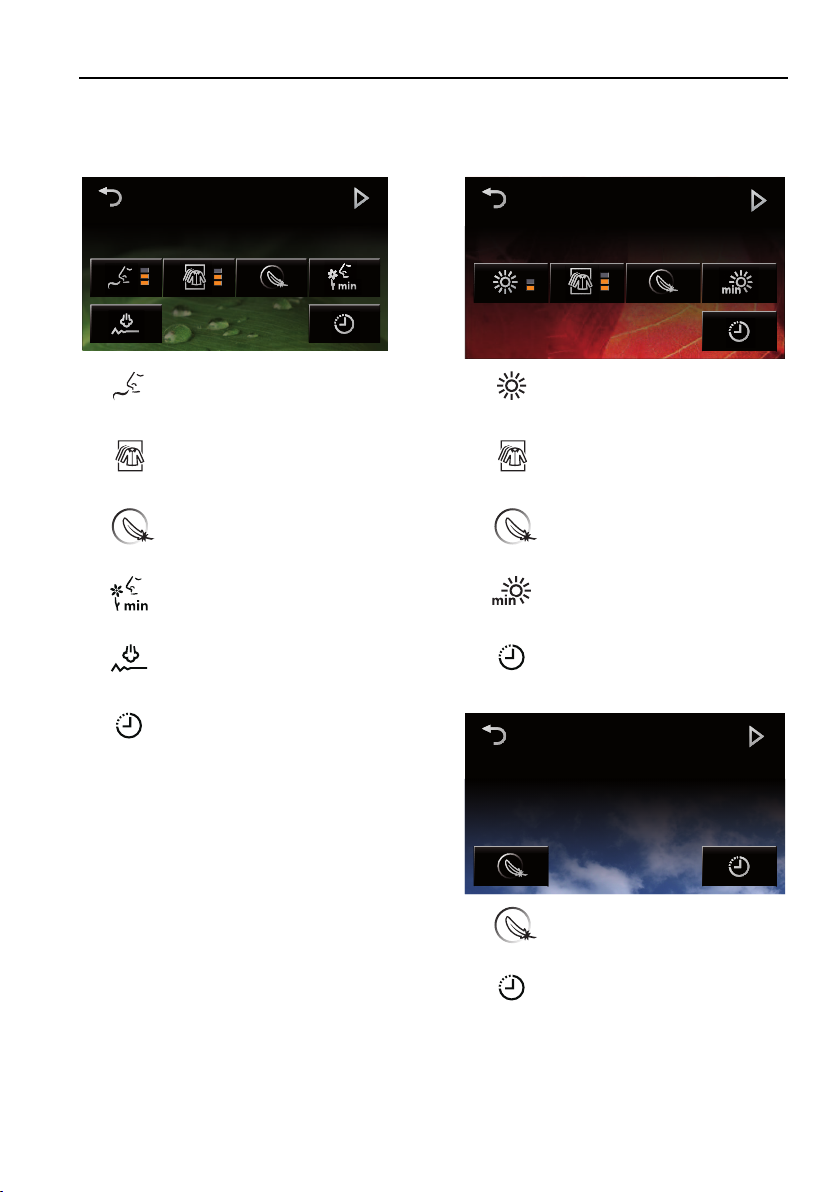

Programme settings
Main programme Extra programmes
Finishes in 1 h 30
Refreshing
Drying
Finishes in 1 h 30
Odour Level of dryness
Load Load
Easy care Easy care
Timed refreshing Timed drying
Crease guard Delayed start
Delayed start
Hygiene
Finishes in 1 h 30
Easy care
Delayed start
19

4 Your appliance
User settings
Settings
Language Information
Brightness Descale
Button tone Cleaning the air duct
Water hardness V-ZUG Service
Childproof lock Update software
Additional functions
Start Abort/Back
OK Abort programme
20
