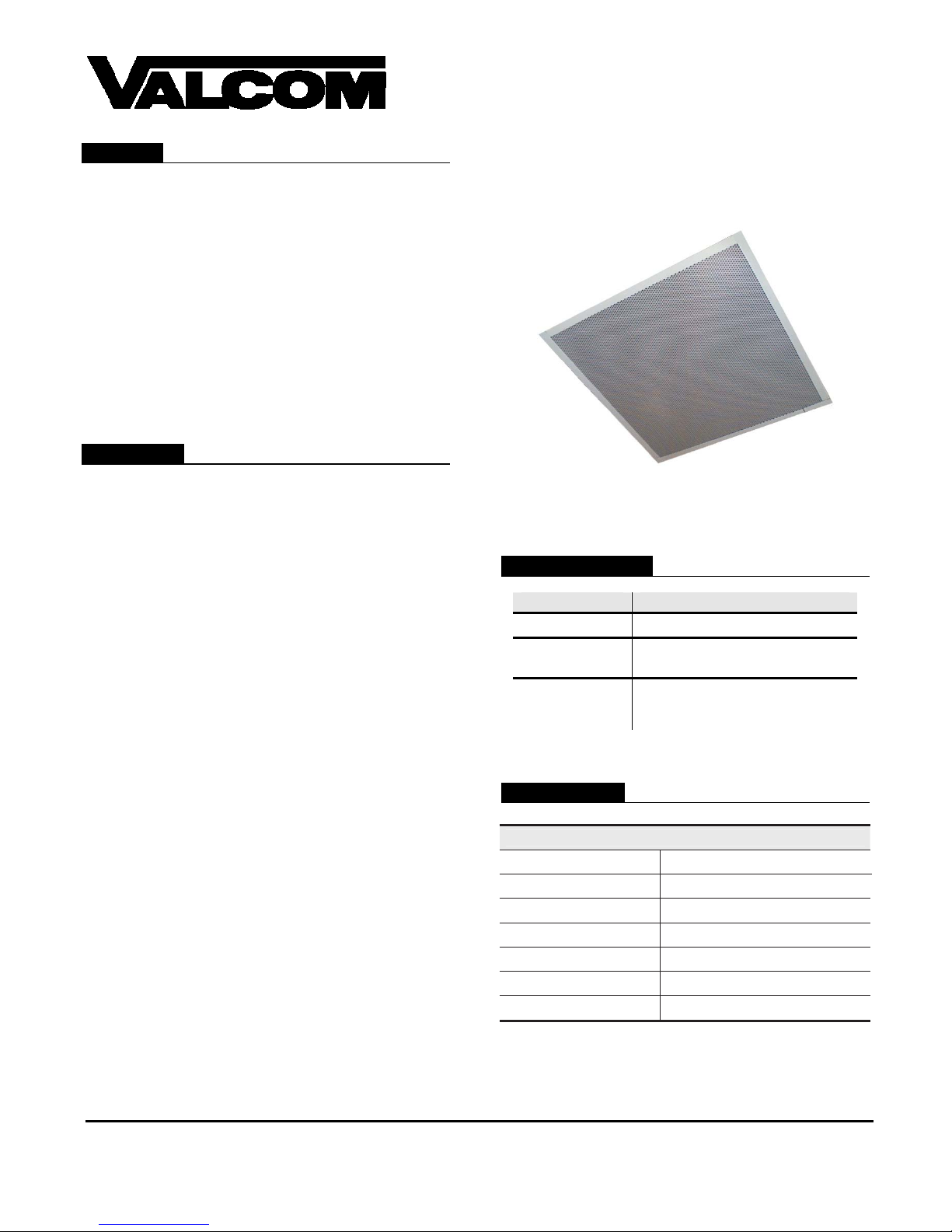

Valcom S-422A-2 User manual

Features
• Exceptional Voice & Music Performance
• Excellent talkback reproduction
• Directly replaces 2x2 Ceiling Tile
• Durable white acrylic baked enamel finish
• Time saving installation
• Multiple volume control Inputs
Description
These 25/70-volt Lay-In Ceiling Speaker assemblies
provide a quick and easy solution to speaker installations.
The S-422A-2 and S-522A-2 are complete speaker assemblies
including baffle and back box. This integral design meets
or exceeds ASTM E84 Flame & Smoke Test with a 3-
hour burn rating (UL 181), which allows this integrated
package to be used in plenum type drop ceilings.
Several inputs are provided on the S-422A-2 assembly to
provide the proper volume level when used in different
acoustical environments. The S-522A-2 assembly provides
a rotary tap volume control accessible from the front on the
speaker. Both of these assemblies are well suited to be
used in classrooms, offices, meeting rooms and other
applications where high quality sound reproduction is
required.
Both the S-422A-2 and the S-522A-2 eliminate the mess
and broken tiles that often accompany installations using
standard speaker assemblies. These dynamic all in one
packages eliminate cutting circular holes in tiles,
mounting backboxes and mounting speaker grilles to
backbox assemblies. The white finish of the perforated
grille blends easily with mostdécors and provides an
unobtrusive speaker installation.
Product Selection
Model Description
S-422A-2 Lay-In Ceiling Speaker
S-522A-2 Lay-In Ceiling Speaker w/Volume
Control
Specifications
Model S-422A-2 / S-522A-2
Dimensions 23.75” X 23.75” X 3.75”
Weight 5.5 lbs.
Speaker 8”, 25/70 Volt
Voice Coil 8 Ohm, ¾”
Frequency Range 70 HZ to 17kHZ
SPL 95 dB @ 1 Meter, 1 Watt @ 1 KHz
Transformer Taps .35, .75, 1.25, 2.5, 5 Watts
VDS422A-2_522A-2 7/2010
Valcom Communications Systems
Speakers & Accessories
S-422A-2, S-522A-2 Speakers
This literature does not cover all the variations in the equipment described, nor does it provide for every possible contingency to be
met in connection with installation, operation, and maintenance. All specifications and listings are subject to change without notice.
For installations in a 2’ x 4’ ceiling grid, an optional trim bar
(V-TBAR*) may be ordered. The V-TBAR provides support
and a finished appearance to one edge of the speaker grille.
These assemblies are also an excellent choice for all applications
requiring intercom capabilities. They are specifically designed for
applications involving the 5100 Communications System to provide
superb talkback quality.
*The V-TBAR is available separately and must be ordered in packs of 10.
NOTE: The S-422A-2 or S-522A-2
is a single unit, but must be ordered in
quantities of two.

S-422A-2
S-522A-2
