Valcom SIGNATURE V-1440 User manual

TECHNICAL ASSISTANCE
When trouble is reported, verify there are no broken connections to the unit.
Assistance in troubleshooting is available from the factory. When calling, you
should have a VOM and a lineman's test set available and be calling from the job
site. Call [phone] for Technical Support, or call [phone] for Valcom
24-hour Faxback System or visit our website at http://www.valcom.com.
Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly
stating your company name, address, phone number, contact person and the nature
of the problem. Send the unit to: Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship
under conditions of normal use and service for a period of one year from the date of
shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original
shipment;
3. the product has not been altered in any way or repaired by others and that factory
sealed units are unopened (a service charge plus parts and labor will be applied
to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units ‘out of warranty’ are subject to a service charge. The service charge will
cover minor repairs (major repairs will be subject to additional charges for parts
and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied, and
in no event shall Valcom, Inc. be liable for any anticipated profits, consequential
damages, loss of time or other losses incurred by the buyer in connection with the
purchase, operation or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is
received in damaged condition, the carrier should be notified immediately. Claims for such
damage should be filed with the carrier involved in accordance with the F.O.B. point.
Headquarters: In Canada
Valcom, Inc. CMX Corporation
5614 Hollins Road 35 Van Kirk Drive #11 and 12
Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5
Phone: [phone] Phone: [phone]
FAX: [phone] FAX: [phone]
INSTALLATION INSTRUCTIONS FOR
SIGNATURE SERIES™, HIGH FIDELITY
AMPLIFIED MONITOR SPEAKER
MODEL NO. V-1440
Issue 5 947144

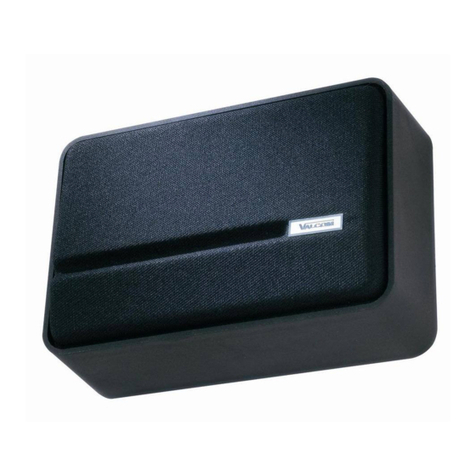

VALCOM SIGNATURE SERIES™,HIGH FIDELITY SELF-AMPLIFIED MONITOR SPEAKER

The Valcom Signature Series™ Monitor Speaker, V-1440, is a high-fidelity,
self-amplified (5 Watt) speaker that may be used to provide one-way paging and
high quality music reproduction from any Valcom one-way or talkback page control.
This speaker has an externally accessible volume control located behind the grille
and is screwdriver adjustable. The V-1440 will cover an area up to 600 square feet
and should be spaced 20 feet apart. Good quality paging and music will be heard up
to 30 feet in front of the speaker. The V-1440 requires -24VDC, 300mA (6 Valcom
power units). The speaker is available in white, black, brown and gray with a color
coordinated cloth grille. Custom colors are available upon request.
Model V-1440-BK Black
Model V-1440-WWhite
Model V-1440-BRBrown
Model V-1440-GY Gray
WIRING
Make connections as shown in Figure 1. Insert stripped wire (approximately 3/16")
into appropriate terminal (See Figure 2) and clamp the wire by turning the screw.
Each connector accepts 18 to 24 AWG wire.
Note: No power amplifier is required. Do not connect this speaker directly to a
25/70/100 Volt amplifier as damage to both the amplifier and speaker
may occur. (Recommended nominal input level to the V-1440 is
-10dBm).
CONNECTIONS
Recommended Quantity of Speakers per Specific Power Run
(Standard Category 3 Twisted Pair Telephone Wire)
Speakers per
Power Run Wire Run Length (Feet)
V-1440 24 AWG 22 AWG
4
2
1
125
250
500
200
400
800
MOUNTING
1. The baffle can be hung from a nail or hook by the "keyhole" that is
attached to the back of the housing. (See Figure 2).
2. The unit can be mounted to an optional mounting bracket, (V-9804). This
bracket can then be secured to a surface. The bracket is attached to the
speaker brass inserts with screws provided. (See Figure 3).
TROUBLESHOOTING CHART
SYMPTOMS ACTIONS
No audio from
speaker 1. Verify volume control is turned up (clockwise). 2. Using a lineman's test set, check for proper audio level
on Tip/A and Ring/B leads and if necessary at the source.
Low volume from
speaker 1. Verify volume control is turned up. 2. Check voltage at the speaker when in use, (-18 to-24
VDC required).
3. Using a lineman's test set, check for proper audio level
on Tip/A and Ring/B leads. It is possible some low level
audio will be heard with only one side of Tip/A and Ring/B
connected.
Loud squeal
(feedback) 1. Decrease volume of speaker (counterclockwise). 2. Increase the distance between telephone and speaker.
3. Install confidencer on the telephone in severe problem
areas.
Dimensions/Weight
•7.00"H x 10.30"W x 4.70"D (17.78cm H x 26.16cm W x 11.94cm D)
•5.2 lbs. (2.36 kg)
FIGURE 3
Brass
Inserts
V-9804
(Available
separately)
Keyhole
FIGURE 2
Ring/B
Tip/A
-24VDC
Ground
Tip/A
Ring/B
-24VDC
Gnd
V-1440
One-Way
Amplified
Speaker
Page
Out
Valcom Page
Control
Valcom -24VDC
Power Supply
FIGURE 1
2 pair twisted
telephone wire
