Valencia Euro EP60M8SX User manual

Built-In Electric Oven
User Manual
EP60M8SX

ACKNOWLEDGMENT
WARNING
2
ACKNOWLEDGMENT
Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides.
Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe
place for future reference. Ensure that other people using the product are familiar with these instructions
as well.
When the oven is first switched on, it may give off an unpleasant smell. This is
due to the bonding agent used for the insulating panels within the oven. This is
completely normal, if it does occur, you merely have wait for the smell to clear
before putting food into the oven.
The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously
supervised.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass of
the oven. This can scratch the surface and may result in permanent damage to
the glass.
During use, the appliance becomes very hot. Care should be taken to avoid
touching heating elements inside the oven.
Do not allow children to go near the oven when it is operating, especially when the
grill is on.
Ensure that the appliance is switched off before replacing the oven lamp to avoid
the possibility of electric shock.
The means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring specifications.
During pyrolytic cleaning, accessible parts may become hotter than normal.
Young children should be kept away.
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by person responsible for their safety.
Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides.
Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe
place for future reference. Ensure that other people using the product are familiar with these instructions
as well.
When the oven is first switched on, it may give off an unpleasant smell. This is
due to the bonding agent used for the insulating panels within the oven. This is
completely normal, if it does occur, you merely have wait for the smell to clear
before putting food into the oven.
The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously
supervised.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass of
the oven. This can scratch the surface and may result in permanent damage to
the glass.
During use, the appliance becomes very hot. Care should be taken to avoid
touching heating elements inside the oven.
Do not allow children to go near the oven when it is operating, especially when the
grill is on.
Ensure that the appliance is switched off before replacing the oven lamp to avoid
the possibility of electric shock.
The means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring specifications.
During pyrolytic cleaning, accessible parts may become hotter than normal.
Young children should be kept away.
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by person responsible for their safety.

FITTING THE OVEN INTO THE KITCHEN UNIT
Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an
upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame.
To locate the fixing holes,open the oven door and look inside.To allow adequate ventilation, the
measurements and distances adhered to when fixing the oven.
IMPORTANT
If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that
are next to the oven must be made of a heat resistant material. Ensure that the glues of units that are
made of veneered wood can with stand temperatures of at least 120 ºC . Plastics or glues that cannot
withstand such temperatures will melt and deform the unit,once the oven has been lodged inside the
units, electrical parts must be completely insulated.This is a legal safety requirement.All guards must
be firmly fixed into place so that it is impossibl to remove them without using special tools. Remove
the back of the kitchen unit to ensure an adequate current of air circulates around the oven.The hob
must have a rear gap of at least 45 mm.
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged
in any way. If you have any doubts at all, do not use it: contact a professionally
qualified person. Keep packing materials such as plastic bags, polystyrene,
or nails out of the reach of children because these are dangerous to children.
3
SAFETY HINTS
Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or
damp hands or feet.
For oven: Oven door should not be opened often during the cooking period.
The appliance must be installed by an authorized technician and put into use. The producer is not
responsible for any damage that might be caused by defective placement, and installation by
unauthorized personnel.
When the door or drawer of oven is open do not leave anything on it, you may unbalance your appliance
or break the door.
Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before
touching onto the points that are exposed to the heat directly.
If you will not use the appliance for a long time, it is advised to plug if off.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Before cleaning,remove all the accessories and excess spillage in the oven.
A steam cleaner is not to be used.

PRODUCT DESCRIPTION
K1 K 2
Remind button
Stop button
Start button
Time button
with fan: Combination of the fan and both heating element provides more even
heat penetration,saving up to30-40% of energy. Dishes are lightly browned on the outside
and still moist on the inside. Note:This function is suitable for grilling or roasting big pieces
of meat at a higher temperature. The temperature can be set within the range of 50-250OC.
The default temperature is 220OC.
Symbol Function description
Oven Lamp: which enables the user to observe the progress of cooking without opening
the door.
Convectional cooking: both heating elements are work .To provide convectional cooking.
The oven needs to be pre-heated to the required temperature and is idea for single items,
such as large cakes. Best results are achieved by placing food in the center of the oven.
The temperature can be set within the range of 50-250OC. The default temperature is 2 0OC.
Bottom heat: A concealed element in the bottom of the oven provides a more
concentrative heat to the base of food without browing. This is ideal for slow cooking
dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired.
The temperature can be set within the range of 60-120OC. The default temperature is 60OC.
Defrost: The circulation of air at room temperature enables quicker thawing of frozen food,
(without the use of any heat). It's a gentle but quick way to speed up the defrosting time
and thawing of ready-made dishes and cream filled produce etc.
for convection style cooking. In convenction mode the fan automatically comes on to
improve air circulation within the oven and creates an even heat for cooking.
The temperature can be set within the range of 50-240OC. The default temperature is 180OC.
Double grilling : The inside radiant element and top element are working with fan.
The temperature can be set within the range of 180-240OC. The default temperature is 210OC.
The infrared elements are working.
The temperature can be set within the range of 180-240OC. The default temperature is 210OC.
Double grilling with motor fan: The inside radiant element and top element are working with
motor fan.
The temperature can be set within the range of 180-240OC. The default temperature is 210OC.
4
2
Radiant grilling:
Fan forced: An element around the convection fan provides an additional source of heat
Conventional

OPERATION INSTRUCTIONS
1. Clock Setting
After connectiong the unit to the power, the symbols 0:00 will be visible on the display.
1> Press " ", the hour figures will flash.
2> Rotate " K2" to adjust the hour figures, the input time should be within 0--23.
3> Press " ", the minutes will flash.
4> Rotate "K2 " to adjust the minutes setting, the input time should be within 0-59.
5> Press " " to finish the clock settings. ":" will flash.
Note: The clock is 24 hours. If the clock is not set,it would not fuction when powerer,
"0:00 will display".
2. Function Setting
1> Rotate " K1 " to choose the cooking function you require .The related indicator will illuminated .
2> Rotate " K2 " to adjust the temperature.
3> Press " " to confirm the start of cooking. The corresponding icon for temperature"OC"will be on.
4> If step 2 is ignored, Press " " to confirm the start of cooking. the default temperature will display on
the LED.
NOTE:
1>The step quantities for the adjustment time of the coding switch are as follow:
0--0:30min: step 1 minute
0:30--9:00hour :step 5 minutes
2>The step quantities for the adjustment of temperature is 5OC, and the grill function is 30OC.
3>Rotate " K1" to adjust the cooking time when cooking begins. Then press " " to start cooking.
If " " not pressed within 3 seconds,the oven will revert back to the previous time to continue cooking.
4>Rotate"K2 " to adjust the temperature when cooking begins.The related indicator will be illuminated.
Then press" " to start cooking. If " " not pressed in 3 seconds, the oven will revert back to the previous
temperatrue to continue cooking.
3.Lamp Setting
1> Rotate"K1" to select the relevant function, then the corresponding icon will be on.
2> Press " " button to start cooking. Lamp icon" " *" 0:00 "will light.
4.Inquiring function
During cooking process, you can use inquiring function, after 3 seconds return to the current working state.
1> During cooking mode, press " " button to check the current time.
2> If the clock was set, press " "button to ask for current time.
5. Child lock function
To Lock : press " " and " " simultaneously for 3 seconds, there will be a long "beeping" sound
indicating the children-lock is on and the " " will be illuminated.
Lock quitting : press " " and " " simultaneously for 3 seconds, there will be a long "beeping"
sound indicating the child-lock is released.
Note: During working mode, if you want to stop cooking,press stop button quickly. Do not need to long
pressing on stop button,it is invalid.
5

6. Reminder Function:
The oven has 9 hours reminder, this function will help to remind you to start cooking in a certain time
from1 minute to 9 hours. Only when oven in standby mode and clock setting, the reminder can be set.
Follow below to set the reminder:
1> Press reminder setting button " ";
2> Rotate " K2 " to set the hour time of reminder.
3> Press reminder setting button " " again;
4> Rotate "K2 " to set minute time of reminder.
5> Press " " to confirm cooking.
Note: After the set time, the oven buzzer will sound for 10 times, " "symbol disappears on the screen
to remind you to start cooking. You can cancel the reminder during setting by pressing " " button;
7. Start/Pause/Cancel Function
1> If the cooking time has been set, press " " to start cooking. If the cooking is paused, press " "
to resume cooking.
2> During cooking process, press " " once to pause the cooking. Press " " twice to cancel the
cooking.
8. Energy-Saving Function
1> During in waiting state and reminding state , press " " for three seconds, the LED display will go
off and set to energy-saving mode.
2> If no operation in10 minutes under waiting state, the LED display will go off and go into energy-saving
mode.
3> Under the energy-saving mode, press any key or rotate any encoder can quit the energy-saving mode.
9. Note
1>The oven lamp will be on for all functions.
2>The buzzer will sou once when turning the knob at the beginning.
3> Once the cooking programme has been set and the" " button is not pressed within 5 minutes,
the current time will be displayed . The setting will be cancelled.
4>The buzzer sounds when effectively pressed, if not effectively pressed there will be no response.
5> The buzzer will sound five times to remind you when cooking has finished.
6> Kindly reminder: To open the oven door, always use one hand to hold the handle in the centre and
do not touching the child lock stud.
6
d
or turn to the waiting state

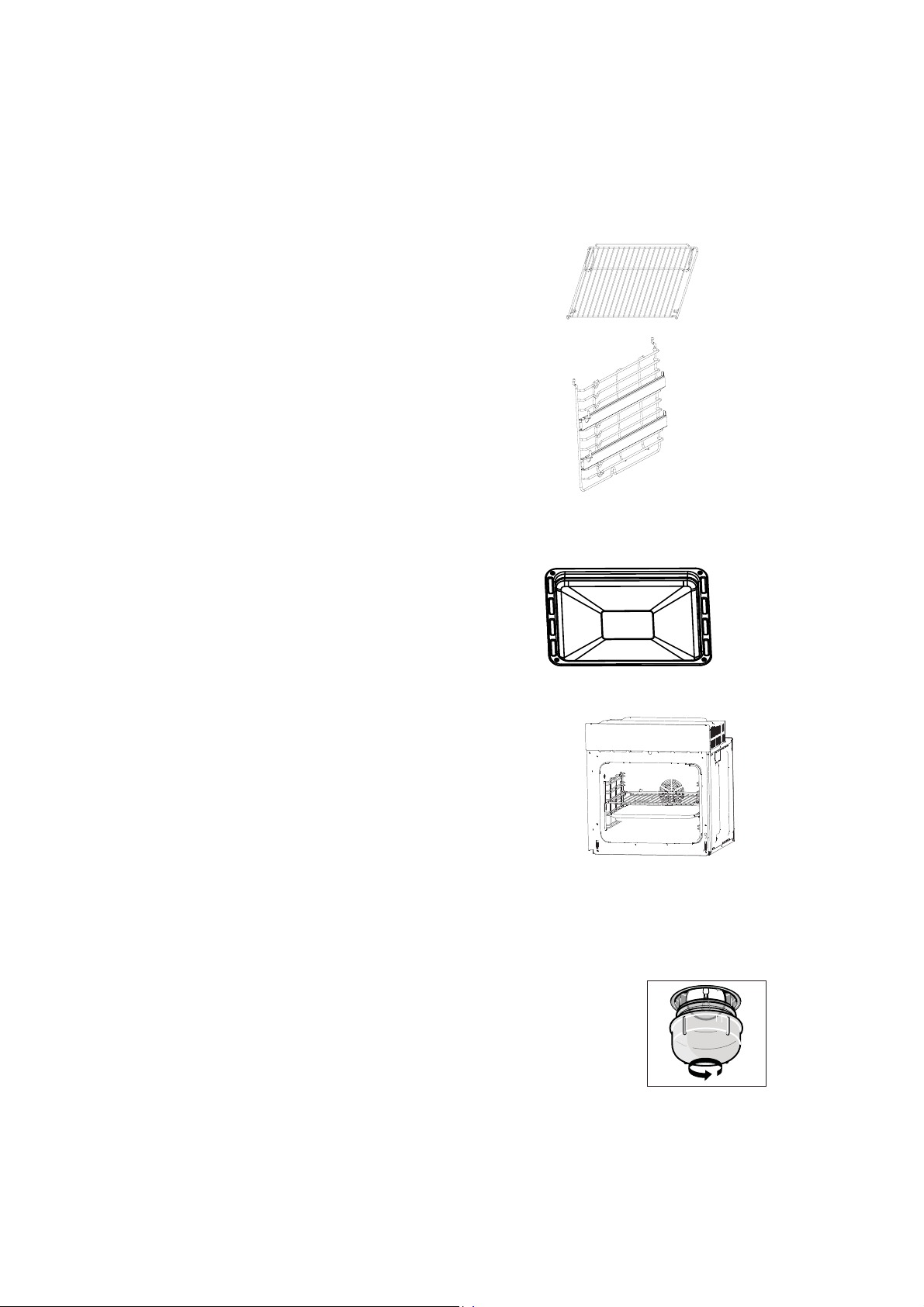

Wire shelves : For grill .dishes, cake pan with
items for roasting and grilling.
Slider bracket : These shelf support rails on the right and left
sides of the oven can be removed for cleaning oven walls.
ACCESSORIES
Universal pan: For cooking large quantities of food such
as moist cakes, pastries, frozen food etc,or for collecting
fat/ spillage and meat juices.
To ensure the oven shelves operate safely, correct placement
of the shelves between the side rails is imperative. This will
ensure that during careful removal of the shelf or tray, hot food
items should not slide out.
BULB REPLACEMENT
The bulb in the light is a special bulb, and has high temperature resistance (240V~25W).
For replacement, proceed as follows:
1>.Disconnect power from the mains outlet or switch off the circuit breakerof the unit's mains outlet.
2>.Unscrew the covering glass and replace the bulb with a new one
of the same type.
3>.Screw the covering glass back in place.
7

Thi
s
pro
c
1、
F
of t
h
ste
p
vert
i
rem
tabl
e
Fig
u
2、
A
up
w
co
m
atte
n
s
door is r
e
c
edure is as
F
irstly as sh
o
h
e door hing
p
1 of Figur
e
i
cally as sh
o
ove the doo
r
e
horizontall
y
u
re1-1
A
s shown in
w
ard, use an
o
m
e out from
t
n
tion to the
c
e
movable d
o
below:
o
wn in figure
e, then clos
e
e
1-2, use t
w
o
wn in step
r
from the s
o
y
after remo
v
Figure 2-1,
o
ther hand t
o
t
he socket.
R
c
lip spring w
h
o
or, also in
1-1, open th
e
e
the door u
n
w
o hands to
2, then tur
n
o
cket for the
v
al.
F
pull the inn
e
o
press on t
R
emove the
h
ile cleanin
g
ner glass i
s
e
oven door
n
til the door
hold the si
d
n
the oven
d
hinge as sh
o
F
igure1-2
e
r glass do
w
he outer gla
s
inner glass
g
to avoid th
e
Figure2-1
Figure 2-2
s
removabl
e
to maximum
is touching
t
d
es of the o
v
d
oor in the
d
o
wn in Figur
e
w
nward, at t
h
s
s, then the
as shown i
n
e
hand being
e
constructi
o
position, sti
r
t
he toggle c
o
v
en door an
d
irection sh
o
e
1-3. Put th
h
e same ti
m
clip spring
o
n
figure 2-2
f
cut.
o
n, the re
m
r
the toggle
c
o
ver as sho
w
d raise it 2-
3
o
wn in step
e oven door
Figure
m
e keep the
f
o
f inner glas
s
f
or cleaning.
m
oval
c
over
w
n in
3
mm
3 to
on a
1-3
f
orce
s
will
Pay
1
2
3
1
32
8

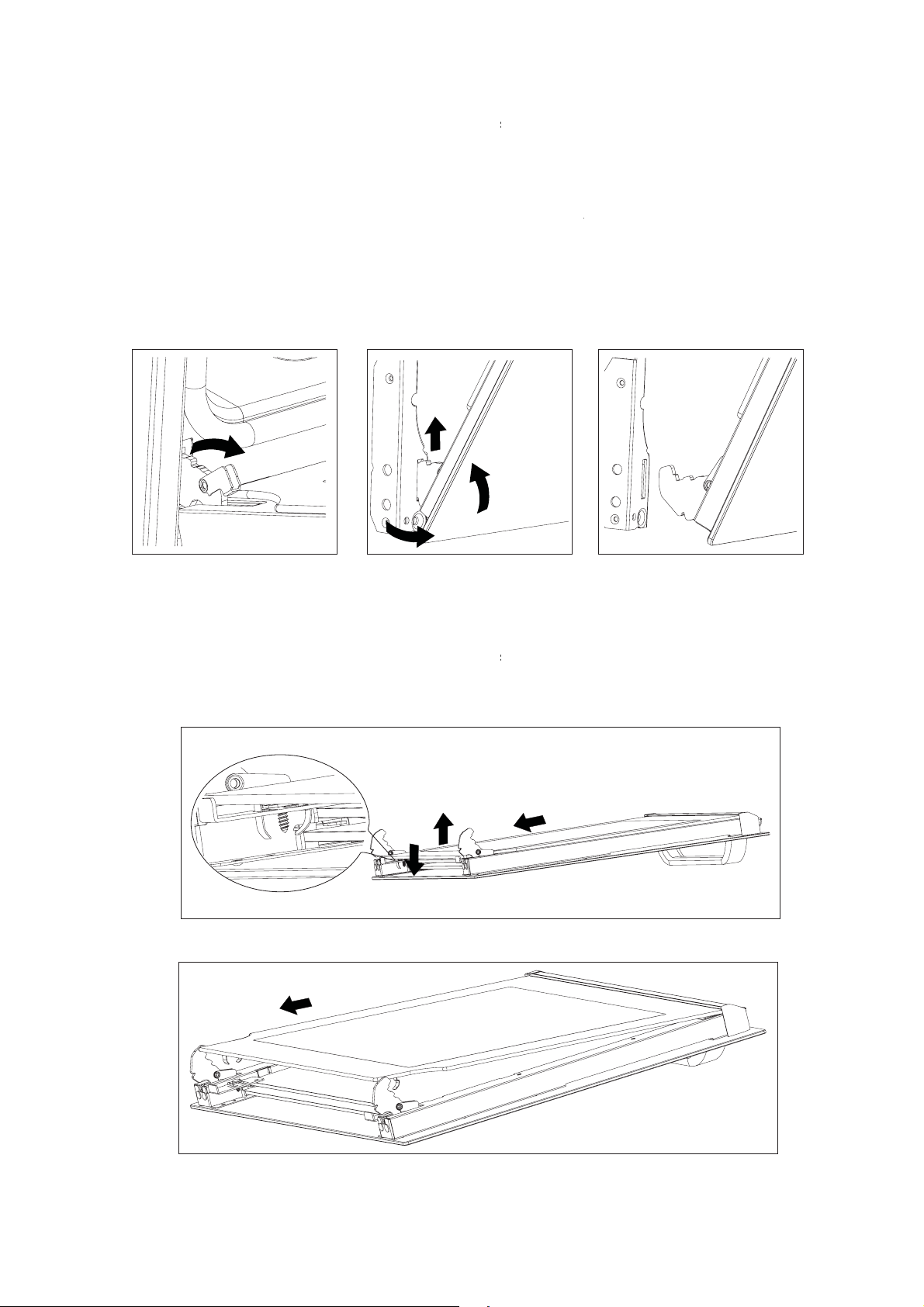

3、As shown in Figure 3-1, there are two layers between the door bracket and the rubber
bumper, the middle glass can be inserted into the empty area between the two layers. For
removal of the middle glass, user can refer to step 1 and step 2 shown in Figure 3-2, remove
the middle glass in layer 1 first, then follow the step 1 and step 2 shown in Figure 3-3 to
remove the middle glass in layer 2. After cleaning of the middle glasses, assemble the middle
glass in layer 2 and also the rubber bumper first, then assemble the middle glass in layer 1.
Check if the bumpers are well positioned after the installation of middle glass as shown in
Figure 3-1. In case if there is only 1 middle glass, then assemble the middle glass in layer 1.
Figure3-1
Figure3-2 Figure3-3
4、After installation of middle glass, follow step 2 to insert the inner glass from the oven door
top cover, press the inner glass after positioning to make the clip spring to be inserted to the
socket completely.
5、Assemble the door back the oven, stir the toggle cover of the hinges back, close the oven
door.

Layer1 Layer2
1
2
1
2
9

SECURING THE OVEN TO THE CABIET
1. Fit oven into the cabinet recess.
2. Open the oven door.
3. Secure the oven to the kitchen cabint with two distance
holders "A" which fit the holes in the oven frame and fit
the two wood screws "B".
CONNECTION OF THE OVEN
INSTALLATION
NOTE: The number of a accessories included depends on the particular appliance purchased.
10
L
N
575
595
595
560
600 850
50
80
250
100
570
600
560

For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit
facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to
be cleaned regularly.
Before any maintenance and cleaning, disconnect the power.
Set all controls in the OFF position.
Wait until the inside of the unit is not hot but only slightly warm- cleaning is easier than when warm.
Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry.
In case of heavy soiling, use hot water with non- abrasive cleaning product.
For cleaning the glass of the oven door,do not use abrasive cleaners or sharp metal scrapers, these
can scratch the surface or lead to the glass being damaged.
Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild
detergent.
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and
Electronic Equipment(WEEE).
By ensuring this product is disposed correctly, you will help prevent potential negative consequences for
the environment and human health,which could otherwise be caused by inappropriate waste handling
of this product. The symbol on the product indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical
and electronic equipment. Disposal must be carried out in accordance with local environmental
regulations for waste dispoasl.For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste disposal service or the shop
where you purchased the product.
CLEANING AND MAINTENANCE
11
PN:291800200228
