VALERII S & M GROUP PREMIUM 0503APESM1430 User manual

1
Проверил: Р.Ч./08.2017г.
Original Owner’s Manual
9AMP Electric Snow Thrower PREMIUM
0503APESM1430

2
Проверил: Р.Ч./08.2017г.
Read all safety rules and instructions carefully before operating this tool.
CONTENTS
Contents .......................................................................................................... 2
Product specifications ..................................................................................... 2
Safety information ........................................................................................ 3-4
Symbols ....................................................................................................... 5-6
Electrical ...................................................................................................... 7-8
Know your snow Thrower ............................................................................... 9
Assembly ................................................................................................. 10-11
Operation ................................................................................................. 12-13
Maintenance ............................................................................................ 14-18
Troubleshooting ............................................................................................. 19
Warranty ........................................................................................................ 20
Exploded View ............................................................................................... 21
Parts List................................................................................................... 22-23
PRODUCT SPECIFICATIONS
9 AMP ELECTRIC SNOW THROWER
Voltage .................................................................................. ....230~240V~/50HZ
Power...........................................................................................1300W
No-load speed .......................................................................... 3000 min-1
Clearing width ...........................................................................40 cm
Clearing depth ...........................................................................15 cm
Throw distance .............................................................................6 m
Net Weight ...................................................................................10.5 kg
Noise power level LWA................................................................105 dB (A)
Noise pressure level LPA ..............................................................87 dB (A)
Acceleration handle under load .....................................................7 m/s2

3
Проверил: Р.Ч./08.2017г.
SAFETY INFORMATION
FOLLOW THESE RULES WHILE OPERATING THE SNOW THROWER
I M P O R T A N T
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock,
fire, and/or serious personal injury.
• Walk. Do not run.
• Verify that the Snow Thrower is not in contact with anything before turning it on.
• Stay away from the discharge opening at all times. Keep face, hands, and feet away from concealed, moving, or rotating
parts.
• Be attentive when using the Snow Thrower, and stay alert for holes in the terrain and other hidden hazards or traffic.
• Do not use the Snow Thrower on a gravel or crushed rock surface. Use extreme caution when crossing gravel/crushed rock
drives, walks, or roads.
• Keep Children Away–All visitors should be kept a safe distance from work area.
• Dress Properly –Do not wear loose clothing or jewelry. They can be caught in moving parts.
• Wear rubber boots when operating the snow mover.
• Operation of the snow mover in the hand-held position is unsafe, except in accordance with the special instructions for such
use provided in the operator’s manual.
• Warning –To prevent electric shock use only with an extension cord suitable for outdoor use.
•Extension Cords –To prevent disconnection of snow mover cord from the extensioncord during operation.
i) Make a knot as shown in Figure1-1;
ii) Use one of the plug-receptacle retaining straps or connectors described inthis manual.
•Avoid Accidental Starting–Don’t carry plugged-in snow mover with finger on switch.Be sure switch is off when plugging in.
•If cord is damaged in any manner while plugged in, pull extension cord from wall receptacle.
•Don’t Abuse Cord–Never carry snow mover by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and
sharp edges. (Does not apply to battery operated snow movers.)
•Keep guards in place and in working order.
•Don’t Force Snow Mover –It will perform better and safer at the rate for which it was designed.
•Don’t Overreach –Keep proper footing and balance at all times.
•If the snow mover strikes a foreign object follow these steps:
i) Stop snow mover. Release the switch.
ii) Unplug power cord.
iii) Inspect for damage.
iv)Repair any damage before restarting and operating the snow mover.
•Disconnect Snow Mover–Disconnect the snow mover from the power supply when not in use, before servicing, when

4
Проверил: Р.Ч./08.2017г.
changing accessories, and the like.
•Store Idle Snow Movers Indoors –When not in use, snow movers should be stored indoors in dry, locked-up place –out of
reach of children.
•Hand your machine to a licensed serviceman. Replacement if any must be made with the same spare part to ensure the safety of the
machine after repair.
• Move up and down slopes when clearing snow. Do not go across a slope. Use caution when changing direction. Do not use
this Snow Thrower to clear snow from steep slopes.
SAFETY INFORMATION
• Do not attempt to use the Snow Thrower on a roof or on any steeply inclined slippery surface.
• Do not operate the Snow Thrower if the guards, plates, and other safety protective devices are not in place.
• Do not operate the Snow Thrower near glass enclosures, automobiles, trucks, window wells, drop-offs, etc. without properly
adjusting the angle of the snow discharge. Keep children and pets away from the work area.
• Do not force or overload the Snow Thrower. The Snow Thrower will perform better and safer when it is used at the rate that it
was designed to work at.
• Do not operate the Snow Thrower at high speeds on slippery surfaces. Look behind, and exercise caution when backing up.
• Do not direct the discharge toward people, and do not allow anyone to move in front of the Snow Thrower while it is in use.
• Wear safety glasses or goggles that meet ANSI Z87.1 standards, and wear ear/hearing protection when using this Snow
Thrower.
• Use the Snow Thrower in daylight or in good artificial light.
• Avoid accidental start-ups. Remain in the starting position when turning the Snow Thrower on. The operator and the Snow
Thrower must be in a stable position during start-up. See the section entitled Starting/Stopping Instructions.
• Use the proper tool. Only use this Snow Thrower for the purpose that it was designed for.
• Do not overreach. Always keep proper footing and balance.
• Hold the Snow Thrower with both hands while it is in use. Keep a firm grip on the handles or the grips.
• Keep hands, face, and feet away from all moving parts. Do not touch or try to stop the impeller while it is rotating.
• If the impeller does not rotate freely due to frozen ice, thaw the Snow Thrower thoroughly before attempting to use it.

5
Проверил: Р.Ч./08.2017г.
SAFETY INFORMATION
• Keep the impeller clear of debris.
• Do not attempt to clear the impeller while the motor is running or while the Snow Thrower is plugged in it. Turn the motor off
and unplug the Snow Thrower from the extension cord or the outlet.
• Keep clothing and body parts away from the moving parts.
• Do not operate the motor at a faster speed than necessary. Do not run the motor at high speed while not clearing snow.
• Stop the motor when snow clearing is delayed or when moving from one location to another.
• Unplug the Snow Thrower when it is being transported and when it is not in use.
• After striking a foreign object, turn the Snow Thrower off and unplug it, and then inspect it for damage. Repair any damage
before restarting and using the Snow Thrower.
•If the Snow Thrower starts to vibrate abnormally, stop the Snow Thrower immediately and attempt to determine the cause.
Vibration is generally an indication of danger.
• Stop the motor and unplug the Snow Thrower whenever the operator is not in the operating position, before unclogging the
impeller, and before making any repairs, adjustments, or inspections.
• Do not discharge snow onto public roads or near moving traffic.
• Allow the Snow Thrower to run for a few minutes after clearing snow in order to prevent moving parts from freezing.
• Use only the manufacturer's original replacement parts and accessories for this Snow Thrower. The use of unauthorized
parts or accessories could lead to serious injury to the user or damage the Snow Thrower, and will void the warranty.
• Do not use the Snow Thrower in the hand held position. Do not pick up the Snow Thrower while it is plugged and running.

6
Проверил: Р.Ч./08.2017г.
The Snow Thrower is designed to travel along the ground.
GENERAL SAFETY RULES
• Verify that the Snow Thrower is secure while transporting.
• Store the Snow Thrower in a dry area, locked up or high enough to prevent unauthorized use or damage, and out of the
reach of children.
• Do not douse or squirt the unit with water or any other liquid. Keep handles dry, clean, and free of debris. Clean the Snow
Thrower after each use. See the section entitled Cleaning and Storage.
• Keep these instructions in a safe place for future reference. Refer to them often, and use them to instruct other users.
Anyone who uses this Snow Thrower must read these instructions carefully.
• Maintain the Snow Thrower with care. Follow the instructions for lubricating and changing accessories.
SAVE THESE INSTRUCTIONS
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation
of these symbols will allow you to operate the product better and safer.
SYMBOL
NAME
DESIGNATION/EXPLANATION
V
Volts
Voltage
A
Amp
Current
Hz
Hertz
Frequency(cycles per second)
W
Watts
Power
min
Minutes
Time
~
Alternating Current
Type of current
Direct Current
Type or characteristic of current
no
No load speed
Rational speed, at no load
Class II Construction
Double-insulated construction
/min
Per Minute
Revolutions,.strokes,surface speed,
orbits etc., per minute
Wet Conditions Alert
Do not expose to rain or use in damp
locations

7
Проверил: Р.Ч./08.2017г.
Read The Operator's Manual
To reduce the risk of injury user must
read and understand operator's manual
before using this product.
Eye and Head Protection
Wear eye and head protection when
operating this equipment.
Ricochet
Thrown objects can ricochet and result
in personal injury or property damage.
Spinning Rotor
Danger-Keep hands and feet away from
spinning rotor. Spinning rotor can cause
severe injury.
Keep Hands and Feet Away
Keep hands, feet away from the
discharge area.
Keep Bystanders Away
Keep all bystanders at least 50ft away
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL
SIGNAL
MEANING
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not avoided,could
result in death or serious injury.

8
Проверил: Р.Ч./08.2017г.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided,may
result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service
we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. When servicing, use only
identical replacement parts.
W A R N I N G
To avoid serious personal injury, do not attempt to use this product until you have read this Owner's Manual thoroughly and
understand it completely.
W A R N I N G
The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in
severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with
side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask for use over
eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply
with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
ELECTRICAL

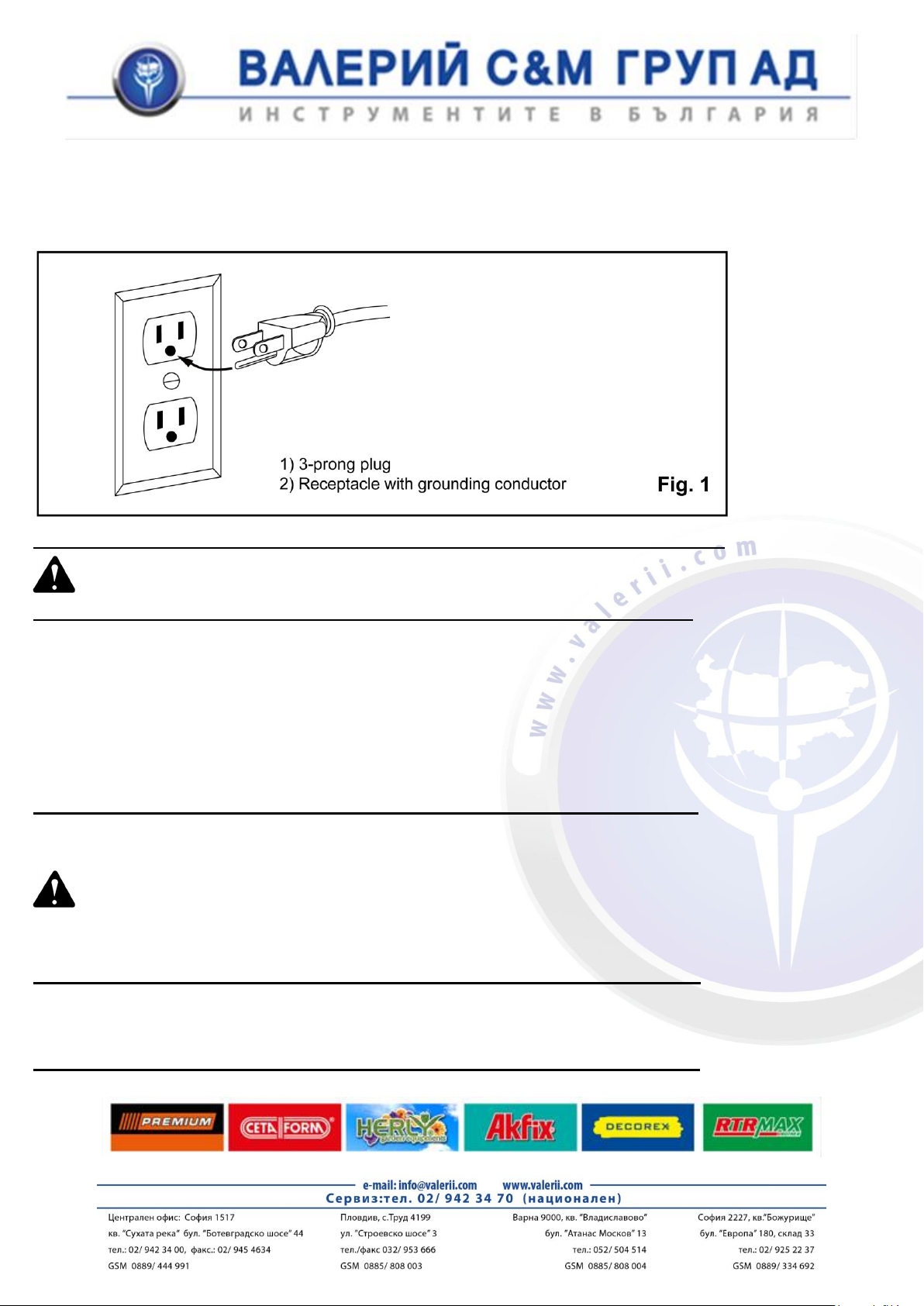

ELECTRICAL INFORMATION (See Figure 1)
W A R N I N G
To avoid electrical hazards, fire hazards, or damage to the tool, use proper circuit protection. The Snow Thrower is wired at
the factory for 120 V operation. Connect to a 120 V, 15 A circuit and use a 15 A time delayed fuse or circuit breaker. To avoid
shock or fire when the power cord is worn, cut, or damaged in any way, replace it immediately.

9
Проверил: Р.Ч./08.2017г.
This Snow Thrower has a 3-prong plug that is intended for use on a circuit that has a receptacle like the one illustrated in Fig.
1.
Do not modify the power cord plug. If it does not match the electrical outlet, have the proper outlet installed by a qualified
electrician.
W A R N I N G
To avoid injury, when servicing the Snow Thrower, use only identical replacement parts.
GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for electrical
current and reduces the risk of electric shock. This tool is equipped with an electric cord that has a POLARIZED plug. The
plug MUST be plugged into a matching outlet that is properly installed and grounded in accordance with ALL local codes and
ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet
installed by a qualified electrician.
EXTENSION CORD
W A R N I N G
In order to reduce the risk of electric shock when operating this Snow Thrower, use only a CSA listed extension cord that is
approved for outdoor use, such as Type SJTW, 16AWG, and that has a lower temperature rating of -40° F (-40° C).
ELECTRICAL

10
Проверил: Р.Ч./08.2017г.
•Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) that will be used for this
Snow Thrower. For an extra measure of safety, use a receptacle that has built-in GFCI protection.
• The nameplate on the Snow Thrower indicates the voltage used. Do not connect the Snow Thrower to an AC circuit that
provides a different voltage from the voltage that is indicated on the nameplate.
MINIMUM GAOUGE FOR EXTENSION CORDS(AWG)
(WHEN USING 120V ONLY)
Amp Rating
Total Length of Cord in Feet (meters)
More than
Not more tan
25'(7.6m)
50'(15m)
100'(30.4m)
150'(45.7m)
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Recommended
[Use the same format for the table as found in the file entitled "Recommended size of extension cords".]
W A R N I N G
In order to prevent electric shock, use an extension cord that is suitable for outdoor use.
• Inspect the extension cord and the power cord on a regular basis. Look for deterioration, cuts, or cracks in the insulation.
Inspect the connections for damage. Repair or replace the extension cord or the power cord if any damage is found.
• Verify that the rotor and all moving parts have come to a complete stop, and disconnect the Snow Thrower from the power
supply in order to prevent accidental start-ups before cleaning or performing any inspections or repairs.
• Do not abuse the extension cord. Do not carry the Snow Thrower by the power cord or pull on the cord in order to disconnect
it from the receptacle.
• Keep the extension cord away from heat, oil, and sharp edges in order to prevent damage.
• If the extension cord is damaged in any manner while it is plugged in, disconnect it from the outlet immediately.
• Avoid accidental start-ups. Do not carry the Snow Thrower with a finger on the switch while it is plugged in. Verify that the
switch is in the "OFF" position before plugging in the Snow Thrower.
• Unplug the Snow Thrower and allow it to cool down before putting it into storage. Store the Snow Thrower indoors.
• Unplug the Snow Thrower when it is not in use and before performing any maintenance or repairs.
SAVE THESE INSTRUCTIONS
KNOW YOUR SNOW THROWER

11
Проверил: Р.Ч./08.2017г.
Read this operator's manual and safety rules before operating your snow thrower. Compare the illustration in
Figure 2 to your snow thrower in order to familiarize yourself with the location of various controls and adjustments.
Save this manual for future reference.
ASSEMBLY INSTRUCTIONS
UNPACKING
This product has been shipped completely assembled.
• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list
are included.

12
Проверил: Р.Ч./08.2017г.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
PACKING LIST
• Snow thrower
• Discharge directional control(upper)
• Chute deflector
• Owner's Manual
W A R N I N G
If any parts are damaged or missing, do not operate this product until the parts are replaced.
Failure to heed this warning could result in serious personal injury.
W A R N I N G
Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting
and possible serious personal injury.
W A R N I N G
Do not attempt to modify this product or create accessories not recommended for use with this product. Any such
alteration or modification is misuse, and could result in a hazardous condition leading to possible serious personal
injury.
ASSEMBLY INSTRUCTIONS
W A R N I N G
Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
W A R N I N G
Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could
result in objects being thrown into your eyes, resulting in possible serious injury.

13
Проверил: Р.Ч./08.2017г.
W A R N I N G
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of
attachments or accessories not recommended can result in serious personal injury.
ASSEMBLING THE HANDLE (See Figure 3)
•Remove any packing material that may have been inserted between the upper and lower handles for shipping
purposes.
•Align the holes (4) on the upper handle (1) with the holes on the middle handle (2). Insert the bolts (5), and use
the lock knobs (6) to tighten them, do not forget the washer (13).
•Align the holes (7) on the middle handle (2) and the lower handle (3). Insert the bolts (5), and tighten them using
the lock knobs (6) provided,the washer (13).
ASSEMBLING THE DISCHARGE DIRECTIONAL CONTROL (See Figure 3)
•Align the holes (11) on the upper tubing (8) with the holes on the lower tubing (9). Insert the screw (10) and
tighten them using the nut(12) .
OPERATING INSTRUCTIONS
STARTING THE SNOW Thrower
W A R N I N G

14
Проверил: Р.Ч./08.2017г.
Avoid accidental start-ups. Verify that the operator is in the starting position when using the snow Thrower. In order
to avoid serious injury, the operator and unit must be in a stable position when starting the Snow Thrower.
Follow this sequence exactly in order to start the Snow Thrower.
• Verify that the Snow Thrower is plugged in.
• Press and hold the lock-out button.
• While holding the lock-out button, lift and hold the trigger switch.
NOTE: The Snow Thrower will not start if the lock-out button is not held until the trigger switch is lifted.
STOPPING THE SNOW THROWER
• Release the trigger switch.
• The lock-out button will pop out, and the Snow Thrower will stop.
USING THE SNOW THROWER
• Start the Snow Thrower by following the Starting instructions. The depth and weight of the snow will determine
the forward speed.
• Push the Snow Thrower forward so that it rides on the scraper.
• Verify that the power cord is attached to the cord retainer and that it rests on the guide bar. The power cord
should trail to the side of the operator.
OPERATING INSTRUCTIONS
ADJUSTING THE DIRECTION OF DISCHARGE (See Figures 4-5)
Snow can be discharged to the left, straight ahead, or to the right of the operator.
Follow these instructions in order to change the direction of the discharge:
• Release the switch bar in order to stop the rotor.
NOTE: The control stick can revolve 720°.
NOTE: From the center position, the discharge directional control turns approximately 360° in either direction
(clockwise or counter-clockwise). Do not force it.
• Turn the discharge directional control clockwise 360°. The vanes will turn approximately
45° to the left .
• Turn the discharge directional control counter-clockwise 360°. The vanes will turn
approximately 45° to the right.

15
Проверил: Р.Ч./08.2017г.
TIPS FOR BEST SNOW THROWING RESULTS
• For the most efficient snow throwing, keep the vanes parallel, and throw the snow in the
direction of the wind.
• Slightly overlap each swath when clearing snow.
MAINTENANCE
SERVICING
Servicing should be performed by a qualified technician. Replacement parts for this Snow Thrower must be
identical to the parts that they replace.

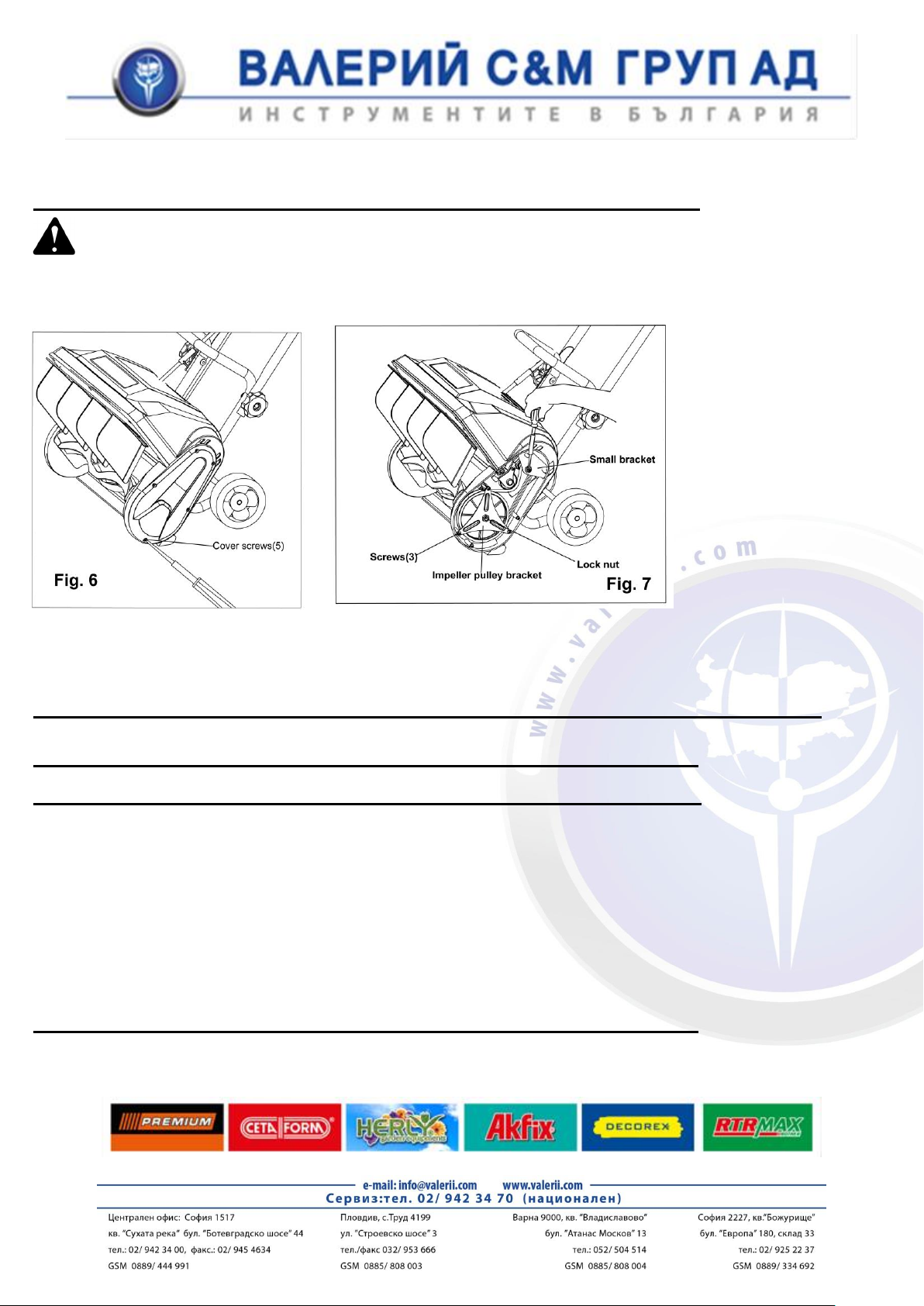

INSPECTING/REPLACING THE DRIVE BELT (See Figures 6-8)
When servicing the Snow Thrower, use only the manufacturer's original replacement parts.
Inspect the drive belt for wear once per year or every 50 hours of operation, whichever comes first. If the drive belt
needs to be replaced, follow these steps.
W A R N I N G
In order to avoid serious personal injury, turn off the Snow Thrower and allow it to cool down. Unplug the Snow
Thrower before performing any maintenance.
• Remove the five (5) screws from the belt cover using a screwdriver (Fig. 6).

16
Проверил: Р.Ч./08.2017г.
• Remove one screw and the small bracket. (Fig. 7) .
• Remove the lock nut and the three (3) screws (Fig. 7) .
• Remove the impeller pulley bracket using a washer or nut driver (Fig. 7).
W A R N I N G
In order to reduce the risk of electric shock, replace the cover before connecting the Snow Thrower to a power
source.
•Pull the belt tensioner
(idler arm) away from the
drive pulley. Remove the
damaged or
broken belt from the
impeller pulley and the
drive pulley inside the
housing. Discard the
belt in the proper manner
(Fig. 8).
•Loop the new belt
around the drive pulley
and the impeller pulley (Fig. 8). Pull the belt
tensioner (idler arm) away from the drive pulley in order to install the belt around the drive
pulley.
NOTE: Verify that the washer is still in place on the impeller pulley shaft before reinstalling the belt cover.
MAINTENANCE
• Reinstall the impeller pulley bracket with the three (3) screws.
• Reinstall the lock nut. Tighten the nut.
• Reinstall the belt cover with the five (5) screws. In order to facilitate the installation,
position the narrow part of the cover into the recess of the housing and install the two top
screws, and then push the rest of the cover down into the recess and over the rotor shaft.
Tighten all five (5) screws.
NOTE: If the flange lock nut is damaged, do not replace it with a standard nut. Use only the manufacturer's original
replacement parts.

17
Проверил: Р.Ч./08.2017г.
W A R N I N G
When fitting the belt back into the main housing, verify that the belt is positioned to the right of the Drive Belt
Retainer. If the belt is positioned to the left of the Drive Belt Retainer, serious damage may occur.
MAINTENANCE

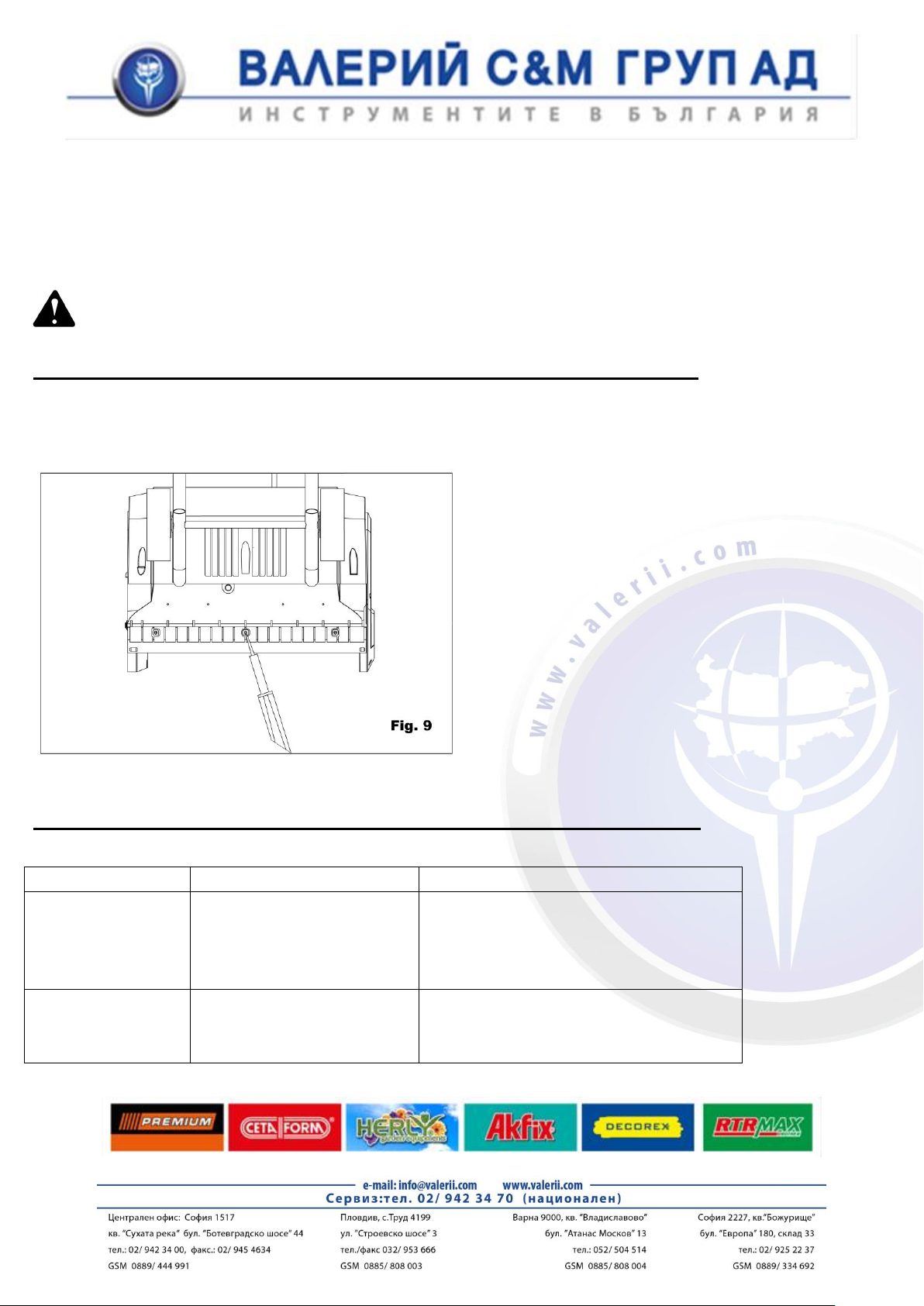

REPLACING THE SCRAPER (See Figure 9)
W A R N I N G
In order to avoid serious personal injury, turn off the Snow Thrower and unplug it before performing any
maintenance.
Use only the manufacturer's original replacement parts.
• Place the Snow Thrower on the ground or on a work bench. Position the Snow Thrower so that the impeller is
facing up.
• Remove the three (3) screws that are located beneath the impeller that secure the scraper to the housing using a
phillips screwdriver (Fig. 9)
• Remove the scraper, and discard it in the proper manner.
• Snap the new scraper into position, and attach it to the Snow Thrower by reinstalling the
three (3) screws. Tighten the screws.
STORAGE

18
Проверил: Р.Ч./08.2017г.
• Allow the motor to cool down before storing.
• Store the Snow Thrower in a locked location in order to prevent unauthorized use or damage.
• Store the Snow Thrower in a dry, well-ventilated area.
• Store the Snow Thrower out of the reach of children.
CLEANING
W A R N I N G
In order to avoid serious personal injury, turn off the Snow Thrower and unplug it before cleaning or servicing.
Use a small brush to clean the outside of the Snow Thrower. Do not use strong detergents.
Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene can
damage the plastic housing and handles. Wipe off any moisture using a soft cloth.
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SOLUTION
The handle is not
in position
The carriage bolts are not
properly seated.
Adjust the height of the handle, and
verify that the carriage bolts are properly
seated.
Tighten the knobs.
The snow thrower
does not start
The snow thrower is
unplugged.
Verify that the snow thrower is
plugged into an electrical outlet.

19
Проверил: Р.Ч./08.2017г.
The lock-out button or
trigger switch were not
used properly.
Press and hold the lock-out button,
and then lift and hold the trigger
switch(see the section entitled
starting the snow thrower)
The motor is on,
but the rotor does
not run.
The belt is damaged.
Replace the belt(see the section
entitled Inspecting/Replacing the
drive belt)
The snow thrower
leaves a thin layer
of snow behind.
The scraper is worn.
Replace the scraper( see the section
entitled Replacing the scraper).
LIMITED FOUR-YEAR WARRANTY
Hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (2) years
against defects in materials, parts or workmanship.
At its own discretion will repair or replace any and all parts found to be defective, through normal use, free of
charge to the customer. This warranty is valid only for units which have been used for personal use that have not
been hired or rented for industrial/commercial use, and that have been maintained in accordance with the
instructions in the owners' manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident, improper
maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in accordance with the owner's manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior finish due to use or exposure.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the
purchaser. It is the purchaser's responsibility to pay transportation charges for any part submitted for replacement
under this warranty unless such return is requested in writing.
The product, accessories and packaging must be sorted for recycling.

20
Проверил: Р.Ч./08.2017г.
Only for countries in the EU
Do not dispose of work equipment with household waste. According to the European Directive 2002/96 / EC on
waste electrical and electronic equipment and its implementation under national law, work machines that are no
longer usable must be separately collected and disposed of in a natural manner.
EXPLODED VIEW
