Valor Fires 954 Instructions for use

5129520/02
© Baxi Heating U.K. Limited 2007.
Model954
Inset live fuel effect gas fire
Incorporating the VALOR FIRES CONTROL
Fitted with one of the following fascia.
BROOKLYN, CHIC, ENVY, HERITAGE,
LUXOR, MOONLIGHT, OPULENT or
WESTMINSTER SLIMLINE.
(G.C. Number 32-032-69)
We trust that this guide gives
sufficient details to enable this
appliance to be installed, operated
and maintained satisfactorily.
However, if further information is
required, our
Valor Fires Technical Helpline will
be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
INSTALLER: Please leave this guide with the owner
INSTALLER AND OWNER GUIDE

© Baxi Heating U.K. Limited 2007.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited,
The Wyvern Business
Park, Stanier Way, Derby, DE21 6BF.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Valor Fires, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
Page 2
© Baxi Heating U.K. Limited 2007.
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
INSTALLER GUIDE

Safety First.
Valor Fires fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Valor Fires fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
The Highest Standards
Valor Fires is a member of SBGI and HHIC (Heating and Hot water Industry Council)
which works to ensure high standards of safety, quality and performance.
Careful Installation
Valor Fires is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Page 3
© Baxi Heating U.K. Limited 2007.
INSTALLER GUIDE

Page 4
© Baxi Heating U.K. Limited 2007.
INSTALLERGUIDE
FOR OWNER GUIDE SEE PAGES 45 TO 59
INSTALLER GUIDE

CONTENTS
Section Heading Page
INSTALLER GUIDE 4 - 44
OWNER GUIDE 45 - 59
1. SAFETY 6
2. APPLIANCE DATA 7
3. GENERAL INSTALLATION REQUIREMENTS 9

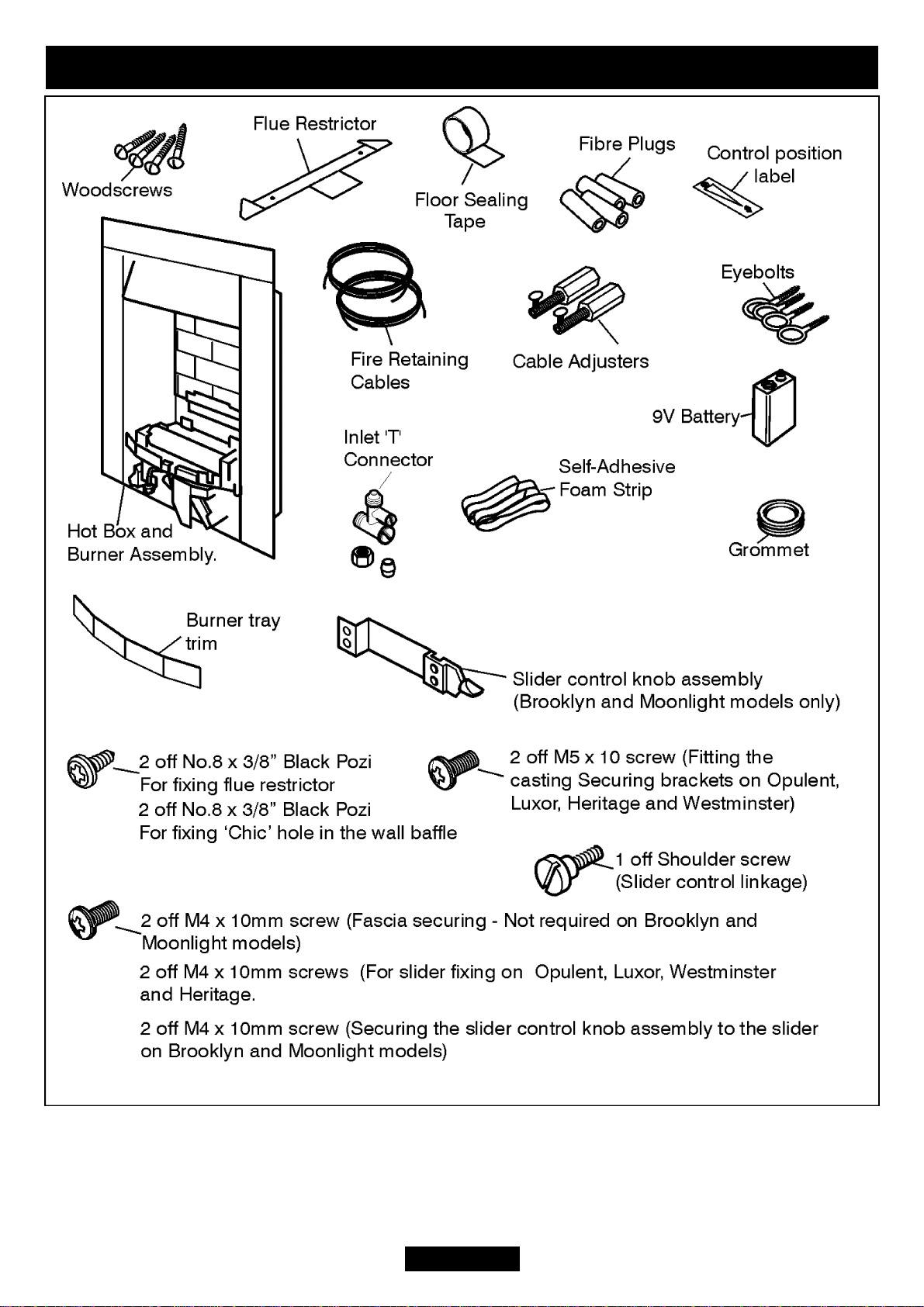

4. PACK CONTENTS 18
5. FIREPLACE CHECK 21
6. IGNITION CHECK 22
7. GAS SUPPLY CONNECTION 23
8. PREPARING APPLIANCE FOR INSTALLATION 24
9. HOTBOX INSTALLATION 25
10. BURNER INSTALLATION 28
10.1 Burner and supply pipe installation. 28
10.2.1 Lighting the burner. 28
10.2.2 Operating the burner. 28
10.3 Inlet pressure check. 28
10.4 Fitting the burner tray trim to the Chic model. 29
11. FITTING THE FASCIA 30
12. FITTING THE CERAMIC FUEL EFFECT 33
13. FULL OPERATING CHECKS 34
14. SPILLAGE & FLAME SUPERVISION CHECKS 35
15. FINAL REVIEW 36
16. SERVICING & PARTS REPLACEMENT 37
16.1 Checking the aeration setting of the burner. 38
16.2 To remove the ignition microswitch. 38
16.3 To remove the gas shut-off microswitch. 39
16.4 To remove the fascia. 39
16.5 To replace the slider control button. 40
16.6 To remove the burner unit. 40
16.7 To remove the electronic ignition generator. 41
16.8 To remove the thermocouple interrupter block. 41
16.9 To remove the pilot unit. 41
16.10 To remove the shut-off tap. 42
16.11 To remove the gas flow rate controller. 43
16.12 To replace the burner. 43
16.13 To remove the main burner injector. 44
16.14 To remove the appliance from the fireplace. 44
Page 5
© Baxi Heating U.K. Limited 2007.
INSTALLER GUIDE

1. SAFETY
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling.
!The approximate lifting weight of this appliance is as below:-
Model Hotbox and burner assembly (kg) Fascia (kg)
Brooklyn 5.7 3.2
Chic 5.7 4.1
Envy 5.7 3.11
Heritage 5.7 11.13
Luxor 5.7 12.5
Moonlight 5.7 3.2
Opulent 5.7 12.5
Westminster 5.7 8.2
!
One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
!
When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!
Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
!Use gloves to provide additional grip.
!Always use assistance if required.
Page 6
© Baxi Heating U.K. Limited 2007.
INSTALLER GUIDE

2. APPLIANCE DATA
This product uses fuel effect pieces and a burner compartment rear wall
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous
silicate fibres. Excessive exposure to these materials may cause irritation to
eyes, skin and respiratory tract. Consequently, it is important to take care when
handling these articles to ensure that the release of dust is kept to a minimum.
To ensure that the release of fibres from these RCF articles is kept to a
minimum, during installation and servicing we recommend that you use a HEPA
filtered vacuum to remove any dust and soot accumulated in and around the
fire before and after working on the fire. When replacing these articles we
recommend that the replaced items are not broken up, but are sealed within a
heavy duty polythene bag, clearly labelled as RCF waste. RCF waste is classed
as a stable, non-reactive hazardous waste and may be disposed at a landfill
licensed to accept such waste. Protective clothing is not required when
handling these articles, but we recommend you follow the normal hygiene rules
of not smoking, eating or drinking in the work area and always wash your
hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos
or asbestos related products.
* When converted using Kit 0595221
The appliance information label is located on a plate at the base of the fire. This can
be seen by removing the lower hanging trim / firefront casting.
Page 7
© Baxi Heating U.K. Limited 2007.
Gas Natural (G20) Propane (G31) *
Inlet Pressure 20mbar 37mbar
Input - Max. (Gross) 6.0kW (20,500Btu/h) 6.1kW (20,800Btu/h)
Input - Min. (Gross) 2.7kW (9,212Btu/h) 4.3kW (14,670Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar (8.0 ± 0.4in
w.g.)
37.0 ± 1.0 mbar (14.85 ±
0.4in w.g.)
Gas Connection 8mm pipe 8mm pipe
Burner Injector Cat 82 - 069 Stereomatic Size 128
Pilot & Atmosphere Sensing
Device Copreci Ref. O.D.S 21500/166
Copreci Ref. O.D.S
21500/166 Fitted with RBM
180 - 02 injector
Ignition Electronic
(Battery 9V PP3) Electronic (Battery 9V PP3)
Aeration See section 16.1 Non-adjustable
INSTALLER GUIDE

The efficiency of this appliance has been measured as specified in BS 7977 - 1 and
the result is as below :
Model
Efficiency % (Gross)
954 51
954 when converted to LPG. 54
The gross calorific value of the fuel has been used for this efficiency calculation. The
test data from which it has been calculated has been certified by Advantica
Certification services (0087). The efficiency value may be used in the UK
Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.
The conversion of net efficiency to gross was achieved by multiplying the net
efficiency by the following conversion factor from Table E3 of SAP 2005, rounding
down to the nearest whole number.
Page 8
© Baxi Heating U.K. Limited 2007.
Gas Conversion factor from net to gross efficiency
Natural Gas 0.901
LPG 0.921
INSTALLER GUIDE

3. GENERAL INSTALLATION REQUIREMENTS
3.1 The installation must be in accordance with this guide.
For the user’s protection, in the United Kingdom it is the law that all gas appliances
are installed by competent persons in accordance with the current edition of the Gas
Safety (Installation and Use) Regulations. Failure to install the appliance correctly
could lead to prosecution. CORGI requires its members to work to recognised
standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards: -
BS 715
BS EN 1856 Part 1
BS EN 1858 which replaces BS 1289 Part 1
BS EN 1806 which replaces BS 1289 Part 2
BS EN 1856 Part 1 which replaces BS 4543 Part 2
BS 5440 Part 1
BS 5440 Part 2
BS 6461 Part 1
BS 1251
BS EN 1806
BS 5871 Part 2
BS 6891
In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office
In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
In Northern Ireland, the current edition of the Building regulations (Northern Ireland)
issued by the Department of the Environment for Northern Ireland.
In the republic of Ireland the installation must be carried out by a competent person
and installed in accordance with:
a) The current edition of IS 813 “Domestic gas installations”
b) All relevant national and local rules in force.
c) The current building regulations
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
Page 9
© Baxi Heating U.K. Limited 2007.
INSTALLER GUIDE

Page 10
© Baxi Heating U.K. Limited 2007.

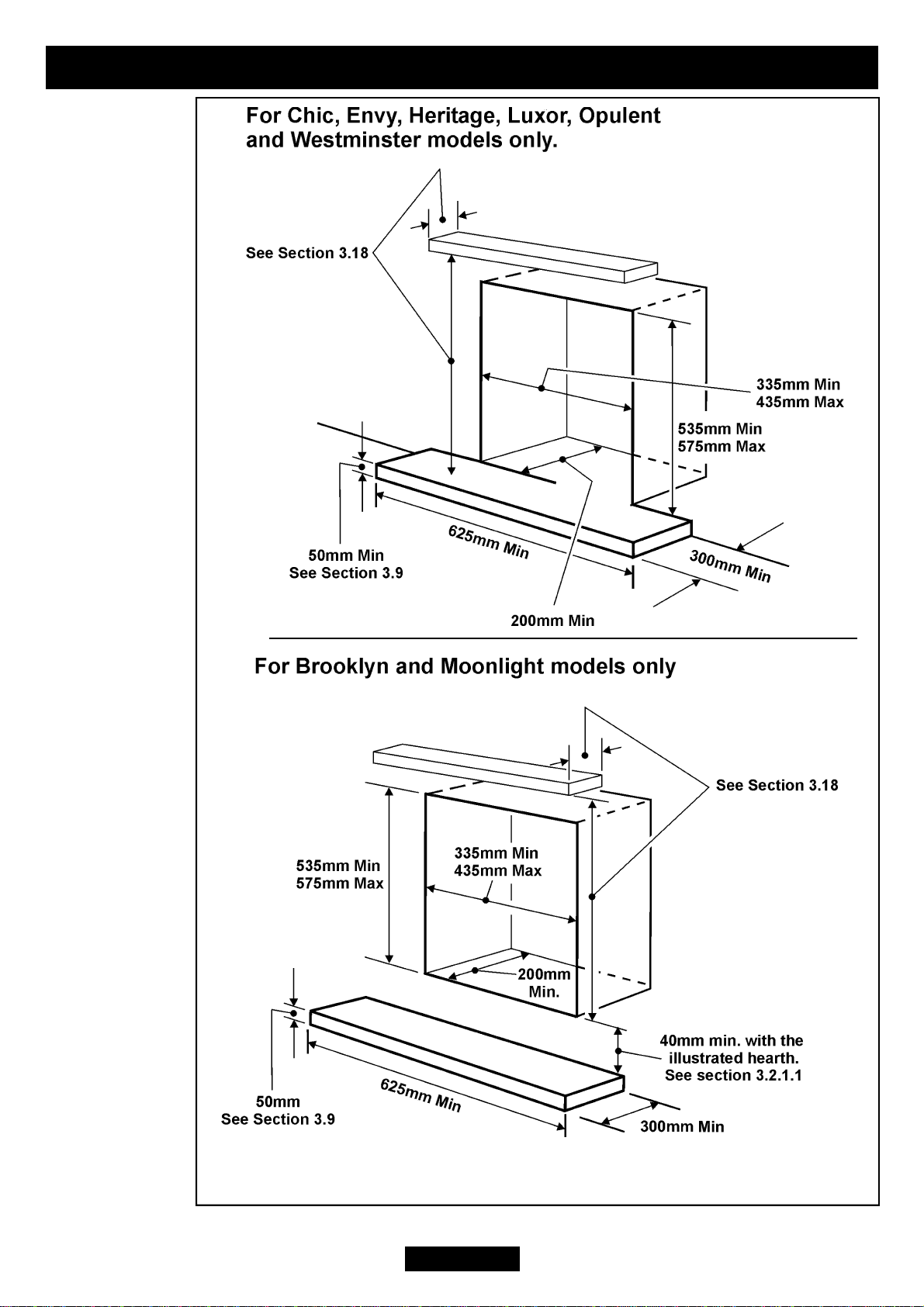

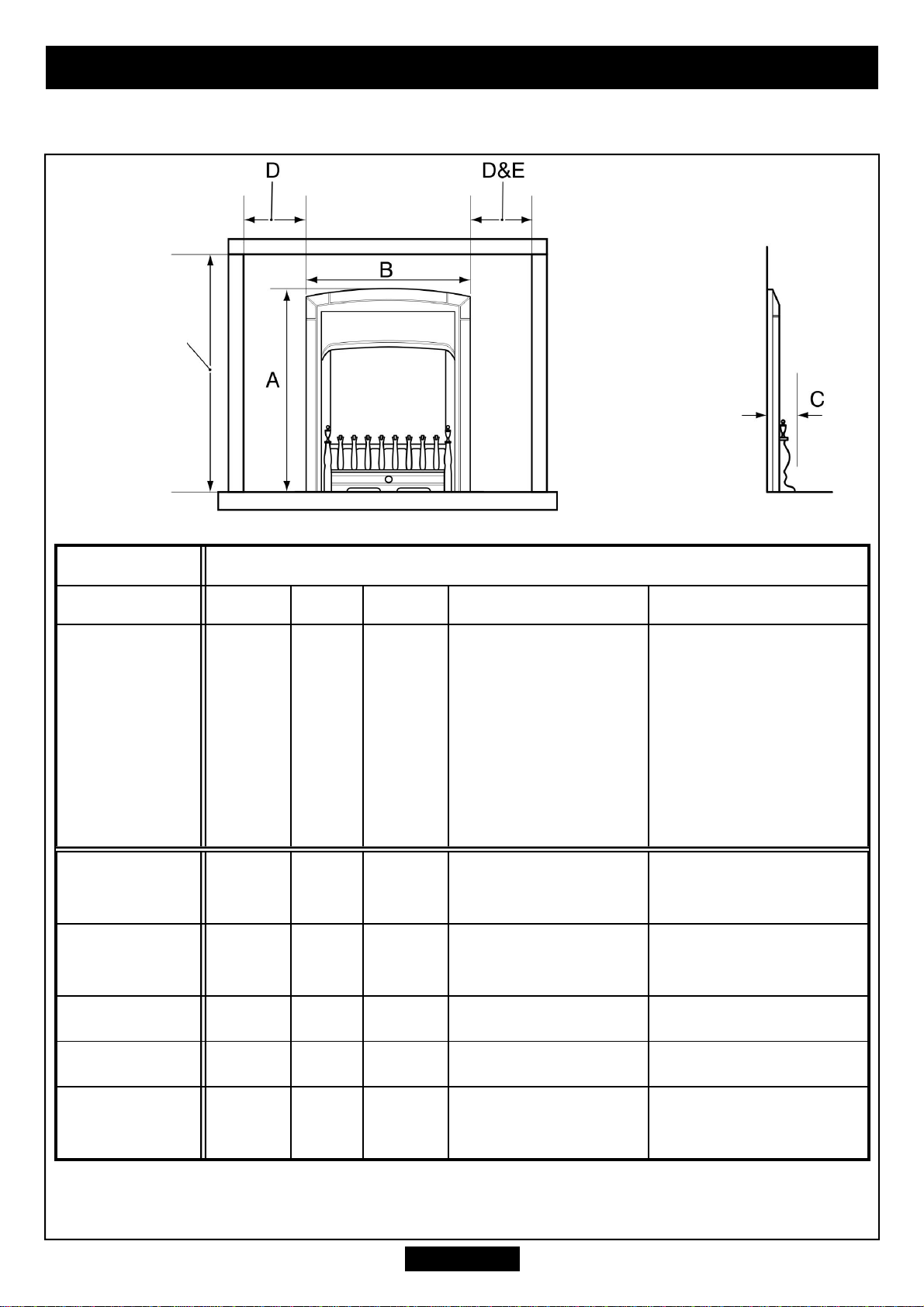

Figure 1. Hearth and fireplace opening dimensions
INSTALLER GUIDE
