Valor Glendale Dimension Stove 0585101 User manual

The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC)
EN55014, EN60555-2 and EN60555-3. These cover the essential requirements of EEC Directives 2006/95/EC and 2006/108/EC
08/52927/0 Issue 2

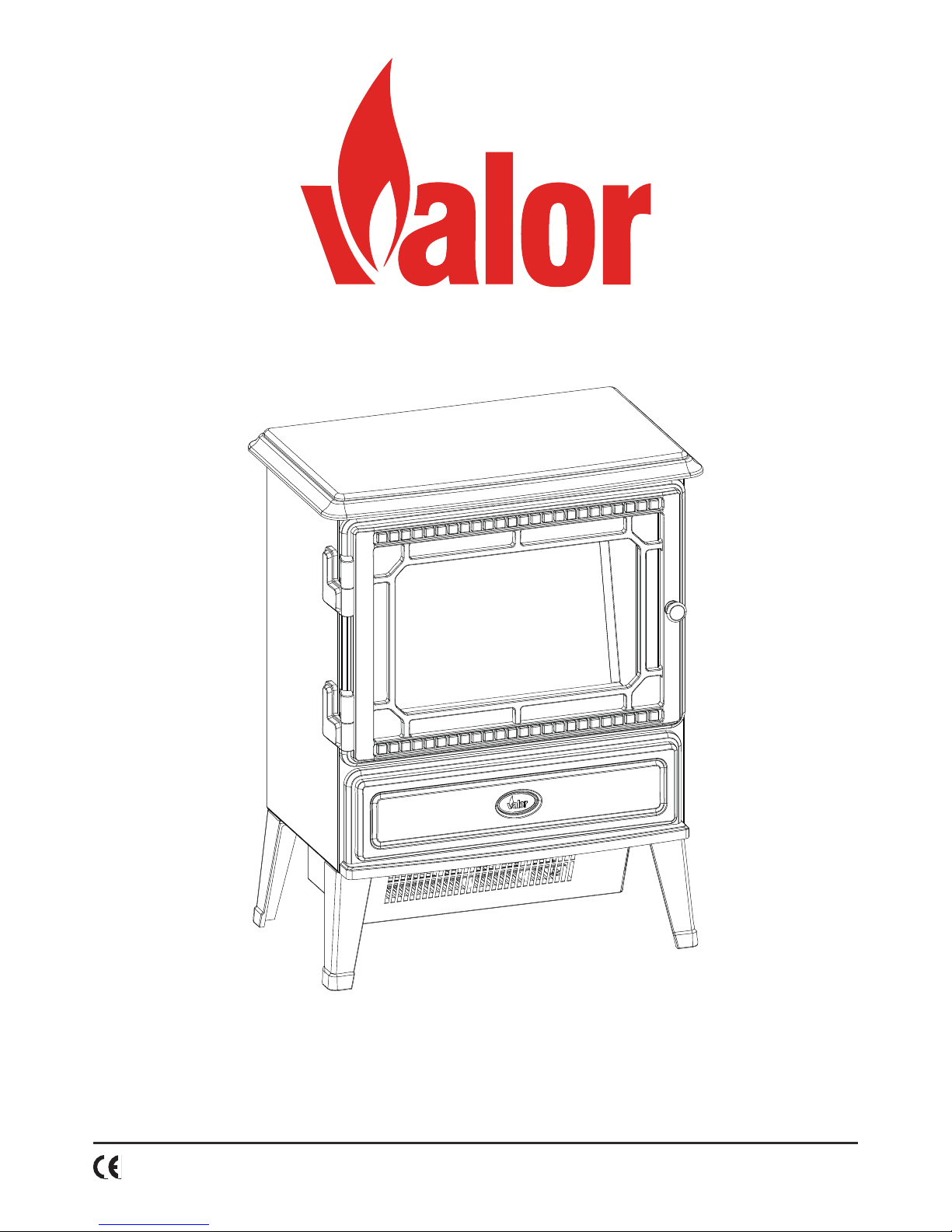

Glendale Dimension Stove
DIMENSION ELECTRIC RANGE

Valor Dimension Stove
Introduction
Thank you for choosing this Valor electric fire. Please read this information guide carefully in order to safely install, use
and maintain your product.
Important Safety Advice
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock
and injury to persons, including the following:
1. OVERHEATING
WARNING: In order to avoid overheating, do not cover the heater. Do not place material or garments on the heater, or
obstruct the air circulation around the heater. The heater carries a DO NOT COVER warning.
2. DAMAGE.
If the appliance is damaged, check with the supplier before installation and operation.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person in
order to avoid a hazard.
3. LOCATION
Do not use outdoors.
Do not use in the immediate surroundings of a bath, shower or swimming pool.
Do not locate the heater immediately below a fixed socket outlet or connection box.
Ensure that furniture, curtains or other combustible material are positioned no closer than 1 metre from the heater.
Although this heater conforms with safety standards, we do not recommend its use on deep pile carpets or on long hair
type of rugs.
4. PLUG POSITIONING
The appliance must be positioned so that the plug is accessible.
Keep the supply cord away from the front of the heater.
5. USE OF OTHER CONTROLS
Do not use this heater in series with a thermal control, a program controller, a timer or any other device that switches on
the heat automatically, since a fire risk exists when the heater is accidentally covered or displaced.
6. UNPLUGGING
In the event of a fault unplug the device.
Unplug the device when not required for long periods.
7. OWNER/USER
WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small
rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision
is provided.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by Children without supervision.
Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less
than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction concerning use of the appliance in a safe way
and understanding the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate
and clean the appliance or perform user maintenance.
CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be
given where children and vulnerable people are present.
8. ELECTRICITY
WARNING – THIS APPLIANCE MUST BE EARTHED.
This heater must be used on an AC ~ supply only and the voltage marked on the heater must correspond to the supply
voltage.
Before switching on, please read the safety advice and operating instructions.
General Information
This model is designed to be free standing and is normally positioned near a wall.
Always ensure that the appliance is sitting on a level surface.
Please note: If used in an environment where background noise is very low, it may be possible to hear a sound which is
related to the operation of the flame effect. This is normal and should not be a cause for concern.
If this product experiences a power surge for whatever reason, the product may cut-out. This is a normal safety feature
and the product will resume operation after 30 seconds.

Installation Instructions
This section describes how to set up your fire.
Before installing this appliance in an existing chimney, we recommend that;
1. You have your chimney cleaned by a competent chimney sweep.
2. You block off the chimney flue.
This procedure is important for the efficient operation of the heating unit and will also reduce heat loss up the chimney.
BEFORE YOU START
1. Ensure that all packing items are removed (read any warning labels carefully) and retain all packing for possible future
use e.g. in the event of moving house or returning the appliance to your supplier.
2. Before connecting the stove, check that the supply voltage is the same as that stated on the heater.
INSTALLATION
Place the stove against a wall and connect the stove to your electricity supply.
Connect the power cable to the appropriate power connector at the back of the fire
Plug the power cable into a 13amp/240volt outlet.
Operating the Fire
This section describes how to activate your fire using either the manual controls or remote control.
MANUAL CONTROLS
The manual controls are located inside the stove door on the right hand side. Open the door to access the controls. (See
Fig. 2a for Manual Control layout)
The main switch controls the electricity supply to the Fire.
The switch can be pressed on either side. Please see the table below for the functions that correspond to the switching
sequence.
Switch Operation Setting Visual Indication
Press Once LED Hologram Effect On Flame panel illuminated
Press Once LED Hologram & Flame Effect On Flame movement within flame panel
Press Again Flame Effect & Half Heat On 1 Red LED behind flame panel
Press Again Flame Effect & Full Heat On 2 Red LED’s behind flame panel
Press Once Fire is turned off Flame panel becomes darkened
Two Red LED’s as shown in Fig. 2b are located behind the flame panel and indicate the heat setting of the fire. These
LED’s illuminate when a heat setting is selected and remain illuminated for aproximatly 3 seconds.
- One illuminated LED corresponds to Half Heat - 900 Watts
- Two illuminated LED’s correspond to Full Heat - 1800 Watts
REMOTE CONTROL OPERATION
The two buttons on the remote control operate in the same way as the manual switch located inside the stove door.
Operation of the remote control buttons correspond to the switching sequence in the above table.
Please note that it takes time for the receiver to respond to the remote control. Do not press the buttons more than once
within two seconds for correct operation.
Battery Information
1. Unclip the battery cover on the back of the remote control. (Fig. 3)
2. Install AAA batteries into the remote control, making sure to orient the positive and negative terminals correctly.
3. Replace the battery cover.
Discard leaky batteries
Dispose of batteries in the proper manner according to national and local regulations.Any battery may leak electrolyte if
mixed with a different battery type, if inserted incorrectly, if all the batteries are not replaced at the same time, if disposed
of in a fire, or if an attempt is made to charge a battery not intended to be recharged.

THERMAL SAFETY CUT-OUT
A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating. This can happen if the
heat outlet was restricted in any way or if the chimney flue has not been blocked off effectively. The cut-out operates by
cutting the power to the fan heater if the fan heater overheats. The cut-out will automatically restore power to the fan
heater after about 10 minutes when the temperature in the fan heater has reached an acceptable level. If the fan heater
cuts out during operation, remove any obstruction that may be restricting the heat outlet.
If the fan heater cuts out during operation and power is not automatically restored after 15 minutes, follow the steps
below to manually reset the cut-out.
1. Unplug the product and lie it on its back. (Fig. 4a)
2. Locate the small hole on the bottom side of the fan heater. (Fig. 4b)
3. Insert a large pin into the hole and push it straight in until a small click is heard. (Fig. 4c)
4. Replace the product in its original position. Before switching the product back on, remove any obstruction that may
be restricting the heat outlet.
Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a switch that is regularly switched on
and off by the utility.
Maintenance
Additional Information
Cleaning
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE HEATER.
For general cleaning, use a soft clean duster - never use abrasive cleaners.
The flame panel should be cleaned carefully with a soft cloth.
To remove any accumulation of dust or fluff, the soft brush attachment of a vacuum cleaner should occasionally be used
to clean the outlet grille of the fan heater.
There is a mirror located underneath the canopy. (Fig. 5) This may require cleaning to ensure a sharp clear holographic
image.
AFTER SALES SERVICE
1 Year guarantee
Your product is automatically guaranteed for one year from the date of purchase. Within this period, we undertake to
repair or exchange this product free of charge providing:
a) Proof of purchase such as a sales receipt can be provided, showing that the appliance was bought within the
12-months prior to registering the defect/fault.
b) The appliance was correctly installed and operated in accordance with the manufacturer’s instructions and used
solely for domestic purposes.
c) The defect/fault was not as a result of accident, misuse, unauthorised modification or inexpert repair.
Consumable parts, such as fuses in plugs and bulbs, which require routine replacement are excluded from the
guarantee.
Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee.
Should you require after sales information or assistance with this product please go to www.valor.co.uk where you will
find our self help guide. Alternatively, call our help desk on 0844 879 3588 (UK) or 01 842 4833 (R.O. I.).
Spare parts are also available on the website. Please retain your receipt as proof of purchase.
RECYCLING
For electrical products sold within the European Community. At the end of the electrical products useful life
it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice in your country.
