VanTop H609 User manual

Mirror Mounted Dash
Camera Discovery H609
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

3
Notice
1. To ensure an uninterrupted use of the device, please connect it to the car charger
while recording to avoid sudden shutdown due to insufficient battery.
2. Please power the device with the car charger provided.
3. Make sure the camera lenses are clean and not blocked.
4. It is recommended that you perform a pre installation test to ensure the device is
in good condition.
5. DO NOT leave the product where the temperatures may exceed 70°C (160 °F) for
a long time to prolong its service life.
Packing List
Mirror Dash Camera
Rear Camera Kit
Car Charger (11,5 ft)
Rubber Mounting Strap x 4
Easy Pry Tool
Screw x 4
3M Adhesive pad x 2
Cleaning Cloth
User Manual

4
Product Overview
Mirror Dash Camera
Touchscreen Display
(Front View)
(Topside View)
Memory Card Slot
USB Input
(for Car Charger)
AV In
(for Rear Camera)
Mounting Bracket
(Underside View)
Microphone
Power Button

5
Tip:
When the touch screen is unresponsive or freezes, you can insert a pin into the Reset
Hole on the back to reboot the dash camera.
Rear Camera Kit
(Rear View)
Speaker
Reset Hole
Front Camera
AV Out
Rear Camera
Mounting Bracket
Trigger Wire for Revers Light (red)

6
Installation Instructions
Important
1. The pre-install test is a must before final installation.
2. Insert a formatted memory card (not included) into the prduct before your first
use.
Step 1:
Tap to stop recording, then tap to enter the Settings.
Step 2:
Tap to select Format, then tap Confirm.
Due to the data rate of the video being recorded, a reputable Class 10 or higher
speed memory card must be used.
3. Professional Installation of this product is generally recommended.
Step 1:
Mount the Mirror Dash Camera over the original rearview mirror of the vehicle
with the provided Mounting Strap, then adjust the angle of it.
Step 2:
Connect one end of the Card Charger cable to the USB Input port on the topside
of Mirror Dash Camera. Plug the other end of the Car Charger cable to the
Cigarette Lighter Receptacle in the vehicle.

7
Step 3:
Attach the AV Out connecter of the Rear Camera Kit with the AV In port of the
Mirror Dash Camera, then snake the black cable of the Rear Camera Kit through
the body of your vehicle to the rear of it.
Step 4:
Set the vehicle in reverse gear, then identify the wire that is feeding the Revers
Light from the rear light cluster. Tie the Red Trigger Wire with the positive
terminal of the correct wire.
Step 5:
Mount the Rear Camera Kit to the rear of the vehicle.

8
Notes:
1. DO NOT connect the Red Trigger Wire with Brake Light or Tail Light.
2. After installation, the mirror Dash Camera will display Rear Camera’s view by
default when starting the engine.
3. The Rear Camera will be triggered when reversing, and the view will be from the
Rear Camera.
4. For better viewing, please clen the lenses of both cameras after installing.
Get Started
Power On/Off
Option 1:
Start the engine to automatically power on the Mirror Dash Camera; stop the engine to
automatically power it off.
After it is powered on, please tap to stop the recording, then tap >>Language
to select your language.
Screen On/Off
Simply press the Power Button once to switch the screen of when the Mirror Dash
Camera is ON; press it again or tap the touchscreen to wake the camera up.
Tip:
The Mirror Dash Camera can server as a standard rear-view mirror after screen off.
Function Overview
Main Interface
The das camera will automatically power on and start recording after the vehicle is
ignited.

9
1. Tap to mute/unmute the microphone.
2. Tap to manually lock the current video that is recording to make sure it will
not be overwritten or deleted; tap to start recording standard video again.
3. Tap to capture a photo and save it to the memory card.
4. Tap to end and save the recording into the memory card and enter Live
Mode; tap it again to get back to Video Mode.
5. Tap to enter into Media Gallery and check all the videos/photos saved.
6. Tap to switch among the view from the rear camera, the view from both
cameras and the view from the front camera.
7. Tap to enter Settings.
Notes:
1. When the dash camera is recording, please tap to stop recording before you
switch to Media Gallery or Settings.
2. The bottom icons on the screen will be shown when the dash camera is powered
on, but they will be hidden after a few seconds. Tap the touchscreen to show
them again.

10
Media Gallery
Tap to enter Media Gallery and you will see two folders named Front and Rear. Front
folder contains the videos recorded and photos captured by the front camera; while the
Rear folder contains the videos recorded and photos captured by the rear camera.
Check the Videos Recorded and Photos Captured by the Front/Rear Camera
Check the Normal Videos Recorded by the Front/Rear camera

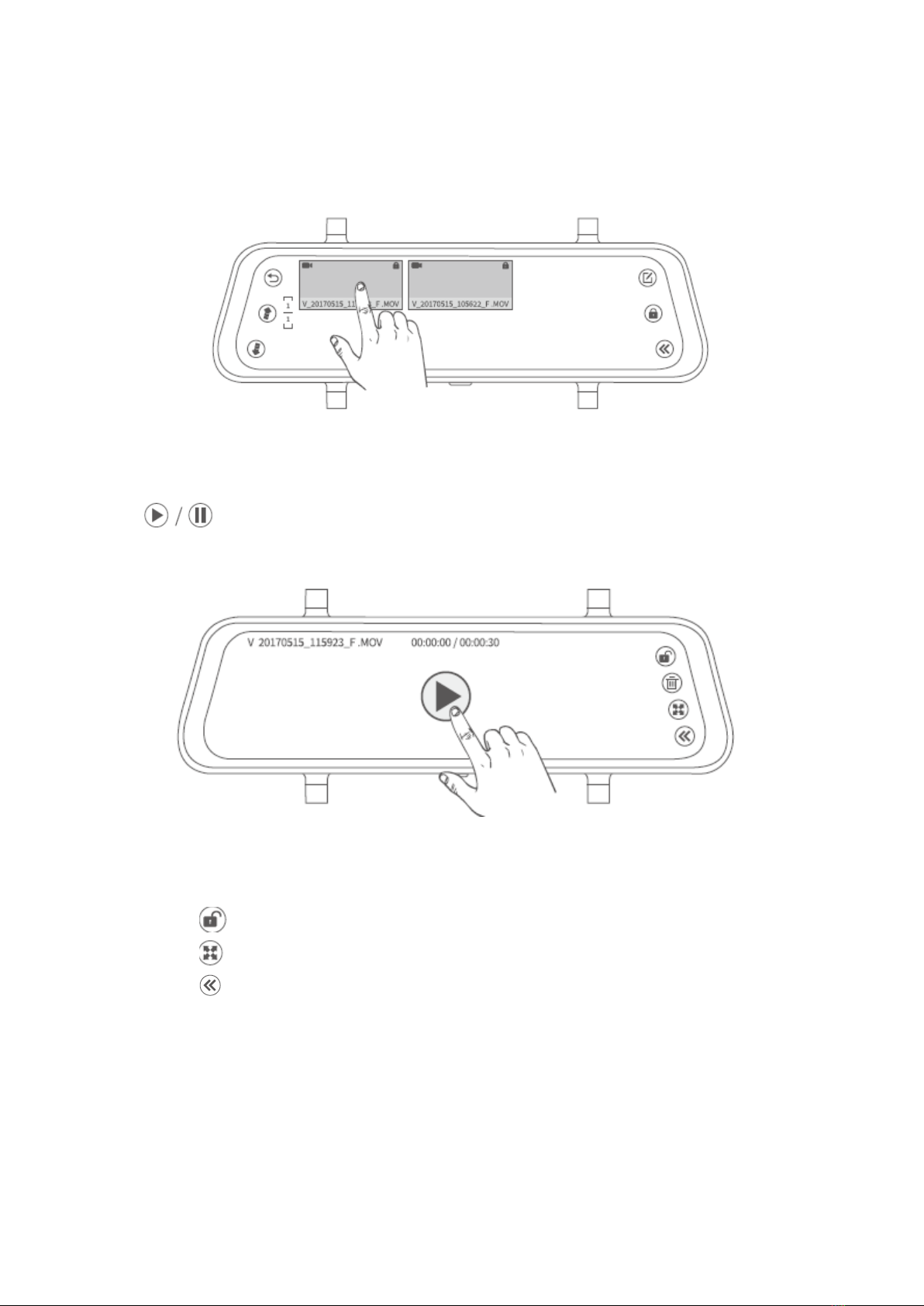

Step 1:
Tap to select the Front/Rear folder to check all the normal videos recorded by the
Front/rear camera.
Step 2:
Tap NORM folder to check the normal video files.
