PREFACE

Congratulations on having chosen
a complete and revolutionary system
for household cleaning and hygiene
for the whole family.
Powerful, Effective, Safe and ...
totally Ecological!!!
THE STRENGTH OF A CYCLONE AND POWER OF A GEYSER

An exclusive patent for everyday health
for the entire family!!
Vap filter is a special function of Vapor Clean’s
exclusive property, protected by an international patent.
Through this exclusive system, dust and inlet air pass
through a duct constantly sprayed by 150°C steam
before reaching the recovery bucket.
The Vap filter forms a steam barrier allowing filtering
and capturing even the smallest dust particles like
pollen, dust mites and micro-dust, which often cause
serious respiratory tract disorders, by purifying the air
completely.
The Vap filter also allows saving on traditional and
costly filters and bags.
VAP FILTER FUNCTION FOR PERFECT HYGIENE!

• Equipment
• Safety
• Warnings and safety precautions when handling
• Accident Prevention Regulations
• Technical features
• Control Panel - Control panel indications
• Putting into service
• Functions
• Cyclon vacuum cleaner function
• Cyclon wet vacuum cleaner function
• Geyser function
• Comby function
• Detergent function
• Air-Clean function
• Accessories
• Ordinary maintenance
• Special maintenance
• Malfunctions
• Disposal and recycling
• Electrical and thermal risks
• Declaration of conformity
• Warranty
TABLE OF CONTENTS
Pay attention to this symbol; it indicates operations or the most dangerous situations
or those to be aware of.
page 2
page 4
page 4
page 5
page 6
page 6
page 8
page 9
page 10
page 13
page 15
page 17
page 18
page 19
page 20
page 25
page 28
page 29
page 29
page 30
page 31
page 31

2
22
23
EXTRAORDINARY EQUIPMENT
FOR EVERY REQUIREMENT
EQUIPMENT LIST
You will discover the pleasure of having a true force of nature
at your side: Vapor Clean is equipped with a surprising range
of accessories, designed and tested to ensure maximum
effectiveness and reliability to meet every need and tackle
any task, ensuring great savings of time and effort even in
the most difficult situations.
1
2
3
4
5
6
7
8
9
24
Carpet protection for “Multi-purpose” brush
Bristle attachment for “Multi-purpose” brush
“Multi-purpose brush”
“Everyday” vacuum cleaner brush
Steam/Vacuum extension hoses
Handle with Steam/Vacuum flexible hose
Steam/Vacuum cleaner
Flexible vacuum cleaner hose (not available)
Vacuum cleaner extension hoses (not available)
24
Humidifier (optional)
23
Steam/vacuum transparent brush (optional)
22
Professional iron with mat (not available)
21a
Triangular brush frame
21
Triangular brush
20
Curved nozzle
19 Straight nozzle
18 Electro brush (not available)
17 Glass wiper
16 Nozzles holder with curved lance (optional)
15 Small Glass Wiper
14
Brass bristle small brush D28
13
Nylon bristle small brush D28
12
Nylon bristle small brush D65
11
Horse-hair brisel round brush
10 Radiator Brush (optional)

3
41
2
18
21
20
11
5
14
13
12
10
9
7
3
15
17
16
6
19
8
21a

4
An improper extension cord may also be dangerous
they may be damaged!
Do not pull by the the machine steam hose or the power cord,
ing any maintenance.
• The appliance should be disconnected from the power supply before perform-
• Only original spare parts should be used to ensure the safety of this appliance.
• Children and untrained users should not use this appliance.
immediately!
• In the event of foam or liquid leaks from the bottom of the machine, turn it off
power demands, and also the plug and socket should be watertight.
• If an extension cord is used, the cable cross section should be sufficient for the
facturer or by an authorized person.
• If the power cable is damaged it should be replaced immediately by the manu-
fumes, or burning materials: there is danger of explosion and fire!
• Do not vacuum flammable substances (petrol, solvents, paints, etc.), welding
can overheat.
• Take care when touching external surfaces of the appliance during use, they
• Be careful not to touch the nozzles, they become very hot when using steam.
• Do not use the appliance near other people.
the steam jet towards people.
• the high pressure steam jet can be dangerous if used improperly. Never direct
served:
During use, the following minimum operating instructions should always be ob-
WARNINGS AND SAFETY DURING USE
IPX4 protection.
Electronic control of boiler level.
Electronic control of power.
Performing a control self-test at each start-up.
hose).
Low voltage in the handle (safety voltage used for the connection within the
abnormally high pressure in the boiler).
700 kPa (7 bar) safety valve (it allows the exhaust of excess steam in the event of
event of excessive temperature)
175°C automatic ceramic thermostat (located under the boiler, it operates in the
excessive temperature)
185°C “one shot” thermostat (located under the boiler, operates in the event of
SAFETY

5
ACCIDENT PREVENTION REGULATIONS
Before using the appliance, we recommend that you read and understand the
contents of this manual.
The appliance should not be used by children for play. Children should be
supervised to ensure they do not play with the appliance.
This appliance can not be used by children and persons with reduced physical,
sensory or mental capabilities. Only persons having received instructions for
the safe handling of the appliance and having understood the inherent dangers
can use the device.
Never let children play with the appliance. Cleaning and maintenance by the
user should not be performed by children without supervision.
Steam should not be directed at devices containing electrical components.
The appliance should be unplugged after use, and before the user performs
maintenance on the unit.
Do not use in swimming pools containing water.
Keep children away from the appliance in operation, also when it is turned off.
Never use the appliance without shoes.
Do not perform any cleaning or maintenance operations if the appliance is
plugged in and never leave the appliance when it is plugged in.
The appliance should be unplugged before the tank is filled with water.
Operating the device with fixed and/or mobile guards disconnected or safety
devices excluded is strictly forbidden.
If the appliance’s power cable or iron are damaged, they should be replaced by
the manufacturer or by qualified technicians.
Removing or tampering with safety devices is strictly forbidden.
Any modification made to the appliance relieves the manufacturer of all
liability for any damage caused.
The appliance should always be positioned horizontally on the floor during
normal use, to prevent it from falling.
Do not use the appliance and do not touch the plug with wet hands.
Do not use the appliance if it has been dropped, if there are visible signs of
damage, or if there are any leaks.
Do not use outdoors when it's raining, or when the room temperature exceeds
the temperature indicated in technical data section.

6

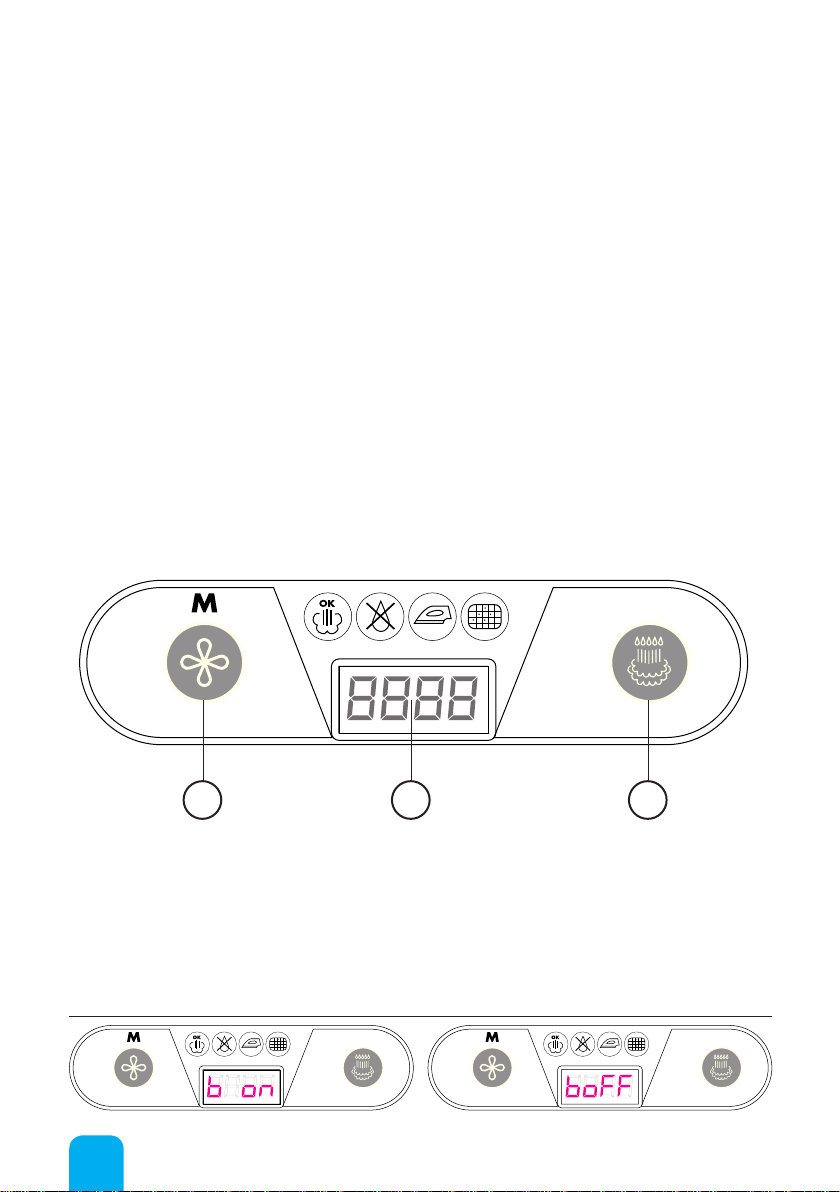

CONTROL PANEL
132
1 Vacuum button
2 Display showing functions and temperature
3 Boiler and steam filter function management button
DISPLAY INDICATIONS
“Boiler on/off” > Boiler on/off
“
“
“
5-40°C
30-75%
TECHNICAL FEATURES
Power supply
Max pressure
Max. vacuuming power
Max. boiler power
Max. iron power
Total max. power
Continuous refill boiler capacity
Refill tank capacity
Recovery bucket capacity
Boiler Material
Allowable pressure
Maximum temperature
Empty weight
Sizes
Steam flow manual adjustment
Electronic control of power
Electronical control of boiler functions
IPX4 protection
Operating ambient temperature
Operating ambient humidity
11 kg
312°F (156°C)
included
475 x 350 x 320 mm
700 kPa (7 bar)
stainless steel
1.5 L
1.5 L
1.5 L
1750 W
800W
1700W (1000+700)
900W
500kPa (5 bar)
110-120 V - 60 Hz

7
Boiler pressure indicator
Vacuum power indicator
Active detergent function only on available model
“Stand by” appliance in waiting mode
“On” Appliance turned on

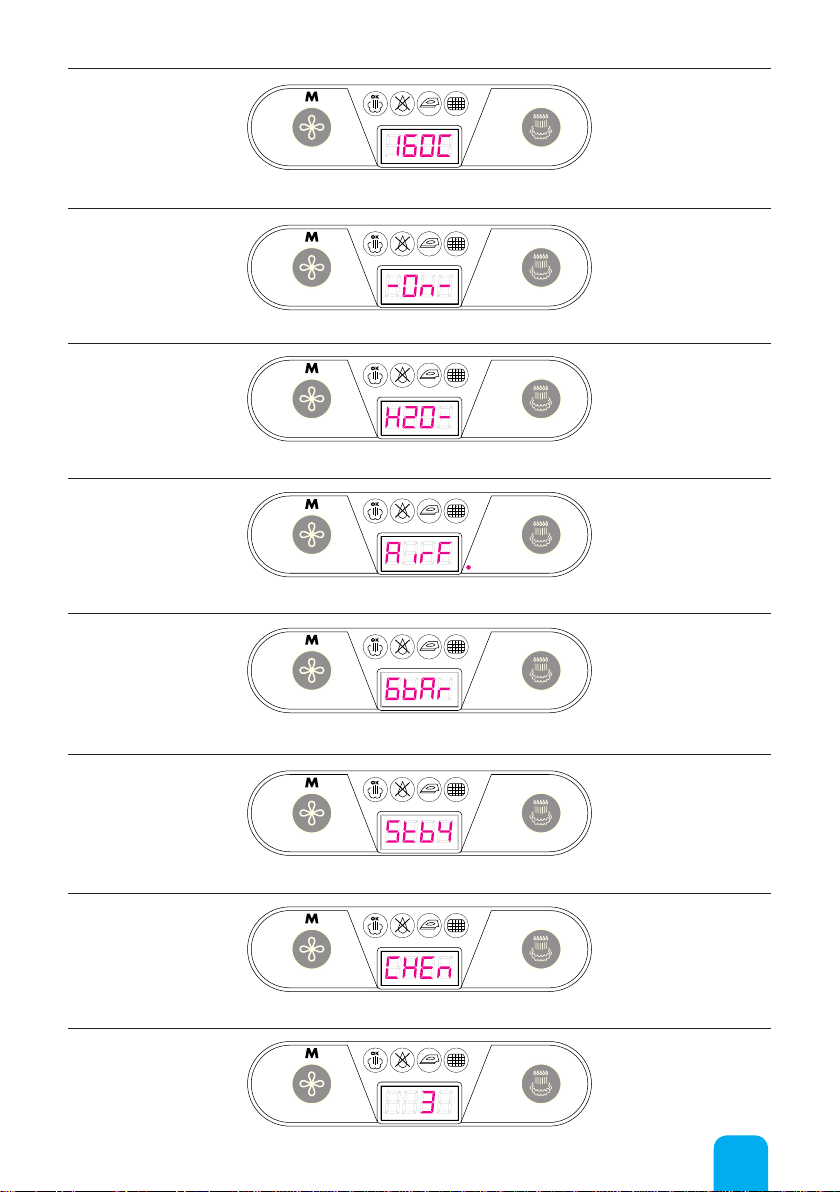

“Air Fresh” > air purification function
“H2O” Water in the tank exhausted (flashing message) > Refill!
Boiler Temperature indicator

8
01
02
04
03
WATER FILLING
• Remove the cap by rotating counter-clockwise and fill
the tank with about 1.5 litres of tap water.
• Replace the cap and screw into place.
The boiler only works if the refill tank contains water.
• Insert the plug into a grounded mains socket: 110-120
V, 60 Hz. The socket should be protected against
short circuits and ground faults (16 A and Id = 30 mA
differential thermal magnetic circuit breaker).
•Turn on the appliance by the turning the power button
to position I.
• Select the desired functions
OPERATION
02
03
04
01
Insert it firmly until you feel the lock button click.
IMPORTANT!
error-free insertion.
the steam/vacuum hose. The shape of the hose allows
• Open the front panel over the compartment and insert
PREPARATION
with 10% tap water.
Do not use 100% distilled water, always dilute
circuit.
damage to the boiler and the continuous refill
perfume into the refill tank. This causes severe
Do not put any anti-scale additive, detergent or
IMPORTANT!

9
FUNCTIONS
Cyclonfunction
page 17
vacuum cleaner + steam jet
page 14
steam jet
page 10
vacuum cleaner + steam filter
page 19
air purifier + humidifier
Geyserfunction
Combyfunction
Air-Cleanfunction
page 18
detergent
Detergent function

10
The Cyclon function allows using the appliance as a
powerful vacuum cleaner, filtering and capturing even
smallest and most insidious dust.
VACUUMING PROCEDURE
• Turn on the main switch.
• Choose the appropriate accessory for the surface to
be vacuumed, and attach it to the handle by turning the
snap closure under the hose to the left
• Attach the brush to the extension hoses, or directly
onto the handle.
VAP FILTER FUNCTION
• The steam filter is inserted automatically.
If you want to turn off the steam filter press and hold
button 3 on the control panel for 5 seconds. To turn it
back on press button 3 again. When the steam filter is
turned on, the display shows “F On” (Filter On).
05
06
07
Cyclonvacuum cleaner
08
05
06
07
08
IMPORTANT!
For a proper water filter operation you should
always fill water in the recovery tank up to the
level marked in the separator.
• To start vacuuming press the button on top of the
handle, vacuuming starts with speed at the 3rd level. To
To turn off the vacuum, press once.
change speed, press and hold the button for 2 seconds.

09
11
10
12
11
11
09
10
12
SPECIFIC ACCESSORIES
“Everyday” brush with retractable bristles
This accessory is suitable for all floor types.
The Everyday brush can be used in two positions:
• position A (with extended bristles)
• position B (with retracted bristles)
To choose the position, simply press the swing button
found above the brush.
IMPORTANT!
Do not use this brush for vacuuming liquids!!

12
Position A
External bristles for hard surfaces:
• Floors,
• Ceramics,
• Terracotta tiles,
• Marble,
• Parquet.
Position B
Retracted bristles for soft surfaces:
• Carpeting,
• Carpets,
• Upholstered,
• Mattresses,
• Armchairs,
• Sofas,
• Curtains,
• Upholstered Furniture.
REMEMBER!
Always adjust the vacuuming power, depending
on the surface to be cleaned!!

13
14
15
13
13
14
15
This important function allows vacuuming liquids
and solid debris with maximum safety, ensuring an
exceptional result.
Vacuumed liquids and dusts are collected in the
appropriate bucket.
LIQUID VACUUMING PROCEDURE
• Turn on the main switch.
• Attach the extension hoses and accessories to the
handle according to the surface to be cleaned.
•To start vacuuming, press the button on top of the
handle and select the desired speed.
ATTENTION!
Check that the separator is inserted into the
appropriate inner rails of the collection tray.
REMEMBER!
You do not have to put water in the recovery
bucket as the recovery capacity would decline.
IMPORTANT!
The appliance is equipped with a safety float
which controls the filling level of the bucket.
Maximum level reached:
• The float will automatically stop the vacuum;
• The appliance does not vacuum anymore and
the motor runs idle.
Cyclonwet vacuum

16
17
14
• Vacuum by repeatedly passing over the liquid or stain
to completely remove it.
• For total cleaning, after having removed the dirt,
you can use the steam jet to wash the surface, and
immediately vacuum residual moisture (see Comby
function).
• When the bucket is full, you need to empty the contents
in a toilet and reinstall it to continue working.
SPECIFIC ACCESSORIES
Multi-purpose brush
For large areas use the Multi-purpose brush. Equipped
with an accessory with two rubber blades and two rows
of bristles, this brush is indicated for the treatment of
hard surfaces:
• Marble,
• Terracotta tiles,
• Ceramic,
• Stoneware.
Carpet protection
To be attached on the multi-purpose brush to clean
carpets or fabrics.
16
17
