VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
1Overview
This chapter gives a short overview of the VAR-EXT-CB103 extension board.
1.1 General Information
The VAR-EXT-CB103 extension board is an add-on board, plugs into the VAR-
xxxxCustomBoard extension connectors. The VAR-EXT-CB103 exposes more than
90% of the VAR-SOM-xxxx IO’s and interfaces into an easy to use 2.54mm pitch
through-hole connectors. The VAR-EXT-CB103 standard prototyping headers offers
a fast & easy way for adding additional custom hardware to the VAR-
xxxxCustomBoard.
Additional to exposing the VAR-SOM-xxxx IO’s the VAR-EXT-CB103 features also:
1. On board 3 port USB2 HUB
2. Two RS-232 transceivers & connectors
3. JTAG interface adapter
Supporting products:
•VAR-OM35CustomBoard
•VAR-MX25CustomBoard
1.2 Related Documents
Document Location
VAR-SOM-OM35 data sheet http://www.variscite.com/DataSheets/VAR-
OM35xxSBC_DS_V1_3.pdf
VAR-SOM-MX25 data sheet http://www.variscite.com/DataSheets/VAR-SOM-
MX25_DS_V1_1.pdf
4 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
2Detailed Description
2.1 VAR-EXT-CB103 Layout & Connectors
2.1.1 IO & BUS Extenders (Section A)
The VAR-EXT-SB103 features four 15x2, 2.54mm, standard header connectors.
The four headers expose more than 90% of VAR-SOM-xxxx modules IOs and
interfaces, among including:
•Full LCD interface.
•CAM Interface.
•SPI,I2C Serial BUS.
•MMC.
•Two A to D inputs.
•Local BUS (if featured in SOM connector).
•GPIO.
Detailed pin out can be found in section 3.1 “Extension Headers”
5 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
2.1.2 RS-232 Level UARTS (Section B)
The VAR-EXT-SB103 features two 5x2 headers. Together with on board
UART connector featured by the VAR-xxxxCustomBoard, all three VAR-
SOM-xxxx UART interfaces can be directly connected to any standard RS-
232 terminal.
Detailed pin out can be found in section 3.2 UARTS
2.1.3 USB HUB (Section C)
The VAR-EXT-SB103 features stand alone, 3 ports USB2 HUB. The HUB
can be connect either to VAR-xxxxCustomBoard HOST port or to the OTG
port using standard USB cable.
The HUB enables to using USB1.1 devices with VAR-OM35CustomBoard
HOST port without needing third party USB hub.
2.1.4 JTAG (Section D)
The VAR-EXT-SB103 features on board 2x7 pin, 2.57mm pitch JTAG connector
to 2x5 pin, 1.27mm JTAG connector converter.
Detailed pin out can be found in section 3.3 JTAG Connectors
6 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
3Connectors Pin out
3.1 Extension Headers
3.1.1 Extension Header J6 – LCD Interface
PIN#VAR‐SOM‐OM35
SignalName
VAR‐SOM‐MX25
SignalName
1 VIO VIO
2 DSS_D0 CAN_TX1
3 DSS_D1 CAN_RX1
4 DSS_D2 LCD_D0
5 DSS_D3 LCD_D1
6 DSS_D4 LCD_D2
7 DSS_D5 LCD_D3
8 DSS_D6 LCD_D4
9 DSS_D7 LCD_D5
10 DSS_D8 CSPI1_RDY
11 DSS_D9 LCD_16
12 DSS_D10 LCD_D6
13 DSS_D11 LCD_D7
14 DSS_D12 LCD_D8
15 DSS_D13 LCD_D9
16 DSS_D14 LCD_D10
17 DSS_D15 LCD_D11
18 DSS_D16 NC
19 DSS_D17 GPIO4[6]
20 DSS_D18 LCD_D12
21 DSS_D19 LCD_D13
22 DSS_D20 LCD_D14
23 DSS_D21 LCD_D15
24 DSS_D22 LCD_D16
25 DSS_D23 LCD_D17
26 DSS_PCLK LCD_PCLK
27 DSS_VSYNC LCD_VSYNC
28 DSS_HSYNC LCD_HSYNC
29 GND GND
30 DSS_ACBIAS LCD_DRDY
•
7 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
3.1.2 Extension Header J3 – CAM & I2C
PIN
#
VAR‐SOM‐OM35
SignalName
VAR‐SOM‐MX25
SignalName
1VIOVIO
2NCNC
3CAM_D0NC
4NCNC
5CAM_D1NC
6NCNC
7CAM_D2CSI_D2
8NCNC
9CAM_D3CSI_D3
10NCNC
11CAM_D4CSI_D4
12NCNC
13CAM_D5CSI_D5
14NCNC
15CAM_D6CSI_D6_MMC2_CMD
16CAM_STROBECSPI_CS1
17CAM_D7CSI_D7__MMC2_CLK
18CAM_XCLKACSI_MCLK_MMC2_DAT0
19CAM_D8CSI_D8
20CAM_PCLKCSI_PIXCLK_MMC2_DAT3
21CAM_D9CSI_D9
22I2C3_SDAI2C1_DATA
23CAM_D10NC
24I2C3_SCLI2C1_CLOCK
25CAM_D11NC
26CAM_WENNC
27CAM_VSCSI_VSYNC_MMC2_DAT1
28CAM_FLDGND
29GNDGND
30CAM_HSCSI_HSYNC_MMC2_DAT2
8 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
3.1.3 Extension Header J7 – Local Bus
PIN
#
VAR‐SOM‐OM35
SignalName
VAR‐SOM‐MX25
SignalName
1LB_IO_0NC
2LB_IO_1NC
3LB_IO_2NC
4LB_IO_3NC
5LB_IO_4NC
6LB_IO_5NC
7LB_IO_6NC
8LB_IO_7NC
9LB_IO_12NC
10LB_IO_9NC
11LB_IO_14NC
12LB_IO_11NC
13LB_IO_A1NC
14LB_IO_13NC
15LB_IO_A3NC
16LB_IO_15NC
17LB_IO_A5NC
18LB_IO_A2NC
19LB_IO_A7NC
20LB_IO_A4NC
21LB_IO_8NC
22LB_IO_A6NC
23LB_IO_10NC
24LB_nCS3NC
25LB_RE_OE_NNC
26LB_nADV_ALENC
27LB_WE_N3V3
28LB_CLENC
29LB_WAIT0NC
30LB_CLKPWM1
9 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
3.1.4 Extension Header J9 – SPI, MMC & ADC
PIN
#
VAR‐SOM‐OM35
SignalName
VAR‐SOM‐MX25
SignalName
1VIOVIO
2MsSPI2_CLKCSPI_CLK
3MMC1_CDMMC1_CD
4MsSPI2_SIMOCSPI_MOSI
5MMC1_CLKOMMC1_CLKO
6MsSPI2_SOMICSPI_MISO
7MMC1_CMDMMC1_CMD
8MsSPI2_CS0CSPI_CS0
9MMC1_DAT0MMC1_DAT0
10GPIO28GPIO3_16
11MMC1_DAT1MMC1_DAT1
12McBSP1_CLKRNC
13MMC1_DAT2MMC1_DAT2
14McBSP1_FSRGND
15MMC1_DAT3MMC1_DAT3
16McBSP1_DXSSI5_STXD
17KPD.R4GPIO4[8]
18McBSP1_DRSSI5_SRXD
19HP_LOUTHP_LOUT
20McBSP1_FSXSSI5_STXFS
21HP_ROUTHP_ROUT
22McBSP1_CLKXSSI5_SCK
23CODEC_AUXADC1CODEC_AUXADC1
24KPD.C4NC
25CODEC_AUXADC2CODEC_AUXADC2
26KPD.C5NC
27AGND#N/A
28PWM0LCD_CONTRAST
29GNDGND
30RESET_OUT_NRESET_OUT
10 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
3.2 UARTs
3.2.1 RS232 connectors assignment
Connector VAR-SOM-OM35 VAR-SOM-MX25
UART
A
(J4) UART 2 UART 2
UART B (J8) UART 1 UART 3
3.2.2 RS232 connectors pin out
Pin # Type Description
1 NC
2 I UART Receive
3 O UART Transmit
4 NC
5 Power GND
6 NC
7 O UART RTS
8 I UART 3 CTS
9 NC
10 NC
3.3 JTAG Connectors
3.3.1 JTAG In (J12)
Pin # Pin
Function
1 TDO
2 EMU1
3 nTRST
4 EMU0
5 TDS
6 NC
7 TDI
8 NC
9 TCK
10 GND
3.3.2 JTAG Out (J11)
Pin # Pin
Function
1 TMS
2 nTRST
3 TDI
4 GND
5 VIO
6 NC
7 TDO
8 GND
11 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
9 RTCK
10 GND
11 TCK
12 GND
13 EMU0
14 EMU1
4Environmental specifications
Min Max
Commercial operating temperature range 0
0
C +70
0
C
Extended operating temperature range -25
0
C +85
0
C
MTBF 10000hrs >
Shock resistance 50G / 20 ms
Relative humidity, Operational 10% 90%
Relative humidity, Storage 5% 95%
Vibration 20G / 0 - 600
Hz
12 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
5Legal notice
Variscite LTD (“Variscite”) products and services are sold subject to
Variscite’s terms and conditions of sale, delivery and payment supplied at
the time of order acknowledgement.
Variscite warrants performance of its products to the specifications in effect
at the date of shipment. Variscite reserves the right to make changes to its
products and specifications or to discontinue any product or service
without notice. Customers should therefore obtain the latest version of
relevant information from Variscite to verify that the information is current.
Testing and other quality control techniques are utilized to the extent
Variscite deems necessary to support its warranty.
Specific testing of all parameters of each device is not necessarily
performed unless required by law or regulation.
In order to minimize risks associated with customer applications, the
customer must use adequate design and operating safeguards to minimize
inherent or procedural hazards. Variscite is not liable for applications
assistance or customer product design. The customer is solely responsible
for its selection and use of Variscite products. Variscite is not liable for
such selection or use nor for use of any circuitry other than circuitry entirely
embodied in a Variscite product.
Variscite products are not intended for use in life support systems,
appliances, nuclear systems or systems where malfunction can
reasonably be expected to result in personal injury, death or severe
property or environmental damage. Any use of products by the customer
for such purposes is at the customer’s own risk.
Variscite does not grant any license (express or implied) under any patent
right, copyright, mask work right or other intellectual property right of
Variscite covering or relating to any combination, machine, or process in
which its products or services might be or are used. Any provision or
publication of any third party’s products or services does not constitute
Variscite’s approval, license, warranty or endorsement thereof. Any third
party trademarks contained in this document belong to the respective third
party owner.
Reproduction of information from Variscite datasheets is permissible only if
reproduction is without alteration and is accompanied by all associated
copyright, proprietary and other notices (including this notice) and
conditions. Variscite is not liable for any un-authorized alteration of such
information or for any reliance placed thereon.
13 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
Any representations made, warranties given, and/or liabilities accepted by
any person which differ from those contained in this datasheet or in
Variscite’s standard terms and conditions of sale, delivery and payment
are made, given and/or accepted at that person’s own risk. Variscite is not
liable for any such representations, warranties or liabilities or for any
reliance placed thereon by any person.
14 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
6Warranty terms
Variscite guarantees hardware products against defects in workmanship
and material for a period of one (1) year from the date of shipment. Your
sole remedy and Variscite’s sole liability shall be for Variscite, at its sole
discretion, to either repair or replace the defective hardware product at no
charge or to refund the purchase price. Shipment costs in both directions
are the responsibility of the customer. This warranty is void if the hardware
product has been altered or damaged by accident, misuse or abuse.
Disclaimer of Warranty
THIS WARRANTY IS MADE IN LIEU OF ANY OTHER WARRANTY,
WHETHER EXPRESSED, OR IMPLIED, OF MERCHANTABILITY,
FITNESS FOR A SPECIFIC PURPOSE, NON-INFRINGEMENT OR
THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION,
EXCEPT THE WARRANTY EXPRESSLY STATED HEREIN. THE
REMEDIES SET FORTH HEREIN SHALL BE THE SOLE AND
EXCLUSIVE REMEDIES OF ANY PURCHASER WITH RESPECT TO
ANY DEFECTIVE PRODUCT.
Limitation on Liability
UNDER NO CIRCUMSTANCES SHALL VARISCITE BE LIABLE FOR
ANY LOSS, DAMAGE OR EXPENSE SUFFERED OR INCURRED WITH
RESPECT TO ANY DEFECTIVE PRODUCT. IN NO EVENT SHALL
VARISCITE BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES THAT YOU MAY SUFFER DIRECTLY OR INDIRECTLY
FROM USE OF ANY PRODUCT.
15 Data Sheet Rev 1.0

VAR-EXT-CB103 REV 1.0 EXTENSION BOARD
16 Data Sheet Rev 1.0
7Contact information
Headquarters
Variscite LTD
60 Medinat Hayehudim st. Hertzelia
P.O.B 12598
46722, Israel
Tel: +972 (9) 9562910
Fax: +972 (9) 9589477
Sales:[email protected]
Technical support:[email protected]
Website: www.variscite.com
Other manuals for VAR-EXT-CB103
1
Table of contents
Other Variscite Network Hardware manuals
Popular Network Hardware manuals by other brands

CommScope
CommScope CPPR-QF-F-1U-E instruction manual

Panasonic
Panasonic Circuit Protector Elements UNHZ203 Specification sheet

Minuteman

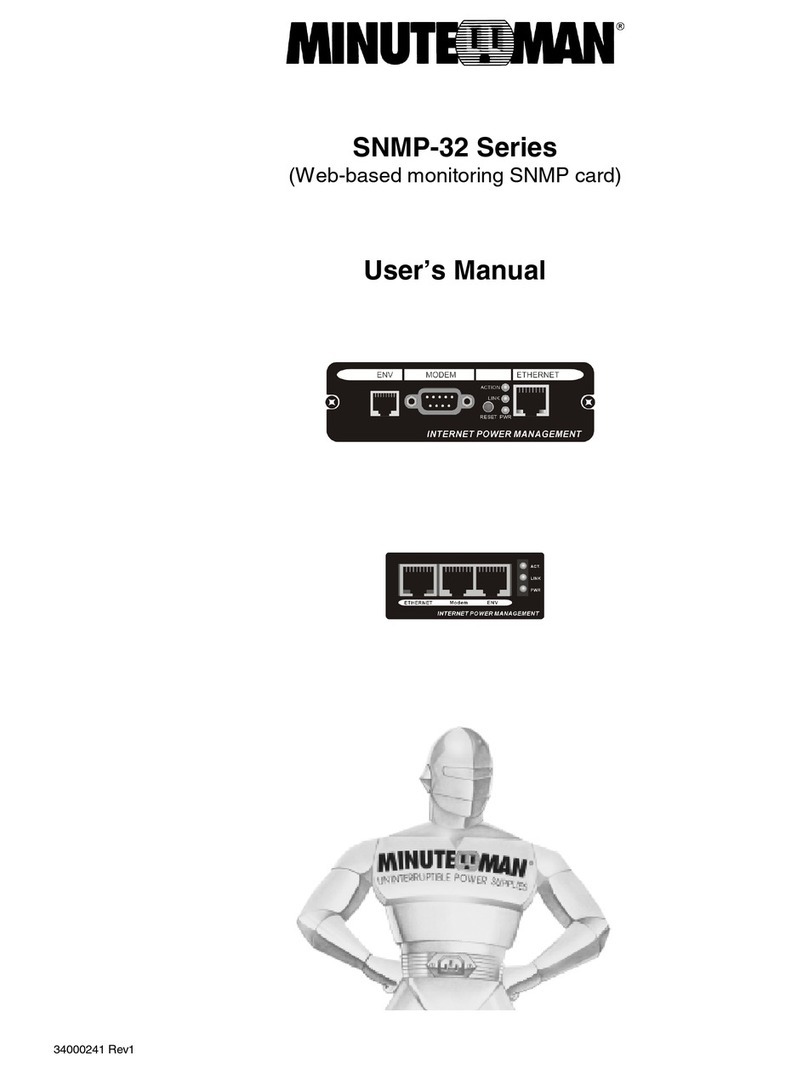

Minuteman SNMP-32 Series user manual

Rockwell Automation
Rockwell Automation Allen-Bradley 20-750-TLINK-XT user manual

Mackie

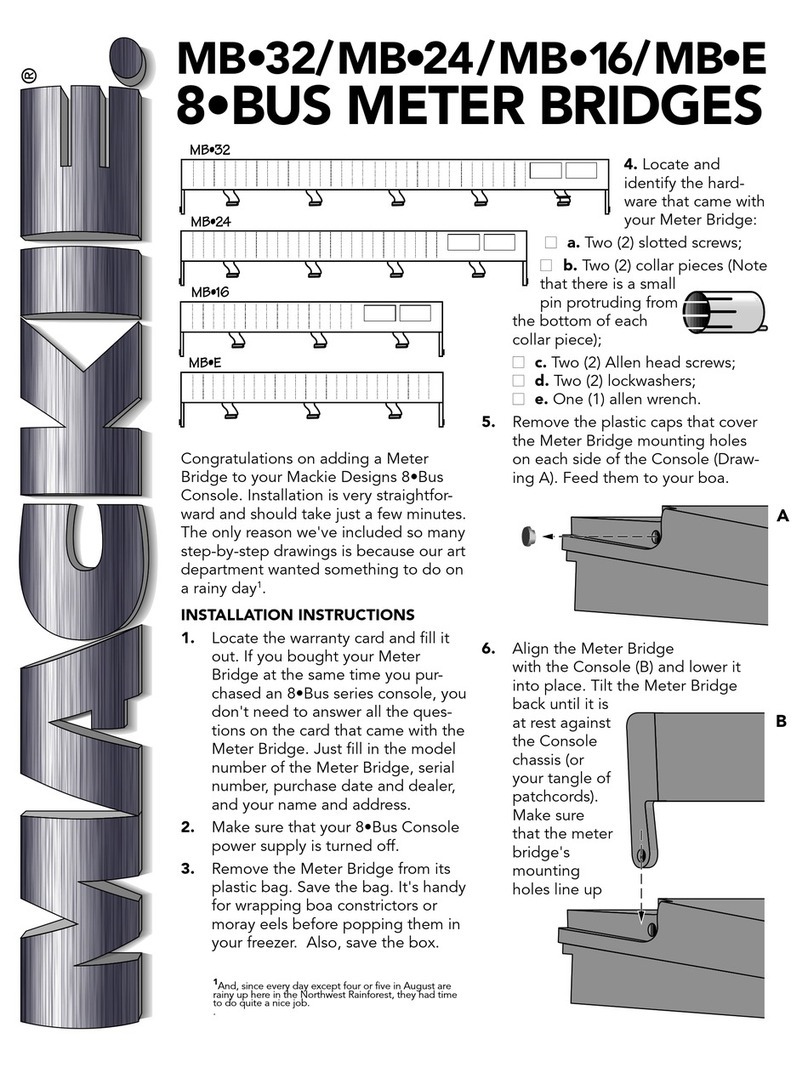

Mackie 24-8 BUS installation instructions

Meinberg
Meinberg COM52HS Characteristics
