Vassilias R-2303 User manual

MODEL: R-2303
Microwave Oven Owner's Manual
Please read these instructions carefully before installing and operating the oven.

1
P
PR RE EC CA AU UT TI IO ON NS S T TO O A AV VO OI ID D P PO OS SS SI IB BL LE E E EX XP PO OS SU UR RE E T TO O E EX XC CE ES SS SI IV VE E M MI IC CR RO OW WA AV VE E E EN NE ER RG GY Y
1. Do not attempt to operate this oven with the door open since open door
operation can result in harmful exposure to microwave energy. It is important not to
defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil
or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven
door close properly and that there is no damage to the
a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY--------------------------------------------------------------------------------------------------- 1
SPECIFICATIONS* ------------------------------------------------------------------------------------- 2
BEFORE YOU CALL FOR SERVICE--------------------------------------------------------------- 2
INSTALLATION ------------------------------------------------------------------------------------------ 2
GROUNDING INSTRUCTIONS---------------------------------------------------------------------- 3
RADIO INTERFERENCE------------------------------------------------------------------------------ 3
IMPORTANT SAFETY INSTRUCTIONS ---------------------------------------------------------- 3
MICROWAVE COOKING PRINCIPLES ----------------------------------------------------------- 4
UTENSILS GUIDE -------------------------------------------------------------------------------------- 5
PART NAMES -------------------------------------------------------------------------------------------- 5
CONTROL PANEL -------------------------------------------------------------------------------------- 6
HOW TO SET THE OVEN CONTROLS ----------------------------------------------------------- 7
Setting clock time---------------------------------------------------------------------------------- 7
Microwave Cooking ------------------------------------------------------------------------------- 7
Weight defrost-------------------------------------------------------------------------------------- 7
Grill cooking----------------------------------------------------------------------------------------- 7
Combination 1-------------------------------------------------------------------------------------- 8
Combination 2-------------------------------------------------------------------------------------- 8
Auto Cook Menu----------------------------------------------------------------------------------- 8
Child Lock ----------------------------------------------------------------------------------------- 10
Special Feature ---------------------------------------------------------------------------------- 10
CLEANING AND CARE ------------------------------------------------------------------------------ 11
DISPOSAL……………………………………………………………………………………11

2
S
SP PE EC CI IF FI IC CA AT TI IO ON NS S* *
Power Consumption: 230V~50Hz, 1400W(Microwave)
1050W(GRILL)
Rated Microwave Power Output: 900W
Operation Frequency: 2450MHz
Outside Dimensions: 310mm(H)×565mm(W)×406mm(D)
Oven Cavity Dimensions: 214mm(H)×332mm(W)×346mm(D)
Oven Capacity: 23Litres
Net Weight: Approx.19kg
*The data quoted here are no guarantee of truth, if they are important for you, please check the
available data on the nameplate of the oven.
B
BE EF FO OR RE E Y YO OU U C CA AL LL L F FO OR R S SE ER RV VI IC CE E
If the oven fails to operate:
1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the
outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating
properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system.
Otherwise, the microwave energy will not flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
I
IN NS ST TA AL LL LA AT TI IO ON N
1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door
seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity
or on the door. If there is any damage, do not operate the oven and contact qualified service
personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the
heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near
combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the
oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the
appliance. Do not remove feet.
6. Make sure that the power supply cord is undamaged and does not run under the oven or over
any hot or sharp surface.
7. The socket must be readily accessible so that it can be easily unplugged in an emergency.
8. Do not use the oven outdoors.

3
G
GR RO OU UN ND DI IN NG G I IN NS ST TR RU UC CT TI IO ON NS S
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with
a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.
In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an
escape wire for the electric current. It is recommended that a separate circuit serving only the oven
be provided. Using a high voltage is dangerous and may result in a fire or other accident causing
oven damage.
WARNING Improper use of the grounding plug can result in a risk of electric shock.
Note
1. If you have any questions about the grounding or electrical instructions, consult a qualified
electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or
personal injury resulting from failure to observe the electrical connection procedures.
The wires in this cable main are colored in accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
R
RA AD DI IO O I IN NT TE ER RF FE ER RE EN NC CE E
Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.
When there is interference, it may be reduced or eliminated by taking the following measures:
1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on
different branch circuits.
I
IM MP PO OR RT TA AN NT T S SA AF FE ET TY Y I IN NS ST TR RU UC CT TI IO ON NS S
When using electrical appliance basic safety precautions should be followed, including the following:
WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry
food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.

4
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has
been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a hazard.
5. Warning: When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
6. WARNING: Only allow children to use the oven without supervision when adequate instructions
have been given so that the child is able to use the oven in a safe way and understands the
hazards of improper use.
7. To reduce the risk of fire in the oven cavity:
1. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of
ignition
2. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
3. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle
any flames.
4. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in
the cavity when not in use.
8. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to
explode.
9. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be
taken when handle the container.
10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin
burns.
11. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they
may explode even after microwave heating has ended.
12. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before
cooking.
13. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature
should be checked before serving in order to avoid burns.
14. Cooking utensils may become hot because of heat transferred from the heated food. Potholders
may be needed to handle the utensil.
15. Utensils should be checked to ensure that they are suitable for use in microwave oven.
16. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair
operation which involves the removal of any cover which gives protection against exposure to
microwave energy.
17. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM
(Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally
generated and/or used in the form of electromagnetic radiation for the treatment of material, and
spark erosion equipment. For Class B equipment is equipment suitable for use in domestic
establishments and in establishments directly connected to a low voltage power supply network
which supplies buildings used for domestic purpose”
18.
M
MI IC CR RO OW WA AV VE E C CO OO OK KI IN NG G P PR RI IN NC CI IP PL LE ES S
1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food
severely overcooked can smoke or ignite.

5
3
4
5
2
6
1
7
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and
hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the
center of the dish to the outside.
U
UT TE EN NS SI IL LS S G GU UI ID DE E
1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass
through the container and heat the food.
2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be
used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal
fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to
overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be
careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.
The list below is a general guide to help you select the correct utensils.
COOKWARE MICROWAVE GRILL COMBINATION
Heat–Resistant Glass Yes Yes Yes
Non Heat–Resistant Glass No No No
Heat–Resistant Ceramics Yes Yes Yes
Microwave–Safe Plastic Dish Yes No No
Kitchen Paper Yes No No
Metal Tray No Yes No
Metal Rack No Yes No
Aluminum Foil & Foil Containers No Yes No
P
PA AR RT T N NA AM ME ES S
1. Door Safety Lock System
2. Oven Window
3. Oven floor
4. Grill Shelf
5. Control Panel
6. Grill
7. Oil collector

6
C

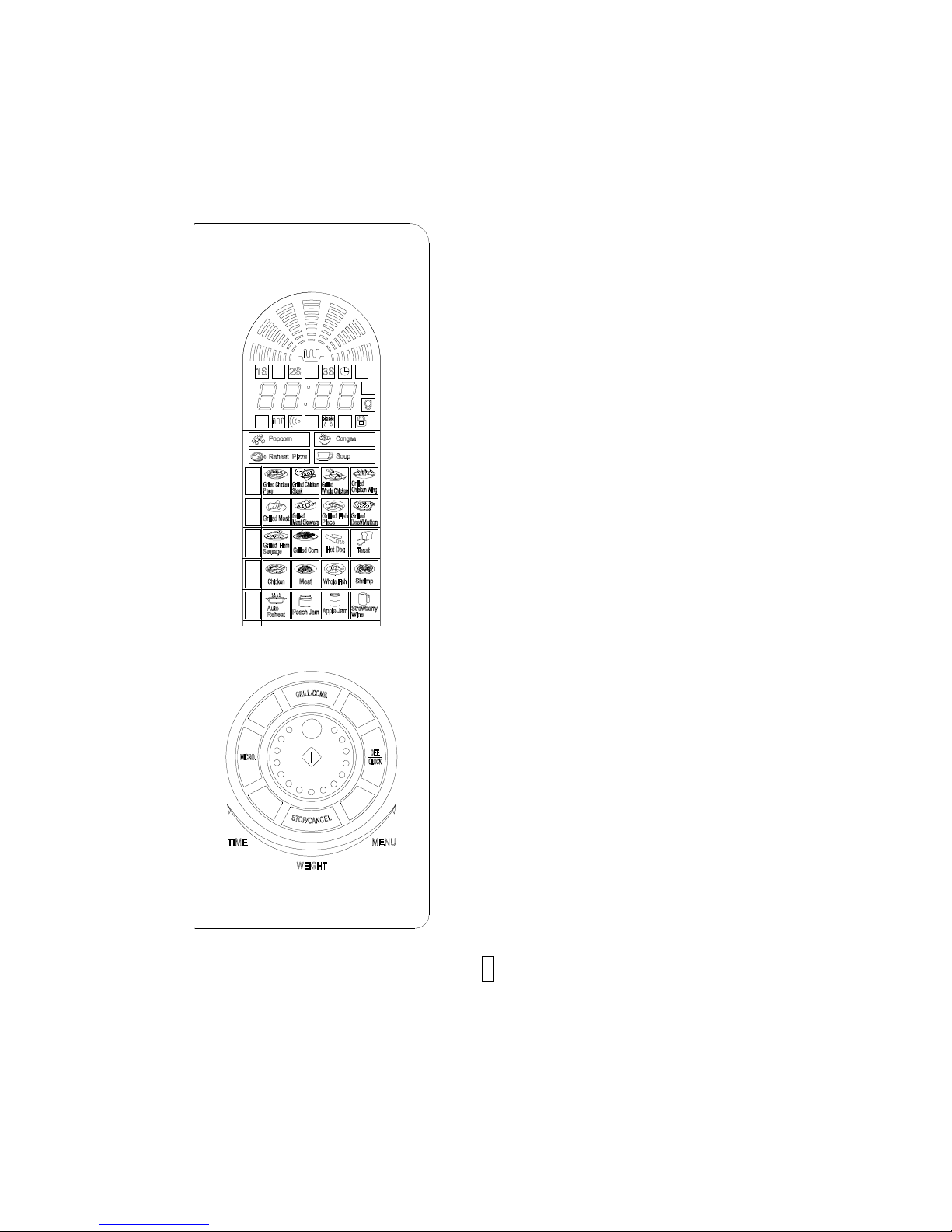

CO ON NT TR RO OL L P PA AN NE EL L
 MENU ACTION SCREEN
Cooking time, power, action indicators, and clock
time are displayed.
 MICRO.
 Touch this button a number of times to set
microwave cooking power level.

 GRILL/COMB.
 Press this button to set a grill cooking program
or a combination cooking program..

 DEF./CLOCK
 Touch this button to set the clock time or set a
defrost program..

 TIME/WEIGHT/MENU
 Turn the dial to set the oven clock time or input
cooking time.
 Turn the dial to select an auto-cooking menu.
 Turn the dial to set food weight.

 START
 Touch to start a cooking program.
 Simply touch it a number of times to set cooking
time and cook immediately at full power level.

 STOP/CANCEL
 Press to cancel setting or reset the oven before
setting a cooking program.
 Press once to temporarily stop cooking, or twice
to cancel cooking altogether.
 It is also used for setting child lock.

7
H
HO OW W T TO O S SE ET T T TH HE E O OV VE EN N C CO ON NT TR RO OL LS S
Each time a button is touched, a beep will sound to acknowledge the touch.
S ETTING CLOCK TIME
The oven is equipped with a digital clock,
you can choose to set the clock time in 24
or 12-hour cycle by pressing the
DEF./CLOCK button in waiting mode.
'FOR EXAMPLE: Suppose you want to set
the oven clock time to 8:08.
1. Press DEF./CLOCK for 3 seconds that
the screen prompts (then press it
again to choose 12 or 24-hour).
2. Turn the TIME/WEIGHT/MENU to set
8 o’clock.
3. Press DEF./CLOCK button.
4. Turn the TIME/WEIGHT/MENU to set
08 min.
5. Press DEF./CLOCK to confirm the
setting.
NOTE: You can press the DEF./CLOCK
button once during the cooking time to see
the current time.
M ICROWAVE C OOKING
For microwave cooking, just press the
MICRO. button a number of times to select
a cooking power level, and then rotate the
TIME/WEIGHT/MENU to set a desired
cooking time.
Select power level by pressing the MICRO.
button.
PRESS MICRO.
BUTTON
DISPLAY
COOKING
POWER
once 100 100%
twice 80 80%
3 times 60 60%
4 times 40 40%
5 times 20 20%
6 times (setting
timer)
0 0
For example, suppose you want to cook for
1 minute at 60% of microwave power.
1. Press STOP/CANCEL button to reset
the oven.
2. Press MICRO. button 3 times.
3. Turn the TIME/WEIGHT/MENU to
1:00.
4. Press START button.
W EIGHT DEFROST
Weight defrost allows you to set food
weight and let the system to decide the
time needed to do the job. Check the
screen as you select weight of food to be
defrosted.
The steps are as follows:
1. Press DEF./CLOCK once.
2. Turn Time/Menu/Weight to program
defrost weight.
3. Press START.
G RILL COOKING
The grill cooking is particularly useful for
thin slices of meat, steaks, chops, kebabs,
sausages of piece of chicken. It is also
suitable for hot sandwiches and au gratin
dishes.

8
For example, suppose you want to grill for
12 minutes.
1. Press GRILL/COMB. button once.
2. Turn the TIME/WEIGHT/MENU to
12:00.
3. Press START button.
C OMBINATION 1
30% time for microwave cooking, 70% for
grill cooking. Use for fish, potatoes or au
gratin.
FOR EXAMPLE: Suppose you want to set
combination 1 cooking for 25 minutes.
1. Press GRILL/COMB.button twice.
2. Turn the TIME/WEIGHT/MENU to
25:00.
3. Press START button.
C OMBINATION 2
55% time for microwave cooking, 45% for
grill cooking. Use for puddings omelettes,
baked potatoes and poultry.
FOR EXAMPLE: Suppose you want to set
combination 2 cooking for 12 minutes.
1. Press GRILL/COMB. button thrice.
2. Turn the TIME/WEIGHT/MENU to
12:00.
3. Press START button.
A UTO C OOK M ENU
For the following foods or cooking operation, you do not need to input cooking power and time. Try
to focus on telling the oven what you want to cook and how much the food weighs.
You may need to turn food over at the middle of cooking time to obtain uniform cooking.
Operation steps:
1. Turn Time/Weight/Menu anti-clockwise and then to select a dish/operation.
2. Press START once
3. Turn Time/Weight/Menu to select weight of food.
4. Press START to start the program.
However, please remember that the result of auto cooking depends on factors such as the shape
and size of food, your personal preference as to the doneness of certain foods and even how
well you happen to place the food in the oven. If you find the result at any rate not quite
satisfactory, please adjust the cooking time a little bit accordingly.
Auto cook menu
Code
Food/cooking
mode
Notes
1 Popcorn A regular bag bought in the supermarket
2 Congee Proper rate of water and rice must be observed.
3 Reheat pizza Refrigerated condition about 5 ℃
4 Soup 200~250ml per soup
5 Grilled chicken
piece
Placed directly on top of grill rack, at the middle of cooking time the
user is required to turn food over and press START for the next stage
of cooking.
6 Grilled chicken
steak
Placed directly on top of grill rack, at the middle of cooking time the
user is required to turn food over and press START for the next stage
of cooking.

9
Code
Food/cooking
mode
Notes
7 Grilled whole
chicken
Whole chicken, beeping in middle of cooking time to remind the user
to turn food over for uniform cooking and press START for the next
stage of cooking.
8 Grilled chicken
wing
Chicken wings, beeping in middle of cooking time to remind the user
to turn food over for uniform cooking and press START for the next
stage of cooking.
9 Grilled meat Half lean park meat, beeping in middle of cooking time to remind the
user to turn food over for uniform cooking and press START for the
next stage of cooking.
10 Grilled meat
skewers
Meat skewers placed directly on top of grill rack, beeping in middle of
cooking time to remind the user to turn food over for uniform cooking
and press START for the next stage of cooking.
11 Grilled fish
piece
Fish pieces placed directly on top of grill rack, beeping in middle of
cooking time to remind the user to turn food over for uniform cooking
and press START for the next stage of cooking.
12 Grilled
beef/mutton
Pieces of beef placed directly on top of grill rack, beeping in middle of
cooking time to remind the user to turn food over for uniform cooking
and press START for the next stage of cooking.
13 Grilled ham
sausage
Sausages placed directly on top of grill rack, beeping in middle of
cooking time to remind the user to turn food over for uniform cooking
and press START for the next stage of cooking.
14 Grilled corn Corn placed directly on top of grill rack, beeping in middle of cooking
time to remind the user to turn food over for uniform cooking and
press START for the next stage of cooking.
15 Hot dog Hot dog directly on top of grill rack, beeping in middle of cooking time
to remind the user to turn food over for uniform cooking and press
START for the next stage of cooking.
16 Toast Raw toast from Hong Kong
17 chicken Chicken pieces on ceramic dish placed on microwavable ceramic
plate, water temperature 10 ℃ , 700ml
18 meat Meat on ceramic dish placed on microwavable ceramic plate, water
temperature 10 ℃ , 700ml
19 whole fish Whole fish on ceramic dish placed on microwavable ceramic plate,
water temperature 10 ℃ , 700ml
20 shrimp Shrimp on ceramic dish placed on microwavable ceramic plate, water
temperature 10 ℃ , 700ml
21 Auto reheat Refrigerated condition about 5
℃ , use microwavable vessels or add
plastic film
22 Peach jam Material: peach: 4 pieces, sugar: 1/2 cup, water: 2 cups.
Step 1: wash the peach clean, get off the skin, and cut to appropriate
pieces;
Step 2: peach, water, sugar put in a heat resistant container and
placed in a oven before starting this program.
1 cup equals 250ml.
