Owner’s Manual
Model Year 2009.5
Edition: January 2009
TS 1651-B-09

Introduction .................................... 2
In brief ............................................ 6
Keys, doors and windows ............ 19
Seats, restraints ........................... 33
Storage ........................................ 50
Instruments and controls ............. 66
Lighting ........................................ 93
Infotainment system ................... 101
Climate control ........................... 104
Driving and operating ................. 111
Vehicle care ............................... 135
Service and maintenance .......... 175
Technical data ........................... 184
Customer information ................ 205
Index .......................................... 206
Contents

2Introduction
Introduction

Introduction 3

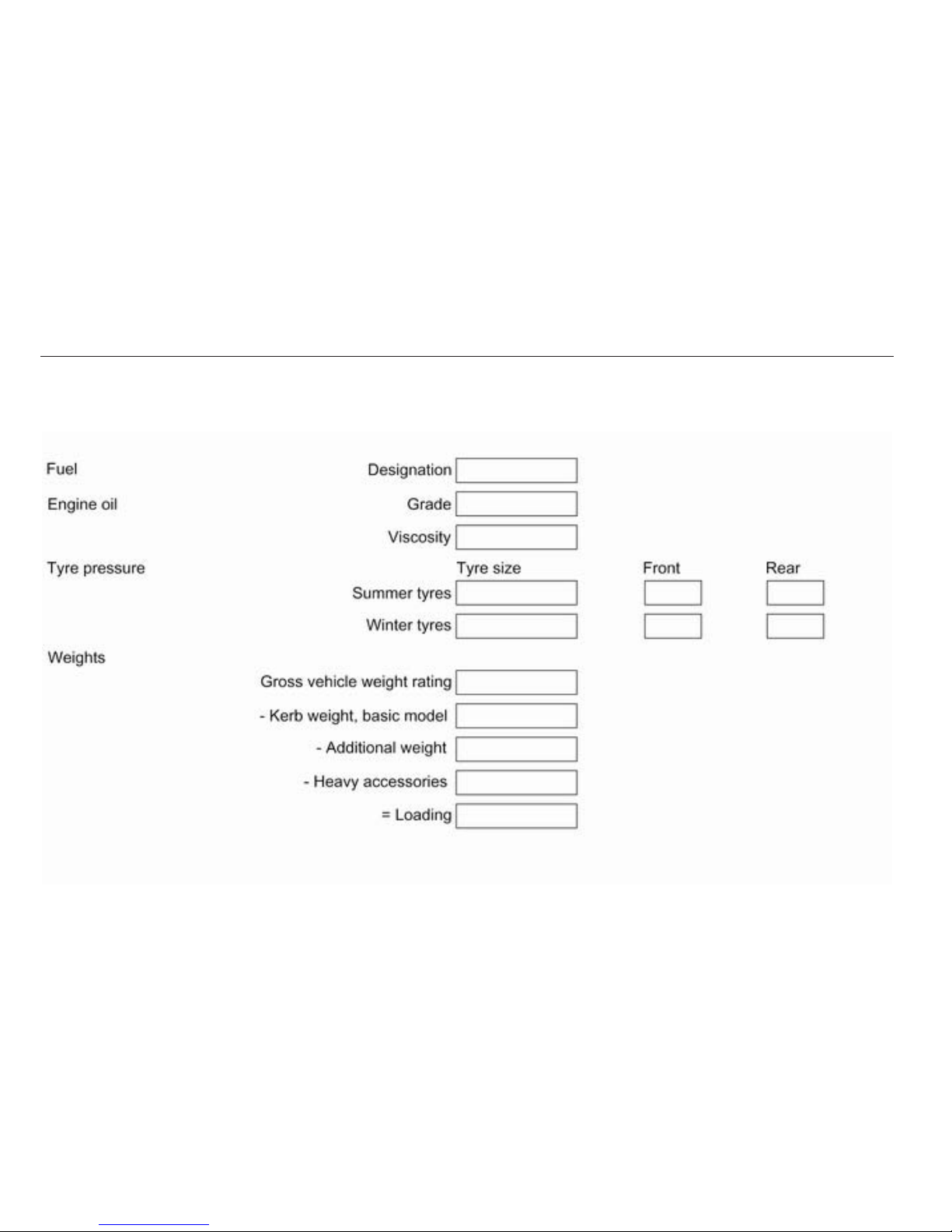

Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available under the sections "Service
and maintenance" and "Technical
data" as well as on the identification
plate.
Introduction
Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner's Manual.
When this Owner's Manual refers to
a workshop visit, we recommend your
Vauxhall Authorised Repairer.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work
according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual
■ The "In brief" section will give you
an initial overview.
■ The table of contents at the
beginning of this manual and within
each section shows where the
information is located.
■ The index will enable you to search
for specific information.
■ This Owner's Manual depicts left-
hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the
factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
■ Depending on the model variant,
country variant, integrated special
equipment and accessories, the
scope of equipment in the vehicle
can differ from the items mentioned
in this Owner's Manual.
■ Display messages and interior
labelling are written in bold letters.
Danger, Warnings and
Cautions
9Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.

4Introduction
9Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with
3. 3 means "see page".
Thank you for choosing a Vauxhall.
We wish you many hours of
pleasurable driving.
Your Vauxhall Team

Introduction 5

6In brief
In brief
Initial drive information
Vehicle unlocking
Turn the key in the driver's door lock
to the front or press button q to
unlock the doors and load
compartment. Open the doors by
pulling the handles. To open the
tailgate, pull the button underneath
the tailgate moulding.
Radio remote control 3 20, Central
locking system 3 21, Load
compartment 3 24.
Seat adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Seat adjustment 3 35, Seat position
3 34.
9Danger
Do not sit nearer than 25 cm (10
inches) from the steering wheel, to
permit safe airbag deployment.

In brief 7

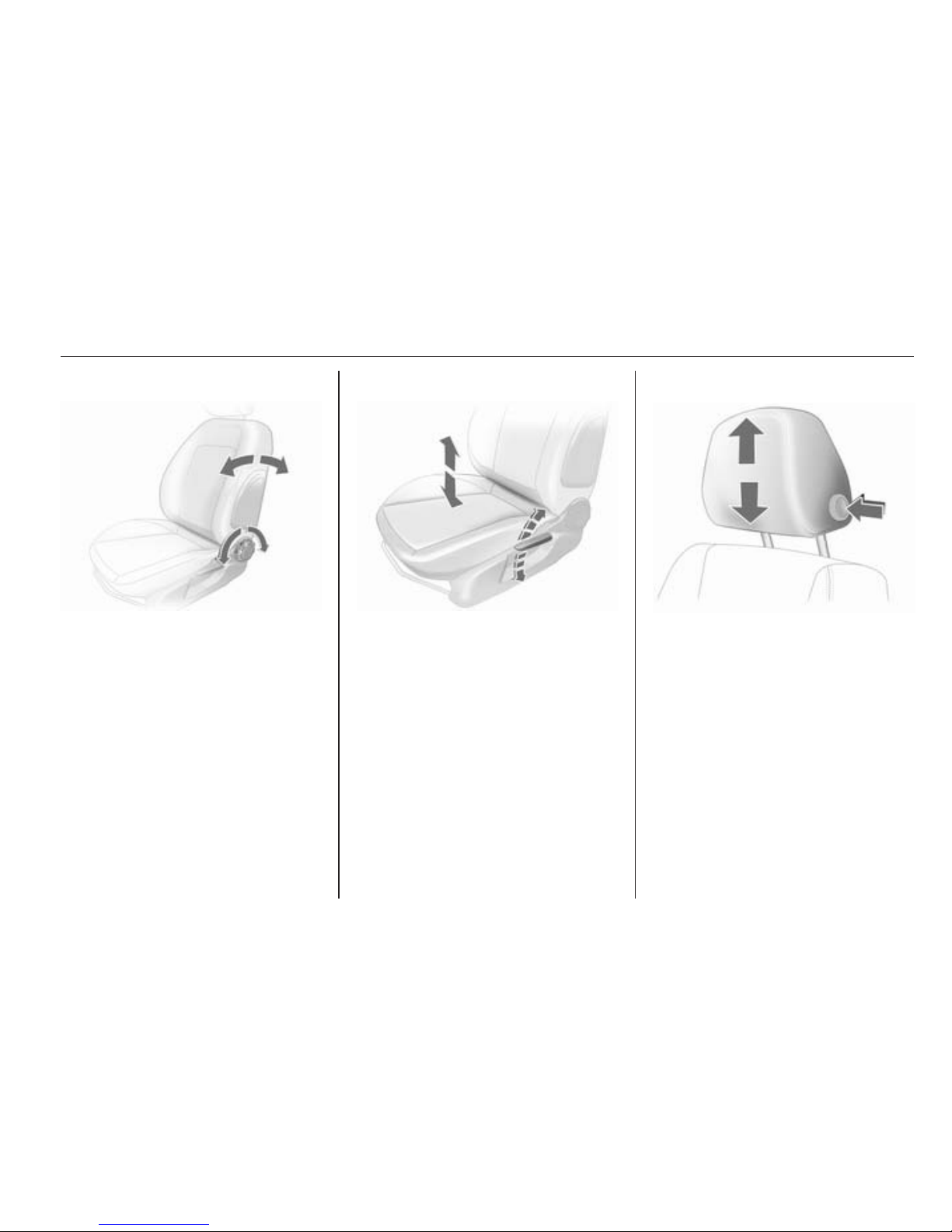

Seat backrests
Turn handwheel. Do not lean on seat
backrest when adjusting.
Seat adjustment 3 35, Seat position
3 34, Folding front passenger seat
backrest 3 36.
Seat height
Lever pumping motion
up = higher
down = lower
Seats 3 35, Seat position 3 34.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 33.

8In brief
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).
To release belt, press red button on
belt buckle.
Seat belts 3 37, Airbag system
3 39, Seat position 3 34.
Mirror adjustment
Interior mirror
Swivel the lever on the underside to
reduce dazzle.
Interior mirror 3 29, Automatic anti-
dazzle interior mirror 3 29.
Exterior mirrors
Setting with four-way switch in
version with manual window
operation
First select the relevant exterior mirror
then use the control to adjust.

In brief 9
Setting with four-way switch in
version with electronic window
operation
First select the relevant exterior mirror
then use the control to adjust.
Electric adjustment 3 27, Convex
exterior mirrors 3 27, Folding
exterior mirrors 3 27, Heated
exterior mirrors 3 28.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked. Do not adjust steering
wheel unless vehicle is stationary and
steering wheel lock has been
released.
Airbag system 3 39, Ignition
positions 3 112

10 In brief
Instrument panel overview

In brief 11
1Side air vents ...................... 109
2Light switch .......................... 93
Instrument illumination ......... 98
Rear fog light ......................... 97
Front fog lights ..................... 97
Headlight range
adjustment ........................... 94
3Turn and lane-change
signals, headlight flash,
low beam and high beam ..... 96
Exit lighting ............................ 99
Parking lights ........................ 97
Cruise control ....................... 81
4Remote control on
steering wheel ...................... 66
5Horn ...................................... 67
Driver airbag ......................... 40
6Instruments .......................... 72
7Windscreen wiper,
windscreen washer system ... 68
Trip computer ........................ 87
8Centre air vents ................... 109
9Info-Display ........................... 81
Trip computer ........................ 87
Electronic climate control
system ................................. 106
10 Left heated seat .................... 36
Heated steering wheel .......... 67
Tyre deflation detection
system ................................. 161
Parking assist ...................... 126
Hazard warning flashers ....... 96
Central locking system .......... 21
Electronic stability program . 124
Airbag deactivation ............... 43
Right heated seat .................. 36
11 Front passenger airbag ......... 40
12 Glovebox .............................. 50
13 Infotainment system ............ 101
14 Climate control system ........ 104
15 Cigarette lighter ..................... 71
Power outlet .......................... 71
16 Ashtray .................................. 71
17 Ignition switch with
steering wheel lock ............. 112
18 Accelerator pedal ................ 111
19 Brake pedal ......................... 123
20 Clutch pedal ........................ 111
21 Steering wheel adjustment .... 66
22 Bonnet release lever ........... 136

12 In brief

In brief 13

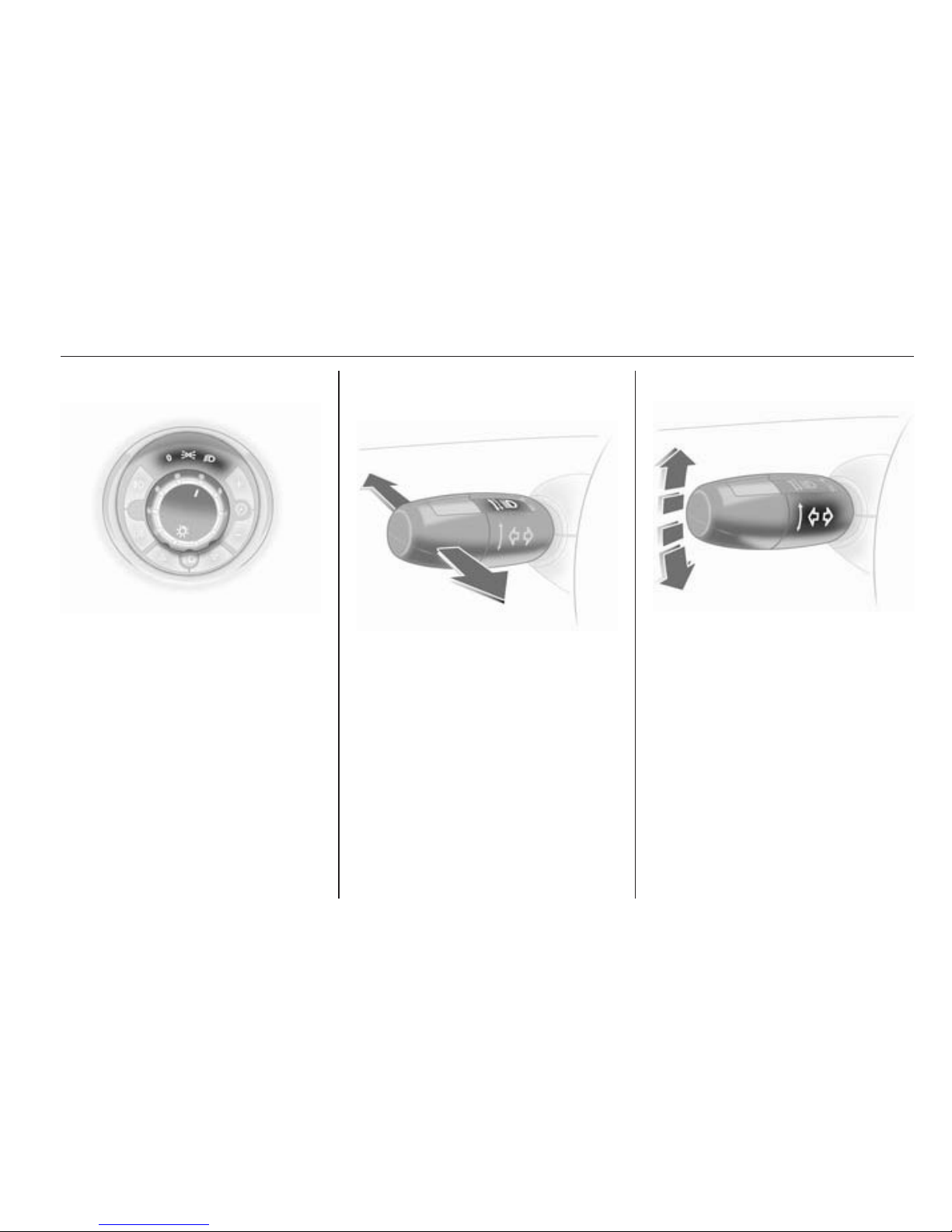

Exterior lighting
Turn light switch:
7= Off
8= Side lights
9= Headlights
Press
>= Front fog lights
r= Rear fog lights
Lighting 3 93.
Headlight flash, high beam and
low beam
headlight flash = pull lever
high beam = push lever
low beam = push or pull lever
High beam 3 94, Headlight flash
3 94, Automatic light control
3 93.
Turn and lane-change signals
right = lever up
left = lever down
Turn and lane-change signals
3 96, Parking lights 3 97.

14 In brief
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 96.
Horn
Press j.
Washer and wiper systems
Windscreen wiper
&=fast
%= slow
$= timed interval wipe or
automatic wiping with rain
sensor
§= off
For a single swipe when the
windscreen wiper is off, press the
lever down.
Windscreen wiper 3 68, Wiper
blade replacement 3 140.

In brief 15
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 68, Washer fluid 3 139.
Rear window wiper and washer
system
Wiper on = push lever
Wiper off = push lever again
Wash = push lever and hold
Rear window wiper and washer
system 3 69, Wiper blade
replacement 3 140, Washer fluid
3 139.
Climate control
Heated rear window, heated
exterior mirrors
Heating is operated by pressing the
Ü button.
Heated rear window 3 31, Heated
exterior mirrors 3 28.

16 In brief
Demisting and defrosting the
windows
Air distribution to l.
Set temperature control to warmest
level.
Set fan speed to highest level.
Cooling n on.
Press button V.
Climate control system 3 104.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
wait 3 seconds after depressing
clutch pedal and then pull up the
button on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 118.
Manual transmission automated
N=neutral
o= drive
+= higher gear
-= lower gear
A= switch between automatic and
manual mode
R= reverse gear (with selector
lever lock)
Manual transmission automated
3 119.

In brief 17
Automatic transmission
P=park
R= reverse
N= neutral
D= drive
The selector lever can only be moved
out of P or N when the ignition is on
and the foot brake is depressed
(selector lever lock). To engage P or
R, push button on selector lever.
The automatic transmission is
available in two versions 3 115.
Starting off
Check before starting off
■ Tyre pressure and condition
3 160, 3 198.
■ Engine oil level and fluid levels
3 137.
■ All windows, mirrors, exterior
lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats,
and seat belts 3 27, 3 34,
3 38.
■ Brake function at low speed,
particularly if the brakes are wet.
Starting the engine
Turn key to position 1. Move the
steering wheel slightly to release the
steering wheel lock. Operate clutch
and brake, automatic transmission in
P or N, do not accelerate; for diesel
engines, turn the key to position 2 for
preheating and wait until control
indicator ! goes out; turn key to
3 and release key.
Starting the engine 3 112.

18 In brief
Parking
■ Always apply parking brake.
Manual parking brake without
pressing release button. Apply as
firmly as possible on a downhill
slope or uphill slope. Operate foot
brake at the same time to reduce
operating force.
■ Switch off the engine and ignition.
Turn the ignition key to position
0 and remove. Turn the steering
wheel until the steering wheel lock
is felt to engage.
For vehicles with automatic
transmission, the key can only be
removed when the selector lever is
in the P position.
■ If the vehicle is on a level surface or
uphill slope, engage first gear or set
the selector lever to P before
switching off the ignition. On an
uphill slope, turn the front wheels
away from the kerb.
If the vehicle is on a downhill slope,
engage reverse gear or set the
selector lever to P before switching
off the ignition. Turn the front
wheels towards the kerb.
■ Lock the vehicle with button p on
the radio remote control.
Activate the anti-theft alarm system
3 25.
■ Do not park the vehicle on an easily
ignitable surface. The high
temperature of the exhaust system
could ignite the surface.
■ Close windows and sunroof.
■ The engine cooling fans may run
after the engine has been switched
off 3 136.
■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for approx. 30
seconds, before switching off in
order to protect the turbocharger.
Keys, locks 3 19.
Laying the vehicle up for a long period
of time 3 135.

Keys, doors and windows 19
Keys, doors and
windows
Keys, locks ................................... 19
Doors ........................................... 24
Vehicle security ............................ 25
Exterior mirrors ............................ 27
Interior mirrors ............................. 29
Windows ...................................... 29
Roof ............................................. 31
Keys, locks
Keys
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 172.
Lock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical,
remove key and then re-insert it. If the
cylinder still free-wheels, turn the key
through 180° and repeat operation.
Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Car Pass
The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to
a workshop, this vehicle data is
needed in order to perform certain
operations.
