Vauxhall Zafira Tourer User manual

0 - 1Infotainment Manual Model Year 2013.5 Edition: January 2013 TS 1707-B-13
VAUXHALL Zafira Tourer
Infotainment Manual
Model Year 2013.5
Edition: January 2013
TS 1707-B-13

Introduction .................................... 2
Radio ........................................... 26
CD Player .................................... 42
AUX input ..................................... 48
USB port ...................................... 50
Digital picture frame ..................... 54
Navigation .................................... 57
Speech recognition .................... 102
Phone ........................................ 117
Index .......................................... 136
Contents

2Introduction
Introduction
General information ....................... 2
Theft-deterrent feature ................... 3
Control elements overview ............ 4
Usage .......................................... 13
Basic operation ............................ 14
Tone settings ............................... 19
Volume settings ........................... 22
Personalisation ............................ 24
General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
For the AM, FM and DAB (if available)
wavebands the radio is equipped with
twelve automatically assignable
channel presets. Furthermore,
36 channels can be allocated
manually (waveband-independent).
The integrated audio player will
entertain you with audio CDs and
MP3/WMA CDs.
Furthermore, you can connect
external data storage devices, e.g.
iPod, MP3 player or USB stick (if USB
port available), or a portable CD
player to the Infotainment system as
further audio sources.
The digital sound processor provides
you with several preset equalizer
modes for sound optimisation.
The navigation system (only
Navi 600 / Navi 900) with dynamic
route planning will reliably guide you
to your destination, and, if desired,
will automatically avoid traffic jams or
other traffic problems.

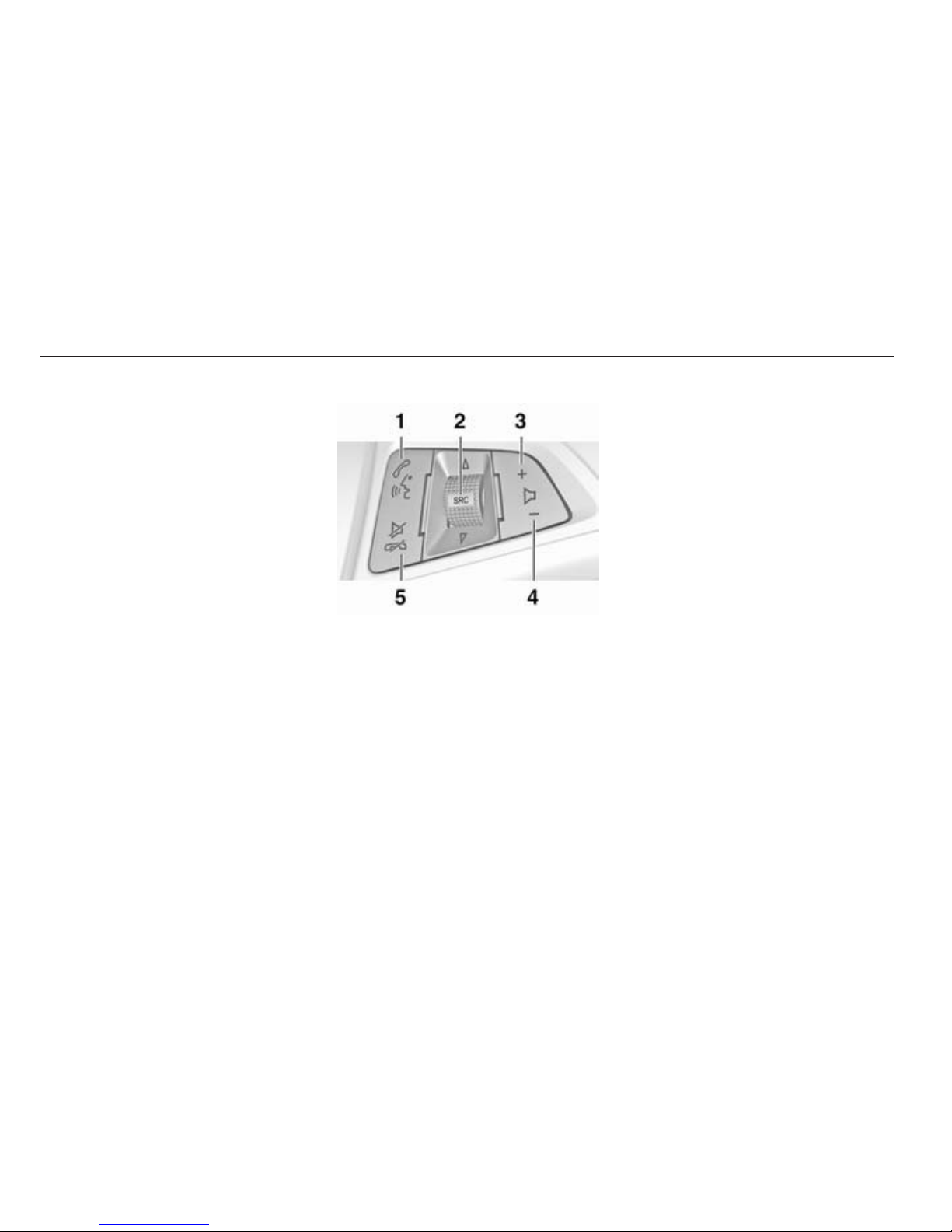

Optionally, the Infotainment system
can be operated using controls on the
steering wheel, or via the speech
recognition system (if available).
In addition, the Infotainment system
can be equipped with a mobile phone
portal.
The well-thought-out design of the
control elements, the clear displays
and a large multifunction knob enable
you to control the system easily and
intuitively.
Note
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those
for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.

Introduction 3
Important information on
operation and traffic safety
9Warning
The Infotainment system must be
used so that the vehicle can be
driven safely at all times. If in
doubt, stop the vehicle and
operate the Infotainment system
while the vehicle is stationary.
9Warning
The use of the navigation system
(only with Navi 600 / Navi 900)
does not release the driver from
the responsibility for a correct,
vigilant attitude in road traffic. The
related traffic regulations must
always be followed.
Only make entries (e.g.
addresses) with the vehicle
stationary.
If a navigation instruction
contradicts traffic regulations, the
traffic regulations always apply.
9Warning
In some areas one-way streets
and other roads and entrances
(e.g. pedestrian zones) that you
are not allowed to turn into are not
marked on the map. In such areas
the Infotainment system may
issue a warning that must be
accepted. Here you must pay
particular attention to one-way
streets, roads and entrances that
you are not allowed to drive into.
Radio reception
Radio reception may be disrupted by
static, noise, distortion or loss of
reception due to
■ changes in distance from the
transmitter,
■ multi-path reception due to
reflection,
■ shadowing.
Theft-deterrent feature
The Infotainment system is equipped
with an electronic security system for
the purpose of theft deterrent.
The Infotainment system therefore
functions only in your vehicle and is
worthless for a thief.

4Introduction
Control elements overview
Navi 600 / Navi 900

Introduction 5
1RADIO (BAND) ..................... 26
Activate radio or change
waveband .............................. 26
2CD/AUX ................................ 42
Start CD/MP3/WMA replay ... 44
Change to external audio
source ................................... 48
3Search backward .................. 26
Radio: search backward ....... 26
CD/MP3/WMA: skip track
backward ............................... 44
4DEST / NAV .......................... 58
Navigation destination
entry ...................................... 58
5m (VOL) knob ........................ 13
Press: switch on/off
Infotainment system .............. 13
Turn: adjust volume .............. 13
6Search forward ...................... 26
Radio: search forward ........... 26
CD/MP3/WMA: skip track
forward .................................. 44

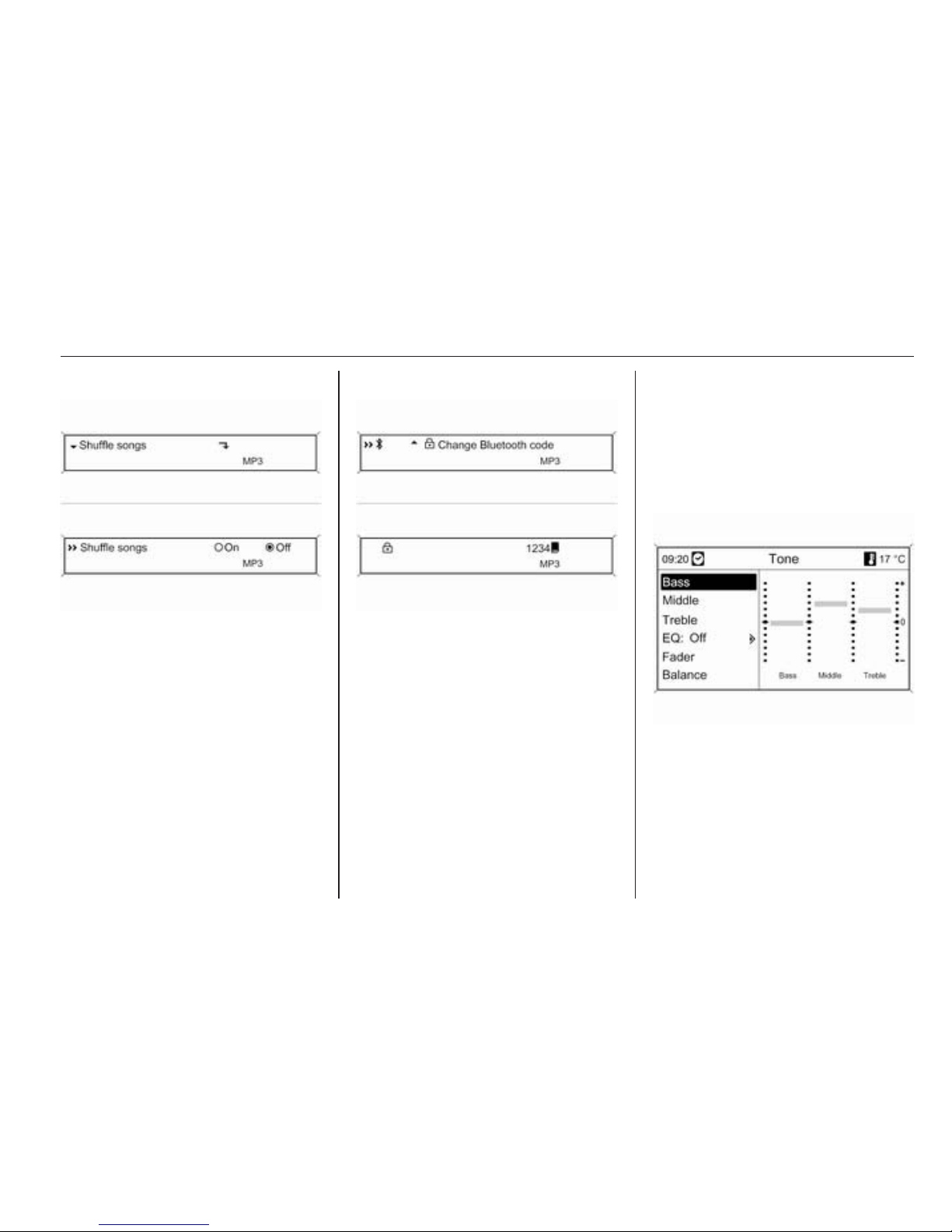

7TONE .................................... 19
Tone settings ........................ 19
8Radio station buttons 1...6 ... 27
Long press: save station ....... 27
Short press: select station ....27
9FAV (1/2/3) ............................ 28
Favourite lists (preset
radio stations) ....................... 28
10 AS (1/2) ................................. 27
Automatic memory levels
(preset radio stations) ........... 27
Short press: select
autostore list .......................... 27
Long press: save stations
automatically ......................... 27
11 TP ......................................... 35
Activate or deactivate
radio traffic service ................ 35
12 CD ejection ........................... 44

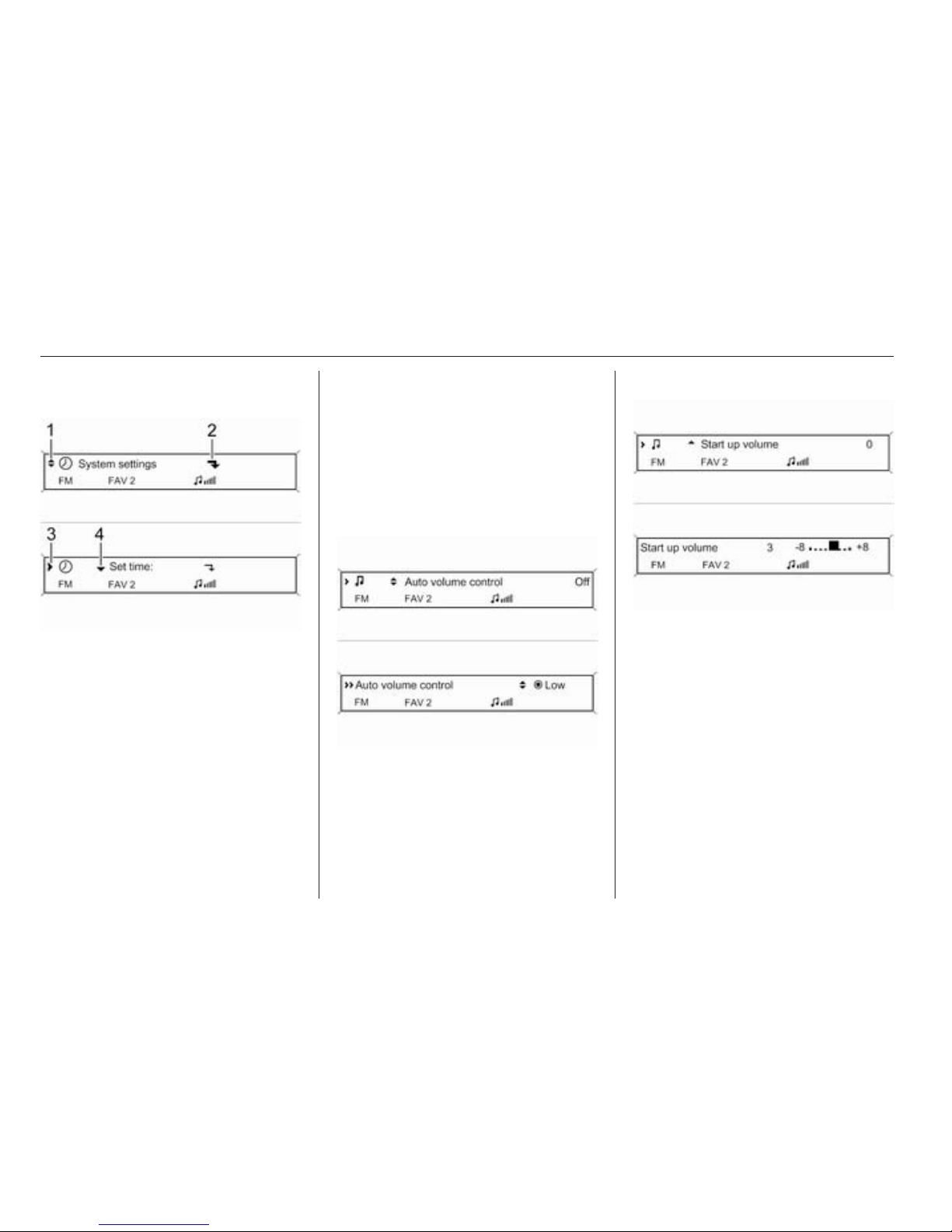

13 CONFIG ................................ 22
System settings ..................... 22
14 INFO ....................................... 4
Radio: information on the
currently played station ......... 26
CD/MP3/WMA:
information on the
currently inserted CD ............ 44
Digital picture frame:
shows currently selected
picture/photo ......................... 54
Navigation: information,
e.g., on the current location ..57

6Introduction
15 Multifunction knob ................. 14
Turn: mark menu options
or set numeric values ........... 14
Press (the outer ring):
select/activate the marked
option; confirm set value;
switch function on/off ............ 14
16 Eight-way switch ................... 58
Navigation: move display
window in map view .............. 58
17 CD slot .................................. 44
18 BACK .................................... 14
Menu: one level back ............ 14
Input: delete last character
or entire entry ........................ 14
19 RPT / NAV ............................ 95
Repeat last navigation
message ............................... 95
20 Phone / Mute ......................... 13
Open telephone main menu 128
Activate/deactivate mute ....... 13
21 NAV ....................................... 58
Press once: Display map ..... 58
Press twice: Navigation
menu ..................................... 58

Introduction 7
CD 400 / CD 400plus

8Introduction
1RADIO (BAND) ..................... 26
Activate radio or change
waveband .............................. 26
2CD ......................................... 42
Start CD/MP3/WMA replay ... 44
3Search backward .................. 26
Radio: search backward ....... 26
CD/MP3/WMA: skip track
backward ............................... 44
4m (VOL) knob ........................ 13
Press: switch on/off .............. 13
Infotainment system ............. 13
Turn: adjust volume .............. 13
5Search forward ...................... 26
Radio: search forward ........... 26
CD/MP3/WMA: skip track
forward .................................. 44
6Radio station buttons 1...6 ... 27
Long press: save station ....... 27
Short press: select station ....27
7FAV (1/2/3) ............................ 28
Lists of favourites (preset
radio stations) ....................... 28
8AS (1/2) ................................. 27
Automatic memory levels
(preset radio stations) ........... 27
Short press: select
autostore list .......................... 27
Long press: save stations
automatically ......................... 27
9TP ......................................... 35
Activate or deactivate
radio traffic service ................ 35
If Infotainment system is
switched off: display time
and date ................................ 35
10 CD ejection ........................... 44
11 CONFIG ................................ 22
Open settings menu .............. 22
12 INFO ....................................... 4
Radio: information on the
currently played station ......... 26
CD/MP3/WMA:
information on the
currently inserted CD ............ 44
13 CD slot .................................. 44
14 Multifunction knob ................. 14
Turn: mark menu options
or set numeric values ........... 14
Press: select/activate the
marked option; confirm set
value; switch function on/off .. 14
15 BACK .................................... 14
Menu: one level back ............ 14
Input: delete last character
or entire entry ........................ 14
16 TONE .................................... 19
Tone settings ........................ 19
17 Phone / Mute ...................... 117
Open telephone main menu 128
Activate/deactivate mute ....... 13

Introduction 9
18 AUX ....................................... 48
Change to external audio
source ................................... 48

10 Introduction

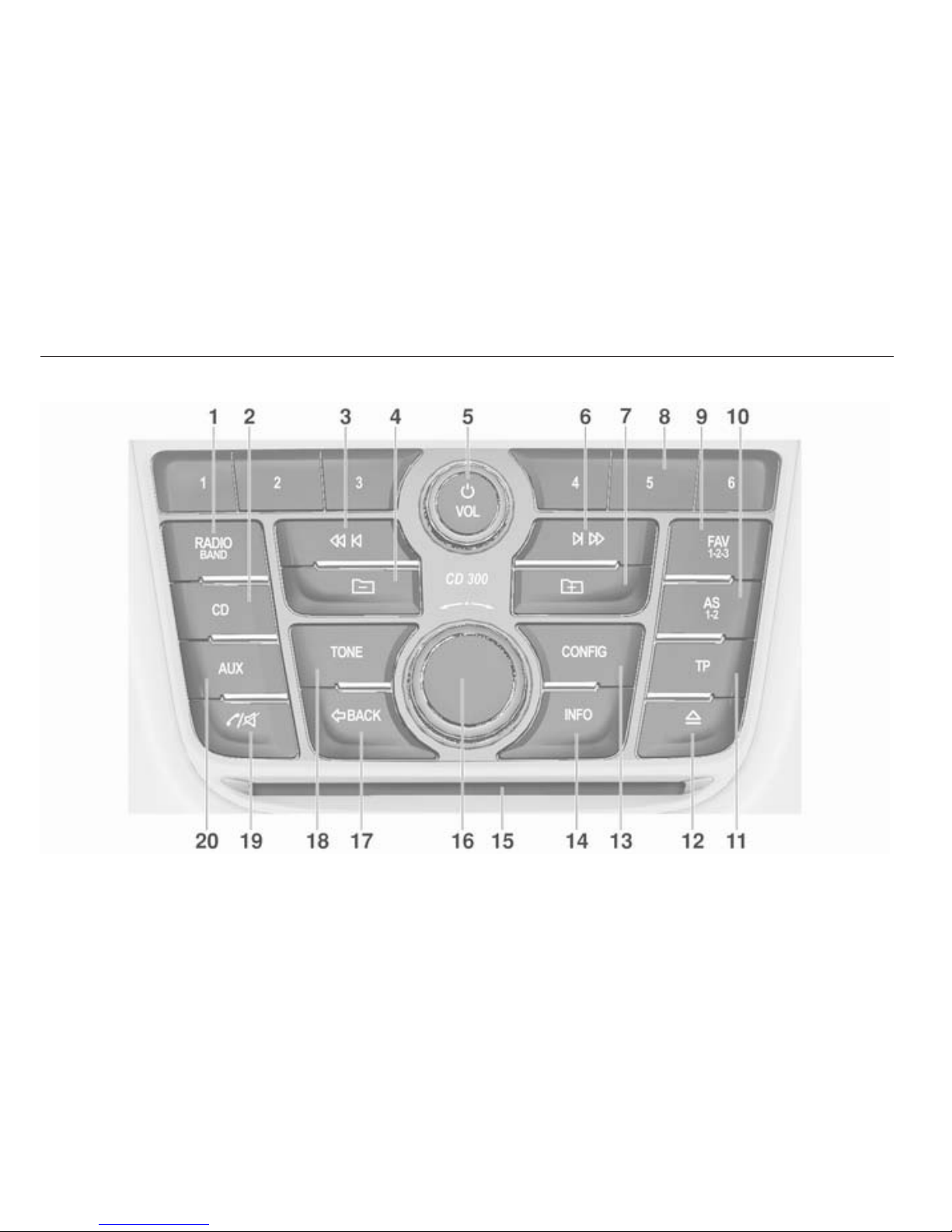

CD 300

Introduction 11
1RADIO (BAND) ..................... 26
Activate radio or change
waveband .............................. 26
2CD ......................................... 42
Start CD/MP3/WMA replay ... 44
3Search backward .................. 26
Radio: search backward ....... 26
CD/MP3/WMA: skip track
backward ............................... 44
4MP3: folder level higher ........ 44
5m (VOL) knob ........................ 13
Press: switch on/off the
Infotainment system .............. 13
Turn: adjust volume .............. 13
6Search forward ...................... 26
Radio: search forward ........... 26
CD/MP3/WMA: skip track
forward .................................. 44
7MP3: folder level lower .......... 44
8Radio station buttons 1...6 ... 27
Long press: save station ....... 27
Short press: select station ....27
9FAV (1/2/3) ............................ 28
Lists of favourites (preset
radio stations) ....................... 28
10 AS (1/2) ................................. 27
Automatic memory levels
(preset radio stations) ........... 27
Short press: select
autostore list .......................... 27
Long press: save stations
automatically ......................... 27
11 TP ......................................... 35
Activate or deactivate
radio traffic service ................ 35
If Infotainment system is
switched off: display time
and date ................................ 35
12 CD ejection ........................... 44
13 CONFIG ................................ 22
Open settings menu .............. 22
14 INFO ....................................... 4
Radio: information on the
currently played station ......... 26
CD/MP3/WMA:
information on the
currently inserted CD ............ 44
15 CD slot .................................. 44
16 Multifunction knob ................. 14
Turn: mark menu options
or set numeric values ........... 14
Press: select/activate the
marked option; confirm set
value; switch function on/off .. 14
17 BACK .................................... 14
Menu: one level back ............ 14
Input: delete last character
or entire entry ........................ 14
18 TONE .................................... 19
Tone settings ........................ 19
19 Phone / Mute ...................... 117
Open telephone main menu 128
Activate/deactivate mute ....... 13

12 Introduction
20 AUX ....................................... 48
Change to external audio
source ................................... 48
Steering wheel audio controls
1Short press: take phone call 117
or dial number in call list ..... 128
or activate speech
recognition (if available) ...... 102
Long press: show call list .... 128
or deactivate speech
recognition (if available) ...... 102
2SRC (Source) ........................ 13
Press: select audio source .... 13
If radio is active: turn
upwards/downwards to
select next/previous
preset radio station ............... 26
If CD player is active: turn
upwards/downwards to
select next/previous CD/
MP3/WMA track .................... 44
If Phone portal is active:
turn upwards/downwards
to select next/previous
entry in call list .................... 128
If Phone portal is active
and calls waiting: turn
upwards/downwards to
switch between calls ........... 128
3Increase volume .................... 13
4Reduce volume ..................... 13
5Short press: end/decline
call ....................................... 128
or close call list .................... 128
or activate/deactivate mute ... 13
or deactivate speech
recognition (if available) ...... 102

Introduction 13
Usage
Control elements
The Infotainment system is operated
via function buttons, multifunctional
knobs and menus that are shown on
the display.
Inputs are made optionally via:
■ the central control unit in the
instrument panel 3 4
■ controls on the steering wheel 3 4
■ the speech recognition system (if
available) 3 102
Switching the Infotainment
system on or off
Press the X knob briefly. After
switching on, the last selected
Infotainment source is active.
Automatic switch-off
If the Infotainment system has been
switched on using the X knob when
the ignition was switched off, it will
switch off again automatically after
30 minutes.
Setting the volume
Turn the X knob. The current setting
is shown on the display.
When the Infotainment system is
switched on, the last selected volume
is set, provided that volume is lower
than the maximum start-up volume.
The following can be set separately:
■ the maximum start-up volume
3 22
■ the volume of the traffic
announcements 3 22
■ the volume of the navigation
messages (only Navi 600 /
Navi 900) 3 58
Speed compensated volume
When speed compensated volume is
activated 3 22 the volume is
adapted automatically to compensate
for the road and wind noise as you
drive.
Mute
Press the v/G button (if Phone portal
available: press for a few seconds) to
mute the audio sources.
To cancel mute again: turn the X
knob or press the v/G button again
(if Phone portal available: press for a
few seconds).
Volume limitation at high
temperatures
At very high temperatures inside the
vehicle the Infotainment system limits
the maximum adjustable volume. If
necessary, the volume is decreased
automatically.
Modes of operation
Radio
Press the RADIO button to open the
radio main menu or to change
between the different wavebands.
Press the multifunction knob to open
a submenu with options for station
selection.
Detailed description of the radio
functions 3 26.

14 Introduction
Audio players
Press the CD/AUX button to open the
CD, USB, iPod or AUX menus (if
available) or to swap between these
menus.
Press the multifunction knob to open
a submenu with options for track
selection.
Detailed description of:
■ CD player functions 3 44
■ AUX input functions 3 49
■ USB port functions 3 50
Navigation
(only Navi 600 / Navi 900)
Press the NAV button and then the
multifunction knob to open the
Navigation menu.
Detailed description of the navigation
system functions 3 58.
Phone
(if Phone portal is available)
Press the v/G button to open the
telephone menu.
Press the multifunction knob to open
a submenu with options for the input
or selection of numbers.
Detailed description of the mobile
phone portal functions 3 117.
Basic operation
Multifunction knob
The multifunction knob is the central
control element for the menus.
Turn the multifunction knob:
■ to mark a menu option
■ CD 300: to display a menu option
■ to set a numeric value
Press the multifunction knob
(Navi 600 / Navi 900: press the outer
ring):
■ to select or activate the marked
option
■ CD 300: to select or activate the
option displayed
■ to confirm a set value
■ to switch a system function on/off
BACK button
Press the BACK button briefly to:
■ exit a menu
■ return from a submenu to the next
higher menu level
■ delete the last character in a
character sequence
Press and hold the BACK button for a
few seconds to delete the entire entry.

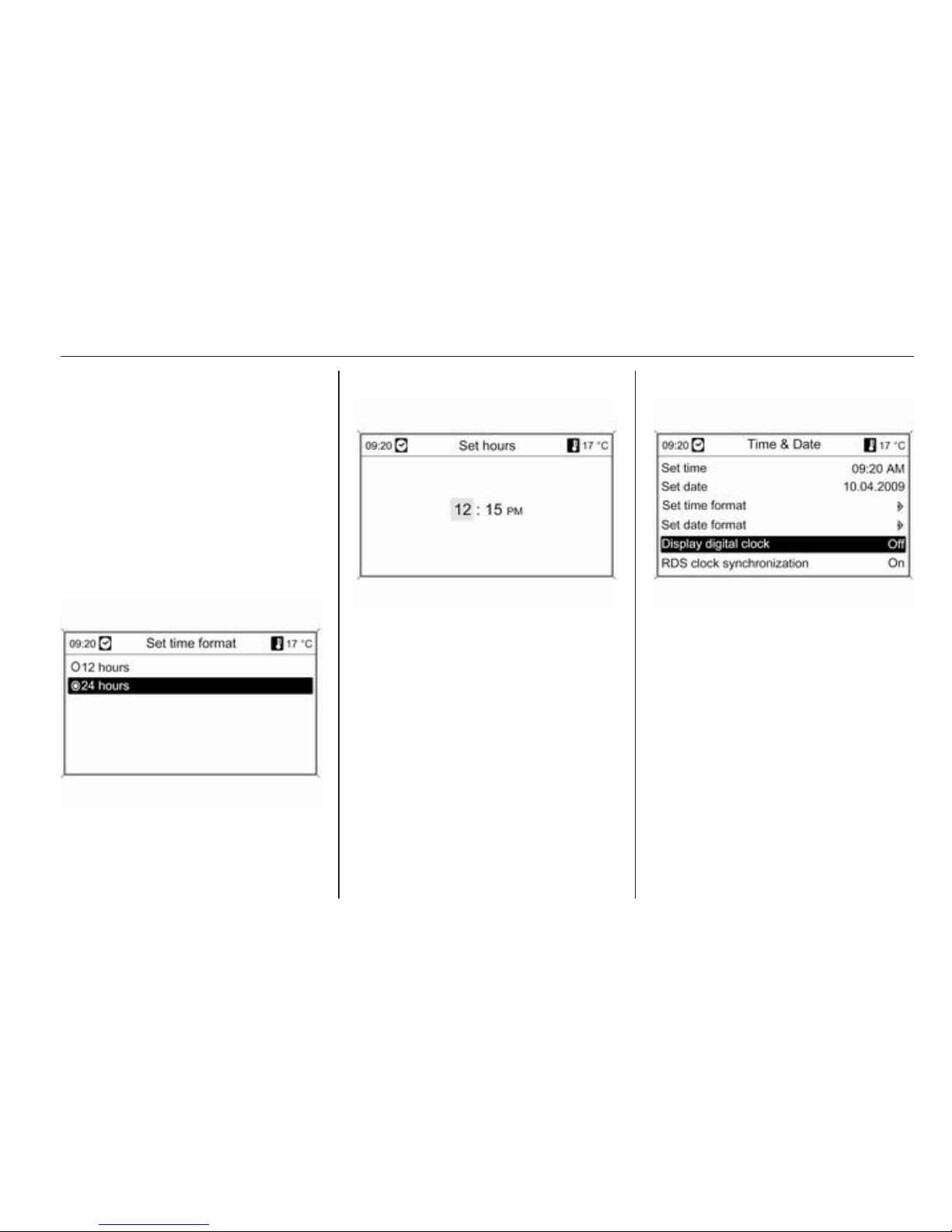

Examples of menu operation
Navi 600 / Navi 900
Selecting an option

Introduction 15
Turn the multifunction knob to move
the cursor (= coloured background) to
the desired option.
Press the multifunction knob to select
the marked option.
Submenus
An arrow on the right-hand edge of
the menu indicates that after
selection of the option a submenu
with further options will be opened.
Activating a setting
Turn the multifunction knob to mark
the desired setting.
Press the multifunction knob to
activate the setting.
Setting a value
Turn the multifunction knob to change
the current value of the setting.
Press the multifunction knob to
confirm the set value.
Switching a function on or off
Turn the multifunction knob to mark
the function to be switched on or off.
Press the multifunction knob to switch
between the settings On and Off.

16 Introduction
Entering a character sequence
To enter character sequences, e.g.
telephone numbers or road names:
Turn the multifunction knob to select
the desired character.
The last character in the character
sequence can be deleted using the
BACK button. Pressing and holding
the BACK button deletes the entire
entry.
Press the multifunction knob to
confirm the selected character.
CD 400 / CD 400plus
Selecting an option
Turn the multifunction knob to move
the cursor (= coloured background) to
the desired option.
Press the multifunction knob to select
the marked option.
Submenus
An arrow on the right-hand edge of
the menu indicates that after
selection of the option a submenu
with further options will be opened.
Activating a setting
Turn the multifunction knob to mark
the desired setting.
Press the multifunction knob to
activate the setting.

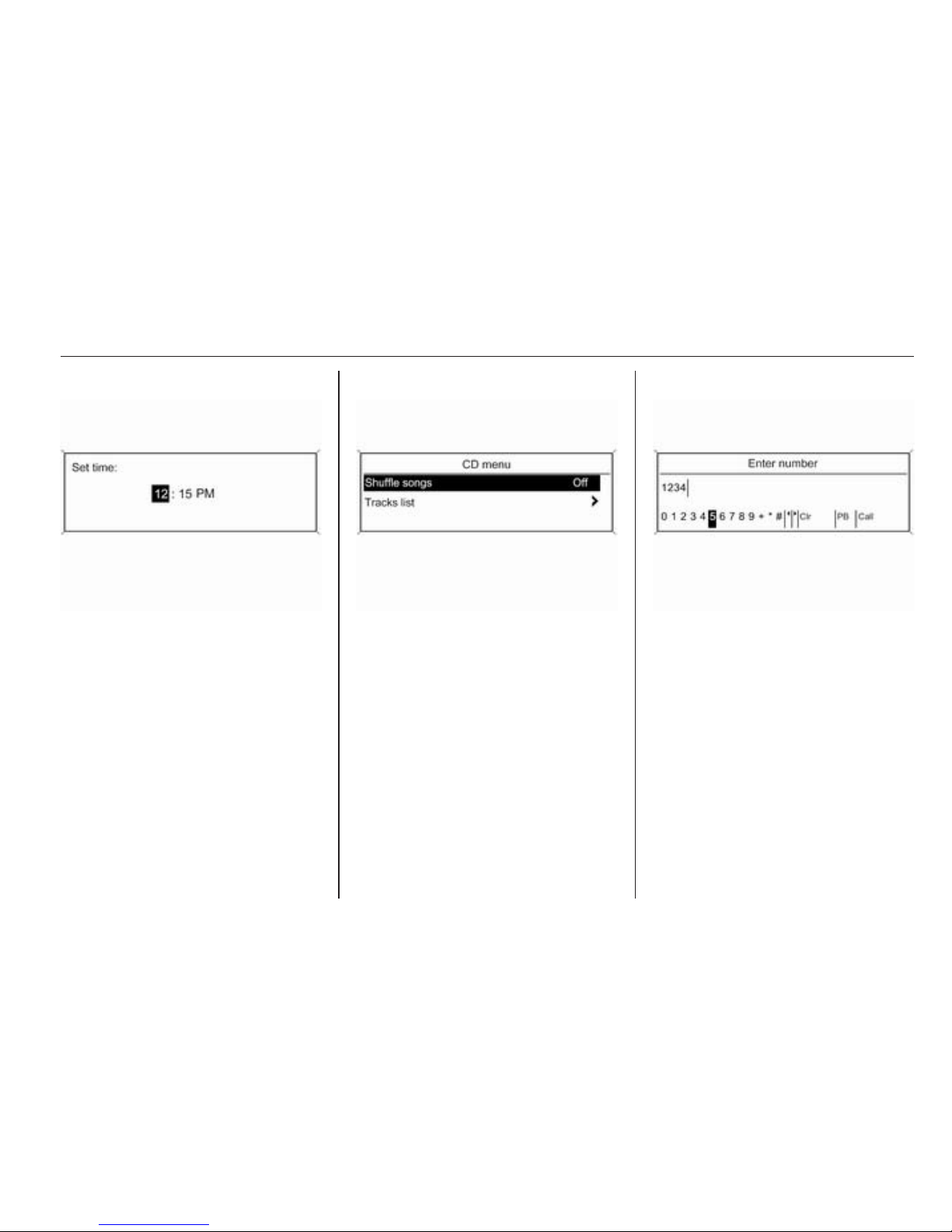

Introduction 17
Setting a value
Turn the multifunction knob to change
the current value of the setting.
Press the multifunction knob to
confirm the set value.
Switching a function on or off
Turn the multifunction knob to mark
the function to be switched on or off.
Press the multifunction knob to switch
between the settings On and Off.
Entering a character sequence
For the input of character sequences,
e.g. telephone numbers:
Turn the multifunction knob to select
the desired character.
Press the multifunction knob to
confirm the selected character.
Using the BACK button the last
character in the character sequence
can be deleted.

18 Introduction
CD 300
Menu elements and symbols
The up and down arrows (1) indicate:
the top menu level is active. Further
options are available in the active
menu.
Turn the multifunction knob to display
the other options in the active menu.
The angled arrow (2) indicates: a
submenu with further options is
available.
Press the multifunction knob to select
the option displayed and to open the
corresponding submenu.
The arrow pointing to the right (3)
indicates: the first submenu level is
active (two arrows = second submenu
level active).
The down arrow (4) indicates: further
options are available in the active
submenu.
Activating a setting
Press the multifunction knob to open
the corresponding settings menu.
Turn the multifunction knob to display
the desired setting.
Press the multifunction knob to
activate the setting.
Setting a value
Press the multifunction knob to open
the corresponding settings menu.
Turn the multifunction knob to change
the current value of the setting.
Press the multifunction knob to
confirm the set value.

Introduction 19
Switching a function on or off
Press the multifunction knob to open
the corresponding settings menu.
Turn the multifunction knob to mark
the setting On or Off.
Press the multifunction knob to
confirm the marked setting.
Entering a character sequence
Press the multifunction knob to open
the relevant settings menu.
Turn the multifunction knob to change
the character at the current cursor
position.
Press the multifunction knob to
confirm the character displayed.
Using the BACK button the last
character in the character sequence
can be deleted.
Tone settings
Navi 600 / Navi 900
In the tone settings menu the tone
characteristic can be set differently for
each radio waveband and each audio
player source.
Press the TONE button to open the
tone menu.
