Introduction .................................... 2
Radio ........................................... 28
CD Player .................................... 39
AUX input ..................................... 46
USB port ...................................... 48
Bluetooth music ........................... 51
Navigation .................................... 57
Voice recognition ......................... 74
Phone .......................................... 76
Index ............................................ 96
Contents

2Introduction
Introduction
General information ....................... 2
Control elements overview ............ 4
Theft-deterrent feature ................. 18
Usage .......................................... 18
Tone settings ............................... 22
Volume settings ........................... 26
General information
The Infotainment system provides
state-of-the-art in-car information and
entertainment.
The radio is equipped with assignable
channel presets for FM, MW and LW
wavebands.
The audio player plays audio CDs,
MP3 CDs and also WMA CDs.
External data storage devices, e.g.
iPod, MP3 player or USB stick, or a
portable player can be connected to
the Infotainment system. External
audio sources can also be connected
via Bluetooth.
The digital sound processor provides
several preset equalizer modes for
sound optimisation.
The navigation system's dynamic
route planning will reliably guide you
to your destination and can help avoid
traffic jams and other traffic problems.
Optionally, the Infotainment system
can be operated using controls on the
steering column or via the voice
recognition system.
In addition, the Infotainment system
can be equipped with a handsfree
phone system.
The well-thought-out design of the
controls and the clear displays enable
you to control the system easily and
intuitively.
Important information on
operation and traffic safety
9Warning
Drive safely at all times when
using the Infotainment system.
If in doubt, stop the vehicle before
operating the Infotainment
system.
Using this manual
■ This manual describes features
that may or may not be on your
specific vehicle, either because
they are optional or due to changes
subsequent to the printing of this
manual. Please refer to the

Introduction 3
purchase documentation to confirm
each of the features found on the
vehicle.
■ Certain controls and descriptions,
including symbols, displays and
menu functions may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The table of contents at the
beginning of this manual and within
each section shows where the
information is located.
■ The index will enable you to search
for specific information.
■ The vehicle display screens may
not support your specific language.
■ Display messages and interior
labelling are written in bold letters.
■ The operations given within this
manual refer to Infotainment
system controls. For equivalent
steering column controls, refer to
the control elements overview
3 4.
Warnings and Cautions
9Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".

4Introduction
Control elements overview
Instrument panel CD35 BT

Introduction 5
1m - Press: Switch on/off ........ 18
2Volume rotary knob -
Press: Mute/unmute .............. 18
Turn: Adjust volume .............. 18
3RADIO - Change audio
source, waveband ................. 28
4Central rotary knob ............... 18
Press: Confirm an action ....... 18
Turn: Access display
menu options ........................ 18
Turn: Access the stored
radio station list ..................... 28
Turn: Select next/previous
station ................................... 30
Turn: Change CD/MP3
track ...................................... 40
5MEDIA - Change audio
source ................................... 40
6EJECT - CD ejection ............. 40
72 - Radio, Short press:
Search for previous radio
frequency .............................. 30
Long press: Automatic
station search ........................ 30
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 40
Long press: Fast rewind ....... 40
83 - Radio, Short press:
Search for next radio
frequency .............................. 30
Long press: Automatic
station search ........................ 30
Audio/MP3 CD, Short
press: Skip track forwards ..... 40
Long press: Fast forward ...... 40
9USB port ............................... 48
10 AUX input .............................. 46
11 Station buttons 1...6 .............. 30
Short press: Select station .... 30
Long press: Save station ...... 30
12 TEL - Telephone menu ......... 76
13 SETUP / TEXT - Short
press: Settings menu ............ 18
Long press: Display radio
text information ..................... 35
Long press: Display CD
text information ..................... 40
14 / - Return to previous
menu, cancel an action ......... 18

6Introduction
Instrument panel CD30 BT

Introduction 7
1m - Turn: Adjust volume ........ 18
Press: Switch on/off .............. 18
2A - Display radio text
information ............................ 35
Display CD text information ..40
3RADIO/CD - Change
audio source ......................... 28
4⊲ / ⊳ - Move left/right within
display text, move around
the display screen ................. 30
5Central rotary knob ............... 18
Press: Confirm an action ....... 18
Turn: Search radio station
or waveband ......................... 28
Turn: Change CD track ......... 40
6TEL - Telephone menu ......... 76
72 / 3 - Radio frequency:
Search backwards/
forwards ................................ 30
Audio/MP3/WMA CD:
Skip track backwards/
forwards ................................ 40
8d - CD ejection ..................... 40
90 - Settings menu ................ 18
10 Station buttons 1...6 .............. 33
Short press: Select station .... 33
Long press: Save station ...... 33
11 MEM - Access the stored
radio station list ..................... 30
12 j - Display CD additional
text information ..................... 40

8Introduction
Instrument panel CD20

Introduction 9
1d - CD ejection ..................... 40
2m - Switch on/off ................... 18
3RADIO/CD - Change
audio source, waveband ....... 28
4H - Traffic and news
information ............................ 35
5_ / 6 - Move left/right
within display text .................. 30
61 / 4 - Radio/waveband:
Search backwards/
forwards ................................ 30
Select system settings .......... 28
Short press: Change CD/
MP3 track .............................. 40
Long press: Skip CD
track(s) backwards/
forwards ................................ 40
7t - Settings menu ................. 26
8j/OK - Confirm an action ..... 30
Display additional CD text
information ............................ 40
9< - Increase volume ............. 18
10 ] - Decrease volume ............ 18
11 Station buttons 1...6 .............. 33
Short press: Recall a radio
station ................................... 30
Long press: Save a radio
station ................................... 30
12 MEM - Access the stored
radio station list ..................... 30

10 Introduction

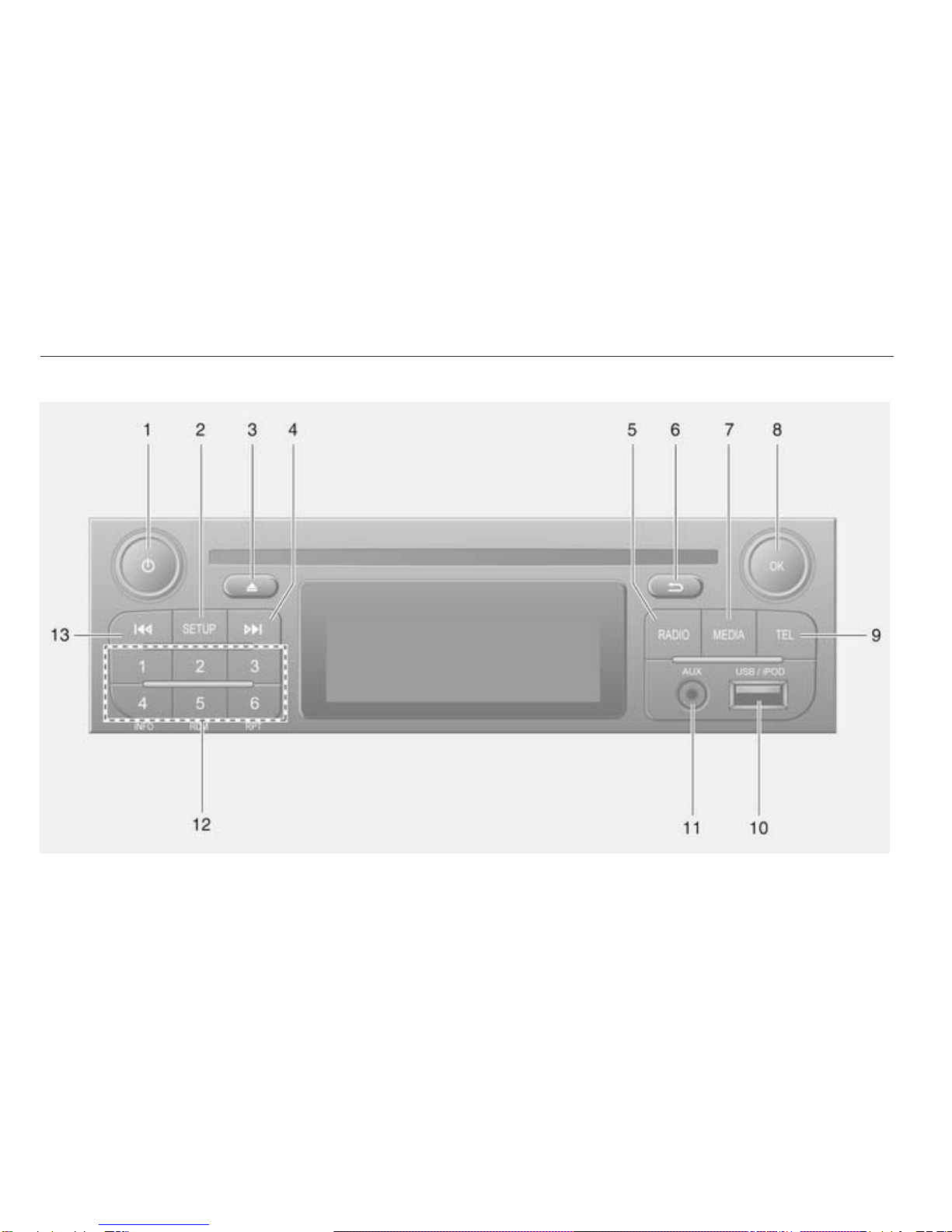

Instrument panel R15 BT / CD15 BT

Introduction 11
1m - Press: Switch on/off ........ 18
Press: Mute/unmute .............. 18
Turn: Adjust volume .............. 18
2SETUP - Short press:
Settings menu ....................... 18
Display radio text
information ............................ 35
Long press: Automatic
station storing ........................ 33
3d - CD ejection (CD 15 BT) .. 40
Mute/unmute (R15 BT) ......... 18
43 - Radio, Short press:
Search for next radio
frequency .............................. 30
Long press: Automatic
station search ........................ 30
Audio/MP3/WMA CD,
Short press: Skip track
forwards (CD 15 BT) ............. 40
Long press: Fast forward
(CD 15 BT) ............................ 40
5RADIO - Change audio
source, waveband ................. 28
6/ - Return to previous
menu, cancel an action ......... 18
7MEDIA - Change audio
source ................................... 40
8OK rotary knob ...................... 18
Press: Confirm an action ....... 18
Turn: Access display
menu options ........................ 18
Turn: Change radio
frequency .............................. 30
Turn: Change CD/MP3
track (CD 15 BT) ................... 40
9TEL - Telephone menu ......... 76
10 USB port ............................... 48
11 AUX input .............................. 46
12 Station buttons 1...6 .............. 30
Short press: Select station .... 30
Long press: Save station ...... 30
Display CD text
information (CD 15 BT) ......... 40
Audio/MP3/WMA CD
tracks: Activate random
playback (CD 15 BT) ............. 40
13 2 - Radio, Short press:
Search for previous radio
frequency .............................. 30
Long press: Automatic
station search ........................ 30
Audio/MP3/WMA CD,
Short press: Skip track
backwards (CD 15 BT) .......... 40
Long press: Fast rewind
(CD 15 BT) ............................ 40

12 Introduction
Instrument panel CD10

Introduction 13
1m - Turn: Adjust volume ........ 18
Short press: Switch on,
mute/unmute ......................... 18
Long press: Switch off .......... 18
2d - CD ejection ..................... 40
3Station buttons 1...6 -
Short press: Select station .... 33
Long press: Save station ...... 33
4MIX - Audio/MP3 CD
tracks: Activate random
playback ................................ 40
5AUX - Auxiliary input ............. 46
6MENU - AF-RDS menu ......... 35
Settings menu for MP3 CD
display ................................... 40
7AUD - Tone settings ............. 22
8_ / 6 - Search forwards/
backwards ............................. 40
Short press: Audio/MP3
CD - Skip track forwards/
backwards ............................. 40
Long press: Access menu
options, Audio/MP3 CD -
Select track ........................... 40
9BND ...................................... 28
Short press: Activate radio
or change waveband ............ 28
Long press: Automatic
station storing ........................ 28
10 ALBUM+ - MP3 CD:
Select next album ................. 40
11 SRC - Change audio
source ................................... 28
12 ALBUM- - MP3 CD: Select
previous album ...................... 40

14 Introduction
Instrument panel R10

Introduction 15
1m - Turn: Adjust volume ........ 18
Short press: Switch on,
mute/unmute ......................... 18
Long press: Switch off .......... 18
2Station buttons 1...6 -
Short press: Select station .... 33
Long press: Save station ...... 33
3AUX - Auxiliary input ............. 46
4MENU - AF-RDS menu ......... 35
5AUD - Tone settings ............. 22
6_ / 6 - Search forwards/
backwards, access menu
options .................................. 40
7BND ...................................... 28
Short press: Activate radio
or change waveband ............ 28
Long press: Automatic
station storing ........................ 28
8SRC - Change audio
source ................................... 28

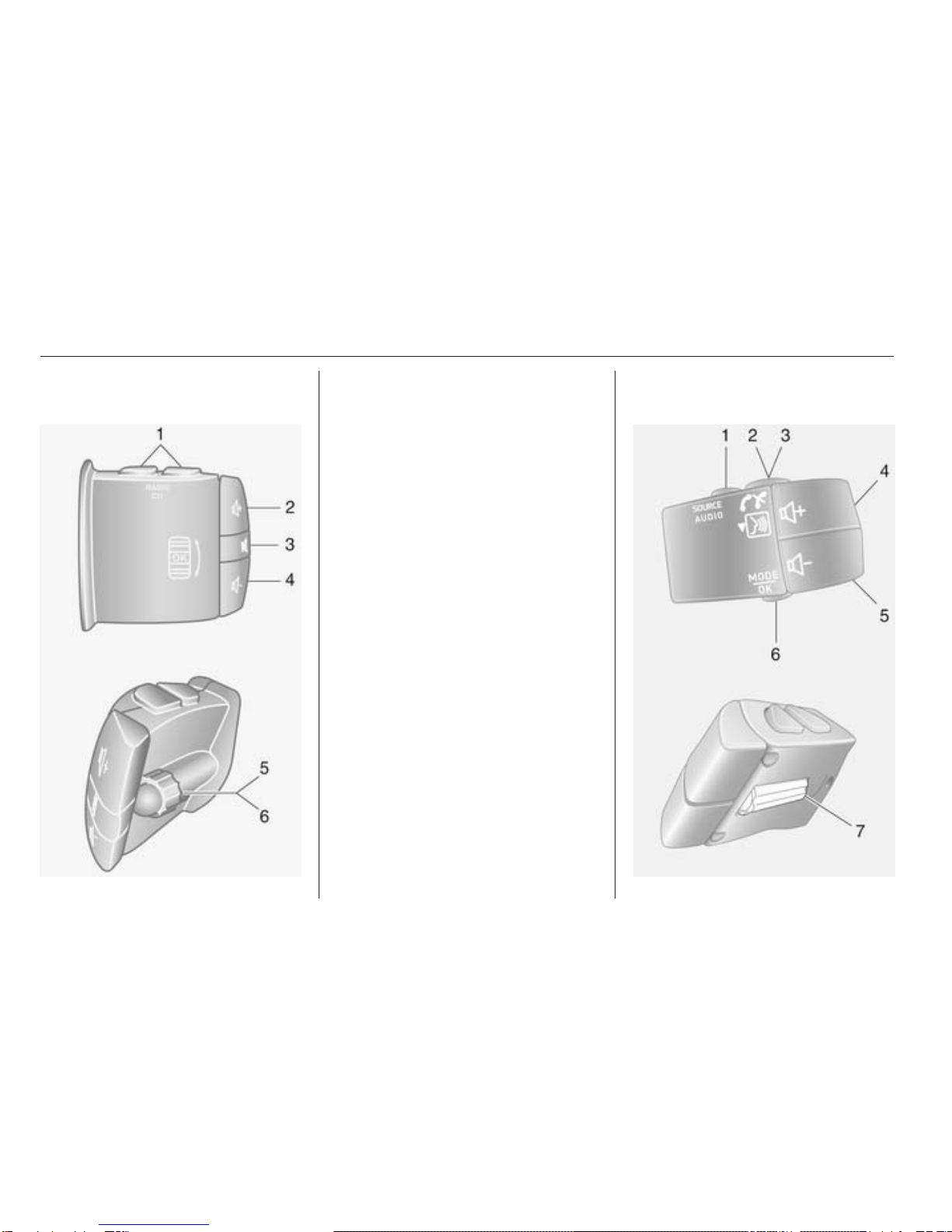

Steering column controls -
Type A
1AUDIO/SOURCE -
Change audio source ............ 18
26TEL - Telephone menu ...... 76
NAVI - Navigation menu ....... 60
3! - Increase volume ............. 18
4@ - Mute/unmute ................... 18
578 - Take/end phone call .... 84
6# - Decrease volume ............ 18
75 - Voice recognition ............. 74
8OK - Confirm actions ............. 28
Turn: Move up/down in
display menus, select
next/previous radio
preset / radio frequency /
audio track ........................... 30
9_ / 6 - Move left/right
within display text, move
around display screen ........... 40

16 Introduction
Steering column controls -

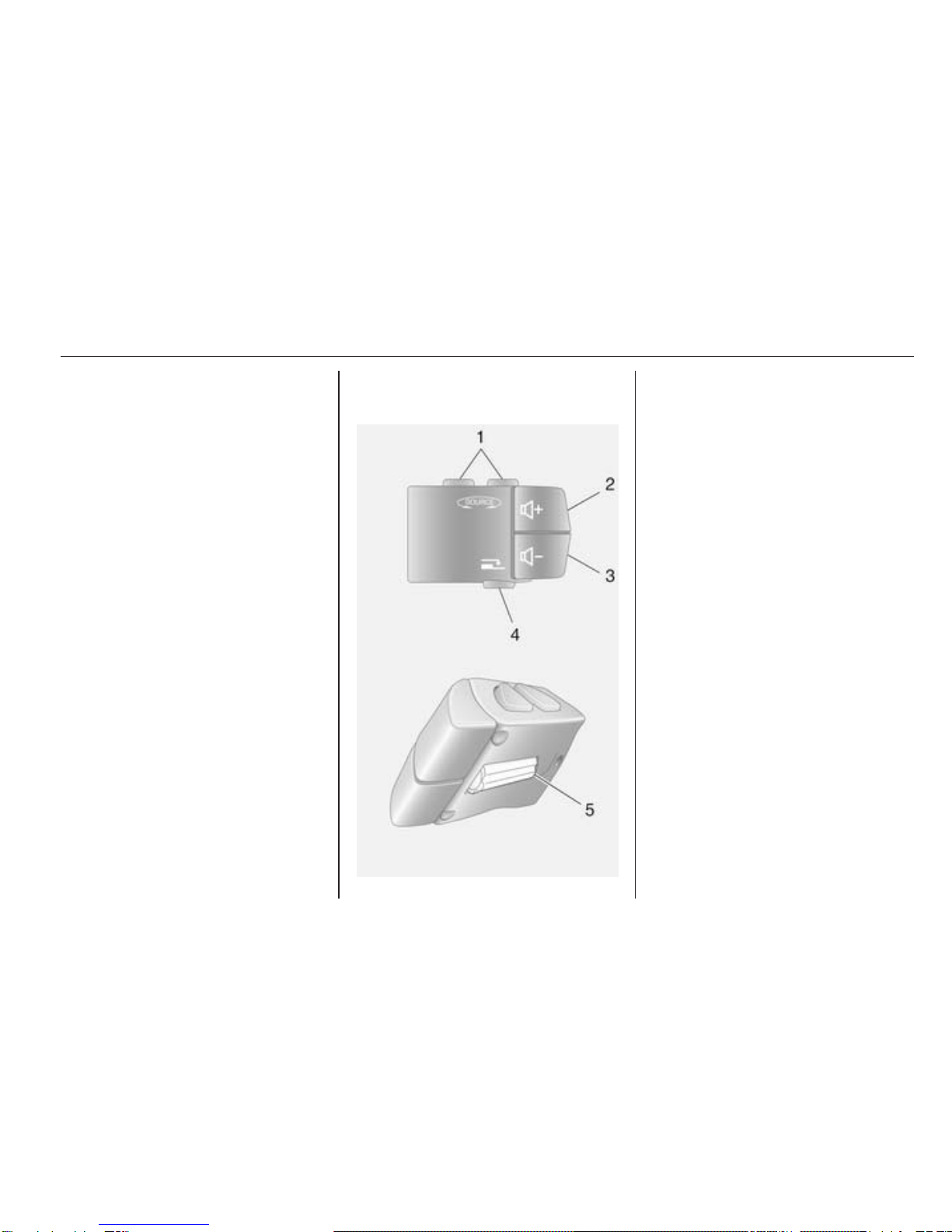

Type B
1RADIO/CD - Change
audio source ......................... 28
2! - Increase volume ............. 18
3@ - Mute/unmute ................... 18
4# - Decrease volume ............ 18
5Short press: Change radio
source/waveband .................. 28
Long press: Automatic
station storing ........................ 33
6Turn: Change radio
frequency .............................. 30
Short press: Select audio
track (CD player mode) ......... 40
Long press: Fast forward/
rewind an audio track (CD
player mode) ......................... 40
Steering column controls -
Type C

Introduction 17
1SOURCE/AUDIO -
Change audio source ............ 18
278 ........................................ 76
Take/end phone call ............. 84
35 - Activate voice
recognition ............................ 74
4! - Increase volume,
mute/unmute ......................... 18
5# - Decrease volume,
mute/unmute ......................... 18
6MODE/OK - Confirm
actions, change audio
mode ..................................... 28
Take/end phone call ............. 84
7Turn: Access display
menu options, next/
previous radio preset /
radio frequency / audio
track ..................................... 28
Steering column controls -
Type D
1v - Change audio
source ................................... 28
2! - Increase volume,
mute/unmute ......................... 18
3# - Decrease volume,
mute/unmute ......................... 18
4w...................................... 28
Short press: Change radio
source/waveband .................. 28
Long press: Automatic
station storing ........................ 33
5Turn: Change radio
frequency .............................. 30

18 Introduction
Theft-deterrent feature
An electronic security system is
included for the purpose of theft
deterrence. The Infotainment system
functions only in your vehicle and is
therefore worthless to a thief.
The security code (supplied
separately) must be entered upon
first use of the system and after
prolonged interruptions to the power
supply.
Entering the security code
When first switching on the
Infotainment system, the message
Radio code then 0000 appears on the
display screen.
To enter first digit of security code,
press numbered button 1 on the unit
repeatedly until desired number is
displayed. Enter second, third and
fourth digits using buttons 2, 3 and 4
in the same way.
When the full code is displayed, press
and hold button 6 until an audible
signal sounds. The system is
unlocked when the correct code has
been entered.
Incorrect code entered
When an incorrect code has been
entered, Error code then Wait 100 is
displayed.
Wait until the countdown has expired,
then enter the correct code. Each
time the code is entered incorrectly,
the countdown time is doubled.
Changing the geographical area
When the security code is entered,
you may be prompted to choose a
geographical area, e.g.:
■ Europe
■ Asia
■ Arabia
■ America
Switch off the Infotainment system,
then simultaneously press button 1
and 5 and the m rotary knob. Then
press button _ or 6 until desired area
is highlighted on the display screen
and set with button 6.
Usage
Infotainment controls
The Infotainment system is operated
via buttons, rotary knobs and display
menus.
Inputs are made via:
■ the central control unit in the
instrument panel 3 4, or
■ the controls on the steering column
(except R10) 3 4
■ the voice recognition system (if
available) 3 74
Switching the Infotainment
system on or off
Press the X knob to switch the
Infotainment system on.
The previously used audio source is
active.
Press the X knob (or press and hold)
to switch the Infotainment system off.

Introduction 19
Automatic switch-off
With the ignition off, if the
Infotainment system is switched on
with the X knob, it will switch-off
automatically a short period after the
last user input. Depending on type
fitted, this may occur after approx.
5 minutes.
Setting the volume
Turn the X rotary knob, or press
button < or ].
CD35 BT: Turn volume rotary knob.
Alternatively (with the steering
column controls), press button ! or
#.
Stored volume
When the Infotainment system is
switched off, the current volume is
stored.
CD20, CD30 BT: If the volume was
greater than 15 when the system was
switched off, it will automatically be
reduced to 15 when switched on
again.
Speed dependent volume
When speed dependent volume1)
(3 26) is activated, the volume is
adapted automatically to compensate
for road and wind noise.
Mute
To mute the current audio source,
press X knob briefly2).
CD35 BT: Press volume rotary knob
briefly.
Alternatively (with the steering
column controls), press the @ button
or press ! and # simultaneously.
Unmute
To unmute, briefly press (or turn) the
X knob again.
CD35 BT: Press volume rotary knob
again.
Alternatively (with the steering
column controls): Press @ again or
press ! and # simultaneously again.
Display screen operation
R10 / CD10
Refer to the detailed descriptions for
the available modes of operation
(radio, audio players).
R15 BT / CD15 BT
■ To move up/down in the display:
Turn the OK rotary knob.
■ To confirm actions: Press the OK
rotary knob.
■ To cancel actions (and return to
previous menu): Press the /
button.
CD20
■ To move up/down in the display:
Press button 1 or 4.
■ To move left/right in the display:
Press button _ or 6.
■ To confirm actions:
Press the j/OK button
1) Not with R10 / CD10, R15 BT / CD15 BT.
2) Not with CD20, CD30.
