VBC Racing WildFire User manual

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
1/10 4WD ELECTRIC COMPETITION TOURING CAR KIT
E
INSTRUCTIONS MANUAL
5
Thank you for purchasing VBC Racing product.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality full carbon fiber
chassis and high grade 7075 material which will give you a
competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Things that we should remind you.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: [email protected] or
visit our web site www.vbcracing.com

BAG MARKED
STEP1
1
Graphite Edges Protection Procedure
01© VBC Racing WILDFIRE
CA
Sand the chassis edges with #600 sand paper(not included) and
apply CA glue(not included) to the edges of the chassis.
Sand the below graphite edges with #600 sand paper and apply CA glue to the edges.
A-01-VBC-0028 WildFire Graphite Rear Shock Tower
A-01-VBC-0027 WildFire Graphite Front Shock Tower
*Not included in this kit
A-01-VBC-0035-25 WildFire Standard Graphite Chassis

38
BAG MARKED
STEP2-3
2
Rear Gear Diff Assembly
Rear Gear Diff Left Side
Rear Gear Diff Right Side
Gear Diff Housing A-03-VBC-0016 x 1
Gear Diff Pulley 38T A-03-VBC-0017 x 1
Diff Gear 18T A-03-VBC-0019 x 2
Diff Cup B-02-VBC-0022 x 2
10x15 Ball Bearing C-02-BB-1510-B x 2
M2x10 Shaft Pin B-02-VBC-0020 x 2
15x0.3 Shim B-02-VBC-0077 x 2
Diff Shaft Sealer O-Ring B-03-VBC-0006 x 2
Rear Gear Diff Right Side Assembly Cross Section
Diff Gear 18T
Diff Outdrive
Right Gear
Diff Housing
02
Diff Ourdrive
© VBC Racing WILDFIRE
Gear Diff Pulley 38T
Diff Gear 18T
10x15 Ball Bearing
15x0.3 Shim
M2x10 Shaft Pin
Outdrive Sealer O-Ring
Outdrive Sealer O-Ring
10x15 Ball Bearing
M2x10 Shaft Pin
Diff Oil
Apply small amount of diff oil
Diff Outdrive
Diff Gear 18T
Right Gear Diff Housing
10x15 Ball Bearing
15x0.3 Shim
M2x10 Shaft Pin
Outdrive Sealer O-Ring
Diff Oil
Apply small amount of diff oil
15x0.3 Shim

3

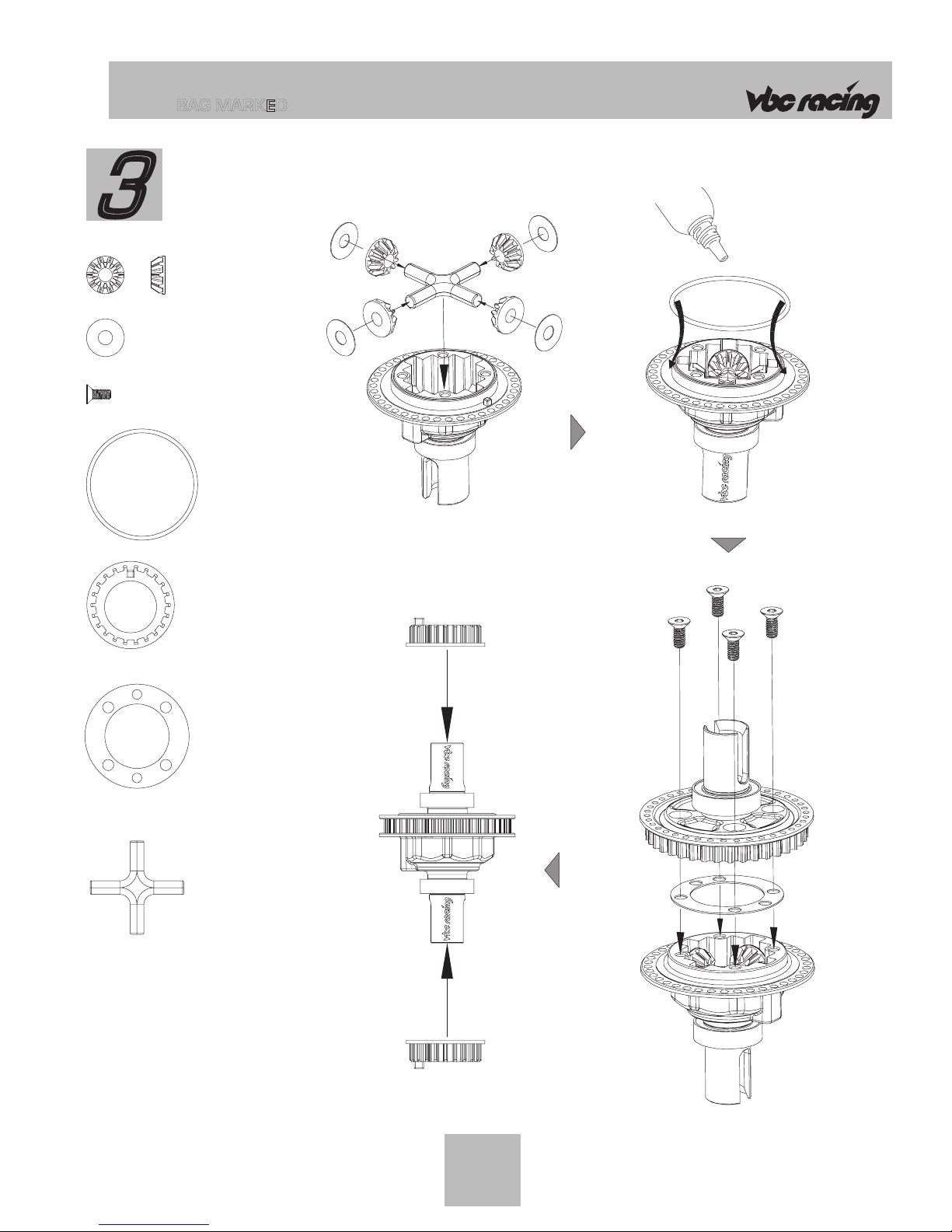

Rear Gear Diff Assembly Continue
Diff Gear 10T A-03-VBC-0018 x 4
M2.6x10 Flathead Screw C-02-SC-F2.6x10 x 4
Seal Gasket B-03-VBC-0004 x 1
03© VBC Racing WILDFIRE
9.5x0.2mm Shim B-02-VBC-0078 x 4
Belt Tension Adjuster Ring A-03-VBC-0047 x 2
Idle Gear 10T Idle Gear 10T
Idle Gear 10T Idle Gear 10T
Right Side Diff
Right Side Diff Assembly
Left Side Diff Assembly
Belt Tension Adjuster Ring
Belt Tension Adjuster Ring
STEP2-3
Fill with supplied DIFF TYPE silicon oil
until the gears are fully submerged
9.5x0.2mm Shim 9.5x0.2mm Shim
9.5x0.2mm Shim 9.5x0.2mm Shim
Diff Gear Shaft A-03-VBC-0020 x 1
Diff Gear Shaft
Diff Housing Sealer O-Ring
Seal Gasket
M2.6x10 Flathead Screw
Place Seal Gasket
to the left side diff
assembly before
putting the right
side diff together
Diff Oil
Diff Housing Sealer O-Ring B-03-VBC-0005 x 1
BAG MARKED

4

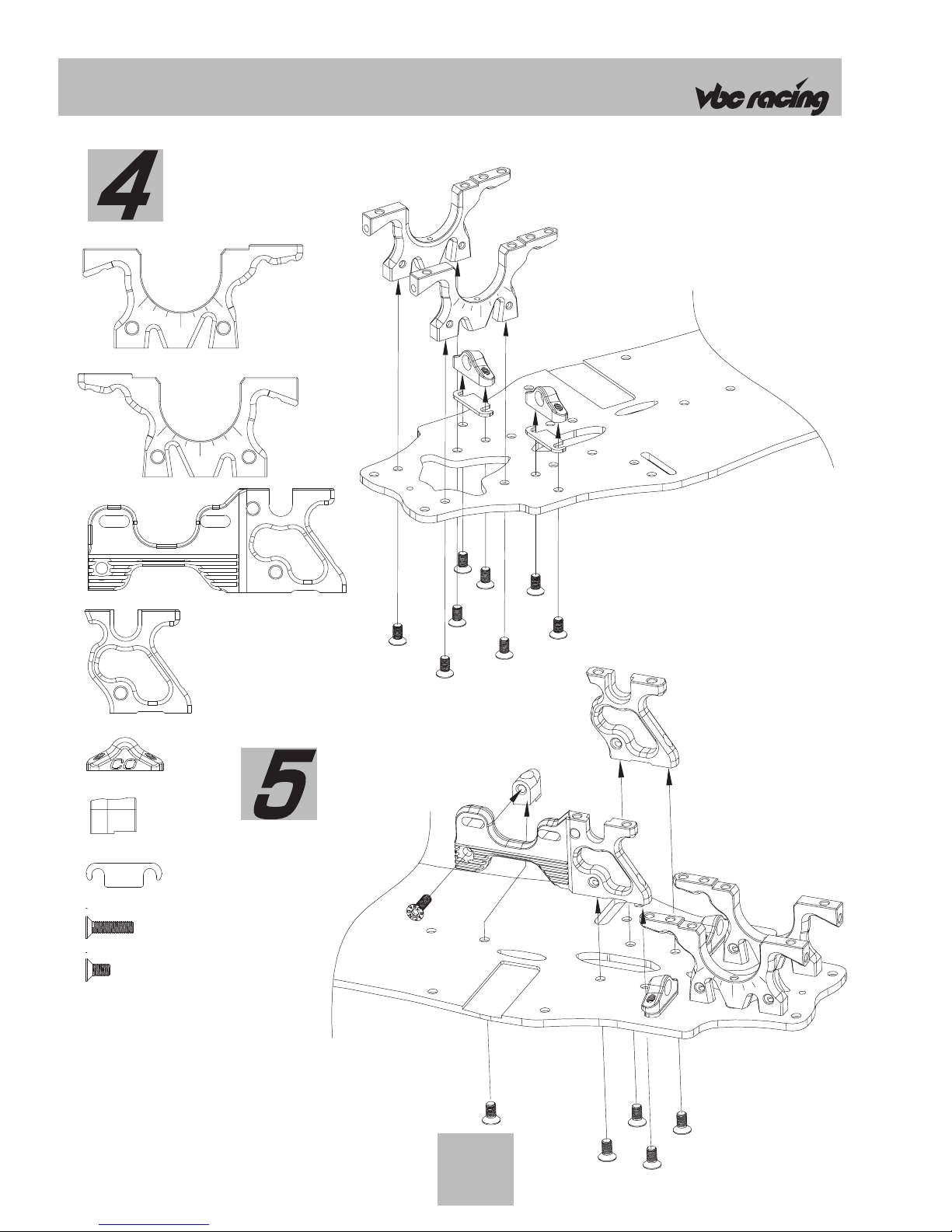

Rear Drivetrain Assembly
04
© VBC Racing WILDFIRE
Lower Bulkhead A B-02-VBC-0057 x 1
Lower Bulkhead B B-02-VBC-0090 x 1
Motor Mount B-02-VBC-0058 x 1
Main Gear Bulkhead B-02-VBC-0059 x 1
Center Suspension Mount x 2
B-02-VBC-0062
Motor Mount Support B-02-VBC-0067 x 1
Center Suspension Mount Shim(1mm) x 2
A-01-VBC-0038
M3x8 Flathead C-02-SC-F0308 x 1
M3x6 Flathead C-02-SC-F0306 x 13
BAG MARKED
STEP4-6
Lower Bulkhead A
Lower Bulkhead B
Motor Mount
Main Gear Bulkhead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x8 Flathead
Motor Mount Support
Center Suspension Arm
Center Suspension Arm
1mm Center Suspension Arm Shim
1mm Center Suspension Arm Shim
5

BAG MARKED
STEP4-6
6
Front Drive Train Assembly
05
© VBC Racing WILDFIRE
Lower Bulkhead A B-02-VBC-0057 x 1
Lower Bulkhead B B-02-VBC-0090 x 1
Center Suspension Arm B-02-VBC-0062 x 2
1mm Center Suspension Arm Shim x 2
A-01-VBC-0038
Battery Position Slider A-01-VBC-0033 x 1
Battery Adjust Top Plate x 1
B-02-VBC-0072
M3x8 Flathead C-02-SC-F0308 x 2
M3x6 Flathead C-02-SC-F0306 x 8
Lower Bulkhead A
Lower Bulkhead B
7075 Center Stopper
Graphite Battery Center Stopper
1mm Center Suspension Arm Shim
1mm Center Suspension Arm Shim
Center Suspension Arm
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x8 Flathead

BAG MARKED
STEP7-9
7
Steering System Assembly
06
© VBC Racing WILDFIRE
Steering Assembly Travel Plate B-02-VBC-0054 x 1
Steering Travel Arm B-02-VBC-0053 x 2
Steering Assembly Pole B-02-VBC-0055 x 2
Ball Connector B-02-VBC-0045 x 3
5x8 Ball Bearing C-02-BB-0805-B x 4
3x6 Ball Bearing C-02-BB-0603 x 2
Steering Cone Washer B-02-VBC-0089 x 2
T2 7075 Spacer B-02-VBC-0019-20 x 2
T1 7075 Spacer B-02-VBC-0019-10 x 2
M3x6 Roundhead C-02-SC-R0306 x 4
M3x6 Set Screw C-02-SC-SS-0306 x 1
Ball Connector
3x6 Ball Bearing
3x6 Ball Bearing
M3x6 Set Screw
M3x10 Set Screw
M3x6 Set Screw
Steering Assembly Travel Plate
M3x2.0mm 7075 Spacer
M3x1.0mm 7075 Spacer
M3x6 Roundhead
M3x6 Roundhead
Graphite Steering Top Plate
Steering Cone Washer
5x8 Ball Bearing
5x8 Ball Bearing
5x8 Ball Bearing
5x8 Ball Bearing
Steering Travel Arm
Steering Travel Arm
Steering Assembly Pole
Steering Assembly Pole
8
4.50mm
28.30mm
M3x42mm Turnbuckle B-02-VBC-0037 x 2
M3x18mm Turnbuckle B-02-VBC-0038 x 1
Turnbuckle Cup A-03-VBC-0039 x 6
Make 2 steering link tie-rods, follow the connector cups directions as
the above diagram. The connector cups edge to edge shall be 28.20mm.
Please use a caliper to measure the exact measurement
Make 1 servo link tie-rod, follow the connector cups directions as
the above diagram. The connector cups edge to edge shall be 4.50mm.
Please use a caliper to measure the exact measurement
M3x42mm Turnbuckle
Turnbuckle Cup
Turnbuckle Cup
Turnbuckle Cup
Turnbuckle Cup
M3x18mm Turnbuckle
Thead Lock
Thead Lock
Thead Lock
Thead Lock
Thead Lock
Right Thread
Right Thread
Right Thread
M3x10 Set Screw C-02-SC-SS-0310 x 2
M3x6 Roundhead
M3x6 Roundhead

Install the steering unit onto the main chassis with two M3x6 Flathead Screws. Then attach the left and right tie rods to the steering unit.
Make sure the front belt is between the two Steering Assembly Poles.
BAG MARKED
STEP7-9
9

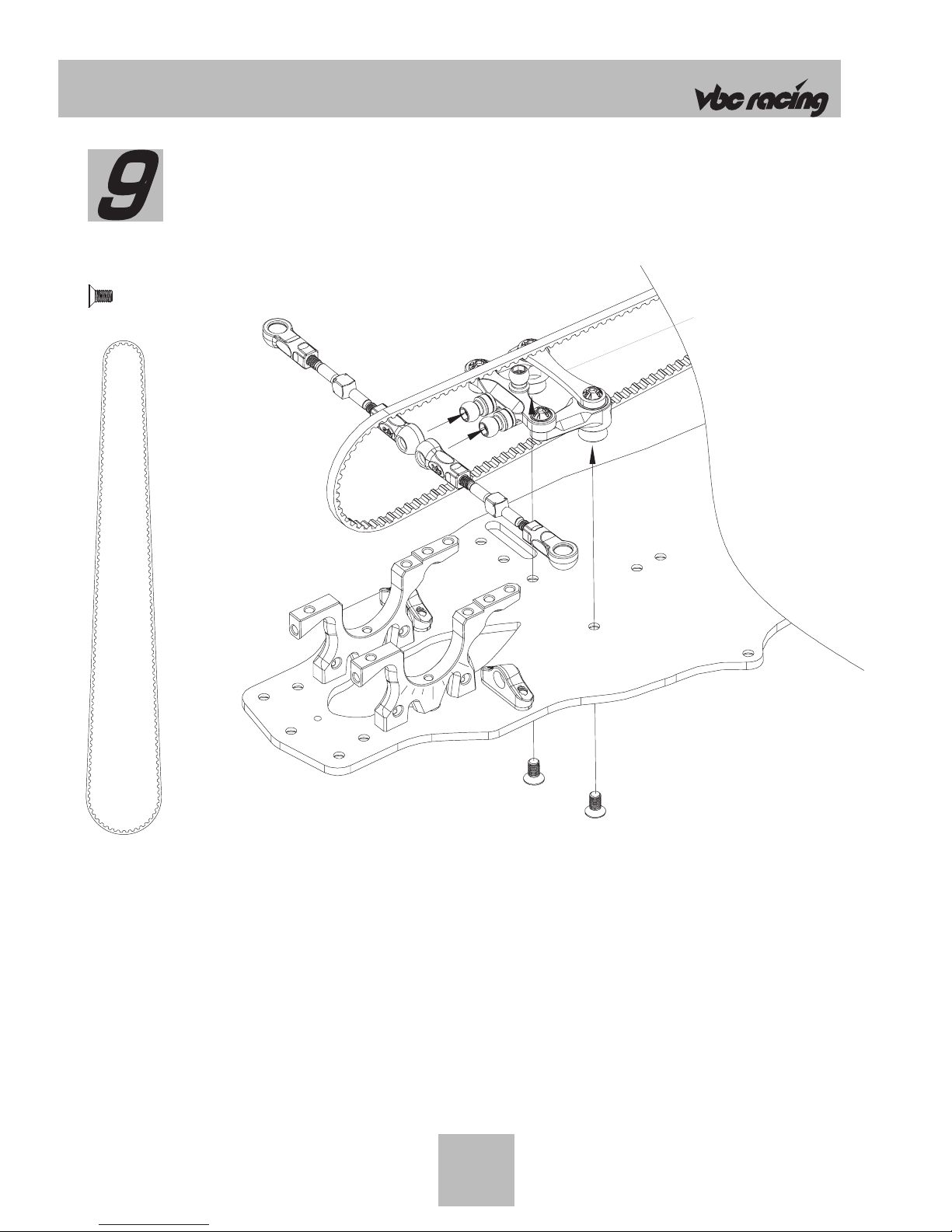

Steering System Assembly
07
© VBC Racing WILDFIRE
M3x6 Flathead C-02-SC-F0306 x 2
Front Belt Type SS A-03-VBC-0048-512 x 1
M3x6 Flathead
M3x6 Flathead
Optional Steering Stiffener Bar
(A-03-VBC-0078) by VBC Dynamics
sold separately

BAG MARKED
STEP10-14
10
Upper Deck Assembly
08
© VBC Racing WILDFIRE
Belt Tensioner B-02-VBC-0069 x 1
3x6mm Ball Bearing C-02-BB-0603 x 2
3x5x0.5mm Shim B-02-VBC-0093 x 3
M3x12 Roundhead Screw C-02-SC-R-0312 x 1
M3x4 Roundhead Screw C-02-SC-R0304 x 1
64P Spur Gear 116T A-03-VBC-SG-116 x 1
20T Center Pulley A-03-VBC-0023 x 2
Center Pulley Spacer A-03-VBC-0060 x 1
Center Pulley Drive Shaft B-02-VBC-0087 x 1
5x8mm Ball Bearing C-02-BB-0805-B x 2
M3x4 Round Head Screw C-02-SC-R0304 x 3
M3x6 Set Screw x 2
C-02-SC-SS-0306
M2x12 Shaft Pin B-02-VBC-0020 x 2
M5x11 E-Clip B-02-VBC-0085 x 2
11
M3x12 Roundhead
3x6mm Ball Bearing
3x5x0.5mm Shim
3x6mm Ball Bearing
3x5x0.5mm Shim
Belt Tensioner
M3 Lock Nut C-02-SC-NN03 x 1
5x8mm Ball Bearing
M5x11 E-Clip
20T Center Pulley
Center Pulley Drive Shaft
M2x12 Shaft Pin
Center Pulley Spacer
M2x12 Shaft Pin
M3x4 Roundhead
M5x11 E-Clip
5x8mm Ball Bearing
M3x6 Set Screw
M3x6 Set Screw
Spur Gear
M3x4 Roundhead
116
WildFire Standard Upper Deck A-01-VBC-0026-20
3x5x0.5mm Shim

BAG MARKED
STEP10-14
12

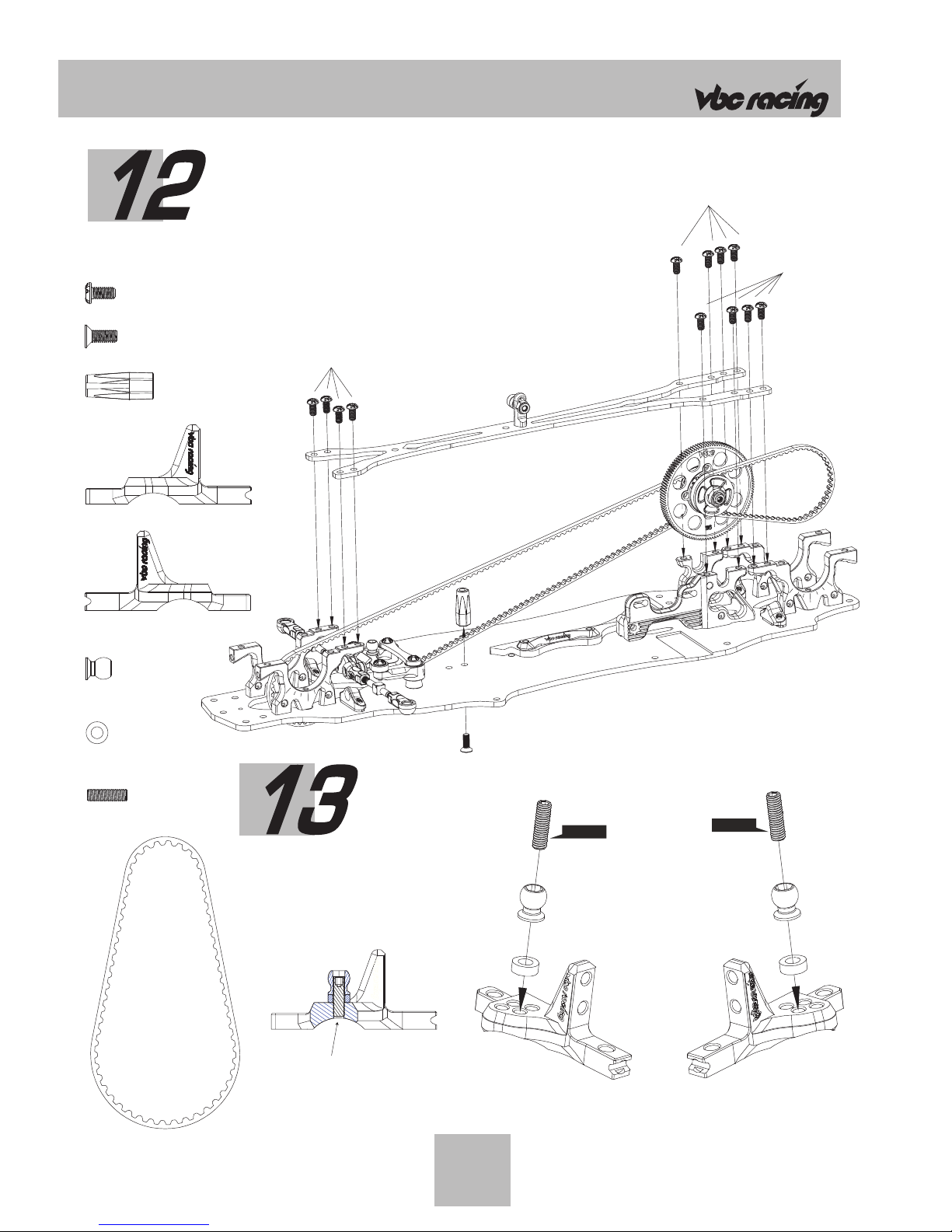

Upper Deck Assembly
09
© VBC Racing WILDFIRE
M3x6 Roundhead C-02-SC-R0306 x 12
M3x8 Flathead C-02-SC-F0308 x 1
Antenna Stand A-03-VBC-0059 x 1
Upper Bulkhead A B-02-VBC-0063 x 1
Upper Bulkhead B B-02-VBC-0064 x 1
T2 7075 Spacer B-02-VBC-0019-20 x 2
Ball Connector B-02-VBC-0045 x 2
M3x10 Set Screw C-02-SC-SS-0310 x 2
13
Rear Upper Bulkhead Assembly
M3x6 Roundhead
M3x6 Roundhead
M3x6 Roundhead
M3x8 Flathead
M3x10 Set Screw M3x10 Set Screw
Ball Connector Ball Connector
2mm Spacer 2mm Spacer
Upper Bulkhead A Upper Bulkhead B
Thead Lock
Thead Lock
Antenna Stand
Be careful not to overthread the set screw.
The set screw should not over the edge of the bottom of Upper Bulkhead.
Overtheading may obstruct the drive hub from spinning.
Rear Belt Type SS A-03-VBC-0048-177 x 1

BAG MARKED
STEP10-14
14
Install Rear Drivetrain
10
© VBC Racing WILDFIRE
M3x8 Roundhead C-02-SC-R0308 x 4
M2x10 Roundhead C-02-SC-R2.0x10 x 2
M3x8 Roundhead
M3x8 Roundhead
M2x10 Roundhead
Tighten screw to lock the Belt Tension Adjuster Ring position
Neutral
TightenLoosen
Tighten or loosen the belt tension by adjusting the Belt Tension Adjuster Ring dial

BAG MARKED
STEP15
15

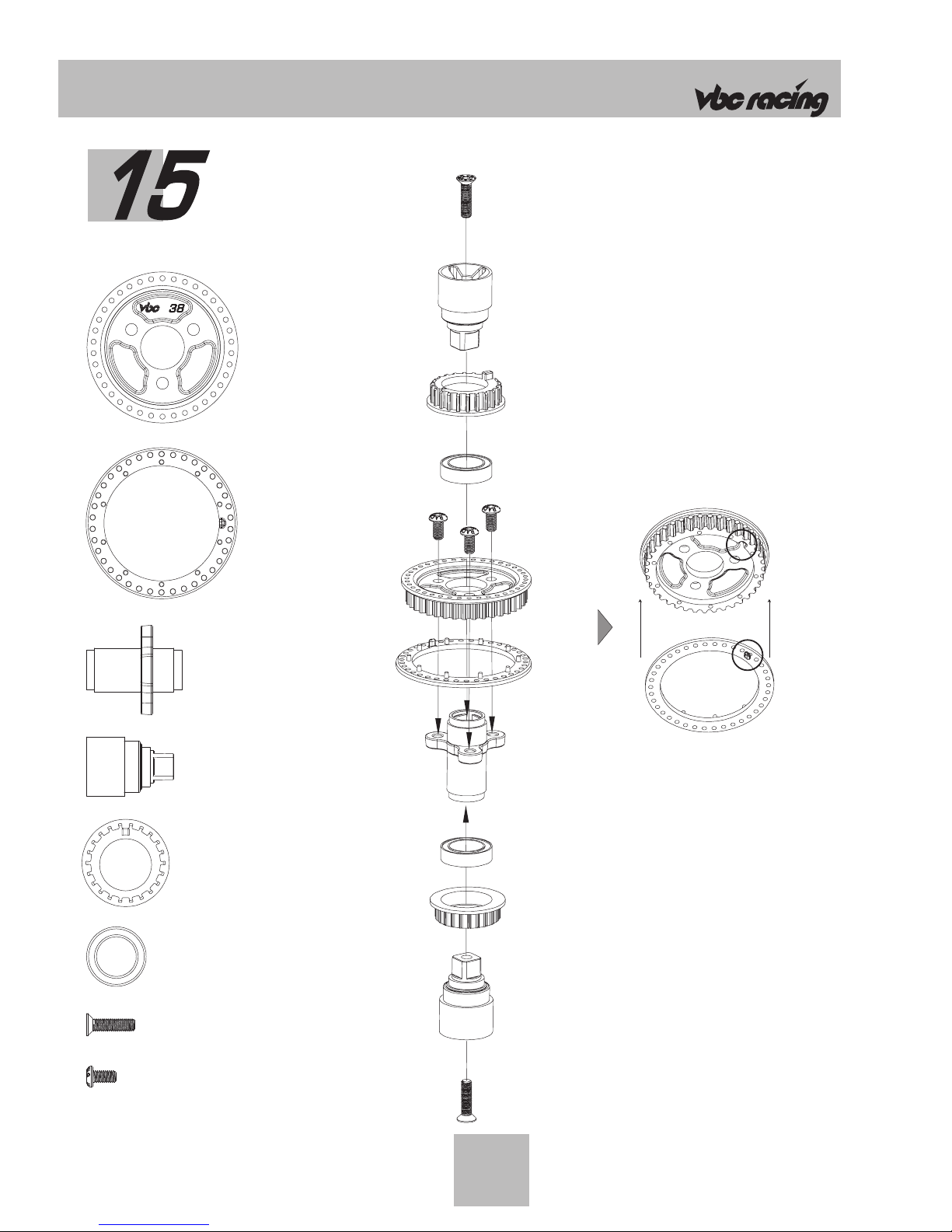

Front Drive Train Assembly - Spool Assembly
11
© VBC Racing WILDFIRE
Front Spool 38T A-03-VBC-0021 x 1
Pulley Belt Guide A-03-VBC-0022 x 1
Spool Drive Shaft A-03-VBC-0049 x 1
Front Spool Outdrive A-03-VBC-0055 x 2
Belt Tension Adjuster Ring A-03-VBC-0047x 2
10x15 Ball Bearing C-02-BB-1510-B x 2
M3x12 Flathead C-02-SC-F0312 x 2
M3x6 Roundhead C-02-SC-R0306 x 3
M3x12 Flathead
Spool Drive Cup
Diff Holder
10x15 Ball Bearing
M3x6 Roundhead
M3x6 Roundhead
M3x6 Roundhead
Front Spool 38T
Pulley Guide
Spool Shaft
10x15 Ball Bearing
Diff Holder
Spool Drive Cup
M3x12 Flathead
Apply CA and note the position
Optional: 7075 Aluminum Spool Shaft B-02-VBC-0094 (not included)

Tighten screw to lock the Belt Tension Adjuster Ring position
Neutral
TightenLoosen
Tighten or loosen the belt tension by adjusting the Belt Tension Adjuster Ring dial
BAG MARKED
STEP16-17
16
Assemble Front Upper Bulkhead
12
© VBC Racing WILDFIRE
Upper Bulkhead A B-02-VBC-0063 x 1
Upper Bulkhead B B-02-VBC-0064 x 1
Ball Connector B-02-VBC-0045 x 2
17
M3x8 Roundhead
Install Front Drivetrain
M3x8 Roundhead
M3x8 Roundhead
M3x8 Roundhead
M2x10 Roundhead
M2x10 Roundhead
M3x10 Set Screw M3x10 Set Screw
Ball Connector Ball Connector
2mm Spacer 2mm Spacer
Upper Bulkhead A
Upper Bulkhead B
Thead Lock
Thead Lock Thead Lock
Be careful not to overthread the set screw.
The set screw should not over the edge of the bottom of Upper Bulkhead.
Overtheading may obstruct the drive hub from spinning.
T2 7075 Spacer B-02-VBC-0019-20 x 2
M3x6 Roundhead C-02-SC-R0306 x 12
M2x10 Roundhead C-02-SC-R2.0x10 x 2
M3x10 Set Screw C-02-SC-SS-0310 x 2

BAG MARKED
STEP18-20
18
Rear Suspension Arm Assembly
13
© VBC Racing WILDFIRE
Rear Suspension Arm A-03-VBC-0050 x 2
Suspension Arm Spacer T2 Composite A-03-VBC-0052 x 2
Suspension Arm Spacer T1 Composite A-03-VBC-0051 x 4
Suspension Arm Pin B-02-VBC-0029 x 2
Ball Connector B-02-VBC-0045 x 4
Arm Pin Pivot Ball B-02-VBC-0035 x 2
M4x10 Set Screw C-02-SC-SS-0410 x 2
M3x10 Set Screw C-02-SC-SS-0310 x 4
E30 Suspension Mount B-02-VBC-0061-30 x 1
1mm Suspension Shim A-01-VBC-0037 x 1
M3x6 Flat Head Screw C-02-SC-F0306 x 2
2mm
Bottom
Top
Left Right
Front
Make sure the black markings are in the same direction on the left and right suspension arms
Insert M4x10 Set Screw from the top of the suspension arm for
adjusting down stop. Initial setting is 2mm measuring
from the bottom part of the arm for both sides.
Grease
Grease
Grease
Grease
After installing the rear arms, make sure the arms can move freely
Rear Suspension Arm
Rear Suspension Arm
M4x10 Set Screw
M4x10 Set Screw
Suspension Arm Pin
Suspension Arm Pin
Arm Pin Pivot Ball
Arm Pin Pivot Ball
Ball Connector
Ball Connector
M3x10 Set Screw
M3x10 Set Screw
M3x10 Set Screw
M3x10 Set Screw
Ball Connector
Ball Connector
Arm Pin Pivot Ball
Arm Pin Pivot Ball
Suspension Arm Spacer T2
Suspension Arm Spacer T2
Suspension Arm Spacer T1
Suspension Arm Spacer T1
Suspension Arm Spacer T1
Rear Suspension Arm top view
M3x6 Flat Head
M3x6 Flat Head
E30 Suspension Mount
1mm Suspension Shim

BAG MARKED
STEP18-20
19
Rear Suspension Arm Assembly Part2
14
© VBC Racing WILDFIRE
Rear Suspension Upright A-03-VBC-0037 x 2
Shaft End Shoe A-03-VBC-0038 x 2
Inner Axle B-02-VBC-0024 x 2
Wheel Axle B-02-VBC-0025 x 2
Axle Joint B-02-VBC-0026 x 2
Axle Lock Spring B-02-VBC-0027 x 2
5x10mm Ball Bearings x 4
M2x12 Shaft Pin B-02-VBC-0020-12 x 2
M2x10 Shaft Pin B-02-VBC-0020 x 4
M3x10 Set Screw C-02-SC-SS-0310 x 2
M3x2 Set Screw C-02-SC-SS-0302 x 2
M1.6x4 Screw C-02-SC-R1.6x4 x 2
0 Offset Hex Wheel Hub B-02-VBC-0051 x 2
Ball Connetor B-02-VBC-0045 x 2
Grease
Grease
Grease
Grease
Thead Lock
Thead Lock
After assembling the drive shaft, make sure the joints are free swinging.
Align the Shaft End Shoe to the Inner Axle Pin
hole first and slide the 12mm Shaft Pin to the
pin hole before securing the pin with M3x2 Set Screw
Align the Shaft End Shoe to the Inner Axle Pin
hole first and slide the 12mm Shaft Pin to the
pin hole before securing the pin with M3x2 Set Screw
Do not over tighten the M1.6x4 screw to prevent stripping
T1 7075 Spacer B-02-VBC-0019-10 x 2
Rear Suspension Upright
Rear Suspension Upright
Shaft End Shoe
Shaft End Shoe
M2x12 Shaft Pin
M2x12 Shaft Pin
Inner Axle
Inner Axle
Wheel Axle
Wheel Axle
Axle Joint
Axle Joint
Axle Lock Spring
Axle Lock Spring
M2x10 Shaft Pin
M2x10 Shaft Pin
5x10mm Ball Bearings 5x10mm Ball Bearings
5x10mm Ball Bearings
5x10mm Ball Bearings
M2x10 Shaft Pin
M3x2 Set Screw
M3x2 Set Screw
M1.6x4 Screw
0 Offset Hex Wheel Hub
Ball Connetor
Ball Connetor
T1 7075 Spacer
T1 7075 Spacer
M3x10 Set Screw
M3x10 Set Screw
Axle Lock Spring
Wheel Axle
Make sure the Axle Lock Spring is place correctly onto the Wheel Axle
Joint cross section

18mm
BAG MARKED
STEP18-20
20
Rear Suspension Arm Assembly Part3
15
© VBC Racing WILDFIRE
M3x32mm Turnbuckle B-02-VBC-0036 x 2
M3x23 Upright Pin B-02-VBC-0032 x 2
3x5x0.5mm Shim B-02-VBC-0093 x 2
M3x6 Set Screw C-02-SC-SS-0306 x 2
Make two
Make sure the turnbuckle caps move freely after snapped to the ball connector
Tighten the set screw. Screw should be flat to the arm bottom and do not over tighten.
Turnbuckle Cup S
Turnbuckle Cup
M3x32mm Turnbuckle
M3x6 Set Screw
M3x6 Set Screw
M3x23 Upright Pin
M3x23 Upright Pin
3x5x0.5mm Shim
3x5x0.5mm Shim
Turnbuckle Cup A-03-VBC-0039 x 2
Turnbuckle Cup S A-03-VBC-0056 x 2
MAKE TWO
Optional: Tie Rod Wrench Set D-05-VBC-0048 (not included)

BAG MARKED
STEP21-24
21
Front Suspension Assembly Part1
16
© VBC Racing WILDFIRE
Front Suspension Arm A-03-VBC-0024 x 2
Turnbuckle Cup Open Type L A-03-VBC-0041 x 2
Turnbuckle Cup Open Type S A-03-VBC-0040 x 2
Suspension Arm Spacer T2 A-03-VBC-0052 x 2
Suspension Arm Spacer T1 A-03-VBC-0051 x 4
Suspension Arm Pin B-02-VBC-0029 x 2
Ball Connector B-02-VBC-0045 x 4
Arm Pin Pivot Ball B-02-VBC-0035 x 4
M4x10 Set Screw C-02-SC-SS-0410 x 2
M3x10 Set Screw C-02-SC-SS-0310 x 4
Left Right
Front
Make sure the black markings are in the same direction on the left and right suspension arms
2mm
1.5mm
Insert M4x10 Set Screw from the top of the suspension arm for
adjusting down stop. Initial setting is 2mm measuring
from the bottom part of the arm for both sides.
Make 2 sets
Front Suspension Arms top view
Ball Connector Open Type S Ball Connector Open Type L
M3x10 Set Screw
Suspension Arm Spacer T1
Suspension Arm Spacer T1
Arm Pin Pivot Ball
Arm Pin Pivot Ball
Suspension Arm Pin
Suspension Arm Pin
M4x10 Set Screw
Suspension Arm Spacer T1
M3x10 Set Screw
Ball Connector
Suspension Arm Spacer T2
M4x10 Set Screw
Suspension Arm Spacer T2
Suspension Arm Spacer T1
Ball Connector
M3x10 Set Screw
Arm Pin Pivot Ball
Arm Pin Pivot Ball
Grease
Grease
Grease
Grease
Turnbuckle Cup Open Type S connects to
the arm connector
Turnbuckle Cup Open Type S connects to
the arm connector

BAG MARKED
STEP21-24
22

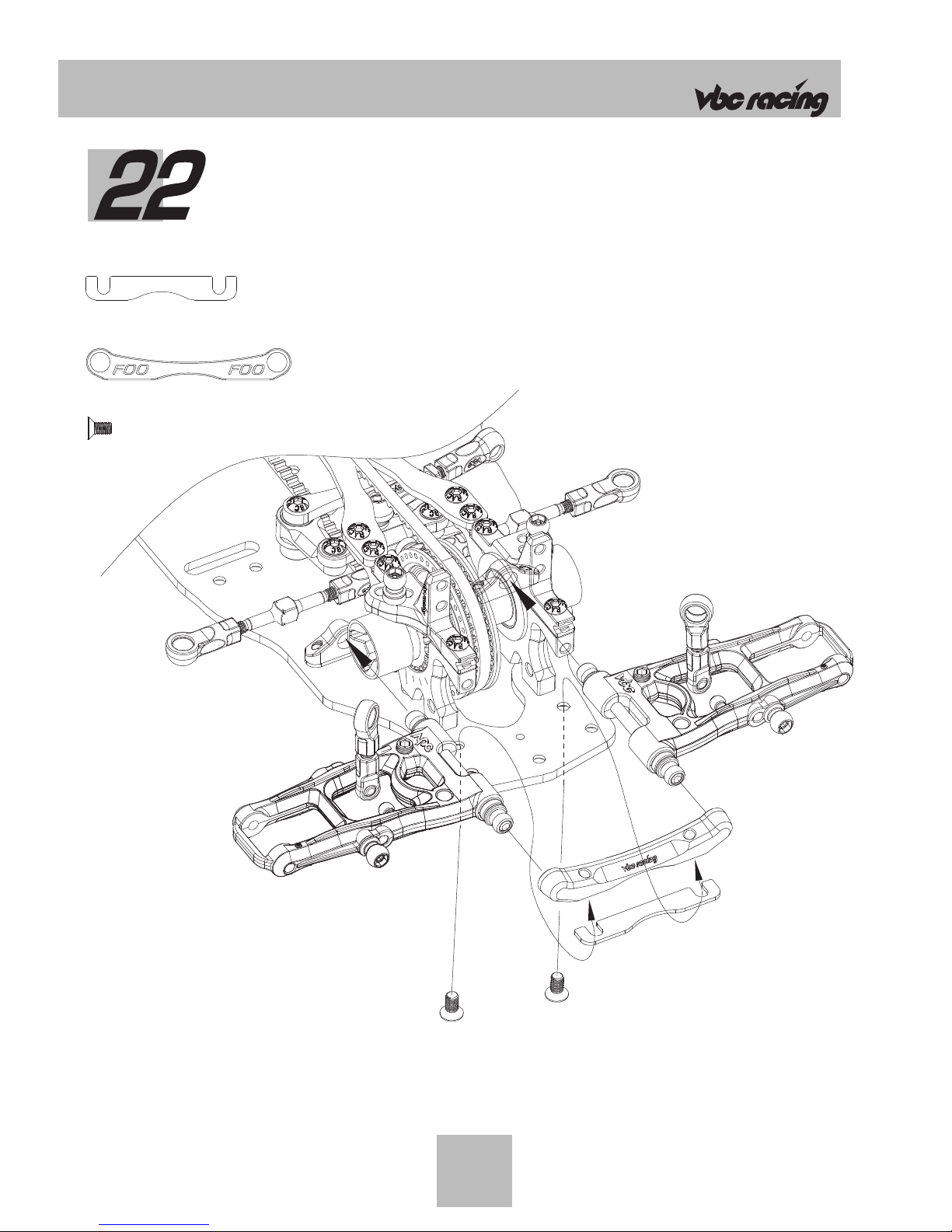

Front Suspension Assembly Part2
17
© VBC Racing WILDFIRE
1mm Suspension Shim A-01-VBC-0037 x 1
F00 Suspension Mount B-02-VBC-0060-00 x 1
M3x6 Flat Head Screw C-02-SC-F0306 x 2
Make sure the dot marking is facing up
Make sure the dot marking is facing up
M3x6 Flat Head
M3x6 Flat Head
Optional: WildFire Front/Rear Suspenion Shim (1mm,0.5mm) D-05-VBC-0032
Optional: F05 Suspension Mount B-02-VBC-0060-05
F10 Suspension Mount B-02-VBC-0060-10

Grease
BAG MARKED
STEP21-24
23
Front Suspension Assembly Part3
18
© VBC Racing WILDFIRE
Steering Block A-03-VBC-0034 x 2
Inner Axle B-02-VBC-0024 x 2
Wheel Axle B-02-VBC-0025 x 2
Axle Joint B-02-VBC-0026 x 2
Axle Lock Spring B-02-VBC-0027 x 2
M2x12 Shaft Pin B-02-VBC-0022 x 2
M2x10 Shaft Pin B-02-VBC-0020 x 2
M3x8 Round Head Screw C-02-SC-R0308 x 2
M3x2 Set Screw C-02-SC-SS-0302 x 2
M1.6x4 Screw C-02-SC-R1.6x4 x 2
0 Offset Hex Wheel Hub B-02-VBC-0051 x 2
Ball Connetor B-02-VBC-0045 x 2
5x10mm Ball Bearing C-02-BB-1005-B x 4
Left Steering
Right Steering
Grease
Grease
Grease
Thead Lock
Do not over tighten the M1.6x4 screw to prevent stripping
Do not over tighten the M1.6x4 screw to prevent stripping
Thead Lock
Axle Lock Spring
Wheel Axle
Make sure the Axle Lock Spring is place correctly onto the Wheel Axle
Joint cross section
Shaft Pin
Steering Block
Inner Axle
Wheel Axle
Axle Joint
Axle Lock Spring
5x10mm Ball Bearing
5x10mm Ball Bearing
M3x2 Set Screw
M2x12 Shaft Pin
M2x10 Shaft Pin
M3x8 Round Head Screw
M1.6x4 Screw
0 Offset Hex Wheel Hub
Ball Connetor
5x10mm Ball Bearing
M3x8 Round Head Screw
Ball Connetor
5x10mm Ball Bearing
Wheel Axle
Axle Lock Spring
Axle Joint
Inner Axle
M2x12 Shaft Pin
M3x2 Set Screw
M1.6x4 Screw
M2x10 Shaft Pin
0 Offset Hex Wheel Hub
M2x10 Shaft Pin
M2x10 Shaft Pin

Turnbuckle Cup A-03-VBC-0039 x 2
Turnbuckle Cup
Turnbuckle Cup
Turnbuckle Cup
BAG MARKED
STEP21-24
24
Front Suspension Assembly Part4
19
© VBC Racing WILDFIRE
Right C-Hub A-03-VBC-0031 x 1
Left C-Hub A-03-VBC-0030 x 1
Turnbuckle Cup S A-03-VBC-0056 x 2
M3x32mm Turnbuckle B-02-VBC-0036 x 2
M3x12 Set Screw C-02-SC-SS-0312 x 2
M3x6 Set Screw C-02-SC-SS-0306 x 2
3x23 Upright Pin B-02-VBC-0032 x 2
M3x9 Round Head Screw C-02-SC-R0308 x 2
Ball Connector B-02-VBC-0045 x 2
Steering Swivel Tube B-02-VBC-0033 x 4
Please note the 'L'(Left) and 'R'(Right) markings on C-Hubs
RIGHT
LEFT
17mm
Right C-Hub
Left C-Hub
Turnbuckle Cup S
Ball Connector
Ball Connector
M3x32mm Turnbuckle
3x23 Upright Pin
3x23 Upright Pin
M3x6 Set Screw
M3x6 Set Screw
Steering Swivel Tube
Steering Swivel Tube
Steering Swivel Tube
Steering Swivel Tube
M3x12 Set Screw
M3x12 Set Screw
M3x9 Round Head Screw
M3x9 Round Head Screw
Turnbuckle Cup S
Turnbuckle Cup S
Grease
Grease
Make Two
Optional: Tie Rod Wrench Set D-05-VBC-0048 (not included)
