Velleman K4700 User manual

SPEAKER PROTECTION KIT
K4700
ILLUSTRATED ASSEMBLY MANUAL H4700IP-1
Total solder points: 163
Difficulty level: beginner 12345 advanced
Protectsyourpreciousspeakersagainst
switch-onclicksandDCcurrent.

3
Features
This stereo loudspeaker protection will protect the loudspeakers against the switch-impulsions and the direct current
component on the output of the connected amplifier.
 Suitable for: * Amplifiers with symmetrical power supply
* Amplifiers with asymmetrical power supply.
Specifications :
 Switch-delay: ±6 seconds
 DC protection: +1V/-1V
 Max. input voltage: 200Vpp + DC
 Max. switching current: 10A
 LED indication for: WAIT (switch-on delay) and ERROR (DC on speaker output)
 Supply voltage: 220VAC
 PCB dimensions: 55 x 125mm (2.2" x 4.9")
Features & Specifications

4
Assembly hints
1. Assembly (Skipping this can lead to troubles ! )
Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.
1.1 Make sure you have the right tools:
• A good quality soldering iron (25-40W) with a small tip.
• Wipe it oftenon a wet sponge or cloth, to keep it clean; then apply solderto the tip, to give it a wet look. This is called ‘thinning’and will
protect the tip,and enables youto make goodconnections. When solderrollsoff the tip,it needs cleaning.
• Thin raisin-core solder. Do not use any flux or grease.
• A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they
cannot fly towards the eyes.
• Needle nose pliers, for bending leads, or to hold components in place.
• Small blade and Phillips screwdrivers. A basic range is fine.
For some projects, a basic multi-meter is required, or might be handy
1.2 Assembly Hints :
⇒ Make sure the skill level matches your experience, to avoid disappointments.
⇒ Follow the instructions carefully. Read and understand the entire step before you perform each operation.
⇒ Perform the assembly in the correct order as stated in this manual
⇒ Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.
⇒ Values on the circuit diagram are subject to changes.
⇒ Values in this assembly guide are correct*
⇒ Use the check-boxes to mark your progress.
⇒ Please read the included information on safety and customer service
* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’on a separate leaflet.
0
.0
0
0

5
Assembly hints
1.3 Soldering Hints :
1- Mount the component against the PCB surface and carefully solder the leads
2- Make sure the solder joints are cone-shaped and shiny
3- Trim excess leads as close as possible to the solder joint
REMOVE THEM FROM THE TAPE ONE AT A TIME !
AXIAL COMPONENTS ARE TAPED IN THE CORRECT
MOUNTING SEQUENCE !
You will find the colour code for the resistances and the LEDs on our website:
http://www.velleman.be/common/service.aspx

6
 R1 : 3K3 (3 - 3 - 2 - B)
 R2 : 3K3 (3 - 3 - 2 - B)
 R3 : 8K2 (8 - 2 - 2 - B)
 R4 : 8K2 (8 - 2 - 2 - B)
 R5 : 8K2 (8 - 2 - 2 - B)
 R6 : 8K2 (8 - 2 - 2 - B)
 R7 : 8K2 (8 - 2 - 2 - B)
4. Resistor
R...
Construction
 D1 : 1N4148
 D2 : 1N4148
 D3 : 1N4148
 D4 : 1N4148
 D5 : 1N4148
 D6 : 1N4148
 D7 : 1N4148
 D8 : 1N4148
 D9 : 1N4148
 D10 : 1N4148
1. Diodes. Watch the polarity !
D...
CATHODE
ZD1
CATHODE
 ZD1 : 6V8
2. Zenerdiode. Watch the
polarity !
 D11 : 1N4007
 D12 : 1N4007
 D13 : 1N4007
 D14 : 1N4007
3. Diodes. Watch the polarity !
D...
CATHODE
 R8 : 330K (3 - 3 - 4 - B)
 R9 : 330K (3 - 3 - 4 - B)
 R10 : 330K (3 - 3 - 4 - B)
 R11 : 330K (3 - 3 - 4 - B)
 R12 : 18K (1 - 8 - 3 - B)
 R13 : 18K (1 - 8 - 3 - B)
 R14 : 47K (4 - 7 - 3 - B)
 R15 : 47K (4 - 7 - 3 - B)
 R16 : 47K (4 - 7 - 3 - B)
 R17 : 47K (4 - 7 - 3 - B)
 R18 : 47 (4 - 7 - 0 - B)
 R19 : 680 (6 - 8 - 1 - B)
 R20 : 680 (6 - 8 - 1 - B)
 R21 : 100K (1 - 0 - 4 - B - 9)
 R22 : 100K (1 - 0 - 4 - B - 9)
5. Metal film resistor
R...

7
 MAINS (N - L)
 +V
 MAN
 -V
 GND
 PA
 LS
 PA
 LS
8. PCB tabs.
Construction
 IC1 : 14P
 T1 : BC547B
 T2 : BC547B
 T3 : BC547B
 T4 : BC517
7. Transistors
LEFT
RIGHT
6. IC socket, Watch the
position of the notch !
LD1
CATHODE
 LD1 : Red (ERROR)
 LD2 : Yellow (WAIT)
9. Leds. Watch the polarity!
 C1 : 1µ F
 C2 : 1µ F
 C3 : 1µ F
 C4 : 1µ F
 C5 : 1µ F
 C6 : 1µ F
 C7 : 100µ F
 C8 : 100µ F
 C9 : 100µ F
 C10 : 100µ F
 C11 : 220µ F
 C12 : 470µ F
 C13 : 470µ F
10. Electrolytic Capacitor.
Watch the polarity !
C...
If the amplifier to which the module
is to be connected has a simple
power supply (asymmetrical
supply), i.e. an amplifier with output-
elcos, the following resistances has
to be mounted:
 R23 : 1K2 (1 - 2 - 2 - B)
 R24 : 1K2 (1 - 2 - 2 - B)
 R25 : 1K2 (1 - 2 - 2 - B)
 R26 : 1K2 (1 - 2 - 2 - B)
 ATTENTION: if the involved
amplifier has a symmetrical
power supply, those
resistances may NOT be
mounted!
11. 1W vertical resistors
R...

8
Construction

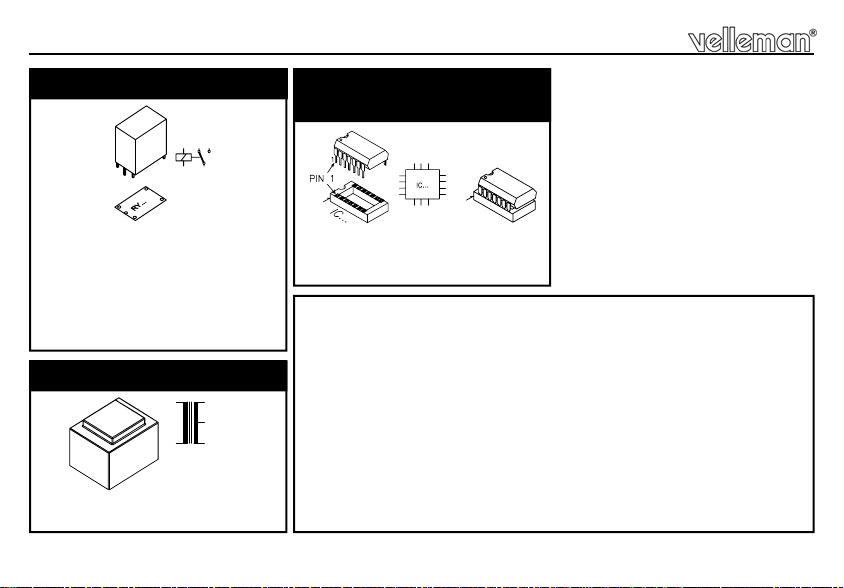

 RY1 :VR15M121C (12VDC - 15A - 1C)
 RY2 :VR15M121C (12VDC - 15A - 1C)
 Cover the wide connecting
broad leads with solder.
12. Relays
RY...
 Transfo (1,2VA - 2 x 6V / 2 x 0,1A)
13. Transformer
TRANSFORMER
6
0
6
N
L
 IC1 : LM324
14. IC. Watch the position of the
notch!
 CHECK THE ENTIRE MODULE PROFOUNDLY
ONCE AGAIN.
 CHECK IF ALL SOLDERINGS ARE CORRECT
AND THAT THERE ARE NO SHORT-CIRCUITS!

9
Testing
Connect a net-cord to the MAINS, connect the module to the net and check if after approx.+/-6 sec. the
yellow LED 'WAIT' extinguishes; at the very same moment the LED is extinguishing, one should hear the
clack of the relais switching.
Testing the Left channel :
 Connect the point PA of the left channel to the point -V (figure 1.0); the red LED 'ERROR' should now be
lightening together with the yellow LED 'WAIT'.
 When the connection is interrupted again (figure 2.0), the red LED should extinguish and after approx. +/-
6 sec. the yellow LED as well.
Repeat this testing procedure by connecting the point PA to the point +V.
15. Testing
Fig. 1.0 Fig. 2.0

10
Testing the right channel :
 Connect the point PA of the right channel to the point -V (figure 3.0); the red LED 'ERROR' should now be
lightening together with the yellow LED 'WAIT'.
 When the connection is interrupted again (figure 4.0), the red LED should extinguish and after approx. +/-
6 sec. the yellow LED as well.
Repeat this testing procedure by connecting the point PA to the point +V.
 The module is now ready for being connected definitively to the amplifier.
Fig. 3.0 Fig. 4.0
Testing

11
First find a proper place to install the protection module (f.i. against the back-side of the housing).
Realise the following connections:
MAINS: this connection has to be linked to the NET-connection of the transformer in the amplifier, i.e.
AFTER the net-switch!
PA: connect this point to the speaker-output of the amplifier, respectively for the left and the right signal (fig
5.0). In case a bridge-amplifier (fig 6.0) is being used, there ought to be two "hot" connections here.
MASS: this point has to be connected to the mass of the amplifier.
LS: to this point the left resp. right loud speaker is to be connected.
To disconnect the loudspeakers manually, realise the following connections:
Install a switch between the points -V and MAN; when the switch is shut the speakers will be disconnected
permanently, when opening the switch again after approx.+/-6 sec the speakers will be reconnected as well.
REMARK. In case of amplifiers with asymmetrical power supply (i.e. having output-elcos and the resistances
R23 to R26) of more than 300W/4 Ohm or 150W/8 Ohm, it is not recommandable to disconnect the
speakers at full power during a longer period, because the just mentioned resistances could burn. In case
the protection module is being used on a bridge-amplifier with asymmetrical power supply, the diodes D7
and D8 should not be mounted; in this case the DC-protection should not be functioning anymore because
the voltage-reference of the protection-module is now opposed to the mass.
Connection
16. Connection

12
Fig. 5.0
ON/OFF
INPUT RIGHT
MAINS
OUTPUT RIGHT
OUTPUT LEFTINPUT LEFT
POWER
SUPPLY
PA
LS
PA
LS
LEFT
RIGHT
MAINS
P4700
STEREO POWER AMPLIFIER
ON/OFF
INPUT
MAINS
OUTPUT +
OUTPUT -
POWER
SUPPLY
PA
LS
PA
LS
LEFT
RIGHT
MAINS
P4700
BRIDGE POWER AMPLIFIER
Fig. 6.0
Connection

13
17. PCB layout.
PCB

14
Diagram
18. Diagram

Modifications and typographical errors reserved
© Velleman Components nv.
H4700IP - 2004 - ED1 (rev 1.0)
