SAFETY INFORMATION
When using your dishwasher , follow the precautions listed below:
• Installation and repair can only be carried out by a qualied technician
• This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, ofces and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be
done by children without supervision.
• This appliance is not intended for use by persons (including children ) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. (For IEC60335-1 )
• Packaging material could be dangerous for children!
• This appliance is for indoor household use only. To protect against the risk of electrical
shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.
Warnings
Page 5CSDW60SS-6 User Manual
SAFETY INFORMATION
• This appliance must be earthed. In the event of a malfunction or breakdown, earthing
will reduce the risk of an electric shock by providing a path of least resistance of electric
current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an
electric shock.
• Check with a qualied electrician or service representative if you are in doubt whether
the appliance is properly grounded.
• Do not modify the plug provided with the appliance; If it does not t the outlet.
• Have a proper outlet installed by a qualied electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance
could tip forward.
• When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket
with their points facing down or placed in a horizontal position.
• Some dishwasher detergents are strongly alkaline.
• They can be extremely dangerous if swallowed.
• Avoid contact with the skin and eyes and keep children away from the dishwasher when
the door is open.
• Check that the detergent powder is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer’s recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualied person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or
attened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old
sets should not be reused.
• To save energy, in stand by mode , the appliance will switch off automatically while there
is no any operation in 30 minutes.
• The maximum number of place settings to be washed is 12.
Earthing Instructions
CSDW60SS-6 User Manual Page 6
SAFETY INFORMATION
Disposal
• For disposing of package and the appliance please go to a recycling center. Therefore
cut off the power supply cable and make the door closing device unusable.
• Cardboard packaging is manufactured from recycled paper and should be disposed in
the waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product.
• For more detailed information about recycling of this product, please
contact your local city ofce and your household waste disposal
service.
• DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
Page 7CSDW60SS-6 User Manual
PRODUCT OVERVIEW
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions
before using it for the rst time.
NOTE:
Pictures are only for reference, different models may be different. Please prevail in kind.
CSDW60SS-6 User Manual Page 8
INSTALLATION INSTRUCTIONS
Attention
The installation of the pipes and electrical equipments should be done by professionals.
Electrical Requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the
appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit
breaker recommended and provide separate circuit serving only this appliance.
WARNING
Electrical Shock Hazard
Disconnect electrical power before installing
dishwasher. Failure to do so could result in
death or electrical shock.
WARNING
For personal safety:
Do not use an extension cord or an adapter plug with this
appliance. Do not, under any circumstances, cut or remove
the earthing connection from the power cord.
About Power Connection
Electrical Connection
Ensure the voltage and frequency of the power being corresponds to those on the rating
plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical
socket to which the appliance must be connected is not appropriate for the plug, replace
the socket, rather than using a adaptors or the like as they could cause overheating and
burns.
Ensure that proper earthing exists before use
Page 9CSDW60SS-6 User Manual
INSTALLATION INSTRUCTIONS
Position The Appliance
Position the appliance in the desired location. The back should rest against the wall behind
it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with
water supply and drain hoses that can be positioned either to the right or the left sides to
facilitate proper installation.

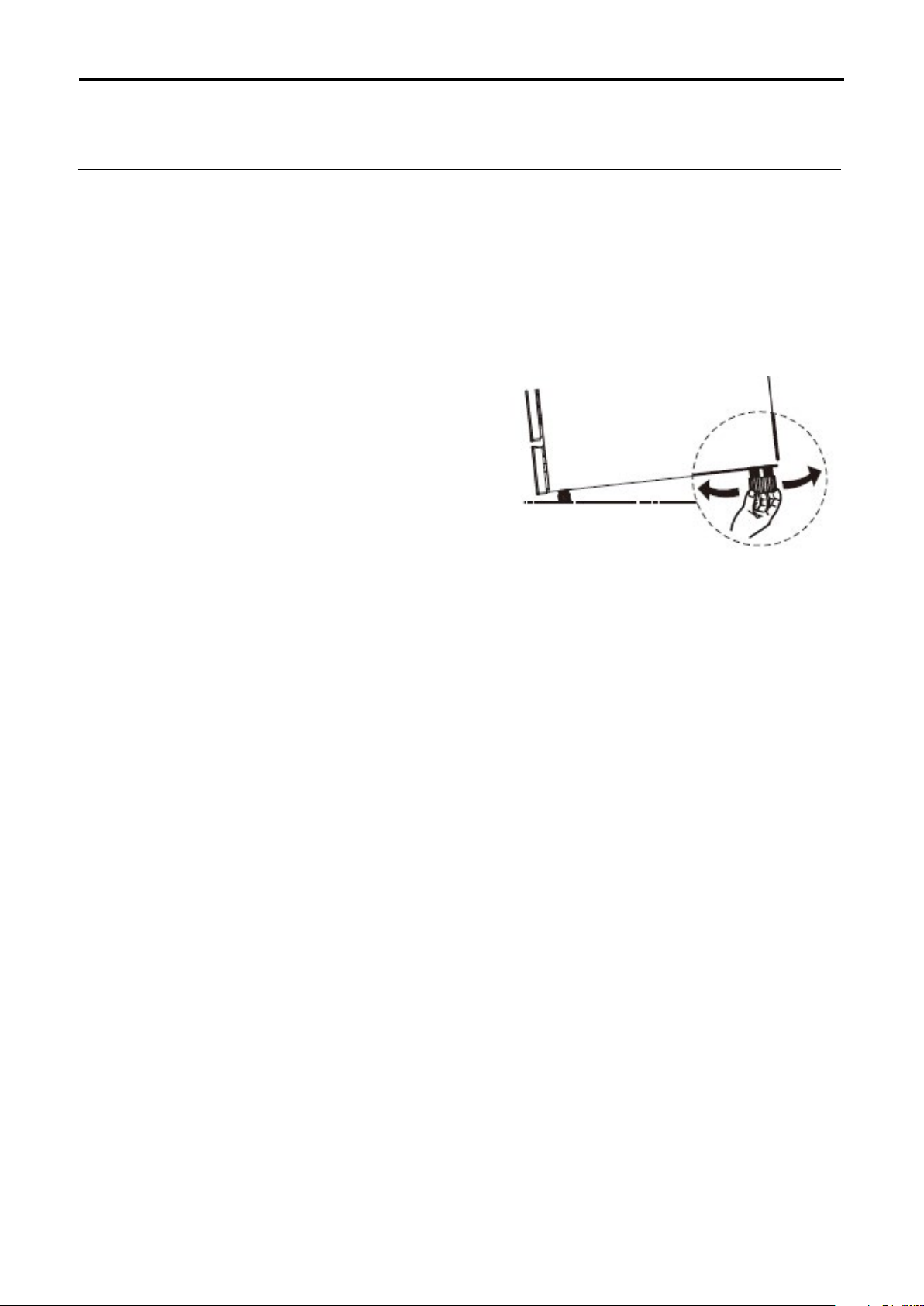

Levelling the appliance
Once the appliance is positioned for levelling,
the height of the dishwasher may be altered via
adjustment of the screwing level of the feet. In any
case,the appliance should not be inclined more
than 2°.
NOTE:
Only apply to the free standing dishwasher.
Water Supply and drain
Cold water connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it
is fastened tightly in place. If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that the water is clear. This
precaution is needed to avoid the risk of the water inlet to be blocked and damage the
appliance.
NOTE:
Please close the hydrant after using.
CSDW60SS-6 User Manual Page 10
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the
sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than
1000mm. The free end of the hose must not be immersed in water to avoid the back ow of it.
Please securely x the drain hose in either position A or position B
When connecting to a spigot (A), insure the spigot is drilled out fully to avoid blockages.
How to drain excess water from hoses
If the sink is 1000 higher from the oor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly tted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer
than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced.
Syphon connection
The waste connection must be at a height less than 100 cm (maximum) from the bottom of
the dish. The water drain hose should be xed.
Connection of Drain Hoses
INSTALLATION INSTRUCTIONS
CSDW60SS-6 User Manual Page 11USING THE DISHWASHER
Control Panel
Operation (Button)
Page 12 CSDW60SS-6 User Manual PG 12USING THE DISHWASHER
CSDW60SS-6 User Manual Page 13
Function Of The Rinse Aid And Detergent
The rinse aid is released during the nal rinse to prevent water from forming droplets on your
dishes, which can leave spots and streaks. It also improves drying by allowing water to roll
off the dishes. Your dishwasher is designed to use liquid rinse aids.
Warning
Only use branded rinse aid for dishwasher. Never ll the rinse aid dispense with any other
substances (e.g Dishwasher cleaning agent, liquid detergent). This would damage the
appliance.

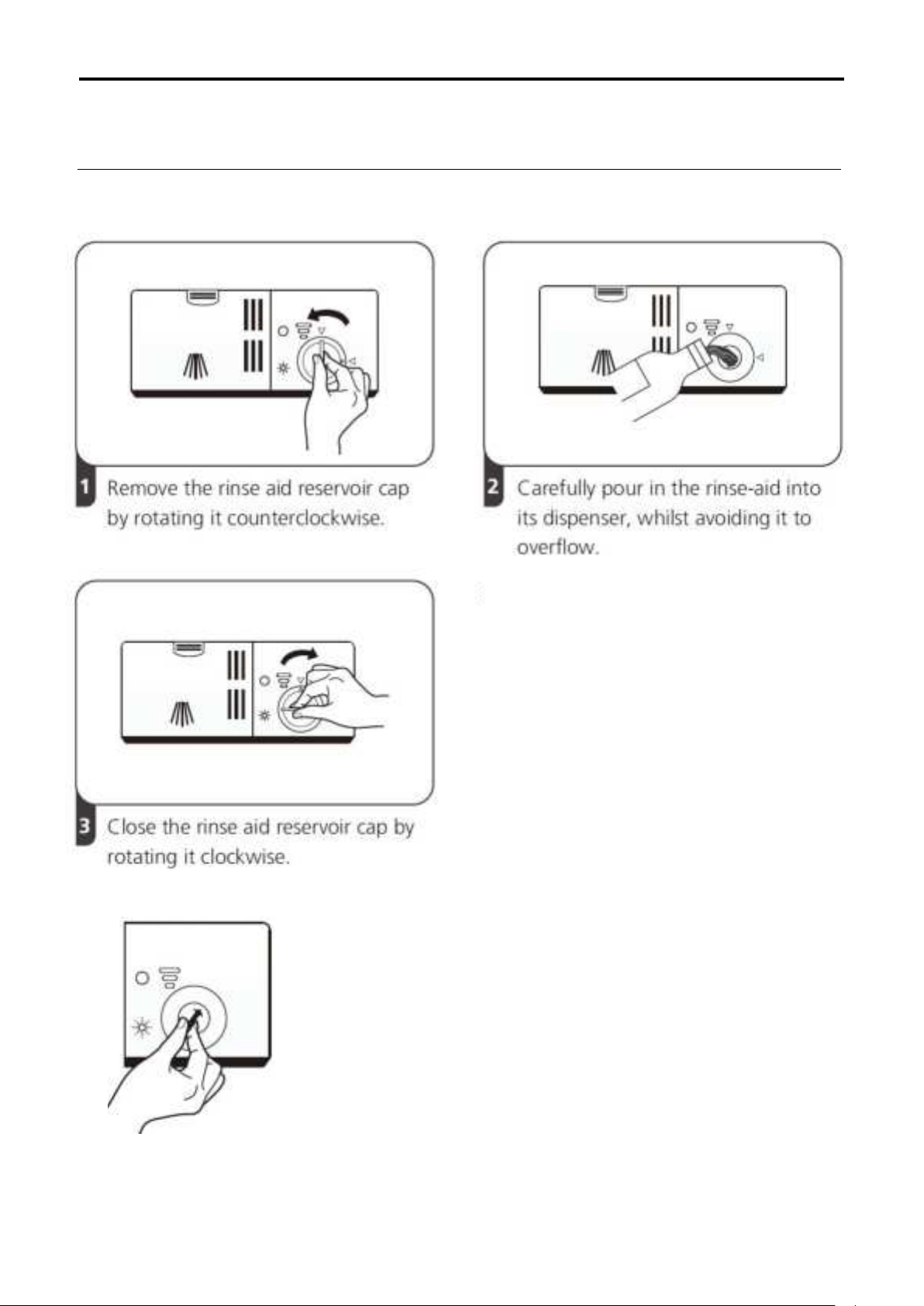

When to rell the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control panel is on, you can always estimate
the amount from the colour of the optical level indicator located next to the cap. When the
rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as
the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes,
as illustrated below.
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable
for this purpose.
WARNING
•Property Use of Detergent
Use only detergent specically made for dishwashers use. Keep your detergent fresh
and dry.
•Don’t put powdered detergent into the dispenser until you are ready to wash
dishes.
•Dishwasher detergent is corrosive! Keep dishwasher detergent out of the
reach of children.
USING THE DISHWASHER
Page 14 CSDW60SS-6 User Manual
USING THE DISHWASHER
Filling The Rinse Aid Dispenser
Adjusting the rinse aid resorvoir
Turn the rinse aid indicator dial to a number. The
higher the number, the more rinse aid the dishwasher
uses.
If the dishes are not drying properly or are spotted,
adjust the dial to the next higher number until your
dishes are spot-free. Reduce it if there are sticky
whitish stains on your dishes or a bluish lm on
glassware or knife blades.
NOTE:
Clean up any spilled rinse aid with an
absorbent cloth to avoid excessive
foaming during the next wash.
CSDW60SS-6 User Manual Page 15
Note:
• Be aware that depending on the soiling of water, setting may be different.
• Please observe the manufacturer’s recommendations on the detergent packaging.
USING THE DISHWASHER
Filling The Detergent Dispenser
Basket Use Tips
Adjusting the upper basket
Type 1:
The height of the upper basket
can be easily adjusted to
accommodate taller dishes
in either the upper or lower
basket.
Folding back the cup shelves
To make room for taller items in the upper
basket, raise the cup rack upwards. You
can then lean the tall glasses against
it. You can also remove it when it is not
required for use.
Folding back the rack shelves
The spikes of the lower basket are used
for holding plates and a platter. They can
be lowered to make more room for large
items.
Page 16 CSDW60SS-6 User Manual
USING THE DISHWASHER
CSDW60SS-6 User Manual Page 17
• Consider buying utensils which are identied as dishwasher-proof.
• For particular items, select a program with the lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
For washing the following cutlery/dishes
Are not suitable
• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic bres
Are of limited suitability
• Some types of glasses can become dull after a large number of washes
• Silver and aluminum parts have a tendency to discolour during washing
• Glazed patterns may fade if machine washed frequently
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is
not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from your model.)
Place objects in the dishwasher in following way:
• Items such as cups, glasses, pots/pans, etc. are faced downwards.
• Curved items, or ones with recesses, should be loaded aslant so that water can run
• off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotate freely during washing.
USING THE DISHWASHER
Preparing and loading dishes
Page 18CSDW60SS-6 User Manual
• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards
so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage, glasses should not touch one another.
• The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Note:
Very small items should not be washed in the dishwasher as they could easily fall out of the
basket.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that
you empty the lower basket rst, followed by the upper basket.
WARNING
Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher
for around 15 minutes after the program has ended.
USING THE DISHWASHER
CSDW60SS-6 User Manual Page 19
Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups
and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by
the spray of water.
Loading the lower basket
We suggest that you place large items and the most
difcult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and bowls,
as shown in the gure below. It is preferable to place
serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the
detergent dispenser is of 19 cm, this not to hamper the
opening of it.
Loading the cutlery tray
Cutlery should be placed in the cutlery tray separately from each other in the appropriate
positions, and make sure the utensils do not nest together, this may cause bad
performance.
WARNING
Do not let any item extend through the bottom. Always load sharp utensils with
the sharp point down!
Note:
For the best wash results, please refer to standard loading options in section 5.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that
you empty the lower basket rst, followed by the upper basket.
WARNING
Items will be hot! To prevent damage, do not take glass and cutlery out of the
dishwasher for around 15 minutes after the program has ended.
USING THE DISHWASHER
Loading The Baskets According To AS/NZS 2007.1
1. Upper basket:
2. Lower basket:
Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 12 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
Detergent(Pre/main): 5/25g
Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)
Page 20CSDW60SS-6 User Manual
USING THE DISHWASHER
Table of contents
Other Veneto Dishwasher manuals
