Venini GED45S User manual

GED45S
45cm Dishwasher

To review the section on troubleshooting Tips
will help you to solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Keep it to refer to it at a later date.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
Dishwasher Features............................ ........ ...2.
Attention before or after loading the Dishwasher
Baskets...................................................... ..8..
Filtering System.............................................14
Caring for the Dishwasher...............................15
A、Fill the Rinse Aid Dispenser................. ........3 .
B、Function of Detergent ........................ .........5 .
Loading the upper Basket............................ ...8..
Loading the Lower Basket....................... .......9...
Cutlery Basket........................................... ..10...
Wash Cycle Table...........................................12
Turning on the Appliance................................13
Change the Programme...................... ...........13..
At the End of the Wash Cycle...................... .....13.
Before calling for service.................................19
Error codes...................................................20
Technical information.....................................21

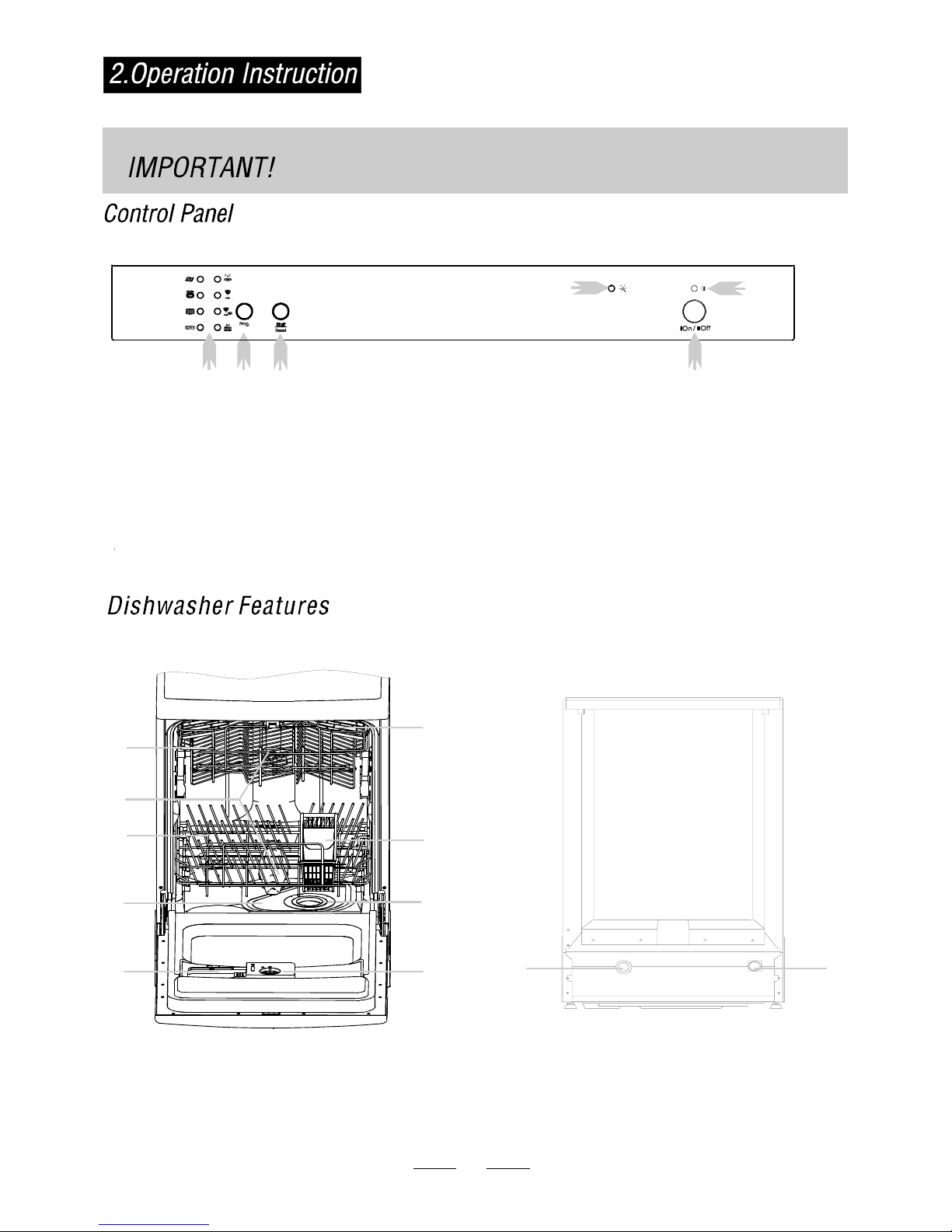

Control Panel...................................................2
Positioning the Appliance.............................. ..........18.
Start of Dishwasher .....................18....................
Water Connection............................................17
How to use the 3in1 Function.............................7

1
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
theriskof anelectricshockbyprovidingapathof
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher,
there could still be some detergent left inside.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2) Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position.
When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
The appliance is to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 8.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children )with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
When using your dishwasher, follow the precautions listed below:
WARNING!
The door should not be left open,
since this could increase the risk of tripping.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.

To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.
2
4 Start / Reset Button: Press this button to start or pause the
dishwasher, the process pilot lamp will come on when
starting.
2 Power Light : To come on when the ON/OFF Button is
Pressed down.
3 Rinse Aid Warning Light : To come on when the
rinse aid dispenser needs to be refilled.
1 ON/OFF Button: To turn on/off the power supply.
Program button: Press the button to choose the desired
program.
5
Program indicator light.
6
1
2
3
5
64
11
1
2
3
4
5
6
7
8
910
Upper Basket
Spray Arms
Lower Basket
Detergent Dispenser
Silverware Basket
Main Filter
Cup Shelf
5
6
7
8
Rinse Aid Dispenser
Coarse Filter
Drain pipe connector
Inlet pipe connector
9
10
11
3
2
14

Before using your dishwasher for the first time:
3

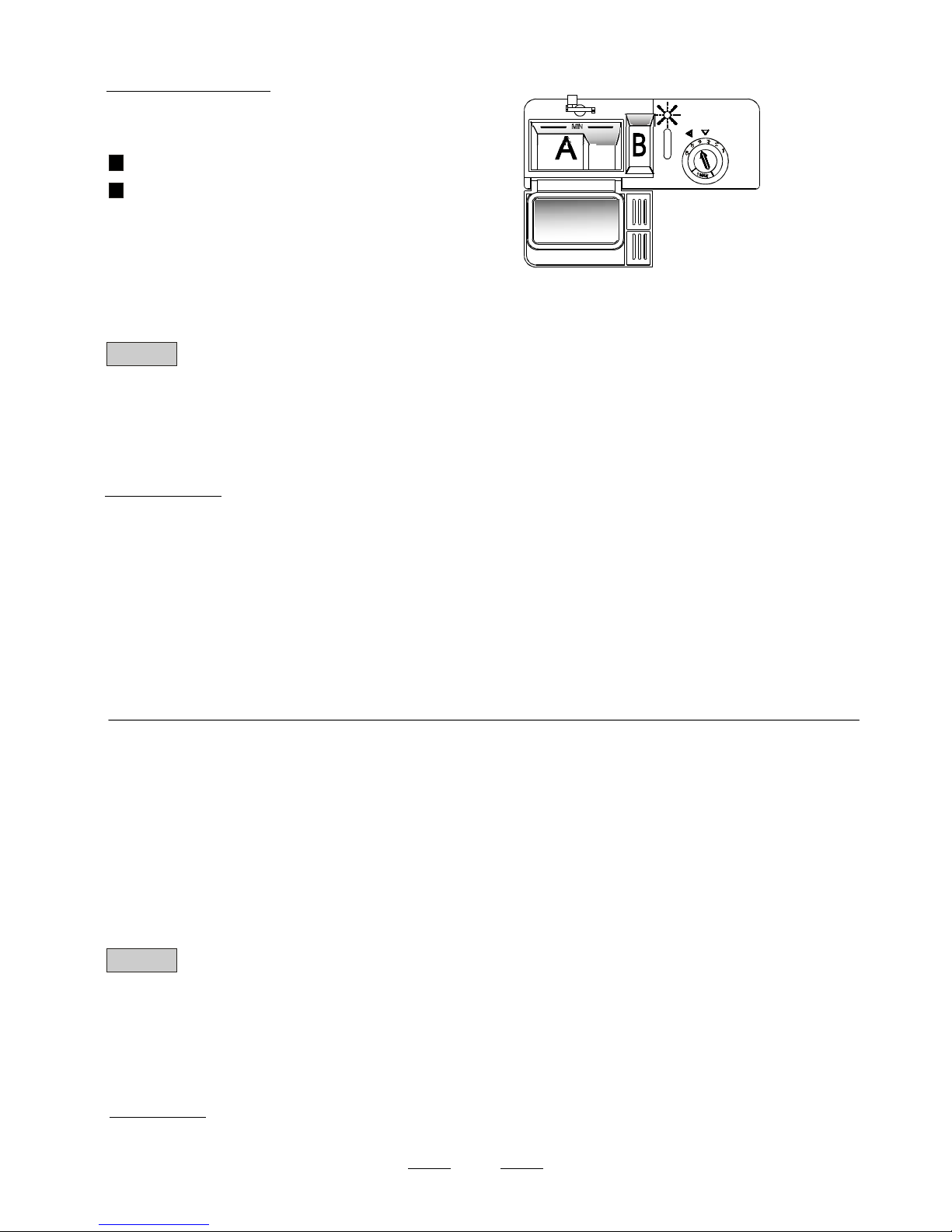

A. Fill the rinse aid dispenser
B. Fill in detergent
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll offthe dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1 / 4 full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level
indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
When to Refill the Rinse Aid Dispenser

4
RINSE AID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming
during the next wash.
Adjusting Rinse Aid Dispenser
1
2
3
The rinse aid dispenser has six scales. Always start with the dispenser set on "4".
If spots and poor drying are a problem, increase the amount of rinse aid dispensed
by removing the dispenser lid and rotating the dial to "5". If the dishes still are not
drying properly or are show spots, adjust the dial to the next higher lever until your
dishes are spot-free. The recommended setting is "4". (Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes afterwashing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
NOTE:

5
Amount of Detergent to Use
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
WARNING!
Based on their chemical composition, detergents can be split in two basic types:
The use of“normal” washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of theenzymes of the concentrated detergent. For this reason
“normal”wash programs in which concentrated detergents are used can achieve the same
results that can otherwise only be achieved using “intensive” programs.
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get dampandwillnot
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Detergents with its chemical ingredients are necessary to remove dirt, crush dirtand transport it out of the dishwasher.
Most of the commercial quality detergents are suitable for this purpose.

6
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on theright:
The place of main wash cycle detergent placed ,
“MIN”means approximately 20g of detergent.
The place of pre-wash cycle detergent placed ,
approximately 5g of detergent
Please observe the manufacturers dosing and storage
recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
You findinformation about the amount of detergent for the single programmes on the
last page. Please aware, that according to the level soiling and the specific hardness of
water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
NOTE:
NOTE:
A
B
Fill in detergent
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
Attention
Keep all detergents in a safe place out of children's reach.
Always add the detergent in the dispenser just before starting the dishwasher.
Use of “2 in 1”、“3 in 1”、“4 in 1” and “5 in 1” Combination / Compact Detergents
These products are detergents with integrated and combined detergent/rinse aid and
salt functions. Before using these products you should first check that the water hardness
in your supply is compatible with the use of these products as per the detergent manu-
facturers (on the product packaging). These products should be strictly used according to
the detergent manufacturer's instructions. In general detergents that include rinse aid or
water softener are only able to serve good results under certain conditions: rinse aid and
water softener can not adapted to specific conditions. For this reasons in some cases
there might be unwanted cleaning or drying results. Please ask the detergent manufac-
turer to inform you about the best consume conditions. If you encounter problems when
using these products for the first time then please contact the detergent manufacturers
care line. The manufacturer of your dishwasher is not liable for damages caused by
compact detergents nor gives warranty if you use compact detergents.
When use 2 in 1 3 in 1 4 in 1 or 5 in 1 Combination / Compact Deter-
gents ,please pay attention to make sure that the size of the Combination Detergents
is fitted to the dispenser so that Combination Detergents can be ease to put in the
dispenser ,and dispenser would not be broken.
“ ”、“ ”、“ ” “ ”
，

If you use 3in1 tablets in other programs, the appliance will not achieve a good performance.
Only the 3in1 function(for the program: intensive/Normal/Eco.) Can be used with 3in1 tablets.
When using 3in1 combination / compact Detergents ,please pay attention to make sure that
the size of the combination detergents fits to the dispenser，so that combination
detergents can be easily put into the dispenser, and the dispenser would notbebroken.
Your dishwasher has a 3in1 function which needs no salt and rinse aid but a 3In1 tablet.
This dishwasher comes with a 3in1 tablet container as an accessory.
1. The figure below shows how to hang the 3in1 tablet container on the upper basket.
2. Rotate the upper sprayer and change the location of the container to ensure the upper sprayer is not
obstructed by the 3in 1 tablet container. Refer to the figure below for reference.
3. Put the 3in1 tablet into the container ,then start the 3in1 program.
How To Use The 3IN1 Function
7

8
For best performance of the dishwasher, follow these loading guidelines. Features and
appearance of baskets and cutlery baskets may vary from your model.
Attention before or after Loading the Dishwasher Baskets
Scrape off any large amounts of leftover food. Soften remnants of burnt foodinpans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.
Removing the Dishes
To prevent water dripping from the upper basket into the lower back, we recommend that you
empty the lower basket first and then the upper basket.

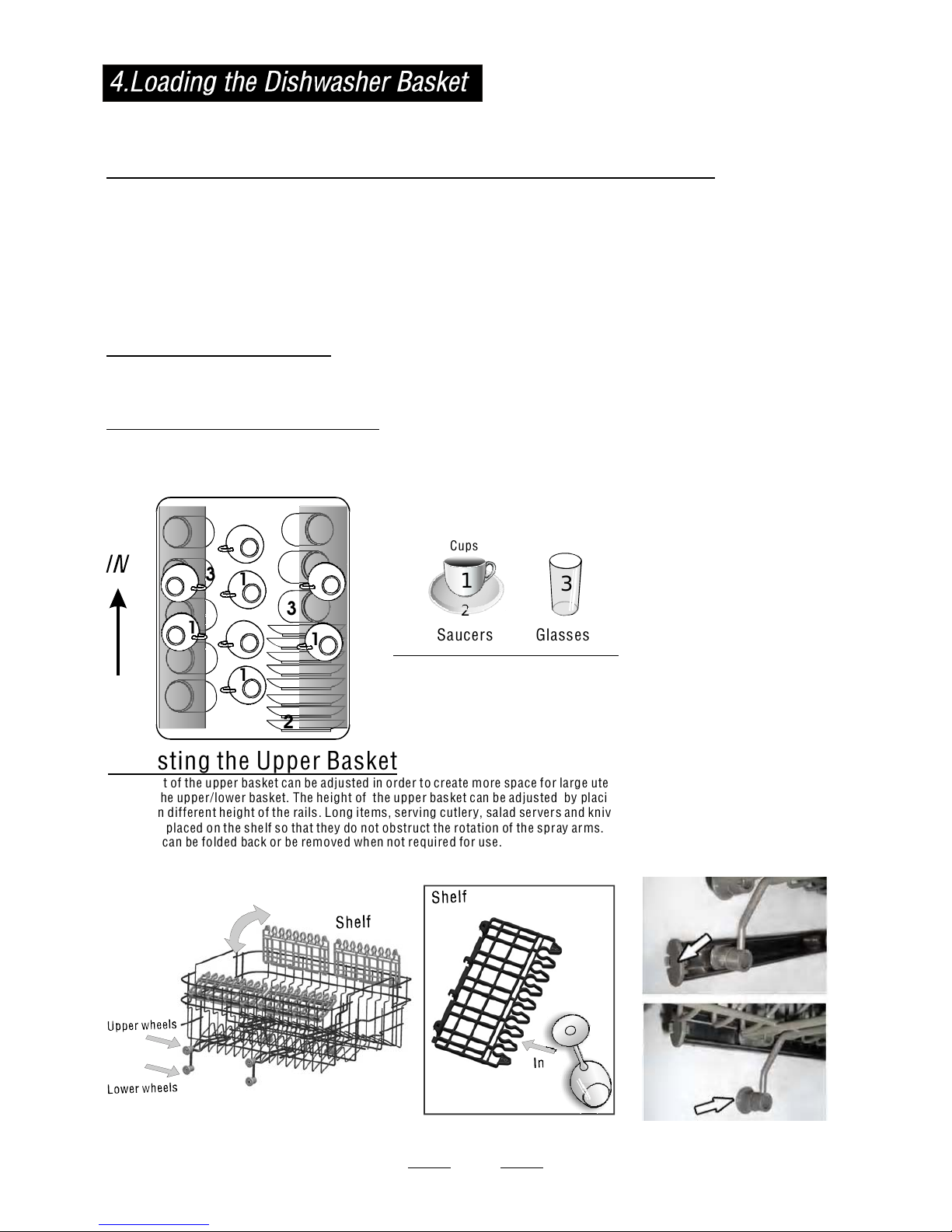

Loading the Upper Basket
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are
not too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to create more space for large utensils
both for the upper/lower basket. The height of the upper basket can be adjusted by placing the
wheels on different height of the rails. Long items, serving cutlery, salad servers and knives
should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
The shelf can be folded back or be removed when not required for use.
Saucers
3
Glasses
2
1
Cups
3
2
1
1
3
1
1

9
Loading the Lower Basket
We recommend that you place large items which are most difficult to clean into the lower basket:
pots, pans, lids, serving dishes and bowls, as shown in the figure to the right.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Thebottom basket feature fold down tine rows so that larger or more pots and pans can be loaded.
Folding spikes
Forbetter stacking of pots and pans, thespikes can be folded down as
show in the picture right.
4
Dinner plates
6
Soup plates
Dessert dishes
5
Cutlery basket
7
5
5
4
6
7

Cutlery Basket
For washing in the dishwasher the following cutlery/dishes
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint.
If you buy new dishes please make sure that they are suitable for dishwashers.
Some types of glasses can become
dull after a large number of washes
Silver and aluminum parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Please do not overload your dishwasher. Do not use dish that is not suitable for
dishwashers. This is important for good results and for reasonable energy
consume.
Before loading the dishes, you should:
Remove large left-over
Soften remnants of burnt food in pans
Dishes and cutlery must not impede the rotation of the spray arms
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that
water cannot collect in the container or a deepbase
10
NOTE:
NOTE:
Are not suitable Are of limited suitability
Loading cutlery and dishes
When loading the dishes and cutlery, please note:
Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upper basket as shown in the picture.
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!
Teaspoons
4
Soup spoons
2
Forks
1
Knives
5
3Dessert spoons
12
2
5
5
5
5
5
5
5
5
2
2
2
2
2
2
3
3
1
1
1
1
1
1
1
3
3
3
3
3
3
4
4
4
4
4
4
4
4

11
Di
To
T
shes and items of cutlery must not lie inside one another, or cover each other
avoid damage to glasses, they must not touch
Load large items which are most difficult to clean into the lower rack
he upper rack is desi gned to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Attention!
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Damage to glassware and other dishes
Possible causes:
Type of glass or manufacturing process. Chemical composition of detergent.
Water temperature and duration of dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that have been marked dishwasher-proof by the
manufacturer
Use a mild detergent that is described as kind of dishes If necessary, seek further
information from detergent manufacturers.
Select a programme with as low a temperature.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible
after the programme has ended.

12
For normally soiled loads,
such as , plates,glasses
and lightly soiled pans.
standard daily cycle.
pots
For lightly soiled loads,such
as plates,glasses,bowls and
lightly soiled pans.
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
A shorter wash for lightly
soiled loads that do not
need drying.
For dishes that need to be
rinsed and dried only.
For lightly soiled loads,
such as glasses, crystal and
fine china.
For normally soiled loads,
such as , plates,glasses
and lightly soiled pans.
standard daily cycle.
pots
20g.
4/20 g.
155
105
160
30
95
0.74
0.65
1.10
0.35
0.75
12.9
10.2
12.9
6.5
7.5
3in1
15 g.
160
110
14.7
10.2
0.95
0.75
Pre-wash
-wash( 0℃
Wash (60 ℃)
Rinse (70 ℃)
Drying
Pre 5 )
Pre-wash
Pre-wash
Wash (50 ℃)
Rinse (65 ℃)
Drying
Pre-wash
Wash (45 ℃)
Rinse (60 ℃)
Drying
Wash (40 ℃)
Wash(45 )
℃
Rinse (70 ℃)
Drying
Pre-wash
pre-wash
wash(45 )
rinse(70 )
drying
℃
℃
Pre-wash
wash(40 )
rinse(70 )
drying
℃
℃
To rinse dishes that you
plan to wash later that day.
Pre-wash
80.012.8
4/20 g.
15 g.
Rinse (45 ℃)
Rinse
Glass
Rapid
Soak
Intensive
Normal
Eco
(AS/NZS2007.1)

13
A forgotten dish can be added at any time before the detergent cup opens.
Open the door a little to stop the washing.
After the spray arms stop working, you can open the door
completely.
Load the forgotten dishes.
Close the door, the dishwasher will start running again
after 10 seconds.
4
3
2
1
It is dangerous to open the door when washing,because the hot water may scaldyou.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Turning on the Appliance
Starting a wash cycle...
Draw out the lower and upper basket, load the dishes and
push them back. It is commended that loading the lower
basket first, than the upper one (see the section entitled
“Loading the Dishwasher”).
Pour in the detergent (see the section entitled “Salt,
Detergent and Rinse Aid”).
Insert the plug into the socket. The power supply is 220-240
VAC 50 HZ, the specification of the socket is 10 A 250 VAC.
Make sure that the water supply is turned on to full pressure.
If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the
main power and water supply before calling a service.
1
2
3
4
NOTE:
Note: When you press the Start/Reset button to pause during washing,
the program light will stop blinking and the dishwasher will mooing
every minute unless you press the Start/Reset button to start.
When select 6 kinds of wash program
Press the programme button, the wash program will change as follows direction
3in1->Intensive->Normal->Eco->Rinse->Glass->Rapid->Soak;
When a program is selected, the response light will light. Then press the
Start/Reset button, the program is running.
Premise:
Otherwise,
the detergent may have already been released, and the appliance
may have already drained the wash water. If this is the case, the detergent
dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press start/Reset Button more than three seconds the machine will
be in stand by state ,then you can change the program to
the desired cycle setting (see the section entitled " Starting a wash cycle...").
NOTE: If you open the door when washing, the machine
will pause. When you close the door and press the start/reset Button,
the machine will keep on working after 10 seconds.
The program lights shows the state of the dishwasher:
a) All program lights off---------------stand by
b) One of the program lights on----------pause
c) One of the program lights blinking----- run
You can modified the washing program, just
the dishwasher has been running for a short time.

14
The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter, a flat (Main filter)
And a microfilter (Fine filter).
Main filter
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down the
drain.
Coarse filter
Larger items, such as pieces of bones or glass, that could clog
the drain are trapped in the coarse filter. To remove an item
caught in this filter, gently squeeze the taps on the top of this
filter and lift it out.
Fine filter
This filter holds soil and food residues in the sump area and
prevents it from being redeposit on the dishes during a cycle.
2
3
1
2
3
1
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter. you can remove the filter system. Remove any food remnants and clean the
filters under running water.
step１：Turn the filter in anti-clockwise direction,
then lift it up
step２：lift the Main filter up
NOTE：
step 3： lift the Fine filter up
Switch Off the Dishwasher
In the digital display appears 0 (remaining programme time),only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
When following this procedure from step1 to step 3, the filter system will beremoved;
whenfollowingitfromStep3toStep1,thefiltersystemwillbeinstalled.
1
2
3
Open

15
Caring for the Dishwasher
Protect Against Freezing
Filter assembly
To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter
parts as shown in the figures left and reinsert the entire assembly in the dishwasher, positioning
in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacement of the filter may
reduce the performance level of the appliance and damage dishes and utensils.
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food
particles from the wash water, allowing it to be recycled during the cycle. For best performance and results,
the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles
trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.
To remove the filter device, pull the cup handle in the upward direction. The entire filter assembly should be
cleaned once a week.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance and
damage dishes and utensils.
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water inthesump.
please take frost protection measures on the dishwasher in winter. Every time after washing cycles,
please operate as follows：
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
upper
lower

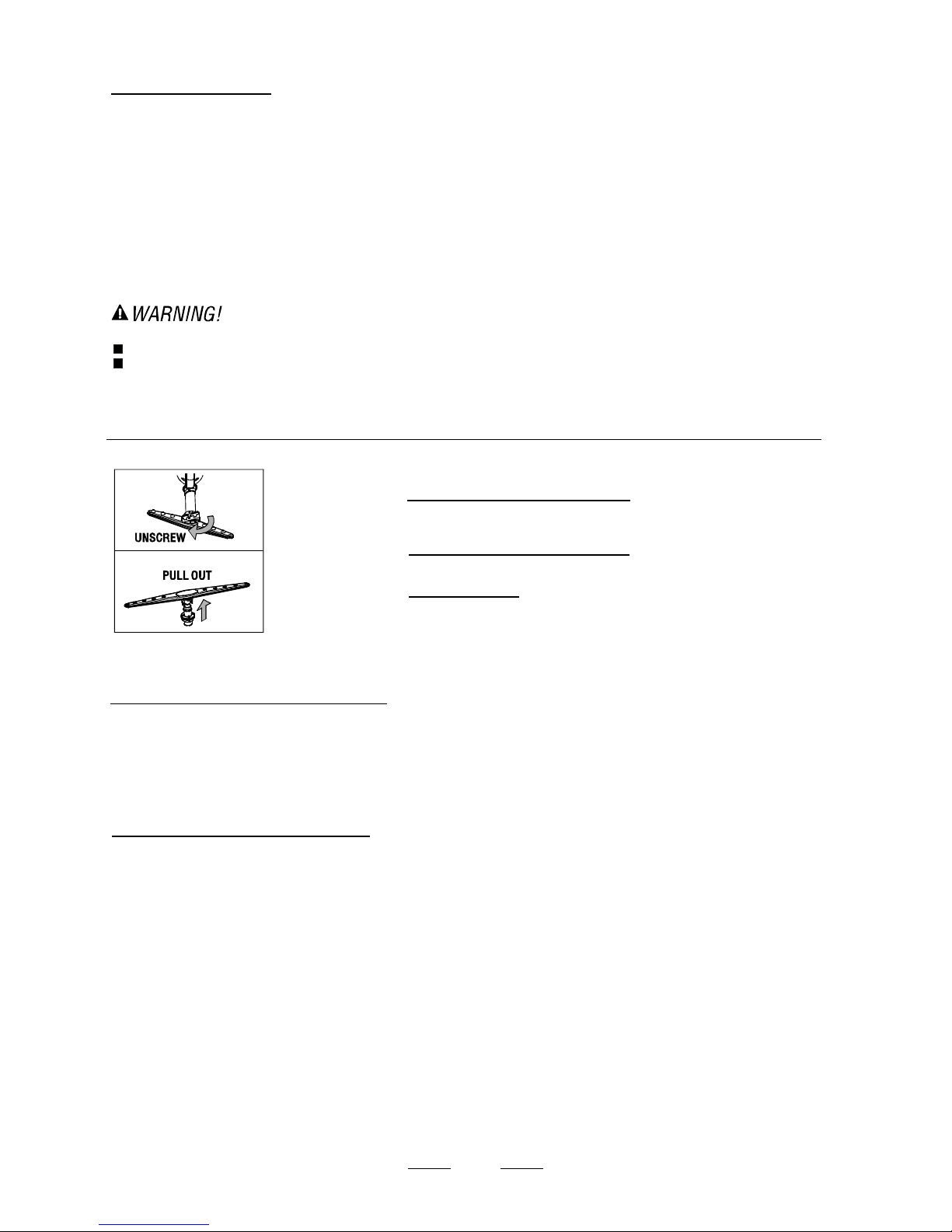

Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.
To remove the upper spray arms, screw off the nut clockwise to take out
the washer on top of the spray arm and remove the arm.
Remove the upper spray arms
To remove the lower spray arm, pull out .the spray arm upward
Remove the lower spray arms
Wash the arms
Wash the arms in soapy and warm water and use a soft brush to clean
the jets. Replace them after rinsing them thoroughly.

16
After every wash, turn off the water supply to the
appliance and leave the door slightly ajar so that
moisture and odours are not trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket. Do not run risks.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Rather, use only a cloth and warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and a little
vinegar, or a cleaning product made specifically for
dishwashers.
When you go on holiday, it is recommend that you run a
wash cycle with the dishwasher empty and then remove
the plug from the socket, turn off the water supply and
leave the door of the appliance slightly ajar. This will help
the seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the vertical
position. If absolutely necessary, it can be positioned on
its back.
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components,donot
use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots
on the stainless steel surface.
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. Ifthe electrical socket to which the appliance must be connectedisnot
appropriate for the plug , replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and an earthing plug. The plugmustbepluggedintoan
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
WARNING!
For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.

for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time,letthe
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage the appliance.
The water supply to the appliance can also be connected to the household hot water
line (such as, central system, heating system),as long as it does not exceeda
temperature of 60 C. In this case, the wash cycle time will be shortened by about 15
minutes and the wash efficiency slightly reduced.
The connection must be made to the hot water line following the same procedures as
described in the section for the connection to the cold water line.
WARNING!
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
In order to avoid that there is more water staying in the inlet hose, please close
the hydrant after using.(Not applicable to appliances without aqua-stop.)
WARNING!
17
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to
avoid bending or crimping. Use the special plastic support that comes with theappliance.Thefreeendofthehose
must be at a height between 40 and 100cm and must not be immersed in water.
FRONT VIEW
Inlet pipe connector Drain pipe connector
POWEROUTLET
SINK
DISHWASHER
Min 100mm

18
The following things should be checked before starting the dishwasher.
The content of this manual is very helpful to the users.
After installation, please make sure to keep this manual.
1The dishwasher is level and fixed properly
2Theinletvalveisopen
3There is a leakage at the connections of the conducts
4The wires are tightly connected
5The power is switched on
6The inlet and drain hoses are knotted
7All packing materials and printings should be taken out from the dishwasher

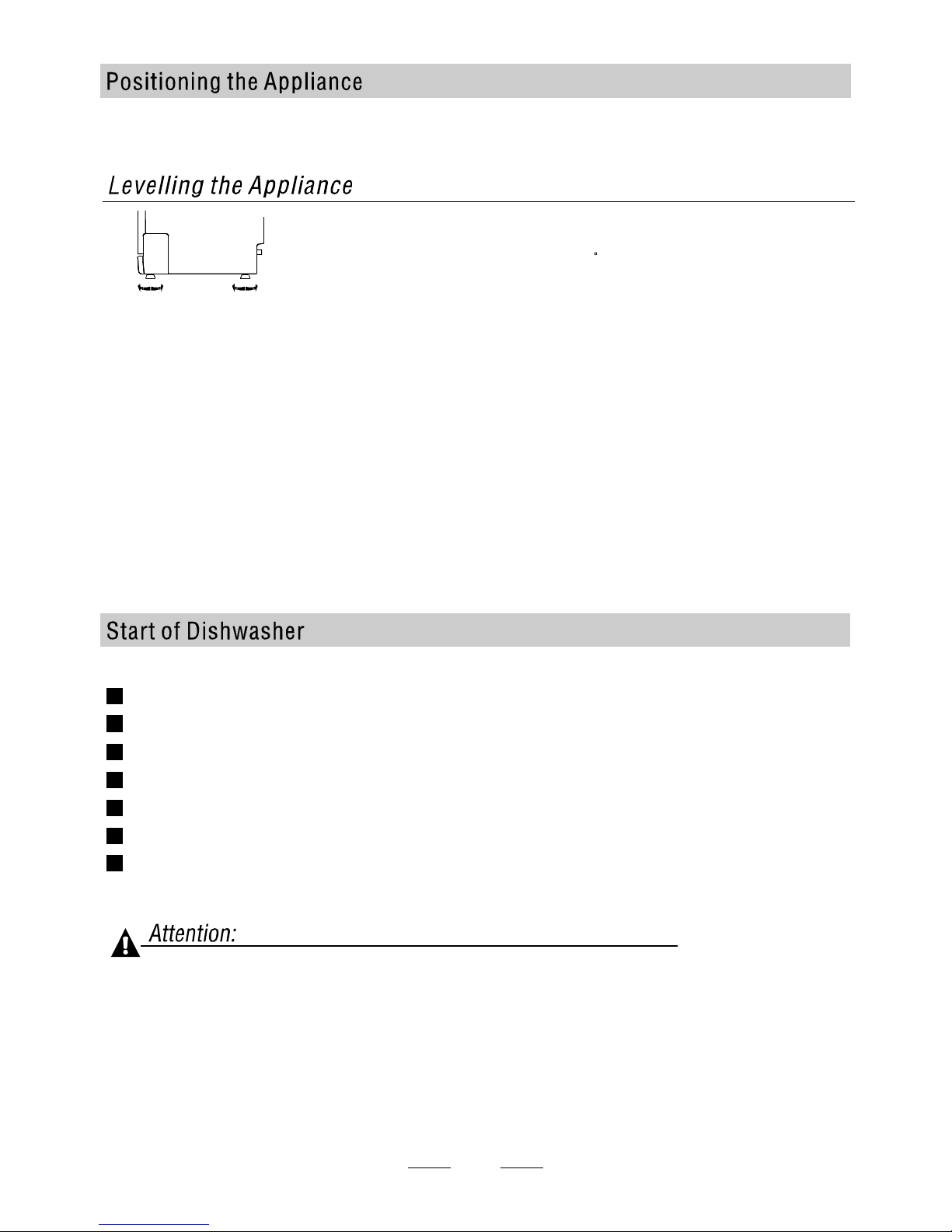

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.
Once the appliance is positioned for levelling, the height of the dishwasher
may be altered via adjustment of the screwing level of the feet. In any case,
the appliance should not be inclined more than 2 .
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
Syphon Connection
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum)
from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of
the hose must not be immersed in water.
