OWNER'S MANUAL
T1035

The two Alkaline “AA” batteries must be replaced at
least once every 12 months to ensure proper
operation. The Low Battery icon (fig. 1) will
appear on the display when it is time to replace
the batteries. If the thermostat is connected to
24v power, the batteries should still be installed, but
are not required.
When is displayed the batteries must be replaced
immediately. The manufacturer cannot be liable for
improper operation of the thermostat if the batteries are
not immediately replaced.
Annual battery replacement is especially critical in
locations subject to freezing temperatures. The
thermostat will be unable to turn on the heating system
if the batteries are exhausted.
CAUTION Follow Installation Instructions carefully.
DISCONNECT POWER TO THE HEATER -
AIR CONDITIONER BEFORE REMOVING
THE OLD THERMOSTAT AND INSTALLING
THE NEW THERMOSTAT.
WARNING
Page 3
Safety Warnings
CAUTION
FIG. 1
P/N 1035
OWNER'S MANUAL
T1035

Su
PM
I2:00
:

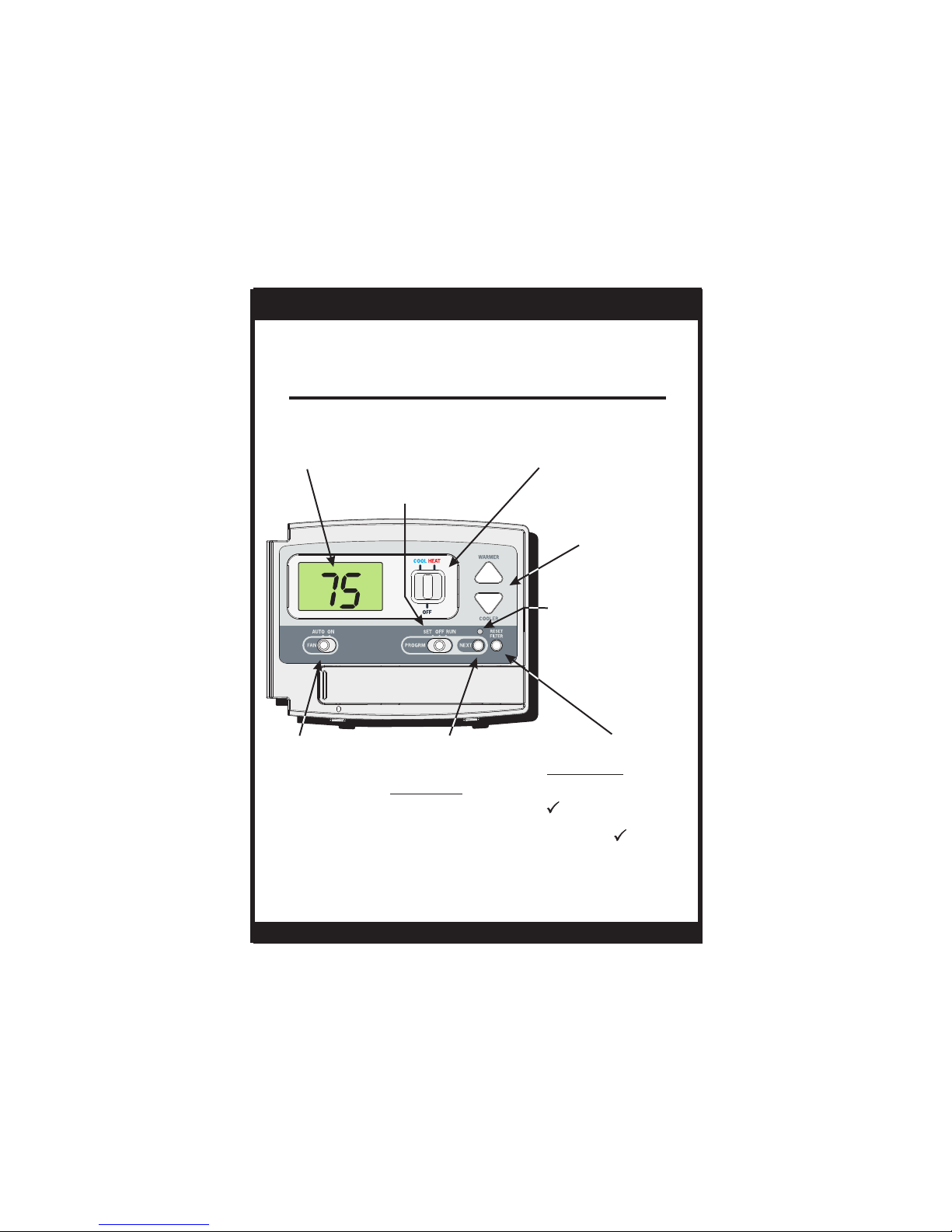

Location of Controls
Page 4
OWNER'S MANUAL
T1035

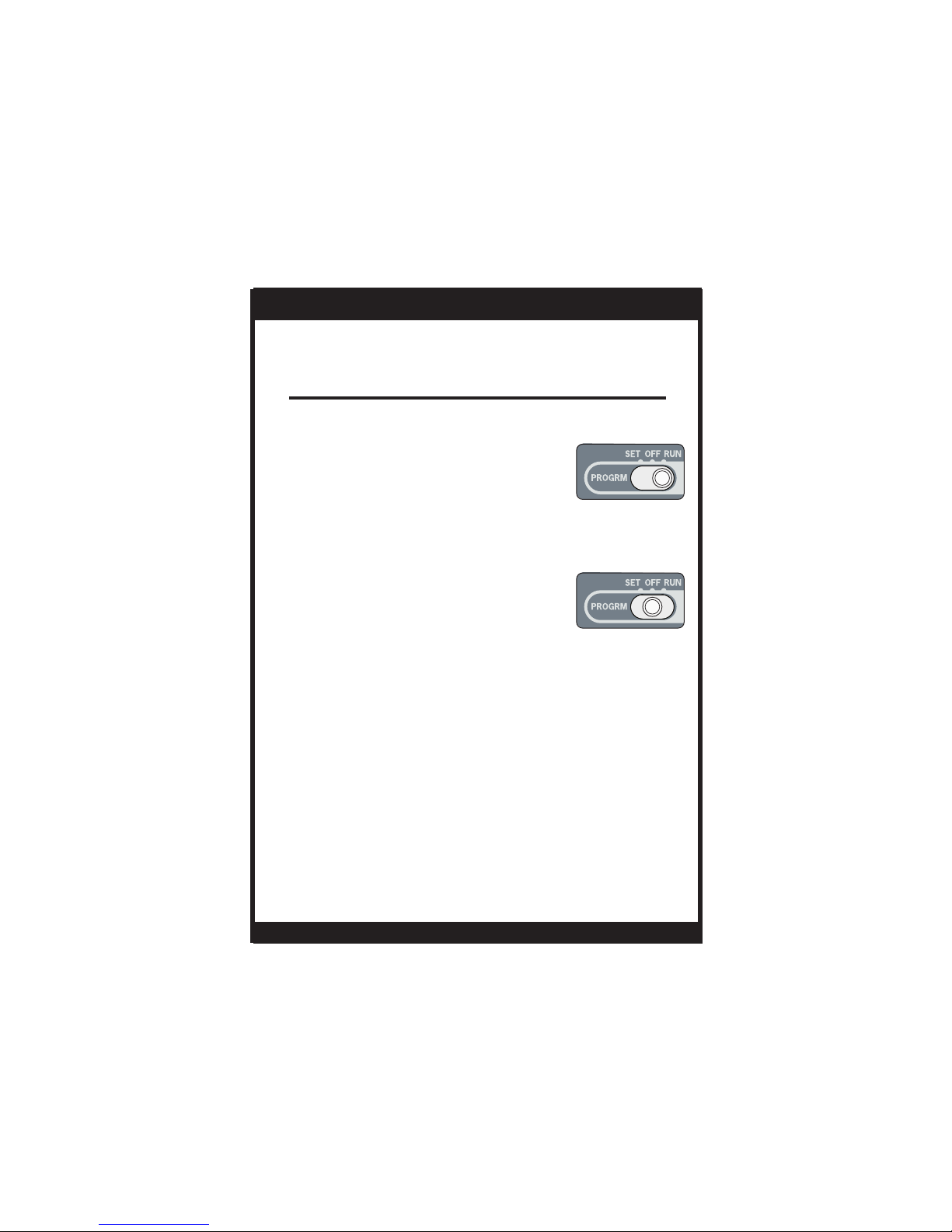

PROGRAM SWITCH
RUN program
Program OFF
SET program
NEXT BUTTON
For programming
How to Use: The NEXT
button is used to ad-
vance from one step to
the next in the progra-
mming and advanced
setup screens (pgs 9-
18).
RESET FILTER
How to Use: Press and
hold the RESET FILTER
button to clear the
icon from the
display (pg 5). To adjust
when the icon
appears, see Advanced
Setup screens (pg 18).
FILTER
FILTER
On or Auto
FAN SWITCH
COOLER &
WA R M E R
BUTTONS
DISPLAY MODE SWITCH
Cool, Off or Heat
BI-COLOR LED
Heat or Cool demand
indicator when system
powered: Red = Heat
Green = Cool

88
88
SET
MTuWThF
SaSu
AM
PM MorningEvening
Day
Night
HEAT
COOL
I2:00
:
FILTER
Page 5

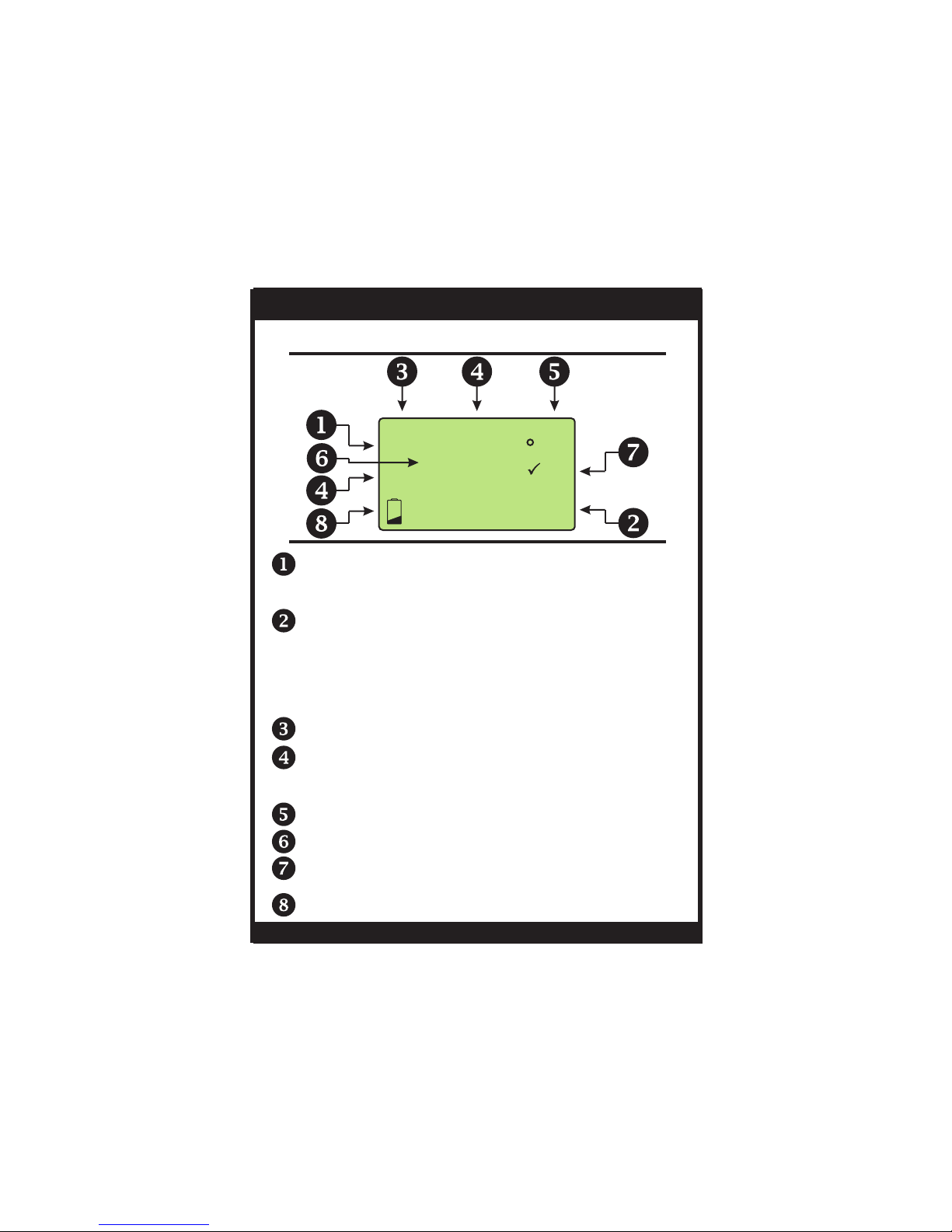

Display
Day of the week. When programming, MTuWThF
represent the five weekdays and SaSu represent the
two weekend days.
Clock Display.
Desired set temperature.
Current room temperature.
Time period indicators. These indicate the part of
the program that is currently active, if the Program
Switch is positioned to RUN.
Indicates when the filter should be serviced. Appears
after 0 - 1950 hours of blower operation (adjustable).
Indicates batteries need replacement.
OWNER'S MANUAL
T1035
Heat and Cool indicators.
In normal operation, Heat or Cool appears, depending
on the Mode Switch position. When heat or cool is
energized, the Heat or Cool indicator will flash. If the
thermostat is system powered the bi-color LED will
also illuminate (red for heating and green for cooling).

Su
PM
I2:00
:
Page 6

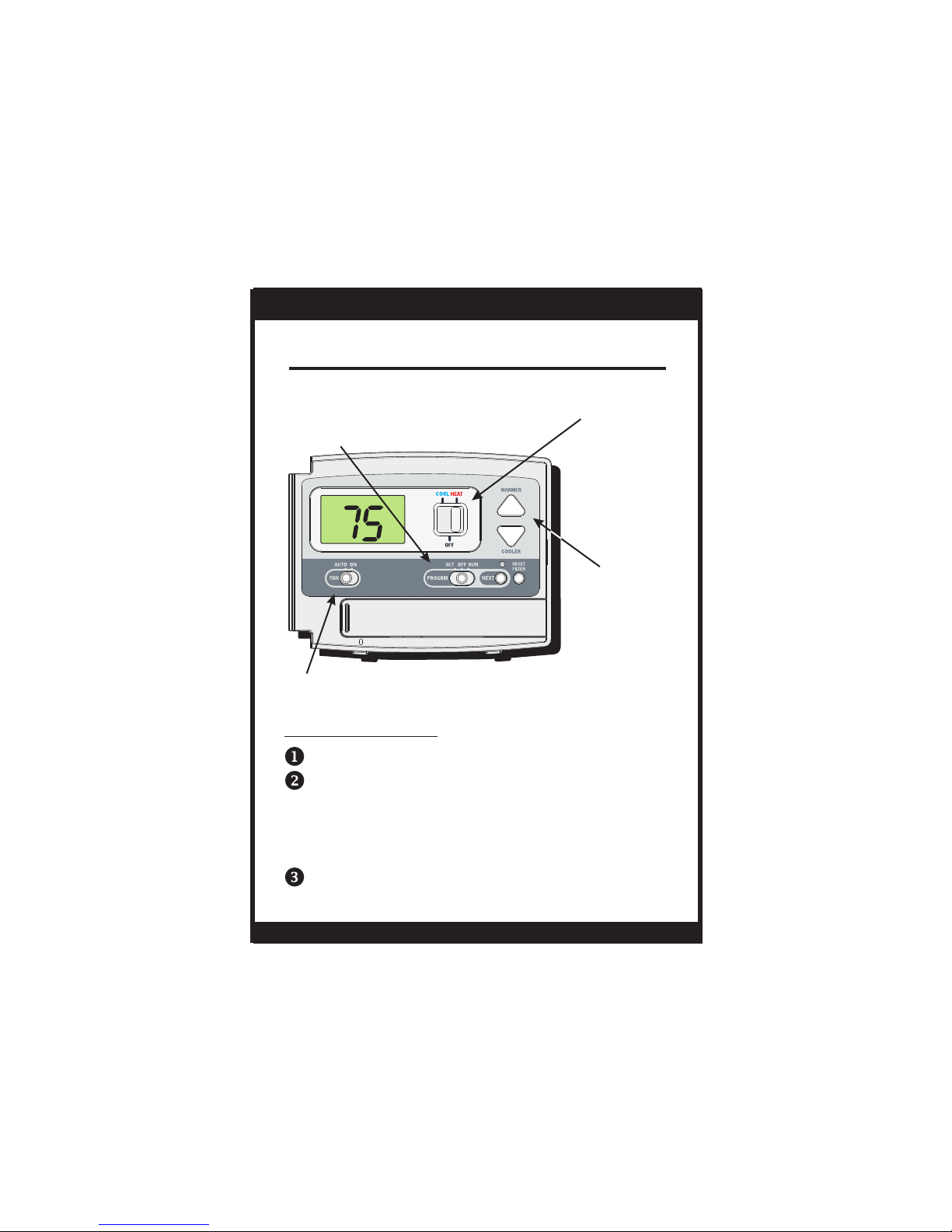

Manual Operation (Program Switch OFF)
Select Cool or Heat with the Mode Switch.
Normally leave the fan switched to Auto.
In Fan Auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
Adjust the desired set temperature with the
COOLER and WARMER buttons.

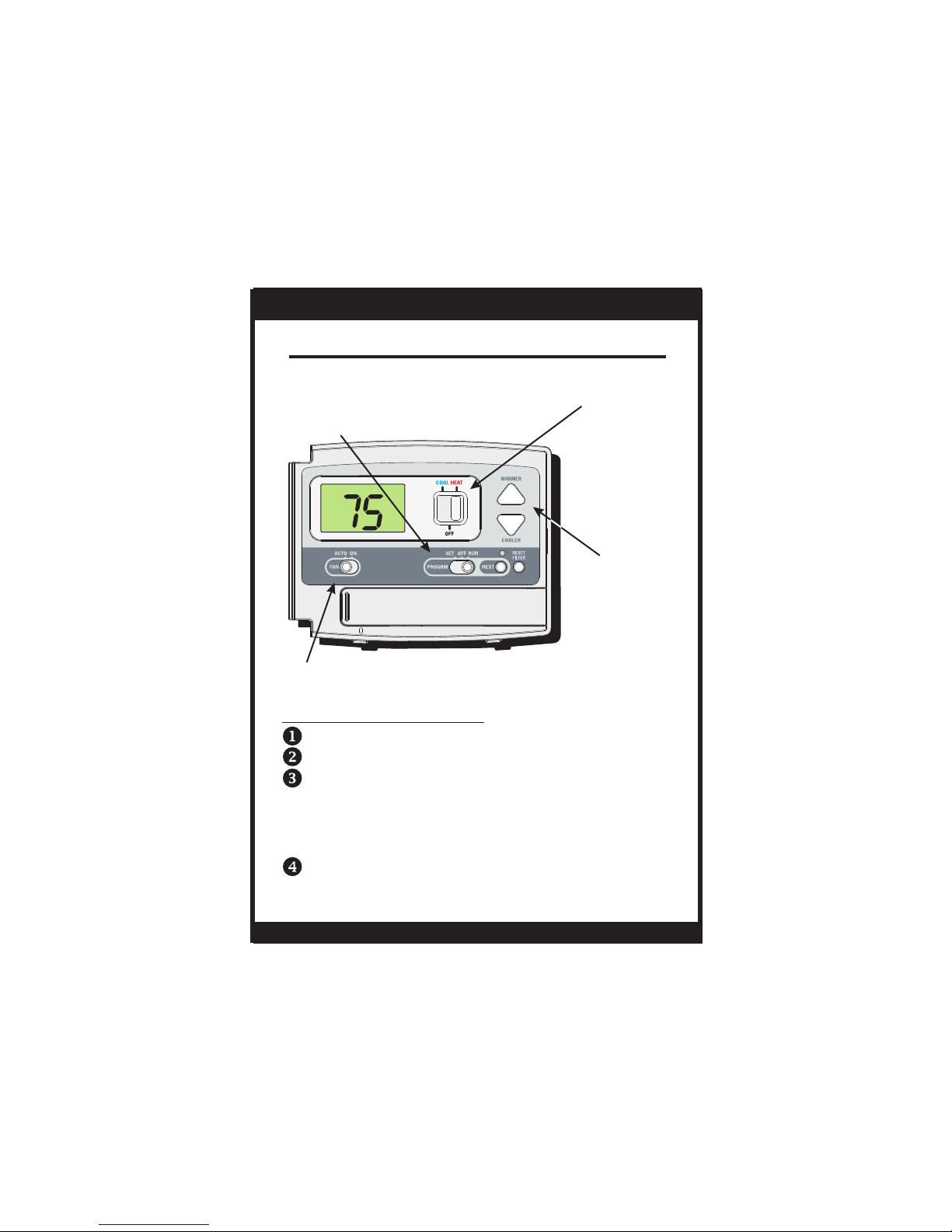

Normal Operation
OWNER'S MANUAL
T1035
PROGRAM SWITCH
RUN program
Program OFF
SET program
On or Auto
FAN SWITCH
COOLER &
WA R M E R
BUTTONS
MODE SWITCH
Cool, Off or Heat

Su
PM
I2:00
:
Page 7
Normal Operation
Programmed Operation
Select Cool or Heat with the Mode Switch.
Normally leave the fan switched to Auto.
In Fan Auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
The desired set temperature may be temporarily
overridden. The thermostat will revert to the
programmed settings in the following time period.
Select RUN with the Program Switch.
OWNER'S MANUAL
T1035
PROGRAM SWITCH
RUN program
Program OFF
SET program
On or Auto
FAN SWITCH
COOLER &
WA R M E R
BUTTONS
MODE SWITCH
Cool, Off or Heat

Page 8
Clock Set
Use these buttons to
adjust the current time.
Use these buttons to
adjust the current day.
Setting the time & day are the first two steps after
sliding the Program Switch to SET.
Slide the Program Switch to
the SET position.
This thermostat is preprogrammed from the
factory to operate 1-stage equipment without
the need for further programming. To optimize the
installation of this thermostat follow the instructions
in the Advanced Setup section.
PM
6:00
:
Su
To slew the time more rapidly, push and hold the COOLER or
WARMER buttons.
OWNER'S MANUAL
T1035
Press NEXT
to advance

Time Period Programming
PROGRAM SWITCH
Page 9
Overview
Slide the Program Switch to the SET position.
The blinking icon(s) on the display may be
changed by pressing the COOLER or
WARMER buttons.
After the blinking icon is changed to the desired
selection, press the NEXT button.
Each item in the time period programming screens will flash
and can be modified with the COOLER & WARMER buttons.
Continue the steps above until programming is complete.
Slide the Program Switch to RUN and the thermostat
will run the time period programming.
If the Program Switch is in the OFF position, the thermostat
will not run the time period program. In this case, the
thermostat will be a manual heat or cool only thermostat.
OWNER'S MANUAL
T1035

Page 10
Weekday Programming
Next Page
Time Period Programming
MTuWThF
AM Morning
6:00
:
8
SET
MTuWThF
AM Morning
COOL
6:00
:
SET
MTuWThF
AM Morning
HEAT
6:00
:
MTuWThF
AM
Day
8:00
:

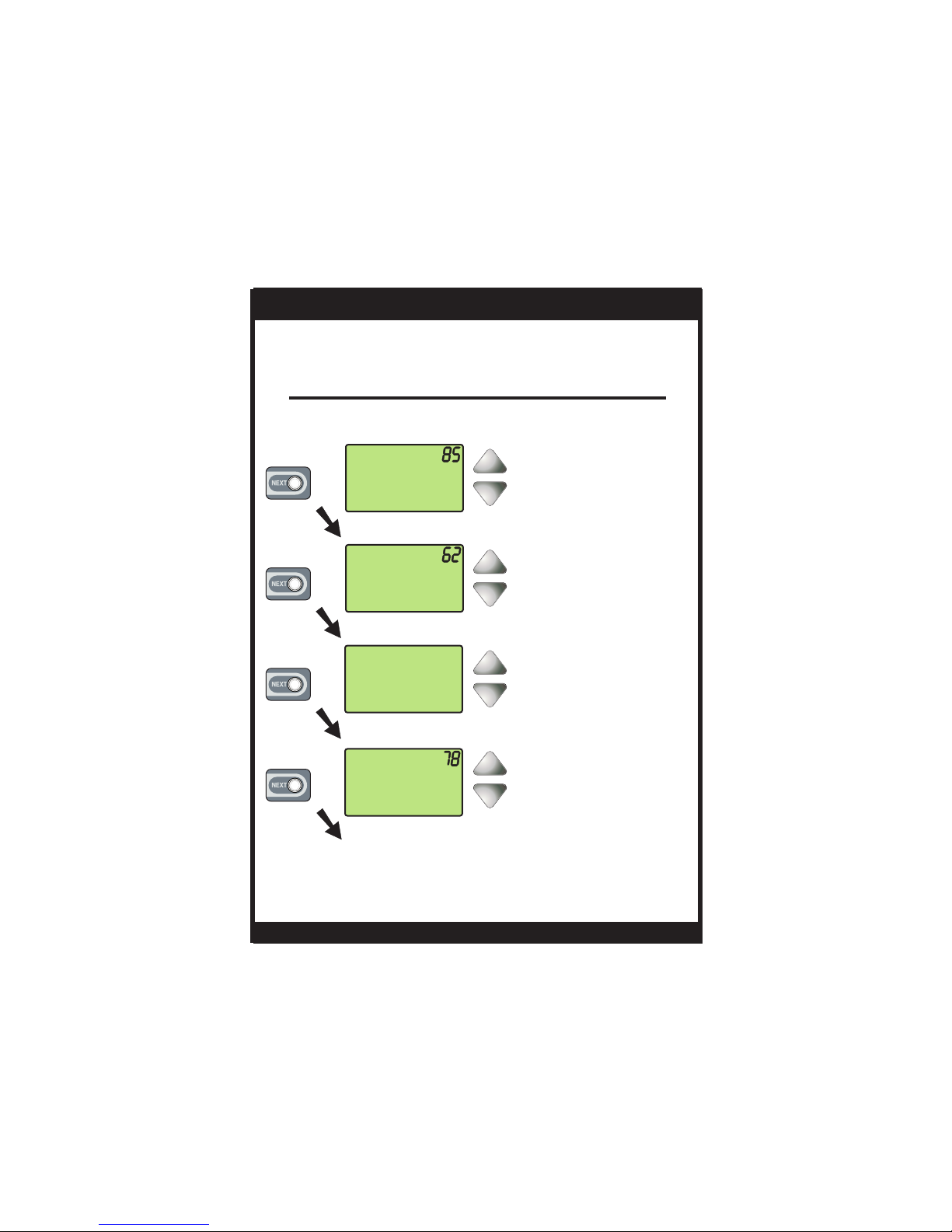

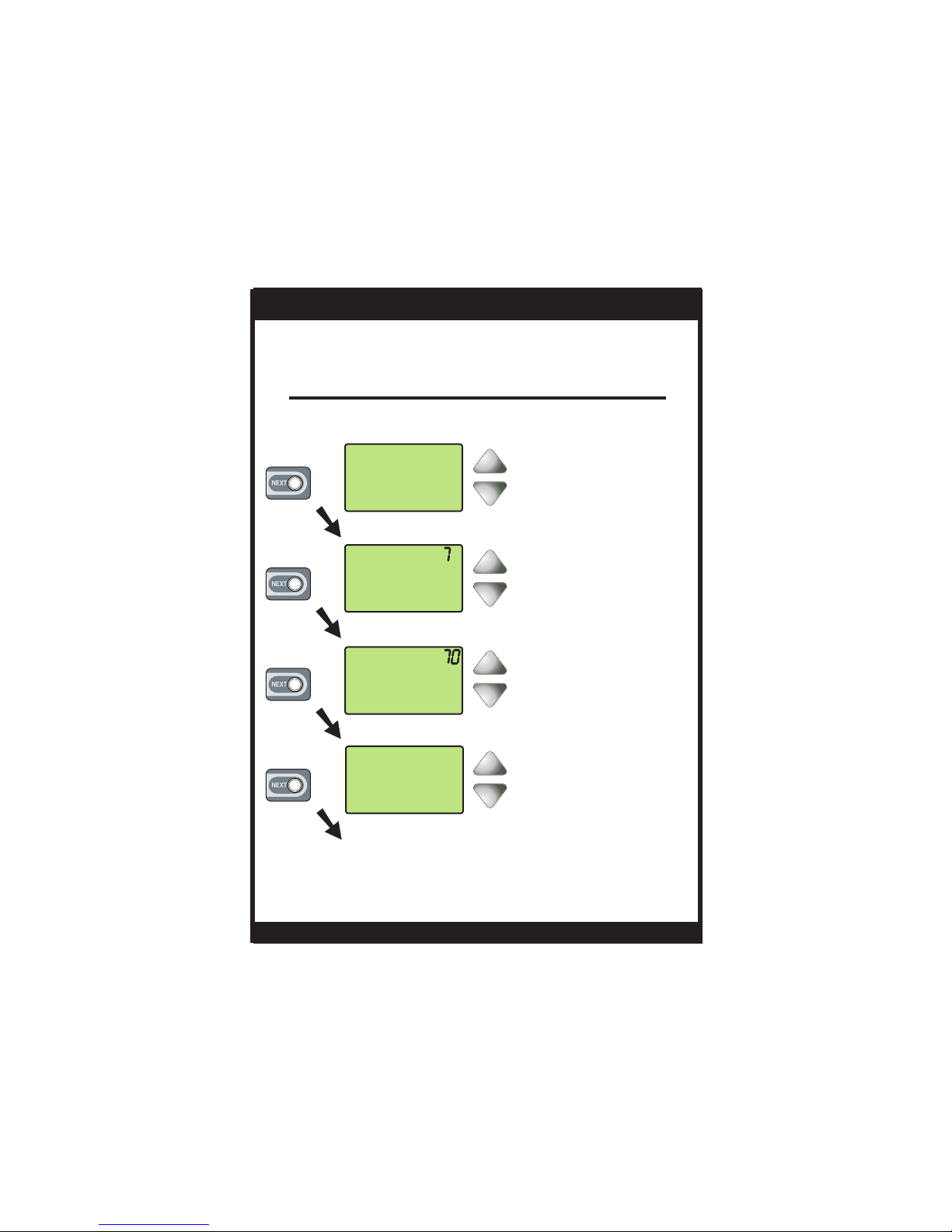

Use these buttons to
adjust the start time for
the morning time period.
Use these buttons to
adjust the cool setpoint for
the morning time period.
Use these buttons to
adjust the heat setpoint for
the morning time period.
Use these buttons to
adjust the start time for
the day time period.
Setting the time & day are the first two steps
after sliding the Program Switch to SET
(page 8).
OWNER'S MANUAL
T1035
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance

Page 11
Next Page
Weekday Programming
Time Period Programming
SET
MTuWThF
AM
Day
COOL
8:00
:
SET
MTuWThF
AM
Day
HEAT
8:00
:
MTuWThF
PM Evening
6:00
:
SET
MTuWThF
PM Evening
COOL
6:00
:
Use these buttons to
adjust the cool setpoint for
the day time period.
Use these buttons to
adjust the heat setpoint for
the day time period.
Use these buttons to
adjust the start time for
the evening time period.
Use these buttons to
adjust the cool setpoint for
the evening time period.
OWNER'S MANUAL
T1035
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance

Page 12
Next Page
Weekday Programming
Time Period Programming
MTuWThF
PM
Night
I0:00
:
SET
MTuWThF
PM Evening
HEAT
6:00
:
SET
MTuWThF
PM
Night
I0:00
:
HEAT
SET
MTuWThF
PM
Night
COOL
I0:00
:
Use these buttons to
adjust the heat setpoint for
the evening time period.
Use these buttons to
adjust the start time for
the night time period.
Use these buttons to
adjust the cool setpoint for
the night time period.
Use these buttons to
adjust the heat setpoint for
the night time period.
OWNER'S MANUAL
T1035
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance

Page 13
Next Page
Weekend Programming
Time Period Programming
AM Morning
6:00
:
SaSu
8
SET
AM Morning
COOL
6:00
:
SaSu
SET
AM Morning
HEAT
6:00
:
SaSu
AM
Day
8:00
:
SaSu
Use these buttons to
adjust the start time for
the morning time period.
Use these buttons to
adjust the cool setpoint for
the morning time period.
Use these buttons to
adjust the heat setpoint for
the morning time period.
Use these buttons to
adjust the start time for
the day time period.
OWNER'S MANUAL
T1035
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance

Page 14
Next Page
Weekend Programming
Time Period Programming
8 00AM
Day
SET
62
HEAT
SaSu
COOL
SET
78
6 00 PM Evening
SaSu
SET
PM Evening
COOL
6:00
:
SaSu
PM Evening
6:00
:
SaSu
SET
AM
Day
HEAT
8:00
:
SaSu
SET
AM
Day
COOL
8:00
:
SaSu Use these buttons to
adjust the cool setpoint for
the day time period.
Use these buttons to
adjust the heat setpoint for
the day time period.
Use these buttons to
adjust the start time for
the evening time period.
Use these buttons to
adjust the cool setpoint for
the evening time period.
OWNER'S MANUAL
T1035
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance

Page 15
Weekend Programming
Time Period Programming
SET
PM
Night
I0:00
:
HEAT
SaSu
SET
PM
Night
COOL
I0:00
:
SaSu
PM
Night
I0:00
:
SaSu
SET
PM Evening
HEAT
6:00
:
SaSu Use these buttons to
adjust the heat setpoint for
the evening time period.
Use these buttons to
adjust the start time for
the night time period.
Use these buttons to
adjust the cool setpoint for
the night time period.
Use these buttons to
adjust the heat setpoint for
the night time period.
OWNER'S MANUAL
T1035
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance

Page 16
Time Period Programming
After you have completed setting the time
period programming, you have two options:
1) Run the time period program by sliding the
Program Switch to the RUN position.
Or,
2) Do not run the time period program. The
thermostat will operate as a manual heat
or cool thermostat. Slide the Program
Switch to OFF in this case.
OWNER'S MANUAL
T1035

Advanced Setup

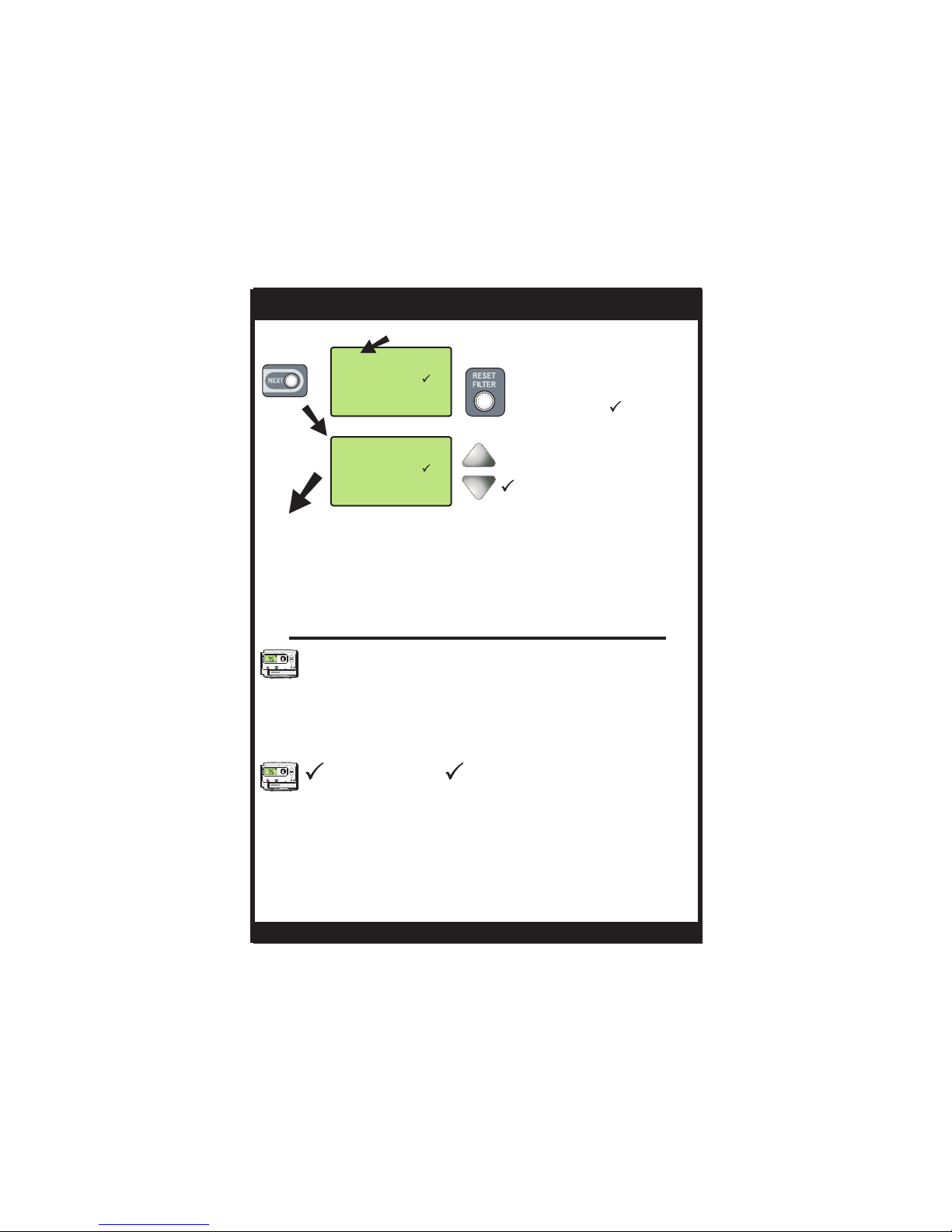

This is normally done by the installer at initial installation.
Page 17
Continued
*ON is only available if the thermostat
is system powered.
Enter advanced setup by sliding the Program Switch to
SET. When the clock is flashing, press the NEXT button for
5 seconds. Do not release the button until this screen
appears.
Use these buttons to
adjust the Cycles Per Hour
from 2 to 6.
d=no limit (zoning)
d1=d+no compressor
lockout (page 18).
Select backlight operation
when a button is pressed:
OFF: Never turns on.
2,4,6 or 8: Seconds back-
light will be on.
ON: Always on.*
Use these buttons to select
thermostat operation in
degrees C or F.
Use these buttons to
adjust the deadband
from 1 to 6 degrees.
OWNER'S MANUAL
T1035
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance

Page 18
About Advanced
Features & Operation
CYCLES PER HOUR - The Cycles Per Hour setting (page 17)
monitors the number of times per hour your HVAC unit may
energize. For example, at a setting of 6 cycles per hour the
HVAC unit will only be allowed to energize once every 10
minutes. The Cycles Per Hour limit may be temporarily
overridden by pressing the WARMER or COOLER button.
ICON - The icon will appear after a set
number of hours for fan run time (see above) has been
achieved. This counter keeps track of the number of hours
of fan run time whether the fan is energized in the heating
or cooling modes, or in stand alone operation.
FILTER FILTER
Adjust the number of hours
the blower will run before the
icon appears on the
display. 0 = off.
0
FILTER
Press RESET
FILTER
FILTER
0
FILTER
SET
Press and hold the RESET
FILTER button to reset
the filter counter to 0 and
remove the icon
from the display.
FILTER
Slide the Program Switch to OFF or RUN to exit
Advanced Setup.
Actual hours of
fan operation
OWNER'S MANUAL
T1035
COOL HEATOFF
ONAUTO RUN OFF SET NEXT
RESET
FILTER
SET
Su
PM
HEAT
I2:00
:
COOL HEATOFF
ONAUTO RUN OFF SET NEXT
RESET
FILTER
SET
Su
PM
HEAT
I2:00
:
Press NEXT
to advance

Factory Default
Page 19
88
88
SET
MTuWThF
SaSu
AM
PM MorningEvening
Day
Night
HEAT
COOL
I2:00
:
FILTER
88
88
SET
MTuWThF
SaSu
AM
PM MorningEvening
Day
Night
HEAT
COOL
I2:00
:
FILTER
CAUTION
When the Cycles Per Hour is
flashing, press and hold the NEXT
button until this screen appears.
Enter advanced setup by sliding the Program Switch to
SET. When the clock is flashing, press the NEXT button for
5 seconds. Do not release the button until this screen
appears.
Slide the Program Switch to OFF or RUN
to return to normal operation.
Press and hold the
NEXT button again
until this screen appears.
After restoring factory
defaults, the thermo-
stat screen will display
all icons.
If, for any reason, you desire to return all the stored settings
back to the factory default settings, follow the instructions below.
WARNING: This will reset all Time Period and Advanced Programming to
the default settings. Any information entered prior to this reset may be
permanently lost.
OWNER'S MANUAL
T1035
Press NEXT
to advance

Page 20
88
88
SET
MTuWThF
SaSu
AM
PM MorningEvening
Day
Night
HEAT
COOL
I2:00
:
FILTER
Press NEXT
two times
to advance
Slide the Program Switch to OFF or RUN
to return to normal operation.
Calibration
CAUTION
Enter advanced setup by sliding the Program Switch to
SET. When the clock is flashing, press the NEXT button for
5 seconds. Do not release the button until this screen
appears.
Under normal circumstances it will not be necessary to adjust
the calibration of the temperature sensor. If calibration is
required, please contact a trained HVAC technician to
correctly perform the following procedure.
Press NEXT
to store the
new value
Press the NEXT button twice
to advance to the calibration
screen.
Adjust the temperature
reading using the WARMER
and COOLER buttons, then
press the NEXT button to
store the new value.
When the Cycles Per Hour is
flashing, press and hold the NEXT
button until this screen appears.
OWNER'S MANUAL
T1035
Press NEXT
to advance
