Vent-Axia 403368 User manual
1.2 kW
High Speed Hand
Dryer
Model No.：403368
220-240V ~ 50Hz
Operating Instructions
Please read instructions in conjunction with the illustrations
Please save these instructions
1
Specifications
Unit Size: mm
(Inch)
587.5
322
185
TECHNICAL
SPECIFICA
TIONS
ITEM
C
A
TEGOR
Y
Operating
Voltage
Warm Air Speed
Output
Air Output
Temperature
Dryer Shall
Deliver
Cover
Type
Motor
Type
Motor Thermal
Protection
Heater
Element
Heater Thermal
Protection
Standby
Power
LED
Color
Drying
Time
Circuit
Operation
Sensor
Range
Sound
Pressure
Timing
Protection
Drip
proof
Isolation
Net
Weight
Shipping
Weight
Unit
Size
PERFORMANCE
D
A
T
A
220-240Vac, 50/60 Hz, 4.6-5A, 1.0-1.2
kW
65-100 m/s (140-224 mi/hr),
Adjustable
45°C (113°F) – Ambient Temp. 20°C
(68°F)
89-124 m³/h (55-76
CFM)
3,0 mm thick molded ABS
plastıc
1HP, 400-750W, 11000-20000 R.P.M.,
Adjustable
Auto Resetting Thermostat turns unit
off,
240V at 95°C
(221°F)
ON/ OFF Heating
options
300-450W,
Adjustable
Auto Resetting Thermostat turns unit off at 85°C
(185°F)
Thermal cut-off at 142°C
(288°F)
1W
Standby: color red; Active: color
blue
10-15
seconds
Infrared Automatic, self
adjusting
standard 12 cm±1 cm
MIN 65 dB-A to 78 dB-A MAX @
1m
60 seconds auto shut
off
IP23
CLASS
1
10.8 kg
12.8 kg
322 mm (W) x 588 mm (H) x 185 mm
(D)
2
Recommended
Mounting Heights
DIM’S
mm
A
From Top of
Hand
Drying
Chamber
B
C
From Datum Point From Bottom of
Dryer
Men
1150
710
622
Women
1080 640 552
Children 4-7 years
780
340
252
Children 8-10
years
880 440 352
Children 11-13 years
965
525
437
Children 14-16
years
1080 640 552
Handicaped
900
460
372
Top of
Hand
Drying
Chamber
A
Datum
Point
Bottom
of
Dryer B
C
45cm
55cm
A
Floor
Power Cord Reach
Range
Floor
Cable
entry
57.5
The dryer is supplied with a power cord. The power
cord
entry position is in the rear, right side bottom of dryer.
The
length of the power cord is 1.5M.
Datum
point
37
Ø22
(Ø7/8)
Cable entry
Position.
Detail A Unit
Rear
3
General Safety
Information
This product is
intended
for installation by a qualified service
person.
Use AWG NO.16 solid conductor for
wiring.
(1.2mm² for
220-240V)
Disconnect power at
the
service breaker before installing or
servicing.
not for household use - may case
burns.
Failure to properly
earth
unit could result in severe electrical
shock
and/or
death.
All units must be
supplied
with a 3-wire service. The earth wire
must
be connected to the dryer's
backplate.
Important:- Read all these instructions before commencing the installation.
All wiring of this hand dryer should be in accordance with the current IEE regulations, or the appropriate
standards in your country.
This hand dryer MUST be installed by a suitably qualified person.
Ensure that the mains supply (voltage, frequency, and phase) complies with the hand dryers rating label.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Installation Steps
1. Tape the installation template to the appropriate location on the
mounting
surface. Drill eight (8) holes at marked locations.(fig.
1).
2. Remove template and Insert eight (8) plastic anchors (supplied) into drilled holes (fig.
2).
3. Insert eight (8) screws (supplied) to fix backplate into top plastic anchors (fig.
3).
4. Hang the dryer on the base plate (fig.
4).
5. Use key (supplied) to unlock and withdraw the tray. Screws (supplied)
through
the holes at backplate bottom. Insert the tray back and lock the security screw.(fig. 5
).
6. a. Connect hard wired power provided at KO location to terminal block behind cover panel
(RH-bottom)
behind filter tray. Turn on circuit breaker to initiate ‘stand by- ready to operate’
status.
Connections:
A. Connect the live wire (coloured Brown) to the terminal block marked
"L".
B. Connect the neutral wire (coloured Blue) to the terminal block marked
"N".
C. Connect the earth wire to the terminal block marked " ". Bare earth wires
should
be sleeved with a
green and yellow sleeve.
b. Connect the power cord to initiate ‘stand by- ready to operate’
status.
7. Replace the filter access tray, being careful to not over-tighten the security
screw.
8. See separate sections for owner options on heater operation and air speed
adjustment.
(fig.
1)
(fig.
2)
(fig.
3)
(fig.4)
(fig.5)
4
M
o
t
o
r
W
i
t
h
Thermal
S
w
i
t
c
h
2
A
H
ea
t
e
r
W
i
t
h
The
r
mo
-
f
u
s
e
T
h
e
r
m
o
s
t
a
t
Brown
Blue
Cleaning and
Maintenance
Periodic cleaning
of the unit is
recommended
to ensure
optimum performance.
Wipe the cover with a damp cloth and mild cleaning
solution.
Do not Soak, Do not hose
down.
Never use abrasives to clean the cover. Caustic chemicals may damage unit
finish.
No internal parts need any regular
cleaning.
Circuit Diagram
L
N
G/Y
Red (110-120~Vac)
/
Orange
(220-240~Vac)
Black
Black
White
G
MO2 HE2 N MO1 HE1
L
T
ransistor
Power
Switch
VR1
FOR
SENSOR
T
ransistor
Power
Switch
Circuit
Board
Module
ACTIVE
S
TA
ND
B
Y
1 2 3 4
LED1
LED2
SENSOR
SW.
FOR
HE
AT
ER
VR2
FOR
MOTOR
5
Air
Speed
Adjustment
The dryer air
speed can be adjusted.
However,
when
lowering
the
motor
speed, the
drying
time will increase
also.
The
ability
of this
function
will be
dependent
on the needs of the
owner
.
Thefactory setting
for
dryer’s motor
speed is set at its
highest speed.
See
below for how to
adjust
the dryer
speed:
1. Use key (supplied) to unlock and withdraw the tray. (fig.
1).
2. Use flat blade screwdriver, gently turn adjustment potentiometer (fig. 2) shaft clock-wise [CW]
to
increase power to maximum (shaft will hard stop; DO NOT OVERTURN!). Turn tool
gently
CCW to reduce power as required (shaft will hard stop; DO NOT OVERTURN!). Note that
at
minimum power the unit may not start if low line Voltage condition
exists.
3. Insert the tray back and lock the security
screw.
Reduce
power
Increasepower
Potentiometer
OFF/ON
Reduce
(fig.
1)
(fig.
2)
Heater
Element
Switch
ON/ OFF
The Dryer has been
designed
with a heater
switch
that can turn the heater ON/OFF. The heater
switch
doesn't
affect the
drying
time. In
cold conditions
,
it
may be more
comfortableif it
is on
when
drying
hands.
However,it
will save a third of the energy
if it
is off. This
function
can be
adjusted
depending
on the needs of the owner. The
factory setting
for the heater will be
on.
See below for how to turn the heater
ON/OFF.
1. Use key (supplied) to unlock and withdraw the tray. (fig.
1).
2. Switch it to the right to turn ON. Switch it to the left to turn OFF (fig.
2).
3. Insert the tray back and lock the security
screw.
Switch
OFF/ON
Reduce
(fig.
1)
(fig.
2)
6
How
to
Change
the
Filter

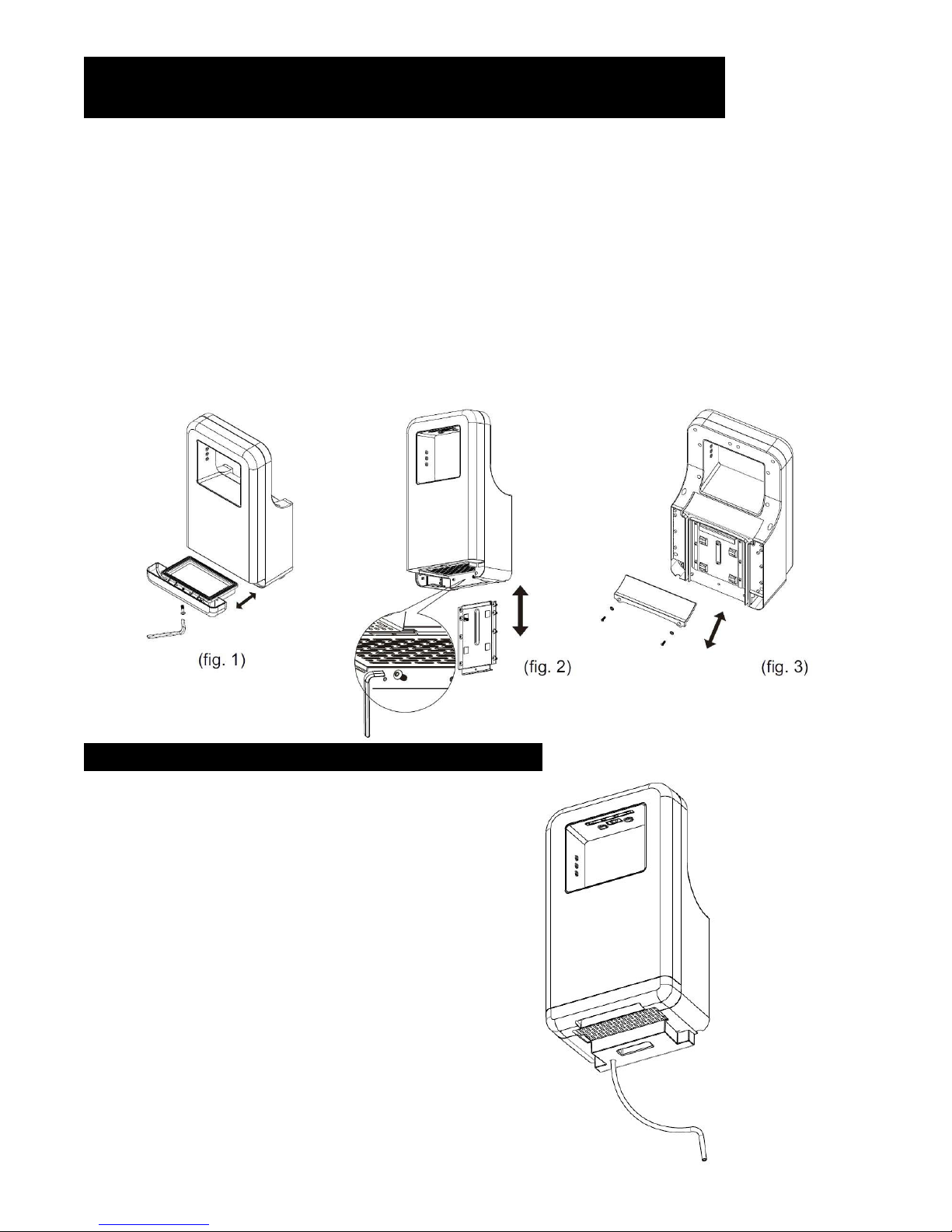

1. Use key (supplied) to unlock and withdraw the tray.(fig.
1).
2. Change the filter (fig.
2).
3. Insert the tray back and lock the security
screw.
Recommended
Period
for
Changing
the
filter
Filter-
In general use (normal/light usage), it's recommended to change the filter six (6)
months.
In dusty/dirty places (heavy usage), it's recommended to change it every three (3)
months.
Filter
Assembly
Information
1
Filte
r
7
Instructions
for use,
maintenance
and
changing the
absorbent ceramic
The absorbent ceramic can absorb 70g of water, and has the capacity to take a full load
approximately
280 times per day. The ceramic also can evaporate water. During normal use, water will be
evaporated
continuously and maintain the function of
absorbing.
Maintenance simply requires clearing its surface. Normally, its lifetime will be the same as the
machine.
Improper use or maintenance could result in breakage; see below for replacement
instructions.
1. Use the key to loosen the security screw and remove the tray. (fig.
1)
2. Use the key to loosen the security screw of the base plate and remove the machine. (fig.
2)
3. Use a screwdriver to loosen the screw ( 2 pcs) on the ceramic, and replace it with a new one. (fig.
3)
4. Put the machine back and secure the security screw to the base
plate.
5. Put the tray back and lock up the security
screw.
Instructions
for
use
of
the
drain
tank
Generally, the remaining water following usage
will
evaporate in the absorbent ceramic. During
high
traffic times, leftover water will flow to the drain
tank
automatically. The capacity of the drain tray
is
240 cc. It's recommended to clean the drain tank
every
3 months water will come through the
“overflow
hole” if the drain tank is full. A drainpipe (not
included)
can be added if necessary. The specifications
of
the drainpipe is I.D. 6mm, O.D.
10mm
(fig.
1)
(fig.1)
8
For replacement filters and spares please contact your supplier for details
403371A Supplied by APL 1012
This product should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority for recycling
advice.
