CTE-5202 Electronic Room Thermostat with LCD Display 1 Installation and Operation Guide
1. Ifthethermostatislockedonthebackplate,turn
thetwohexscrews(inthetwo outermost holes)
inthebackplateCLOCKWISEuntilthey(just)
clearthecover.Swingthethermostatupand
awayfromthebackplatetoremoveit.
Installation and Operation Guide
Electronic Room Thermostat with LCD Display
CTE-5202
Installation
Rough-in Preparation
For optimum temperature sensor performance, the
thermostat must be mounted on an interior wall
and away from heat sources, sunlight, windows,
air vents, and air circulation obstructions (e.g.,
curtains, furniture).
Ifreplacinganexistingthermostat,labelwiresas
neededforreferencewhenremovingtheexisting
thermostat.
Completerough-inwiringateachlocationpriorto
thermostatinstallation.Cableinsulationmustmeet
localbuildingcodes.
Installation 1
Rough-in Preparation 1
Mounting and Wiring 1
Operation 2
Change Setpoint 2
Change Configuration 2
External Input (AI1) 4
Maintenance 4
Accessories 4
Additional Resources 4
Important Notices 4
CAUTION
To prevent damage to the board, do not insert
a screwdriver into any holes other than the two
outermost holes. To prevent mounting screw heads
from touching the circuit board in the thermostat, use
only the mounting screws supplied by KMC Controls.
Using other screws may damage the thermostat. Do
not turn screws in farther than necessary to remove
the cover.
2. Routethecablethroughthebackplate.
~
T T
AI1
AO1
AO2
SET
POINT
A
A B C D E

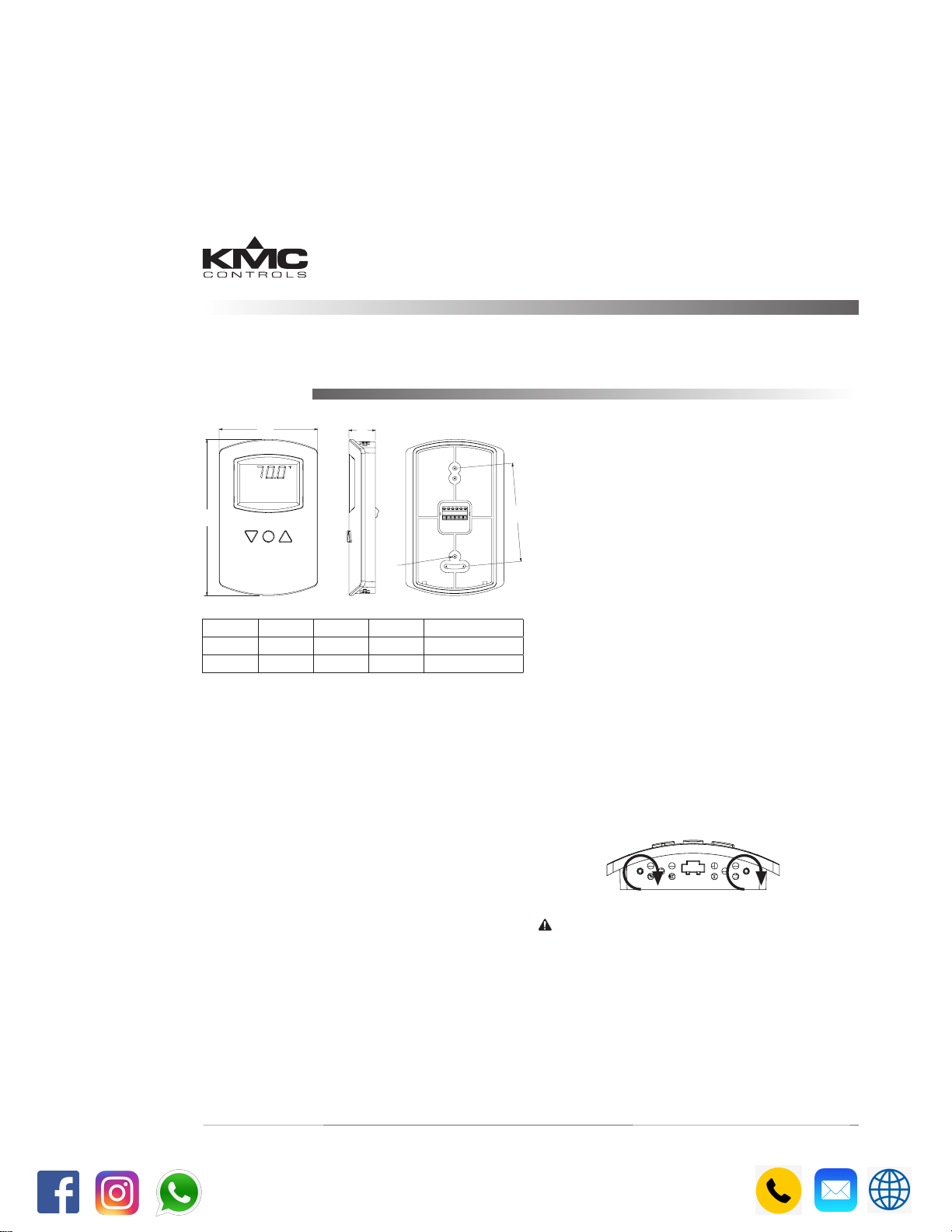

3.25in. 5.16in. 0.88in. 3.25in. 0.15in.diameter
83mm 116mm 22mm 83mm 3.81mmdiameter
B
C
D
E
Mounting and Wiring
ThethermostatmustNOTbe:
• Mountedonanexteriorwall.
• Mountedonornearalargethermalmass(e.g.,
concreteblockwall).
• Blockedfromnormalaircirculationbyobstruc-
tions.
• Exposedtoheatsources(e.g.,lights,computers,
copiers,orcoeemakers)ortosunlight(atany
timeoftheday).
• Exposedtodrasfromwindows,diusers,or
returns.
• Exposedtoairowthroughtheconduit(from
leaksinplenumducts)—putplumber’spuyor
similarmaterialinsidetheconduittoblockair
ow.
NOTE: For specications and other information,
see the CTE-5202 Data Sheet.
NOTE: For detailed applications, cross-references,
accessories, and other information, see the
CTE-5202 Applications Guide.
CTE-5202 - DUAL THERMOSTAT
INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad
CTE-5202 Electronic Room Thermostat with LCD Display 2 Installation and Operation Guide
Operation
Change Setpoint
Tochangethesetpoint:
1. PushtheSetpointbuon(oreitherUp/Down
buon)todisplaythecurrentvalue.
NOTE: Sequences2and3havetwosetpoints
indicatedby“snowake/cool”and“re/
heat”icons.WhentheCoolingsetpointis
showing,pushingtheSetpointbuonwill
displaytheHeatingsetpoint.
2. UsetheUp/Downbuonstochangethevalue.
3. PresstheSetpointbuonagain,andthethermo-
statwillcontrolatthenewsetpoint.(Alternately,
aerabout30secondsofnoactivity,thedisplay
revertsbacktodisplayingroomtemperature.)
Change Configuration
Press and hold both the Up and Down arrows
buons for about ten secondsuntilthedisplaystarts
ashing“LIMITS.”
NOTE: Whenamenuisashing(LIMITS,
ADVANCE,SYSTEM,orEXIT),
pressingUporDowndisplaysthenext
menuitemandpressingSetpointselects
thatmenu.WhenamenuisNOTashing
(e.g.,DEAD BD),pressingUporDown
changesthevalueandpressingSetpoint
displaysthenextmenuitem.
Tochangeanyofthelimits (output span) when
“LIMITS”isashing,presstheSetpointbuon
untilthedesiredlimit(AO1 MIN,AO1 MAX,AO1
AUX,AO2 MIN,orAO2 MAX)isashingonthe
screen.(Limits are adjustable from 0 to 12 VDC, with
MIN = 0, MAX = 12, and AUX = 0 as defaults.)Usethe
UpandDownbuonstochangethedesiredvalues.
(If no Auxiliary Flow is desired, set AO1 AUX to 0.)
Tochangeanyofthesystem or advanced features,
presstheUporDownbuonuntilthedesired(ash-
ing)ADVANCEorSYSTEMmenuappearsand
thenpresstheSetpointbuon.
3. Withthehexscrewstowardtheoor,fastenthe
backplatetotheoutlet/handyboxwiththesup-
pliedscrews.(Thebackplatemountsdirectlyon
vertical2x4inchboxes,butrequiresanHMO-
1161/HMO-1161Wwallplateforhorizontal2x4,
4x4,orotherboxes.)

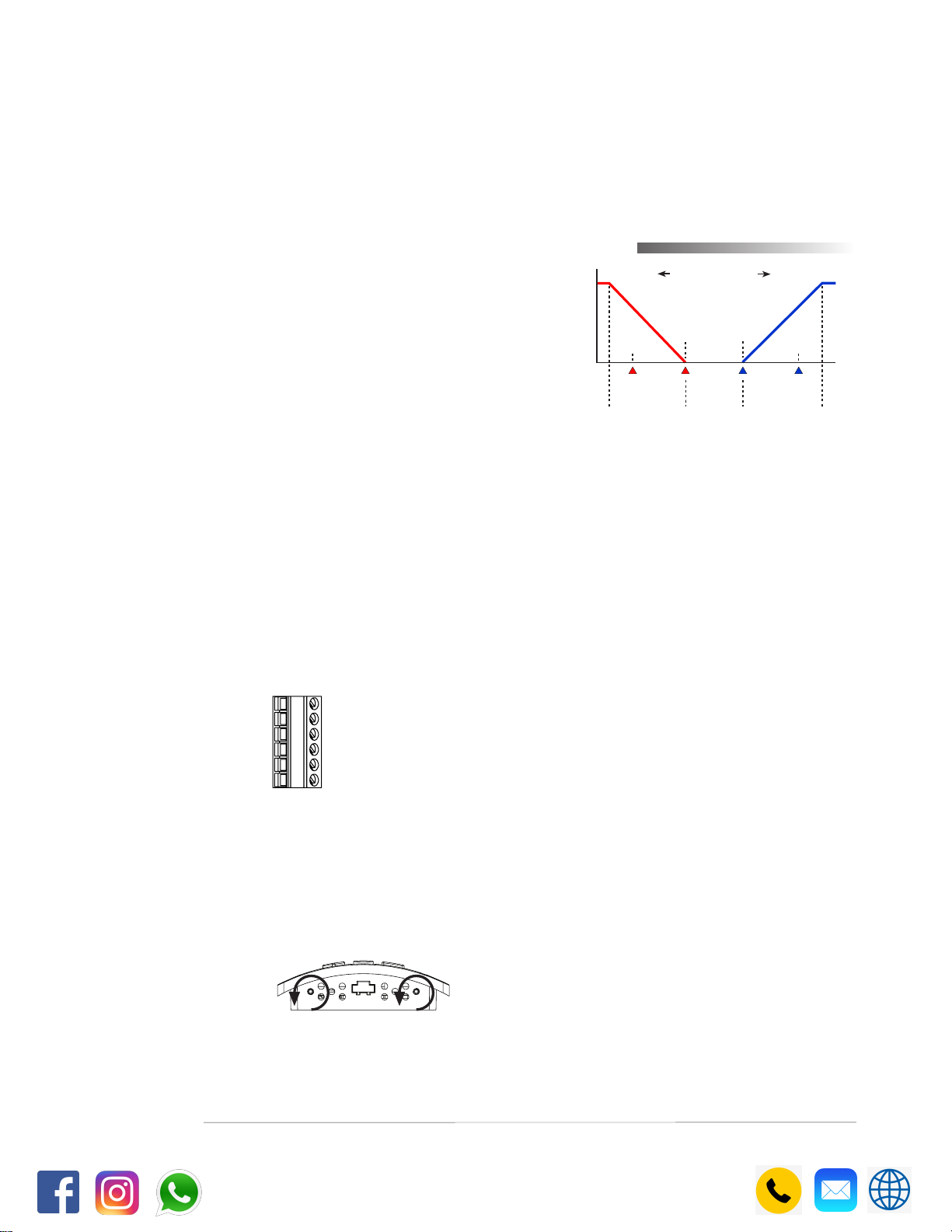

4. Connectthewirestotheterminalblock:
• “Heating”output(REE-50xxreheatrelay
modulesandheatingvalves)toAO2and
T

(Common)
• “Cooling”output(VAVdampersandcooling
valves)toAO1and
T
(Common)*
• Changeover(temperature)sensor(TypeIII,
10Kohmthermistor)and/orstandby/unoccu-
piedsetbackcontacttoAI1and
T
(Common).
(SeeExternal Input (AI1) on page 4.)
• 24 VACtransformer’sneutralleadto
T
(Com-
mon)andphaseleadto~.Alternately,14–35
VDCcanbeusedwith+ connected to ~ and
– connected to
T
(Common).
*NOTE: For additional wiring details, cross-
references sample applications, and
examples of AO1 being used for heating
instead of or in addition to cooling, see the
CTE-5202 Applications Guide.
5. Placethetopofthethermostatoverthetopof
themountingbaseandswingitdownoverthe
hexscrewbrackets.Becarefulnottopinchthe
wiring.
6. Backthehexscrewsoutofthebackplatebrackets
(counterclockwise) untiltheyengagethether-
mostatandholditinplace.
NOTE: For examples of applications, including
replacing a CTE-510x with the CTE-5202,
see the CSP-5001/5002 Applications Guide.
~
T
T
AO2 “Heating” Output
AO1 “Cooling” Output
Common
Common
Power (AC Phase or DC +)
Input
AI1
(Colder Room Temperature Warmer)
Cooling
Setpoint
Heating
Setpoint
Proportional
Band
Proportional
Band
Deadband
(Cooling)
Setback
(Heating)
Setback
Max.
Limit
Min.
Limit
Output
Span
CTE-5202 - DUAL THERMOSTAT
INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad
CTE-5202 Electronic Room Thermostat with LCD Display 3 Installation and Operation Guide
NOTE: AO1istypicallyusedtocontrolthecool-
ingoutput(primaryairdamperorcooling
valve),andAO2isusedtocontroltheheat-
ingoutput(VAVreheatorheatingvalve).
2° F 2° F
2° F
AO2 Disabled
(12 Volts)
SEQUENCE # 1: SINGLE DUCT COOLING, FAN BOX (with REE-5002, REE-5017, or REE-5024)
COLD AIR SEQUENCE
12 Volts
AO2 (DA)
0-12 Volts
AO1 (DA)
Setpoint
AO1 MIN
HOT AIR SEQUENCE (Morning Warm Up)
AO1 (RA)
AO1 MAX
AO1 MAX
AO1 MIN
Temp. Increasing
6 Volts
Setpoint
2° F
Of Loop
10%
2° F 2° F
AO1 MIN
AO1 MAX
AO1 MAX
AO1 (RA)
HOT AIR SEQUENCE (Morning Warm Up)
AUX
AO1 MIN
COLD AIR SEQUENCE
AO1 (DA)
AO2 (RA)
0 Volts
12 Volts
SEQUENCE # 2:
SINGLE DUCT COOLING WITH REHEAT AND AUXILIARY FLOW
AO2 Disabled
(0 Volts)
Temp. Increasing
Cooling
Setpoint
Heating
Setpoint
Heating
Setpoint
SEQUENCE # 3:
INDEPENDENT HEATING AND COOLING CONTROL
(Dual Duct VAV, Baseboard, Single Zone AHU)
AO2 MAX
AO2 MIN
AO2 (RA)
AO1 (DA)
AO1 MIN
AO1 MAX
Cooling
Setpoint
Heating
Setpoint
Temp.
Increasing
2° F 2° F
NOTE: For additional details of sequence op-
erations, see the CTE-5202 Applications
Guide.
TheADVANCEmenuenableschanging(viathe
Up/Downbuons)thevaluesof:
• DEAD BD—Deadbandor“minimumsetpoint
dierential”(adjustable from 1 to 10° F, 2° F default)
• SETBACK—Standby/unoccupiedsetbackoset
(adjustable from 0 to 10° F, 2° F default)—doesnot
applytomorningwarmup
• PROP BD—Loopproportionalband(adjustable
from 1 to 10° F, 2° F default)
• Rm OFST—Roomtemperatureoset(adjustable
±5° F, 0 default)
• CNG OVR—changeovertemperature(adjustable
from 55 to 85° F, 77° F default)
• I TIME—Loopintegraltime(adjustable from 0 to
60, 30 minutes default, 0 = cancel integral action)
TheSYSTEMmenuenableschanging:
• Sequence(SEQ1,SEQ2,orSEQ3)—see
Sequencescharts
• °F(ENGLISH)or°C(METRIC)
• BLANK—Displayblanking(NOorYES)—
whenblanked,thetemperaturewilldisplayfor
nomorethan30secondsaerabuonispushed
Whendone,navigateto(ashing)Exittosave
changes.Leing the menu time-out (about 30
seconds) will not permanently save changes.
CTE-5202 - DUAL THERMOSTAT
INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad
CTE-5202 Electronic Room Thermostat with LCD Display 4 Installation and Operation Guide
Accessories
Maintenance
Removedustasnecessaryfromholesintopand
boom.Cleanthedisplaywithso,dampclothand
mildsoap.Eachcomponentisdesignedfordepend-
able,long-termreliability,andperformance.Careful
installationwillalsoensurelong-termreliabilityand
performance.
© 2013 KMC Controls, Inc. 821-019-02B
KMC Controls, Inc.
19476IndustrialDrive
NewParis,IN46553
574.831.5250
www.kmccontrols.com
[email protected]
NOTE: For specications and other information,
see the CTE-5202 Data Sheet.
Additional Resources
Thelatestsupportlesarealwaysavailableonthe
KMCControlswebsite(www.kmccontrols.com).
Important Notices
Thematerialinthisdocumentisforinformation
purposesonly.The contents and the product it
describes are subject to change without notice.
KMCControls,Inc.makesnorepresentationsor
warrantieswithrespecttothisdocument.Innoevent
shallKMCControls,Inc.beliableforanydamages,
directorincidental,arisingoutoforrelatedtothe
useofthisdocument.
NOTE: For detailed applications, cross-references,
troubleshooting, accessories, and
other information, see the CTE-5202
Applications Guide.
HMO-1161 Wallplate,allowsmounting
tohorizontal2x4",4x4",and
otherboxes,lightalmond
HMO-1161W HMO-1161inwhite
HPO-0044 Replacementcoverhexscrews
HPO-1161 Foaminsulatinggasket
REE-50xx Electricrelaymodulesforstag-
ing,fancontrol,andreheat
STE-140x Ducttemperature(TypeIII)sen-
sors
STE-1454/1455 Strap-ontemperature(TypeIII)
sensors
External Input (AI1)
Hot/Cold Air Changeover
Forhot/coldairchangeoveronSequence1or2,
connectachangeover(temperature)sensortothe
AI1input.ThesensorshouldbeaTypeIIIthermistor
(10Kohm@77°F),suchasaKMCSTE-140xduct
sensororSTE-1454/1455 strap-onsensor.(Aninter-
nal10KohmpullupresistorisprovidedonAI1.)
Leavesensoroforcontinuouscoldairmode.
Unoccupied/Standby Setback
ContactclosureacrossAI1andCommoninitiatesthe
standbysetbackosetsequence,whichcausesthe
coolingsetpointtoincreaseandtheheatingsetpoint
(inSequence2or3)todecreasebytheamountofthe
setbackoset.(Thissetbackdoesnotapplyduring
themorningwarm-upofSequences1and2.)
CTE-5202 - DUAL THERMOSTAT
INSTALLATION GUIDE
