Ventrac LM600 Setup guide

OperatOr’sManual
& parts Drawings
MOwer
MODel lM520 serial nuMber 1923 --
MODel lM600 serial nuMber 1335 --
Revised 03/09/16
09.10062 Rev. 03
Original Operator’s Manual

2
500 Venture Drive
PO Box 148
Orrville Oh 44667
www.ventrac.com
To the Owner
Contact Information and Product Identication
If you need to contact an authorized Ventrac dealer for information on servicing your product,
always provide the product model and serial numbers.
Please ll in the following information for future reference. See the picture(s) below to nd the
location of the identication numbers. Record them in the spaces provided.
Date of Purchase: _______________________________________________________
Dealer:________________________________________________________________
Dealer Address:_________________________________________________________
_________________________________________________________
Dealer Phone Number: ___________________________________________________
Dealer Fax Number: _____________________________________________________
Model # (A):_____________________
Serial # (B): _____________________
Afx Part/Serial Number label here.
Venture Products Inc. reserves the right to make chang-
es in design or specications without obligation to make
like changes on previously manufac tured products.
B
A

Blank Page

TABLE OF CONTENTS
4
INTRODUCTION PAGE 6
Product Description................................................................................................................................6
Why Do I Need an Operator’s Manual? .................................................................................................6
Using Your Manual.................................................................................................................................7
Manual Glossary ....................................................................................................................................7
SAFETY PAGE 8
Safety Decals .........................................................................................................................................8
Training Required.................................................................................................................................10
Personal Protective Equipment Requirements ....................................................................................10
Operating Safely ..................................................................................................................................10
General Safety Procedures..................................................................................................................10
Preventing Accidents............................................................................................................................ 11
Keep Riders Off.................................................................................................................................... 11
Operating On Slopes............................................................................................................................12
Roadway Safety...................................................................................................................................12
Truck Or Trailer Transport ....................................................................................................................12
Maintenance.........................................................................................................................................13
Fuel Safety...........................................................................................................................................13
Hydraulic Safety ...................................................................................................................................14
Cutting Unit Safety ...............................................................................................................................15
OPERATIONAL CONTROLS PAGE 16
Operational Control Locations..............................................................................................................16
Main Belt Tensioner (A)........................................................................................................................16
Height Adjustment Handle (B)..............................................................................................................16
GENERAL OPERATION PAGE 17
Daily Inspection....................................................................................................................................17
Attaching ..............................................................................................................................................17
Detaching.............................................................................................................................................17
Mowing and Operating Procedure .......................................................................................................17
Transport of Mower ..............................................................................................................................18
Cutting Height Adjustment....................................................................................................................18
Mulching Kit (Optional Accessory) .......................................................................................................18
SERVICE PAGE 19
Cleaning and General Maintenance.....................................................................................................19
Deck Flip-Up Procedure (Service Position)..........................................................................................19
Mower Blade Removal & Installation ...................................................................................................19
Sharpening Blades...............................................................................................................................19
Deck Belt Inspection ............................................................................................................................19
Tire Pressure........................................................................................................................................20
Deck Leveling Procedure.....................................................................................................................20
Lubrication............................................................................................................................................21
Storage.................................................................................................................................................21
Maintenance Schedule.........................................................................................................................22
Maintenance Checklist.........................................................................................................................22

TABLE OF CONTENTS
5
SPECIFICATIONS PAGE 23
LM520 Dimensions ..............................................................................................................................23
LM600 Dimensions ..............................................................................................................................23
Features...............................................................................................................................................23
PARTS PAGE 24
Main Deck ............................................................................................................................................24
Carrier Frame.......................................................................................................................................26
Front Caster Wheels & Rear Roller......................................................................................................28
Hitch Assembly.....................................................................................................................................30
Spindles & Blades................................................................................................................................32
39.35150 LM520 Mulching Kit..............................................................................................................34
39.35151 LM600 Mulching Kit..............................................................................................................34
WARRANTY PAGE 36

Introduction - 6
Product Description
The LM520 and LM600 mowers were designed for the sole purpose of nish mowing. The LM520 features
a 52 inch (132 cm) cutting width, and the LM600 features a 60 inch (152 cm) cutting width.
The LM series mowers utilize a rugged all steel frame design which suspends the Ventrac’s mower deck.
This design gives you a high efciency grass discharge for a better quality of cut by moving more grass ef-
ciently through the deck tunnel. The mowers are equipped with a full widt h rear roller and wide pneumatic
front swivel tires that oat over terrain independent of the power unit.
LAS, a unique Linear Adjustment System, provides cutting height selections between 1-1/2 and 3-3/4 inches
(3.8 and 9.5 cm). A single handle with a slight outward pull allows for a quick and easy change in cutting
height selection. A slide release allows the handle to be returned to deck level, preventing it from catching on
low branches and shrubs.
With the removal of two pins beneath the cross frame, the deck can be easily tilted to a near vertical posi-
tion for maintenance and storage.
All Ventrac LM nish mowers feature a full width rear roller for the ultimate in yard striping. These profes-
sional grade mowers are built to give you maximum performance and productivity.
Why Do I Need an Operator’s Manual?
This manual has been created to help you gain the important knowledge of what is needed to safely
operate, maintain, and service your machine. It is divided into sections for convenient reference of the
appropriate section.
You must read and understand the operator’s manual for each piece of Ventrac equipment you own. Read-
ing the operator’s manual will help you become familiar with each specic piece of equipment. Under-
standing the operator’s manual will help you, as well as others, avoid personal injury and/or damage to the
equipment. Keep this manual with the machine at all times. The manual should remain with the machine
even if it is sold. If this manual becomes damaged or unreadable, it should be replaced immediately. Con-
tact your local Ventrac dealer for a replacement.
When using a Ventrac attachment, be sure to read and follow the safety and operating instructions of both
the power unit and the attachment being used to ensure the safest operation possible.
The information in this manual provides the operator with the safest procedures to operate the machine
while getting the maximum use out of the unit. Failure to follow the safety precautions listed in this manual
may result in personal injury and/or damage to the equipment.
INTRODUCTION
Accessories
Item Description Part Number
LM520 Mulching Kit 39.35150
Blade, RH Mulch (requires 3 per mower) 79.0057
LM600 Mulching Kit 39.35151
Blade, RH Mulch (requires 3 per mower) 79.0051
Venture Products Inc. is pleased to provide you with your new Ventrac mower! We hope that Ventrac equipment will provide
you with a ONE Tractor Solution.
Listed below are just some of the items that can provide you
versatility as you use your LM520 or LM600. Please visit our
web site, or contact your authorized Ventrac dealer for a com-
plete list of items available for your new mower.

INTRODUCTION
Introduction - 7
Using Your Manual
Throughout this manual, you will encounter special messages and symbols that identify potential safety
concerns to help you as well as others avoid personal injury or damage to the equipment.
ATTENTION
This symbol identies potential health and
safety hazards. It marks safety precautions.
Your safety and the safety of others is involved.
SYMBOL DEFINITIONS
There are three signal words that describe the level of safety concern: Danger, Warning, and Caution.
Safety should always be the #1 priority when working on or operating equipment. Accidents are more likely
to occur when proper operating procedures are not followed or inexperienced operators are involved.
Note: Right-Hand and Left-Hand orientations may be referred to at different places throughout this manual.
Right-Hand and Left-Hand is determined as if sitting on the power unit seat facing forward.
SIGNAL WORD DEFINITIONS
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury. This signal word is limited to the
most extreme cases.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury and/or property damage. It may
also be used to alert against unsafe practices.
Manual Glossary
Power Unit A Ventrac tractor or other Ventrac engine powered device that may be operated by itself or
with an attachment or accessory.
Attachment A piece of Ventrac equipment that requires a Power Unit for operation.
Accessory A device that attaches to a Power Unit or Attachment to extend its capabilities.
Machine Describes any “Attachment” or “Accessory” that is used in conjunction with a power unit.

Safety - 8
Safety Decals

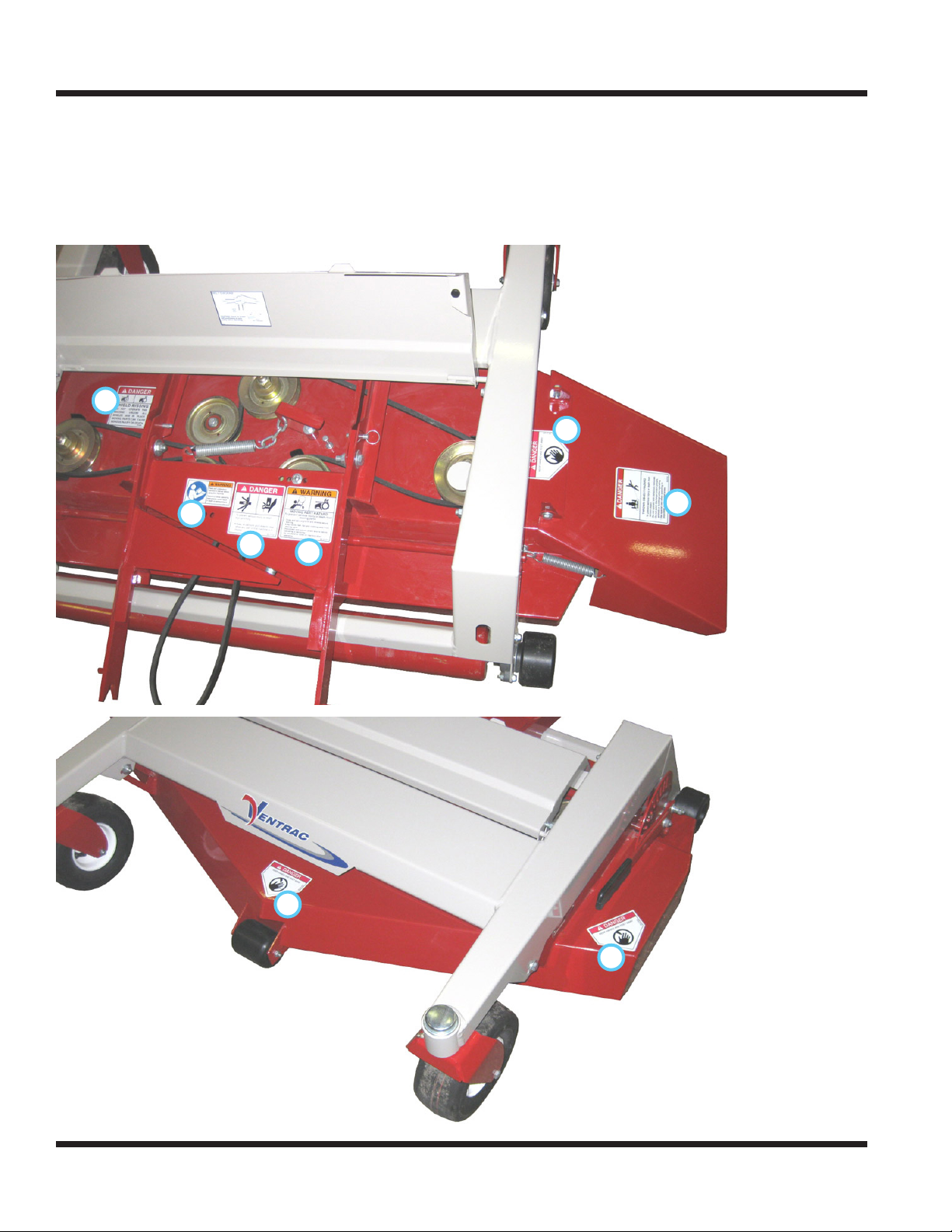

The following safety decals must be maintained on your LM series mower.
Keep all safety decals legible. Remove all grease, dirt, and debris from safety decals and instructional
labels. If any decals are faded, illegible, or missing, contact your dealer promptly for replacements.
When new components are installed, be sure that current safety decals are afxed to the replacement
components.
SAFETY
E
E
A
B
C
D
E
F

SAFETY
Safety - 9
Decal Description Part Number Quantity
A Danger, Shield Missing 00.0062 1
B Warning - Moving Part Hazard 00.0101 1
C Danger, Pinching Hazard 00.0102 1
D Danger, Thrown Object Hazard 00.0122 1
E Danger, Keep Hands & Feet Away 00.0123 3
F Warning, Read Owner’s Manual 00.0217 1

SAFETY
Safety - 10
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Training Required
• The owner of this machine is solely responsible for properly training the operators.
• The owner/operator is solely responsible for the operation of this
machine and prevention of accidents or injuries occurring to him/her-
self, other people, or property.
• Do not allow operation or service by children or untrained personnel.
Local regulations may restrict the age of the operator.
• Before operating this machine, read the operator’s manual and under-
stand its contents.
• If the operator of the machine cannot understand this manual, then it
is the responsibility of this machine’s owner to fully explain the material
within this manual to the operator.
• Learn and understand the use of all controls.
• Know how to stop the power unit and all attachments quickly in the event of an emergency.
Personal Protective Equipment Requirements
It is the responsibility of the owner to be sure that the operators use the proper personal protective equip-
ment while operating the machine. Required personal protective equipment includes, but is not limited to,
the following list.
• Wear a certied ear protection device to prevent loss of hearing.
• Prevent eye injury by wearing safety glasses while operating the machine.
• Closed toe shoes must be worn at all times.
• Long pants must be worn at all times.
• When operating in dusty conditions, it is recommended that a dust mask be worn.
Operation Safety
• Inspect machine before operation. Repair or replace any damaged, worn, or missing parts. Be sure
guards and shields are in proper working condition and are secured in place. Make all necessary
adjustments before operating machine.
• Some pictures in this manual may show shields or covers opened or removed in order to clearly illustrate
any instructions. Under no circumstance should the machine be operated without these devices in place.
• Alterations or modications to this machine can reduce safety and could cause damage to the machine.
Do not alter safety devices or operate with shields or covers removed.
• Before each use, verify that all controls function properly and inspect all safety devices. Do not operate
if controls or safety devices are not in proper working condition.
• Check parking brake function before operating. Repair or adjust parking brake if necessary.
• Observe and follow all safety decals.
• All controls are to be operated from the operator’s seat only.
• Always wear a seat belt if the machine has a roll cage/bar installed and in upright position.
• Ensure the attachment or accessory is locked or fastened securely to the power unit before operating.
• Ensure that all bystanders are clear of the power unit and attachment before operating. Stop machine if
someone enters your work area.
• Always be alert to what is happening around you, but do not lose focus on the task you are performing.
Always look in the direction the machine is moving.
• Look behind and down before backing up to be sure of a clear path.
• If you hit an object, stop and inspect the machine. Make all necessary repairs before operating machine again.
• Stop operation immediately at any sign of equipment failure. An unusual noise can be a warning of equipment
failure or a sign that maintenance is required. Make all necessary repairs before operating machine again.
