Veon VN2923 BR - 3D5.1 User manual

1
Warnings and Precautions . . . . . . . . . . . . . . . 2
Important Safety Instructions
•Important Information - Television Display Equipment
Blu-Ray DVD Player. . . . . . . . . . . . . . . . . 4
•Features
•Accessories
•Region Codes
Introduction . . . . . . . . . . . . . . . . . . 5
Player Setup . . . . . . . . . . . . . . . . . . 9

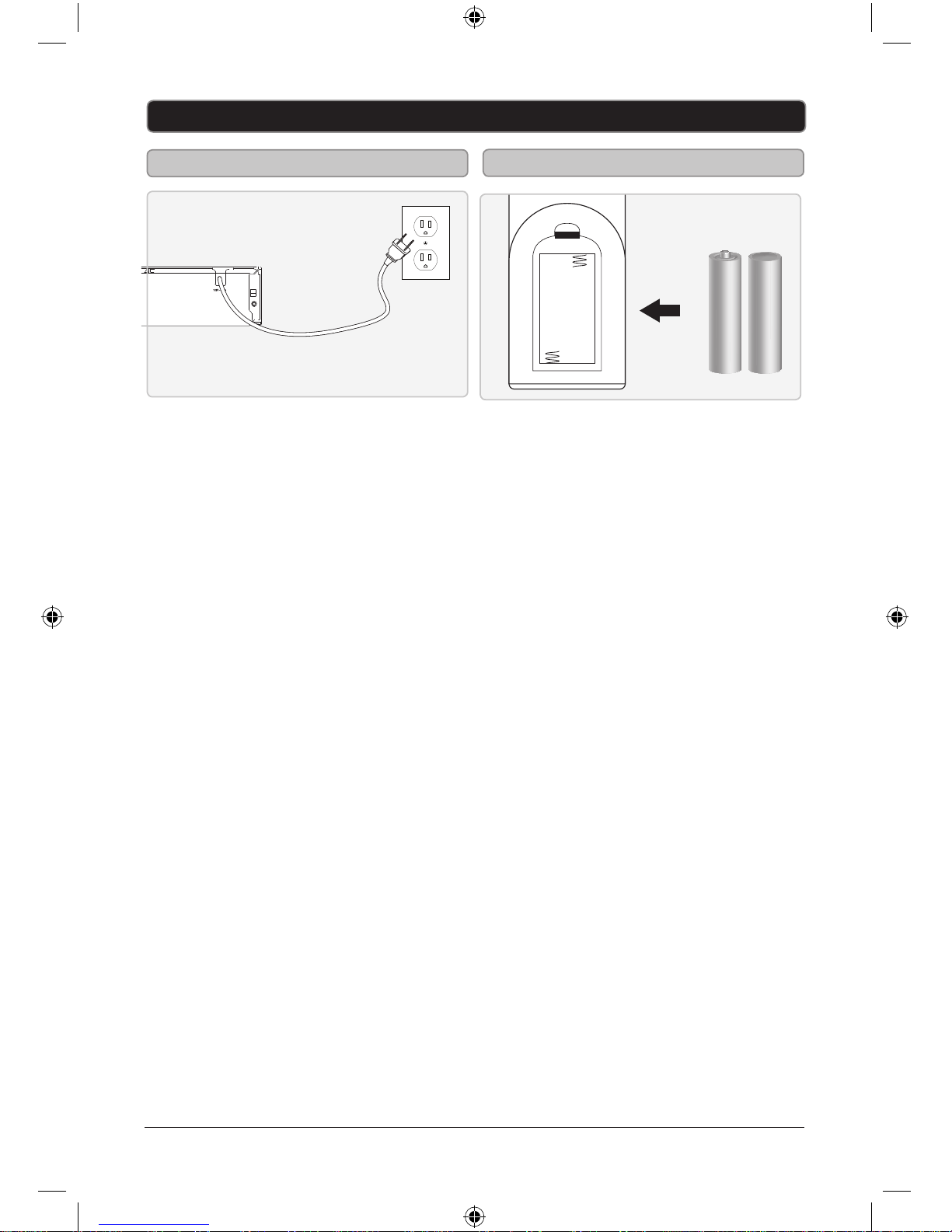

•Player Power
•Remote Battery Power
Blu-Ray, DVD, and CD . . . . . . . . . . . . . . . . 11

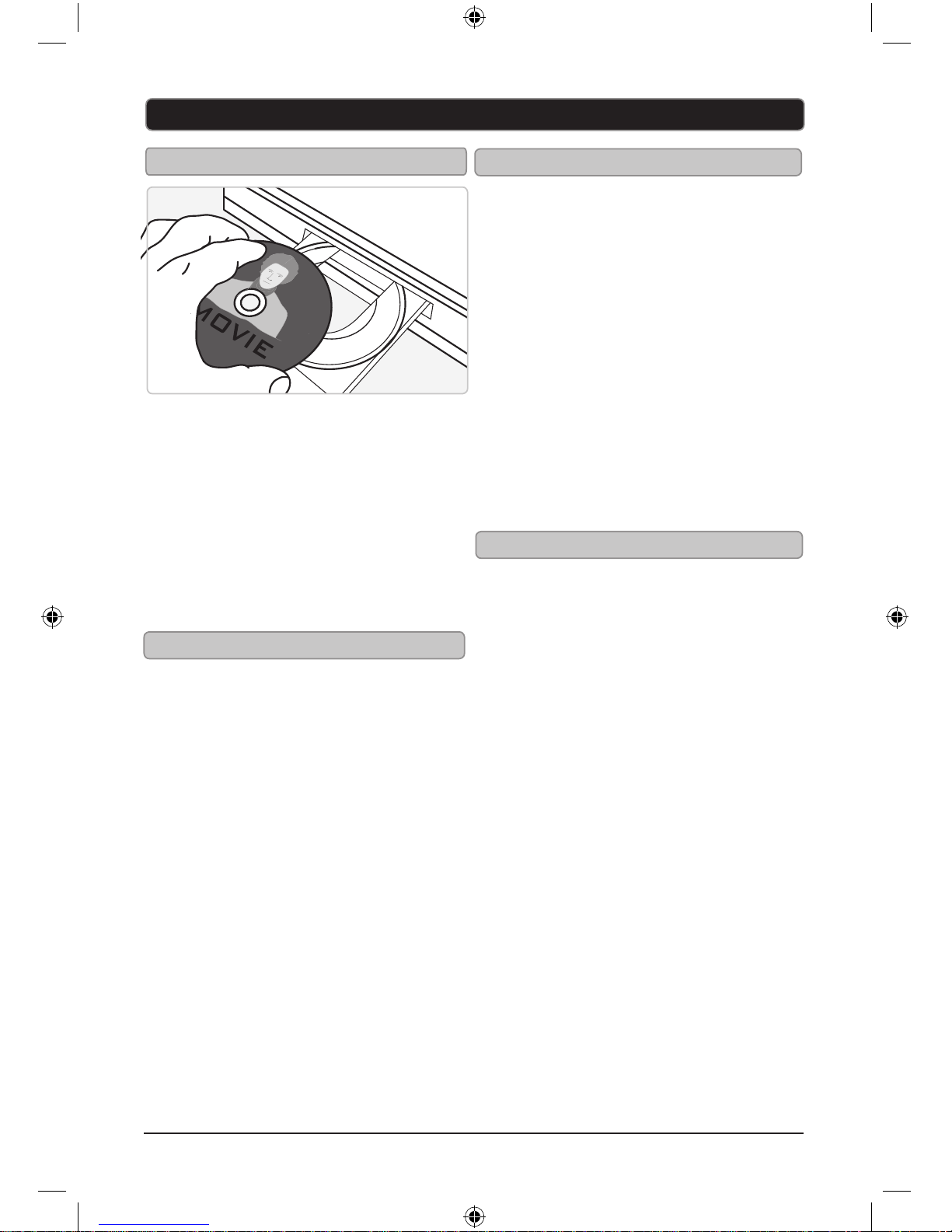

•Loading a Disc
•Playing a Disc
•Enjoy Blu-ray 3 D
•Display play information
•Play menu Settings
•BD-Live™
Setup/Home Menu . . . . . . . . . . . . . . . . . 14
•Accessing the Setup Menu
•Basic M
Settings
BD-Video Data Erase
enu Operation
•
•
Connecting a Television . . . . . . . . . . . . . . . 7
•Composite Video Output
•Component Video Output
•HDMI Output
Audio Outputs . . . . . . . . . . . . . . . . . . 8
•RCA Stereo Audio Output
•Coaxial Digital Audio Output
Ethernet . . . . . . . . . . . . . . . . . . . 15
•Ethernet Connection
USB Port . . . . . . . . . . . . . . . . . . . 15
•Playing or Viewing for USB Drive
•
•5.1CH Audio Output
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . 16
Warranty Card . . . . . . . . . . . . . . . . . 17

WARNINGS AND PRECAUTIONS
1. Read, Keep and Follow these instructions, heeding all Warnings.
2. Keep out of reach of young children. This apparatus is not suitable for use by young
children or infirm persons without supervision. Young children must be supervised to
ensure that they do not play with the apparatus.
3. WARNING. Do not insert any objects into any openings of an electrical apparatus.
4. WARNING. Do not touch any moving parts of any electrical apparatus.
5. WARNING! Where the mains plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable
6. WARNING. Do not use this apparatus near water. To avoid the risk of fire or electric
shock, do not expose this apparatus to rain or moisture. The apparatus shall not be
exposed to dripping or splashes.
7. WARNING. No objects filled with liquid, such as vases, shall be placed on any electrical
apparatus.
8. Do not immerse in any liquid whilst in use or in cleaning. Clean only with a damp cloth,
dry with a dry towel. Do not use harsh abrasives as these may damage plastic parts.
9. DO NOT block any ventilation openings. Keep away from curtains, newspapers and
restricted areas. Install in accordance with any specific manufacturer’s instructions.
Always allow a sufficient gap around the apparatus to avoid overheating.
10. DO NOT install near any heat sources such as radiators, gas heaters, stoves or other
apparatus (including amplifiers) that produce heat. Do not leave in direct sunlight.
11. WARNING. Do not place any naked flame source, such as lighted candles on any
electrical apparatus.
12. WARNING! Connect to a suitable 100-240V ~ 50 Hz power supply only. If a class 1 product
it must be connected to a suitably earthed mains socket.
13. Always unplug from the power source when any electrical apparatus is not in use.
14. Do not abuse or damage a power cord. If any power cord is damaged, it must be replaced
by the manufacturer, its service agent or a similarly qualified person in order to avoid a
hazard. A replaceable cord must be replaced with an authorised replacement from an
authorised service agent only.
15. Only use attachments/accessories specified by the manufacturer.
16. Unplug this apparatus during lightening storms or when unused for long periods of time.
17. Attention is drawn to the environmental aspects of disposing of any battery.
18. Refer all servicing to qualified personnel. Servicing is required when the apparatus has
been damaged in any way, such as when the power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
19. Do not attempt to service any double insulated apparatus. Double insulated apparatus
requires specialist servicing and knowledge to retain the safety of the apparatus.
20. WARNING. Do not use any electrical apparatus outdoors. If any electrical apparatus is to
be used outdoors, use a suitable Isolating transformer or Electrical Safety Switch (RCD).
21. For household use only, this apparatus is not intended for commercial use.
22. If this apparatus is to be used by a third party, please supply these instructions with it.
23. No liability will be accepted for any personal injury or damage caused by failure to follow
these instructions.
Important Safety Instructions
When using any electrical apparatus always observe safety regulations and use basic safety
precautions to reduce the risk of fire, electric shock and personal injury, including the following.
2

WARNINGS AND PRECAUTIONS
• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or book cases) without
anchoring both the furniture and the television to a suitable support.
• Not standing the television on a cloth or other materials placed between the television and
supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its
controls
an equilateral triangle, is
within the product's enclosure that may be of
shock to persons.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
ATTENTION
CAUTION
The exclamation point within an equilateral triangle is intended to alert the user
This product utilizes a Class 1 laser to read Compact Discs. This laser Compact
Disc Player is equipped with safety switches to avoid exposure when the CD
door is open and the safety interlocks are defeated. Invisible laser radiation is
present when the CD Player ’s lid is open and the system’s interlock has failed
or been defeated. It is very important that you avoid direct exposure to the laser
beam at all times. Please do not attempt to defeat or bypass the safety switches.
IMPORTANT INFORMATION – TELEVISION DISPLAY EQUIPMENT
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due
to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such
as:
3
intended to alert the user to the presence of uninsulated "dangerous voltage"
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.

• 5.1ch 3D Blu-ray player: 3D,BD,DVD,CD
•
•
Blu-Ray playback: 720p, 1080i, 1080p
•
•
LED display
•
NTSC/PAL
•
HDMI output
•
Component video output
•
Composite video output
•
Digital coaxial output
RCA stereo audio output
USB port
• AC power: built-in AC power cable
DVD and Blu-ray players and discs are
player code must match in order for the
disc to play in that player.
The region code for this player is located on
the rear panel of the player.
Region
Code Area/Country
North America, Central America,
South America, Korea, Japan,
Taiwan, Hong Kong, South East Asia
Europe, Greenland, French
territories, Middle East, Africa,
Australia, and New Zealand
India, China, Russia, Central Asia,
and South Asia
D V D D I S C S
The U.S.A., U.S.A. territories, and
Canada
Europe, Japan, the Middle East,
Egypt, South Africa, Greenland
Taiwan, Korea, the Philippines,
Indonesia, and Hong Kong
Mexico, South America, Central
America, Australia, New Zealand,
Russia, Eastern Europe, India, North
Korea, Mongolia, and most of Africa
China
• Remote control
• 1 RCA video/audio cable
• User’s guide
Blu-Ray DVD Player
Features Region Codes
Included
4
This Blu-Ray DVD Player is protected against
abnormal operation by circuit protection
devices. Should the unit fail unplug the unit
from the power supply and then reconnect
the unit. The unit should operate normally.
If it is still faulty contact the helpline
0800 89 85 80

Introduction
5

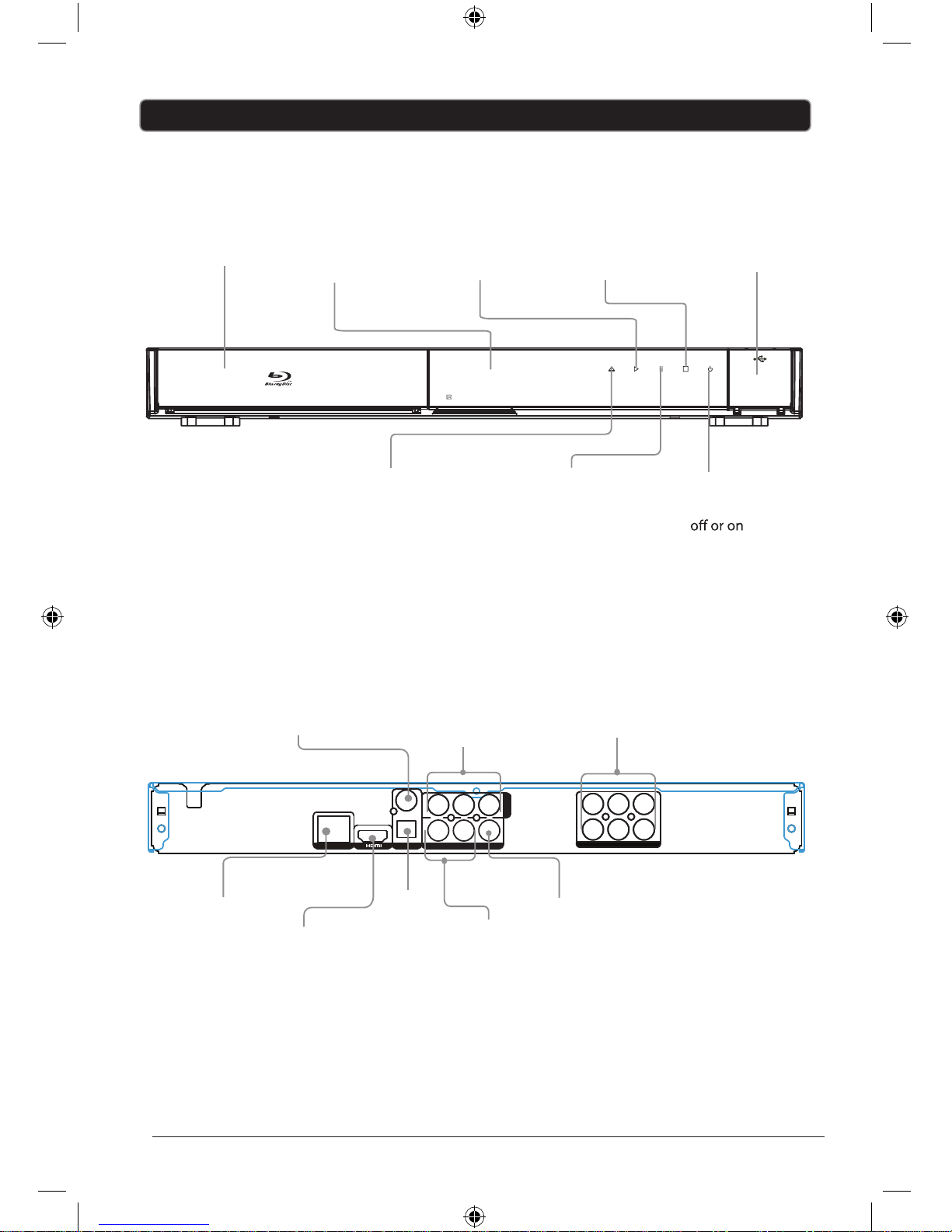

STANDBY
Press to turn the player
OPEN/CLOSE
Press to open or close
the DISC DRAWER.
DISC DRAWER PLAY
PAUSE
Press to play a
loaded disc.
Press to pause a
loaded disc.
STOP
Press to stop a loaded
disc during play.
DISPLAY USB PORT
CENT
FR
FL SW
SR
SL
5.1 CHANNEL OUT
DIGITAL OUT
COAXIAL
OPTICAL R
L
CVBS
Cr
Cb
Y
ETHERNET AV OUT
COMPONENT VIDEO OUT
HDMI OUTPUT
OPTICAL COMPOSITE VIDEO
OUTPUT
RCA STEREO AUDIO
OUTPUT
DIGITAL COAXIAL
AUDIO OUTPUT COMPONENT VIDEO
OUTPUT
5.1CH AUDIO OUTPUT
ETHERNET PORT

A-B
6
CLEAR RETURN
BD/USB
HDMI
SETUP
POP-MENU
TITLE
ENTER
PLAY MENU
TOP MENU
SEARCH
ZOOM
PIP
DISPLAY
SKIP
AUDIO
NUMBER KEYPAD
SETUP
Press to access the setup menu.
Press to view the popup menu on
supported discs. Press to return the title
menu.

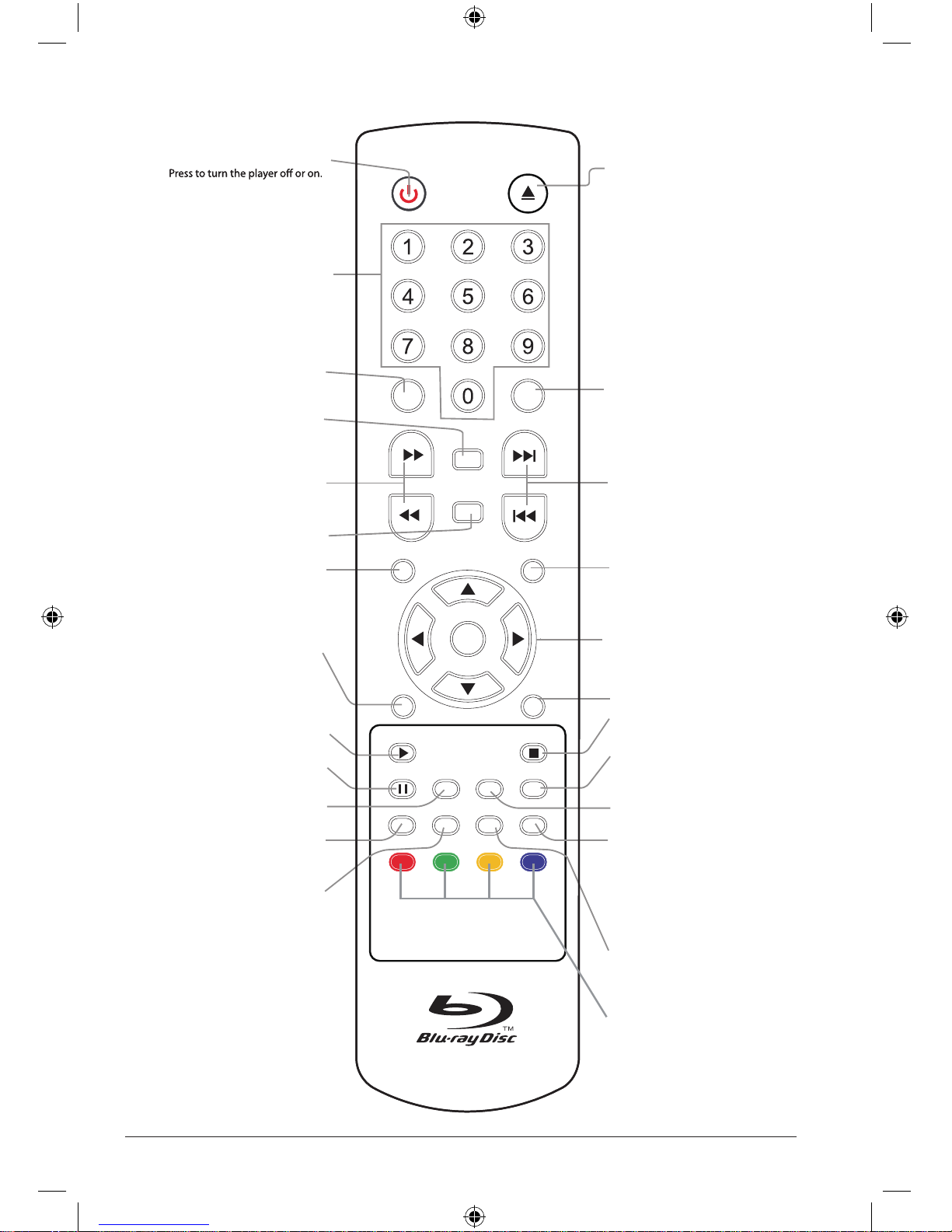

PREV/NEXT
Press to skip between chapters and tracks
on a loaded disc.
PLAY
Press to play the loaded disc.
STOP
Press to stop the loaded disc during play.
AUDIO
Press to switch between available audio
settings on the loaded disc.
During the normal or fast motion playback.
Press A-B once and “A-” will appear on the
screen. This indicates the start of the loop to
be repeated. Press A-B again and “A-B” will
appear on the screen. It indicates the end
of the loop. Press A-B a third time to cancel
playback repeat.
OPEN/CLOSE
Press to open and close the DISC DRAWER.
CLEAR
Press to clear number entered by the
number keypad.
RETURN (DVD ,CD only)
ARROW /ENTER
PAUSE
Press to pause a loaded disc during play.
ZOOM
Press repeatedly to adjust the level of
zoom on the loaded disc.
STANDBY
NUMBER KEYPAD
SE
Press to access the setup menu.
POP-MENU/TITLE
Press to view the popup menu on
supported discs. Press to return the title
menu.
PREV/NEXT
Press to skip between chapters and tracks
on a loaded disc.
AY
Press to play the loaded disc.
STOP
SEARCH
Press to stop the loaded disc during play.
AUDIO
SKIP
Press t
This button and the or so direction key
combination can realize the 30 seconds
back and forward.
o switch between available audio
settings on the loaded disc.
A-B
OPEN/CLOSE
Press to open and close the DISC DRAWER.
CLEAR
Press to clear number entered by the
number keypad.
RETURN
ARROW /ENTER
PAUSE
Press to pause a loaded disc during play.
ZOOM
Press repeatedly to adjust the level of
zoom on the loaded disc.
Press to return to previous menus within
the DVD,CD menus.
Press to adjust the speed to play a
loaded disc.
FORWARD/REVERSE
Press to view multiple videos(picture in
picture) simultaneously on supported
DVD discs.
PIP
Color buttons (red, green, yellow, blue)
DISPLAY
Press to display the provides play status.
TOP MENU
Press to access the top menu.
PLAY MENU
Press to access the play menu.
Press to BD/USB button choose among
BD or USB.
BD/USB
HDMI
Press repeatedly to adjust the resolution.
HDMI
Press repeatedly to adjust the resolution.
According to the content of the disc hint
operation.

7
Connecting a Television

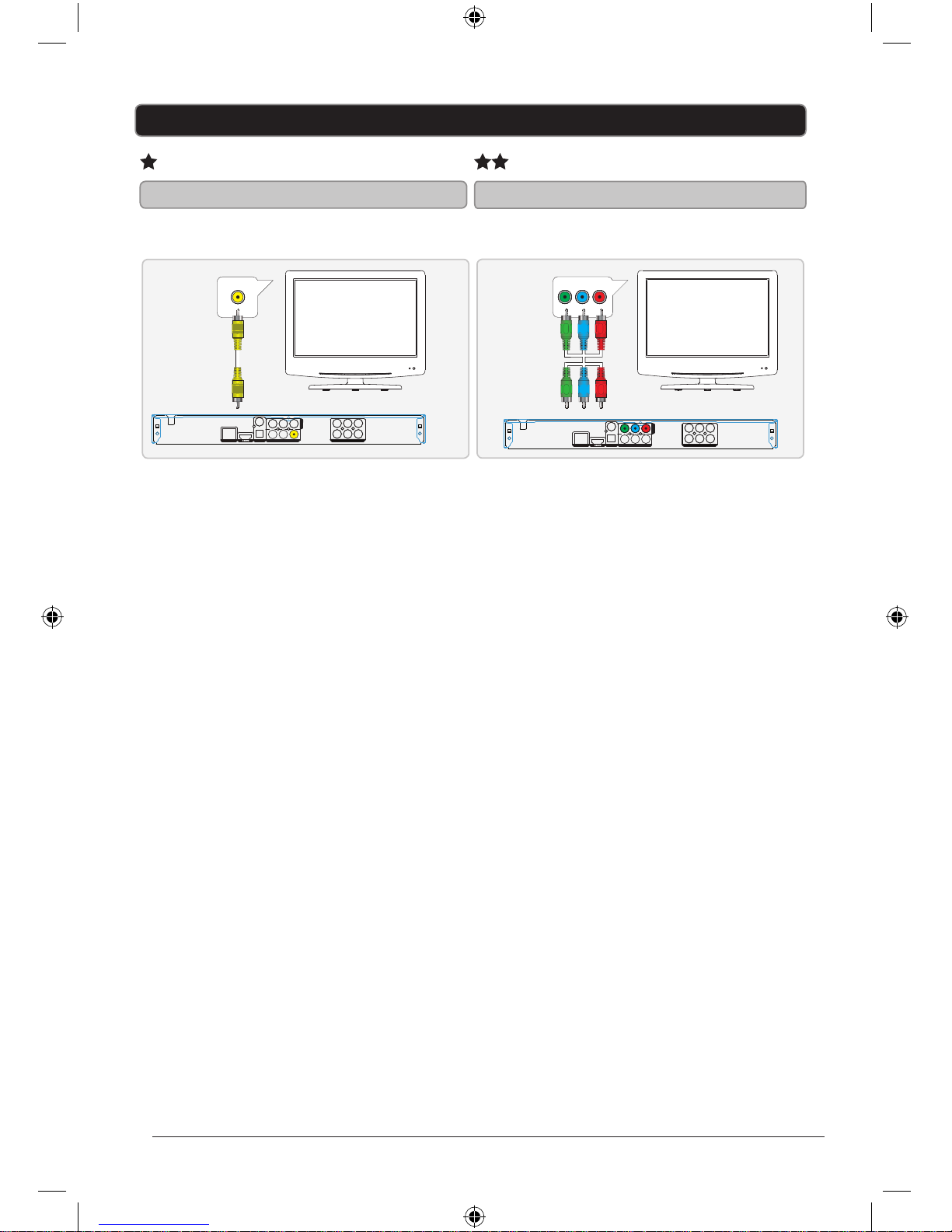

Composite Video Output
Requires an RCA video cable (included)
1. Plug the RCA video cable into the
COMPOSITE VIDEO OUTPUT on
the player and a composite video
input on a television.
TThe standarhe standard cd color for color for compompositositeeeetiso tisopmo pmocrofrolo crofrolocd cdh standarh standarT eetiso tisopmo pmocrofrolo crofrolocd cdh standarh standarT
video pvideo pororts is yts is yelloelloww.. .olle olleysist ysistroropoediv poediv .olle olleysist ysistroropoediv poediv
2. Adjust the connected television to
the input source used in step #1.
3. This will allow video from the
player to show on the connected
television.
TTo play audio fro play audio from the playom the playererTo play audio fr rereyalpehtmo yalpehtmorfoiduayalpoTo play audio fr rerepehtmo yalpehtmo layrfoiduayalpo
thrthrouough ygh your tour television, folloelevision, follow thew theur tour tyhg yhguouorht rht o elevision, follo ehtw ehtwollof,noisivele ollof,noisiveletruo truoyhg yhguouorht rht ehtw ehtwollof,noisivele
instrucinstructions for Rtions for RCCA StA Sterereo Aeo Audioudiocurtsni curtsni oiduAoe AoerereA StA StCRrofsnoit Rrofsnoitcurtsni curtsni oiduAoe AoerereA StA StCRrofsnoit Rrofsnoit
OOutpututput or Dor Digital Cigital Coaxial Aoaxial AudioudioClatigi ClatigiDro Drout utut utO oidu oiduAlaixao AlaixaoClatigi ClatigiDro Drout utut utO oidu oiduAlaixao Alaixao
OOutpututput..ut utut utO . .ut utut utO
Good Video Quality
Component Video Output
Requires an RCA component video
cable (not included)
1. Plug the RCA component video
cable into the COMPONENT
VIDEO OUTPUT on the player and
a component video input on a
television.
The standard colors for componentThe standard colors for componentThe standard colors for componentThe standard colors for componentThe standard colors for componentThe standard colors for componentThe standard colors for componentThe standard colors for componentThe standard colors for componentThe standard colors for component
video ports are green, blue, and red.video ports are green, blue, and red.video ports are green, blue, and red.video ports are green, blue, and red.video ports are green, blue, and red.video ports are green, blue, and red.video ports are green, blue, and red.video ports are green, blue, and red.video ports are green, blue, and red.video ports are green, blue, and red.
2. Adjust the connected television to
the input source used in step #1.
3. This will allow video from the
player to show on the connected
television.
To play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player throughTo play audio from the player through
your television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructionsyour television, follow the instructions
for RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digital
for RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digitalfor RCA Stereo Audio Output or Digital
Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.Coaxial Audio Output.
Better Video Quality
CENT
FR
FL SW
SR
SL
5.1 CHANNEL OUT
DIGITALOUT
COAXIAL
OPTICAL R
L
CVBS
Cr
Cb
Y
ETHERNET AV OUT
COMPONENT VIDEO OUT
CENT
FR
FL SW
SR
SL
5.1 CHANNEL OUT
DIGITALOUT
COAXIAL
OPTICAL R
L
CVBS
Cr
Cb
Y
ETHERNET AV OUT
COMPONENT VIDEO OUT

8
HDMI Output
Requires an HDMI cable (not included)
1. Plug the HDMI cable into the
HDMI OUTPUT on the player and
an HDMI input on a television.
2. Adjust the connected television to
the input source used in step #1.
3. This will allow video and audio
from the player to play through the
connected television.
Best Video Quality
HDMI
HDMI
Audio Outputs
RCA Stereo Audio Output
Requires an RCA stereo audio cable
(included)
1. Plug the RCA stereo audio cable
into the RCA STEREO AUDIO
OUTPUT on the player and a RCA
stereo audio input on a television
or home theater system.
The standard color for RCA stereoThe standard color for RCA stereoThe standard color for RCA stereoThe standard color for RCA stereoThe standard color for RCA stereoThe standard color for RCA stereo
audio ports is red and white.audio ports is red and white.audio ports is red and white.audio ports is red and white.audio ports is red and white.audio ports is red and white.
2. Adjust the connected television or
home theater system to the input
source used in step #1.
3. This will allow audio from the
player to play on the connected
television or home theater system.
To play video from the playerTo play video from the playerTo play video from the playerTo play video from the playerTo play video from the playerTo play video from the player
through your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow the
instructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Video
Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,
or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.
Good Audio Quality
Connecting a Television
CENT
FR
FL SW
SR
SL
5.1 CHANNEL OUT
DIGITALOUT
COAXIAL
OPTICAL R
L
CVBS
Cr
Cb
Y
ETHERNET AV OUT
COMPONENT VIDEO OUT
CENT
FR
FL SW
SR
SL
5.1 CHANNEL OUT
DIGITALOUT
COAXIAL
OPTICAL R
L
CVBS
Cr
Cb
Y
ETHERNET AV OUT
COMPONENT VIDEO OUT

9
Audio Outputs
5.1 CH Audio Output
Requires an 5.1CH audio cable
1. Plug the 5.1CH audio cable
into the 5.1CH AUDIO OUTPUT
on the player and a 5.1CH audio input
on a home theater system.
2. Adjust the connected home theater
system to the input source used in
step #1.
3. This will allow audio from the
player to play on the connected
home theater system.
To play video from the playerTo play video from the playerTo play video from the playerTo play video from the playerTo play video from the playerTo play video from the player
through your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow the
instructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Video
Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,
or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.
Coaxial Digital Audio Output
Requires an coaxial digital audio cable
(not included) (not included)
1. Plug the coaxial digital audio
cable into the COAXIAL DIGITAL
AUDIO OUTPUT on the player and
a coaxial digital audio input on a
television or home theater system.
The standard color for coaxial digitalThe standard color for coaxial digitalThe standard color for coaxial digitalThe standard color for coaxial digitalThe standard color for coaxial digitalThe standard color for coaxial digital
audio ports is orange.audio ports is orange.audio ports is orange.audio ports is orange.audio ports is orange.audio ports is orange.
2. Adjust the connected television or
home theater system to the input
source used in step #1.
3. This will allow audio from the
player to play on the connected
television or home theater system.
To play video from the playerTo play video from the playerTo play video from the playerTo play video from the playerTo play video from the playerTo play video from the player
through your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow thethrough your television, follow the
instructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Videoinstructions for Composite Video
Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,Output, Component Video Output,
or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.or HDMI Output.
Better Audio Quality Better Audio Quality
SL
FL
FR SR CEN
SW
5.1 CHANNEL OUT
CENT
FR
FL SW
SR
SL
5.1 CHANNEL OUT
DIGITALOUT
COAXIAL
OPTICAL R
L
CVBS
Cr
Cb
Y
ETHERNET AV OUT
COMPONENT VIDEO OUT
CENT
FR
FL SW
SR
SL
5.1 CHANNEL OUT
DIGITALOUT
COAXIAL
OPTICAL R
L
CVBS
Cr
Cb
Y
ETHERNET AV OUT
COMPONENT VIDEO OUT
Attention:
Please unplug the unit from AC outlet before create or change any output
connection.

Plug the attached AC cord into a
standard AC power outlet to power the
unit.
Requires 2, AAA size, batteries
Player Power Remote Battery Power
Player Setup
10

11
Playing a Disc
1. Press the STANDBY button to turn the
player on.
2. Press the OPEN/CLOSE button to open
the DISC DRAWER.
3. Load a disc in
Enjoy with a "Blu-ray3 D" sign of Blu-ray an 3 D.
Prepare for Blu-ray 3D Disc. Play back.
1. Connect the 3D player with 3D compatible
TV via HDMI cable.
2. In the Setup Menu, set up 3D player and 3D
compatible TV format such as 16:9,4:3 etc.
3. Load Blu-ray 3D Disc. According to different
type of 3D Disc., the display/operation
maybe exist tiny difference, please refer to
the information for disc.
to the DISC DRAWER,
label side facing up.
4. Press the OPEN/CLOSE button to close
the DISC DRAWER.
1. Follow the instructions for Loading a
Disc.
After the disc is loaded, it will beginAfter the disc is loaded, it will beginAfter the disc is loaded, it will beginAfter the disc is loaded, it will beginAfter the disc is loaded, it will beginAfter the disc is loaded, it will begin
playing automatically.playing automatically.playing automatically.playing automatically.playing automatically.playing automatically.
2. If the disc doesn’t begin playing
automatically, press the PLAY button.
Loading a D
Blu-ray 3D, Blu-ray, DVD and CD
isc BD-Live™
Enjoy Blu-ray 3 D
BD-Live is an advanced Blu-ray disc feature
that allows you to view and download
additional content provided by the disc
manufacturer.
BD-Live features can be accessed through
the main menu of a loaded Blu-ray disc that
supports this feature.
BD-Live requires an internet connection and aBD-Live requires an internet connection and aBD-Live requires an internet connection and aBD-Live requires an internet connection and a
Blu-ray disc that supports this feature.Blu-ray disc that supports this feature.Blu-ray disc that supports this feature.Blu-ray disc that supports this feature.
BD-Live may sometimes require additionalBD-Live may sometimes require additionalBD-Live may sometimes require additionalBD-Live may sometimes require additional
storage space. Connect a 2GB or largerstorage space. Connect a 2GB or largerstorage space. Connect a 2GB or largerstorage space. Connect a 2GB or larger
USB thumb drive to the USB port if you areUSB thumb drive to the USB port if you areUSB thumb drive to the USB port if you areUSB thumb drive to the USB port if you are
experiencing issues with BD-Live.experiencing issues with BD-Live.experiencing issues with BD-Live.experiencing issues with BD-Live.

12
Display play information
Blu-ray 3D, Blu-ray, DVD and CD
Play menu Settings
Press "Display" button to turn on/off the
setup status. The play status may be
difference depending on disc type, For
example: when playing a DVD.
Press the PLAY MENU button on the remote
control, accessing Setup Menu, use Enter and
Arrow buttons to set up.

Setup/Home Menu
Accessing the Setup Menu
Basic Menu Operation
1. Press the SETUP button to
access the setup menu.
Some options in the setup menu areSome options in the setup menu areSome options in the setup menu areSome options in the setup menu areSome options in the setup menu are
only available if the player is in full-only available if the player is in full-only available if the player is in full-only available if the player is in full-only available if the player is in full-
stop mode. To enter full-stop mode,stop mode. To enter full-stop mode,stop mode. To enter full-stop mode,stop mode. To enter full-stop mode,stop mode. To enter full-stop mode,
press thepress thepress thepress thepress the STOP button on the remotebutton on the remotebutton on the remotebutton on the remotebutton on the remote
twice.twice.twice.twice.twice.
1. Press the ARROW buttons to
navigate the setup menu.
2. Press the ENTER button on the
remote to make selections within
the setup menu.
3. Press the SETUP/HOME button to
exit the setup menu.
Settings
General
Video
Restore settings
Night Mode
Audio language
Subtitle language
Menu language
On-Screen Language
DVD - video Ratings
(0 - 8 )
BD- Video Age Limit
(No Limit)
Unlock player
(DVD & BD video unlock)
Temporary Unlock
(DVD & BD video unlock)
Change Password
Enter to set the parental control.
the password is 0000.
PCM Down Conversion (On or Off)
Digital Audio Output (PCM、Bitstream）
BD C
Speaker setting
lick Sound (On or Off)
TV Aspect
HDMI
• Resolution (Auto、480i/576i、
480p/576p、720p、1080i、
1080p、1080p/24p）
3D Reproduces
• Rework Method (2D or 3D)
• Channel setting (2 Channel or
Multi channel)
•
•
•
•
4:3 Pan & Scan
4:3 Letterbox
16:9
16:9 Full
•
•
•
•
•
Output Method (Full HD、
Side - By – Side or Checkers)
Screen Saver (On or Off)
• RGB Output Range (Standard or
Enhanced)
•Color Space （Auto、YcbCr4:4:4、
YcbCr4:2:2、RGB)
•High Bitrate Audio (Auto、On or Off)
（Auto、On or Off）
Audio
Language
Parental
13

14
Setup/Home Menu continued
Proxy Server Settings
• Initialize (Initialize)
• Proxy Address
• Proxy Port Number
BD-Live Access
• Permit
• Limit
• Prohibit
BD- Video Data Erase
BD-Video Data Erase is selected. BD -Video data on the USB will be
erased. Do you want to proceed?
Start Cancel
BD -VIDEO DATA ERASE
LAN Settings
• IP/ DNS Setting (IP:Auto
Press the "SETUP" button to access the
SETUP menu and then press the direction
key choose "BD - Video Data Erase",
confirm, and then the system can appear
the following interface: ( Can choose
according to need "Start" or "Cancel")
、
DNS: Auto)
• Access Setting
Network

15
USB Port
Playing or Viewing for USB Drive
1. Connect a USB drive to the USB
PORT on the front of the player.
port one way.port one way.port one way.port one way.port one way.port one way.port one way.port one way.port one way.port one way.
2. Press the BD / USB button
on the remote.
3. Use the ARROW buttons to select
the connected USB drive.
4. Press the ENTER button.
5. Use the ARROW buttons to
navigate the connected USB and
press the ENTER button to make
selections, view photos, or play
music.
(not included)
OR
ROUTERMODEM
Ethernet Connection
Requires an ethernet cable
(not included)
1. Plug the ethernet cable into the
ETHERNET PORT on the player
and an ethernet port on a router
or modem with an internet
connection.
After connecting the player to aAfter connecting the player to aAfter connecting the player to aAfter connecting the player to aAfter connecting the player to aAfter connecting the player to a
router or modem, the player willrouter or modem, the player willrouter or modem, the player willrouter or modem, the player willrouter or modem, the player willrouter or modem, the player will
automatically connect to theautomatically connect to theautomatically connect to theautomatically connect to theautomatically connect to theautomatically connect to the
internet.internet.internet.internet.internet.internet.
You can access your network settingsYou can access your network settingsYou can access your network settingsYou can access your network settingsYou can access your network settingsYou can access your network settings
in the player’s setup menu.in the player’s setup menu.in the player’s setup menu.in the player’s setup menu.in the player’s setup menu.in the player’s setup menu.
BD-Live may sometimes requireBD-Live may sometimes requireBD-Live may sometimes requireBD-Live may sometimes requireBD-Live may sometimes requireBD-Live may sometimes require
additional storage space. Connectadditional storage space. Connectadditional storage space. Connectadditional storage space. Connectadditional storage space. Connectadditional storage space. Connect
a 2GB or larger USB thumb drive toa 2GB or larger USB thumb drive toa 2GB or larger USB thumb drive toa 2GB or larger USB thumb drive toa 2GB or larger USB thumb drive toa 2GB or larger USB thumb drive to
the USB port if you are experiencingthe USB port if you are experiencingthe USB port if you are experiencingthe USB port if you are experiencingthe USB port if you are experiencingthe USB port if you are experiencing
issues with BD-Live.issues with BD-Live.issues with BD-Live.issues with BD-Live.issues with BD-Live.issues with BD-Live.
This player allows you to connect to
network based services such as BD-Live™,
and receive software updates.
Ethernet
DIGITALOUT
COAXIAL
OPTICAL R
L
CVBS
Cr
Cb
Y
ETHERNET AV OUT
COMPONENT
VIDEO OUT
CENT
FR
FL SW
SR
SL
5.1 CHANNEL OUT

16
SPECIFICATIONS
Systems and outputs
Media
BD-R
Blu-ray 3D, OM, BD-RE, DVD-Video, DVD+R/+RW,
DVD-R/-RW,
DVD+R/-R DL, CDR/CD-RW, Audio CD, Picture CD, MP3
VF signal system NTSC / PAL
Video output Electric level output 1.0 Vp-p, Resistance: 75 Ω
Output connector Pin jack (1 system)
Audio output Output level 2Vrms (1 kHz, 0 dB)
Output connector Pin jack
Number of
connectors
5.1 channel: 1 system
Audio
performance
Frequency response DVD (linear
audio)
20 Hz to 22 kHz
(48 kHz sampling)
20 Hz to 44 kHz
(96 kHz sampling)
CD-Audio 20Hz to 20 kHz
S/N ratio 90 dB
Dynamic range 80 dB
Total harmonic
distortion
0.1%
HDMI Output Output format Auto, 480i/576i, 480/576p, 720p, 1080i,
1080p
General
Power 100 V - 240 V ~ 50/60 Hz
Power consumption 15 W
Product dimensions 360 mm (L) x 230 mm (W) x 38 mm (H)
Operating temperature 5°C to 35°C
Notes: Design and specifications in this instruction manual are subjected to change
without prior notice, to improve the quality and function.

17

７４－Ｇ１１０８０４Ａ－ＡＲ
