Verde Maxi User manual

Installation of Verde Maxi Dryer
Suggested installation height from oor
to top of Hand Dryer
Male: 1000 – 1100mm
Female: 950 – 1050mm
Security screw.
To release mounting
plate from dryer, remove
water collection tray then
remove security screw
from front of dryer.
Distance from top of
Dryer to Mounting Plate
60mm.
Power cord exit point.
Dryer Width
300mm
Dryer Height
685mm.

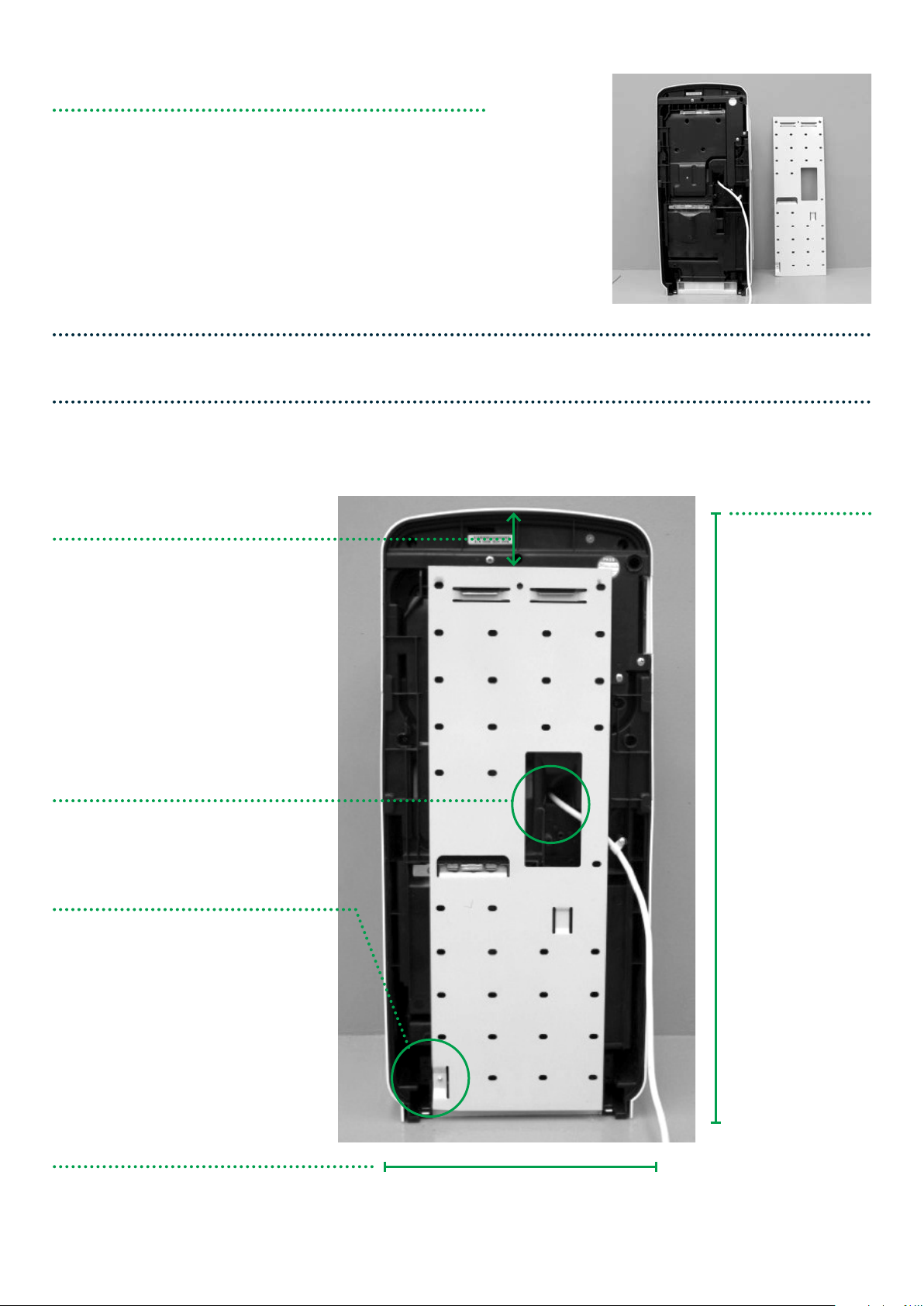

Photo shows the mounting plate attached to the back of the dryer in Actual position.
Page 1 of 2

Installation of Verde Maxi Dryer
Suggested installation height from oor
to top of Hand Dryer
Male: 1000 – 1100mm
Female: 950 – 1050mm
Distance from top of
Mounting Plate to Power
Cord cutout
195mm.
Power cord cutout
Height: 125mm.
Distance from edge of
mounting plate to edge
power cord cut out is
105mm.
Width: 60mm.
Mounting Plate Width
195mm.
Mounting
Plate Height
610mm.
Page 2 of 2
