Veripart VPWD101 User manual

Veripart is a registered trademark.
Weena 664
3012CN Rotterdam
The Netherlands
Made in China

DRYER
WÄSCHETROCKNER
- Veripart VPWD101 & Veripart VPWD301 -
Read all instructions and explanations
before use.
Follow the instructions carefully.
Keep the operation instructions handy for
later use. If the appliance is sold or passed
on, please ensure that the new owner
always receives these operation instructions.
EN Lesen Sie vor Gebrauch alle Anweisungen
und Erklärungen aufmerksam durch.
Befolgen Sie die Anweisungen sorgfältig.
Halten Sie die Bedienungsanleitung für
den späteren Gebrauch griffbereit. Wenn
das Gerät verkauft oder weitergegeben
wird, ist immer sicherzustellen, dass der
neue Besitzer diese Betriebsanleitung
erhält.
DE

2
SAFETY INSTRUCTIONS 3
INSTALLATION 7
• Product description 7
• Installation 8
OPERATION 9
• Quick start 9
• Drying 10
• Before drying 11
• Option 13
• Display 16
• Programmes 17
MAINTENANCE 20
• Cleaning and care 20
• Technical specications 24
SYMBOL EXPLANATION 27
CONTENTS

3
SAFETY INSTRUCTIONS
•This product is a Category I electrical appliance which is intended only
for drying textiles which have been washed with water in the household.
Please ensure safe power use during operation!
•A power socket with reliable earthing must be used. Its earth wire must
be buried underground and must not be connected to public utilities such
as a city water pipe, gas pipe, etc. The earth wire and null wire must be
distinguishable and must not be connected to each other.
•The power wire must meet IEC standards and must be able to withstand a
current above 16A. To ensure your and your family’s safety, please make
improvements immediately if any power use at your home does not meet
the aforementioned requirements.
•Do not overload the dryer beyond what is recommended. Obey the
maximum load volume. See the related chapter in the user manual.
•The tumble dryer must not be used if industrial chemicals have been used
for cleaning items.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as cooking oil, acetone,
alcohol, petrol, kerosene, spot removers, turpentine, wax and wax
removers should be washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
•Fabric softeners, or similar products, should be used as specied by the
fabric softener instructions.
•Items such as foam rubber (latex foam), shower caps, waterproof textiles,
rubber backed articles and clothes or pillows tted with foam rubber pads
should not be dried in the tumble dryer.
•The nal part of a tumble dryer cycle occurs without heat (cool-down cycle)
to ensure that the items are left at a temperature that does not damage the
items.
•The lint trap must be cleaned frequently.
•Lint must not to be allowed to accumulate around the tumble dryer.
•Aequate ventilation must be provided to avoid the backow of gases into
the room from appliances burning other fuels, including open res.
Warning!
To prevent any property damage, personal injury or loss of life, you must
follow these safety instructions.
！！

4
•The exhaust air must not be discharged into a ue which is used to exhaust
fumes from appliances burning gas or other fuels.
•The appliance must not be installed behind a lockable door, a sliding door
or a door with a hinge on the opposite side to that of the tumble dryer in
such a way that the tumble dryer door cannot be fully opened.
•Oil-affected items can ignite spontaneously, especially when exposed to
heat sources such as a tumble dryer. The items become warm, causing an
oxidation reaction in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch re. Piling, stacking or
storing oil-affected items can prevent heat from escaping and create a re
hazard.
•If fabrics containing vegetable or cooking oil or fabrics contaminated
by hair care products must be placed in a tumble dryer, they should rst
be washed in hot water with extra detergent. This will reduce, but not
eliminate, the hazard.
•The appliance should not be overturned during normal use or maintenance.
•Remove all objects from pockets, such as lighters and matches.
•This appliance can be used by children aged 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning safe use of the appliance and understand the
hazards involved. Children must not play with the appliance. Cleaning and
user maintenance must not be performed by children without supervision
(this warning is only for the EUROPEAN market).
•The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the
appliance (this warning is not for the EUROPEAN market).
•If the power cable is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
•This appliance is for indoor use only.
•The openings must not be obstructed by a carpet.
•Children under 3 years old should be kept away unless continuously
supervised.
•If the appliance appears to be at an abnormally high temperature, please
pull the main plug immediately.

5
This mark indicates that this product should not be
disposed with other household waste in the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use your local return and
collection systems or contact the retailer where the product
was purchased. They can take this product for safe,
environmentally friendly recycling.
Correct Disposal of this product:
•The appliance must not be supplied with power through an external
switching device, such as a timer, or connected to a circuit that is
regularly switched on and off by a utility.
•Remove all packaging before using the appliance. Otherwise, serious
damage may result.
•Never stop a tumble dryer before the end of the drying cycle;
otherwise, too much heat will diffuse and it may cause harm.
Warning:
！！
MODEL CAPACITY
VPWD101 8,0 kg
VPWD301 9,0 kg
CAPACITYMODEL

6
•Do not pull the power cord forcefully. Please pull the mains plug directly
instead.
•Please do not plug or pull the mains plug with wet hands.
•Do not damage the power cord or plug.
Electric shock hazard
•Do not disassemble or install the dryer without any instruction or
supervision.
•Do not stack this dryer on a washing machine without a stacking kit. (If
you wish to stack this dryer on a washing machine, please purchase the
separate parts; these must be installed by the manufacturer, its service
agent or similarly qualied persons to avoid any hazards).
•Do not lean on the opened door of the dryer.
•Do not place any combustible object on the dryer, such as a candle or
electric cooker.
Injury danger
•Do not dry over the rated capacity.
•Do not operate the dryer without the lter door and lter base.
•Do not dry clothes before they go through a spin cycle.
•Do not expose the dryer directly to the sun – indoor use only.
•Do not install the dryer in a humid or wet environment.
•During cleaning and maintenance, please remember to pull the power plug
and do not wash the dryer directly with water.
Damage danger
•Please do not dry clothes with any ammable substances such as coal oil
or alcohol. Otherwise, there may be an explosion.
Explosion danger

7
INSTALLATION
Accessoires
The following parts are optional for specic models. If your dryer has
following parts, please wear gloves and install them according to the
instructions below.
Drum
Filter door
Water container
Top cover
Power cord
Control panel
Door
Air inlet
Filter base
Maintenance cover
Hose support
Connector
Condensing drain hose
PRODUCT DESCRIPTION
Note
The image is for reference only, please refer to the product you
purchased.

8

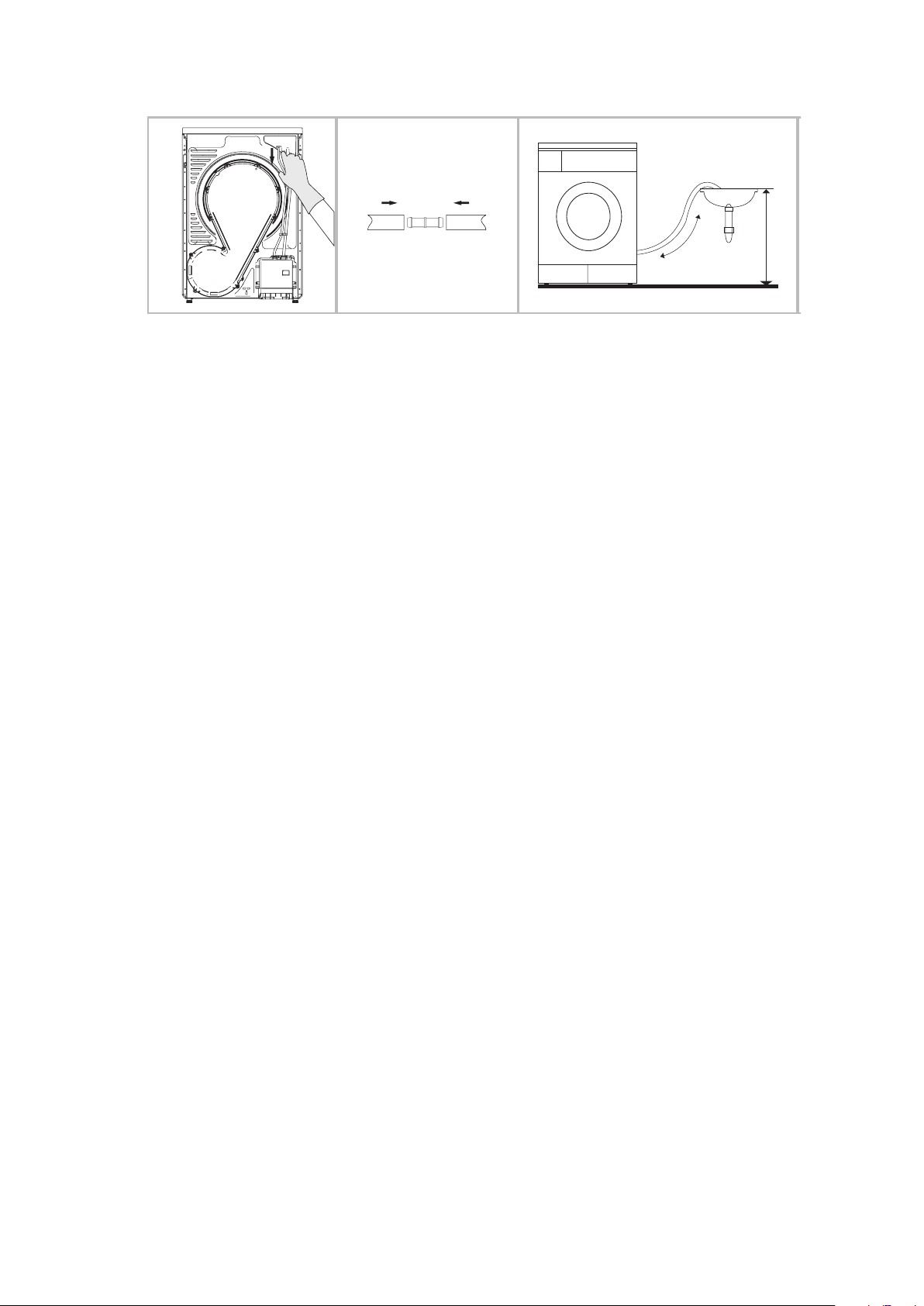

Remove the drain
hose from the housing
drawer.
Insert the drain hose and the
external drainage hose into the
connector.
Place the hose support on the edge of
a wash basin or any other sink.
Transport
Move cautiously. Do not grasp any protruding parts of machine. The machine
door can not be used as a handle during conveyance. If the dryer cannot be
transported upright, the dryer may slant to the right at less than 30°.
Installatie position
1. For your convenience, it is recommended that the machine be positioned
close to your washing machine.
2. The tumble dryer must be installed in a clean area where dirt does not
build up. Air must be able to circulate freely around the appliance. Do
not obstruct the front air inlet or the air intake grilles at the back of the
machine.
3. To keep vibration and noise at a minimum while the dryer is in use, it
should be placed on a rm and level surface.
4. The feet must never be removed. Do not restrict the oor clearance by using
deep pile carpets, strips of wood, etc. This might cause heat to build up,
which would interfere with the operation of the appliance.
INSTALLATION
j ~ñKNOMÅã
OM
M
Åã

9
Adjusting the level
Once in its permanent operating position, check
that the dryer is absolutely level with the aid of a
spirit level. If it is not, adjust the feet with a tool.
Power Supply Connection
1. Make sure that the voltage of the power supply is the same as the electrical
specication of the dryer.
2. Do not connect the dryer with a power connection board, a universal plug
or socket. Do not use multi-plug adapters or extension cables.
OPERATIONS
QUICK START
Note!
Before using, please make sure the dryer is installed properly.

10
Buzzer will beep or display “0:00”.
N O P Q R
Open the door and
remove laundy
Pull out water
container
Pour out condensate
water
Clean lter Power off
Note!
If a socket with a switch is used, please press the switch to turn off the
power directly.
NO P
Plug in Load Close door
DRYING
On Select program Select function
or default
Start
After drying

11
BEFORE DRYING
Note!
• Let dryer stand for 2 hours after transporting. Before rst use, please use
a soft cloth to clean the inside drum.
1. Place a few clean rags into the drum.
2. Plug in the power cord and press [Aan/Uit] (On/Off).
3. Select the [Opfrissen] (Refresh) Programme and press the [Start/
Pauze] (Start/pause) button.
4. After nishing this programme, please follow the “cleaning and
care” instructions (see page 21) to clean the lter door.
• During drying, the compressor and water will generate some noise
which is entirely normal.
1. Before drying, thoroughly spin the laundry in a washing machine. A high
spin speed can reduce drying time and save energy consumption.
2. For a uniform drying result, sort laundry according to fabric type and
drying programme.
3. Before drying, please close zippers, hooks and eyelets, button up, tie fabric
belts, etc.
4. Do not over dry the clothes, because over-dried clothes can crease easily.
5. Do not dry articles containing rubber or similar elastic materials.
6. The door can be opened only after the programme of the drying machine
is complete. This prevents skin from being scalded by hot steam or burned
by an overheated dryer.
7. Clean the lint lter and empty the water container after each use to avoid
extension of drying time and energy consumption.
8. Do not dry clothes after a dry-cleaning process.
9. Please choose the appropriate programme when drying woolen clothes;
this will make the cloth more fresh and uffy.

12
Mixed fabric clothes
(about 800g)
Jacket
(about 800g cotton)
Jeans
(about 800g)
Quitted towel
(about 900g cotton)
Single bedsheet
(about 600g cotton)
Work clothes
(about 1.120g)
Sleepwear
(about 200g)
Long sleeve shirt
(about 900g cotton)
Short sleeve shirt
(about 180g cotton)
Pants
(about 70g cotton)
Socks (about 50g
mixed weave)
Note!
•Never overload
•Not for textiles with dripping water. The dryer could become
damaged, or even catch on re.
Please do not use the drying machine if the fabrics of your clothes cannot be
dried by it. Please heed the following symbols:
Dry Tumble dry
Dry clean normal cycle
petroleum solvent only
Dry clean normal cycle
with any solvent
Do not dry clean
Dry clean
Do not tumble dry Do not dry
Drip dry
Line dry/hang dry Dry at Dry in the shade
Reference weights of dry clothes (each)

13
Aan/Uit (On/Off)
Turns the machine on or off.
Display
This display shows the setting,
estimated time remaining and status
messages of your dryer.
41
Start/Pauze (Start/pause)
Press this button to start or pause the
drying cycle.
Programs
Different dryer cycles can be selected
according to the user’s needs to
ensure that drying results are more
effective.
53
Options
These buttons are used for setting
additional functions.
3
OPTION
This function is used for delaying drying time within 24 hours. The delay time
means the programme will start after X hours. When the delay programme
starts, the time will start to count down on the display and the delay icon will
blinks.
Startuitstel (Delay)
1
4
2
53

14
Steps:
1. Load your laundry and make sure the machine door is closed.
2. Press the [Aan/Uit] (On/Off) button, then turn the programme selector
knob and select the desired programme.
3. You can select the [Anti-kreuk] (Anti-Crease) or [Signaal] (Signal)
functions according to your need.
4. Press the [Startuitstel] (Delay) button.
5. Continue to press [Startuitstel] (Delay) to select the delay time.
6. After the [Start/Pauze] (Start/Pause) button is pressed, the dryer is in
operational mode.
7. If you press the [Start/Pauze] (Start/Pause) button again, the Delay
function will be paused.
8. If you wish to cancel the Delay function, please press the [Aan/Uit]
(On/Off) button.
The drying procedure will start automatically when the delay time is over.
When the Warm, Cool or Refresh programme is selected, the [Tijd] (Time)
button can be used to adjust the drying time in 10 minute increments.
Tijd (Time)
Use for adjusting the dryness level of the laundry.
The level has four grades.The drying time increases 5 minutes for every grade.
Intensiteit (Intensity)
1. The intensity function can be activated only before the programme
starts.
2. Press the [Intensiteit] (Intensity) button repeatedly to select the drying
time.
3. All programmes can be set with the [Intensiteit] (Intensity) function
except for the [Katoen strijkdroog ] (Cotton Iron), [Delicaat] (Delicate),
[Wol] (Wool), [Warm], [Koud] (Cool) and [Refresh] (Opfrissen)
programmes.
The lamp inside the drum will light up for about 3 minutes when the button is
pressed or 1 minute when the door is open.
Lamp

15
Sets the buzzer to on or off. In general condition, the buzzer is on. Press as
needed.
When the buzzer is on:
Signaal (Signal)
1. The dryer will make the leading sound if the extra function buttons
2. If the programme knob is rotated while the dryer is running, the dryer
will remind the operator that it is an invalid programme selection.
3. When the drying programme is done, the buzzer will beep to remind
the user.
At the end of the drying cycle, the anti-crease phase time is 30 minutes
(default) or 120 minutes (selected). This function prevents laundry from
creasing. The laundry can be removed during the anti-crease phase. All
programmes have this function except [Koud] (Cool), [Wol] (Wool) and
[Refresh] (Opfrissen).
Anti-kreuk (Anti-crease)
Used to dene and save your favorite programmes that are used frequently.
Favoriete cyclus (My cycle)
1. Use the programme knob to select the required programme and other
drying functions.
2. 2. Press and hold the button along with for 3 seconds until the
beep sounds and the desired programme has been saved.
3. When you turn the programme selector to the [Favoriete cyclus] (My
cycle) position, you can start your favorite programmes.
When you turn the programme selector to the [Favoriete cyclus] (My cycle)
position, you can start your favorite programmes.
【 ==== =】
Kinderbeveiliging (Child lock)
1. This machine incorporates a special child safety lock, which can
prevent children from carelessly pressing buttons or starting a faulty
operation.

16
To activate the Child Lock function, the [Anti-kreuk] (Anti-Crease) and [Signaal]
(Signal) buttons must be pressed at the same time for at least 3 seconds.
Delay start
Time
Child lock
Remaining time indicator/Error message
Cycle phase status
Clean lters (warning)
Empty water container (warning)
Dryness level (four grades)
Drum lamp indicator
Signal indicator
DISPLAY
/
/
2. While the dryer is in operational mode, press the [Anti-kreuk] (Anti-
Crease) and [Signaal] (Signal) buttons at the same time for at least 3
seconds to start the Child Lock function. When the Child Lock function
is set, the display will show the Child Lock icon and no button will
have an effect on the dryer except the [Aan/Uit] (On/Off) button.
/
Vol

17
Anti-crease mode
My cycle
The wool drying cycle of this machine has
been approved by The Woolmark Company for
the drying of machine dryable wool products
provided that the products are dried according
to the instructions on the garment label and those
issued by the manufacturer of this tumble dryer.
M1716
/
/
Programme selector
PROGRAMMES
1. Press the [Aan/Uit] (On/Off) button.When the LED display screen
lights up, rotate the programme knob to select the desired programme.
2. Select the [Startuitstel] (Delay) , [Tijd] (Time) , [Intensiteit] (Intensity) ,
[Anti-kreuk] (Anti-Crease) or [Signaal] (Signal) functions for additional
options.
3. Press the [Start/Pauze] (Start/Pause) button.
Programme start
The drum will begin to rotate after the programme starts. The status light in
the display area will ash in sequence, and the displayed remaining time will
change automatically.
Programme end
1. The drum will stop running after the programme ends. The display
will show “0:00”, and the “End” status signal and related light will
illuminate. The dryer will start the [Anti-kreuk] (Anti-Crease) function if
the user does not remove the load in time (see page 16). Please press
the [Aan/Uit] (On/Off) button to cut power and pull the plug.
2. Resolve problems using the “Malfunction display and solutions” section
if there is an unexpected stop during the drying procedure and the
dryer shows information (see page 24).

18
Katoen
8,0
kg
9,0
kg
Extra droog To dry cotton articles of clothing.
Drying level: extra dry.
Kast droog To dry cotton articles of clothing.
Drying level: cupboard dry.
Strijkdroog To dry cotton articles of clothing.
Drying level: iron-ready.
PROGRAMME APPLICATION/
PROPERTIES
WEIGHT
(MAX)
DELAY TIME
Yes No
Yes No
For cottons and colours made of cotton or linen.
Delicaat 1,0
kg
1,0
kg
To dry delicate laundry that is suitable
for drying or laundry which is advised
to be hand-washed at a lower
temperature.
Gemengde
was
3,5
kg
3,5
kg
If you cannot determine the clothing
material, please choose mix.
Yes No
Yes No
Synthetisch
3,5
kg
3,5
kg
Extra droog To dry thick or multi-layered synthetic
fabrics. Drying level: extra dry.
Kast droog To dry thin synthetic fabrics which are
not ironed, such as easy-care shirts,
table linen, baby clothes, socks.
Yes No
For non-ironed laundry made of synthetic and blended fabrics, cotton.
Wol 1,0
kg
1,0
kg
For uffy and fresh wool clothing
(cannot be used for drying).
To dry a few articles of machine
washable clothing.
Yes No
Yes Yes
Yes No
Speciek
programma
Jeans /
Anti-bacterieel
4,0
kg
4,5
kg
To dry jeans or leisure clothes that are
spun at high speeds in the washing
machine.
Beddengoed 4,0
kg
4,5
kg
To dry sheets or other large sized
textiles.
Sportkleding 3,0
kg
3,0
kg
To dry sportswear, thin fabrics or
polyester, which are not ironed.
Overhemden 3,0
kg
1,0
kg
For easy care clothes such as shirts
and blouses with anti-creasing fabrics
for minimum ironing effort. Place
clothes loosely in the dryer. Once dry,
hang them on clothes hangers.
Favoriete
cyclus
- - Dene and save your favorite
programme.
Yes -
Drying Programme Table
8 kg 9 kg

19
Yes Yes
Tijd
Warm - - To warm clothes from a minimum of 10
min. to a maximum of 120 min. (in 10
min. increments).
Koud - - To air clothes without heating from a
minimum of 10 min. to a maximum of
30 min. (in 10 min. increments).
Opfrissen 1,0
kg
1,0
kg
To refresh clothes that have been kept
in closed environments for a long
time from a minimum of 20 min. to
a maximum of 150 min. (in 10 min.
increments).
Opmerking
Consumption Data
•This symbol indicates the energy efciency test programme
“standard cotton programme”, which is in accordance with
Regulation 392/2012/EU, measured in accordance with EN
61121 and suitable for drying normal cotton loads at the rated
load capacity.
•Thick or multi-layered fabrics, e.g. bed linens, jeans, jackets, etc.
are not easy to dry. It is advisable to choose the Cotton Extra
programme or use the “Intensity” function (see to page 16).
•As uneven materials, thick and multi-layered clothes are not easy
to dry, it is advisable to choose the appropriate time drying
programme to dry them if some parts of the clothes are still damp
after the programme nishes.
“For uffy and fresh wool clothing (cannot be used for drying)” is
applied to VPWD 101 & VPWD301.
“To dry few wool clothes” is applied to VPWD101 & VPWD301.
All data was measured in accordance with EN 61121.
The actual consumption may differ from the values given in the
table, depending on the amount of the laundry, type of fabric,
residual moisture and any functions selected.
2
1
3
