Electrolux TWSL6IE300 User manual

TWSL6IE300
EN Tumble Dryer User Manual 2
DE Wäschetrockner Benutzerinformation 36

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................6
3. PRODUCT DESCRIPTION................................................................................ 8
4. CONTROL PANEL............................................................................................. 9
5. FIRST TIME START-UP.....................................................................................9
6. USING THE TOUCH SCREEN........................................................................ 11
7. WI-FI - CONNECTIVITY SETUP................................................................ 12
8. BEFORE FIRST USE....................................................................................... 14
9. PROGRAMMES............................................................................................... 14
10. OPTIONS........................................................................................................17
11. DAILY USE..................................................................................................... 18
12. MACHINE SETTINGS.................................................................................... 22
13. HINTS AND TIPS........................................................................................... 24
14. CARE AND CLEANING..................................................................................25
15. TROUBLESHOOTING....................................................................................27
16. TECHNICAL DATA.........................................................................................30
17. ACCESSORIES..............................................................................................32
18. QUICK GUIDE................................................................................................33
19. GUARANTEE ................................................................................................ 35
GET IT ON
electrolux.com/app
www.electrolux.com2

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
ENGLISH 3

•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specified in the instructions, supplied with
the accessory. Read it carefully before installation
(Refer to the Installation leaflet).
•The appliance can be installed as freestanding or
below the kitchen counter with correct space (Refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully opened.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
www.electrolux.com4

•WARNING: The appliance must not be supplied
through an external switching device, such as timer, or
connected to a circuit that is regularly switched on and
off by a utility.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•Ensure good air ventilation in the located room to
avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including
open fires.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
ENGLISH 5

•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be less
than 5°C or higher than 35°C.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when being moved.
• The rear surface of the appliance
must be put against the wall.
• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
tumble dryer.
www.electrolux.com6

2.4 Internal light
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• The LED lamp is dedicated to drum
lighting. This lamp cannot be reused
for other lighting purposes.
• To replace the internal light, contact
the Authorised Service Centre.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• To prevent damage to the cooling
system be careful when you clean the
appliance.
2.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
ENGLISH 7

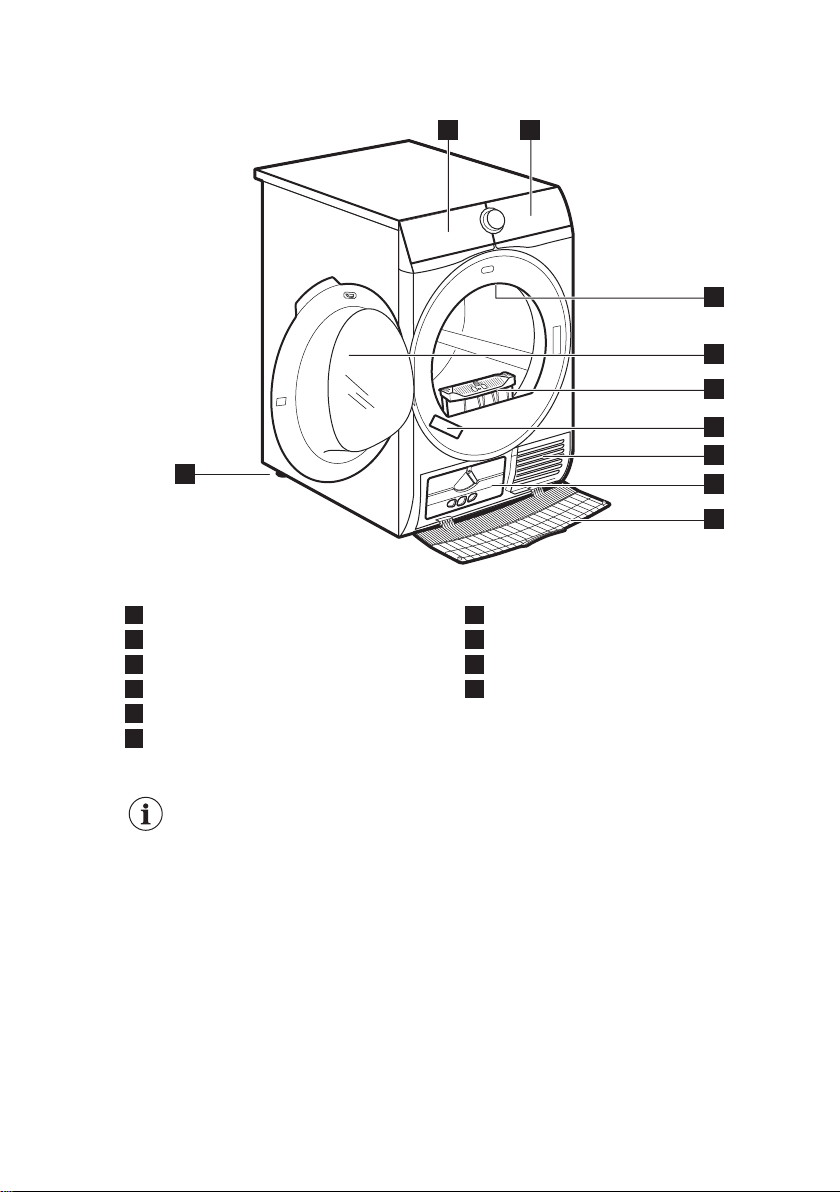

3. PRODUCT DESCRIPTION
1 2
8
3
4
5
6
7
10
9
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6Rating plate
7Airflow slots
8Condenser lid
9Condenser cover
10 Adjustable feet
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
www.electrolux.com8

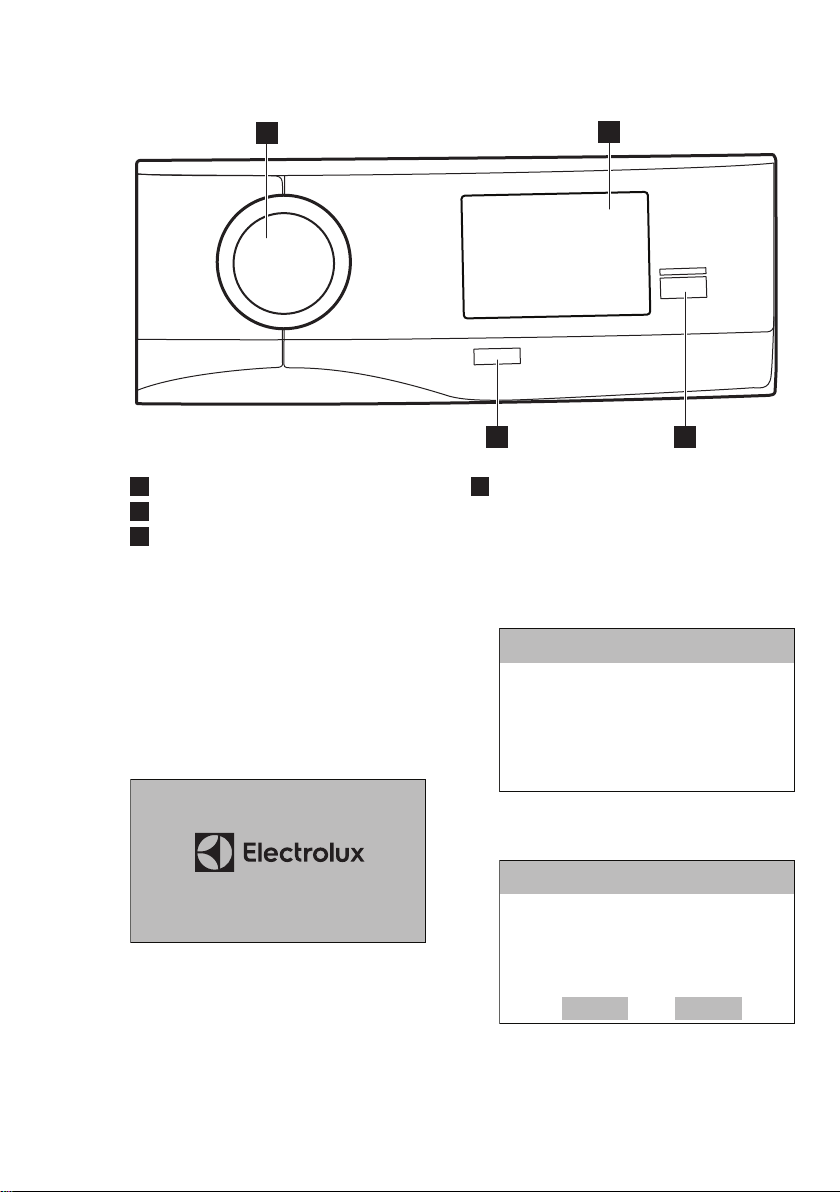

4. CONTROL PANEL
2
4 3
1
1Program dial
2Touch screen
3Start/Pause button
4On/Off button with
Auto Off function
5. FIRST TIME START-UP
When you turn on your dryer for the first
time, the Start-up Screen (shows the
Electrolux logo and the time ) appears on
the touch screen and plays each time
you turn on the dryer.
After the animation plays, you are guided
through the initial setup procedure.
13.45
5.1 Language setup
1. Scroll the list of languages up or
down to find the language you want
to use and press it.

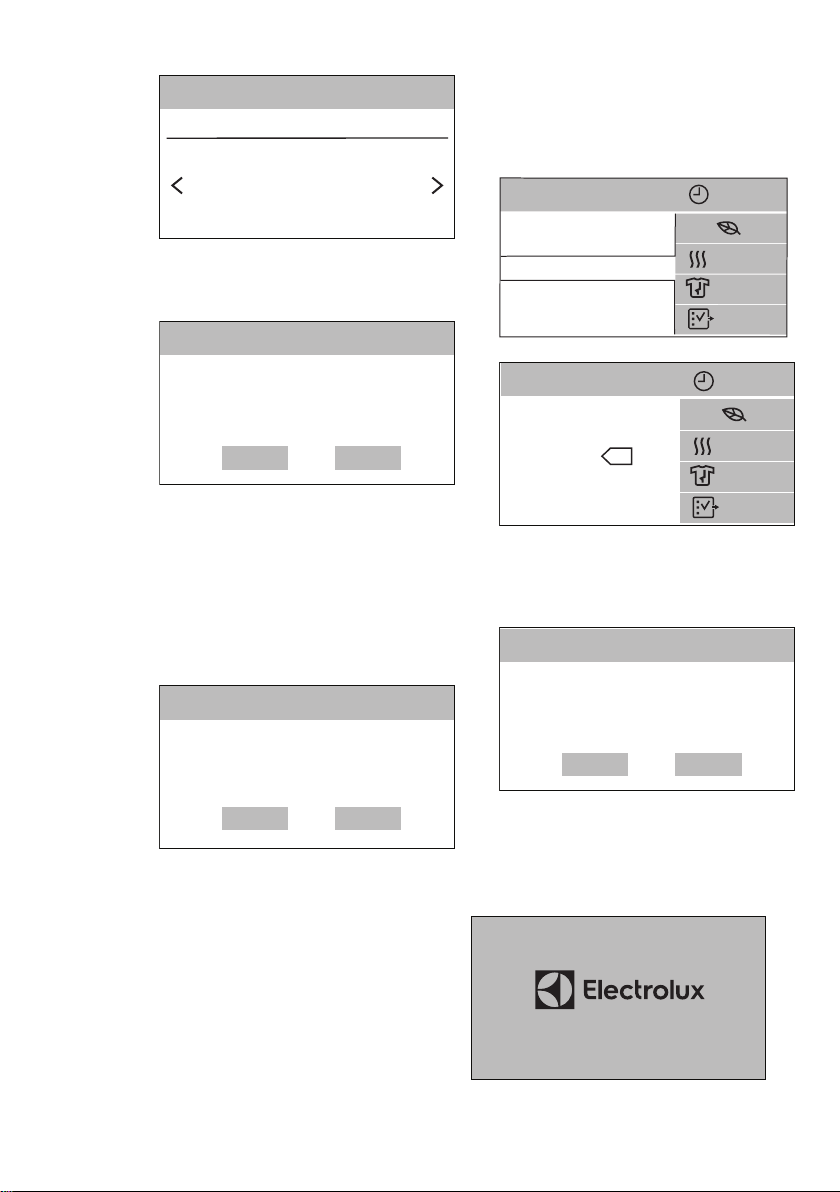

English
Deutch
Svenska
Italiano
Francais FR
IT
EN
DE
SV
Language1/4
2. To accept the language tap on OK, if
you want to change it tap onChange.
English
You’ve chosen:
Language2/4
Change OK
ENGLISH 9

5.2 Time setup
1. Scroll the bar of hours and minutes to
the right or left to set the current time.
0124 02
0159 00
Clock 01:00
h
min
Clock3/4
2. To select the time tap on the clock
bar.
0124 02
0159 00
Clock 01:00
h
min
Clock3/4
3. To accept the time tap on OK, if you
want to change it tap onChange.
18:45
Current time:
Clock4/4
Change OK
5.3 More Settings
After you accept the current time, the
More Settings screen pop-up.
More settings to get the best results
from this machine will follow. Set
them now or later?
More Settings
Cancel OK
If you tap on Cancel, the program list
appears and in a few seconds it will
change in to the summary screen. The
dryer is ready to use.
Cottons
Machine Settings
Refresh
Synthetics
Mixed
1h50min
Cupb.
30min
More
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More
If you tap on OK, proceed to next
settings.
Water Hardness
1. For optimal performance set the
water hardness by pressing Change
or press OK to leave the default
Medium water hardness.
For optimal performance set what
kind of water you have; soft, medium
or hard. Keep medium?
Water Hardness1/2
Change OK
2. To change default value scroll the
bar to the right or left, to set the water
hardness: Hard, Medium or Soft.
Medium
MedWater Hardness
Water Hardness1/2
3. To select the value press the Water
Hardness bar.
www.electrolux.com10

Soft
SoftWater Hardness
2/2 Water Hardness
4. To accept the water hardness level
press OK, if you want to change it
press Change.
Soft
Your water hardness level is:
Water Hardness1/2
Change OK
Water Tank Warning
1. If the external kit for water discharge
is installed (additional accessory), the
appliance automatically drains the
water from the water tank. In this
condition you are able to deactivate
the warnings of the water tank.
If external kit for water discharge is
setup you can choose to disable the
warnings of full water tank. Keep
warning?
Water Tank Warning2/2
Change OK
If you press OK, the warnings of full
water tank is still enabled. The
program list appears and in a few
seconds it will change in to the
summary screen.
Cottons
Machine Settings
Refresh
Synthetics
Mixed
1h50min
Cupb.
30min
More
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More
If you press Change, proceed to next
step.
2. To confirm that the Full water tank
warning is disabled press OK, if you
want to change it press Change.
Full water tank warn-
ing is turned off
Water Tank Warning2/2
Change OK
6. USING THE TOUCH SCREEN
Every time you turn on your dryer, the
Start-up Screen (shows the logo and the
time ) appears on the touch screen.
13.45
ENGLISH 11

After the Start-up animation plays, the
program summary screen appears on the
touch screen.
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More

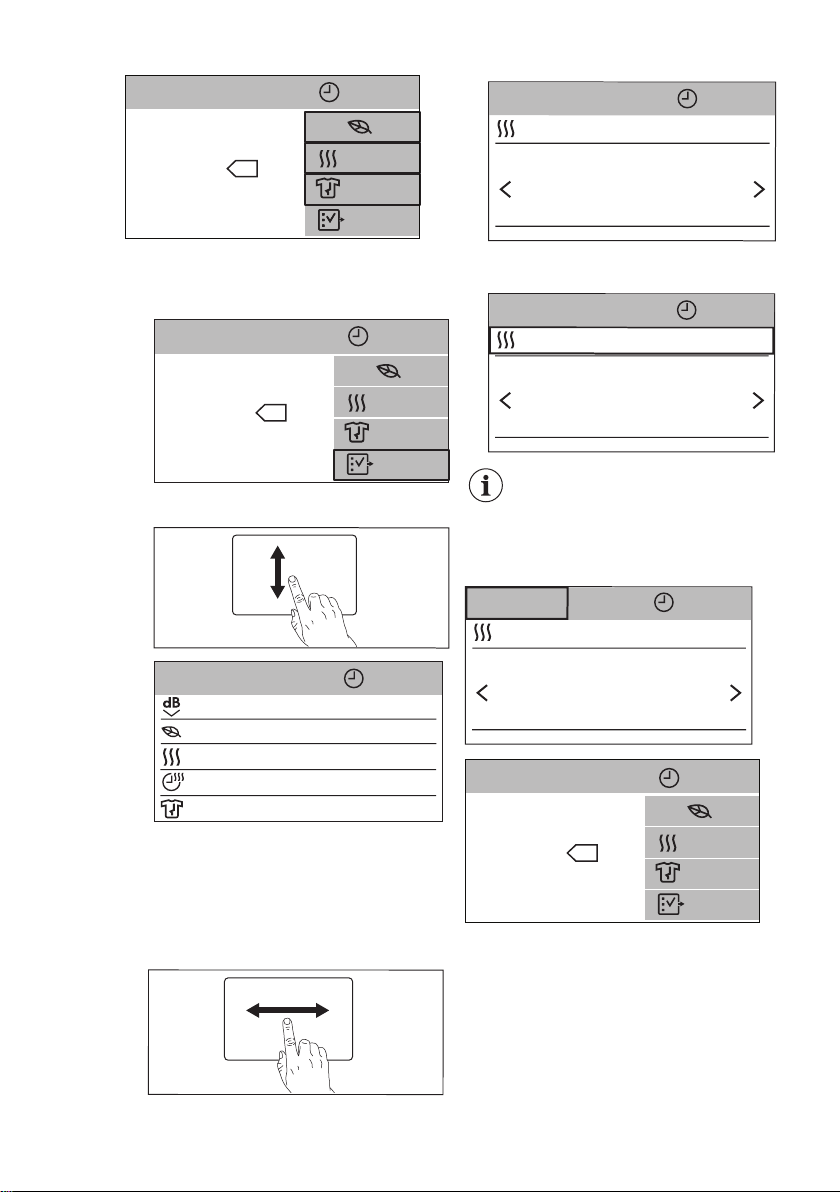

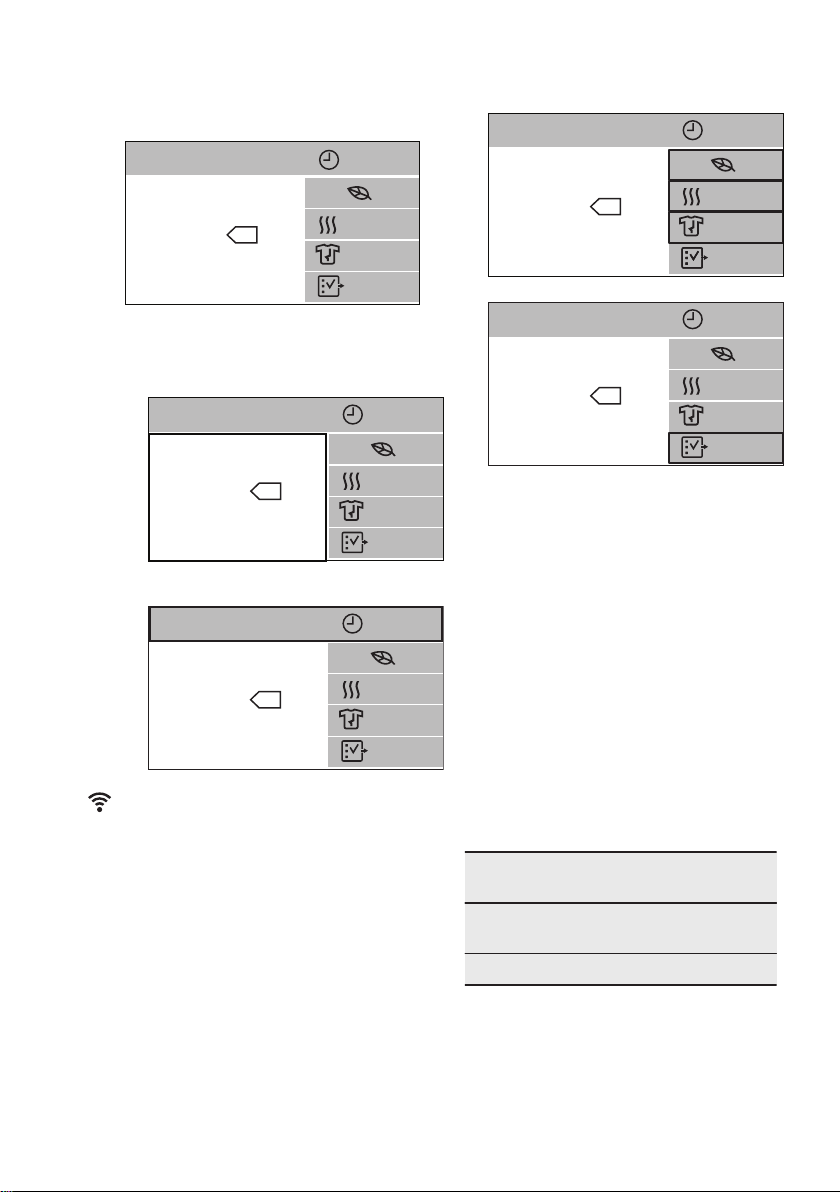

The Summary Screen is divided into four
areas, where you can find:
• Max weight for cycle, program name,
dryness level.
Cottons
Max 8kg
Cupboard
1h50min
Cupb.
30min
More
• Time to end of the program or time
delay (if selected).
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More
• The currently selected options for the
selected cycle.
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More
• More options.
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More

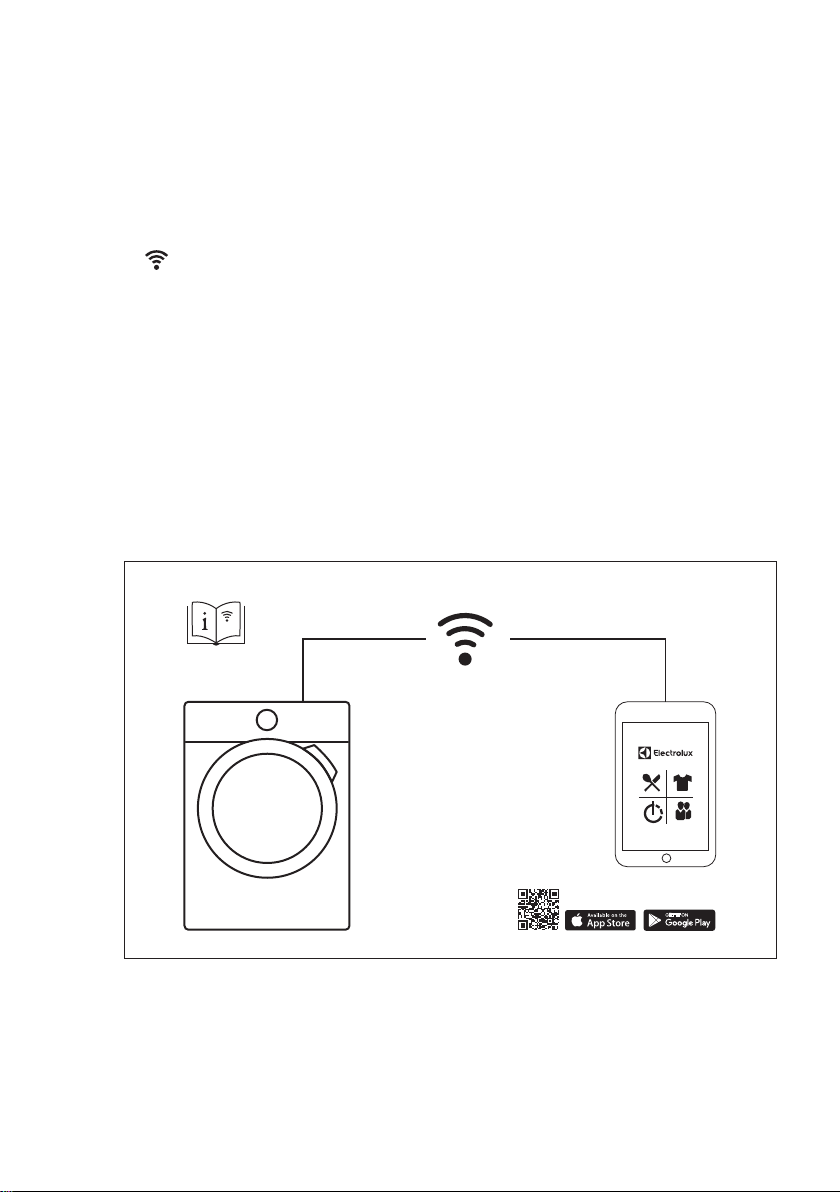

7. WI-FI - CONNECTIVITY SETUP
This chapter describes how to connect
the smart appliance to the Wi-Fi network
and to link it to a mobile devices.
By this functionality you can receive
notifications, monitor and control your
tumble dryer from your mobile devices.
To connect the appliance to enjoy the full
range of features and services you need:
• Wireless network at home with
internet connection enabled.
• Mobile device connected to wireless
network.
Frequency 2.412 - 2.472 GHz for
European market
Protocol IEEE 802.11b/g/n two
stream radio
Max power < 20dBm
www.electrolux.com12

7.1 Installing and configuring
"My Electrolux"
When connecting the tumble dryer to the
application, stand near it with Your smart
device.
Make sure that your smart device is
connected to the wireless network.
1. Go to the App Store on your smart
device.
2. Download and install App "My
Electrolux" .
3. Make sure you started a Wi-fi
connection in the dryer. If not go to
the section below.
4. Start the application. Select the
country and language and login with
Your email and password. If you do
not have an account, create a new
one following the instructions in "My
Electrolux".
5. Follow the instructions on the App for
the appliance registration and
configuration.
A message appears on the appliance
display to confirm that the configuration
was successful.
7.2 Configuring the dryer
wireless connection
Have "My Electrolux" downloaded and
installed on your smart device.
1. Tap on the Wi-Fi bar to switch the
connection on .
A pop-up message will appear, the icon
starts flashing and wireless module
begins starting up. It may take about 2
minute before it is ready.
Starting up
This might take up to 2 minutes.
Have your app ready
Wi-Fi
Cancel
When the wireless module is ready, pop-
up message will appear to inform you,
that the access point will be open for
about 3 minute.
Trying to connect to your
Access point will be open for 3
minutes.
Wi-Fi
Cancel
2. Configure the "My Electrolux" app on
your smart device.
3. If the connectivity is configured, a
message appears on the dryer
display to confirm that the
configuration was successful.
Connected!
Signal strenght is good, 4/5
Wi-Fi
OK
4. Tap on OK to get back to the
machine settings list.
7.3 Remote Start Mode
You can start and stop a drying
programme remotely.
When the App is installed and the
wireless connection is complete, the
Remote Start Mode option will appear
among the available options.
To activate the remote start:
1. In the programme summery screen,
tap More to enter the option list.
2. Tap on Remote Start Mode bar (ON
status).
The following message pops up:
Cancel
Please press Start
To activate Remote Start Mode
Remote Start Mode
<Back
3. Press the Start/Pause button to
activate the Remote Start Mode.
ENGLISH 13

The indicator appears on the
programme summary screen. If the door is open, the
Remote Start Mode is
deactivated.
8. BEFORE FIRST USE
Rear drum packaging is
removed automatically when
dryer is activated for the first
time. Possible to hear some
noise.
Before you use the appliance for the first
time:
• Clean the tumble dryer drum with a
moist cloth.
• Start a short programme (e.g. 30
minutes) with moist laundry.
At the beginning of the
drying cycle (first 3-5 min)
there could be a slightly
higher sound level. This is
due to the compressor
starting up. This is normal
for compressor powered
appliances such as
refrigerators and freezers.
9. PROGRAMMES
Programmes Load 1) Properties / Fabric mark
2)
Cottons 8 kg Cotton fabrics. /
Synthetics 3,5 kg Synthetic and mixed fabrics. /
www.electrolux.com14

Programmes Load 1) Properties / Fabric mark

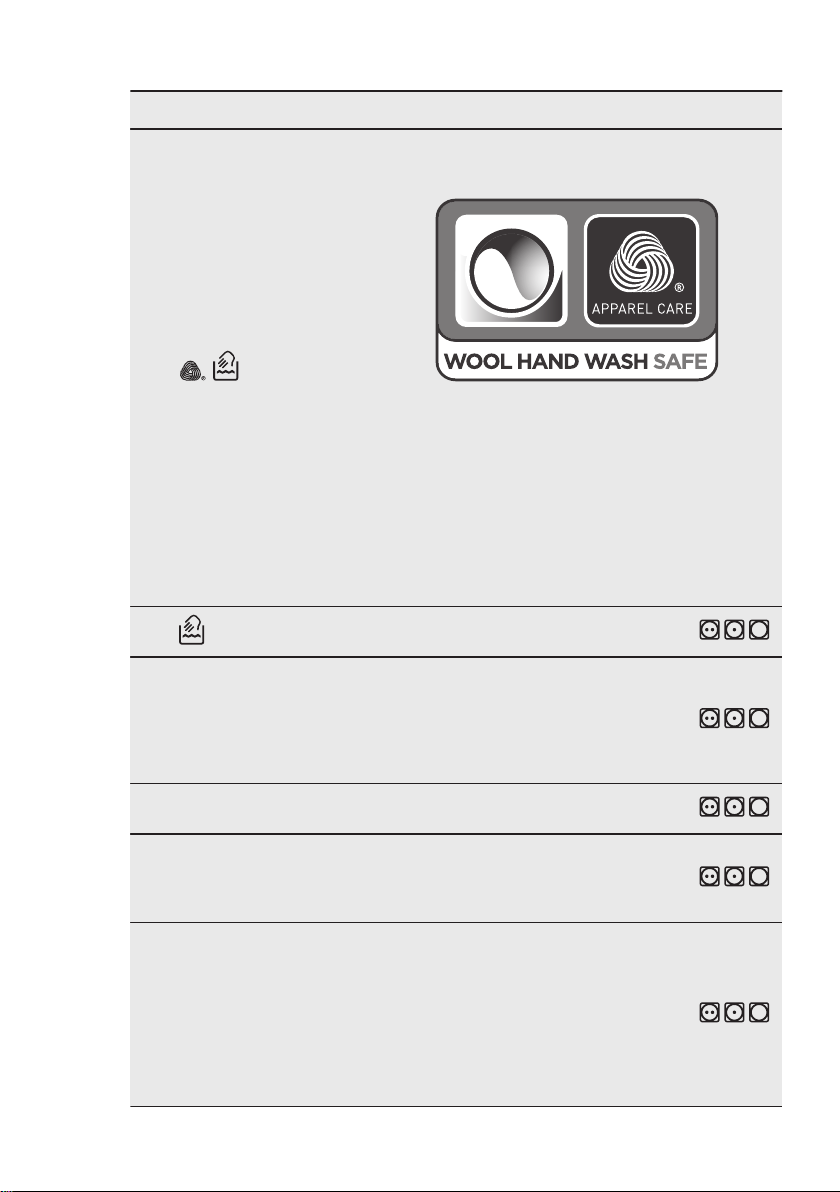

Wool 1 kg
Woollen fabrics. Gentle drying for hand-wash‐
able woollens. Remove items immediately
when the programme is completed.
The wool drying cycle of this machine has
been approved by The Woolmark Company
for the drying of machine washable wool
products provided that the products are wash‐
ed and dried according to the instructions on
the garment label and those issued by the
manufacturer of this machine. M1641. In UK,
Eire, Hong Kong and India the Woolmark
symbol is a certification trademark.
The Woolmark symbol is a Certification mark
in many countries.
Silks 1 kg Gentle drying of hand-washable
silks. /
Outdoor 2 kg
Outdoor clothing, technical,
sports fabrics, waterproof and
breathable jackets, shell jackets
with a removable fleece or inner
insulation. Suitable for drying in
tumble dryer.
/
Sports 2 kg Sportswear, thin and light fab‐
rics, microfiber, polyester. /
Jeans 8 kg
Leisure clothing such as jeans,
sweat-shirts of different material
thicknesses (e.g. at the neck,
cuffs and seams).
/
Business Shirts 1,5kg (or 7
shirts)/
Easy care fabrics for which a
minimum of ironing is necessary.
The drying results can be differ‐
ent from one type of fabric to the
other. Shake the items before
you put them in the appliance.
When the programme is comple‐
ted, Immediately remove the
items and put them on a hanger.
/
ENGLISH 15

Programmes Load 1) Properties / Fabric mark
Refresh 1kg Refreshing textiles that were in storage.
Easy Iron 1 kg (or 5
shirts)
Easy care fabrics for which a minimum of
ironing is necessary. The drying results can
be different from one type of fabric to another.
Shake the items before putting them in the
appliance. When the programme has ended,
immediately remove the items and put them
on a hanger.
/
Duvet 3 kg
Single or double duvets and pil‐
lows (with feather, down or syn‐
thetic fillings). /
Bed Linen 3 kg
Bed linen such as single and
double sheets, pillowcases, du‐
vet cover. /
Mixed 3 kg Cotton and synthetic fabrics. /
1) The maximum weight refers to dry items.
2) The Cottons programme in combination with the
cupboard dry Dryness Level selec‐
tion is the “Standard cotton programme”. It is suitable for drying normal wet cotton laundry
and it is the most efficient programme in terms of energy consumption for drying wet cotton
laundry.
9.1 Programs and options selection
Options
Programs 1) Extra
Silent Eco
Dry‐
ness
Level
Time
Dry
Anti-
crease Load
Cottons
Synthetics
Wool
Silks
Outdoor
Sports
Jeans
www.electrolux.com16

Options
Programs 1) Extra
Silent Eco
Dry‐
ness
Level
Time
Dry
Anti-
crease Load
Business
Shirts
Refresh
Easy Iron
Duvet
Bed Linen
Mixed
1) Together with the program you can set 1 or more options.
10. OPTIONS
10.1 Extra Silent
The appliance operates with low noise
without effect on the drying quality. The
appliance operates slowly with longer
cycle time.
10.2 Eco
This option is on by default with all
programs.
The power consumption is at the
minimum level.
10.3 Dryness Level
This function helps to get the laundry
more dried. There are 4 possible
selections:
• Extra Dry
• Cupboard Dry+ (for Cotton only)
• Cupboard Dry
• Iron Dry
10.4 Time Dry
For cottons, synthetics and mixed. Lets
the user to set drying time from minimum
10 min to maximum of 2 hours (in 10 min
steps). When this option is maximum,
load indicator disappears.
10.5 Anti-crease
Extends up to 120 minutes the
anticrease phase (30 minutes) at the end
of the drying cycle. After drying phase
drum rotates time to time what prevents
the clothes from creases. Laundry can
be removed during the anti-crease
phase.
10.6 Load
This option is applicable only to the Wool
programme to get laundry more dried.
There are 3 possible selections:
• Heavy
• Normal
• Light
10.7 Delay Start
Lets to delay the start of a
drying program from
minimum of 10 minutes to
maximum of 24 hours.
1. Set the drying program and options.
2. In the option menu tap on the Delay
Start bar to enter the submenu.
ENGLISH 17

3. Scroll left or right the hour and
minute bars to set the desired delay
start.
4. To activate Delay Start option, touch
the Start/Pause button.
After touching the Start/Pause button,
the appliance begins the countdown.
Cottons
Finished at 1:24 tomorrow
Starts in
10h30min
Reset
Any time you can stop the
countdown of the delay time
by pressing the Reset
button.
10.8 Memory
Lets you memorise up to 2 of your
favorite configurations of programmes
and options in the appliance memory.
After memorising configurations you are
able to choose them from the program
list.
Your favorite configurations are marked
in the program list as M1 and M2.
11. DAILY USE
11.1 Preparing the laundry
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn items with internal layer made of
cotton inside out. Cotton layer must
be faced outward.
• Always set the programme suitable
for the type of laundry.
• Do not put light and dark colours
together.
• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in programmes chapter or
shown on the display.
• Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.

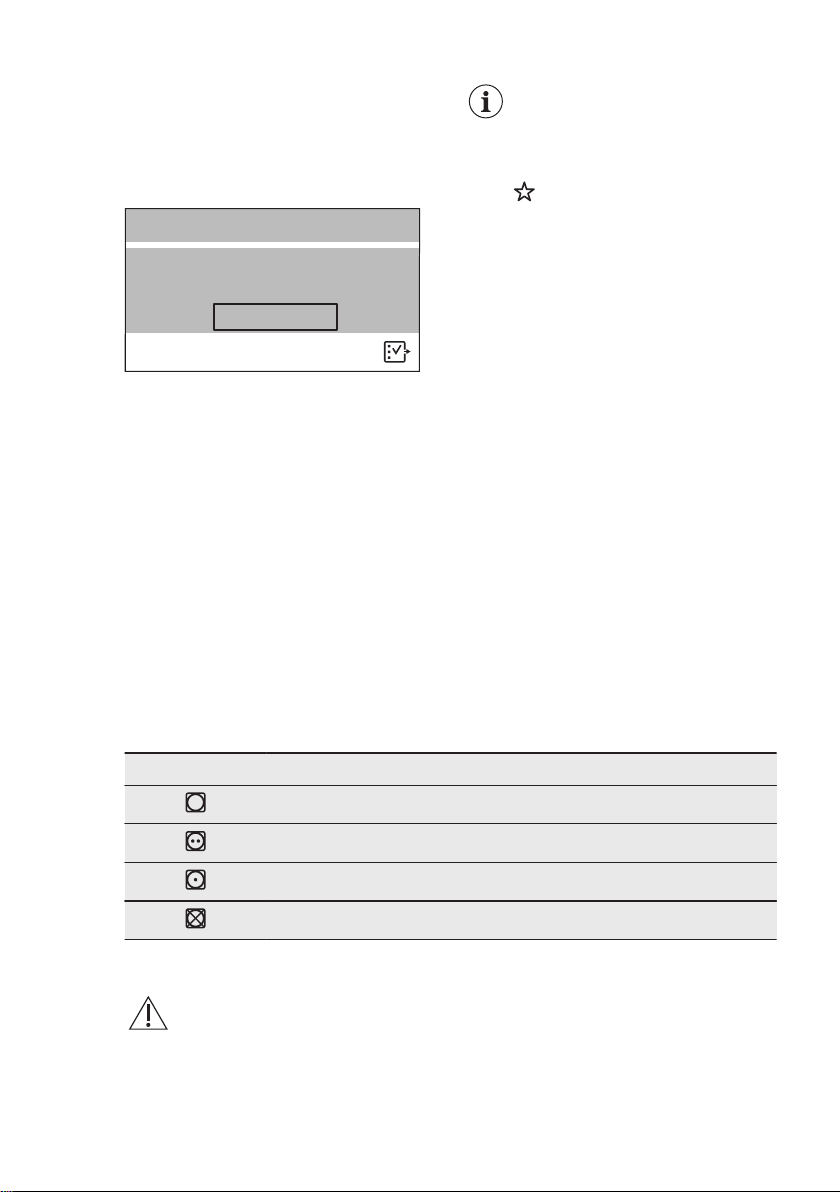

Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
11.2 Loading the laundry
CAUTION!
Ensure the laundry is not
trapped between the
appliance door and rubber
seal.
1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.
www.electrolux.com18

11.3 Turning on the appliance
To turn on the appliance:
Push the On/Off button.
If the appliance is on the display lights
up.
11.4 Auto Off function
To decrease the energy consumption,
the Auto Off function turns off the
appliance automatically:
• if no selection was done in the last 5
minutes.
• after 5 minutes from the program end.
Push the On/Off button to turn on the
appliance.
If the appliance is on the display lights
up.
11.5 Setting a program
• Use the program dial to set the
program.
Cottons
Machine Settings
Refresh
Synthetics
Mixed
1h50min
Cupb.
30min
More
• You can also set the program, by
using the touch screen.
If the summary screen is on, tap on it
once to see the program list.
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More
Scroll the program list up or down to
set the program.
Cottons
Machine Settings
Refresh
Synthetics
Mixed
1h50min
Cupb.
30min
More
The possible time to complete the
program comes into the time bar.
The drying time you see is
related to the load of 5 kg for
cotton program. For the
other programs the drying
time is related to the
recommended loads. The
drying time of the cotton
program with the load more
than 5 kg is longer.
11.6 Options
Together with the program you can set 1
or more special options.
If you want to change the parameters of
the options currently selected, tap on the
option you want to edit.
ENGLISH 19

Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More
To select additional options:
1. Tap on More to see list of the options
dedicated for the selected program.
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More
2. Scroll the options list up or down to
browse it.
30min
00h00min
Cup.
ON
OFF
Dryness Level
Eco
Extra silent
Dry Time
Anti-crease
1h50min
<Cottons
3. Tap the option to select it.
There are two types of options:
• with the status ON or OFF (eg. Eco).
• with the editable parameters (eg.
Dryness Level).
To change the parameter scroll the
parameter bar to the right or left.
Cupb.
Dryness Level
Cupb.
1h50min
<Cottons
Tap on the previously selected option
to go back to the option list.
Cupb.
Dryness Level
Cupb.
1h50min
<Cottons
Any time, you can get
directly to the summary
screen, if you tap on left part
of the top bar with the name
of the program.
Cupb.
Dryness Level
Cupb.
1h50min
<Cottons
Cottons
Max 8kg
1h50min
Cupboard
Cupb.
30min
More
www.electrolux.com20
