VERITAS 05J67.01 User manual

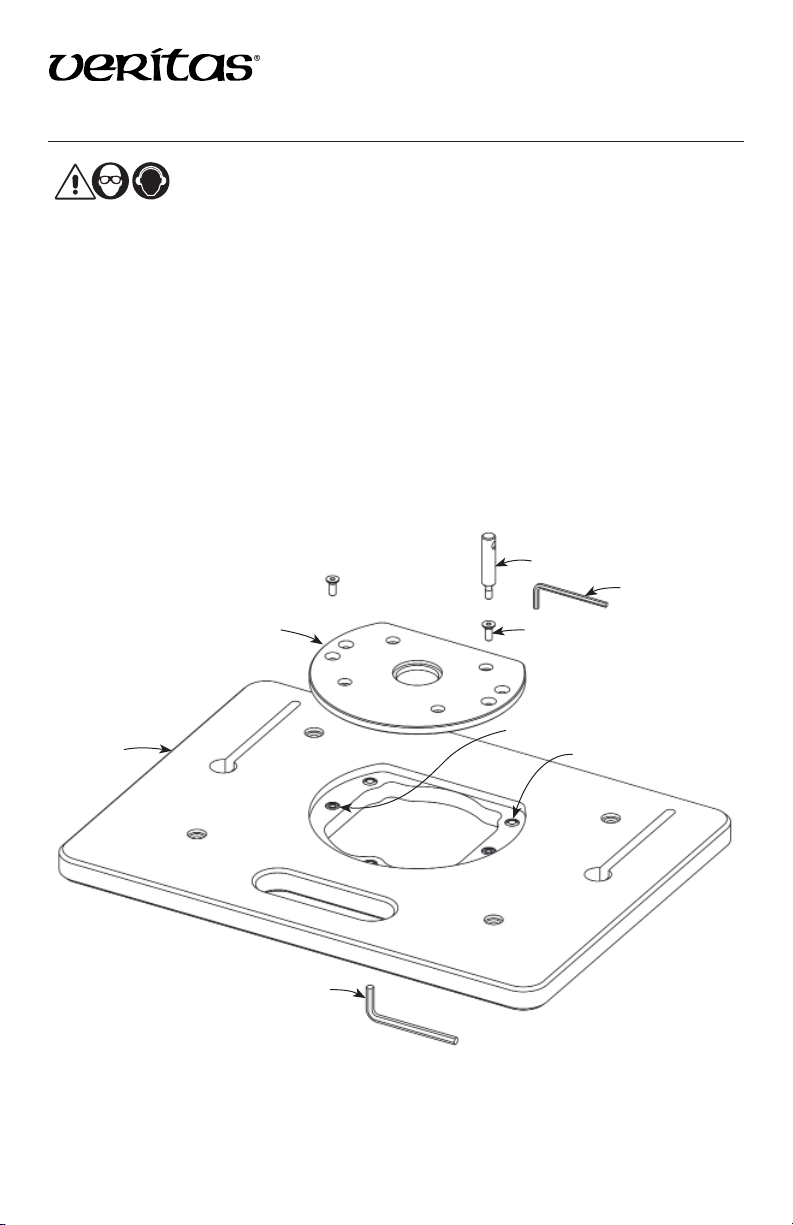

Figure 1: Components of the table top for compact routers.
Pivot Post
Anchor Screws (2)
Router Plate
(not included)
Black Levelling Screws (3)
Top
1/8"Hex Key
3/16"Hex Key
Threaded Levelling Screws (2)
Table Top for Compact Routers 05J67.01
Caution: To use this product safely, always follow the safety
instructions that came with your power tool. As with any power
tool accessory, always wear eye protection and hearing protection. Blades are
extremely sharp; handle with care.
This table top accepts our acrylic base plates for compact routers*. Clamped to
the edge of a workbench or a sawhorse, this table top becomes a simple, fast
solution for routing grooves, chamfers or round overs with a compact router.
The 111/2"× 151/2"top is constructed of 18 mm Baltic birch plywood with
a light-gray laminate surface for smooth workpiece travel. It has a machined
opening for a 6"diameter base plate (not included), an integral carrying handle
and fence slots. Five levelling screws, two anchor screws, and a removable pivot
post are included.
While this table top can be used on its own, a base and a fence are available
separately to offer the same utility as that of a small-scale router table system.
*Pre-drilled base plates are available for these compact routers: 05J66.01 for Bosch Colt™PR20EVS,
05J66.02 for DeWalt®DWP611 and Porter-Cable®450, 05J66.03 for Ridgid®R2401, and 05J66.05
for Makita® RT0701C. A blank base plate (05J66.09) is also available for drilling the hole pattern to
suit other compact routers.

Top Plate
Levelling Screw
Figure 2: Adjusting the levelling screws.
Veritas Tools Inc. Ottawa ON K2H 1C2 Canada veritastools.com
© Veritas Tools Inc. 2020 974 INS-743_B
4. Secure the base plate to the table top with the two anchor screws
(10-32 × 1/2"flat-head screws) with the included 1/8"hex key.
Tip: This step is optional, but having the base plate secured to the table
top lets you move the top and compact router set-up as one unit.
5. For better control when freehand routing, install the pivot post (or starter pin)
on the infeed side, in place of the right-hand anchor screw.
Accessories
05J66.01 Base Plate for Bosch Colt™ PR20EVS Compact Router
05J66.02 Base Plate for DeWalt®DWP611/Porter-Cable®450 Compact Router
05J66.03 Base Plate for Ridgid®R2401 Compact Router
05J66.05 Base Plate for Makita® RT0701C Compact Router
05J66.09 Blank Base Plate for Compact Routers
05J66.30 1/8"Insert
05J66.32 1/4"Insert
05J66.34 3/8"Insert
05J66.36 1/2"Insert
05J66.50 13/16"Threaded Ring Nut
05J67.02 Base for Table Top for Compact Routers
05J67.05 Fence for Table Top for Compact Routers
Installation
1. Place the base plate in the machined opening.
2. Adjust the three black levelling screws (from the underside of the table top)
with the included 3/16"hex key, as required to bring the base plate flush with
the laminate surface.
3. Adjust the two stainless-steel threaded levelling screws (from the underside
of the table top) with the 3/16"hex key, such that they are just in contact with
the underside of the plate.
