Overview

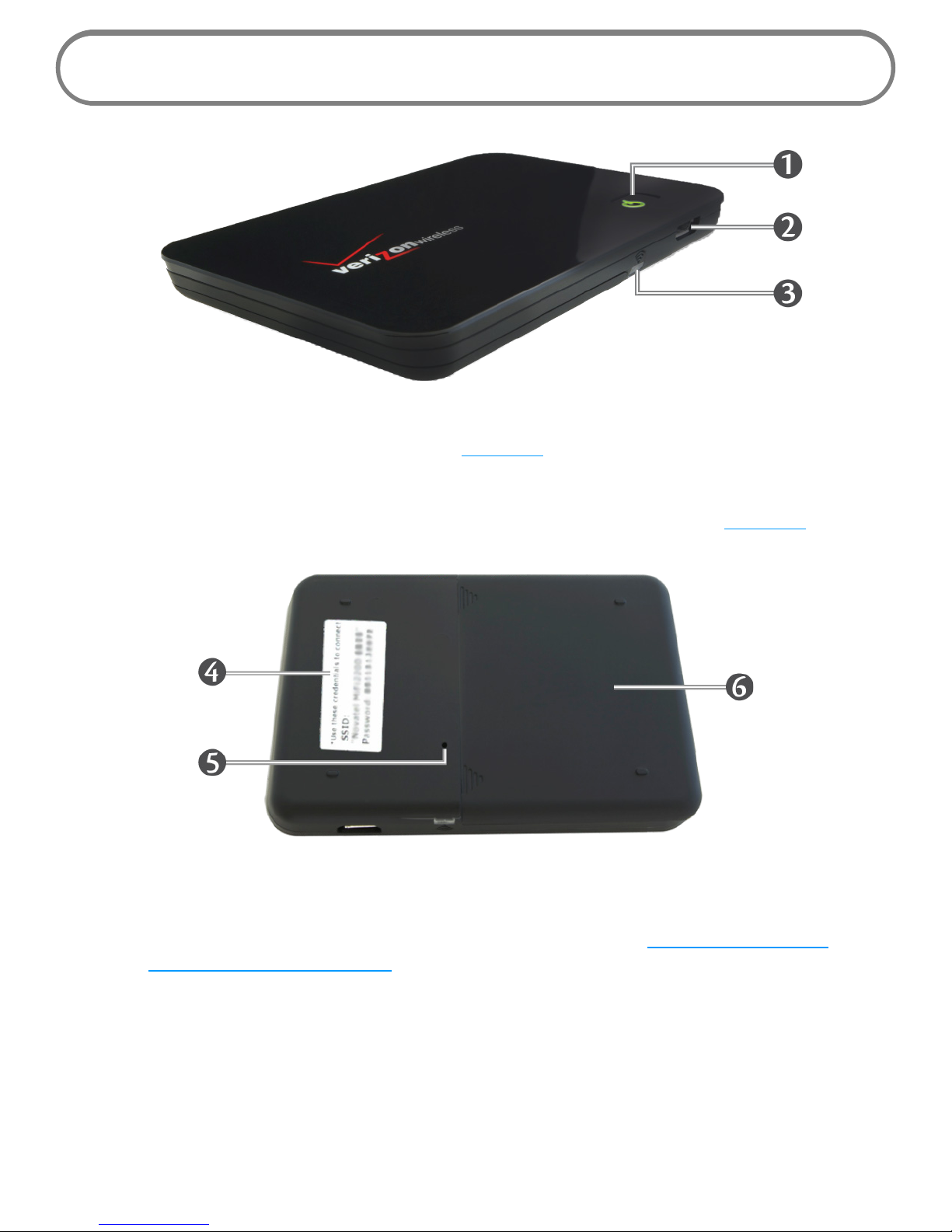

Components
Power Management
Caring for Your Device
Getting Started
1

2
Overview
Congratulations on your purchase of the Verizon Wireless MiFi 2200 Intelligent Mobile Hotspot for
Mobile Broadband and Wi-Fi!
This device operates over high-speed Mobile Broadband and NationalAccess networks in the
800/1900 bands and Wi-Fi, enabling you to connect at high speeds to the Internet, your corporate
Intranet, Wi-Fi enabled devices, and access your email virtually anywhere!
The MiFi2200 device is an Intelligent Mobile Hotspot, empowering you with high-speed data access
on the Verizon Wireless Mobile Broadband wireless data network as well as Wi-Fi connectivity.
Features
•Connect to High-Speed Wireless Data (Mobile Broadband and NationalAccess)
•Benefit from Wi-Fi Connectivity
•Choose between Two Operating Modes: Mobile Broadband with USB Cable or Wi-Fi
NOTE See “System Requirements” on page 3 for a complete list of supported operating systems.
•Manage Wireless Network Activity – MiFi Settings
•MiFi Settings is an easy-to-use web-based interface that allows you to manage, monitor,
and customize your Wi-Fi and Mobile Broadband connection when the device is in Wi-Fi
mode.
•Advanced embedded antenna design
•VPN capability
•Auto connectivity options
•2-Way Short Messaging Service (SMS) (Mobile Broadband only)
•NDIS configuration

3
Package Contents
The Verizon Wireless MiFi2200 package includes:
•Verizon Wireless MiFi2200 device
•AC wall charger
•Lithium-ion battery
•Storage pouch
•microUSB cable
•Quick reference guide
•Modem drivers included on the device (no CD required)
System Requirements
To install the software and use the MiFi2200 device in USB Cable mode, your computer must meet
the following requirements.
•Supported operating systems (USB Cable mode only)
•Windows® 2000, XP (SP2 or higher), Vista, 7
NOTE Windows 2000 SP3 and SP4, Windows XP SP1 require specific OS patches.
For details go to www.vzam.net.
•Mac OS® X v10.4 or higher
•Internet browser software. For example: Microsoft Internet Explorer 6.0 or higher, Firefox,
Safari, Opera, Chrome
•Modem drivers included on the device (no CD required)
•USB port: Type A, v1.1 supported; v2.0 high speed recommended
•Wi-Fi (802.11b or higher)
•Hard drive: 100 MB free hard disk space
•Memory (RAM): 128 MB
If you want to use Wi-Fi mode only, your computer needs Wi-Fi and Internet browser software only.
Your device must have Verizon Wireless data service to function properly. See Activate Your Device
on page 16.

4
Software
When you connect the MiFi2200 device to your computer for the rst time using a USB cable, the
modem drivers automatically install themselves on your computer. The modem drivers are included
on the device (no CD required).
The device has two modes: Mobile Broadband (USB Cable) mode, and Wi-Fi mode.
•USB Cable mode: Charge the battery and connect to MiFi Settings directly using the USB
cable.
•Wi-Fi mode: Change the device settings with the web-based MiFi Settings.

5
Components
 Power Button/Power Button LED: Powers on and o the device. The LED indicates power,
battery status, and roaming activity. See LED States on page 6.
 microUSB Connector: The AC charger and USB cable connect here.
 Service Status LED: Shows your mobile broadband connection status. See LED States on
page 6.
 Network Name and Password Label: The pre-congured name of your network (SSID) and
your network password (also called a network key) are printed on the back of your device.
 Master Reset Button: Returns the device to factory settings. See How do I reset the MiFi
device back to factory settings? on page 58.
 Battery Compartment: The battery is placed inside here.
