versa VX-583WR User manual


V5.1
Router User Manual
VX-583WR ADSL Wireless N

VX‐582WR  UserManual

NOTICE
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either
expressed or implied, with respect to the quality, performance, merchantability, or
fitness for a particular purpose of the software or documentation. The manufacturer
reserves the right to make changes to the hardware, software, and documentation
without obligation to notify any person or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2012 Versa Technology, Inc.
All rights reserved.
This document contains proprietary information protected by copyright, and this Manual

VX‐582WR  UserManual
1
Content
1 OVERVIEW................................................................................................................................2
1.1FEATURES.................................................................................................................................2
1.2PACKET CONTENTS..................................................................................................................4
1.3SYSTEM REQUIREMENTS..........................................................................................................5
1.4FACTORY DEFAULTS.................................................................................................................5
1.5WARNINGS AND CAUTIONS.......................................................................................................5
2 HARDWARE DESCRIPTION....................................................................................................6
3 HARDWARE INSTALLATION..................................................................................................8
4 PC CONFIGURATION GUIDE..................................................................................................9
4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP.....................................................9
4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000......................................................................9
5 WEB-BASED MANAGEMENT GUIDE...................................................................................10
5.1LAN SETTING PAGE................................................................................................................10
5.2INTERNET ACCESS CONFIGURATION......................................................................................10
5.3WIRELESS SETTING.................................................................................................................22
5.4MANAGEMENT.........................................................................................................................29
APPENDIX: FREQUENTLY ASKED QUESTIONS....................................................................32

VX‐582WR  UserManual
2
1 Overview
Thank you for choosing our product. The VX-583WR ADSL wireless N router
unit, bringing high-speed wireless Internet connection to a home or office.
1.1 Features
1.1.1 Data rate
zDownstream data rate up to 24Mbps,
zUpstream data rate up to 1Mbps
1.1.2 ADSL Compliant
zITU G.992.1 (G.DMT)
zITU G.992.2 (G.Lite)
zITU G.994.1 (G.hs)
zITU G.992.3 (G.DMT.BIS)
zITU G.992.4 (G.lite.bis)
zITU G.992.5
zCompatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
1.1.3 Wireless
zFully IEEE 802.11b & IEEE 802.11g compatible.
zIEEE 802.11n draft compatible
zWireless data rate up to 300Mbps
zOperating in the unlicensed 2.4 GHz ISM band
zMulti-SSID
zSupports 64/128 bits WEP security and user authentication
1.1.4 Network Protocol & Features
zEthernet to ADSL Self-Learning Transparent Bridging
zInternet Control Message Protocol (ICMP)
is a ADSL modem, a 802.11n wireless router and a 4-port switch in one

VX‐582WR  UserManual
3
zIP Static Routing
zRouting Information Protocol (RIP, RIPv2)
zNetwork Address Translation (NAT)
zVirtual Server, Port Forwarding
zDynamic Host Configuration Protocol (DHCP)
zDNS Relay, DDNS
zIGMP Proxy
zSimple Network Time Protocol (SNTP)
zVPN pass-through (IPSec/PPTP/L2TP)
zParent control
1.1.5 ATM Capabilities
zRFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
zRFC 2364 PPP over ATM compliant
zRFC 2516 PPP over Ethernet compliant
zATM Forum UNI3.1/4.0 PVC - Up to 16 PVCs
zVPI Range: 0-255
zVCI Range: 32-65535
zUNI 3.0 & 3.1 Signaling
zATM AAL5 (Adaption Layer type 5)
zOAM F4/F5
1.1.6 FIREWALL
zBuilt-in NAT
zMAC Filtering
zPacket Filtering
zStateful Packet Inspection (SPI)
zDenial of Service Prevention (DoS)

VX‐582WR  UserManual
4
zDMZ
1.1.7 Management Support
zWeb Based GUI
zUpgrade or update via FTP/HTTP
zCommand Line Interface via Telnet
zDiagnostic Test
zFirmware upgradeable for future feature enhancement
1.1.8 Operating System Support
zWINDOWS 98/98 SE/ME/2000/XP/VISTA/7
zMacintosh
zLINUX
1.1.9 Environmental
zOperating humidity: 10%-90% non-condensing
zNon-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
zADSL ROUTER x 1
zExternal Splitter x 1
zPower Adapter x 1
zTelephone Line x 1
zEthernet Cable x 1
zAntenna x 2
zBase x1

VX‐582WR  UserManual
5
1.3 System Requirements
Before using the VX-583WR ADSL wireless N router, verify that you meet
the following requirements:
zSubscription for ADSL service. Your ADSL service provider should
provide you with at least one valid IP address (static assignment or
dynamic assignment via dial-up connection).
zOne or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
zA hub or switch, if you are connecting the device to more than one
network device.
zFor system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or
later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
zIP Address: 192.168.1.1
zSubnet Mask: 255.255.255.0
zSSID: WLAN
zEncapsulation: LLC/ SNAP-Bridging
zVPI/VCI: 0/35
1.5 Warnings and Cautions
zNever install telephone wiring during storm. Avoid using a telephone
during an electrical storm. There might be a risk of electric shock from
lightning.
zDo not install telephone jacks in wet locations and never use the product
near water.
zTo prevent dangerous overloading of the power circuit, be careful about
guideline could result in a dangerous situation.
zPlease note that telephone line on modem must adopt the primary line
that directly outputs from junction box. Do not connect the VX-583WR
ADSL wireless N router to extension phone. In addition, if your house
developer divides a telephone line to multi sockets inside the wall of
house, please only use the telephone that has connected with the splitter
of ADSL Router when you access the Internet.
the designed maximum power load ratings. Failure to follow the rating

VX‐582WR  UserManual
6
2 Hardware Description
Front Panel
LED Color Function
PWR
Solid
Green Power on
Off Power off
LAN1,2,3,4 Green
On: LAN link established and active via LAN
port
Blinking: DSL data activity occurs.
Off: No LAN link via LAN port
WLAN Green
On: The wireless module is ready and idle.
Blinking: Data transmitting or receiving over
WLAN
Off: The wireless function is off
DSL Green
On: DSL link established and active
Quick Blinking: DSL is trying to establish a
connection
Slow Blinking: No DSL link
INET
Solid
Green IP connected
Off Modem power off, modem in bridged mode or
ADSL connection not present
Flickering
Green IP connected and IP Traffic is passing thru the device

VX‐582WR  UserManual
7
Rear panel
Side panel
WIFI button: Enable or disable wireless function.
Reset button: System reset or reset to factory defaults.
WPS button: A convenient way for WPS set.
Port Function
DSL Connect the device to an ADSL telephone jack or splitter
using a RJ-11 telephone cable
LAN1,2,3,4 Connect the device to your PC's Ethernet port, or to the
uplink port on your hub/switch, using a RJ-45 cable
ON/OFF Switch it on or off
POWER Connect to the supplied power adapter

VX‐582WR  UserManual
8
3 Hardware Installation
This chapter shows you how to connect the VX-583WR ADSL wireless N router
and the appropriate environment for the VX-583WR ADSL wireless N router
installation.
1. Using a telephone line to connect the DSL port of THE VX-583WR ADSL
WIRELESS N ROUTER to the MODEM port of the splitter, and using a
other telephone line connect your telephone to the PHONE port of the
splitter, then connect the wall phone jack to the LINE port of the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
MODEM: Connects to the DSL jack of the VX-583WR ADSL wireless N
router
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the VX-583WR ADSL
wireless N router to your LAN or a PC with network card installed.
3. Connect the power cable to the PWR connector on the VX-583WR ADSL
wireless N router, then plug in the AC power adapter to the AC power outlet,
and then press the on-off button.
Notes: Without the splitter and certain situation, transient noise from
telephone can interfere with the operation of the VX-583WR ADSL
wireless N router, and may introduce noise to the telephone line.
To prevent this from happening, a small external splitter must be
connected to each telephone.

VX‐582WR  UserManual
9
4 PC Configuration Guide
4.1 Local PC Configuration in Windows 95, 98, ME, XP
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with your
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.x (x can be a decimal number from 2 to 254.) like
192.168.1.2, and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click
“Add”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.
8. You will be prompted to restart Windows. Click “Yes”.
4.2 Local PC Configuration in Windows 2000
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network and Dial-up Connections” icon.
3. In the “Network and Dial-up Connections” window, right-click the “Local
Area Connection” icon, and then select “Properties”.
4. Highlight “Internet Protocol (TCP/IP)”, and then click “Properties”.
5. In the “Internet Protocol (TCP/IP) Properties” dialog box, set the IP address
as 192.168.1.x (x can be a decimal number from 2 to 254.), and the subnet
mask as 255.255.255.0 and the default gateway as 192.168.1.1. Then click
“OK”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.

VX‐582WR  UserManual
10
5 Web-based Management Guide
a computer that occupies the same subnet as the VX-583WR ADSL wireless N
router. The simplest way to do this for many users will be to use DHCP server
that is enabled by default on the VX-583WR ADSL wireless N router.
5.1 LAN setting page
Launch a web browser, such as Internet Explorer, and then use
http://192.168.1.1 to log on to the setting page.
5.2 Internet Access Configuration
5.2.1 ADSL Mode Setup
configuration page.
the following steps. You can choose Add, or Remove to configure DSL ATM
interfaces.

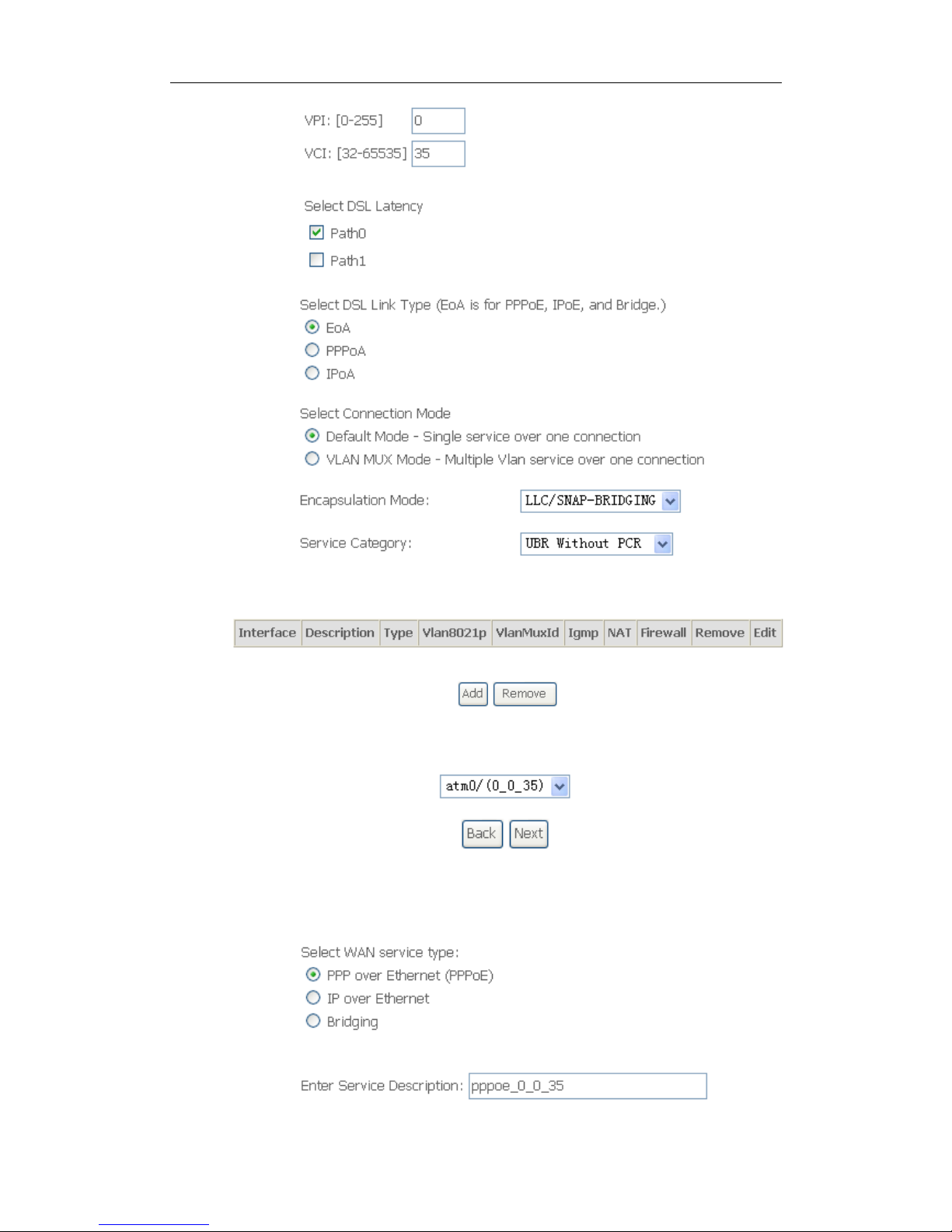

2. Click Add to configure PVC identifier, select DSL latency and select
you need to click Apply/Save.
ClickOK
Enterusername‘admin’
andpassword‘adslroot’
In order to use the web-based management software,it is necessary to use
From the home page, you can find Advanced Setup option on the left router
1. From Layer2 Interface, click ATM Interface. You can set it up according to
connection mode according to your local occasion. After the configuration,

VX‐582WR  UserManual
11
3. Click WAN Service from the left menu.
4. Click Add to select a layer 2 interface for this service and then click Next.
5. Choose WAN service type, just choose PPPoE for example here. You can
enter your own service description here if you want and then click Next.

VX‐582WR  UserManual
12
6. Input PPP Username & PPP Password and then click Next. The user
interface allows a maximum of 256 characters in the user name and a
maximum of 32 characters in the password.
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if

VX‐582WR  UserManual
13
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for
PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you
to.
The gateway can be configured to disconnect if there is no activity for a specific period
of time by selecting the Dial on demand check box and entering the Inactivity
timeout. The entered value must be between 1 minute and 4320 minutes.
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it. If you
need to select it, the PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it
is forwarded to the computer's LAN interface through DHCP. Only
one system on the LAN can be connected to the remote, since the
DHCP server within the ADSL gateway has only a single IP
address to assign to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.
The gateway extends the IP subnet at the remote service provider to
the LAN computer. That is, the PC becomes a host belonging to the
same IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN
ports, unless the packet is addressed to the gateway's LAN IP
address.

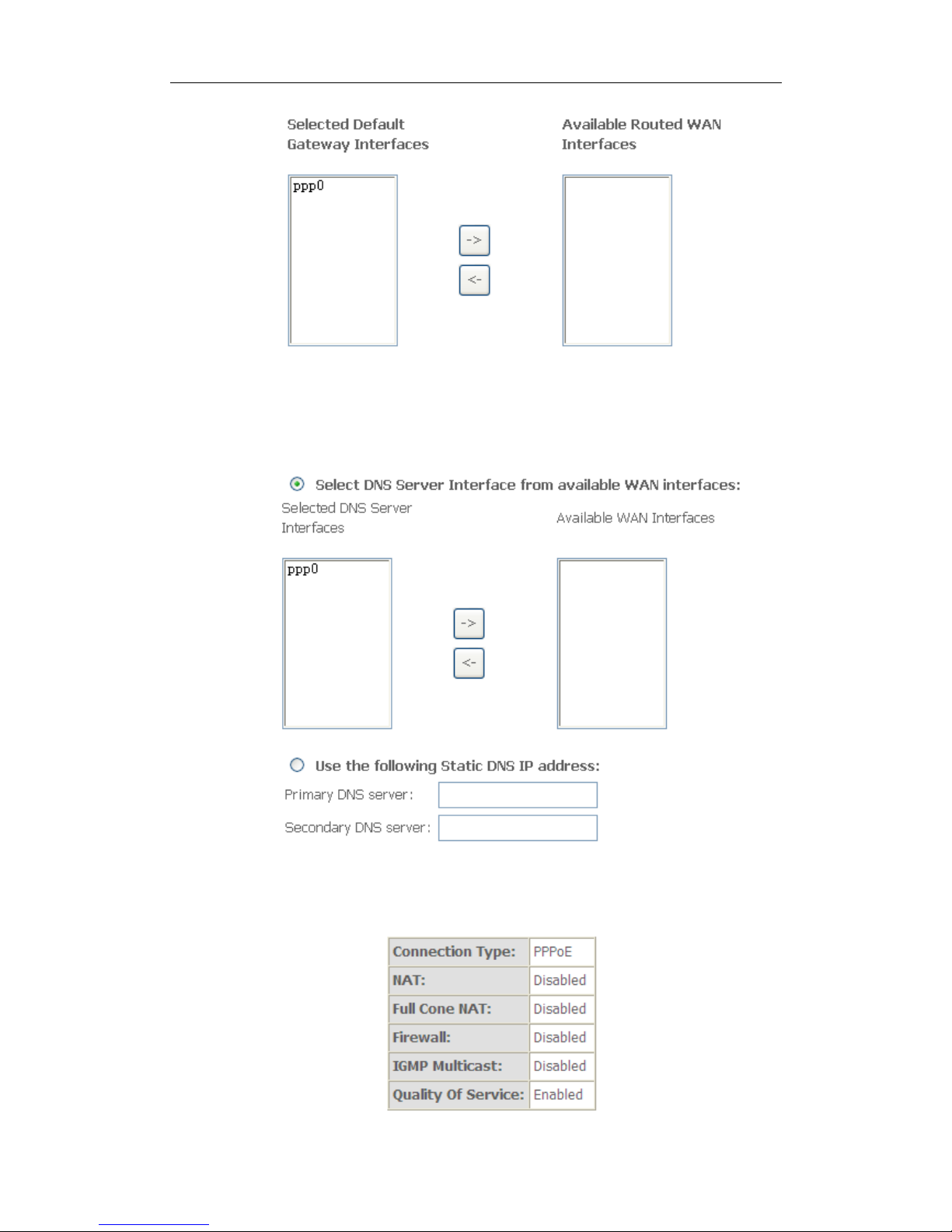

7. Select a preferred wan interface as the system default gateway.

VX‐582WR  UserManual
14
8. Get DNS server information from the selected WAN interface or enter static
DNS server IP addresses. If only a single PVC with IPoA or static MER protocol
is configured, you must enter static DNS server IP addresses.
9. Make sure that the settings below match the settings provided by your ISP.
Click on the Apply/Save button to save your configurations.

VX‐582WR  UserManual
15
5.2.2 VX-583WR ADSL Wireless N router Mode Setup
Before you configure ETH WAN interface, remove all PVC settings from ATM
interface.
2. Click Add and you’ll see the following screen.
3. Select a ETH port as you will. You can select ENET1, ENET2, ENET3 or
ENET4 port as the WAN interface and MSC mode as connection mode.
4. Click Apply/Save and you’ll see the following screen.
5. From Advanced Setup, click WAN Service to configure a WAN service
over the interface you selected.
1. From Advanced Setup, click Layer 2 Interface and select ETH Interface.

VX‐582WR  UserManual
16

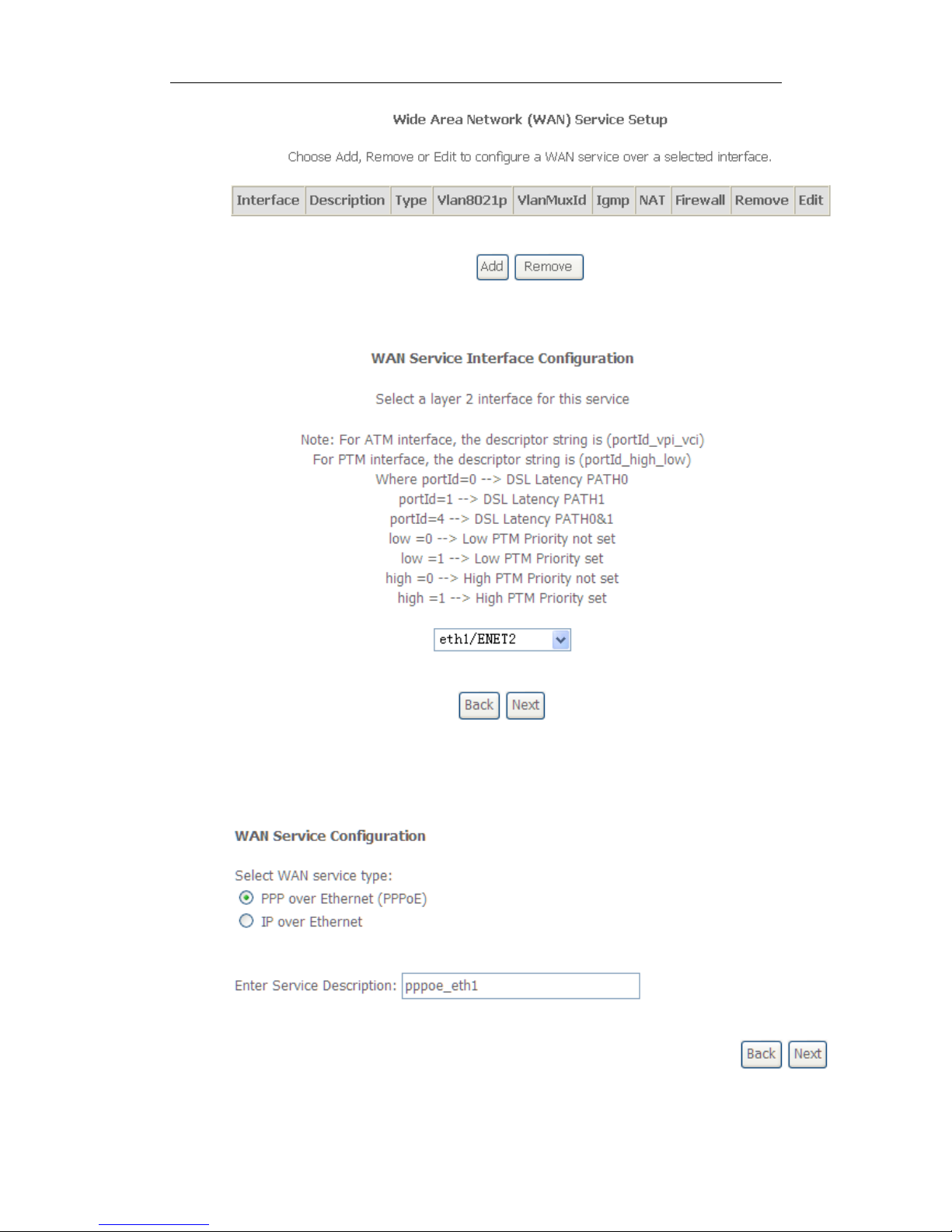

6. Click Add and you’ll see the following screen.
7. Click Next and you’ll see the following screen. Select PPPoE as WAN service
type for example. Click Next.

VX‐582WR  UserManual
17

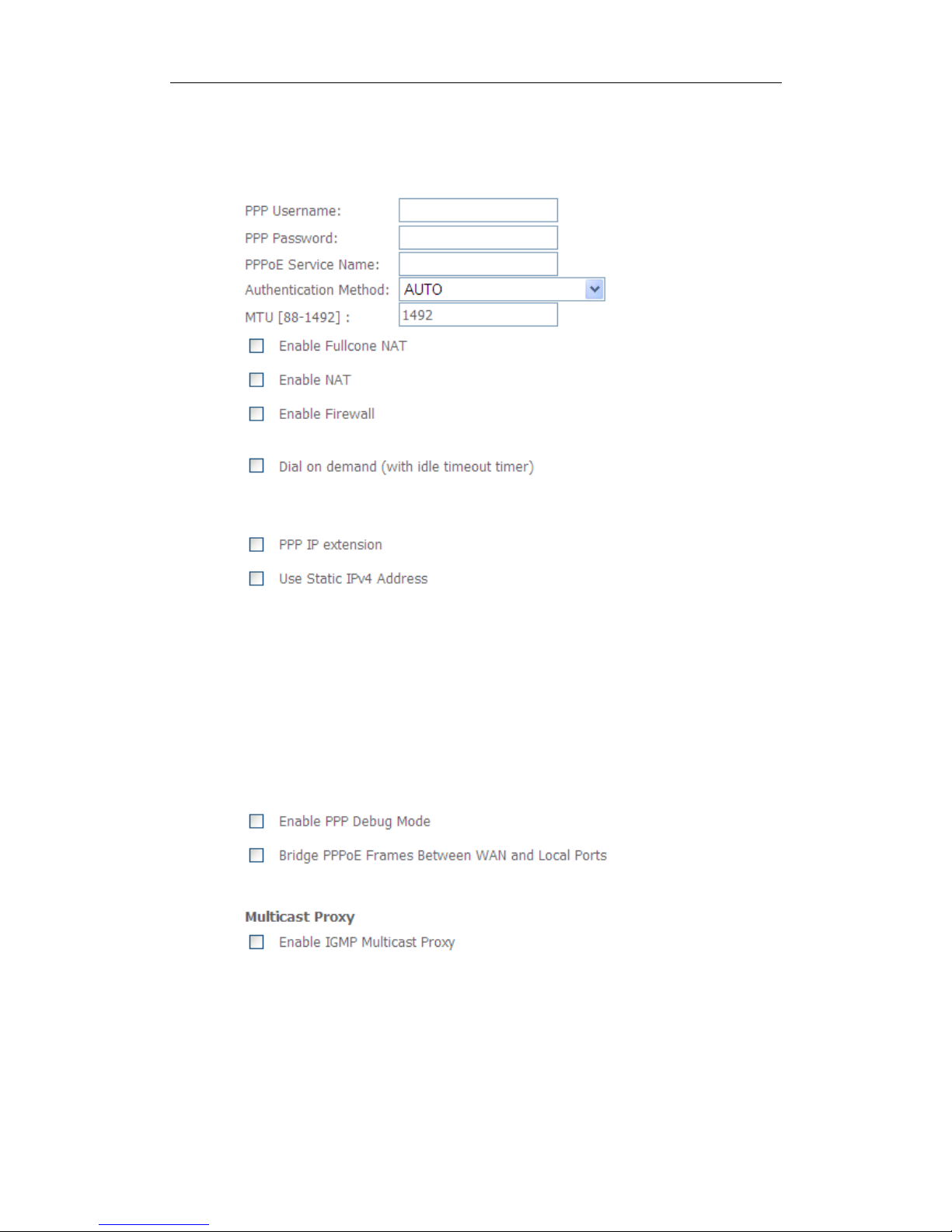

8. Enter the user name and password that your ISP has provided to you. Click
Next.
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for

VX‐582WR  UserManual
18
PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you
to.
The gateway can be configured to disconnect if there is no activity for a specific period
of time by selecting the Dial on demand check box and entering the Inactivity
timeout. The entered value must be between 1 minute and 4320 minutes.
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it. If you
need to select it, the PPP IP Extension supports the following conditions:
a) It allows only one computer on the LAN.
b) The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it
is forwarded to the computer's LAN interface through DHCP. Only
one system on the LAN can be connected to the remote, since the
DHCP server within the ADSL gateway has only a single IP
address to assign to a LAN device.
c) NAPT and firewall are disabled when this option is selected.
d) The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.
e) The gateway extends the IP subnet at the remote service provider
to the LAN computer. That is, the PC becomes a host belonging to
the same IP subnet.
f) The ADSL gateway bridges the IP packets between WAN and LAN
ports, unless the packet is addressed to the gateway's LAN IP
address.
9. Select WAN interface as the system default gateway. Click Next.
