IntroductIon
The VX-456 is meet the varied commercial radio needs of Australian industry. The compact case combines die-
cast chassis with the clean, tough poly-carbonate resin front panel. Its shockproof versatility will allow you to
operate the radio in the toughest environment.
The VX-456 allows to 80-channel capacity which can be programmed with an 8-character Alpha-Numeric Tag.
Important channel frequency data is stored in EEPROM and ash memory on the CPU, allows the user to
change the receiving frequency while the VX-456 is in the Field programming mode.
The pages which follow will detail the many advanced features provided in the VX-456 transceiver. After read-
ing this manual, you may wish to consult with your Network Administrator regarding precise details of the con-
guration of this equipment for use in your application.

VX-456 Operating Manual2
Important InformatIon concernIng uHf cB radIo
The use of the Citizen Band Radio Service is li-
censed in Australia by the ACMA radio communica-
tions (Citizens Band Radio Stations) class licence
and in new Zealand by the ministry of Economic
Development New Zealand (MED). A General user
radio licence for Citizens Band Radio and operation
is subject to conditions contained in those licences.
The class licence for users and equipment operating
in the CB/PRS 477 MHz band has been amended.
This radio meets the new 80 channel standard.
In simple terms the same amount of spectrum is
available; however, radio transceivers can now op-
erate in a narrower bandwidth and hence use less
spectrum.
These radios are generally referred to as narrowband
or 12.5 kHz radios. By using 12.5 kHz channel spac-
ing instead of 25 kHz, the 40 channels originally al-
located can now be expanded to 80 channels thereby
doubling the channel capacity and relieving conges-
tion in the UHF CB/PRS band.
Original 40 channel wideband radios will continue to
operate on the original 40 channels, however they will
not be able to converse on the newer channels 41 - 80.
The newer narrowband radios will be able to con-
verse with all older 40 channel wideband radios on
all channels 1 to 40 as well as the newer channels
allocated from 41 to 80.
The mixing of narrowband and wideband radios in
the same spectrum can cause some possible operat-
ing issues of interference and varying levels of re-
ceived volume.
Possible Issues
When a new narrowband radio receives a transmis-
sion from an older wideband radio the speech may
sound loud and distorted - simply adjust your radio
volume for best performance.
When an older wideband radio receives a signal
from a new narrowband radio, the speech may sound
quiet - simply adjust your radio volume for best per-
formance.

VX-456 Operating Manual 3
Important InformatIon concernIng uHf cB radIo
Depending on how close your receiving radio is to
another transmitting radio, there can be interference
from the transmitting radio if it is using a channel
adjacent to the channel you are listening to.
Simply try going up or down a few channels from
the currently selected channel.
The above situations are not a fault of the radio but
a symptom of operating wideband and narrowband
radios in the same bandwidth.
This possible interference will decrease over time
as the population of wideband radios ages and de-
creases.
Further information and updates are available from
the Australian communications and media Author-
ity (ACMA) at www.acma.gov.au and the Ministry
of Economic Development (MED), radio spectrum
management at: www.rsm.govt.nz
Emergency Channels
The ACMA has allocated channels 5/35 for emer-
gency use only. Channel 5 is the primary simplex
Emergency channel. Where a channel 5 repeater is
available, you should select Duplex on CH 5.
Note: Channel 35 is the input channel for the chan-
nel 5 repeater therefore channel 35 should also not be
used for anything other than emergency transmissions.
Telemetry Channels
ACMA regulations have allocated channels 22 and
23 for telemetry only applications and have prohib-
ited the transmission of speech on these channels.
Consequently your radio has a transmit inhibit ap-
plied to channels 22 and 23.
In the event additional telemetry/telecommand chan-
nels are approved by the ACMA, these channels
shall be added to those currently listed where voice
transmission is inhibited. Currently transmissions on
channels 61, 62 and 63 are also inhibited and these
channels are reserved for future allocation.

VX-456 Operating Manual4
features
Microprocessor Controlled Frequency Synthesiser:
Allows user programmable control of scanning,
channel memories and selected feature options.
Voice Encryption: The Voice Encryption feature
protect the privacy of your communication from
other groups.
Programmable Scan Function: Scans the selected
UHF CB channels with both Group and Open Scan
functions available.
Priority Channel: User programmable Priority
Channel feature allows your working channel to be
instantly recalled at the press of a programmable key.
High Contrast Liquid Crystal Display: Large
LCD (Liquid Crystal Display) provides a visual
indication of the selected channel and all selected
functions at a glance.
Field Programming Mode: Allows the user to
change the receiving frequency and Wide/Narrow
receiver lter of the memory channel by the simple
operation from the keypad.
User Menu Mode: Allows the user to define or
congure various settings of the radio by the simple
operation from the keypad.
In-Built CTCSS & DCS: User selectable Continu-
ous Tone Coded Squelch System and Digital Coded
Squelch system option provides silent channel op-
eration on individual channels.
TOT (Time Out Timer): This radio has a built-in
time-out timer that automatically limits transmis-
sions to a maximum of 3 minutes of continuous op-
eration.
This feature is required by the ACMA to prevent ac-
cidental blocking of the frequency should your PTT
switch become jammed or be otherwise pressed ac-
cidentally. The time-out period can be changed to a
shorter time by your dealer.
IP57 Water Resistance: This radio is designed to
meet the IP57 Water Resistance specification. The
IP57 protected against the effects of immersion in
water up to 1 m depth for 30 minutes.
Note: Water resistance of the transceiver (IP57: 1 me-
ter / 30 minutes) is assured only when the following
conditions:
r Battery pack is attached to the transceiver;
r Antenna is connected to the antenna jack;
r and MIC/SP cap is installed in the MIC/SP jack.

VX-456 Operating Manual 5
Repeater and Duplex Mode: Duplex operation al-
lows the radio to transmit on a different frequency to
that which it receives. This allows operation through
repeater stations.
A repeater station consists of a linked transmitter/re-
ceiver combination installed in a prominent location.
The repeater is designed to receive signals on a
designated channel and retransmit them on another
channel.
Repeater stations, usually located on mountaintops
or other high locations, provide a dramatic extension
of the communication range for low-powered hand-
held or mobile transceivers.
features
Normally, UHF radios transmit and receive on the
same frequency - known as simplex operation. How-
ever to communicate through repeaters, your radio
must be able to transmit and receive on different
channels - otherwise known as Duplex operation.
This radio can easily perform the Repeater operation
by selecting the CH selector knob to the repeater
channel.
The Repeater channel is set in channels 1 - 8 and 41
- 48 which have been allocated for repeater use. In
the Repeater channel, the “D” notation is appeared
on the right side
of the channel in-
dication. Refer to
page 34 for details
of the Channel List.
Repeater
Station
TX: 476.4250 MHz
RX: 477.1750 MHz
TX: 477.1750 MHz
TX: 477.1750 MHz
RX: 476.4250 MHz
RX: 476.4250 MHz
Channel
[CB-01D]
Simplex
Repeater Operation
Channel
[CB-01D
]

VX-456 Operating Manual6
WarnIng! rf exposure requIrements
This radio generates RF electromagnetic energy during transmit mode. To ensure that your expose to RF
electromagnetic energy, always adhere to the following guidelines:
 This radio is NOT approved for use by the general population in an uncontrolled exposure environ-
ment. This radio is restricted to occupational use, work related operations only where the radio op-
erator must have the knowledge to control his or her RF exposure conditions.
 When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away
from your mouth and keep the antenna at least 2 inches (5 cm) away from your head and body.
 The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-
Talk congurations.
 DO NOT transmit for more than 50% of total radio use time (50% duty cycle).
 To keep the Body Worn conguration with the Vertex Standard CLIP-20 belt-clip, reduce the maxi-
mum operating duty cycle still more.
The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the
radio to transmit by pressing the P-T-T button.
 When operate the radio with the Vertex Standard CLIP-20 belt-clip, make the transmission time as
short as possible, to keep the Body Worn conguration.
 Always use Vertex Standard authorized accessories.
The information listed above provides the user with the information needed to make him or her aware of
RF exposure.

VX-456 Operating Manual 7
WarnIng! rf exposure requIrements
 Electromagnetic Interference/Compatibility
During transmissions, this radio generates RF energy that can possibly cause interference with other
devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to
do so.
Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospi-
tals, health care facilities, aircraft, and blasting sites.

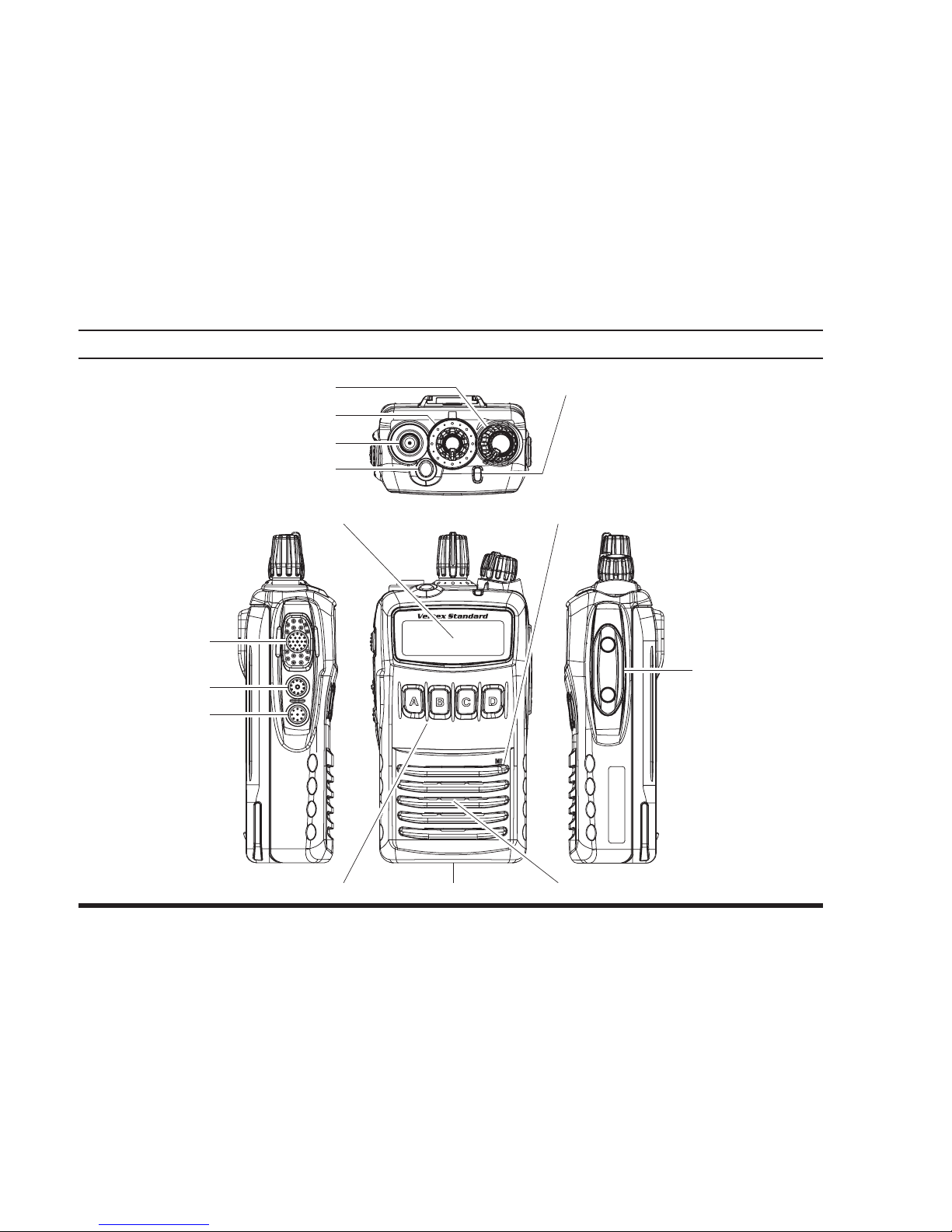

PTT Switch
SIDE-1 Button
SIDE-2 Button
MIC/SP Jack
(External MIC/SP)
LCD (Liquid Crystal Display)Microphone
LED Indicator (Programmable)
Default settings are:
Steady Red:
Transmitting in progress
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Antenna Jack
TOP SEL Key
CH (Channel) Selector Knob
VOL/PWR Knob
SpeakerBattery Pack Latch4-Button Programmable Key
control & connector
VX-456 Operating Manual8

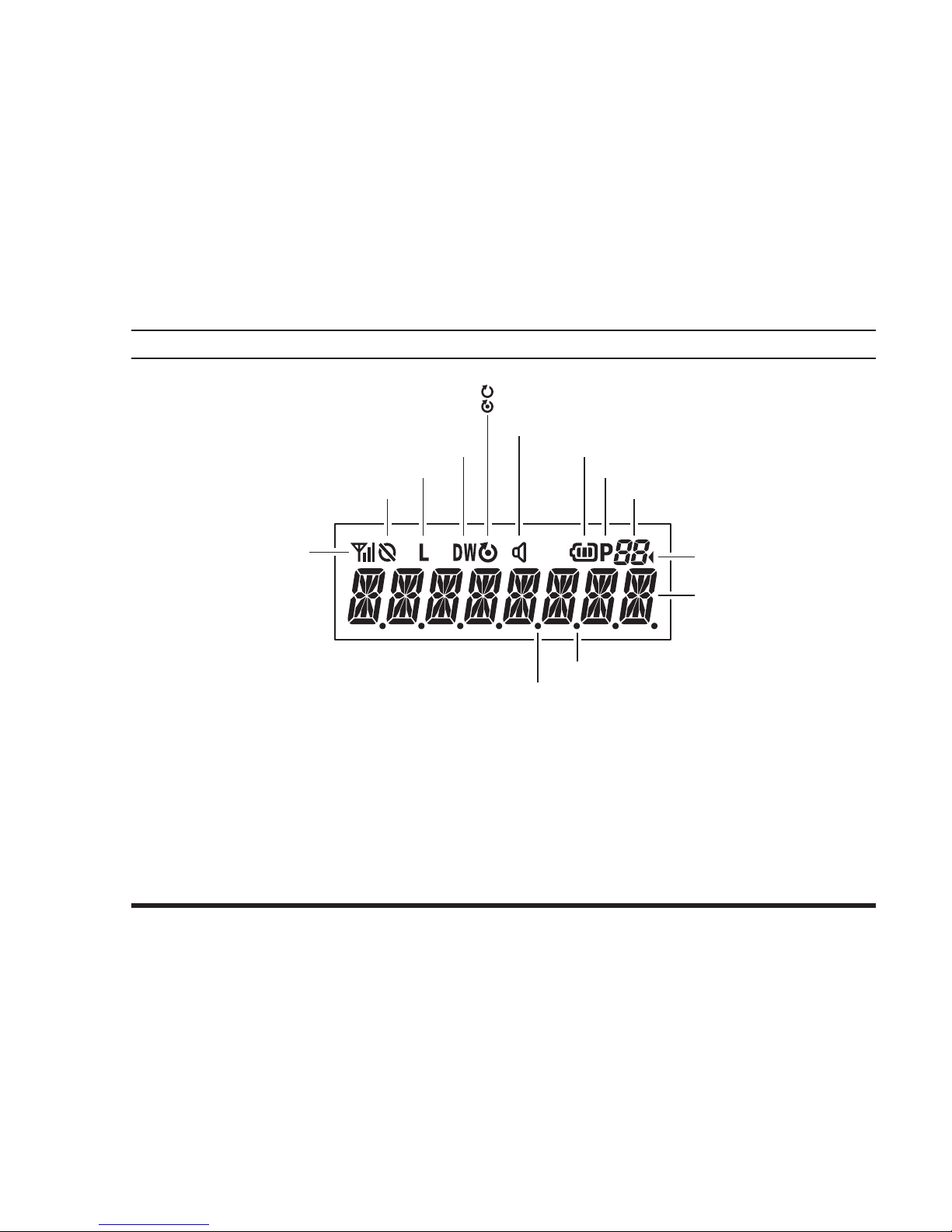

lcd Icons & IndIcators
VX-456 Operating Manual 9
8 Character
Alpha-numeric Display
Group Number (or Name)
RSSI Indicator (four steps)
Encryption is activated
Low Transmit Power Mode On
Receiver Monitor
Battery Indicator
“Group Scan” is enabled
Priority Channel
CTCSS System is activated
DCS System is activated
Dual Watch is activated
: “Scan” is enabled
: “Priority Scan” is activated

VX-456 Operating Manual10
Before You BegIn
Battery Pack Installation and Removal
r To install the battery pack, align the battery pack
to the radio with an offset about 1/2 inch from
the top edge of battery compartment, then slide
the battery pack upward until it locks in place
with a “Click.”
r To remove the battery, turn the radio off and
remove any protective cases. Slide the Battery
Pack Latch on the bottom of the radio toward
the front panel while sliding the battery down
about 1/2 inch. Then lift the battery out from the
radio.
Do not attempt to open any of the re-
chargeable Lithium-Ion packs, as they
could explode if accidentally short-circuited.
Low Battery Indication
As the battery discharges during use, the voltage
gradually becomes lower. When the battery voltage
becomes to low, substitute a freshly charged battery
and recharge the depleted pack. The LED indicator
on the top of the radio will blink red when the bat-
tery voltage is low.
CAUTION
Danger of explosion if battery is replaced
with an incorrect battery. Replace only with
the same or equivalent type.
Battery Charging
r
Remove the Spacer Plate from the nest of the
optional CD-58 Desktop Charger, if the Battery
Spacer is installed.
r Insert the DC plug from the optional PA-55H
AC Adapter into the DC jack on the rear panel
of the optional CD-58 Desktop Charger, and
then connect the PA-55H AC Adapter to the AC
line outlet.

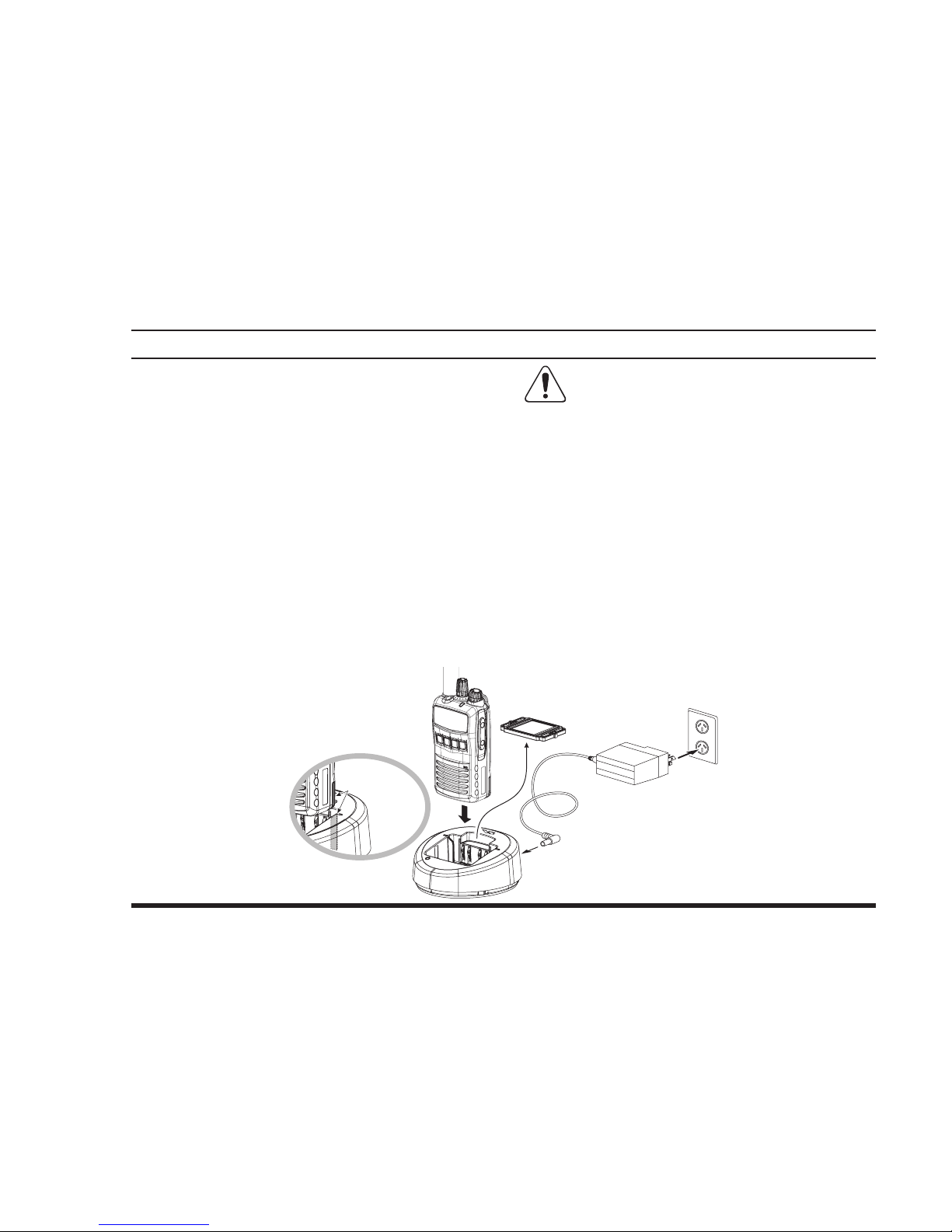

r Insert the battery pack into the CD-58 Desktop
Charger while aligning the slots of the battery
pack with the guides in the nest of the CD-58;

VX-456 Operating Manual 11
Before You BegIn
refer to the following illustration for details on
proper positioning of the battery pack. If charg-
ing with the transceiver attached, turn the trans-
ceiver off. The antenna jack should be at the left
side when viewing the charger from the front.
r If the battery pack is inserted correctly, the LED
indicator will glow red. A fully-discharged bat-
tery pack will charge completely in approxi-
mately 2.5 hours.
r
When charging is completed, the LED indicator
will change to green.
r Disconnect the battery pack from the CD-58
Desktop Charger and unplug the PA-55H AC
Adapter from the AC line outlet.
1) Always use the Vertex Standard FNB-
V134LI-UNI Lithium-Ion Battery Pack.
2) Battery Pack shall not be exposed to excessive
heat such as sunshine, re, or the like.
3) Risk of explosion if battery is replaced by an in-
correct type. Dispose of used batteries according to
the instructions
4) Perform the battery charging where the ambient
temperature range +5 °C to +35 °C. Charge out of
this range could cause damage to the battery pack.
5) Use only the Vertex Standard PA-55H AC
Adapter.
PA-55H AC Adapter
CD-58 Desktop Charger
AC Line Outlet
Spacer Plate
Align the slot
with the guide

VX-456 Operating Manual12
Before You BegIn
Belt Clip Installation and Removal

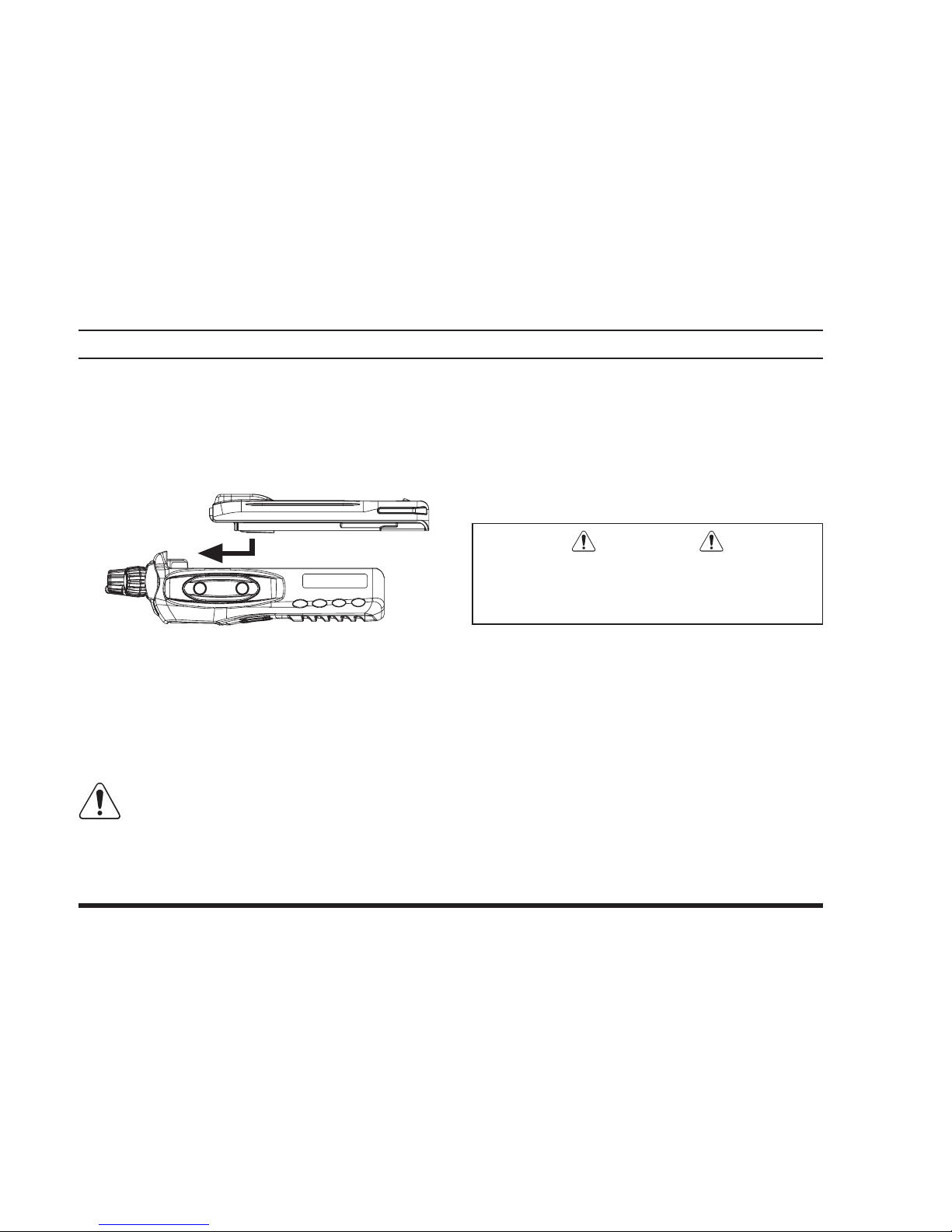

r To install the Belt Clip: align the Belt Clip to
the groove of the Battery pack, then press the
Belt Clip downward until it locks in place with a
“Click.”
r To remove the Belt Clip: use a at head screw
driver to press the Belt Clip Tab away from the
battery pack to unlock the Belt Clip, then slide
the Belt Clip upward to remove it.
Belt Clip Tab

VX-456 Operating Manual 13
Before You BegIn
MIC/SP CAP Installation
Install the MIC/SP cap with the supplied screws.
r Use only the supplied screws when install the
MIC/SP cap.
r This radio does not keep the water resistance
(IP57: 1 meter / 30 minutes) when the MIC/
SP cap is not installed in the MIC/SP jack.

VX-456 Operating Manual14
operatIon
Preliminary Steps
r Install a charged battery
pack onto the transceiver,
as described previously.

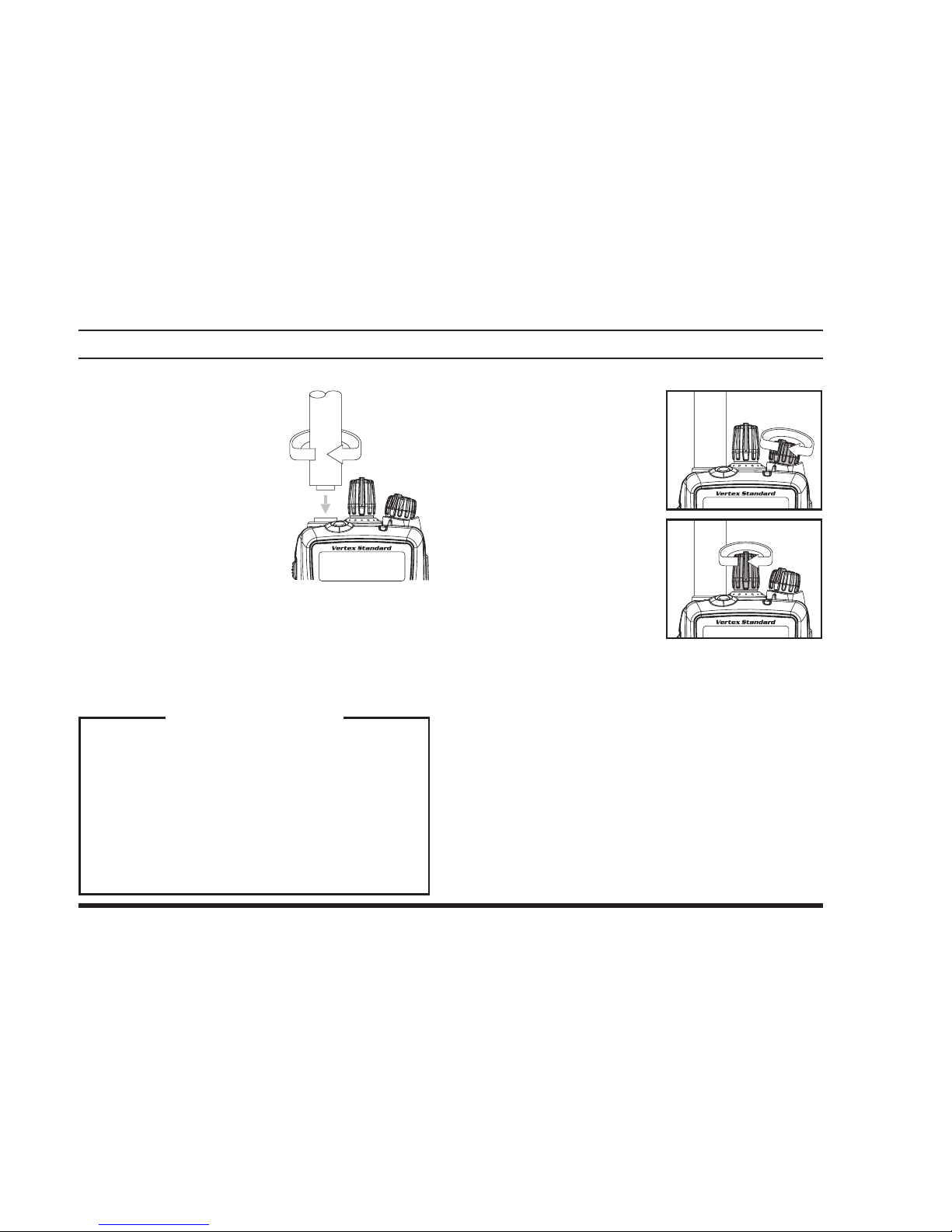

r Screw the supplied an-
tenna onto the Antenna
jack.
Never attempt to operate
this transceiver without
an antenna connected.
r If you have a Speaker/Microphone, we recom-
mend that it not be connected until you are fa-
miliar with the basic operation of the VX-456.
Operation Quick Start
r Turn the top panel’s
VOL/PWR k n o b
clockwise to turn the
radio on.
r Turn the top panel’s
CH selector knob to
choose the desired
operating channel. The
channel number will
appear on the LCD.
r If you want to select the operating channel from
a different Channel Group, press the [D] key
repeatedly to select the Channel Group you want
before selecting the operating channel. A Group
number will appear on the LCD whenever the
Programmable key is pressed.
IMPORTANT NOTE
Water resistance of the transceiver (IP57: 1
meter / 30 minutes) is assured only when the
following conditions:
r
Battery pack is attached to the transceiver;
r
Antenna is connected to the antenna jack;
r
and MIC/SP cap is installed in the MIC/
SP jack.

VX-456 Operating Manual 15
r Rotate the VOL/PWR knob to set the volume
level. If no signal is present, press and hold in
the [SIDE-1] button
(under the PTT switch)
more than 2 seconds;
background noise will
now be heard, and you
m a y u se t hi s t o s et
the VOL/PWR knob
for the desired audio
level. Press and hold
the [SIDE-1] button
more than 2 seconds (or
press the [SIDE-1] but-
ton twice) to quiet the noise and resume normal
(quiet) monitoring.
r When you are in a dark
environment, press the
(Orange) [TOP SEL]
key to illuminate the
display and ([A] to [D])
keypad for five sec-
onds.
operatIon
r To transmit, monitor
the channel and make
sure it is clear.
Press and hold the PTT
switch. Speak into the
microphone area of
the front panel grille in a normal voice level.
To return to the Receive mode, release the PTT
switch.
The VX-456 has a Time-Out Timer which limits
the length of each transmission to 3 minutes. It
prevent prolonged transmissions.
r Press (or press and
hold) the one of the
[A], [B], [C], or [D]
key to activate the pre-
programmed functions.
See the next section for
details regarding the available features.

VX-456 Operating Manual16
r If a Speaker/Micro-
phone is available,
remove the plastic cap
and its two mounting
screws from the right
side of the transceiver,
then align the con-
nector of the Speaker/
Microphone on the transceiver body; secure the
connector pin using the screws supplied with the
Speaker/Microphone. Hold the speaker grille up
next to your ear while receiving. To transmit,
press the PTT switch on the Speaker/Micro-
phone, just as you would on the main trans-
ceiver’s body, and speak into the microphone on
a normal voice level.
Note 1): Save the original plastic cap and its
mounting screws. They should be reinstalled
when not using the Speaker/Microphone.
2) When you press the PTT switch on the
Speaker/Microphone, it disables the internal
microphone, and vice versa.
operatIon
r If the BCLO (Busy Channel Lockout) feature
has been programmed on the channel, the radio
will not transmit when a carrier is present. In-
stead, the radio will generate short beep three
times. Release the PTT switch and wait for the
channel to be clear of activity.
r If the BTLO (Busy Tone Lockout) feature has
been programmed on the channel, the radio
can transmit only when there is no carrier be-
ing received or when the carrier being received
includes the correct tone (CTCSS tone or DCS
code) on the channel.

VX-456 Operating Manual 17
NOTE
 The selected channel is kept even when the
transceiver is turned off.
 The “CH-05” and “CH-35” channels are
used for the Emergency, and the 5-Tone
Sequential System is not available on these
channels. The 5-Tone Sequential System
comes to be usable via CE144 Program-
ming Software.
 The “CH-22” and “CH-23” channels are
used for telemetry and telecommand appli-
cations, so the voice communications are
not available on these channels.
 The 5-Tone Sequential System is restricted
the transmission for two time in a minute.
If you try to transmit over three times, a
beeper will sound and does not transmit
the 5-Tone Sequential code.
 You may customize the key function of the
VX-456 via the CE144 Programming Soft-
ware.
artsTM
(auto range transpond sYstem)
This system is designed to inform you when you and
another ARTSTM-equipped station are within com-
munication range.
In a channel enabling the ARTSTM operation, when
the radio receives an incoming ARTSTM signal, a
short beep will sound, and “IN SERV” (“In Ser-
vice”) will be indicated on the display for 2 seconds.
If you move out of range for more than two minutes,
your radio senses that no signal has been received;
a short triple-beep will sound, and “OUT SERV”
(“Out of Service”) will be displayed on the display
for 2 seconds. If you subsequently move back into
communication range, as soon as the other station
transmits, a short beep will sound and “IN SERV”
will be indicated again on the display for 2 seconds.
operatIon

VX-456 Operating Manual18
advanced operatIon
Programmable Key Functions
The VX-456 has seven Programmable Keys consist-
ing of [TOP SEL], [SIDE-1], [SIDE-2], [A], [B],
[C], [D]. Furthermore, each programmable key can
be assigned two functions.
The assigned functions are listed below, and their
functions are explained beginning after next page.
The Programmable key functions can be custom-
ized, via programming by your Vertex Standard
dealer if desired, to meet your communications/net-
work requirements.
press KeY press & Hold KeY
[top sel]Lamp Set Mode Entery
[sIde 1]Monitor Squelch Off
[sIde 2]Low Power Lock
[a]Scan Scan Set
[B]Scan Mode Select Priority Channel Set
[c]CTCSS/DCS Set ---
[d]Group Up Encryption
