Vertiv ES-HND200I-EI Installation and maintenance instructions

Network Camera V4.1.0
ES-HND200I-EI
Installer/User Guide

Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
1.0 Appearance Description ...................................................................................1
1.1 Camera Description....................................................................................................................................1
1.1.2 Camera Wiring Diagram .........................................................................................1
2.0 Installation .......................................................................................................... 2
2.1 Ceiling Moungting......................................................................................................................................2
2.2 In-Ceiling Moungting .............................................................................................................................5
3.0 Setting the Network Camera over the LAN............................................... 9
3.1 Modify device info.....................................................................................................................10
4.0 Accessing via Web Browser .........................................................................12
CONTENTS

ABOUT THIS DOCUMENT
This manual applies to ES-HND200I-EI series cameras. This manual may contain several technical incorrect places or printing
errors, and the content is subject to change without notice. The updates will be added to the new version of this manual. We
will readily improve or update the products or procedures described in the manual.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security or signaling aspects of this
product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL
Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO
REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY
OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.
Save these instructions
This manual contains important instructions that should be followed during installation and maintenance of the Network
Camera V4.1.0 ES-HND200I-EI.
Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer.
0400031020820

1
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
1.1 Camera Description
1.0 APPEARANCE DESCRIPTION
NO. DESCRIPTION
110M/100M self-adaptive Ethernet
interface
2INITIAL SET: Reset button
3AUDIO OUT: Audio output interface
4MIC IN: Audio input interface
5D+, D-: RS-485 interface
61A, 1B, 2A, 2B: Alarm output interface
7IN1, GND, IN2, GND: Alarm input inter-
face
8Power supply interface
1.1.2 Camera Wiring Diagram
1.1.1 Overview
Note: After the powering on of the camera, pressing
and holding the INITIAL SET button for about 10
seconds can reset all the parameters to the default
settings.

2
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
2.0 INSTALLATION
NOTES:
Read the following contents carefully before the installation.
Make sure that all the related equipment is power-o during the installation.
Check whether the power supply is matched with your AC outlet to avoid damage.
Do not place the camera in extremely hot or damp environment. To avoid heat accumulation, good
ventilation is required for a proper operating environment. You may refer to the specification of the product
for the detailed information about installation environment.
If the product does not function properly, please contact your dealer or the nearest service center. Do not
disassemble the camera for repair or maintenance by yourself.
2.1 Ceiling mounting:
NOTE: If required, you can use a plier to remove one clip or both two clips (marked in dotted line in Figure
2-1) on the side of the back box and then route cables through the opening to secure the cables on the
ceiling.
Figure 2-1 Side Clips

3
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
Steps:
1. Use the screws to fix the mounting base to the ceiling; rotate the back box counterclockwise to secure it to
the mounting base; use the lock screw to secure the dome camera.
2. Loosen the set screws with the hex key (supplied) to remove the lower dome.
Figure 2-2 Mounting
Figure 2-3 Disassembling

4
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
3.) Connect the RCA analog video output with a monitor to view the image of the camera. Loosen the lens set
screw and pan, tilt or rotate the lens to get a desired surveillance angle. Adjust the lens focus to obtain a perfect
image. Fasten the lens set screw.
Figure 2-4 Image Adjusting
Figure 2-5 Image Adjusting

5
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
4. Reinstall the lower dome and tighten the screws.
Figure 2-6 Reinstall
1. Secure the mounting base to the in-ceiling mounting base with screws.
Steps:
2.2 In-ceiling mounting:
Figure 2-7 Mounting Base

6
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
2. Push the dome camera to the in-ceiling mounting base, rotate the dome camera for 10 degrees
counterclockwise and then fasten the lock screws to fix the camera.
Lock screw
Figure 2-8 Camera and Mounting Base
3. Cut a 176~180 mm diameter hole in the ceiling and push the dome camera with in-ceiling mounting base to the
hole.
NOTE: If required, you can use a plier to remove one clip or both two clips (marked in dotted line in Figure
2-1) on the side of the back box and then route cables through the opening to secure the cables on the
ceiling.
Figure 2-9 Installing

7
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
4. It is strongly recommended that you use a safety rope to secure the in-ceiling mounting base to the roof.
5. Fasten the lock screws to secure the dome camera.
Figure 2-10 Safety Rope
Lock screw
Lock screw
Figure 2-11 Fasten Screws

8
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
6.) Remove the lower dome and connect the RCA analog video output with a monitor to view the image of the
camera. Loosen the lens set screw and pan, tilt or rotate the lens to get a desired surveillance angle. Adjust the
lens focus to obtain a perfect image. Fasten the lens set screw. Reinstall the lower dome.
7. Install the trim plate with screws to finish the installation.
Figure 2-12 Image Adjusting
Figure 2-13 Trim Plate Installing

9
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
3.0 SETTING THE NETWORK CAMERA OVER THE LAN
Steps:
Set the IP address of the camera for accessing via LAN.
Purpose:
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same
subnet with your PC. Then, install the SADP or iVMS-4200 software to search and change the IP of network camera.
The following figure shows the cable connection of network camera and PC:
Figure 3-1 Wiring over LAN
1. To get the IP address, you can choose either of the following methods:
yUse SADP, a software tool which can automatically detect network camera in the LAN and list the device
information like IP address, subnet mask, port number, device serial number, device version, etc., shown in
Figure 3-2.
yUse iVMS-4200 software and to list the online devices. Please refer to the user manual of client software for
detailed information.
2. Change the IP address and subnet mask to the same subnet as of your PC.
Refer to the following introductions to set IP address with SADP software:
ySearch active devices online
Search online devices automatically:
After launch the SADP software, it automatically searches the online devices every 15 seconds from the
subnet where your computer locates. It displays the total number and information of the searched devices in
the Online Devices interface. Device information including the device type, IP address, port number, gateway,
etc. will be displayed.

10
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
Figure 3-2 Searching Online Devices
Note: Device can be searched and displayed in the list in 15 seconds after it goes online; it will be
removed from the list in 45 seconds after it goes oline.
Search online devices manually:
You can also click to refresh the online device list manually. The newly searched devices
will be added to the list.
Note: You can click or on each column heading to order the information;
you can click to show the device table and hide the network parameter panel on the
right side, or click to show the network parameter panel.
3.1 Modify device Infor mation:
Steps:
1.) Left click to select a device to be modified in the device list as shown in Figure 3-3. The network parameters of the
device will be displayed in the Modify Network Parameters panel on the right side as shown in Figure 3-4.
2.) Edit the modifiable network parameters, e.g. IP address and port number.
Enter the password of the admin account of the device in the Password field and click to save the
changes.
Figure 3-3 Select a device

11
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02

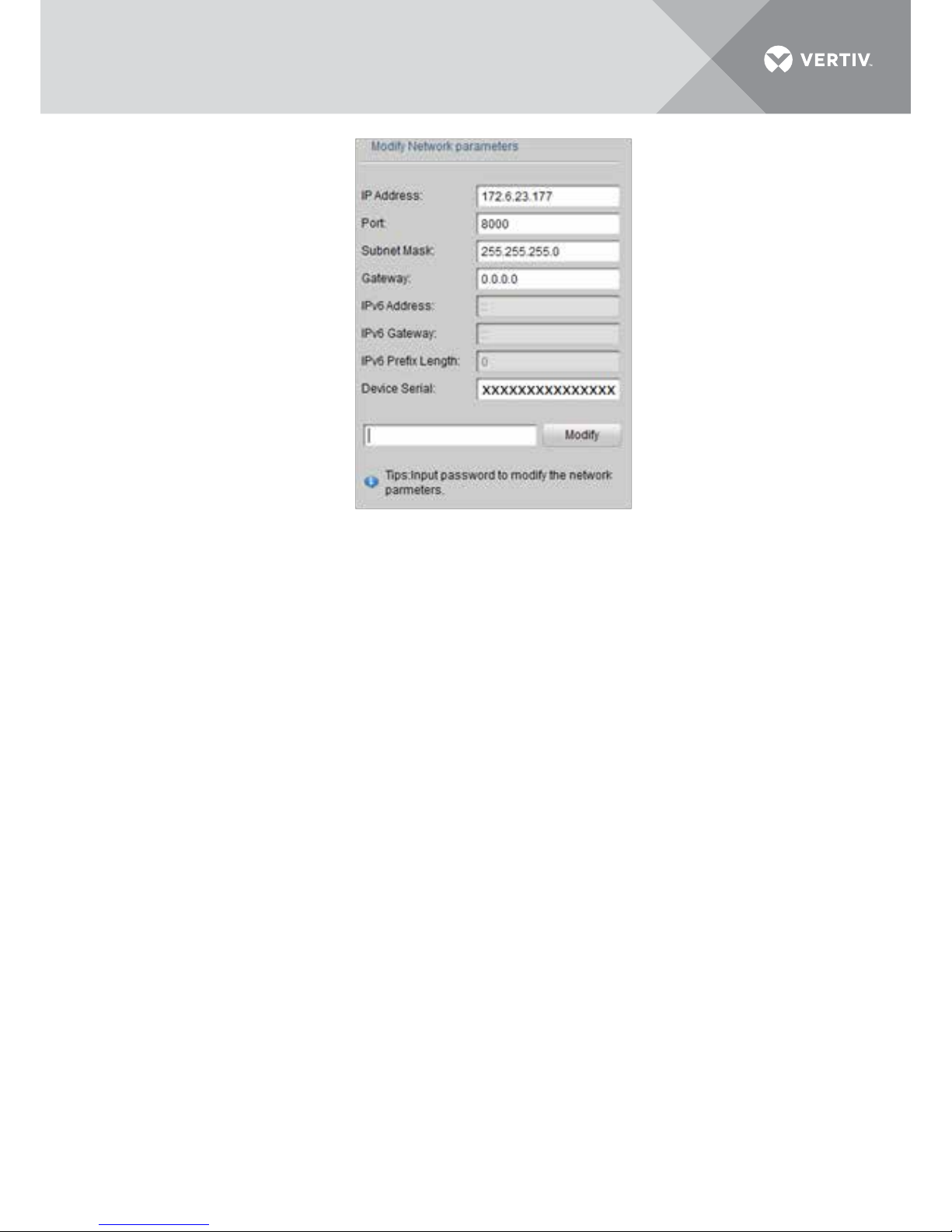

Figure 3-4 Modify Network Parameters
3. Enter the IP address of network camera in the address field of the web browser to get the liveview.
Notes:
• The default IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.Use iVMS-4200
software and to list the online devices. Please refer to the user manual of client software for detailed information.
• For accessing the network camera from dierent subnets, please set the gateway for the network camera after
you log in.

12
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
4.0 ACCESSING VIA WEB BROWSER
System Requirements:
Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits.
CPU: Intel Pentium IV 3.0 GHz or higher.
RAM: 1G or higher.
Display: 1024×768 resolution or higher.
Web Browser: Internet Explorer 6.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 3.5 and above
version and Google Chrome 8 and above version.
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network camera, e.g., 192.0.0.64 and press the Enter key to
enter the login interface.
3. Input the user name and password.
4. Click
Figure 4-1 Login Interface

13
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to
install the plug-in.
NOTE: You may have to close the web browser to finish the installation of the plug-in
Figure 4-2 Download Plug-in
Figure 4-3 Download Plug-in

14
Vertiv | Network Camera Quick Operation Guide | v01 | UD.6L0201D0140A02
Figure 4-4 Install Plug-in
Figure 4-5 Install Plug-in
6. Reopen the web browser after the installation of the plug-in and repeat the above steps 2-4 to login.
NOTE: For detailed instructions of further configuration, please refer to the user manual of
network camera.
