Vesta S24 User manual

S24
S36
S60
S36-G12
S36-G24
S60-G24
Gas Restaurant Ranges
User’s Manual

Dear User & Client,
Firstly, thanks for purchasing and using our product. All the information and guidelines of
this user’s manual comply with certain applicable regulations, which come out from our
long-term accumulated knowledge and experience as well as current project development
situations.
Limited to some special structures, additional specified items or new technology changes,
the actual usage situation might be some different from what stated in this user’s manual.
Should you have any question, please do not hesitate to contact the manufacturer via the
method shown in back cover page of this manual.
For safety purpose and efficient operation, please make this document available to users
for reference. Do have them to read this manual carefully before carry out any action on
this device, especially when starting.
The manufacturer declines any responsibility in the event users do not follow the
instructions or guidelines stated here.
The user’s manual should be placed close to the device, in convenience of users’ reading
before operation. We have the full authority to reserve the further technical changes of the
device, in the scope of further performance improvement characteristic development.

Warning
◆Any self-modification, wrong installation, adjustment or maintenance can lead to
property loss or casualty. Please contact the manufacturer for any adjustment or
maintenance, and have the work done by a trained & qualified person.
◆For your safety sake, please keep the machine away from any liquid, gas or other
object, which is flammable or explosive.
◆This appliance should not be operated by those who have physiological, perceptual
or mental disabilities or those who have insufficient experience or knowledge
(including children). Only in conditions of being given sufficient supervise & guarantee
of personal safety, as well as proper instructions & guidance, those who were
mentioned above can make some particular operation of this device.
◆Keep children away from the device.
◆Preserve this manual safely. When passing on/selling the device to a third party, the
manuals must be handed over along with the device. All users must operate the
device complying with the user’s manual and related safety guidelines.
◆If the appliance is placed near walls, partitions or kitchen furniture and the like, it is
advisable to make these facilities with non-combustible material, otherwise cover
them with non-combustible heat-resistant material, and pay attention to fire
prevention regulations.
◆The appliance should be installed in a well-ventilated area with exhausting facilities,
which may ensure that all burnt gases produced during combustion process are
completely exhausted.
◆The appliance is only applicable to low-pressure gas regulating valve. It may lead to
loss and casualty if other regulating valves are used.
◆Do not seal the screw on the gas valve with seal welding.
◆Fire warning: If you smell the gas, please keep away from fire. Do not light up any
device or touch the electronic switch. Do not use any phone in the building either.
Close the main gas valve immediately and call the professional personnel to maintain
it. Operate by force or maintain improperly will lead to large gas leakage or
deflagration easily. The manufacturer won’t bear any responsibility for fire accidents
caused by improper operation or maintenance.

Contents
1. Functional Introduction…………………….......………………1
2. Structure Schematic Diagram…….......………………………1
3. Basic Features & Parameters……….....…………………..…6
4. Precautions & Recommendations ………….....…..…………7
5. Working Instructions & Operation Flow……….......…………9
6. Routine Inspection ……………………………….....………..11
7. Cleaning & Maintenance……………………….....……….…12
8. Failure Analysis & Trouble Shooting………….....………….13

1
1. Functional Introduction
This product is manufactured by our company, which is combined with advantages from
home and abroad. It is novel in design, reasonable in structure, easy in operation, durable
in using and convenient in maintenance. Therefore, it is the ideal equipment for food
industry.
2. Structure Schematic Diagram
S24

2
S36

3
S60

4
S36-G12
S36-G24

5
S60-G24
S60-GS24
Structural & Functional Features:
1. The bracket, exterior finish and adjustable feet are all stainless steel.
2. The control panel has a convenient design of the knob control switch inclining to the
operator.
3. The device is equipped with cast-iron burners. If the burner dies out accidentally, the
safety valve with thermocouple will shut off immediately.
4. Equipped with black cast-iron furnace frameworks and stainless steel slag collector.
5. The oven temperature is adjustable from 100℃to 320℃.
6. The oven is equipped with flame self-stability function. If the burner dies out
accidentally, the gas valve will shut off automatically. Power of the burner is 28000btu.
7. The burner whose power is 6*28000btu is equipped with pilot flame standby function.
8. The enamel base plate is removable, high-radiant and heat resisting.

6
3. Basic Features & Parameters
Model
S24
S36
S60
Dimension(mm)
610×830×911+627.5
915×830×911+627.5
1524×830×911+627.5
Oven Capacity(mm)
680×655×348
Temperature (℃)
100～320
100～320
100～320
Power
Top
6.5KW x 4
6.5KW x 6
6.5KW x 10
Oven
6KW x 1
7KW x 1
7KW x 2
Gas
Type
LPG
Pressure (Pa)
2800
2800
2800
Gas Cons.
(kg/h)
2.16kg/h
2.99kg/h
5.16kg/h
NG
Pressure (Pa)
2000
2000
2000
Gas Cons.
(M3/h)
3.39m3/h
4.87m3/h
8.36m3/h
Model
S36-G12
S36-G24
S60-G24
Dimension(mm)
915×830×911+627.5
915×830×911+627.5
1524×830×911+627.5
Oven Capacity(mm)
680×655×38
680×655×38
Temperature (℃)
100～320
100～320
100～320
Power
Top
6.5KW x 4
6.5KW x 2
6.5KW x 6
Oven
7KW x 1
7KW x 1
7KW x 2
Griddle
7KW x 1
7KW x 2
7KW x 2
Gas
Type
LPG
Pressure (Pa)
2800
2800
2800
Gas Cons.
(kg/h)
2.74kg/h
2.5kg/h
4.66kg/h
NG
Pressure (Pa)
2000
2000
2000
Gas Cons.
(M3/h)
4.23m3/h
3.6m3/h
7.09m3/h

7
4. Precautions & Recommendations
4.1 Transportation and Storage
During transportation, the machine should be carefully handled and do not put it upside
down to prevent from damaging to the shell and inside. The packaged machine should be
stored in a ventilated warehouse without corrosive gas. If it needs to be stored in open air
temporarily, measurement against raining is needed.
4.2 Notice for Installment
1. Installation of this device should be operated by professional technicians.
2. This device is suitable for area whose altitude is lower than 2000m. If it is higher than
this altitude, please contact the manufacturer.
3. Connection of this device should conform to provisions of gas safety, installation and
usage.
4. This device should be kept a minimum clearance of 10cm away from
non-combustible objects on both sides and 20cm at the back (e.g. walls, windows
etc.). Do not install it on flammable floor or other combustible objects.
5. Consider the weight of the device, please install it on the floor.
6. Level the device with a level gauge. The height can be adjusted by the adjustable
feet.
7. The mounting position should be well-ventilated and with ventilation facilities, which
will ensure that all the burnt gases produced during combustion process are
completely exhausted.
8. After installation, level the device and keep stable. Do not sway or tilt during
operation.
9. A quick-acting switching-off gas valve should be installed upstream the device where
is easy to be reached before installation.
10. Make sure that the supply gas is the same as the gas that the device allows to use. If
not, please stop using.
11. Do not use gas that not applicable for this device as fuel. Neither does high pressure
regulating valve nor medium pressure regulating valve. (This device is applicable to
low pressure regulating valve only.)
12. Pipeline that connecting to the device should be connected with proper metal pipe to
ensure no leakage.
13. If the pipeline pressure is 10% higher or lower than the rated pressure, please install
a pressure regulator to adjust the gas pressure to reach the rated one.
14. After connecting the appliance to the gas system, check for leaks at joints and pipe
fittings; to do so, use soapy water or a specific leak detector (spray). “No Flaming
Test!”
15. Check the gas supply pressure after installation.

8
4.3 Special Notice
1. Installation, first using and maintenance of this device should be operated by
professional personnel or qualified people.
2. Please keep the integrity of the appliance and remove the outer packing. If you have
any questions, call the specialist and stop using the appliance. In case of danger,
keep the packing materials away from children. (For the materials are plastic bags,
nails etc.)
3. When first using, the duration of ignition may be a little longer due to the air existing in
the new pipe. If the ignition cannot be lit up, turn off the ignition switch and turn on it 3
minutes later to prevent from deflagration.
4. Do not use gas that not applicable for this device as fuel. Neither does high pressure
regulating valve nor medium pressure regulating valve. Make sure that the gas
supply is the same as the gas that the device allows to use. If not, please stop using.
5. During operation, do not leave. If not going to use the device or leaving, in case of
danger, please turn off the device.
6. This product is a commercial machine that needs to be operated by trained cook, not
applicable for home use.
7. This device is for commercial use only, not applicable for other usage.
8. Do not sway or tilt during operation.
9. Do not dismantle or self-modify the device. Dismantlement and self-modification may
cause casualty.
10. Do not pat the product or put any heavy objects onto it. Abnormal operation may
cause damage and danger.
11. Do not put any objects in the smoke vent, which may block the flue and do harm to
our health.
12. High temperature may cause scald. Do not touch the appliance with hands directly
due to high temperature during or after operation. In case of scald, do not move the
device if it is still hot.
13. Do not spray the device with water directly. Clean the stainless steel surface regularly
to prevent damage caused by surface oxidation and chemical reaction.
14. Do not destroy the control panel with hard or sharp objects.
15. If the device is malfunctioning, turn off the gas main valve upstream the device and
contact with the manufacturer to repair.
16. Material used to make the device is recyclable, not containing any harmful or toxic
substance. During dealing with the device and its packing material, please follow
close to the line of the prevailing provisions. The packing material should be
classified and sent to a specific collecting site. Make sure that it conforms to the local
environmental regulations.
17. Do not put any flammable objects (e.g. towel etc.) on anywhere of the surface, or it
may cause fire.
18. After using, please turn off the gas valve immediately.
19. If any leakage is found, please turn off the gas valve and open the window to ventilate.
Do not turn the power and switches on or off. Please reuse them after maintenance.

9
20. Griddle seasoning
Caution: This griddle plate is steel ,but the surface is relatively soft and can be
scored or dented by the careless use of a spatula or scraper . Be careful not to
dent ,scratch ,or gouge the plate surface . Do not try to knock off loose food that
may be on the spatula by tapping the corner edge of the spatula on the griddle
surface .
A new griddle surface must be seasoned to do a good cooking job . The metal surface of
the griddle is porous .Food tends to get trapped in these pores ans stick ;therefore ,it is
important to seasoned or fill up these pores with cooking oil before cooking . Seasoning
gives the surface a slick ,hard finish from which the food will release easily .
To season, heat griddle top section at low burner setting .Pour one ounce of cooking oil
per square foot of surface over the griddle top section .With an insulated cloth ,spread the
oil over the entire griddle surface to create a thin film .Wipe off any excess oil with an
insulated cloth .
Repeat this procedure 2 to 3 times until the griddle has a slick surface.
5. Working Instructions & Operation Flow

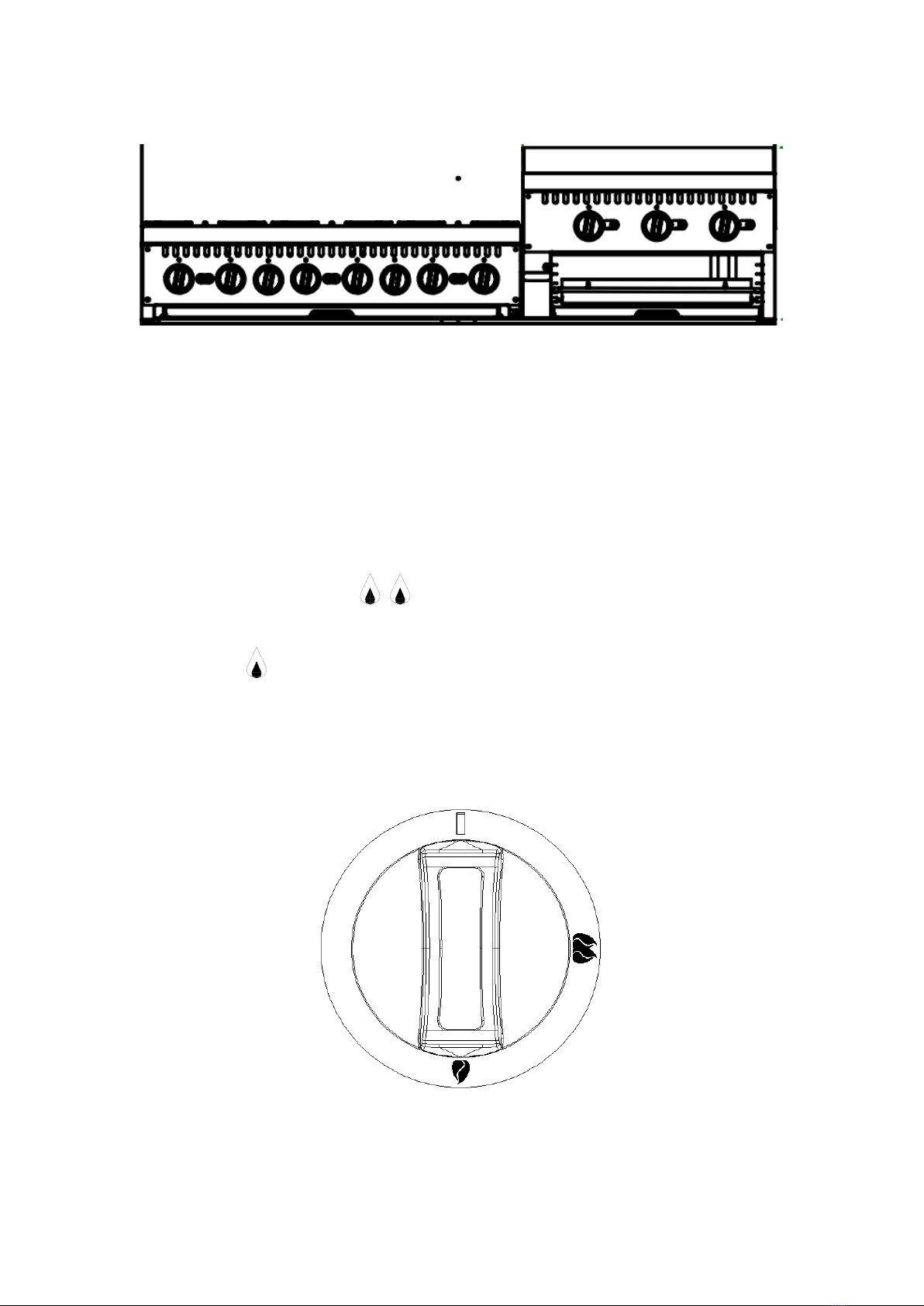

Control Panel:

10
5.1 Hot Top and Griddle Top Burners:
1. Connect the gas supply and ignite the pilot flame with a lighter. If the device is
stopped using for a long time or first used, it is normal that the duration of ignition may
be a little longer (about two or three minutes).
2. Press the corresponding valve knob of burner axially; 90 degrees anticlockwise, the
burner will be ignited. If “ ” on the knob is aligned with the round dot on the
panel, the flame is Max. To set the flame to Min, rotate anticlockwise to the Min flame
position. “ ” is Min.
3. After using, turn off the main burner. To shut down, rotate the knob clockwise to origin
position.
4. If not going to use the device, please turn off the quick-acting switching-off valve.

11
5.2 Oven:
1. Before using, please clean the device completely, especially the oven chamber.
Remove all the packing materials and film. Before cleaning the stainless steel
accessories, please make sure that the used detergent contains no corrosive
substance and suits to the stainless steel surface cleaning. Then dry the device with
clean cloth.
2. When first using, it is normal that there is unpleasant smell. (Make sure that the smell
is not caused by gas leakage.) In fact, that is produced by overheating of the
insulating material and oil residue during heating process of the metal. If the oven is
used at the first time, do not put any food into the chamber, set the temperature to
320℃and heat till the smell is gone.
3. When first using, the duration of ignition may be a little longer due to the air existing in
the new pipe. It cannot be ignited until all the air is exhausted.
4. Responding temperature of the chamber center on the oven knob: 100℃, 150℃,
200℃, 250℃, 320℃
5. During ignition, please open the lid under the door downward, press down the knob
and rotate it anticlockwise to “ ”, align with the salient point and press down. Ignite
the pilot flame with lighter via the ignition hole.
6. After the pilot flame is ignited, press the knob for more than 20 seconds to heat up the
thermocouple. If the ignition is out when you loosen the knob, repeat this operation.
7. Keep rotating the temperature control knob anticlockwise to ignite the main burner of
the oven. Select appropriate temperature according to food requirement. The oven
temperature can be controlled between 100℃and 320℃.
8. To turn off the burner: Rotate the knob clockwise to strip mark and align with the
salient point.
Note: If the gas type needs to be changed from NG to LPG, the nozzles of main burner
and pilot flame should be replaced.
6. Routine Inspection
It is necessary to check the machine daily.
Check the machine regularly can avoid serious accident happens.
Stop using if user feels that there are some problems in the circuit or machine.
Check the situation of the machine before or after using every day.
Before using: Whether the machine is tilted?
Whether the control panel is damaged?
During using: Whether there is strange smell or vibration noise?
Whether the flame of burner is normal? Any light back or flameout?
Whether the power is normal?

12
7. Cleaning & Maintenance
1. Before cleaning, please turn off the device and the gas valve upstream it.
2. Please clean the burners and tray for odds and ends regularly.
3. Clean the stainless steel surface with warm soap-suds every day and rinse it
completely. (Do not spray the device with water cannon directly.)
4. During cleaning, do not clean the stainless steel surface with abrasive detergent,
brush or scraper etc. The residual iron scale may cause rusting. Scrub it according to
direction of satin. Do not clean the surface with chlorine cleanser (bleach,
hydrochloric acid etc.) even though these products are dilute.
5. Do not clean the floor where the device locates with corrosive substance (e.g. KCL).
6. Clean the dirt on the burners and baffle regularly.
7. Do not modify the ventilation volume needed during combustion.
8. Accumulation of the iron substance (e.g. Material that formed by iron rust dissolving
in water in the pipe, especially when the device is not used for a long time.).
Therefore, to avoid accumulation of such substance, clean the food swill that is
difficult to clean with stainless steel scraper or brush containing no iron substance
instead of steel brush.
9. Accumulation of substance containing acidic ingredient, e.g. vinegar, lemon juice,
spices, salt etc. Thus, please keep these substances away from long contacting with
the stainless steel accessories. Vapor of acid solution will damage the surface of the
device seriously.
10. A complete cleaning every day will ensure a good service and extend the service life
of the device. Clean the device with a wet towel containing suds or detergent, rinse it
with clear water and dry it with clean cloth. Do not clean the device with steel brush,
which may cause rust. Similarly, do not contact the device with substance containing
iron.
11. Splotch and abrasion of the stainless steel surface: Scrape and black stain can be
cleared away by artificial sponge. During cleaning, the direction should be the same
as the polishing.
12. Rusting: To remove the rusting, please contact the industrial detergent manufacturer
to find a proper detergent to remove such rusting. Industrial rust removal products
may do. After cleaning, rinse it with clear water. If necessary, neutralize the residual
acid chemical compound with alkaline detergent.
13. To avoid rusting of the device, please make sure that the residual salt inside or
outside the device is cleared away.
14. After cleaning, to avoid short-time incomplete combustion, the fire hole of the burner
should be clean and unblock.
15. If not going to use the device at any time, please turn off the gas valve upstream the
device or the power main switch.
16. If not going to use the device for a long time, please clean the stainless steel surface
with gasoline cloth and store it in a well-ventilated warehouse without corrosive gas.
17. 90% of the device is metals (stainless steel, iron, aluminum, galvanized metal sheet)
which can be recycled by appointed treatment plant according to environmental

13
standards of the equipment installation countries. (No littering!)
8. Failure Analysis & Trouble Shooting
Symptoms
Causes
Solutions
The pilot flame cannot
be ignited.
1. The gas pressure is not
enough.
2. The nozzle is blocked.
3. Connection of the thermocouple
is loose.
4. The thermocouple is defective.
5. The gas control valve is
malfunctioning.
1. Adjust the relieve valve to
get a proper pressure.
2. Unblock the nozzle.
3. Please screw the
thermocouple.
4. Replace the thermocouple
5. Please replace the gas
control valve.
The pilot flame is on
but the main burner
cannot be ignited.
1. The gas pressure is not
enough.
2. The main burner nozzle is
blocked.
3. The gas control valve is
defective.
1. Adjust the relieve valve to
get a proper pressure.
2. Unblock the nozzle.
3. Replace the gas control
valve.
It has a light-back
sound when the gas
supply is turned off.
1. The diameter of nozzle does
not match with the gas
supply.
2. The damper is too large.
3. The gas pressure is too low.
4. The flow of the connected pipe
is not enough.
1. Please adjust the nozzle
diameter.
2. Adjust the damper.
3. Adjust the relieve valve.
4. Increase the permitted
flow.
It has red flame,
and black smoke.
1. The diameter of nozzle does
not match with the gas supply.
2. The damper is too small.
3. The gas nearly runs out. Please
replace the gas.
4. The gas ingredient reduces
the gas flow in gas peak
demand.
1. Please adjust the nozzle
diameter.
2. Adjust the damper.
3. Replace the gas.
4. Decrease the gas flow and
increase it after the peak
demand of the gas.
Aforementioned troubles are just for reference. If any failure occurs,
please stop using, and inform the professional technicians to check and
repair. Safety is first and maintenance should be done after the power
supply and gas supply are shut down.
