VESTEL X Series User manual

SERVICE MANUAL
JANUARY 2016
X SERIES
1
X SERIES (WITHOUT ON-OFF
BUTTON) WITH AND WITHOUT
DISPLAY PRODUCTS

SERVICE MANUAL
JANUARY 2016
X SERIES
2
COMPONENTS
Circulation Pump
Voltage : 220/240 V
Frequency : 50 Hz
Total Power : 88 W
Coil Isolation Class : F
Main Coil : 95%± 7 Ω
Sub Coil : 126%± 7 Ω
Thermal Protection : 109 °C
Pump Outlet Pressure : 300 mbar
Pump Flowrate : 60 lt/min
Drain Pump
Voltage : 220/240 Volt
Frequency : 50 Hz
Total Power : 30 W
Flowrate : 17 –21 lt/min
Coil Resistance : 143 Ω %± 7
Coil Isolation Class : F
Thermal Protection : 120 ° C
Heater Casing Group
Heater
Voltage : 220/240 V
Total Power : 2000 W
Resistance : 23.95±15 Ω
Single direction, single phase, asynchronous and
two pole. It turns opposite clock direction. It is
assembled to the basement with rubber hangers.
Single direction, single phase, asynchronous and two pole. It turns opposite
clock direction. It is assembled to the basement with rubber hangers.
It is used to heat the washing water.
Heater is not active during the drying process.
It is assembled to the sump and located to the
circulation pump.

SERVICE MANUAL
JANUARY 2016
X SERIES
3
NTC
Thermal Protection 83±3 ° C
Temperatures;
25°- 5000Ω %±5.0
35°- 3300Ω %±5.5
55°- 1520Ω %±6.5
63°- 1174Ω %±7.5
80°- 670Ω %±8.0
90°- 488Ω %±8.5
Pressure Switch
Voltage : 220/240 V
Frequency : 50 Hz (16 A –3 Pins)
Diverter
Voltage : 220/240 V
Frequency : 50 Hz
Power : 8 W
Resistance : 6840±٪5 Ω
T21 models includes diverter .
NTC
Thermal Protection

SERVICE MANUAL
JANUARY 2016
X SERIES
4

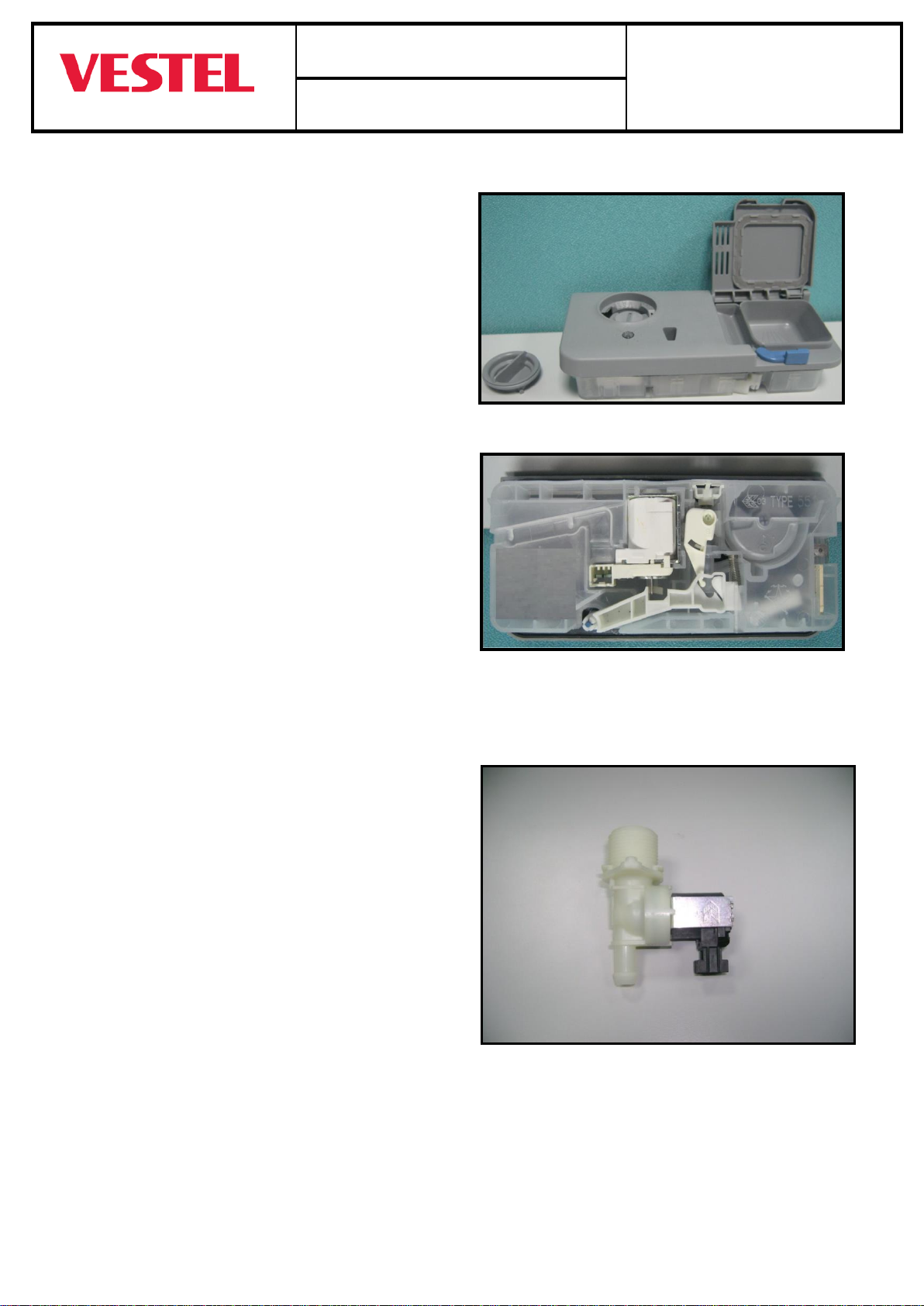

Detergent Dispenser
Detergant Compartment:
Main wash compartment : 40 cm³ (25/15)
Prewash compartment : 5 cm³
Aid Rinse Departmant :
Aid rinse cap : 150 cm³
Factory outlet setting position : 3. level
Detergent Dispenser Bobbin :
Voltage : 220/240 V
Frequency : 50 Hz
Resistance : 1660 ±10 Ω
Detergent Dispanser Rinse Aid Sensor:
Voltage : 250 V
Currency : 16 (4) A
Water Inlet Valve
Voltage : 220/240 Volt
Frequency : 50-60 Hz
Total Power : 6 W
Flowrate : 2,5 lt/min
Resistance : 3750 ±٪10 Ω ( 20 Cº )
Single inlet and single outlet standard single
coil selenoid valve. It is assembled to the
basement and connect to the airbreak by hose.

SERVICE MANUAL
JANUARY 2016
X SERIES
5
Water Softener
Regeneration Valve;
Voltage : 220/240 V
Frequency : 50/60 Hz
Total Power : 6 W
Resistance : 4130±٪10 Ω ( 25 Cº )
Regeneration valve is assembled on the water softener.
Salt Sensör;
Voltage : 250 V
Currency : 16 (4) A
It is assembled to the water softener. It warns if the
salt is less than requested quantity.
Door Lock Switch ;
It is a mechanical lock/release system that
is closing the door, supplying the connection of
electrical parts in the machine and cutting off the
connection.
Currency : 16 (4) A

SERVICE MANUAL
JANUARY 2016
X SERIES
6
Parasite Filter ;
Voltage : 220/240 V
Frequency : 50/60 Hz
0,1 uF (X1) + 2x0,027uF(Y2) + 1M Ω
It is used to prevent parasites from the main supply.
It has been assemblied to basement.
Flowmetre ;
It measures the inlet water and gives information to the
electronic card.
It causes drying performance for the normal
drying machines owing to the air ducts on it.

SERVICE MANUAL
JANUARY 2016
X SERIES
7
Power Cord;
Type : Euro 3 1mm2, copper conducting
Isolation : TS 9760 H05VV-F
Plug : TS-IEC 60884–1earthed, PVC injected
Length : 1800 mm
Drain Hose;
Drain hose maximum height : 110cm
Drain hose minimum height : 50cm
Drain hose maximum length : 400cm
Water Inlet Hose;
Hose that is flat edge is assemblied to plug.
Another edge that is turned edge is assemblied to water
inlet valve. It must be adjusted for assembly direction.

SERVICE MANUAL
JANUARY 2016
X SERIES
8
Air Break ;
It measure water that comes to inlet dishwasher. And It
gives datas to electronic card.
It causes drying performance for the normal
drying machines owing to the air ducts on it.
Water Softener ;
It decreases hardness of water that comes from main
supply.
It includes 2 departments that “salt department” and
“recine department” with 2 types that is sensor or without
sensor.
Sump;
Sump that is reservoir connects water in tube with
circulation pump and drain pump and heater casing..

SERVICE MANUAL
JANUARY 2016
X SERIES
9
Spray Arm Support;
It distributes water from divisor to upper and below
spray
L Spray Arm;
It transfers water from spray arm support to upper spray
arm
Upper Spray Arm;
It tranfers water from L spray arm to upper spray arm
There are two hole back of the upper spray arm.
The holes provides to work upper basket for
upper and lower position.

SERVICE MANUAL
JANUARY 2016
X SERIES
10
Upper Spray;
It distributes water from upper spray arm to dirty dishes
in the upper basket.
It provides to wash the dishes in the upper basket
through turning by the holes with various angles.
Lower Spray Arm;
It distributes water from lower spray arm to dirty dishes
in the lower basket.
It provides to wash the dishes in the lower basket
through turning by the holes with various angles.

SERVICE MANUAL
JANUARY 2016
X SERIES
11
PROGRAM CANCELLATION OF X SERIES
1) The machine must be open position to do the cancellation process.
2) Push the Start/Pause button for 3 sec. while the machine is operating.
3) After 3 sec, the drying light lights up and then it starts draining by the drain pump operates.
(Approximately 30 sec)
4) After the end of draining operation, the draining pump stops and the End light lights up.
On-off

SERVICE MANUAL
JANUARY 2016
X SERIES
12
ON-OFF OPERATION FOR X SERIES
1) The machine is closed while the on/off and program choosing knob is on the closed position. All of the
buttons don’t operate. The lights don’t light up. Only the electronic card has energy.
2) The machine will be opened when the on/off and program choosing knob is on any position except
“Closed”. The Start/Pause light lights up.
THE SERVICE TEST OF X SERIES
1) The machine is came to the Closed position.
2) The program chooser knob is came to the “2.Program” while pushing on the Start/Pause button for 5
sec.

SERVICE MANUAL
JANUARY 2016
X SERIES
13
3) The Start/Pause button is released when all of the lights light up for 1 time. (The service program
starts)
4) The last error (if there is a previos error) is observed at the beginning of service program.
Note: Service program can be cancelled by turning off the Start/Pause buton or cancellation operation.

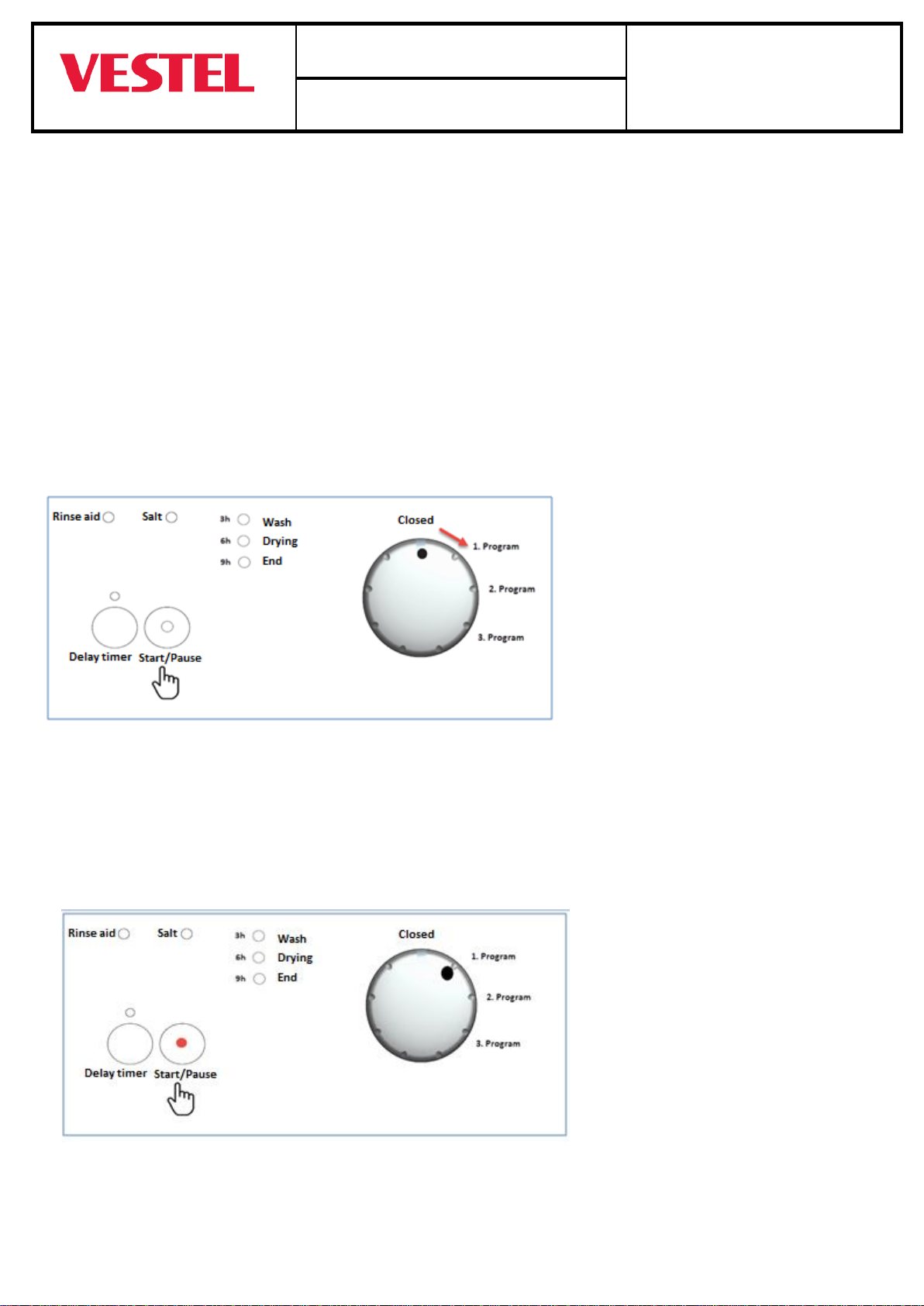

SALT SETTING OF X SERIES
1) The machine is came to the Closed position.
2) The program chooser knob is came to the “1.Program” while pushing on the Start/Pause button for 5
sec.
3) The Start/Pause button is released when all of the lights light up for 1 time. (It is setted on the water
hardness section)
4) The water hardness level is selected while pushing the Start/Pause button.

SERVICE MANUAL
JANUARY 2016
X SERIES
14
LEVEL
WASH
LIGHT
END LIGHT
START/PAUSE
LIGHT
1
ON
OFF
OFF
2
OFF
ON
OFF
3
OFF
OFF
ON
4
ON
ON
OFF
5
ON
OFF
ON
6
OFF
ON
ON
5) The machine is came to the closed position to exit from the water hardness setting and to get in
memory the last setting.
DISASSEMBLY
CAUTION!: REMOVE ELECTRIC PLUG FROM THE SOCKET DURING THE DISASSEMBLY

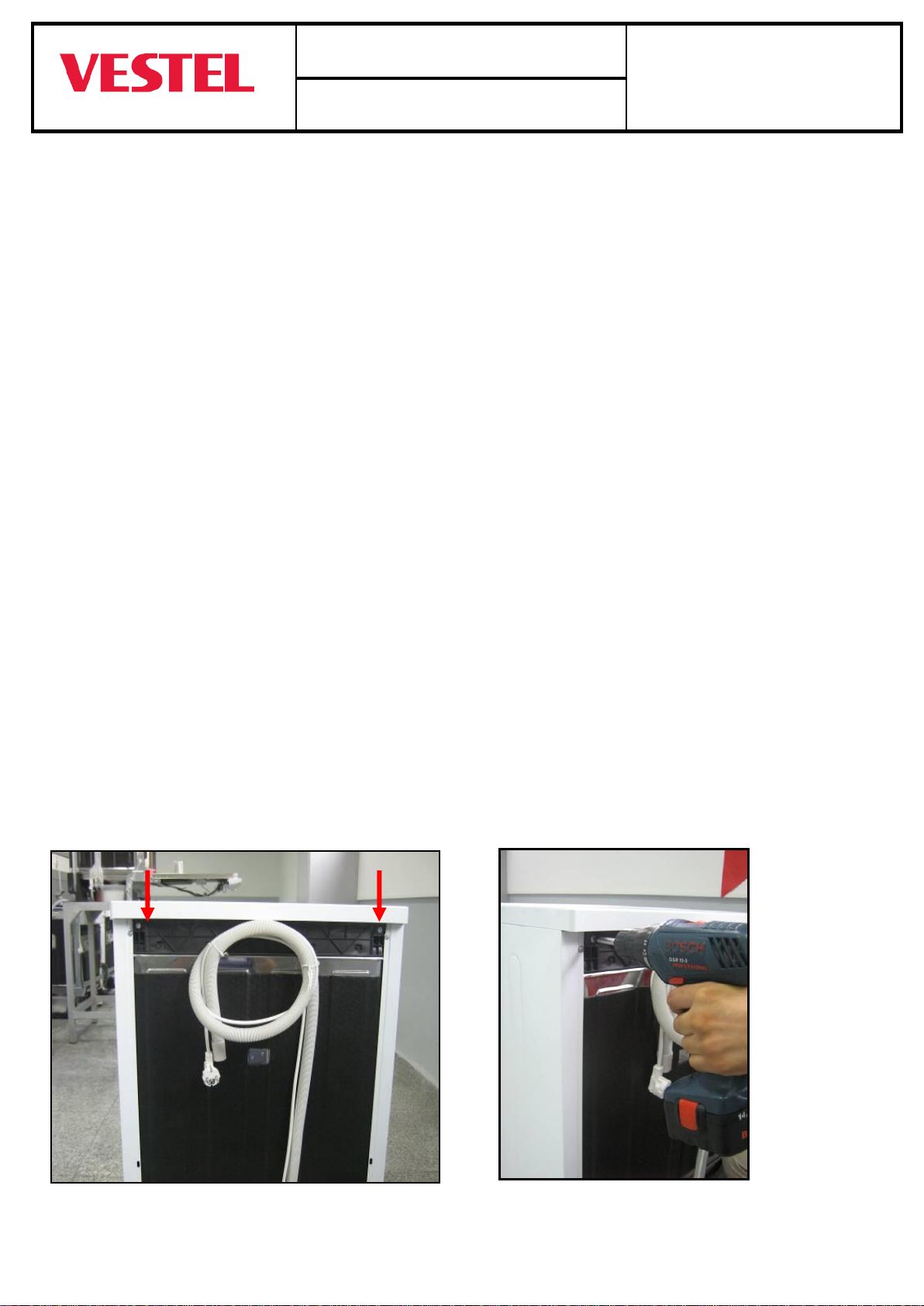

Top Plate
a) Remove two screws that fix the top plate at the back.
b) Push the top-plate back and pull it up.

SERVICE MANUAL
JANUARY 2016
X SERIES
15

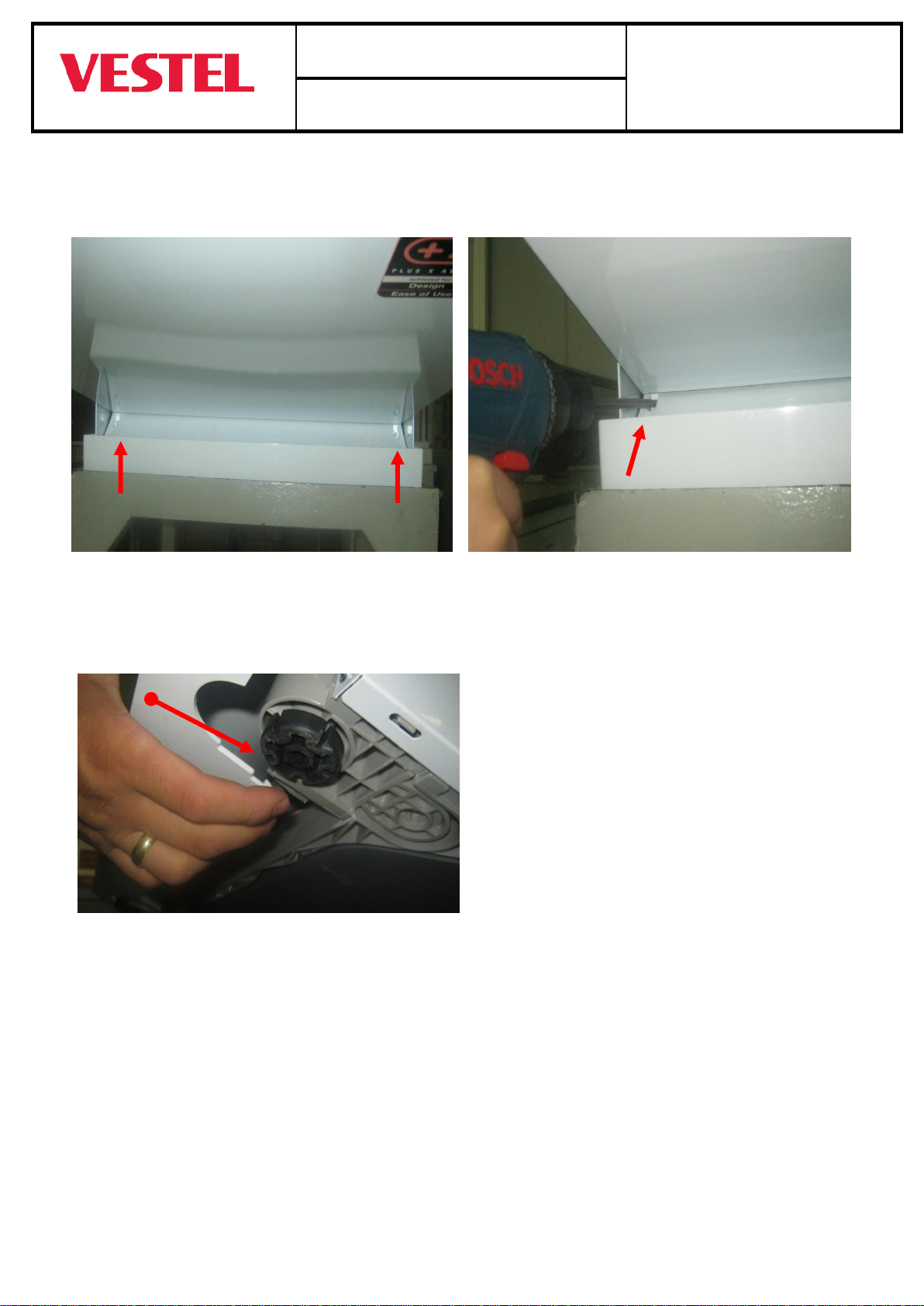

Plastic Kick Plate
a) Remove two screws fixing plastic kick plate.
b) Remove the plastic kick plate as it is shown in the picture.

SERVICE MANUAL
JANUARY 2016
X SERIES
16
Side panels
Remove the screws fixing side panels

SERVICE MANUAL
JANUARY 2016
X SERIES
17
Front Panel
a) Remove the screws as it shown in the picture.
b) Pull down the front panel after removing the screws.

SERVICE MANUAL
JANUARY 2016
X SERIES
18

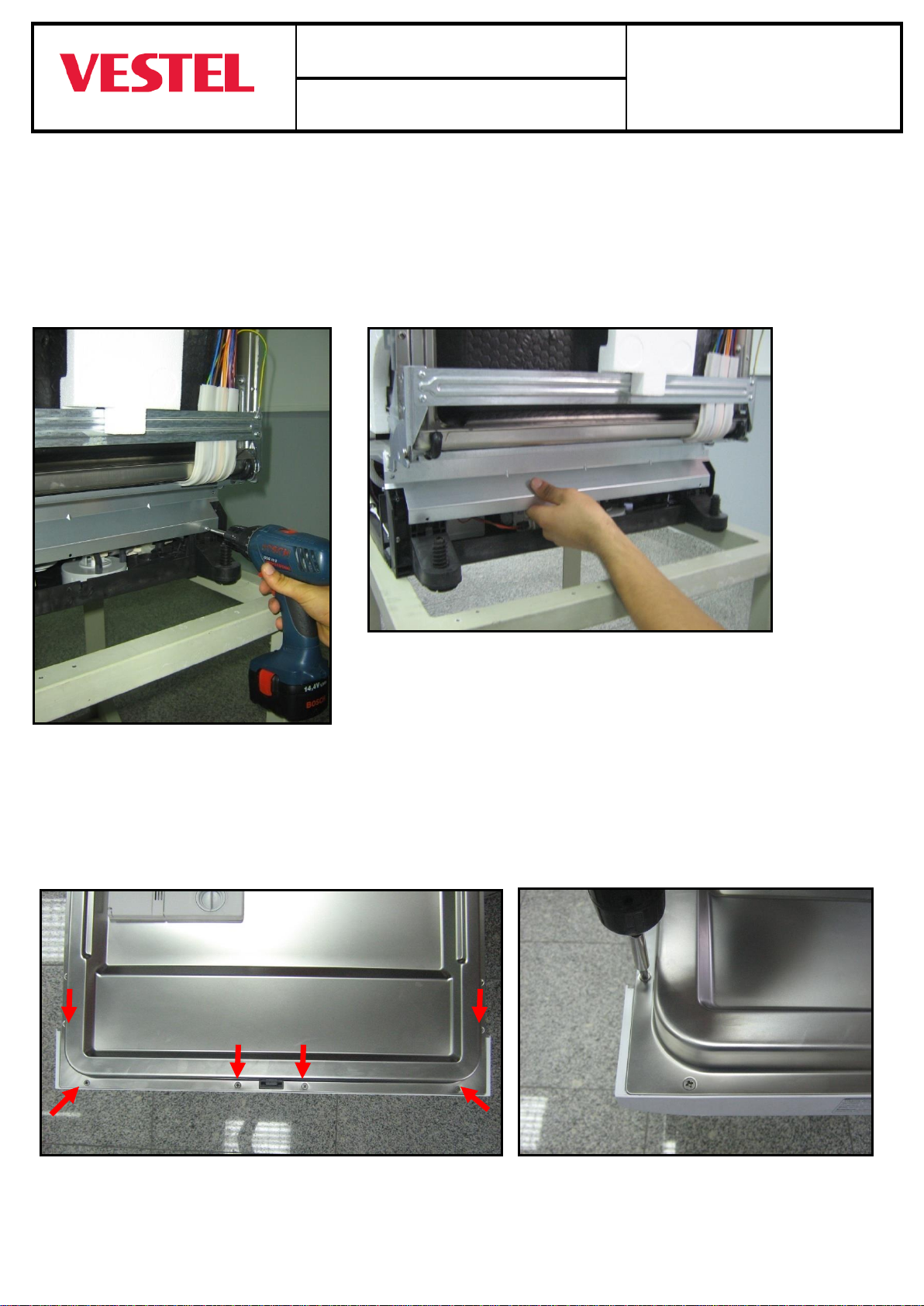

Kick Plate Sheet Iron
a) Remove top plate, plastic kick plate and side panels.
b) Remove the screws (4 screws) that fix the kick plate sheet iron.
c) Pull it down as shown in the picture.
Control Panel
a) Remove 6 screws that fix control panel to the door inside sheet iron.

SERVICE MANUAL
JANUARY 2016
X SERIES
19
Electronic Card
a) Remove the wires that are shown in the picture.
WARNING: WHILE REMOVING WIRES, DO NOT PULL THEM FROM WIRES, PULL FROM THE
CONNECTOR
b) Remove pcb box cover with pulling its plastic hinges.
c) Remove the connection cable which is between display and electronic card.
d) Remove the electronic card from pcb box by removing pcb box’s plastic hinges.

SERVICE MANUAL
JANUARY 2016
X SERIES
20
Door Lock Group
a) Remove control panel group.
b) Remove two screws that fix the door lock group.
Dispenser
a) Remove the front panel and remove the electrical connections of the dispencer.
b) Remove dispenser from inside door‘s hinges by using slotted screwdriwer. Push and remove
the dispenser .
WARNING: USE WORK GOVERS OTHERWISE INSIDE DOOR SHEET IRON CAN CUT YOUR HANDS
