Vestfrost MF214 User manual

Vaccine and Icepack Freezer MF 214
+43ºC
GB Instructions for use
FR Consignes d’utilisation
ES Instrucciones para el uso

CHI 使用说明

Vestfrost Solutions is working towards reaching the UN - Global Sustainable
Development Goals by 2030.
The Sustainable Development Goals are the blueprint to achieve a better and
more sustainable future for all.
In order to implement Goal no 12 ”Responsible Consumption and Production”,
this manual has been printed on recycled paper.

2
GB
As this appliance contains hydro-
carbon refrigerant please refer to
guidelines listed below.
The quantity and type of the
refrigerant used in your appli-
ance is indicated on the rating
plate.

the room in which you install
your appliance must have a
volume of 1m³ per 8 g of hydro-
carbon refrigerant used in the
appliances. This is to avoid the

mixtures in the room where the
appliance is located in the event
of a leak in the refrigerant circuit.

Ventilation openings in the
appliance or in built-in structures
must be kept clear.

Do not use other mechanical de-
vices or means to accelerate the
defrosting process or to remove
rime other than those recom-
mended by the manufacturer.

Do not damage the refrigerant
system.

The appliance may not be ex-
posed to rain.

This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities, or
lack experience and knowledge,
unless they have been given
supervision or instructions con-
cerning use of the appliance by a
person responsible for their safety.
Children should be supervised to
ensure that they do not play with
the appliance.

Children must not play with, on, or
around the appliance.

Children must not clean the ap-
pliance or carry out general main-
tenance unless they are at least
8 years old and are being super-
vised.

Do not store explosives, such as
-
pellants in the unit.

Always, keep the keys in a sepa-
rate place and out of reach of
children.


3
GB
Contents
WARNING ..................................................2
Get to know your Freezer ...........................4
General information ....................................5
Unpacking and installation..........................5
Voltage stabilizers.......................................6
Electrical connection...................................6
Cool down of the appliance ........................7
Temperature adjustment.............................7
Loading the appliance ................................8
Defrosting and cleaning..............................8
Trouble shooting.......................................10
Warranty, spare parts and service ............11
Wire-diagram ............................................12
Spare parts list..........................................13
Disposal....................................................15



To be repaired only by trained
personnel.

Before servicing or cleaning
󰀨
breaker.

Cleaning and user maintenance
shall not be made by children
without supervision.

Do not store explosive substanc-
es such as aerosol cans with a
-
pliance.

When positioning the appliance,
ensure the power cord is not
trapped or damaged.

Do not locate multiple portable
socket-outlets or portable power
supplies at the rear of the appli-
ance.

4
GB
Get to know your Freezer
Handle
Sealing strip
Ice freezing tray
Compressor compartment
with ventilation grille
Temperature display
Fig. 1

5
GB
MF-Model is a vaccine storage freezer and
icepack freezer. It has two compartments;
one for vaccine storage and one for icepack
freezing.
Power supply
The MF vaccine freezer is equipped with
a heavy-duty compressor that can operate
at voltages 22% below nominal voltage.
See the rating plate. If voltage variations go
beyond this range it is recommended to use
an automatic voltage stabilizer.
Unpacking
1. Unpack the appliance and check that it
has not been damaged. If you observe
any damage, inform your supervisor.
2. Check the rating for correct voltage and
frequency.
3. Open and remove all internal packing
material.
Unpacking and installa-
tion
Installation
The appliance must be placed in a well ven-
tilated room, not in direct sunlight and away
from other heating sources.

it is level. Distance between the wall and the
back and left side of the appliance must be
minimum 50 mm and the distance between
the wall and the right side of the appliance
must be minimum 100 mm. 

freezers, ensure a minimum distance bet-
ween the appliances of minimum 200 mm.
There must be at least 30 mm clearance
between the base of the appliance and the

There must be free access to
the ventilation grille
Fig. 2
Fig. 3
General information

6
GB
Electrical connection
Wiring and connections in power supply
systems must been all applicable (local and
national) electrical codes. Consult these
codes lengths and sizes prior to cabinet
installation.
This device complies with relevant EU
directives including Low Voltage Directive
-

The socket should be freely accessible.

50Hz alternating current via a correctly
installed earthed socket.
The socket must be fused with a 10-13 A
fuse.
If the appliance is to be operated in a non-
European country, check on the rating plate
whether the indicated voltage and current
type correspond to the values of your mains
supply.
Information regarding voltage, current or
power are given on the rating plate
The power cord may be replaced by a
technician only.



earthed.

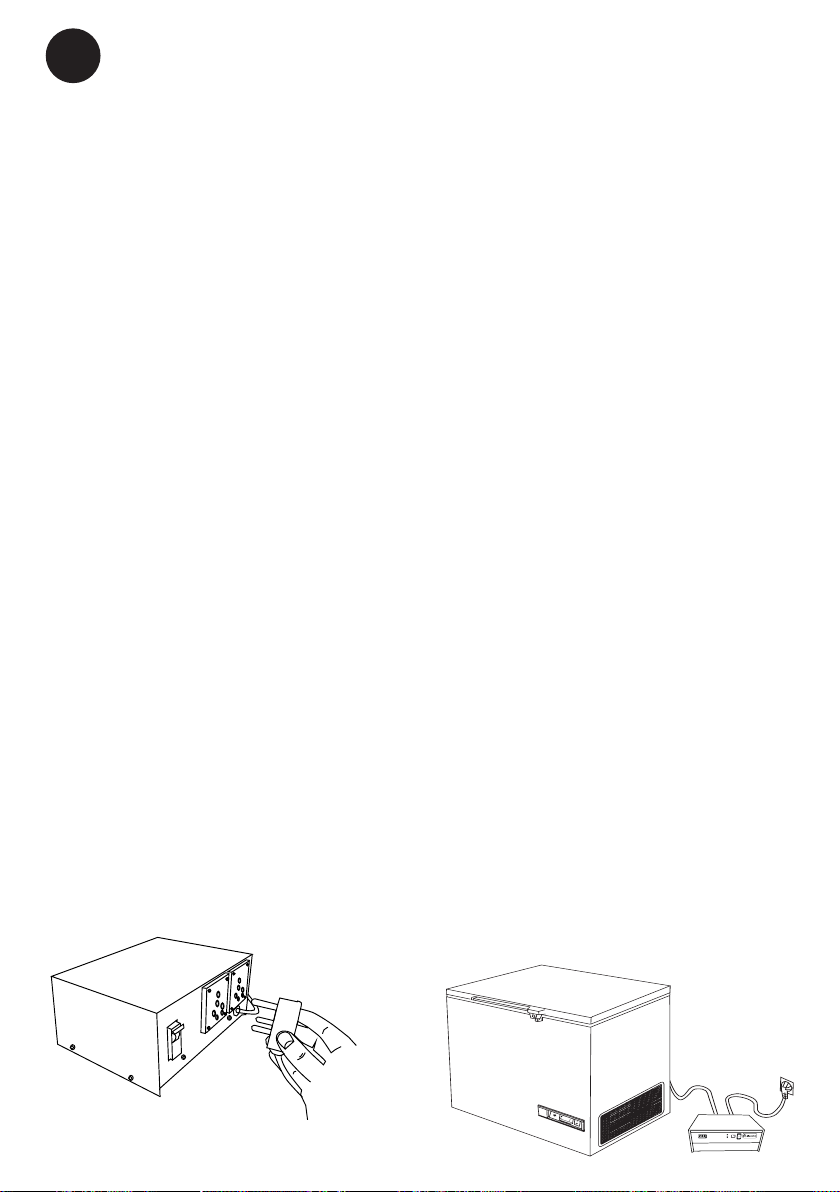

Connect the appliance to voltage stabi-
lizer and connect voltage stabilizer to wall
socket. (Fig 4 + 5)
Fig. 4
Fig. 5
Voltage stabilizers
It is highly recommended that all cold chain
equipment running on AC current is installed
with a voltage stabilizer, in order to safeguard

Stabilizers should be selected & installed as
per the input voltage available.
Instructions to User:
Every refrigeration unit must be connected
to an individual stabilizer.
Bypassing of Stabilizer is not recommend-
ed, as such practice may lead to damage
of the CCE & in turn safety of vaccines &
hence must be avoided.
Proper earthing should be available and
connected.
Emphasize on repairing stabilizers immedi-
ately. Identify authorized Vestfrost service
provider in case of technical assistance is
required.
The voltage stabilizer is also provided with ar-
󰀨

voltage goes below or above as per designed
input voltage range. The output is restored
automatically after the factory set delay 3 to 6
-
tions) when the mains voltage is within the
recommended range and remains within.

7
GB
Fig. 6
Cool down of the appliance
Before the appliance is loaded with vac-
cines ensure that the temperature is below
-15 °C:
Set the thermostat at position 5
Check the temperature on the thermo-
meter
If the temperature in the vaccine com-
partment is above -15°C the thermostat
should be adjusted. The temperature in
the vaccine compartment must always
be monitored on the thermometer and be
within the range -15 to -20°C.
Due to the mechanical tolerance of the
thermostats you should always control the
temperature during cool down .
This appliance is equipped with one
thermostat. See Fig. 6 and Fig. 7
Temperature adjustment
Fig. 7
Thermostat
The thermostat is a electronic thermostat
that controls the temperature in the vaccine
and icepack freezing compartments.
Setting 1 applies minimum cold and setting
8 maximum cold.

8
GB
Loading the appliance
Loading vaccines
When the temperature in the freezer has
stabilized, i.e. the temperature should be
below -15 to -20°C and the compressor
stops and starts, vaccines can be loaded.
The vaccines should be placed in the mid
part.
Loading and freezing of
icepacks
The icepacks should be placed in the
icepack compartment and the suspended
tray. Make sure you have a good contact
between the icepack and the evaporater
surface. Fig. 8
Fig. 8
Defrosting and cleaning
For the appliance to operate well and to
save energy, it is important that it is cleaned
and defrosted regularly.
When opening the appliance, moisture en-
ters and settles on inner cold surfaces and
forms a layer of frost or ice.
The layer of ice makes the freezer less ef-

It is recommended that the appliance be
defrosted every third month.
If thermostat is set to a warmer position,
remember to check the temperature in
the vaccine compartment
Defrosting
The water-packs stored and the humidity
of the air gradually causes frost and ice
to form in the freezer compartment. A thin
󰀨
performance, but a thick layer could cause
the freezer not to cool water-packs satisfac-
tory. Small amounts of loose frost can be
removed using a plastic scraper.
Never use electrical apparatus or sharp im-
plements as these may damage the inside
of the appliance.
When the layer of frost and ice exceeds
4-5 mm the freezer should be completely
defrosted.
Proceed as follows:

water-packs must be moved to another
working freezer or cold box with ice-
packs.
󰀨
3. Open the drainage plug placed inside the
freezer compartment.
4. Place a tray under the defrost water
drain.

9
GB
5. Place a bowl of hot (but not boiling) water
in the freezer, close the lid and wait
approx. 30 minutes before removing
loose frost with the plastic scraper.
6. To prevent water from damaging the
 
check the defrost water tray from time
 
defrost water drain to protect against ice
and splashes. When all the frost and ice
have melted, clean the inside cabinet,
as well lid, lid gasket, and outside of the
cabinet using water with a mild, perfume-
free detergent.
7. Dry the freezer with
a soft cloth, and make sure no moisture
is remaining after cleaning.
8. Reinsert the internal drainage plug, and
check lid gasket is not faulty.
9. Switch on the appliance, and make sure
it is freezing (Temperatures decreasing)
10. Check water-packs are not leaking
before returning them to the freezer
compartment. Store water-packs and
vaccines according instructions, approx.
5 minutes after having switched it on.
Close the lid
Cleaning
1. Once the appliance is defrosted it must
be cleaned.
2. Clean the inside of the appliance with a
mixture of lukewarm water and a mild
detergent.
3. Allow the cleaned parts to dry completely.
4.Clean the outside of the appliance with
a mixture of lukewarm water and a mild
detergent or soap.
5.Close the lid and follow the procedures in


10
GB
Trouble shooting
Fault Possible cause Remedy
Compressor is not run-
ning, and the ice packs
are not cold
Be patient, it is most likely that the
compressor will start within a few
minutes.
If this is not the case, check the fol-
lowing:
- Check that power is connected.
- Check the fuse and replace it if
necessary.
- If the above is OK, call technical
supervisor.
Compressor is running,
and the temperature is
too high
The ventilation grille is blocked.
The lid is not closed properly.
The temperature in the room in which
the appliance is installed is too high.
Ensure unhindered air circulation.
Ensure that the lid is closed properly.
Shield the appliance against direct
sun light and ensure more ventilation
to the room.
No temperature is
displayed
The thermometer is broken.
There is not enough light for the solar
sensor.
Change the thermometer.
Turn on the light.
