Vestil GCAB-3015-67 User manual

Identifier Item Description Quantity
A1 Top panel 1
B1 Left side panel 1
B2 Right side panel 1
C1 Left rear panel 1
C2 Right rear panel 1
D1 Shelf 4
E1 Front leg assembly 1
F1 Rear leg assembly 1
R1 Right door 1
L1 Left door 1
I Shelf support 16
J #8 10mm self-tapping
screw 20
Galvanized Storage Cabinet, Model GCAB-3015-67
Assembly Instructions
Product specifications:
Capacity per shelf = 66lbs (30kg)
Dimensions = 67in. (H) x 30in. (W) x 15in. (D)
~(170cm x 76cm x 38cm)
Overall wei
g
ht = 69lbs
(
~31.4k
g)

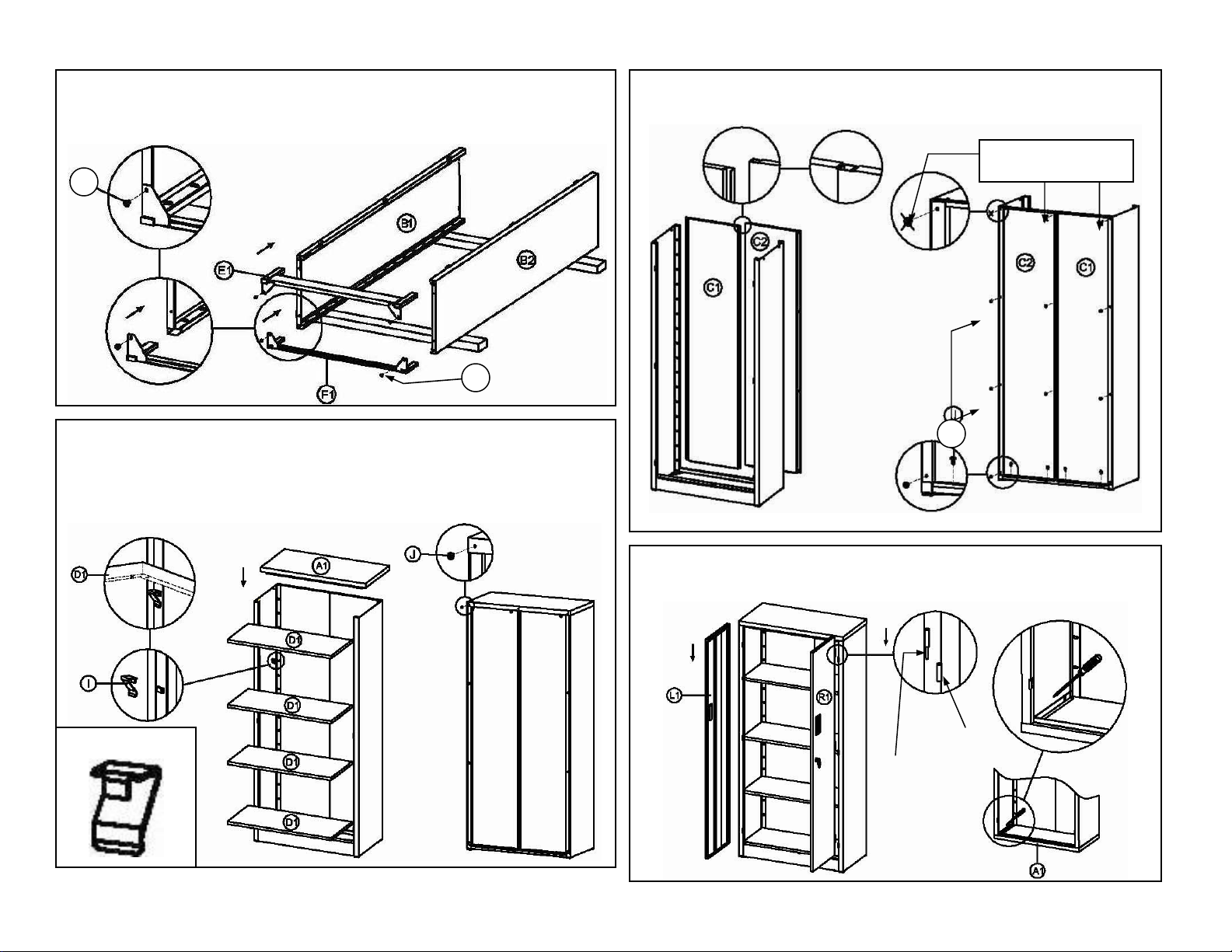

Step 1: Insert the front leg assembly (E1) and rear leg assembly (F1) into
the bottom end ((has flange with 2 holes for screws)) of the left side panel
(B1) and right side panel (B2) as shown in the diagram below. Fasten the leg
assemblies to the panels with 10mm screws (J).
Step 2: Install the left rear panel (C1) and then the right rear panel (C2);
then fasten the rear panels together and to the side panels with 10mm
screws (J) [NOTE: C2 will overlap C1 when properly installed].
Step 3: Set the top panel (A1) in place on top of the cabinet and secure it
in place with 10mm screws (J). Brace the panels from the opposite side
(e.g. with a portion of 2-by-4) to prevent the panel from warping. Install
shelf supports (I) in all 4 corners at the same height to support each shelf;
then install the shelves (D1) so that they rest on the supports.
Step 4: Install the left door (L1) and right door (R1) by inserting the
hinge pins mounted on the door panels into the hinge barrels mounted
on the side panels.
Shelf support (I)
Don’t install screws
here until ste
p
3
J
J
J
Hinge
pin
Hinge
barrel
