Vetter SmartFork SmartSupply SF-SUPPLY-V10-00X User manual

Operating instructions
U163-935
EN
SmartFork® SmartSupply
Read the instructions prior to performing any task! Keep for future use!

SmartFork® SmartSupply
2
EN

This operating instruction (hereinafter referred to as “manual”) contains fundamental
safety instructions for handling the VETTER SmartSupply (hereinafter also referred to as
"SmartSupply"). Incorrect use of the SmartSupply can lead to serious injuries and mate-
rial damage as a result of fires, for example. For this reason, this manual and especially
the safety instructions/information contained therein must be read by the competent
industrial truck driver prior to assembly, commissioning and maintenance. The manual
must always be available at the operation site of the SmartSupply (on the industrial
truck).
Illustrations in this manual are for basic understanding and may deviate from the actual
design.
Address VETTER Industrie GmbH
Carl-Benz-Strasse 45
57299 Burbach
GERMANY
Phone [phone]
E-Mail [email protected]
Internet www.smartfork.com
About this
manual
Customer
service
Supplemental directives
EN
SmartFork® SmartSupply 3

TABLE OF CONTENTS
1 OVERVIEW 5
1.1 Range of application 5
1.2 Variants of the SmartSupply 5
1.3 Structure, SmartSupply variant BAT 6
1.4 Structure, SmartSupply variant CAB 7
1.5 EC declaration of conformity 8
2 SAFETY 9
2.1 Symbols in this manual 9
2.2 Intended use 10
2.3 Safety instructions 11
2.4 Safety markings 13
2.5 Applicable documents 13
2.6 Protection of the environment and disposal 14
2.6.1 Recycling 14
2.7 Personnel requirements 15
2.8 Personal protective equipment 15
3 COMMISSIONING 17
3.1 Inserting and replacing the battery 17
3.2 Pairing 18
4 MAINTENANCE 20
4.1 Daily visual inspection by the driver 20
4.2 Replacement of the SmartSupply 21
5 TECHNICAL DATA 24
5.1 SmartSupply variant BAT 24
5.2 SmartSupply variant CAB 25
6 INDEX 26
Table of contents
SmartFork® SmartSupply
4
EN

1 Overview
1.1 Range of application

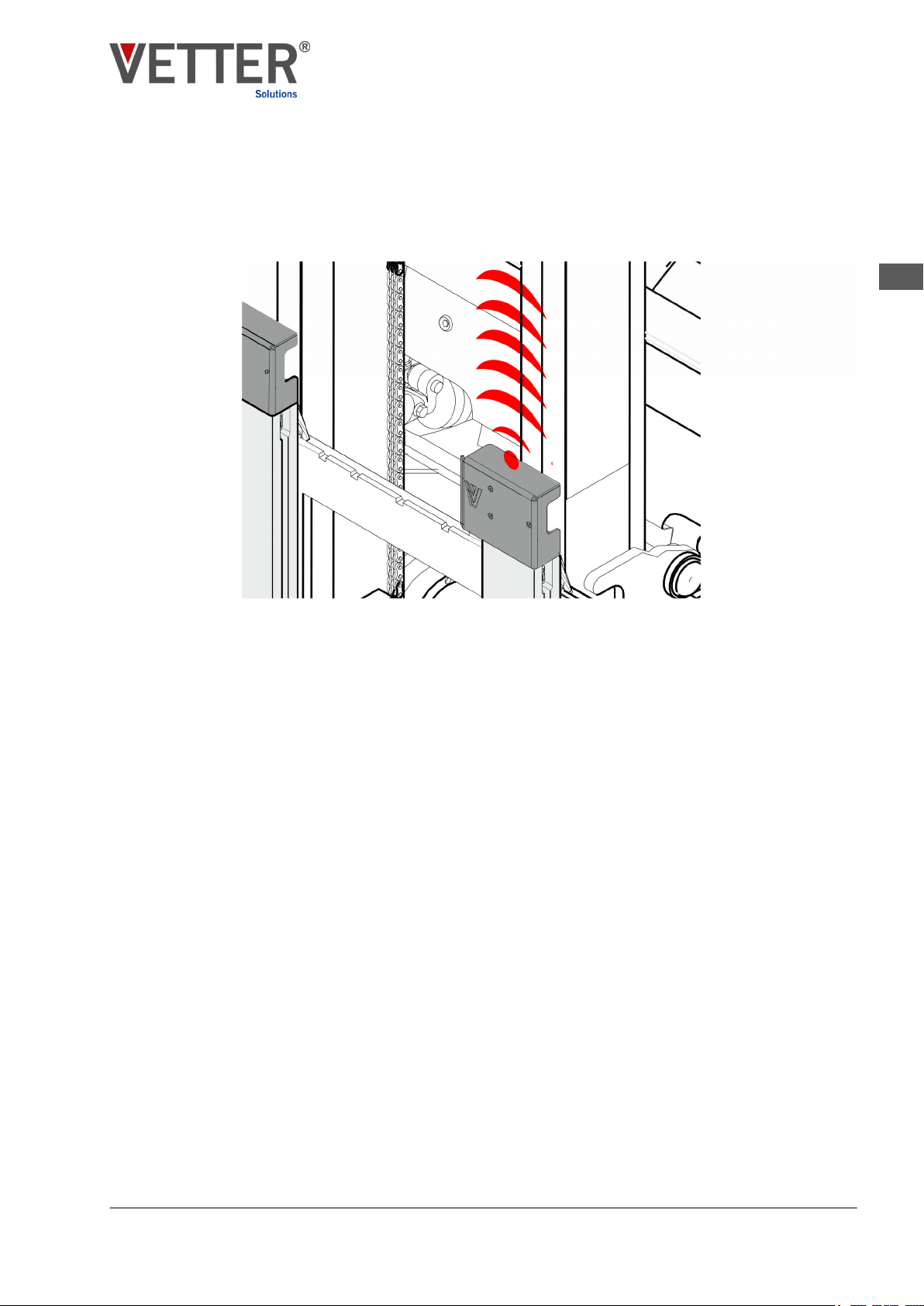

Fig. 1: SmartSupply
The sensor data from the SmartFork® applications in the fork blade is transferred to the
output device (SmartDisplay) in the cab via a radio connection. In variant BAT, the
SmartSupply serves as both the power supply and as a radio connection system through
the use of a battery (Fig. 1). Variant CAB is supplied with voltage via the power source of
the industrial truck and serves solely as a radio connection system.
1.2 Variants of the SmartSupply
The SmartSupply is available in two variants:
Variant BAT - Power supply via replaceable battery
Variant CAB - Power supply via cable connection to the power source of the industrial
truck
Overview
Variants of the SmartSupply
EN
SmartFork® SmartSupply 5

1.3 Structure, SmartSupply variant BAT
Fig. 2: Structure, SmartSupply variant BAT
1 Housing, battery connection
2 Contact holder
3 LED
4 Opening for pairing procedure
5 CANFLY board V1.0 with SmartSupply shield PCB
6 Housing cover
7 Connection, M8 4-pin connector
Overview
Structure, SmartSupply variant BAT
SmartFork® SmartSupply
6
EN

1.4 Structure, SmartSupply variant CAB
Power supply, VETTER Smart Supply variant CAB
The SmartSupply in variant CAB does not have a battery and is supplied
with voltage (12 - 24 V DC) via the power source of the industrial truck.
The connection is established by means of an additional M12 5-pin con-
nector (Fig. 3/2).
Fig. 3: Structure, SmartSupply variant CAB
1 Housing
2 M12 5-pin connector (PIN assignment Fig. 4)
3 Fibre optic cable
4 Opening for pairing procedure
5 SmartSupply shield PCB
6 Housing cover
7 Connection, M8 4-pin connector
PIN No. Core Marking
1 x Not in use
2 x Not in use
3 Red + 12 - 24 V DC
4 Black -GND
5 x Not in use
PIN assign-
ment, M12 5-
pin
SmartSupply
variant CAB
Fig. 4: M12 5-
pin
Overview
Structure, SmartSupply variant CAB
EN
SmartFork® SmartSupply 7

1.5 EC declaration of conformity
AS PER EC MACHINERY DIRECTIVE 2006/42/EC
VETTER Industrie GmbH, as the manufacturer, hereby declares that the products listed
below comply with the EC Machinery Directive.
Name: - SmartSupply power supply/radio connection
Model: - SF-SUPPLY-V10-00X, SF-SUPPLY-V20-00X
This declaration is void if a change is made to the aforementioned equipment.
The authorised agent for compiling the technical documentation is the signatory.
This declaration applies to all product variations of the product series, and to accessories
(if applicable).
APPLIED NATIONAL STANDARDS AND GUIDELINES:
2014/30/EU - EMC Directive
DIN EN 12895:2015 - Industrial trucks - Electromagnetic compatibility
DIN EN 61000-4-2 - Electromagnetic compatibility (EMC) - ESD
DIN EN 61000-4-3 - Electromagnetic compatibility (EMC) - Electromagnetic fields
DIN EN 61000-4-8 - Electromagnetic compatibility (EMC) - Magnetic field immunity
VETTER Industrie GmbH
Carl-Benz-Strasse 45
57299 Burbach/Germany
Tel.: [phone] - 0
E-Mail: [email protected]
www.forks.com
31/03/2020 Gunther Grindel (Technical Director)
Overview
EC declaration of conformity
SmartFork® SmartSupply
8
EN

2 Safety
2.1 Symbols in this manual
Safety instructions in this manual are marked by symbols. The safety instructions are
introduced by signal words which express the extent of the danger.
DANGER!
This combination of symbol and signal word indicates an imminently dan-
gerous situation which, if not avoided, will result in death or serious injury.
WARNING!
This combination of symbol and signal word indicates a potentially dan-
gerous situation which, if not avoided, could result in death or serious
injury.
CAUTION!
This combination of symbol and signal word indicates a potentially dan-
gerous situation which, if not avoided, could result in minor or slight injury.
NOTICE!
This combination of symbol and signal word indicates a potentially dan-
gerous situation which, if not avoided, could result in material damage.
ENVIRONMENT!
This combination of symbol and signal word indicates potential dangers
to the environment.
“This symbol highlights useful tips and recommendations as well as
information for ensuring efficient and faultless operation.”
Safety instructions may relate to certain, individual instructions for action. Such safety
instructions are embedded in the instruction for action so that readability is not disturbed
when performing the action. The aforementioned signal words are used.
Safety instruc-
tions
Tips and rec-
ommenda-
tions
Safety instruc-
tions in
instructions
for action.
Safety
Symbols in this manual
EN
SmartFork® SmartSupply 9

Example:
1. Loosen the screw.
2.
CAUTION!
Danger of pinching on the cover!
Close the cover carefully.
3. Tighten the screw.
2.2 Intended use
In variant BAT, the SmartSupply serves as both the power supply and as a radio connec-
tion system through the use of a battery (Fig. 1). Variant CAB is supplied with voltage via
the power source of the industrial truck and serves solely as a radio connection system.
WARNING!
Risk of injury from incorrect use!
Incorrect use of the SmartSupply could lead to dangerous situations and
serious injuries due to the associated failure of SmartFork® applications.
– Only use the SmartSupply with compatible SmartFork® products
intended for such use.
– Never use the SmartSupply for modifications and extensions of sys-
tems from third parties.
– Never use industrial trucks equipped with SmartSupply in areas sub-
ject to explosion hazards.
– Never allow insufficiently qualified persons to carry out maintenance or
repair work.
– Never skip a maintenance interval.
– Never modify the SmartSupply independently.
Intended use includes observation of all the information in this manual.
Any use that goes beyond the scope of intended use is considered incorrect use.
Using the SmartSupply without the prescribed safety markings (type plate, Fig. 5) is con-
sidered incorrect use.
Safety
Intended use
SmartFork® SmartSupply
10
EN

2.3 Safety instructions
WARNING!
Risk of injury from incorrectly executed work on the SmartSupply!
The faultless function of the SmartSupply ultimately depends on the
unchanged state of the SmartSupply. Independent modifications and
repairs or the use of third-party components could lead to damage and a
loss of functionality as well as serious injuries during use. Improper
repairs invalidate the guarantee and the manufacturer’s responsibility for
any consequential damage.
– Have the SmartSupply replaced by qualified electricians without
exception.
– Always use original components.
WARNING!
Injuries and material damage from incorrect installation!
Incorrectly laid cable connections between the power source (for variant
CAB) and the SmartSupply could be damaged by mechanical influences
such as tension, friction or becoming jammed. Defective cables could
cause short circuits and electronic malfunctions, system failures or cable
fires. Cable fires could result in serious injuries due to fires.
– Have the electrical connection and cable connections carried out by an
electrician without exception.
– Protect the cable connections from damage.
– Adhere to the prescribed maintenance intervals.
Improper
repairs
Incorrect
cable connec-
tion
Safety
Safety instructions
EN
SmartFork® SmartSupply 11

WARNING!
Risk of explosion and fire as a result of damage to the lithium-con-
taining battery!
The faultless function of the SmartSupply in variant BAT ultimately
depends on the intact state of the SmartSupply battery. Independent
modifications and repairs as well as damage or opening the battery
casing could cause the battery to ignite suddenly and result in serious
injuries.
– Never use defective, damaged, deformed or swollen batteries.
– Always replace the SmartSupply battery with caution and pay atten-
tion to the integrity of the battery.
– Do not use pointed tools to deal with the battery if it is jamming and do
not use force to beat out the battery.
– Always use the original charger and ensure faultless function prior to
use.
– Mask the terminals of the lithium-ion battery during transport and do
not transport it with other metallic objects in order to prevent short cir-
cuits.
– Do not charge lithium-ion batteries outdoors, or in humid rooms or in
places where very high temperatures are to be expected.
nThe endangerment of persons and the danger of material damage due to a malfunc-
tion or failure of the SmartSupply must be ruled out by means of additional safety
measures.
nThe SmartSupply in variant CAB must be secured against overvoltage and overcur-
rent on the vehicle side.
Risk of fire
Safety instruc-
tions
Safety
Safety instructions
SmartFork® SmartSupply
12
EN

2.4 Safety markings

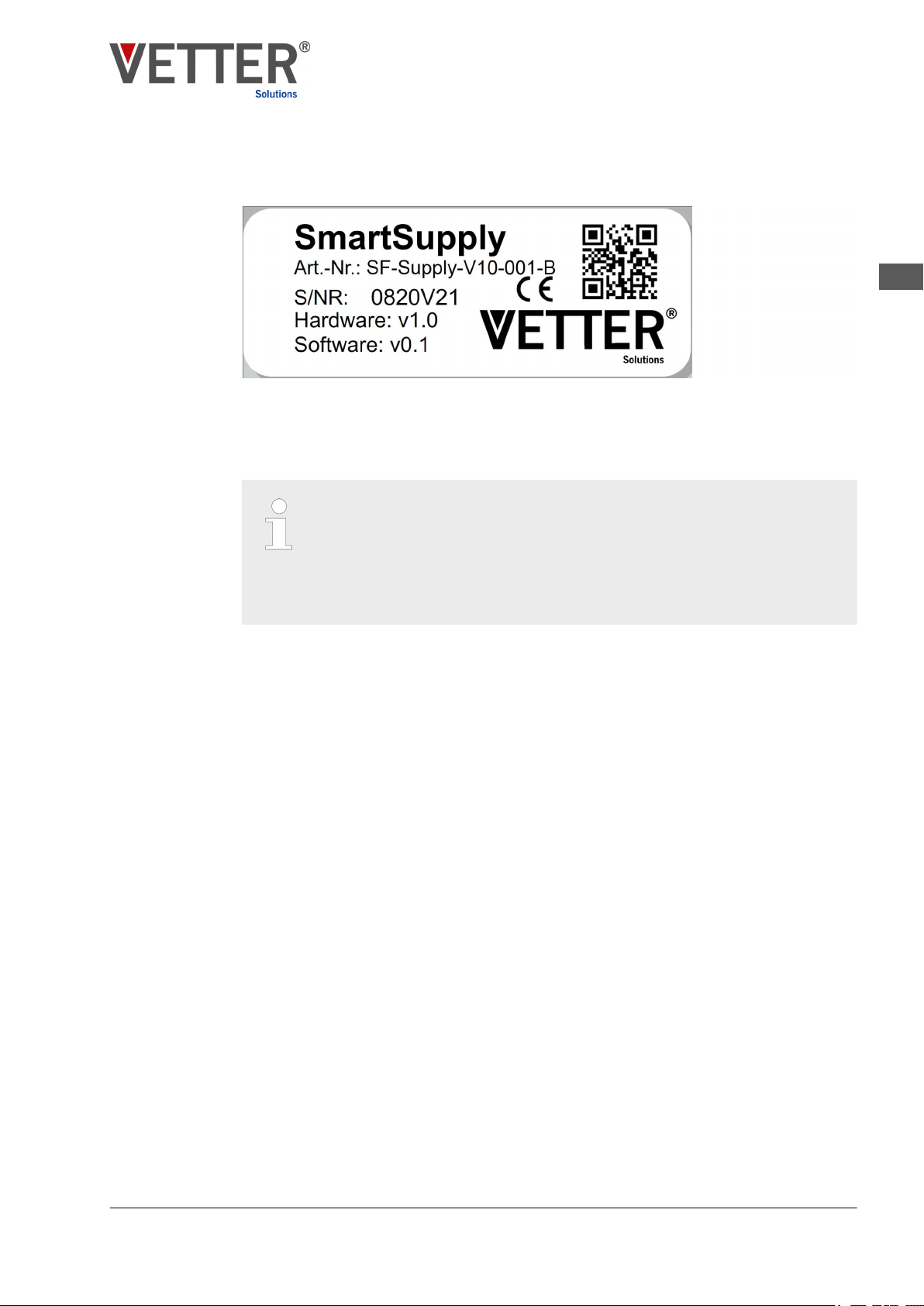

Fig. 5: Type plate, SmartSupply
The type plate identifies (via the article number it contains) the version of the
SmartSupply upon delivery. Do not put the SmartSupply into operation without a type
plate. The type plate is positioned on the housing near the battery connection.
Broker/client
A “B” (for broker) is listed at the end of the article number if using an indi-
vidual SmartSupply. The article number of the broker ends with “B” and
the client’s ends with “C” if using 2 SmartSupply units, e.g. for
SmartFork®. If using multiple fork arms with SmartSupply (e.g. for pallet
handlers), the article number of the other SmartSupply ends with a "C".
2.5 Applicable documents
In addition to this operating instruction, also observe the documentation of the other com-
ponents and machines used, as well as operator-specific requirements:
nOperating instruction for the industrial truck
nOperating manual for the output device (SmartDisplay)
nOperation of the SmartDisplay (applicable documents - operating instruction for
SmartDisplay)
nEquipment-specific operating instructions for the individual SmartFork® applications
and components
Type plate
Safety
Applicable documents
EN
SmartFork® SmartSupply 13

2.6 Protection of the environment and disposal
ENVIRONMENT!
Danger to the environment from incorrect handling of environmen-
tally hazardous substances!
If environmentally hazardous substances are handled incorrectly, particu-
larly if such substances are disposed of incorrectly, this could cause sig-
nificant damage to the environment.
Always observe the instructions given below when handling and dis-
posing of environmentally hazardous substances.
– If environmentally hazardous substances are inadvertently released
into the environment, take suitable measures immediately. If in doubt,
notify the competent municipal authorities of the damage and inquire
about suitable measures to be taken.
The following environmentally hazardous substances are used:
Batteries may contain recyclable materials and materials that could damage health and
the environment.
Do not allow batteries to come into contact with water, sewage systems, the ground or
domestic waste collection and ensure that they are recycled or disposed of by a specialist
company. Batteries must be collected separately and sent for recycling.
The lithium-ion batteries recommended in this manual are categorised as device batteries
and will therefore be taken back by device battery distributors and municipal collection
points.
Electronic components may contain recyclable components and components that could
damage the environment. Have electronic components recycled or disposed of by author-
ised specialist disposal companies only.
2.6.1 Recycling
Insofar as there is no take-back agreement or disposal agreement in place, separate
waste according to material and send it for recycling:
nScrap metals.
nSend plastic elements to be recycled.
nSort and dispose of the other components according to their material characteristics.
Lithium-ion
batteries
Electronic
components
Safety
Protection of the environment and disposal > Recycling
SmartFork® SmartSupply
14
EN

2.7 Personnel requirements
WARNING!
Risk of injury if personnel are not sufficiently qualified!
If unqualified personnel perform work on the device or loiter in the danger
zone of the device, dangers arise that could cause serious injuries and
significant material damage.
– Have all tasks carried out by personnel qualified to do so without
exception.
– Keep unqualified personnel away from the danger zones.
The following section of this manual stipulates qualifications for personnel in relation to
the various fields of activity:
Driver of industrial trucks
The driver of industrial trucks is capable of operating industrial trucks with a driver’s seat
or a driver’s platform thanks to their education, knowledge and experience. The driver of
industrial trucks is aware of the dangers involved with lifting and transportation tasks.
The driver of industrial trucks has proven their ability to drive industrial trucks with a driv-
er’s seat or a driver’s platform to the operator and has consequently been assigned con-
trol by the operator.
The driver of industrial trucks is familiar with the use of the VETTER SmartSupply and
the associated dangers.
Service specialist
The service specialist has a qualification in mechatronics or similar or has verifiably taken
part in training in which the necessary knowledge and procedures for safe performance of
assembly, installation, commissioning and service on the VETTER SmartSupply has
been taught.
The service specialist is familiar with the use of the VETTER SmartSupply and the asso-
ciated dangers.
The service specialist is capable of operating industrial trucks with a driver’s seat or a
driver’s platform thanks to their education, knowledge and experience. The service spe-
cialist is aware of the dangers involved with lifting and transportation tasks.
Only persons of whom it can be expected that they will carry out their duties reliably are
permitted as personnel. Persons whose ability to react is affected by drugs, alcohol or
medicine, for example, are not permitted.
When selecting personnel, note the age and occupation-specific regulations applicable at
the operation site.
2.8 Personal protective equipment
Personal protective equipment is used to protect persons from safety impairments and
adverse health effects while working.
During the different tasks on and with the device, personnel must wear the personal pro-
tective equipment that is specifically referenced in the individual sections of this manual.
Safety
Personal protective equipment
EN
SmartFork® SmartSupply 15

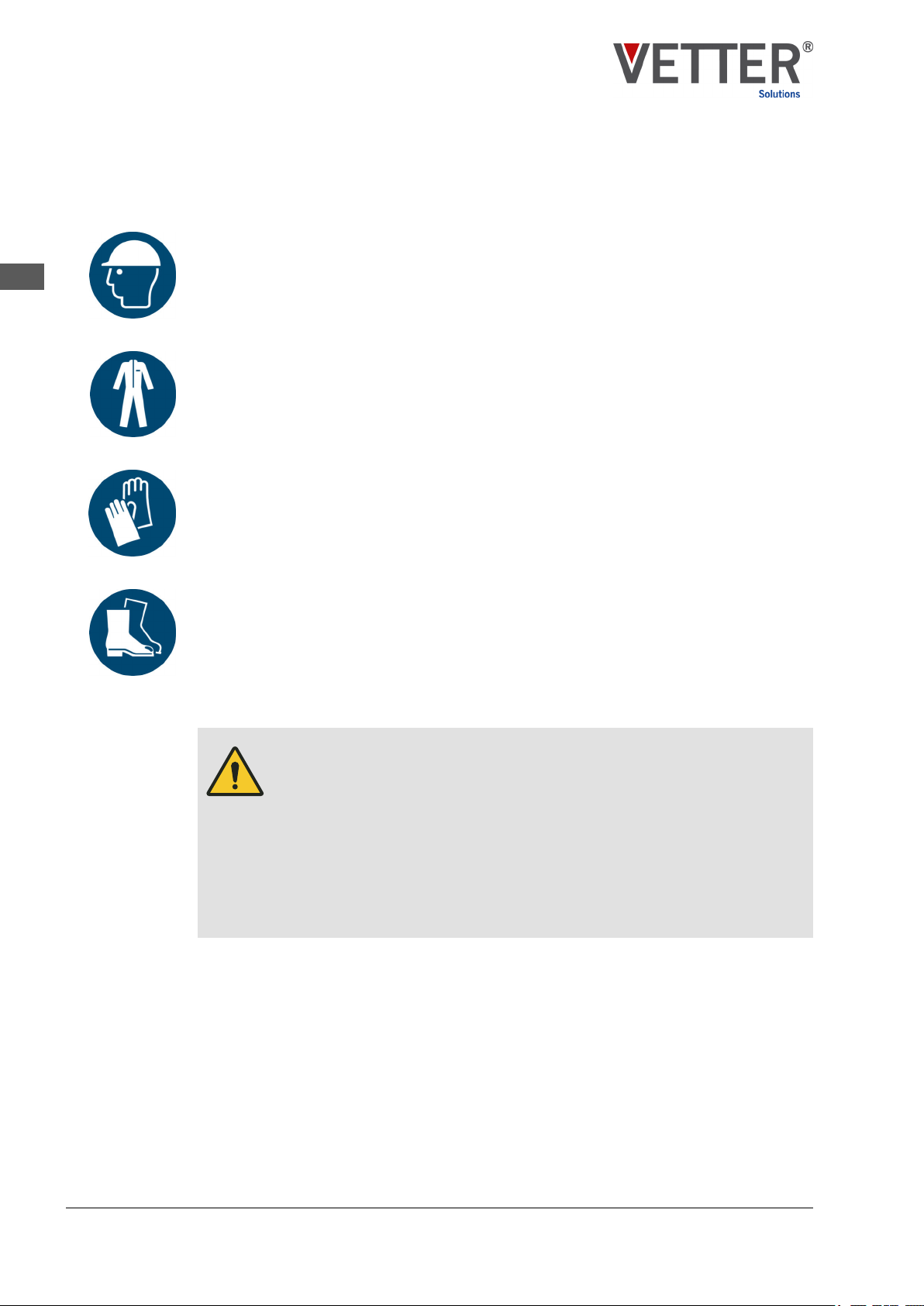

The personal protective equipment is explained in the following section:
Industrial safety helmet
Industrial safety helmets protect the head from falling objects, swinging loads and from
bumping against fixed objects.
Protective clothing
Protective clothing is tight fitting workwear with low tensile strength, short sleeves and
without any protruding parts.
Protective gloves
Protective gloves are used to protect hands from friction, abrasions, punctures and
deeper injuries. They also offer protection in the event of contact with hot surfaces.
Safety shoes
Safety shoes protect the feet from being crushed, falling parts and from slipping on slip-
pery surfaces.
WARNING!
Risk of injury from the work environment!
Regardless of the personal protective equipment required for the tasks
described, it is possible that additional dangers that are not described in
this manual could arise due to the operation site of the SmartFork®
SmartSupply. If suitable personal protective equipment is not worn for
these dangers, there is a risk of serious injuries.
– Observe the operating instructions on wearing personal protective
equipment.
Description of
personal pro-
tective equip-
ment
Further opera-
tional require-
ments
Safety
Personal protective equipment
SmartFork® SmartSupply
16
EN

3 Commissioning
Delivery state
In delivery state, the device is already installed on the fork head in the
housing panel and correctly wired.
3.1 Inserting and replacing the battery
NOTICE!
Always use the specified battery!
Using batteries with a different rated capacity or installation form can
result in the failure of, or damage to, the system.
All 18 V variants of the GBA series manufactured by Bosch can be used.
Using batteries from other manufacturers is only permitted following con-
sultation with VETTER Industrie GmbH
Checking the battery’s charge level
The batteries recommended for use generally have a button for showing
the charge level via an LED display. The button and display are located
on the front of the battery and can also be used when the battery is con-
nected.
Fig. 6: Inserting the battery
Assembly of
the battery
Commissioning
Inserting and replacing the battery
EN
SmartFork® SmartSupply 17

NOTICE!
Inserting the battery carefully
In order to prevent injuries and material damage to the battery and
SmartSupply, never use force to push the battery into the battery con-
nection.
Grip the battery securely and push it into the battery connection the correct way up
from right to left until the battery clicks into place.
Fig. 7: Removing the battery
1. Grip the battery securely and press the unlock button (Fig. 7/1) on the front of the
battery.
2. Keep the unlock button pressed down and pull the battery out to the right.
3. Put the battery safely aside.
3.2 Pairing
Personnel: nService specialist
Protective equipment: nIndustrial safety helmet
nProtective clothing
nProtective gloves
nSafety shoes
Disassembly
of the battery
Commissioning
Pairing
SmartFork® SmartSupply
18
EN

Pairing with the SmartDisplay
The complete manual and all steps for pairing between the SmartSupply
and SmartDisplay can be found in the operating manual for the
SmartDisplay in the other applicable documents.
Pairing status upon delivery
Pairing was already carried out during initial commissioning at the manu-
facturer’s premises and must only be repeated when a SmartSupply is
replaced.
The SmartSupply needs to be “paired” with the broker following replace-
ment of a client.
The SmartSupply needs to be “paired” with the client and the SmartDis-
play following replacement of a broker.
The radio connection between two SmartSupply units is established and stored as a
result of pairing.
1. Identify the SmartSupply with the broker (master) role (
Ä “Type plate”
on page 13).
2. Insert the charged battery into the battery connection of the SmartSupply variant
BAT or connect variant CAB to the power supply.
3. Unscrew the M4 grub screw from the opening for the broker pairing procedure
(Fig. 2/4).
4. Insert a thin, cylindrical object (e.g. 2 mm Allen key) into the borehole and carefully
push it through to the end.
5. Press the pushbutton at the end of the borehole lightly and hold it until the client
LED (Fig. 2/3) lights up and flashes in swift succession.
The LEDs go out again on both devices following successful pairing.
6. Screw the M4 grub screw back into the opening for the pairing procedure until the
screw is flush with the housing.
Pairing fol-
lowing
replacement
of the
SmartSupply
Commissioning
Pairing
EN
SmartFork® SmartSupply 19

4 Maintenance
NOTICE!
Maintenance intervals
Always include an inspection of the SmartSupply as part of maintenance
procedures for the SmartFork® Scale.
4.1 Daily visual inspection by the driver
Personnel: nDriver of industrial trucks
Protective equipment: nProtective clothing
nIndustrial safety helmet
nProtective gloves
nSafety shoes
1. Check the SmartSupply at the fork head for tight fit.
2. Check that the cable connection to the sensor system is secure.
3. Check the surfaces of the battery for breakage and dirt.
4. Check that the battery is fully charged
Ä Further information on page 17.
Replacing the battery at the end of the shift
In order to ensure speedy and problem-free use of the SmartSupply,
always make sure that there are fully charged batteries available for sub-
sequent use.
Insert the battery into the charging station right at the end of the shift.
Maintenance
Daily visual inspection by the driver
SmartFork® SmartSupply
20
EN
