VEVOR EHM-959 Technical manual

Technical Support and E-Warranty Certificate www.vevor.com/support
WATER IONIZER MACHINE
OPERATION INSTRUCTION
MODEL:EHM-959
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:EHM-959
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
WATER IONIZER MACHINE

- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
Indoor Use only
CORRECT DISPOSAL
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed
through indicates that the product requires separate refuse
collection in the European Union. This applies to the product
and all accessories marked with this symbol. Products marked
as such may not be discarded with normal domestic waste, but
must be taken to a collection point for recycling electrical and
electronic devices
IMPORTANT SAFEGUARDS
When using your Buffet Warmer, basic safety precautions should always
be followed:
1.Read all instructions.
2.Check that the voltage indicated on the data plate corresponds with that
of the local network before connecting the appliance to the mains power
supply.
3.Do not leave the appliance unattended whilst connected to the mains
power supply.
4.Do not immerse the appliance in water or any other liquids.
5.It is imperative to unplug the power cord after the appliance has been
used, before it is cleaned and whilst being repaired.
6.Close supervision is required when using this appliance near children.
Never leave the appliance within reach of children.
7.Repairs to electrical appliances should only be performed by a qualified
electrician. Improper repairs may place the user at serious risk.
8.This appliance is intended for household use only and should not be

- 3 -
used for commercial purposes.
9.Do not operate the appliance with a damaged plug or cord, after a
malfunction, or after being dropped or damaged in any way.
10.Do not use the appliance for anything other that its intended use.
11.Do not touch hot surfaces, use handle or knobs when working with the
unit.
12.This appliance can be used by children aged from 8 years and above
and persons with reduce physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
Keep the appliance and its cord out of reach of children less than 8 years.
13.Type Y attachment: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
SAVE THESE INSTRUCTIONS
FCC INFORMATION
CAUTION:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment!
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) This product may cause harmful interference.
2)This product must accept any interference received, including
interference that may cause undesired operation.
WARNING:
Changes or modifications to this product not expressly approved by the
party, responsible for compliance could void the user's authority to operate
the product.

- 4 -
Note:
This product has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules, These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This product generates, uses and can radiate radio frequency energy, and
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception,
which can be determined by turning the product off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures.
· Reorient or relocate the receiving antenna.
· Increase the distance between the product and receiver.
· Connect the product to an outlet on a circuit different from that to which
the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for assistance.
INPUT WATER QUALITY REQUIREMENTS
Product Main Features
• The input water quality should meet the local drinking water quality
standard. If the water quality is not good, it may not only shorten the water
ionizer's lifespan, but even may be harmful to your health.
• The input water flow rate should be over 0.8L/min, then it will drive the
water flow sensor to start the water ionizer. If your water flow is less than
0.8L/min, the water ionizer can't be turned on to work. Then you may need
a pump to help.
DO NOT DAMAGE THE POWER CABLE AND PLUG
• Do not force to bend, twist or squeeze the power cable and plug
• Do not drag the power cable

- 5 -
• Do not put heavy weight on it
• To avoid electric shock or catching fire, stop using the machine once
damage is found on the power cable or plug. Please contact professionals
to repair the damaged power cable and plug.
• Always insert the plug to the end. Stop using a damaged or loosened
power plug. If not, it may cause the electric shock or catch fire.
• Clean the dusts on the power plug pins regularly. Because if the dust
contacts the water mist, there is a risk of electric shock or catching fire. Do
not use volatile solvents to clean the machine. Clean it with soft cloth and
detergent.
DO NOT INSTALL THE WATER IONIZER IN THE PLACES BELOW
• Near the Fire or high temperature(Over 60℃) place
• Outdoors or exposing to the sun or rain
• In steam or moisture place
• Do Not disassemble, repair or modify the machine on your own. Please
contact the distributor/seller or professionals for any question.
TECHNICAL PARAMETERS AND SPECIFICATIONS
Model
EHM-959
Power supply
AC115V 60Hz
Heating power
1100W
Electrolytic power
110W
Bide power
12W
Water pressure
0.1~0.3MPa
Inlet water TDS
50~1000mg/L
Flow rate
1.0~3.5L/Min
Best flow rate
2~3 L/Min
Continuously working time
≤30minutes
Filter usage life
10000L(Depend on the water quality)

- 6 -
Plates material
Titanium with platinum coating
Number of plates
8 PCS
Electrolytic plate area
1848cm²
pH range
2.5-11.2
ORP range
+500~-800mv
Inlet water temperature
5-40℃
(41-104℉)
Heat the water temperature
35-55℃
(95-131℉)
Note:1.The pH & ORP range, Filter usage life and Flow rate etc. is
depending on your local water supply condition.
The PH data is laboratory data, different regions are affected by TDS value,
the data may be different, which is a normal phenomenon.
When the heating function is working, the water temperature will be kept at
about 35-55℃.
METHOD OF ERECTION
1.Check The Accessories
Before installing the machine, please check if all the accessories are
received. If any of them are missing, please contact the distributor/seller.
Tap adapter A Tap adapter B Coiler

- 7 -
Tee assembly 1/4”PE pipe 3/8" soft pipe
Accessory bag Power cord pH test reagent
Filter wrench
Note: If there is any improvement, it will be clarified in this manual. The
product's appearance, color changes and specifications are subject to
modification without notice.
2. Installation Environment
A. Install the machine in a place that will avoid the direct sunshine and the
fire (Over 1 Meter).
B. This water ionizer is using AC120V or AC220-240V power supply.
Please connect it to a separate power socket, and away from other
appliances, such as microwave oven. To ensure safety, the ground wire is
needed.
C. This water ionizer works with 0.1-0.3MPa water pressure. If your input
water pressure is lower than o.1MPa, please install a booster pump.
3. Installation Tools You May Need
A. Cross Screwdriver
B. Cutting Knife
C. PTFE tape
4. Installation Diagram Overview

- 8 -

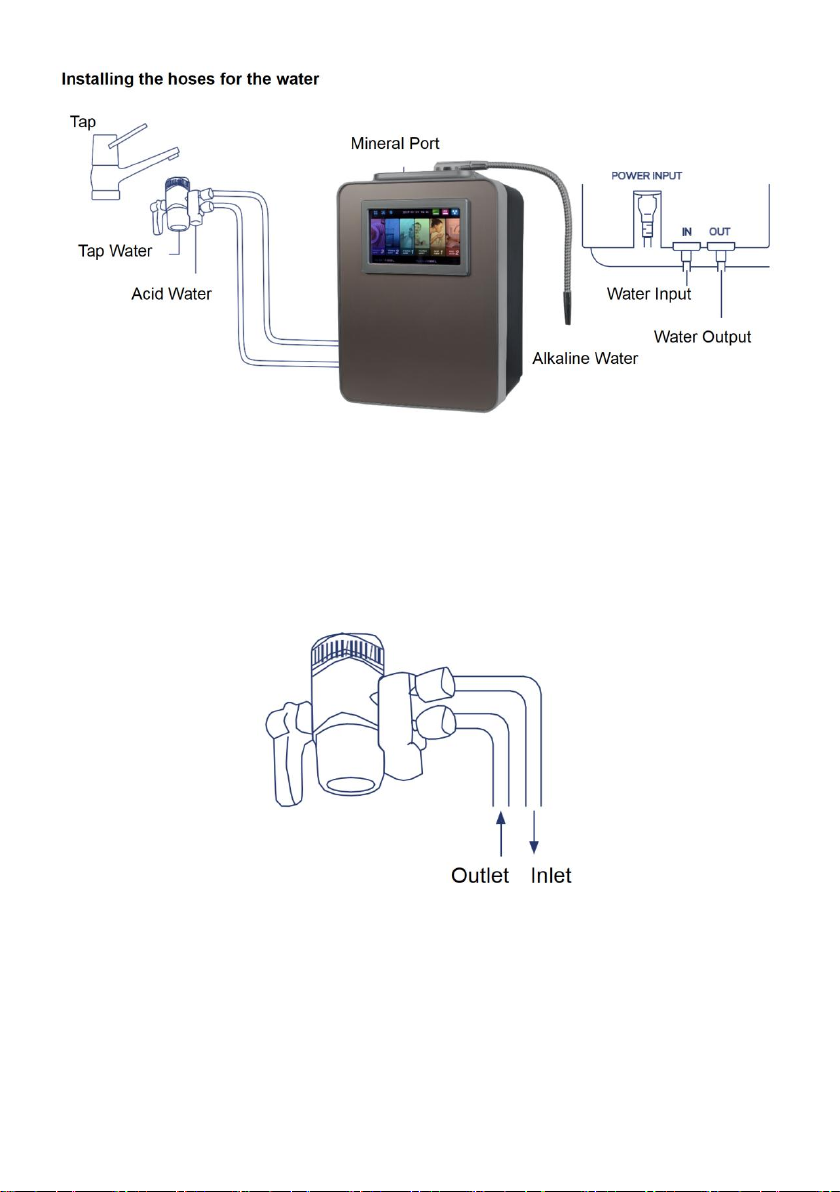

Cut the water hose into 2 pieces. Insert one hose into the IN outlet on the
back of the unit and the other end should be inserted into the top insert on
the adaptor. Repeat the process for the OUT outlet for the bottom insert.
When getting ready to insert the other end of the hose into the adaptor, first
insert the hollow bolt through the hose and screw the bolt into the adaptor
as seen in the picture below.
Insert the top hose to the OUT nozzle behind the unit and insert the bottom
hose to the IN nozzle. The hoses are identical, so which hose is affixed to
which part of the adaptor will not matter.
How to connect the adaptor to 2 common types of faucets

- 9 -
Type A:
Remove the outlet of the tap and
fasten the adaptor. If there are
leaks, turn it slightly as shown in
the diagram until the leak stops,
ensure that the washer has been
inserted before tightening.
Type B:
Fix the installation ring first. Use
the internal ring set and affix to the
tap. Tighten with a wrench. Finally,
affix the separator.
Step 1: Drilling: Within 70mm of the edge of the sink, drill a through hole
(diameter 142mm) on the counter surface with an electric drill. Note:
Marble counter tops need to use an φ14mm glass hole opener.

- 10 -
Step 2: Fix the 2-2 valve: Insert the 2-2 valve into the hole and fix it on the
counter with a hex nut.
Three-way ball valve installation
Should close the household main water valve switch, connect the
three-way ball valve from the user's home water pipe, so that one end of
the three-way ball valve is connected to the water inlet pipe, the other end
is connected to the external water equipment pipe, and then connect the

- 11 -
PE water pipe (1/4” water pipe) from the three-way ball valve outlet.

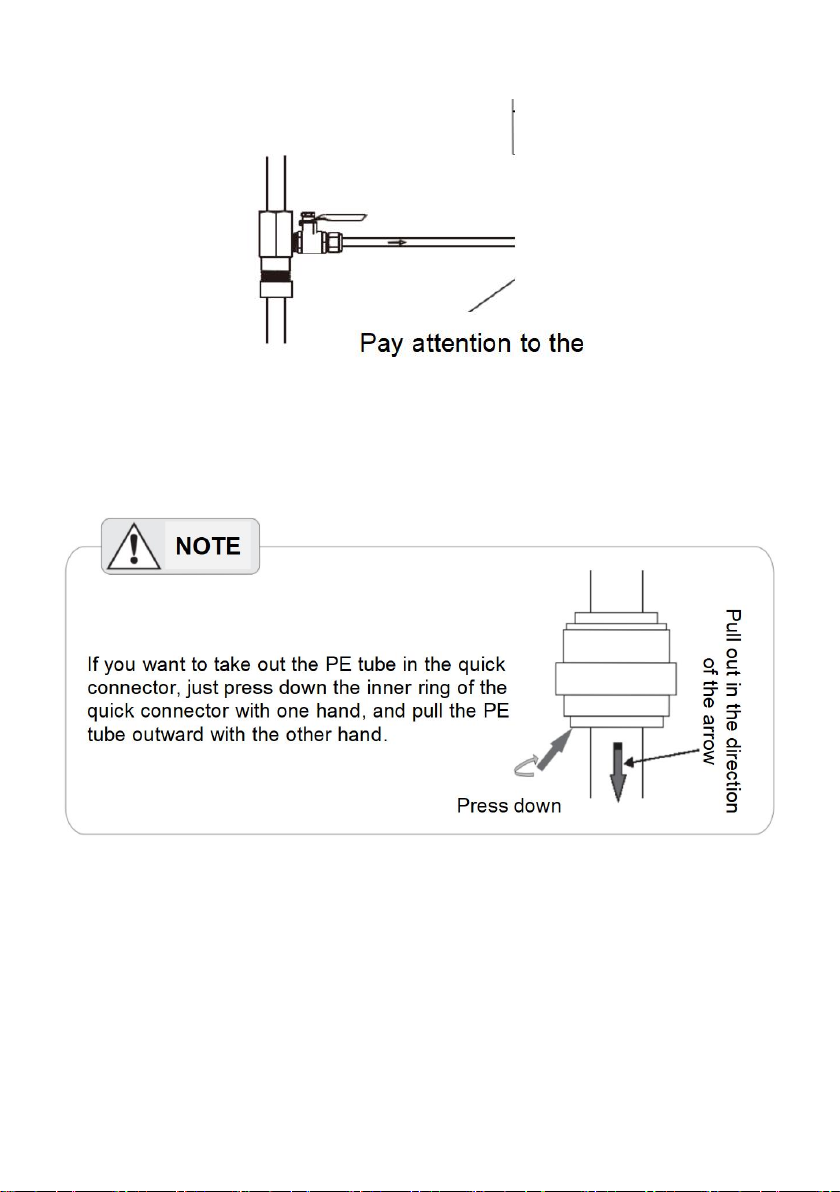

After the PE tube is inserted into the ball valve fixing nut, pull out the PE
tube with sufficient operating length, insert the PE tube into the fixing screw
of the ball valve base, and then screw the fixing nut into the fixing screw
and tighten it with a wrench to set the ball valve in the closed position. At

- 12 -
this time, the three-way ball valve and PE pipe are installed and connected.
Then insert the other end of the PE pipe into the1/4” straight-through quick
connector, and the other end of the quick connector is connected to the
bottom interface of the faucet adapter B, and the under-counter part is
installed.

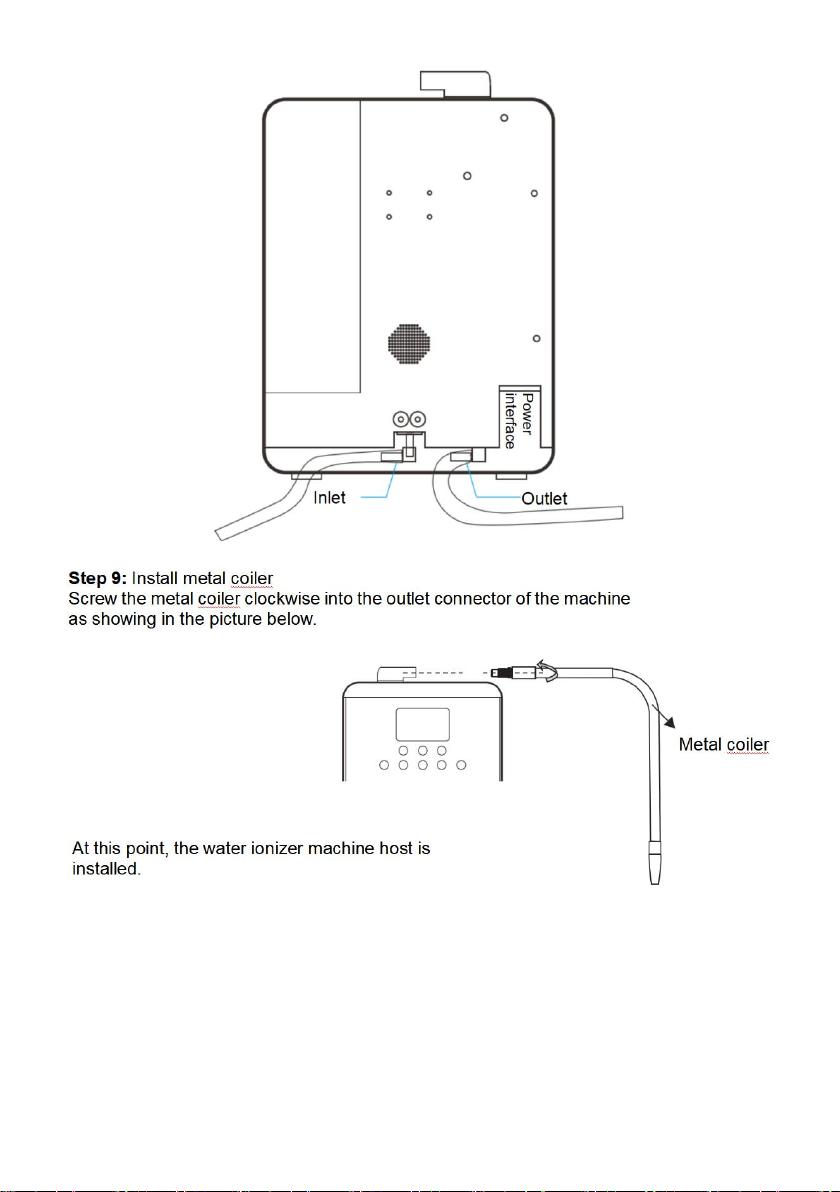

Installation of the water ionizer machine
Fix the water ionizer machine on the wall with hanging kit.
The first step is to directly place the machine in a convenient and suitable
position on the counter;
The second step is to measure the appropriate height above the sink
(30-50cm above the sink is appropriate), take out the accessories in the
accessory bag, take out the hanging plate to determine the machine

- 13 -
hanging holes position.
If the installation environment is not convenient to drill holes, please use
nail-free glue to fix the wall hanging plate. After determining the position of
the wall hanging plate, evenly apply the nail-free glue to the fixing surface
of the wall hanging plate, and then stick to the fixed position of the wall
surface (complete the operation within 5 minutes to prevent glue from
solidification). After fixing with nail-free glue, it is necessary to wait 24
hours after the glue is completely solidified before hanging the machine on
the wall.
The third step is to use an electric drill to drill two holes with a vertical depth
of about 50mm and a diameter of 6mm according to the drilling position,
and the center distance of the two holes is 40mm.

- 14 -

- 15 -
Step 8: Take down the machine from wall. Cut the 3/8” hose into 2 pieces
with appropriate length. Connect the hoses to the IN and OUT nozzles at
the bottom of machine base.
Tap adapter A:
Insert one end of the first 3/8” hose into the top water outlet of the tap
adapter A and fix it tightly with a pipe clamp. Connect the other end to the
water inlet at the IN nozzle of the machine base and fix it tightly with a pipe
clamp.
Insert one end of the second 3/8” hose into the bottom outlet of the tap
adapter A and fix it tightly with a pipe clamp. Connect the other end to the
OUT nozzle of the machine base and fix it tightly with a pipe clamp.
Tap adapter B:
Insert one end of the first 3/8” hose into the bottom outlet of the tap adapter
B and fix it tightly with a pipe clamp, and connect the other end to the water
intake at the IN nozzle of the machine base and fix it tightly with a pipe
clamp.
Insert one end of the second 3/8” hose into the top outlet of the tap adapter
B and fix it tightly with a pipe clamp. Connect the other end to the outlet of
the machine base and fix it tightly with a pipe clamp.

- 16 -
Plug in the power cord.
First, make sure that the specifications of the power supply to be
connected are consistent with the requirements of the nameplate, and then
insert the power cord plug (one end is connected to the lower end of the
machine, the other end is connected to the power supply).
After the power cable is plugged in, the LCD and indicator light up. In daily

- 17 -
use, the power cable plug can not be disconnected.
HOW TO CONNECT THE ADAPTER TO THE FAUCET
Type A:
This type of faucet is with the
external threads, after
removing the outlet nozzle of
the tap. Connect the adapter to
the tap and fasten the screw.
Ensure the washer has been
inserted before tightening.
Type B:
Connect the black rubber part
to the faucet. Remove the
inside small rubber ring if
necessary. Fasten the steel
ring with the screwdriver. Then
fix the adapter to the screw
threads at the bottom of the
black rubber part.
HOW TO CONNECT THE HOSES TO THE ADAPTER
• Insert the hoses through the hollow bolts first. Fix the hoses on the
nozzles, then fasten the hollow bolts.

- 18 -
Top hose (A): Tap water outlet.
Connect the other end to the Pre-filter
Inlet. The tap water will flow into the
Pre-filter set.
Bottom hose (B): Drain water outlet.
Connect the other end to the Outlet in the
back of the unit. The drain water will flow
out from the Outlet.
PRODUCT MAIN FEATURES
This Multifunctional Water Ionizer can be used freely in different water
quality and different standards of the power supplies.
• A large 4.2-inch colorful LCD screen display, displaying more information.
• The LCD displays pH and ORP, flow rate, temperature, filter usage life
etc., helping user to select suitable water.
• Elegant and solid CDC touch control panel, brief, clear and easier to be
used by children & elderly people.
• By using high-power SMPS power supply, it is suitable for many different
power supplies in the world, safe and reliable.
• The electrolysis with the Microcomputer automatic control system can
work perfectly with the water TDS from 50 to 1000PPM.
• It has a built-in water filtering system, showing the filter life span in time,
to make sure the water quality is safe for both body health and machine life
time.
• It has the self-cleaning function, to prevent scaling and maintain the high
performance.
• Japan imported stainless steel Spouts, never rust, free to be bent to any
direction.
• 9pcs large size Titanium with Platinum coating plates, applied with Japan
imported ionic membrane, providing higher efficiency electrolysis and
longer working life.
