VEVOR MGTG-7102 User manual

Technical Support and E-Warranty Certificate www.vevor.com/support
COUNTERTOP GAS RANGES
USER MANUAL
Model: MGTG-7102
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Model: MGTG-7102
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
COUNTERTOP GAS
RANGES
Note: the quantity of parts shown in the manual is the actual usage and the
unused parts are spare parts.

1
Warning-To reduce the risk of injury, user must read instructions
manual carefully.
IMPORTANT SAFEGUARDS
Thank you for using this product. In order to make sure that you can operate the
machine correctly, read this instruction carefully before operation and keep it
properly for future reference. Please be sure to read the precautions and safety
rules in this page to ensure your safe use.
This manual will outline safety warnings and precautions, operating, maintenance
and cleaning. The warnings and instructions reviewed in this manual cannot cover
all possible conditions and situations that may occur. Caution and common sense
are not built into this product, since we believe that the uses will comply with these
codes.
Please read ALL the instructions before using your machine.
1. Do NOT let children and minors get close to or touch the machine.
2. Do NOT touch the hot surface directly with your hands. Always operate with
knob.
3. Do NOT immerse the appliance in water or any other liquid.
4. Cool down the HOT parts before operation.
5. Using any accessories or attachments that are not provided or recommended
by the manufacturer may cause injury.
6. Prior to installation, ensure that the local distribution conditions (NG/LPG gas
and gas pressure) and the adjustment of the appliance are compatible.
7. The adjustment conditions for this appliance are stated on the label.
8. This appliance is not connected to a combustion products evacuation device. It
shall be installed and connected in accordance with current installation regulations.
Particular attention shall be given to the relevant requirements regarding
ventilation.

2
9. Do not use it with poor ventilation places or for commercial purposes.
10. This appliance must be installed and serviced by a competent person.
11. This appliance shall be installed in accordance with the regulations in force and
only used in a well ventilated space.
12. Ensure that the gas supply complies with the type stated on the rating label.
13. Do not attempt to modify the machine in any way.
14. If the machine is not to be used for a long period of time, clean and cover it and
store it in a dry and safe place.
15. KEEP IT OUT OF CHILDREN'S REACH.
16. Never leave it unattended while in use.
17. Avoid using it in the presence of flammable liquids, gases, dust or other
explosive situations.
18. Extreme caution must be taken when moving an appliance containing hot oil or
other hot liquids.
19. Children shall not play with the machine alone. Cleaning and user
maintenance shall not be made by children without supervision.
20. The machine must never be left unattended during operation or cleaning.
21. Make sure that the machine is always placed on a firm, level and fire retardant
surface, and also placed far away from combustibles.
22. The machine should be located in an open area with good ventilation, away
from trees and fences.
23. While every effort has been made in the manufacture of your machine to
remove any sharp edge, you should handle all components with care in order to
avoid accidental injury.
24. If the fire flares up due to dripping fat then douse the flames lightly with a fine
water spray.
25. Keep fire extinguisher within safe and accessible distance and make sure
those operating the machine are trained to use it.
26. Keep away from flammable material and fluids such as petroleum, alcohol,

3
diesel fuel, kerosene and charcoal lighter fluid or vehicles while in use. Do not use
these materials to light or relight also.
27. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
28. DO NOT use the machine in high wind.
29. Do NOT store the machine until the fire is completely out and surfaces are cold;
also do not store the machine with ashes or combustible materials inside.
30. Do NOT overload or use this machine to burn leaves, household waste, or
paper.
31. DO NOT wear loose clothing, and ensure that long hair is tied back when
around the machine when it is hot or in use.
32. DO NOT use this product as a furnace.󳮂
33. Ensure that the product is positioned on a permanent, flat, level, heat resistant,
non-flammable surface always from flammable items, including wooden fences or
overhanging trees.󳮂
34. Ensure the product has a minimum of 2 meters overhead clearance and has a
minimum of 2 m clearance from other surrounding items.
35. NEVER leave a burning fire unattended.󳮂
36. This machine is intended for domestic cooking only. It is not designed for
commercial or industrial purposes.
37. This appliance is not connected to a combustion products evacuation device. It
must be installed and connected in accordance with current installation regulations.
Particular attention shall be given to the relevant requirements regarding
ventilation.
38. When in use a gas cooking appliance will produce heat and moisture in the
room in which it has been installed. Ensure there is a continuous air supply,
keeping air vents in good condition or installing a cooker hood with a venting hose.
39. When using the machine for a long period of time, the ventilation should be
improved, by opening a window or increasing the extractor speed.
40. Do not use machine if it is in contact with water. Do not operate the machine
with wet hands.
41. Ensure the control knobs are in the closed position when not in use.

4
42. When using other electrical appliances, ensure the cable does not come into
contact with the hot surfaces of the cooking appliance.
43. Unstable or misshapen pans should not be used on the machine as unstable
pans can cause an accident by tipping or spillage.
44. Never leave the machine unattended when cooking with oil and fats.
45. Never use plastic or aluminum foil dishes on the machine.
46. Perishable food, plastic items and aerosols may be affected by heat and
should not be stored above or below the machine unit.
47. The machine should only be repaired or serviced by an authorized Service
Engineer and only genuine approved spare parts should be used.
48. Ensure that the machine supply cable does not come into contact with
surfaces with temperatures higher than 50°C.
49. Machine cannot be used for barbecue.
50. Do not place clothes above the machine and avoid using it as a clothes dryer.
51. This product cannot be used for other purposes.
52. Not suitable for commercial use.
53. Use only a rubber hose. Do not use a vinyl plastic hose, as this can be
dangerous.
54. In the event of a burn back.(i.e.where the gas burns back on the jet), turn off
the valve and light again. Should the problem persist take the unit back to your
dealer for checking.
WARNING! This product will become very hot, do not move it
during operation.
WARNING! In case of the danger of carbon monoxide poisoning, do not
use the product rotisserie grill indoors.
WARNING! Do not use the barbecue in a confined and/or habitable space
e.g. houses, tents, caravans, motor homes, boats.
WARNING! Remove all packaging materials and keep them for future
use.Packaging materials are not a toy.

5
WARNING! Don't let children play with the packaging materials. If they
swallow the packaging materials, they will suffocate!
WARNING! Do not use spirit or petrol for lighting or relighting!
WARNING! Keep children and pets away.Children must not operate or
play near this machine.󳮂
WARNING! Failure to follow instructions could result in death, serious
bodily injury and/or property loss.
WARNING! After installation, please check for air leaks and ensure that
there are no leaks before use.
WARNING! If a gas leak is found, close the main gas valve, open
up all windows, go out the house and call your dealer. Do
refrain from turning an electric switch on or off. DO NOT
lighting a match！DO NOT using a lighter！

6
PRODUCT COMPONENTS
1. Please dispose of all plastic bags carefully and keep them away from
children.
2. Check all components provided according to the list in this manual.
3. Make sure you have all of the parts listed. If not, contact your local store who
will be able to help you.
ATTENTION!
Whilst every care is taken in the manufacture of this product, care must be taken
during assembly in case sharp edges are present.
Parts List

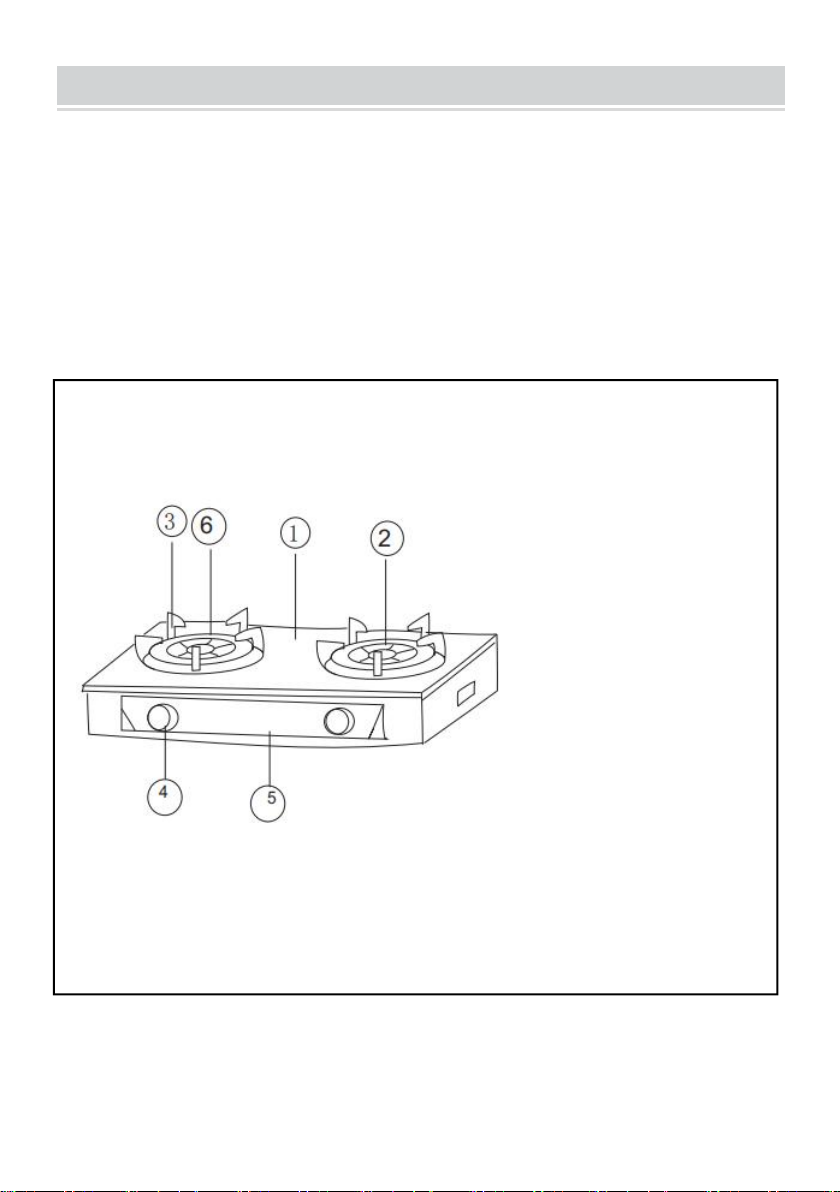

Model: MGBS-765
1.Top panel
2.Burner
3.Trivet
4.Gas control knob
5.Front panel
6.Brass cap
NOTE: Knob is designed for anti-clock wise ignition, so that to
prevent children act.

7
TECHNICAL DATA
Model:MGTG-7102
NG
LPG
Gas pressure
1740Pa
2750Pa
Ignition system
Electronic ignition
Hose
Φ9.5mm rubber hose
NOTE: Prior to installation, ensure that the local distribution conditions (NG/LPG
gas and gas pressure) and the adjustment of the appliance are compatible.
BEFORE USE
Before using the appliance for the first time, peel off any promotional materials and
packaging materials, and check that machine are clean and free of dust. If
necessary, wipe them over with a damp cloth. Spread over with an absorbent
kitchen towel and wipe off any excess oil. When your product is heated for the first
time, it may emit slight smoke or odor, which is normal for many heating
appliances, and will not affect the safety of your appliance.
1. Confirm that you have the right model for your type of gas supply:NG or LPG.
2. Place the gas control knob onto the gas cock axis and push it inwards
firmly.(Fig.1)

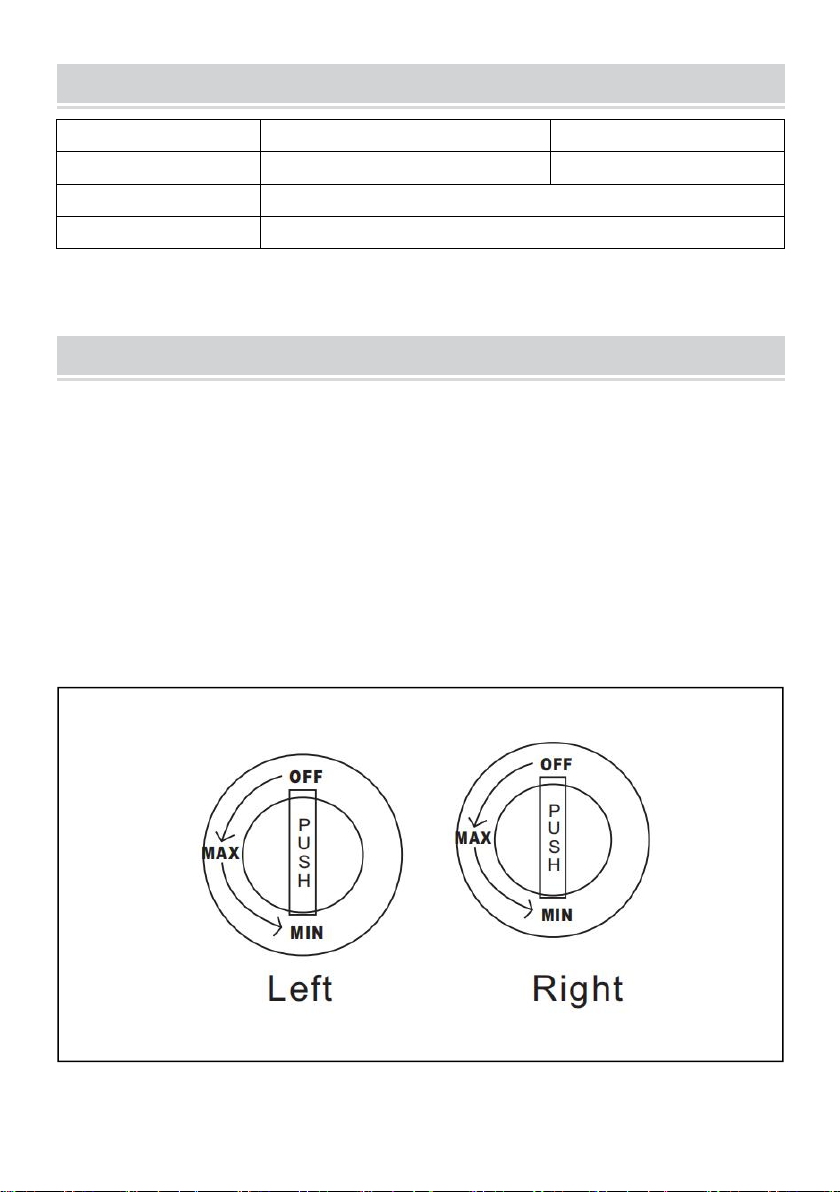

Fig.1
Two-way gas cooker

8

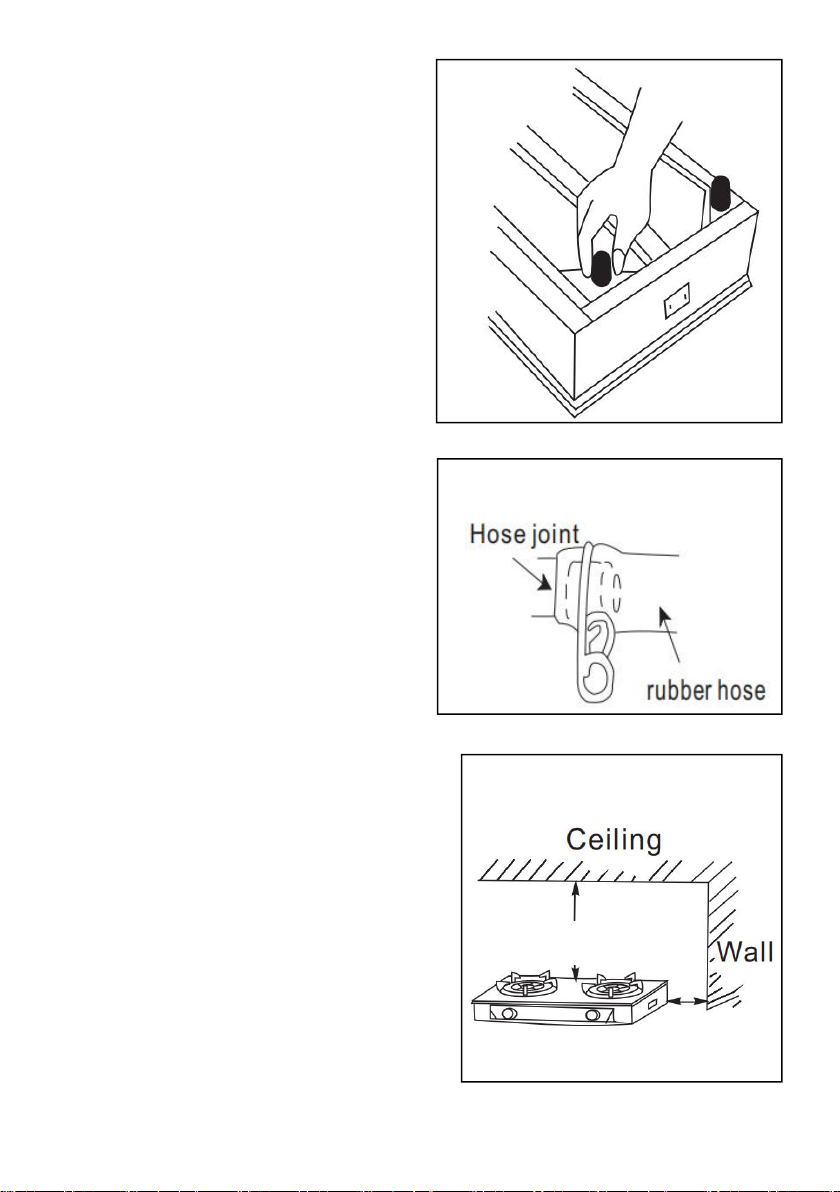

3. Attach the rubber leg to the cooker by
turning the cooker upside down and
screwing them into the openings on the
cooker bottom.(Fig.2)
4. Install the burner.
5. Place the trivets on top of the
burner, the trivet can be adjusted but
turning the screws and then the pan
can be put on the trivets steadily
6. Push the rubber hose onto the
Hose joint as far as it will go. Do not
use a vinyl plastic hose. As this can
be dangerous .Secure the hose with
both sides of hose clamp.(Fig.3) see
to it that the rubber hose does not
touch a part of the gas cooker nor
lies underneath it.
7. When choosing a place to put the
gas cooker be sure to pick a spot that
is firm and level . The gas cooker
need plenty of space an d air. Allow
at least 150mm of space on the
flammable walls,(Fig.4) if the space is
less than 150mm from the in flammable
walls, be sure to provide a heal
insulation board, Also be sure to keep
paper oil, and all other inflammable
objects away from the gas cooker.
Fig.2
Fig.3
Fig.4
5.9inch(150mm)
39.4inch(1000mm)

9
OPERATING INSTRUCTIONS
Before using the appliance for the first time, peel off any promotional materials and
packaging materials, and check that machine are clean and free of dust. Any gas
installation must be carried out by a competent person. The manufacturer will not
accept liability, should the above instructions or any of the other safety instructions
incorporated in this book be ignored.

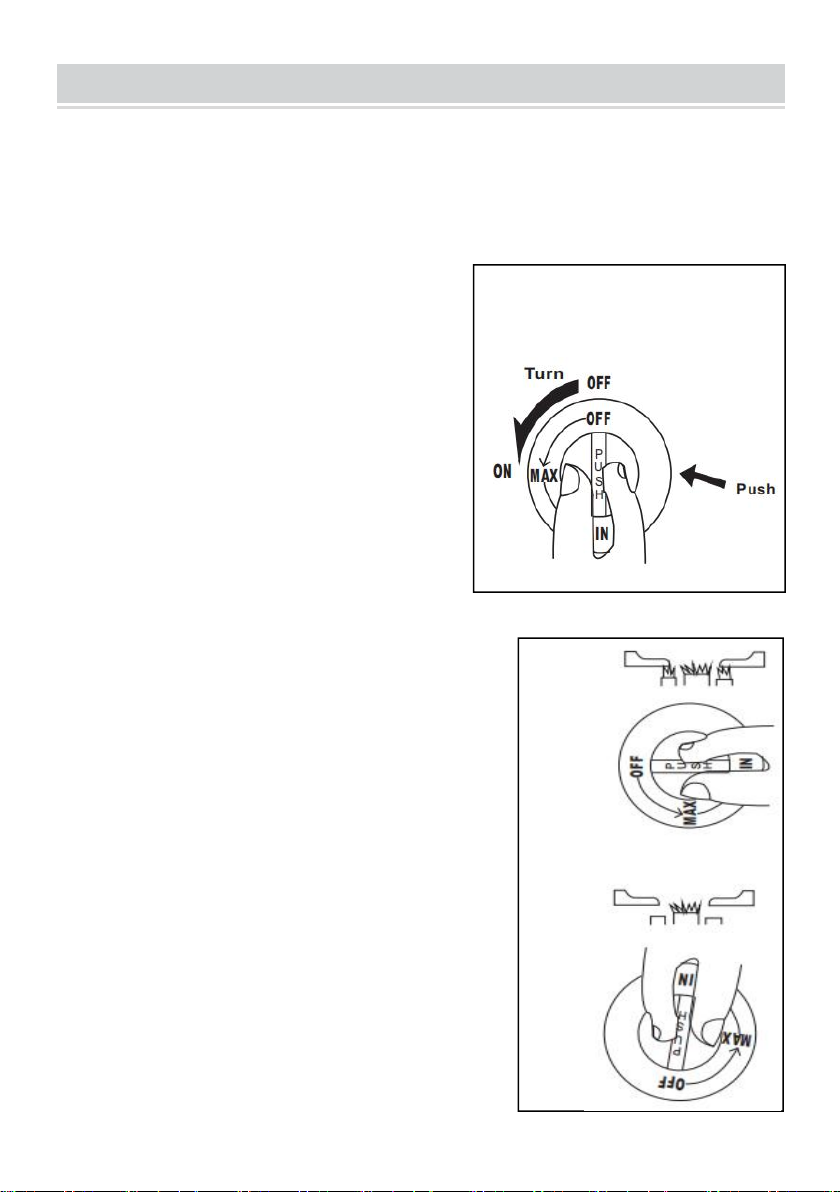

1. To light the burners:
1.1 Open the main gas valve ,push the gas
control knob in and turn it and turn it towards
the MAX position(counter clockwise) until
you hear the ignition click. Make sure that the
burner has been lit.(Fig.5) in this position.
Double burner will light up both the small and
large burners. To use only the small burner,
release the gas control knob and turn it
further to the MIN position.(Fig.6)
1.2 To adjust the flame size, set the gas
Control knob to a suitable position between
MAX(full flame size) and MIN position
(small flame size)
1.3 For the built-in -hob gas cooker, make sure
the burner with safety system or pulseignition
has been lit continue to push the knob for about
5 minutes, then release the gas control knob
once the thermocouple has been preheated. If
the burner is off when you release the gas
control knob, this may be the result of the pushing
time or power is not enough. Turn the knob back
to OFF and tryagain until the burners ignite.
Fig.5
Fig.6

10
2. The burners usually need no air flow
adjustment .If they should ever burn
improperly, the air flow can be controlled by
adjusting the air damper inside the gas
cooker(under the control knob).After the gas
has been ignited, adjust the air damper until
slightly rounded, vigorous blue frames appear.
(Fig.7,8,9)
3. If the burner do not ignite at the
Same time: This may be the result of
air in the gas hose. Turn the gas
control knob Back to OFF and try
again until the burner ignite.
4. Turn the gas control knob back to
OFF position until you hear a click.
Make sure the burner is put out and
Turn off the main gas value as well.
Warning: The use of a gas cooking appliance
results in the production of heat and moisture in
the room in which it is installed. Ensure that the
kitchen is well ventilated: keep natural
ventilation holes open or install a mechanical
ventilation device.Prolonged intensive use of
the appliance may call for additional ventilation,
for example opening of a window, or more
effective ventilation, for example increasing the
level of mechanical ventilation where present.
Fig.7
Fig.8
Fig.9

11
CLEAING MAINTENANCE
1. Before you check and are for your gas cooker.Make sure to turn off the main gas
valve , and wait fora period not to get burnt.
2. Check the gas hose regularly for wear or leaks. It must be replaced
occasionally, keep it away from heater sources, and keep it clean
3. Wipe the stainless steel top and body with a dry cloth. If it is difficult to clean,
use soapy water and then dry thoroughly with a dry cloth.
4. Wash the trivet in water dry thoroughly before replacing.
5. The electronic ignition will not function if it is wet. Be careful not to spill water,
soup, etc. on it. (Fig.10)
6. For better service and a longer service life, keep the gas cooker clean.
CONVERSION FROM NG TO LPG
1. Ensure that the gas taps are in the “OFF” position
2. Isolate the machine from the electrical supply
3. Remove all pan supports, burner caps, rings, crowns and control knobs
4. With the aid of a 7mm box spanner the burner injectors can then be unscrewed
and replaced by the appropriate injectors (provided).(Fig.1)
Fig.10

12
Important: The replacement/conversion and adjustments of the gas machine
should only be undertaken by a competent person.
Important: Your model was designed to work with NG. Please check the note on
the appliance. But it can be converted from one gas category to another, make
sure the injectors (provided) are fitted and the gas rate is adjusted to suit.
TROUBLESHOOTING
TROUBLE
CAUSE
REMEDY
It does not
ignite.
1. Main gas valve remains
closed.
2. Rubber hose is bent.
3. No gas supply.
4. Electronic ignition is wet.
1. Open it.
2. Put it right, or replace it.
3. Replace gas cylinder.
4. Clean and dry them.
It smell of
gas
1. Gas leak from pipe .
2. Rubber hose is damaged.
3. Burner is not lit.
1. Examine pipe using
soap water and replace it.
2. Replace it.
3. Re-ignite it
Combustion
is
abnormal
1. Lack of gas supply .
2. Flame ports are clogged.
3. Burner is not in its correct
Position.
1. Replace gas cylinder.
2. Clean them
3. Place it right position

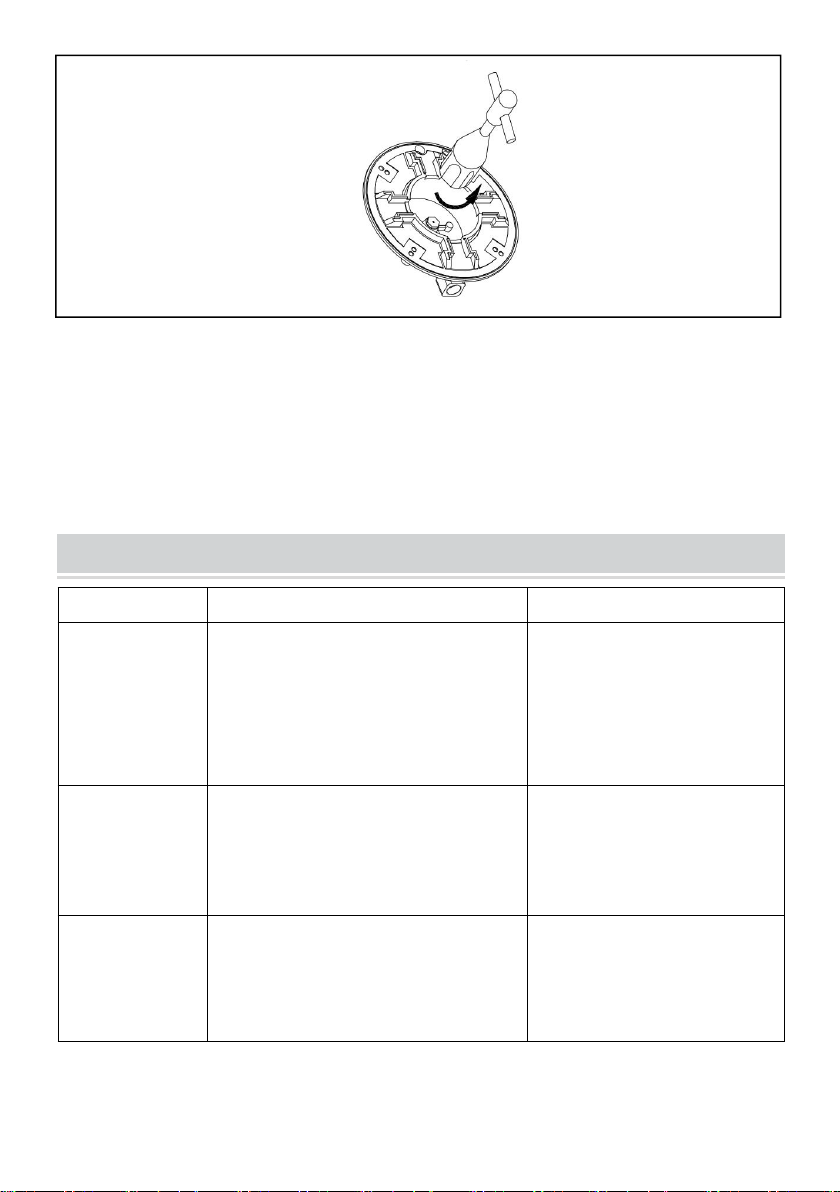

Fig.11

Support and E-Warranty Certificate
ww.vevor.com/support
Made in China
