VIA Technologies EPIA-MII User manual

User’s Manual
EPIA-MII
Mini-ITX Mainboard
Version 1.61
September 25, 2008

Copyright
Copyright © 2004-2008 VIA Technologies Incorporated. All rights reserved. No part of this
document may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise without the prior written permission of VIA
Technologies Incorporated.
Trademarks
Windows CE™, Windows XP™, Windows 2000™, Windows ME™, Windows 98™ and plug
and play™ are registered trademarks of Microsoft Corporation.
PS/2 is a registered trademark of IBM Corporation.
AwardBIOS is a registered trademark of Phoenix Technologies Ltd.
All trademarks are the property of their respective holders.
Macrovision
Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; 5,583,936
licensed for limited viewing uses only. This product incorporates copyright protection
technology that is protected by certain U.S. patents and other intellectual property rights owned
by Macrovision and other rights owners. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision. Reverse engineering or disassembly is
prohibited.
Disclaimer
No license is granted, implied or otherwise, under any patent or patent rights of VIA
Technologies. VIA Technologies makes no warranties, implied or otherwise, in regard to this
document and to the products described in this document. The information provided in this
document is believed to be accurate and reliable as of the publication date of this document.
However, VIA Technologies assumes no responsibility for the use or misuse of the information
in this document and for any patent infringements that may arise from the use of this
document. The information and product specifications within this document are subject to
change at any time, without notice and without obligation to notify any person of such change.

FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the interference at his
personal expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with
the emission limits.
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE

Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User's Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the equipment from
overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V before
connecting the equipment to the power inlet.
7. Place the power cord in such a way that people cannot step on it. Do not place anything
over the power cord.
8. Always unplug the power cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening. Liquid can cause damage or electrical shock.
11. If any of the following situations arises, get the equipment checked by a service personnel:
•The power cord or plug is damaged
•Liquid has penetrated into the equipment
•The equipment has been exposed to moisture
•The equipment has not work well or you cannot get it work according to User's
Manual.
•The equipment has dropped and damaged
•If the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED,
STORAGE TEMPERATURE ABOVE 60 C (140F), IT MAY DAMAGE THE
EQUIPMENT.
Caution:
Only use the appropriate battery specified for this product.
Do not reuse, recharge, or reheat an old battery.
Do not attempt to force open the battery.
Do not discard used batteries with regular trash.
Discard used batteries according to local regulations.

i
B OX C ONTENTS
•1 x VIA Mainboard
•1 x Quick Insta ation Guide
•1 x F oppy Ribbon Cab e
•1 x ATA-66/100/133 IDE Ribbon Cab e
•1 x I/O Bracket
•1 x Driver Uti ities CD

ii
T ABLE OF C ONTENTS
Box Contents............................................................................ i
Tab e of Contents .................................................................... ii
Chapter 1 ............................................................................... 1
Specifications ....................................................................... 1
Mainboard Specifications ....................................................... 2
Mainboard Layout ................................................................. 4
Back Pane Ports ................................................................... 6
S ots.................................................................................... 6
Onboard Connectors and Jumpers........................................... 7
Chapter 2 ............................................................................... 9
Insta ation........................................................................... 9
CPU ................................................................................... 10
Memory Modu e Insta ation ................................................. 12
Connecting the Power Supp y ............................................... 14
Back Pane Ports ................................................................. 15
Connectors ......................................................................... 19
Jumpers............................................................................. 27
S ots.................................................................................. 28
Chapter 3 ............................................................................. 29
BIOS Setup ........................................................................ 29
Entering Setup ................................................................... 30
Contro Keys....................................................................... 30
Getting He p ....................................................................... 31
Main Menu ......................................................................... 32
Standard CMOS Features ..................................................... 34
Advanced BIOS Features...................................................... 36
Advanced Chipset Features .................................................. 39
Integrated Periphera s ......................................................... 41
Power Management Setup .................................................... 45
PNP/PCI Configurations ....................................................... 50
PC Hea th Status ................................................................. 53
Frequency / Vo tage Contro ................................................. 54
Load Fai -Safe Defau ts........................................................ 57
Load Optimized Defau ts ...................................................... 58

iii
Set Supervisor / User Password ............................................ 59
Save & Exit Setup ............................................................... 61
Exit Without Saving ............................................................. 62
Chapter 4 ............................................................................. 63
Driver Insta ation ............................................................... 63
Driver Uti ities .................................................................... 64
CD Content ........................................................................ 65

iv
This page is intentiona y eft b ank.

1
C
HAPTER
1
Specifications
The u tra-compact and high y integrated VIA EPIA-MII Mini-ITX
Mainboard is the sma est form factor mainboard specification
avai ab e today, deve oped by VIA Techno ogies, Inc. as part of
the company’s open industry-wide tota connectivity initiative.
The mainboard enab es the creation of an exciting new
generation of sma , ergonomic, innovative and affordab e
embedded systems. Through high eve of integration, mini-ITX
on y occupy 66% of the size of F exATX mainboard form factor.
The mainboard comes with an embedded VIA Processor, boasting
u tra ow power consumption and coo , quiet operation.

Chapter 1
2
M AINBOARD S PECIFICATIONS
CPU
•VIA C3 / EDEN EBGA Processor (onboard)
•Enhanced Ba Grid Array Package (EBGA)
•Interna L1 128KB and L2 64KB cache memory
Chipset
•VIA CLE266 North Bridge
•VT8235 South Bridge
Memory
•1 x DDR266 DIMM socket (up to 1 GB)
E pansion Slots
•1 x PCI
Graphics
•Integrated VIA Cast erock AGP graphics
Audio
•VT1616, six channe AC’97 Codec
Onboard IEEE 1394 (optional)
•VIA VT6307S IEEE 1394
LAN
•VIA VT6103 10/100 Base-T Ethernet PHY
IDE
•2 x U traDMA 66/100/133 connectors
OnModule CardBus/CF
•RICOH 476II
LVDS (optional)
•VIA VT1631 LVDS Transmitter

Specifications
3
Back Panel I/O Ports
•1 x PS2 mouse port
•1 x PS2 keyboard port
•1 x VGA port
•1 x S-Video port
•1 x RCA port (SPDIF or TV-out)
•1 x RJ-45 LAN port
•2 USB 2.0/1.1 ports
•1 x 1394 port
•1 x Cardbus s ot & CF s ot
•1 x Seria port
•3 x Audio jacks: ine-out, ine-in and mic-in
Onboard I/O Connectors
•1 x USB 2.0/1.1 connector (USB 2.0 support inc uded in South
Bridge)
•1 x 1394 connector (optiona )
•1 x CD Audio-in connector
•1 x Front audio connector
•1 x FIR connector
•1 x KBMS connector
•1 x Wake-on-LAN connector
•3 x Fan connectors (CPU Fan, System Fan, Fan 3)
•1 x LVDS connector (optiona )
•1 x Seria port connector for second COM port
•1 x LPT port connector
•1 x SMBus connector
•1 x Video feature connector support (optiona )
BIOS
•Award BIOS with 2/4Mbit f ash memory
Form Factor
•17 cm X 17 cm Mini-ITX (6 ayer)

Chapter 1
4
M AINBOARD L AYOUT
Back Panel

Specifications
5

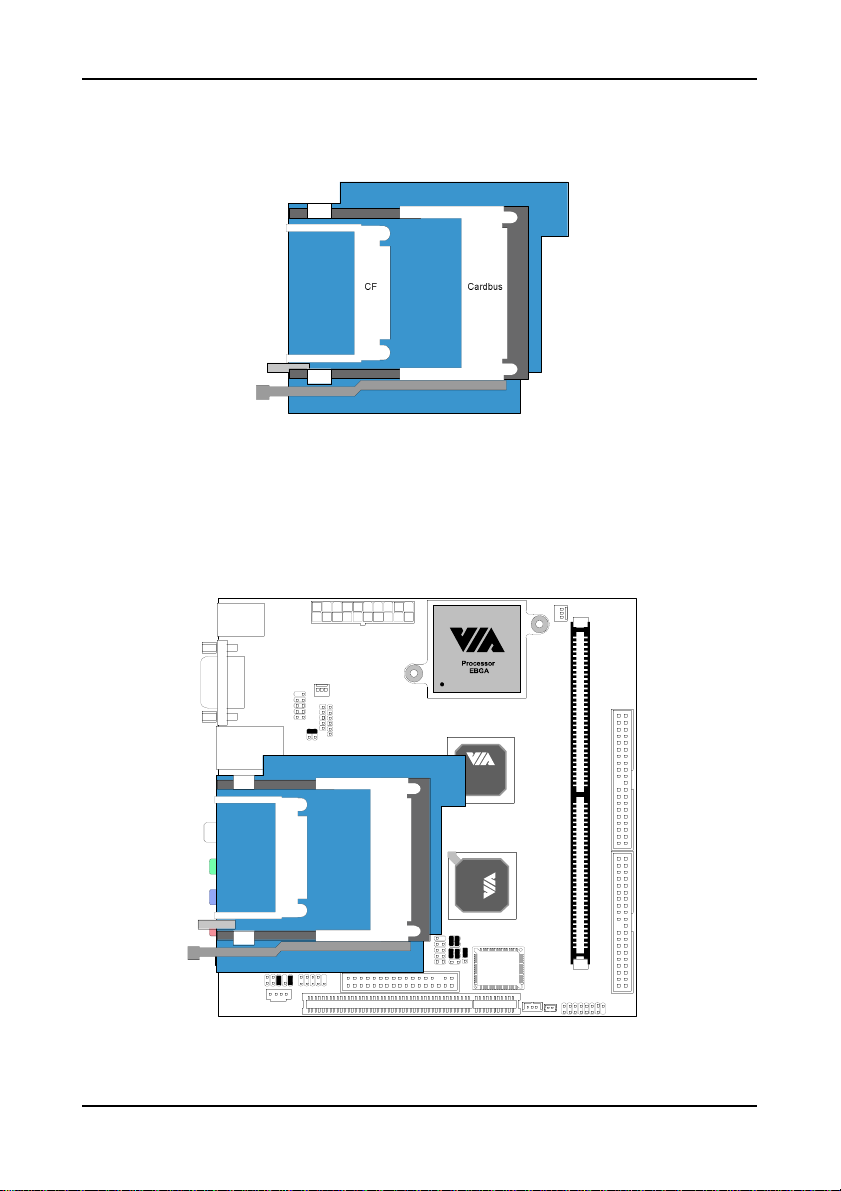

Add-On Module
Placement of ADD-On Module
CLE266

Chapter 1
6
B ACK P ANEL P ORTS
Port Description
1394 IEEE1394 (Firewire port)
Audio Jacks Line-Out, Line-In, Microphone
Cardbus S ot PCMCIA Type II card s ot
CF S ot CF S ot
COM 1 Seria port
PS2-MS PS2 mouse port
PS2-KB PS2 keyboard port
RCA_JACK RCA Video or SPDIF jack
RJ45 10/100 NIC port
S-Video S-Video port
USB 1-2 Universa Seria Bus ports 1 - 2
VGA Out VGA out port
S LOTS
Slot Description
DIMM Memory modu e s ot
PCI Expansion card s ot

Specifications
7
O NBOARD C ONNECTORS AND J UMPERS
Connector/Jumper Description
1394_2 IEEE 1394 connector
ATXPWR ATX power cab e connector
CD_IN Onboard CD audio cab e connector
CLEAR_CMOS Jumper to reset CMOS settings to defau t
COM2 Second seria port connector
F_AUDIO Front audio connector
F_PANEL Case connectors
Fans CPU Fan, System Fan, Fan3
FDD F oppy disk drive connector
FIR Infrared Radiation connector
SMBus SMBus connector
IDE 1&2 IDE hard disk drive connectors
KBMS CIR/PS2(EXT_KBMS) connector
LPT LPT port connector
LVDS LVDS connector
SPDIF_SEL Sony Phi ips Digita Interface Jumper
USB 3/4 Universa Seria Bus connectors
WOL Wake On LAN connector

Chapter 1
8
This page is intentiona y eft b ank.

9
C
HAPTER
2
Insta ation
This chapter provides you with information about hardware setup
procedures. Whi e insta ing the mainboard, carefu y ho d the
components and c ose y fo ow the insta ation procedures. Some
components may be damaged if they are insta ed incorrect y.
It is recommended to use a grounded wrist strap before hand ing
computer components. Static e ectricity can damage some
components.

Chapter 2
10
CPU

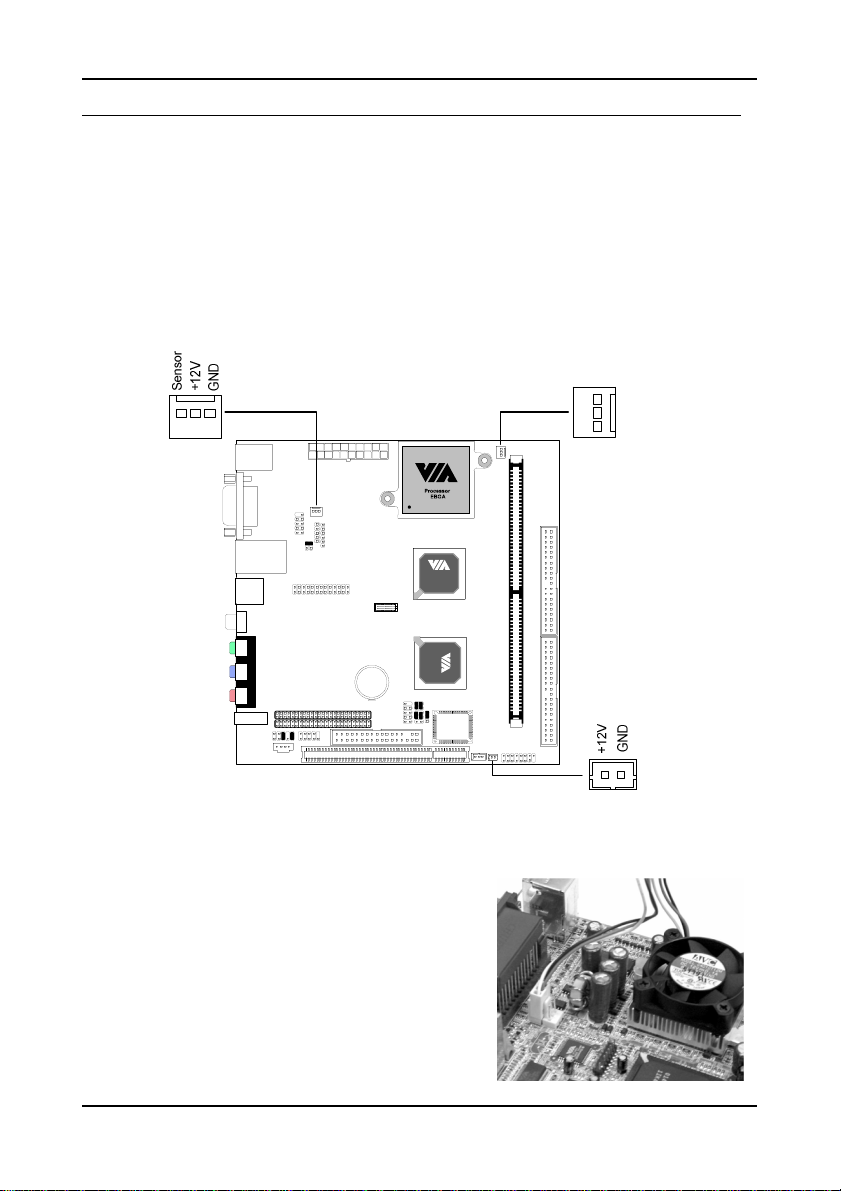

The VIA EPIA-MII Mini-ITX Mainboard inc udes an embedded VIA Eden
Processor or VIA C3 E-Series Processor. The CPUFAN (CPU fan) and SYSFAN
(system fan) run on +12V and maintain system coo ing. When connecting the
wire to the connectors, a ways be aware that the red wire is the Positive and
shou d be connected to the +12V. The b ack wire is Ground and shou d be
connected to GND. Both CPU and System fan connectors have sensors to
detect fan speed.
CLE266
PWRFAN
CPUFAN
Sensor
+12V
GND
SYSFAN
The VIA C3 E-Series Processor
With ow power consumption and advanced
therma dissipation properties, the embedded
VIA C3 E-Series requires on y a sma fan to
guarantee performance and re iabi ity. Ensure
that the CPU Fan Connector is correct y
insta ed as shown.

Insta ation
11

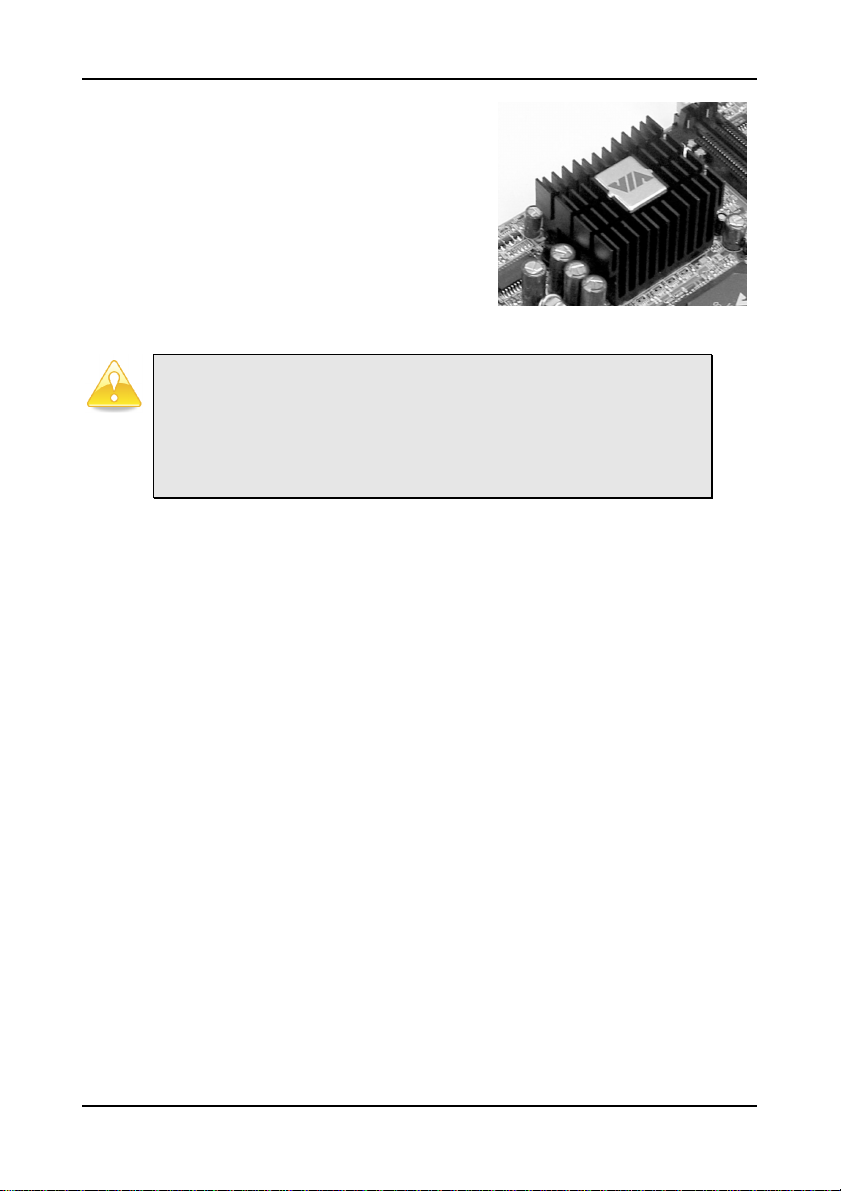

The VIA Eden Processor
Providing u tra- ow power consumption and
advanced therma dissipation properties, the
VIA Eden Processor features a fan ess design.
The VIA Eden Processor requires on y a
heatsink as shown.
Caution:
This motherboard is not designed to support overclocking. Any attempt to
operate beyond product specifications is not recommended. We do not
guarantee the damages or risks caused by operation beyond product
specifications.

Chapter 2
12
M EMORY M ODULE I NSTALLATION

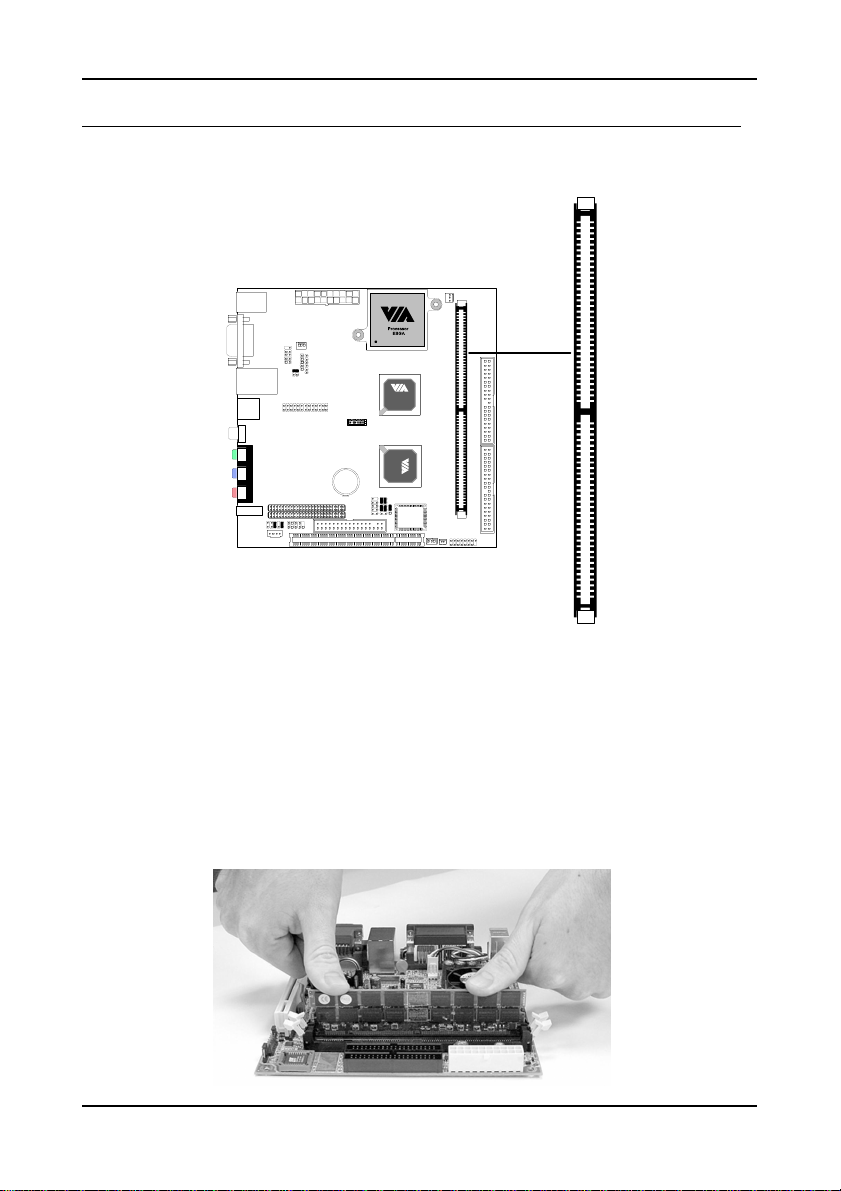

The VIA EPIA-MII Mini-ITX Mainboard provides one 184-pin DIMM s ot for
DDR266 SDRAM memory modu es.
CLE266
DDR SDRAM Module Installation Procedures
1. Push the white retaining atches at either end of the DIMM s ot outwards.
2. A ign the DDR SDRAM modu e with the corresponding notches on the
DIMM s ot. The modu es wi on y fit if p aced in the correct position.
3. With both hands, press the DDR SDRAM modu e down into the DIMM
s ot so that the white retaining atches rotate up and secure the modu e
in p ace (see picture be ow).
